Page 2817 of 3870

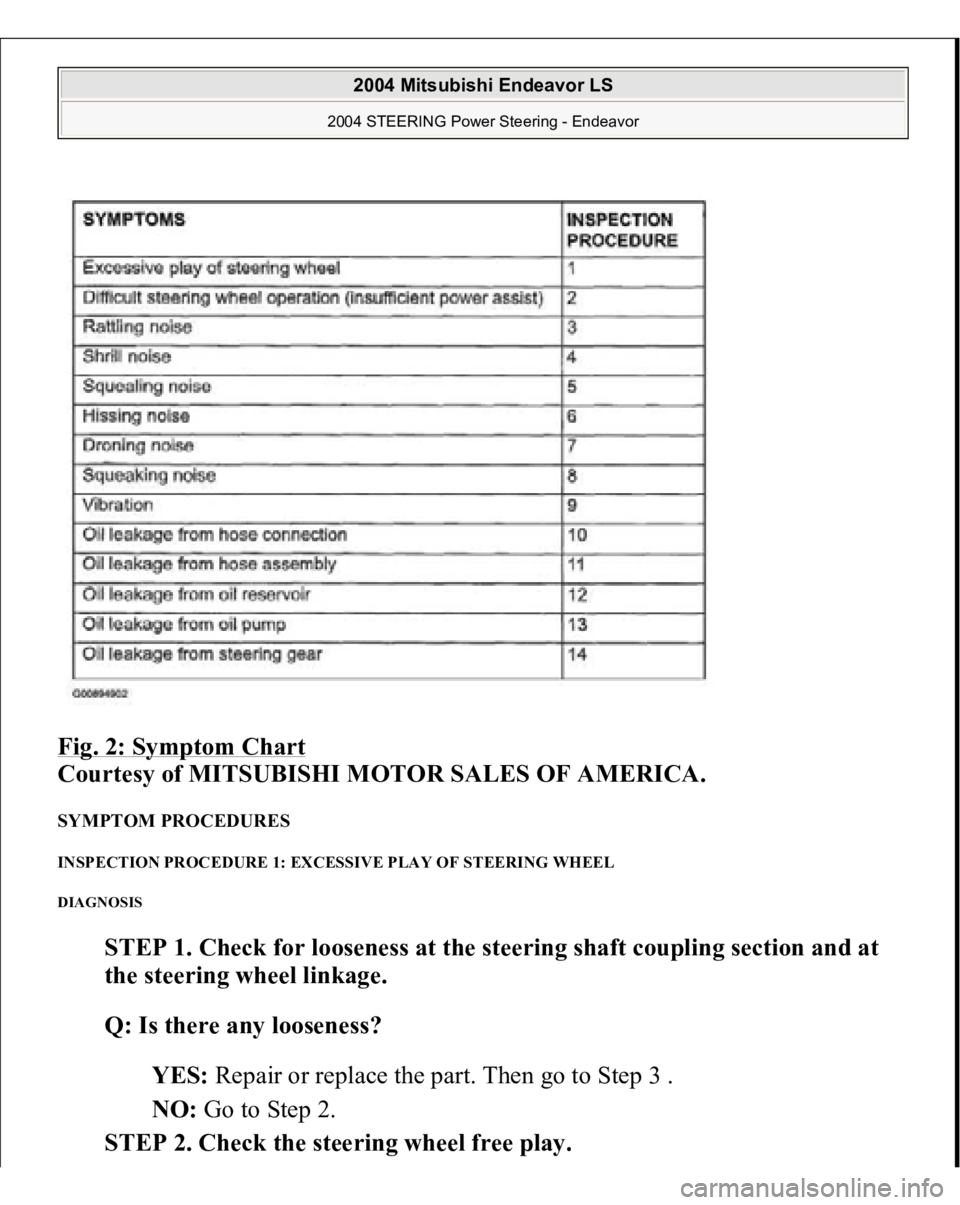

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Symptom Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: EXCESSIVE PLAY OF STEERING WHEEL DIAGNOSIS STEP 1. Check for looseness at the steeri

Page 2818 of 3870

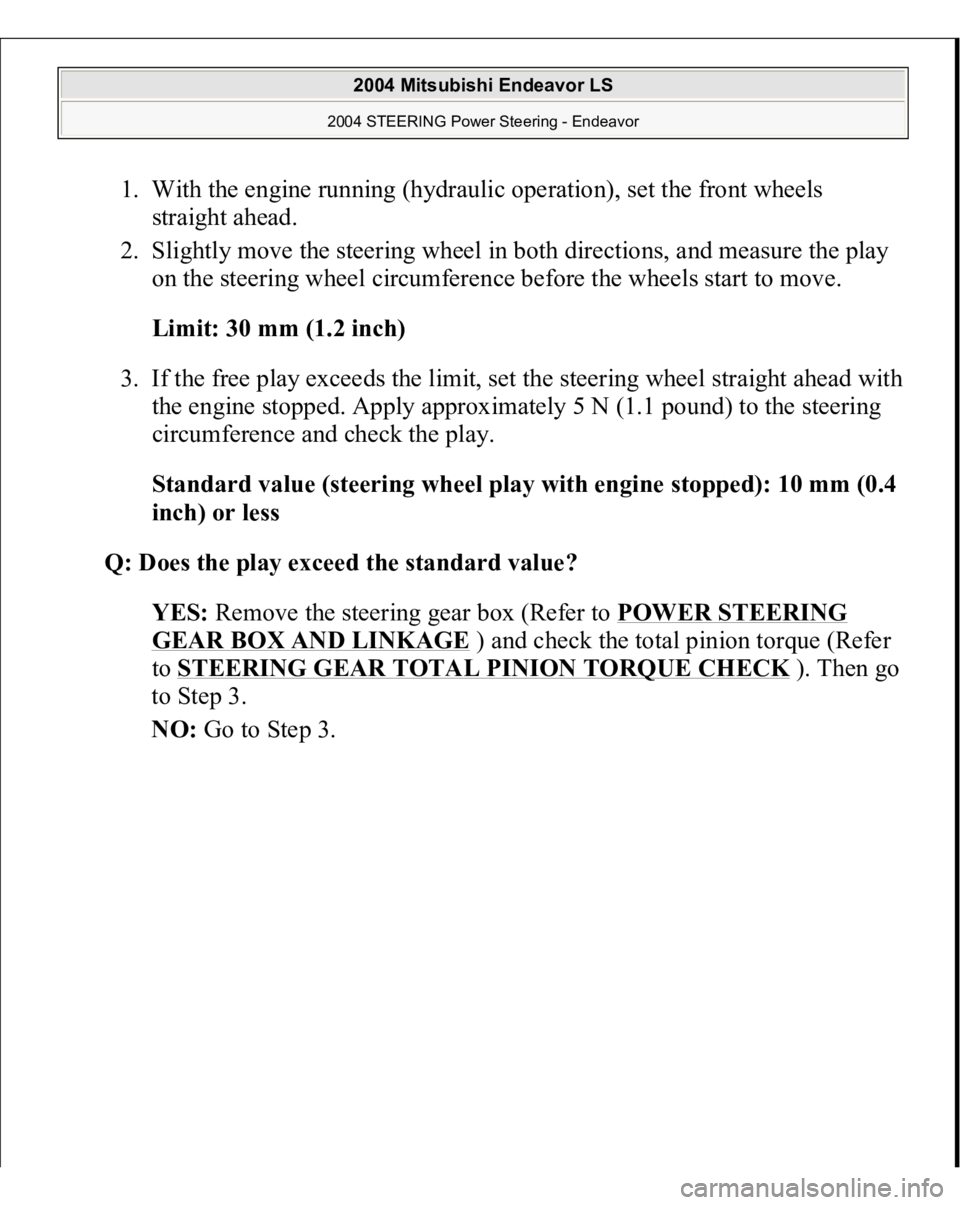

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. With the engine running (hydraulic operation), set the front wheels straight ahead. 2. Slightly move the steering wheel in both directions, and measure the play on the steering wheel circumfere

Page 2819 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Checking Steering Wheel Free Play Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 3. Check the steering wheel play. Verify that the steering wheel play is not excessive. Q: Is the ste

Page 2820 of 3870

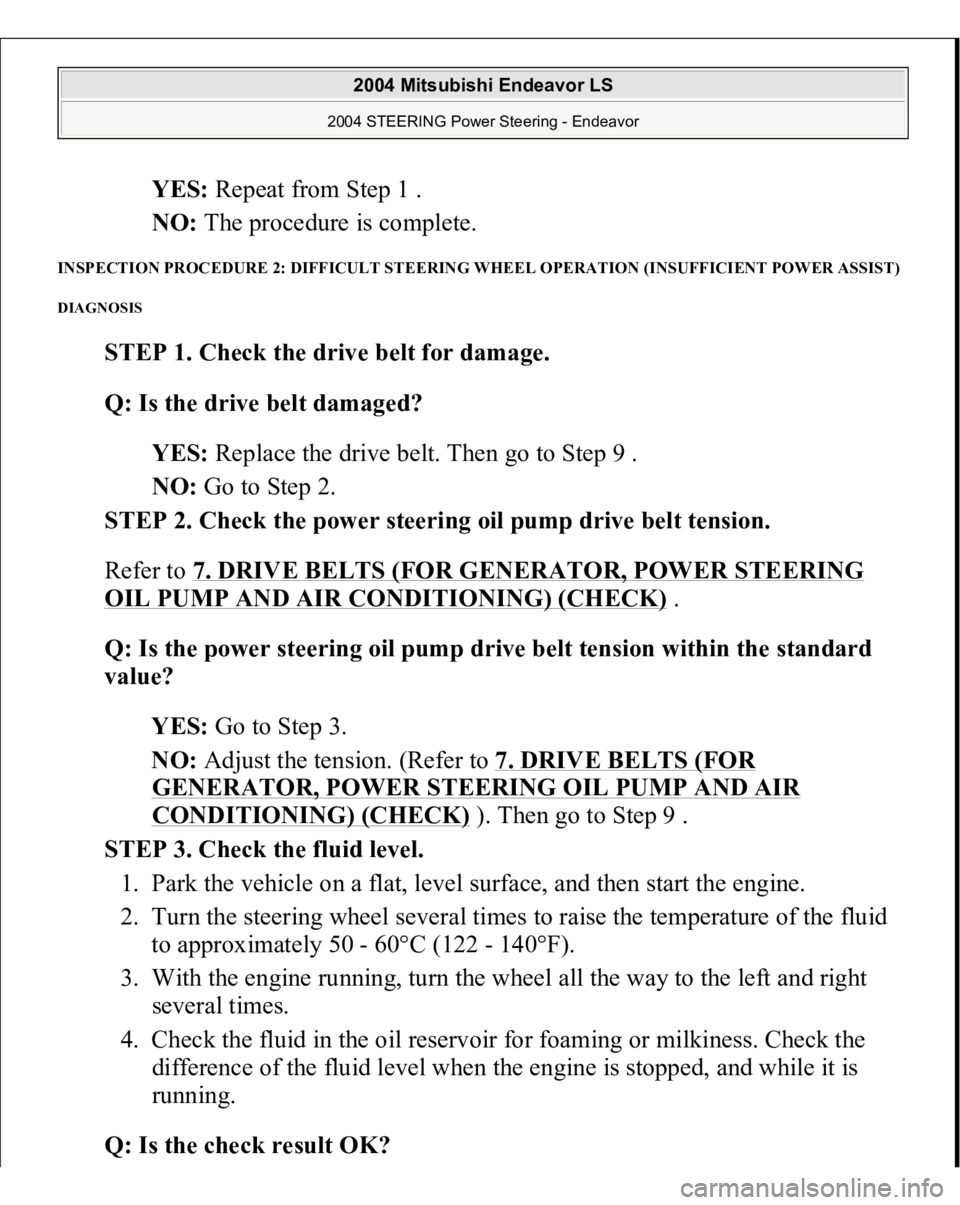

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Repeat from Step 1 . NO: The procedure is complete. INSPECTION PROCEDURE 2: DIFFICULT STEERING WHEEL OPERATION (INSUFFICIENT POWER ASSIST) DIAGNOSIS STEP 1. Check the drive belt for damage.

Page 2821 of 3870

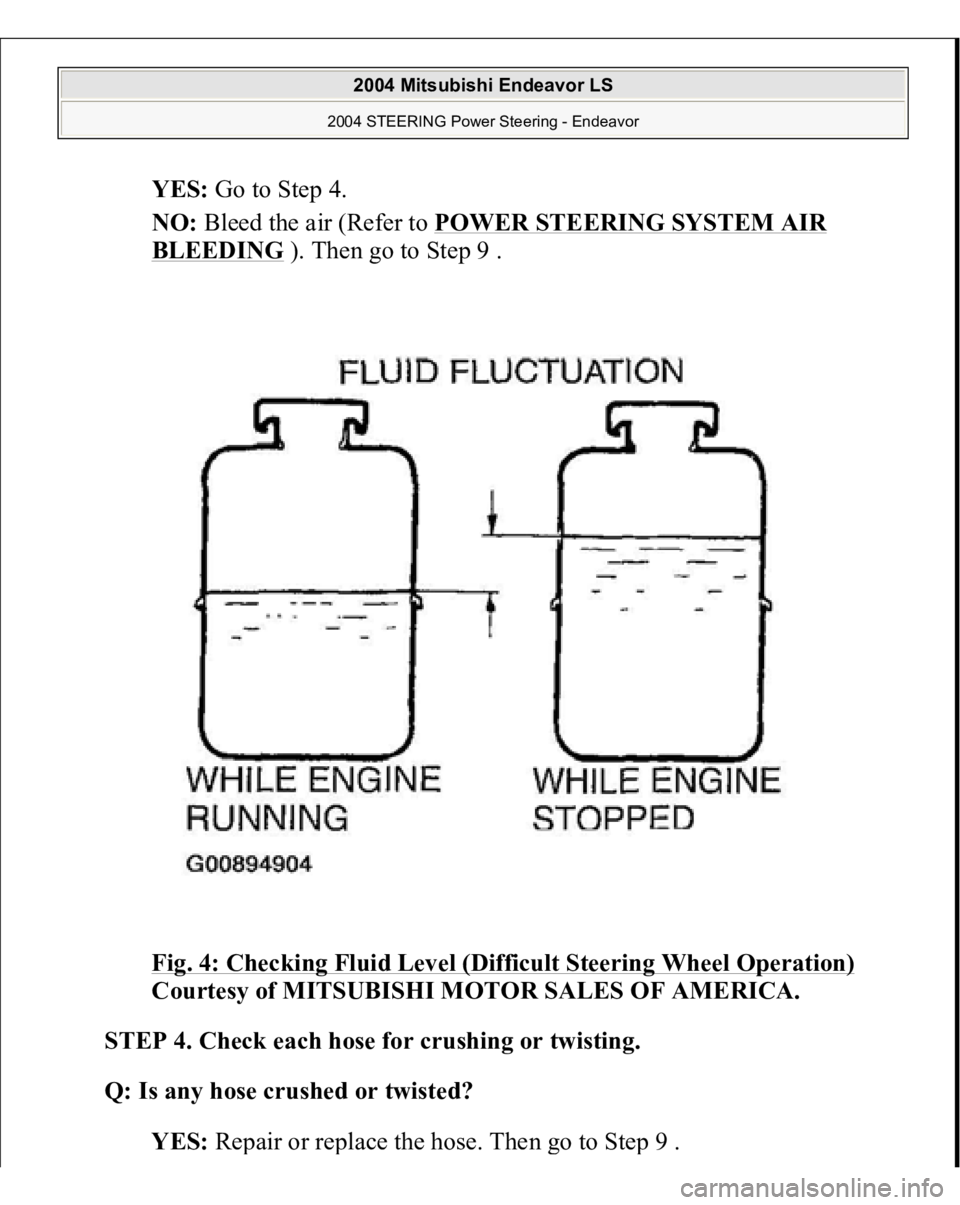

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Go to Step 4. NO: Bleed the air (Refer to POWER STEERING SYSTEM AIR BLEEDING ). Then go to Step 9 . Fig. 4: Checking Fluid Level (Difficult Steering Wheel Operation) Courtesy of MITSUBISHI

Page 2822 of 3870

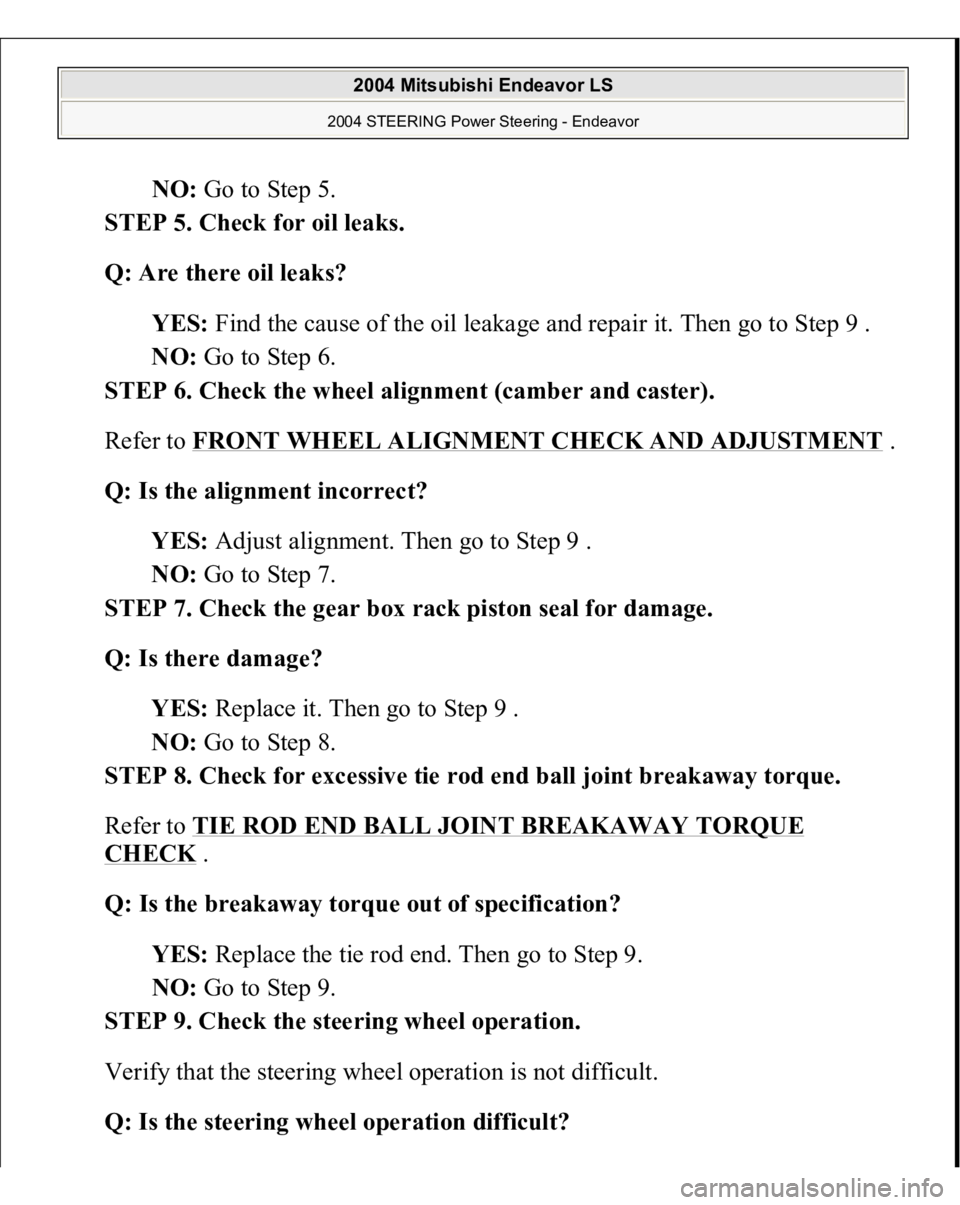

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Go to Step 5. STEP 5. Check for oil leaks. Q: Are there oil leaks? YES: Find the cause of the oil leakage and repair it. Then go to Step 9 . NO: Go to Step 6. STEP 6. Check the wheel alig

Page 2823 of 3870

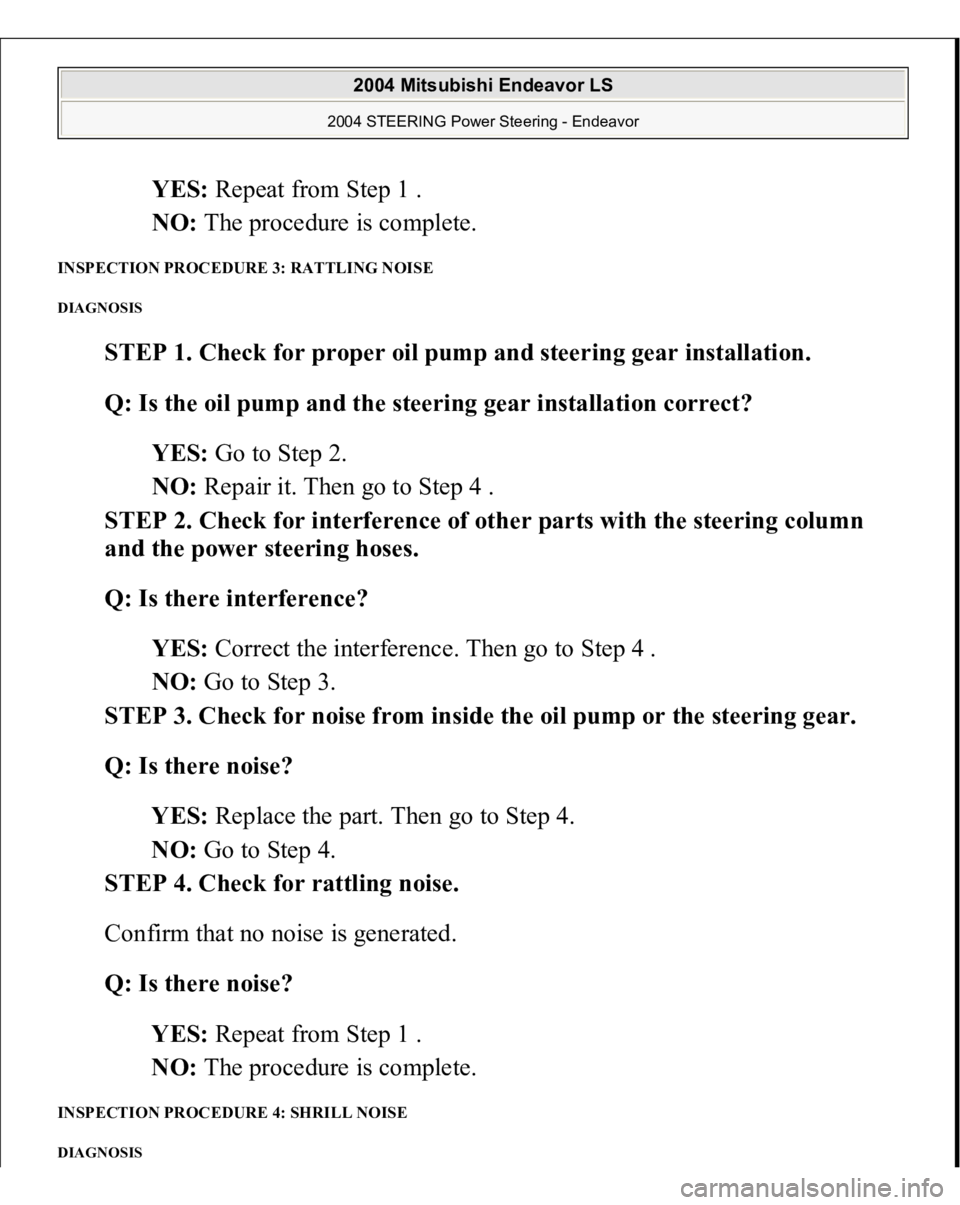

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Repeat from Step 1 . NO: The procedure is complete. INSPECTION PROCEDURE 3: RATTLING NOISE DIAGNOSIS STEP 1. Check for proper oil pump and steering gear installation. Q: Is the oil pump and

Page 2824 of 3870

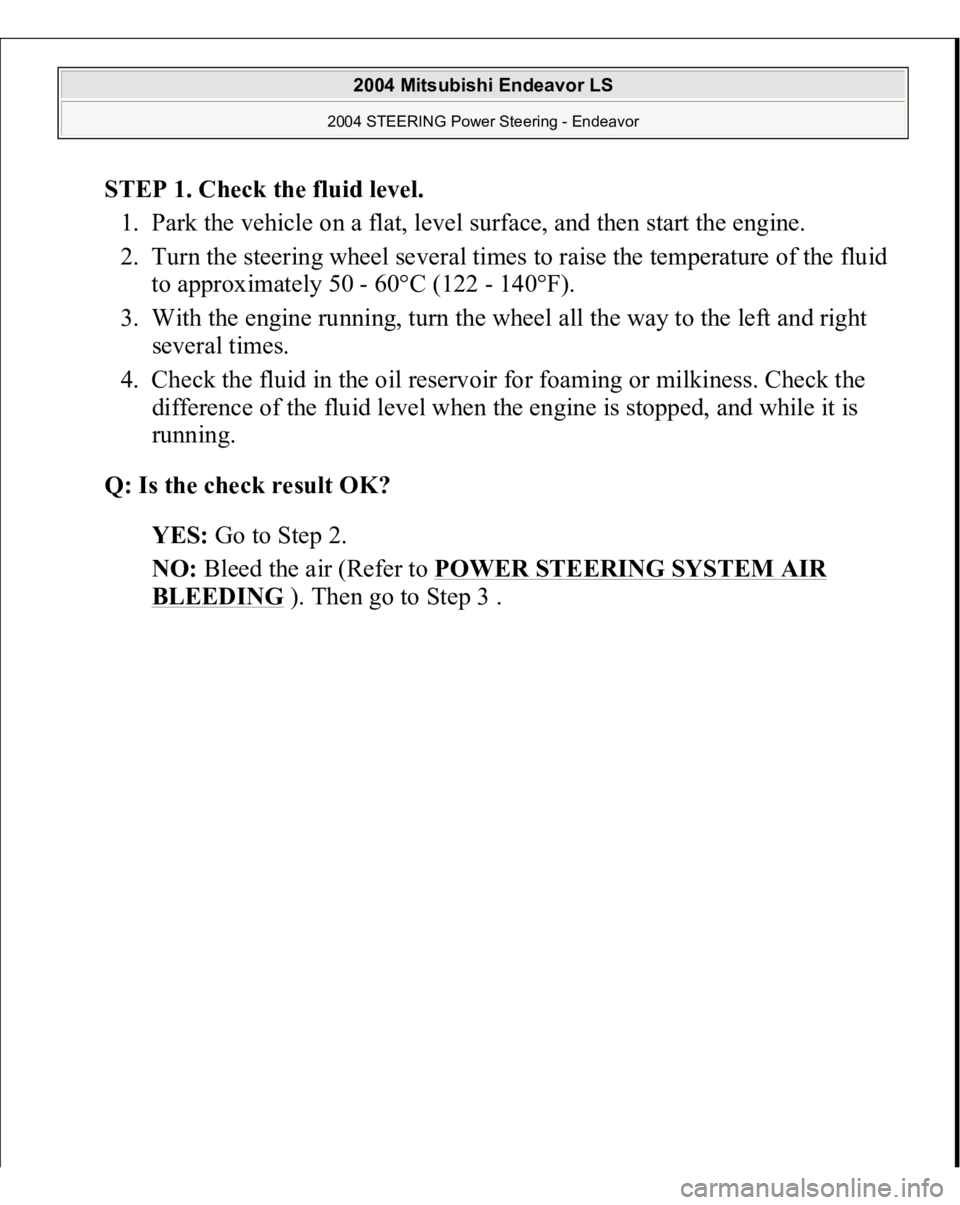

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 1. Check the fluid level. 1. Park the vehicle on a flat, level surface, and then start the engine. 2. Turn the steering wheel several times to raise the temperature of the fluid to approximat
