Page 745 of 3870

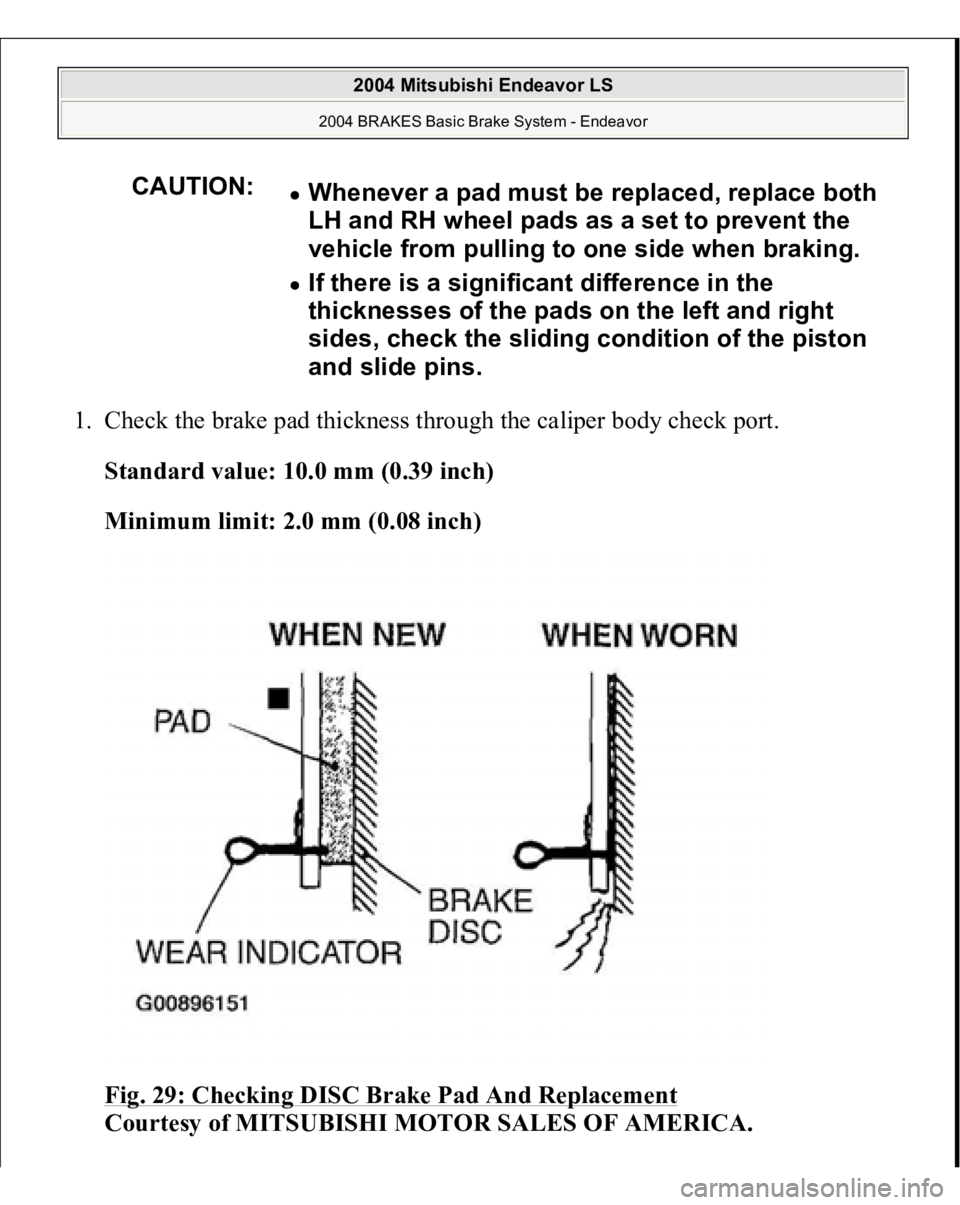

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Check the brake pad thickness through the caliper body check port. Standard value: 10.0 mm (0.39 inch) Minimum limit: 2.0 mm (0.08 inch) Fig. 29: Checking DISC Brake Pad And Replacement Cour

Page 746 of 3870

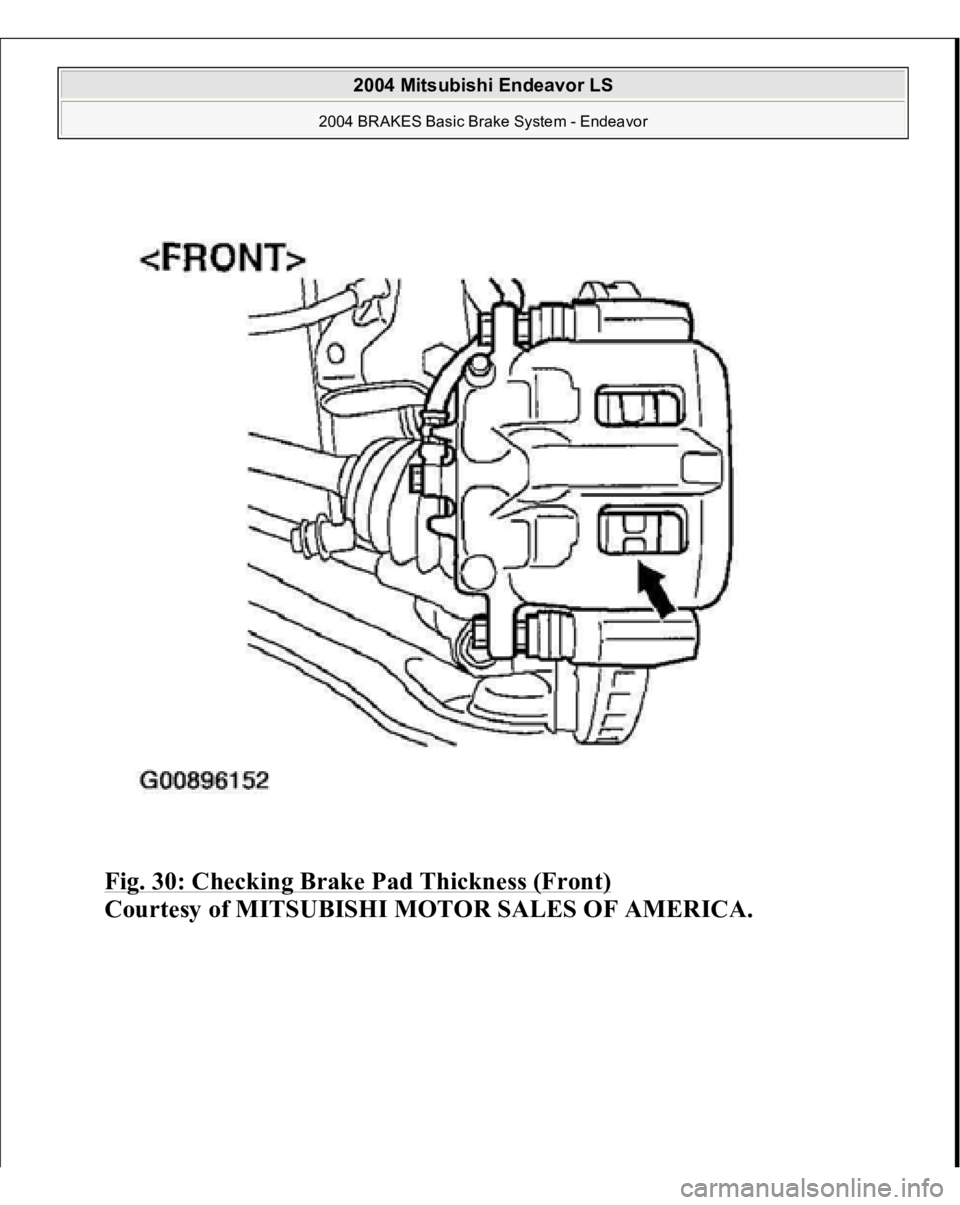

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 30: Checking Brake Pad Thickness (Front) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 747 of 3870

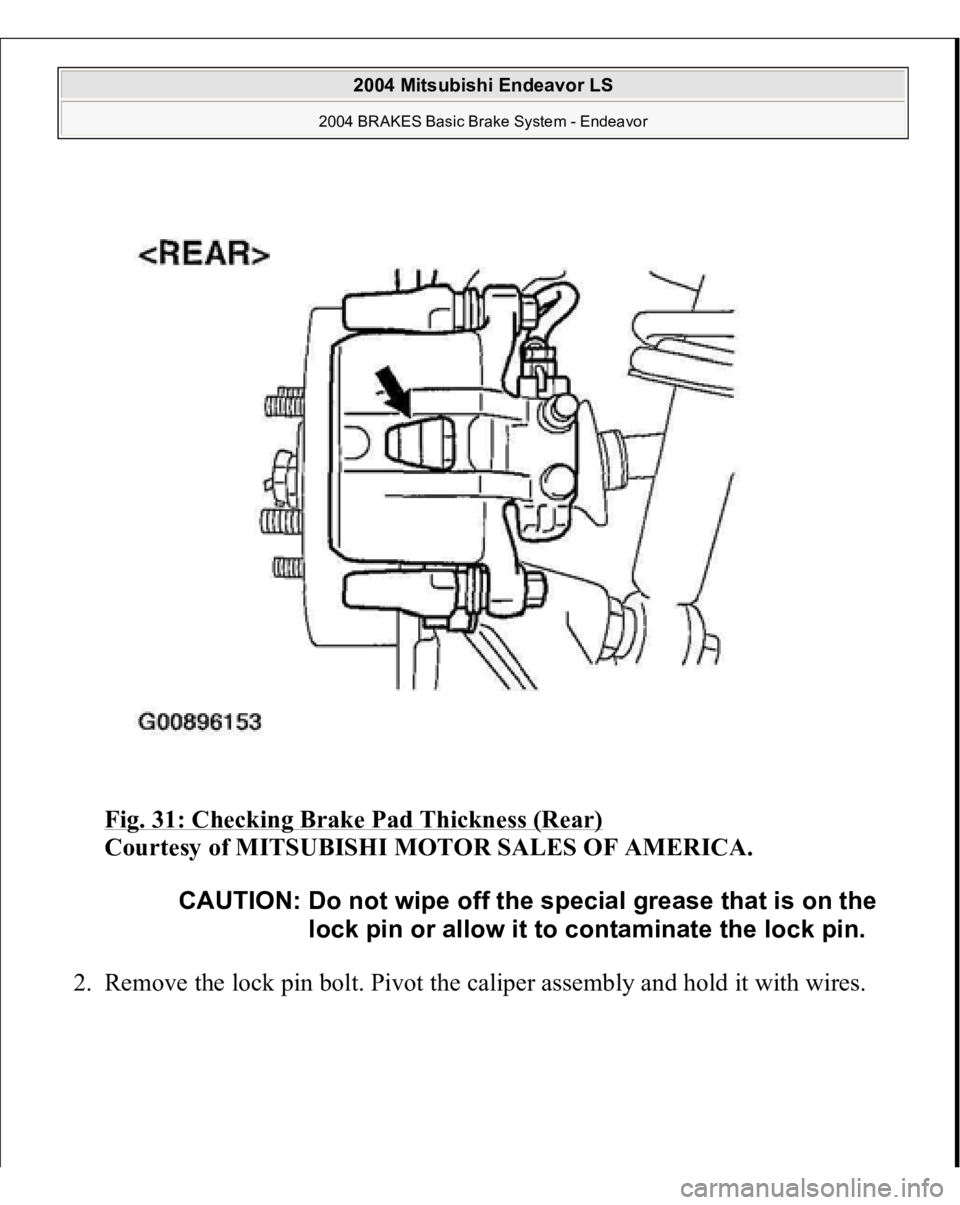

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 31: Checking Brake Pad Thickness (Rear) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Remove the lock pin bolt. Pivot the caliper assembly and hold it with wires. CAUTION: Do not wipe off

Page 748 of 3870

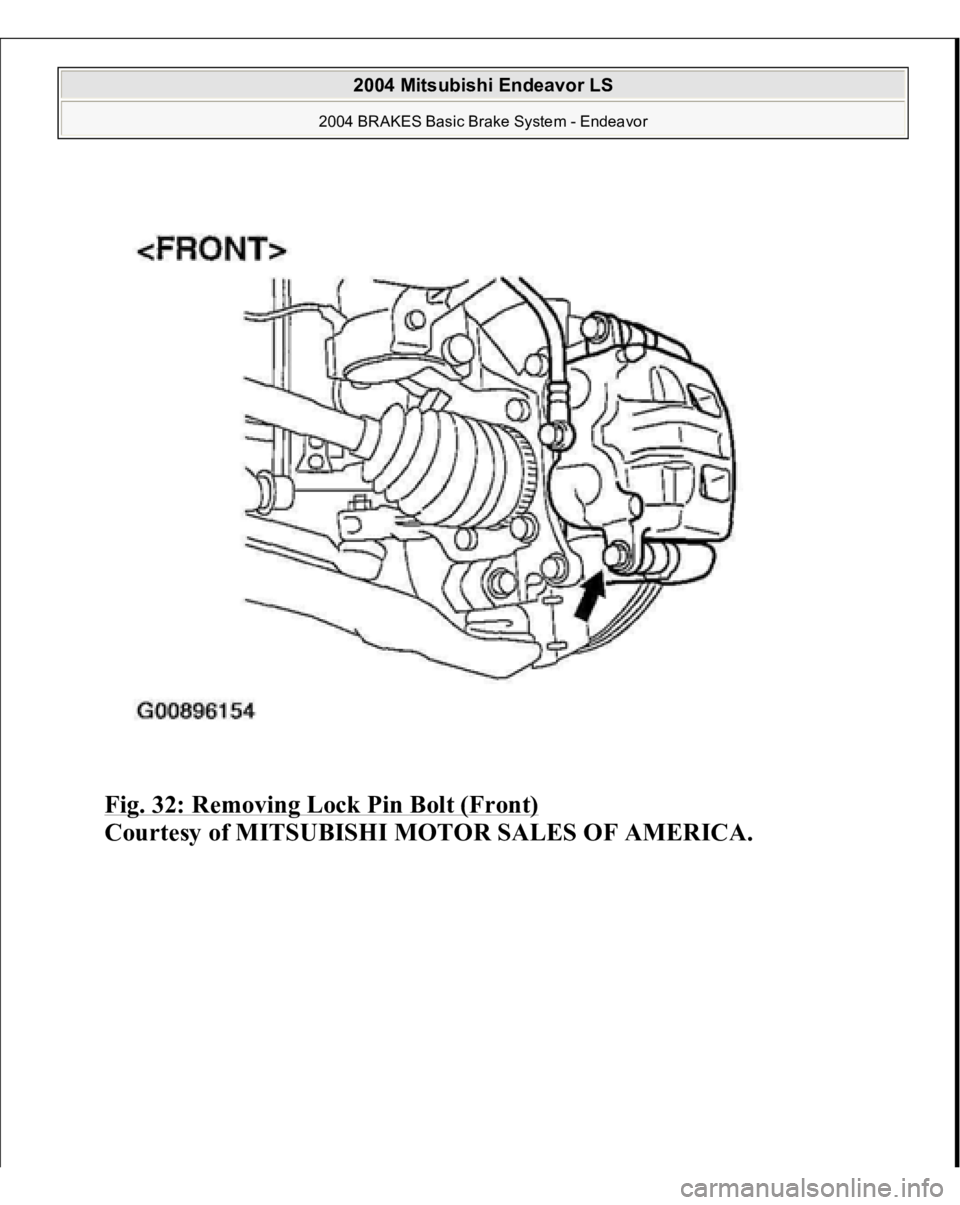

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 32: Removing Lock Pin Bolt (Front) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 749 of 3870

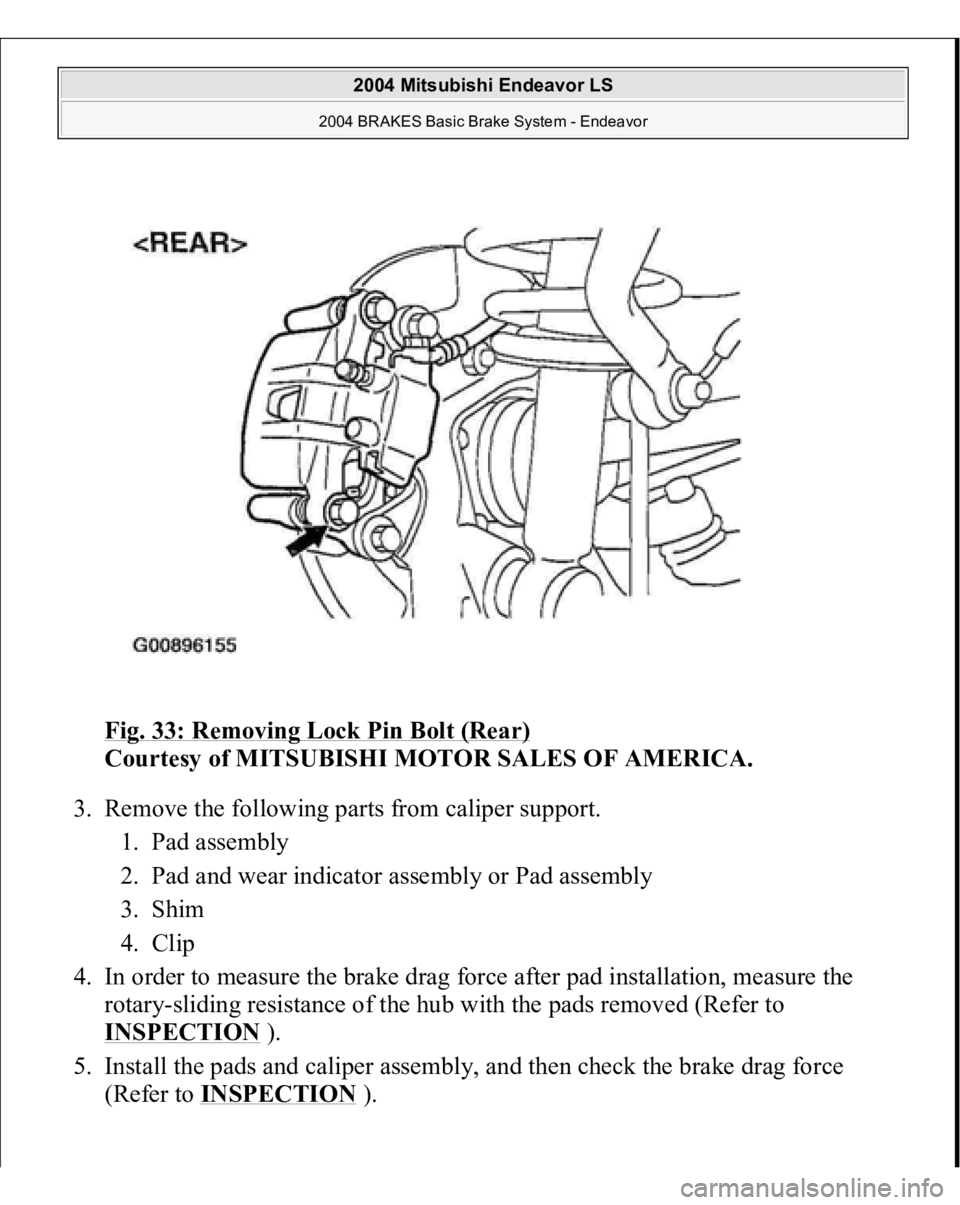

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 33: Removing Lock Pin Bolt (Rear) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Remove the following parts from caliper support. 1. Pad assembly 2. Pad and wear indicator assembly or Pa

Page 750 of 3870

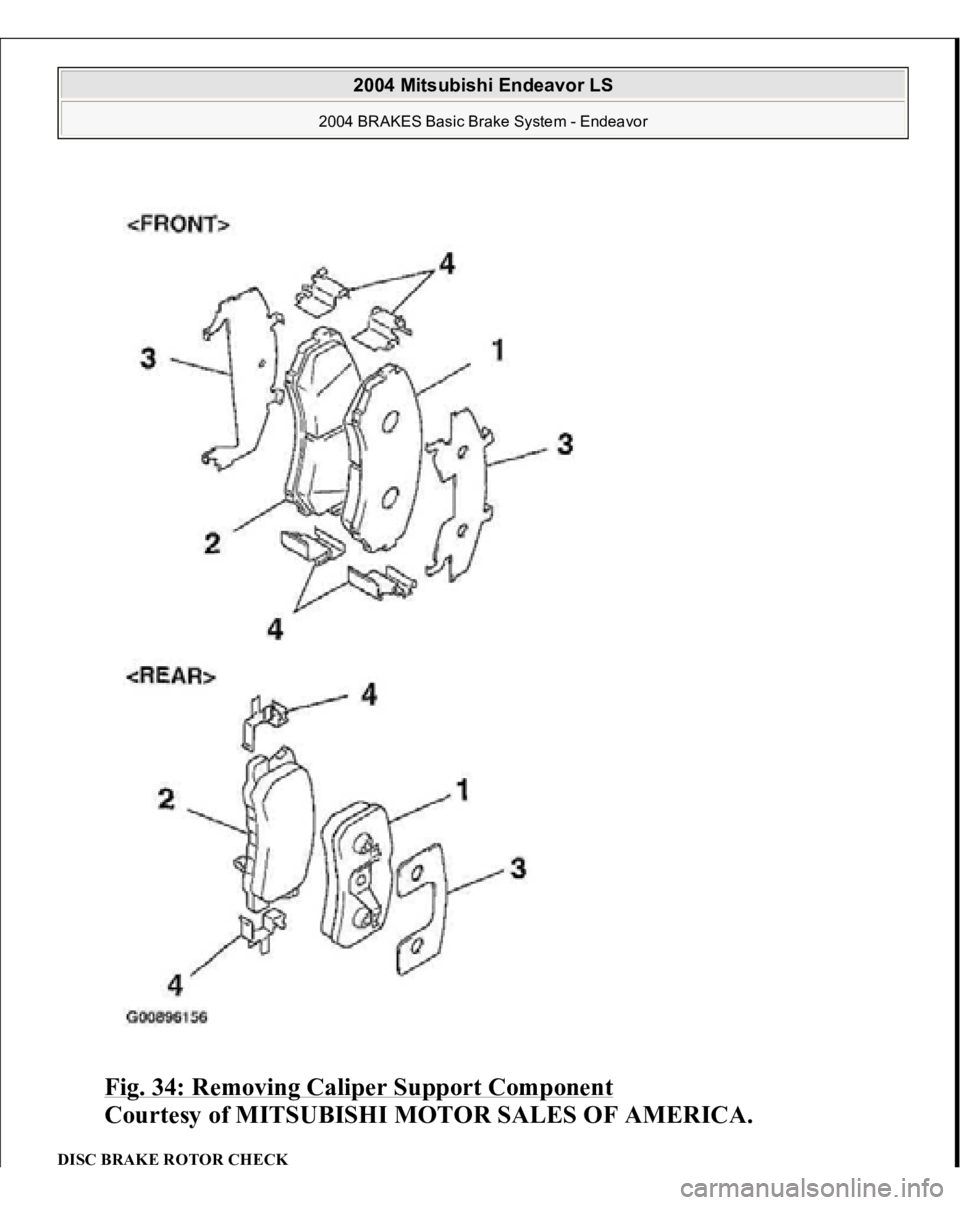

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 34: Removing Caliper Support Component Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISC BRAKE ROTOR CHECK 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 751 of 3870

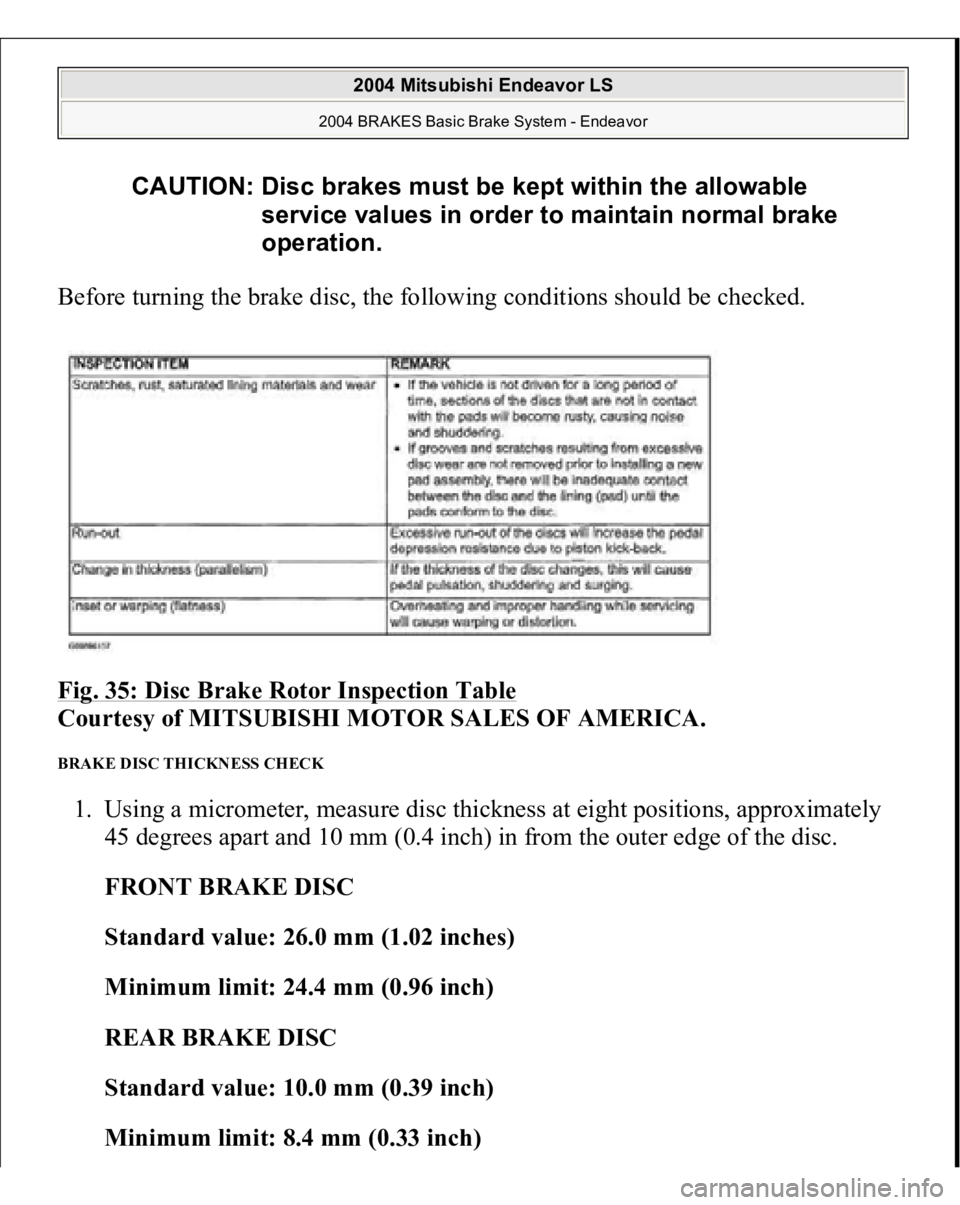

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Before turning the brake disc, the following conditions should be checked. Fig. 35: Disc Brake Rotor Inspection Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. BRAKE DISC THICKNESS CHECK 1. U

Page 752 of 3870

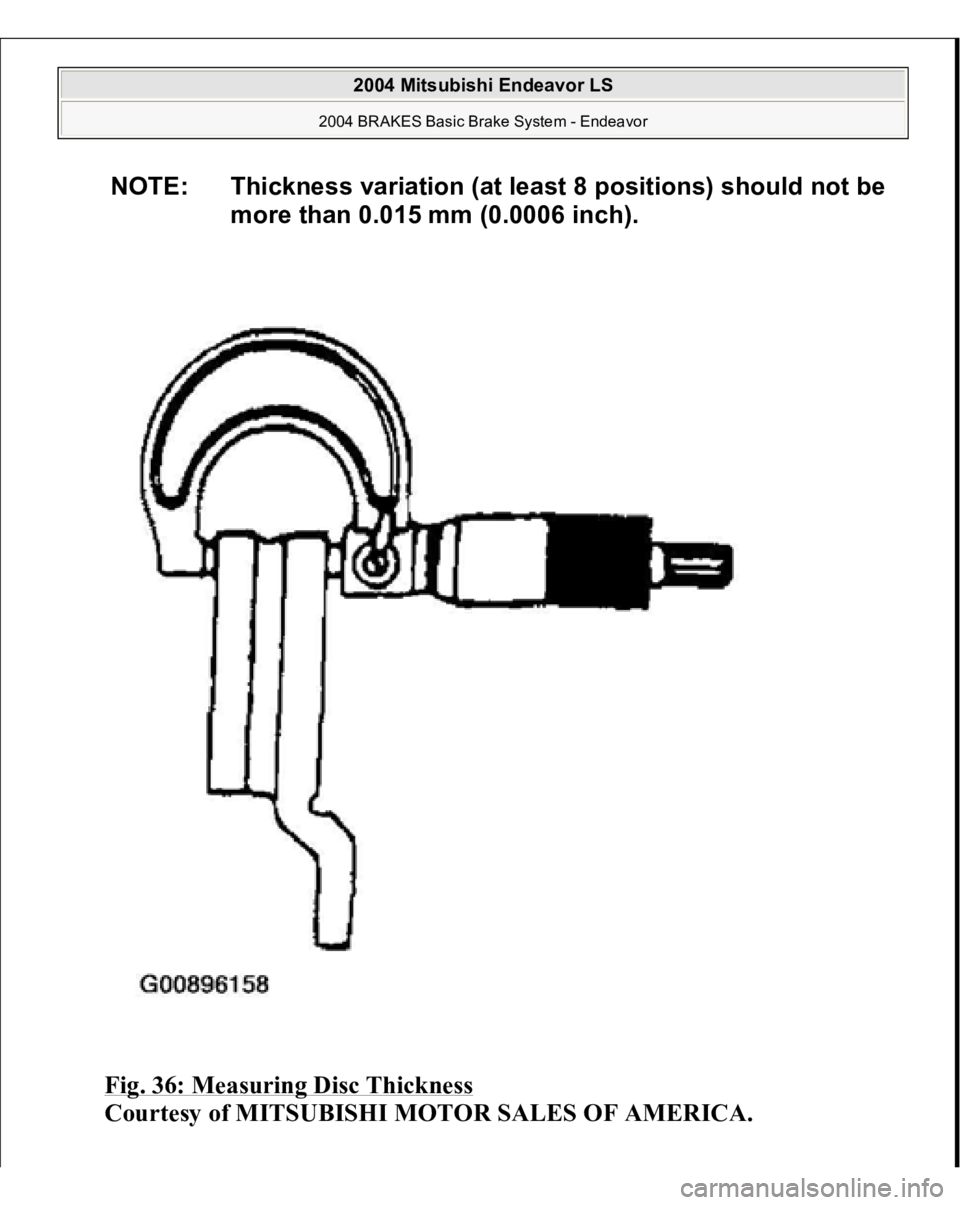

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 36: Measuring Disc Thickness Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Thickness variation (at least 8 positions) should not be more than 0.015 mm (0.0006 inch). 2004 Mitsubishi
