Page 1361 of 3870

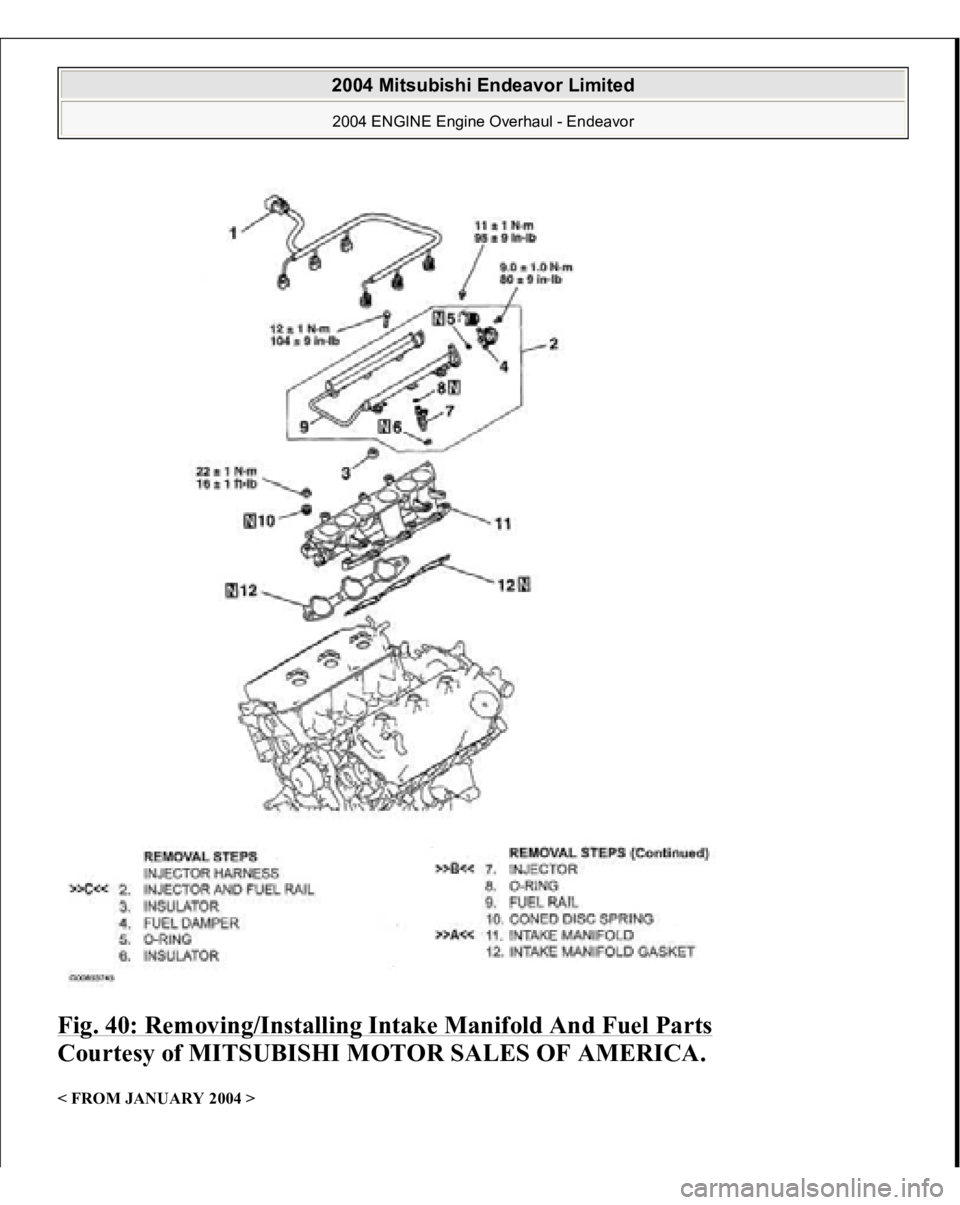

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 40: Removing/Installing Intake Manifold And Fuel Parts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. < FROM JANUARY 2004 > 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - End

Page 1362 of 3870

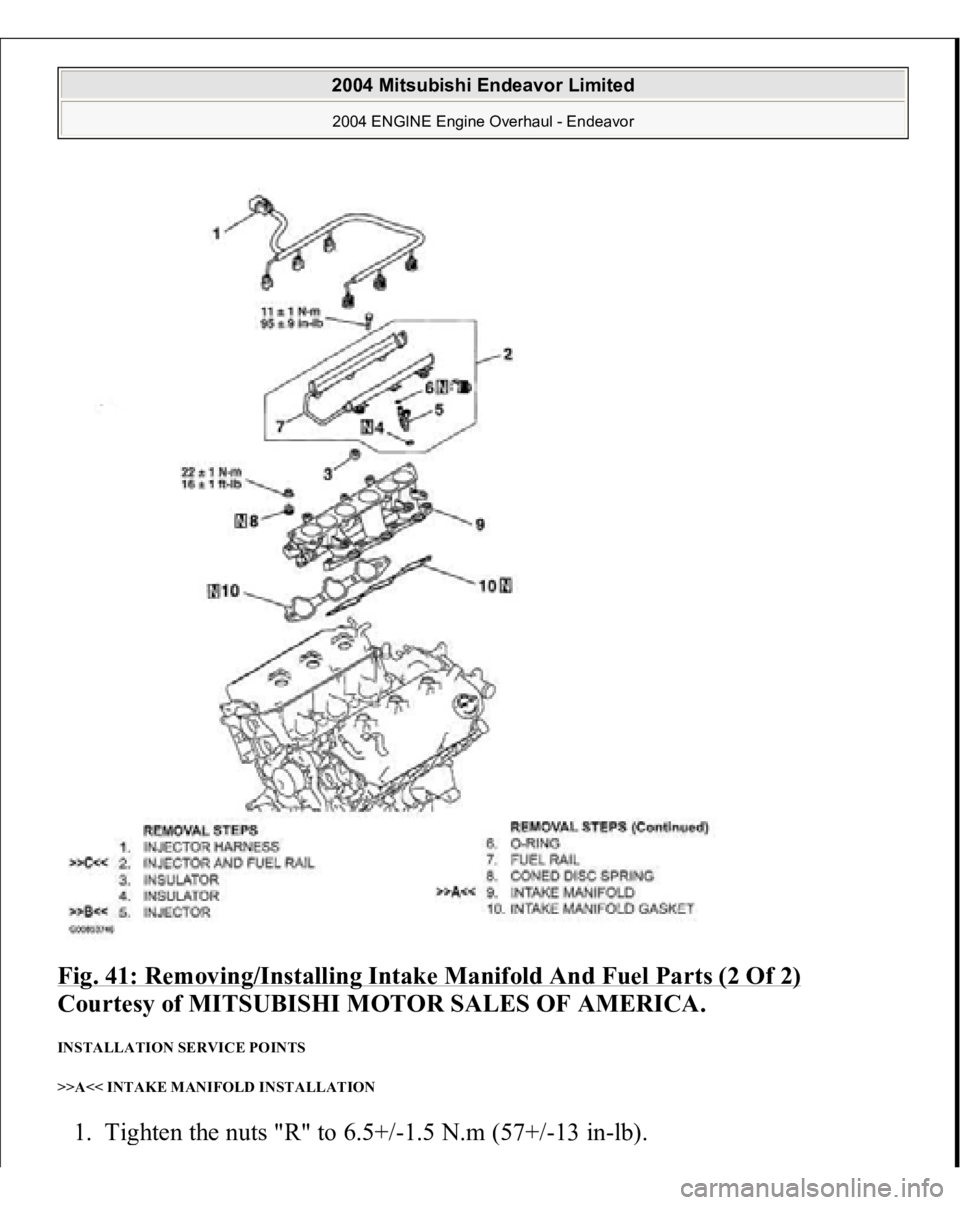

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Removing/Installing Intake Manifold And Fuel Parts (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINTS >>A<< INTAKE MANIFOLD INSTALLATION 1. Ti ghten the n

Page 1363 of 3870

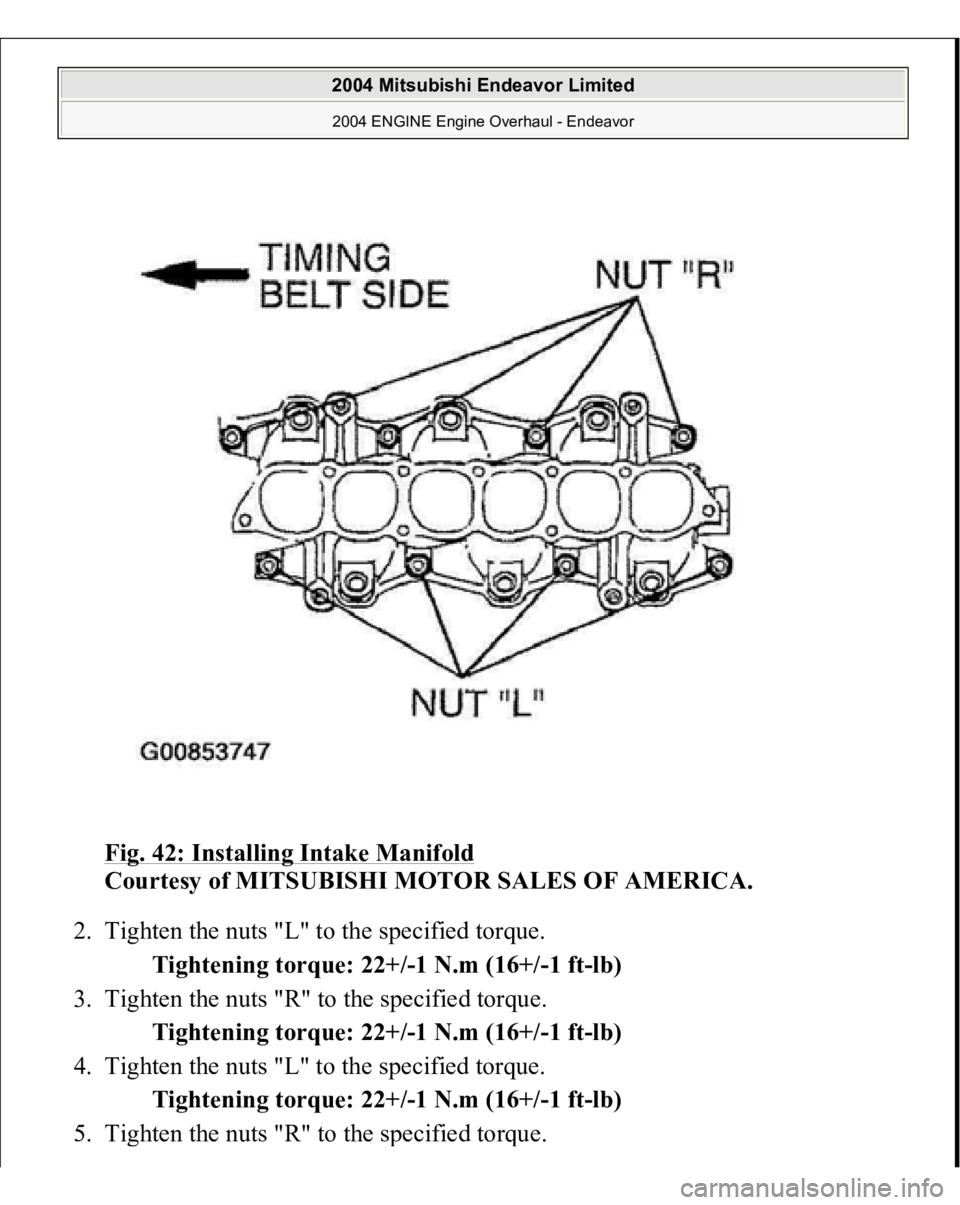

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 42: Installing Intake Manifold Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Tighten the nuts "L" to the specified torque. Tightening torque: 22+/-1 N.m (16+/-1 ft-lb) 3. Tighte

Page 1364 of 3870

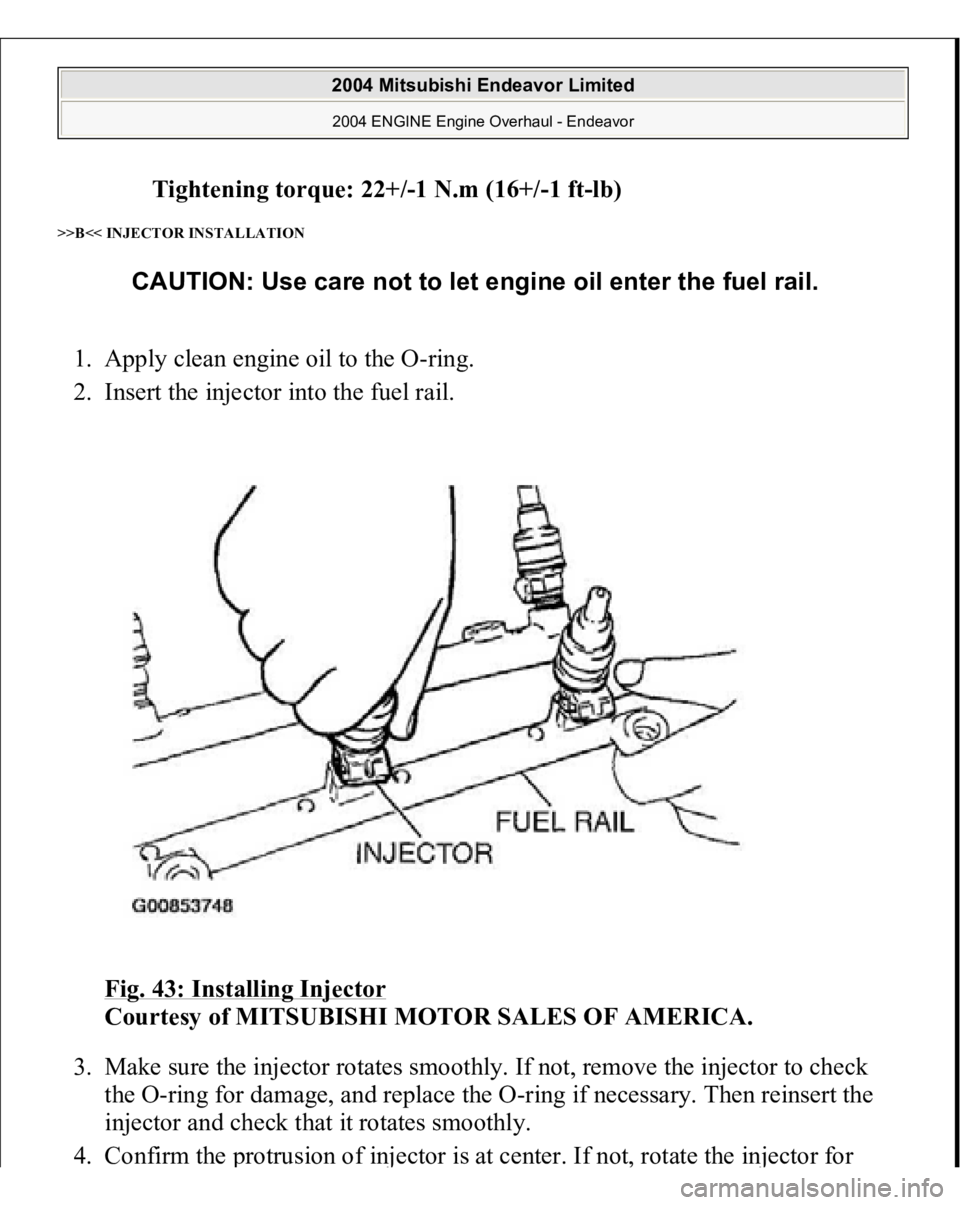

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Tightening torque: 22+/-1 N.m (16+/-1 ft-lb) >>B<< INJECTOR INSTALLATION 1. Apply clean engine oil to the O-ring. 2. Insert the injector into the fuel rail. Fig. 43: Installing Injector Courtes

Page 1365 of 3870

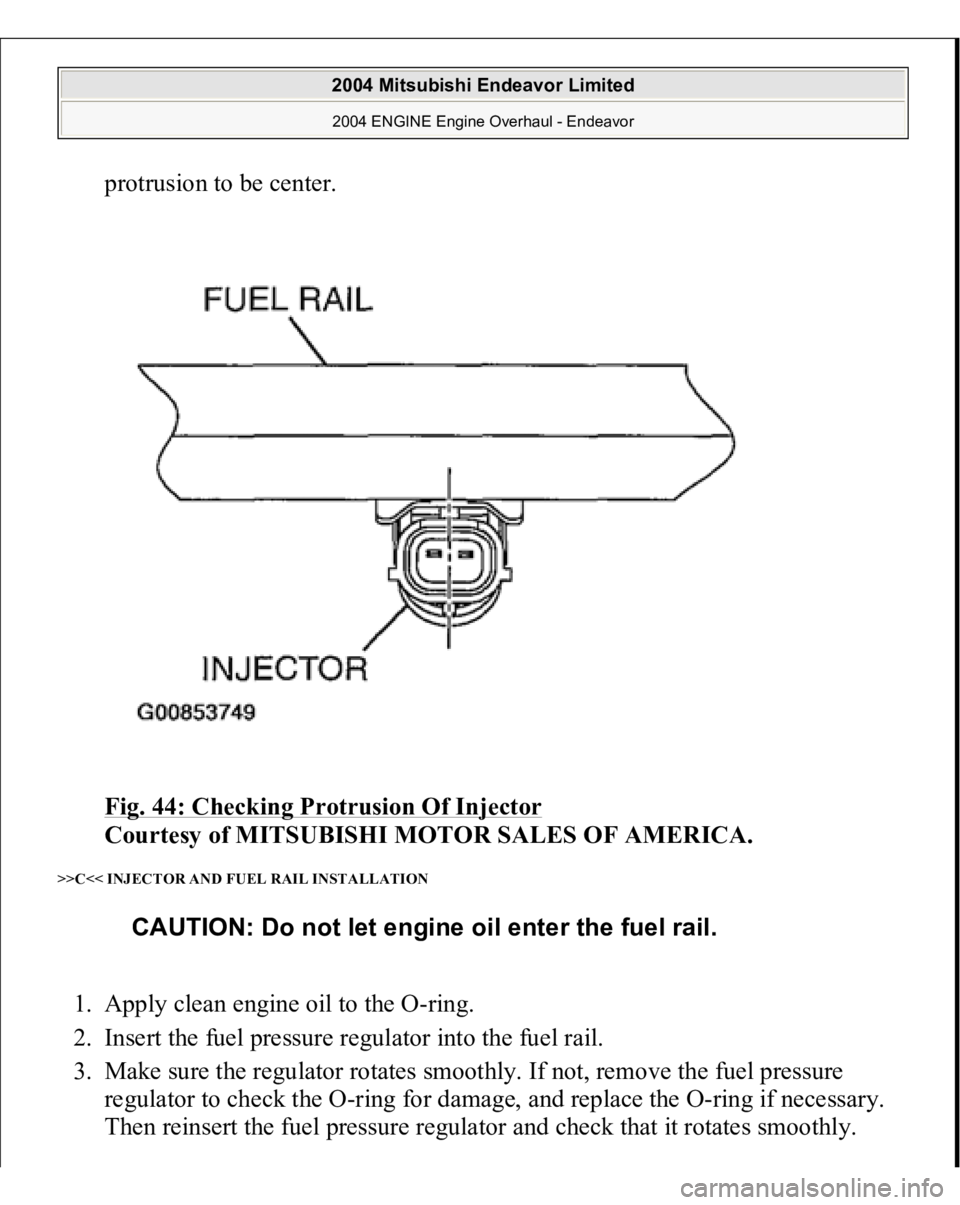

MITSUBISHI ENDEAVOR 2004 Service Repair Manual protrusion to be center. Fig. 44: Checking Protrusion Of Injector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< INJECTOR AND FUEL RAIL INSTALLATION 1. Apply clean engine oil to the O-ring.

Page 1366 of 3870

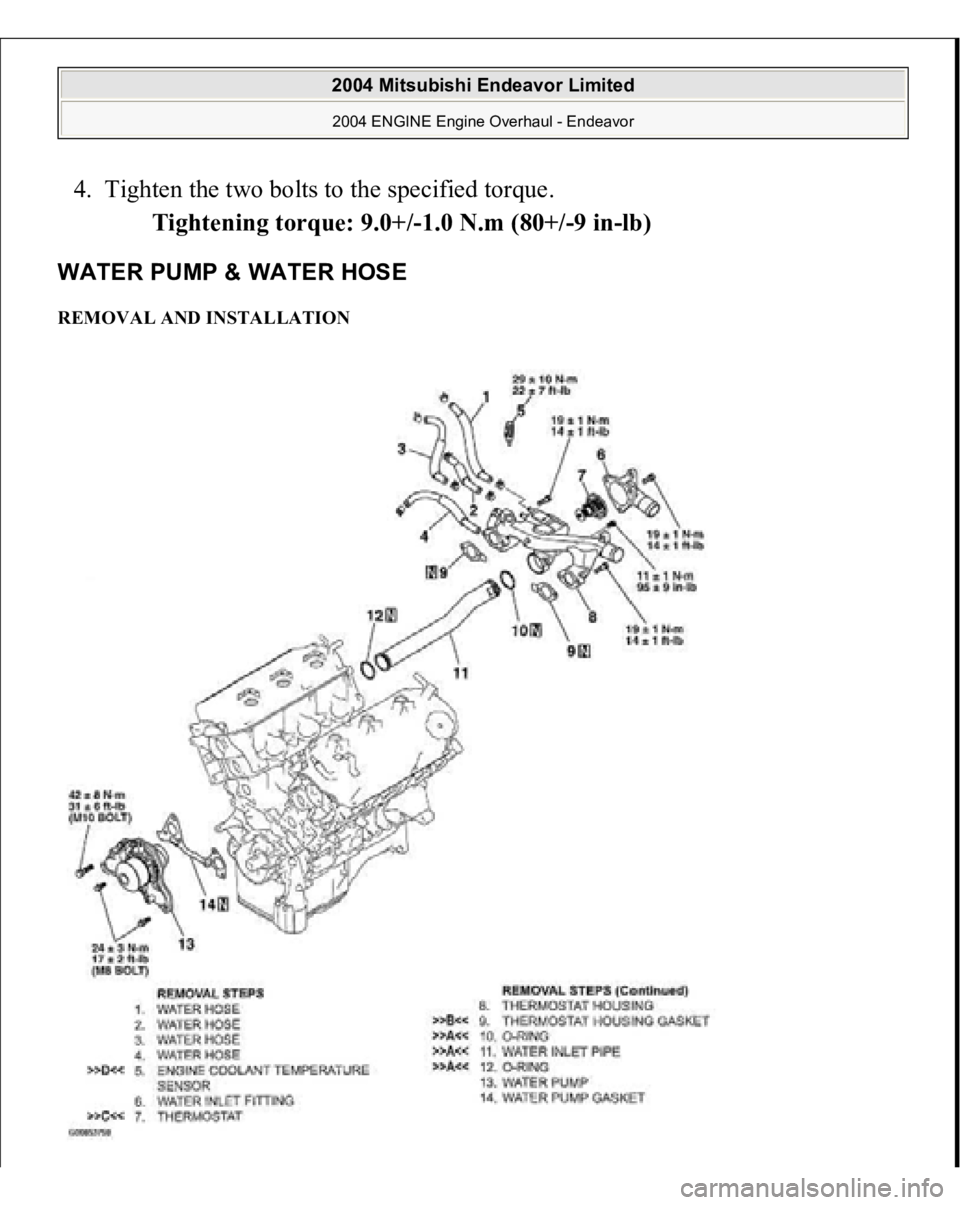

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 4. Tighten the two bolts to the specified torque. Tightening torque: 9.0+/-1.0 N.m (80+/-9 in-lb) WATER PUMP & WATER HOSE REMOVAL AND INSTALLATION 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engi

Page 1367 of 3870

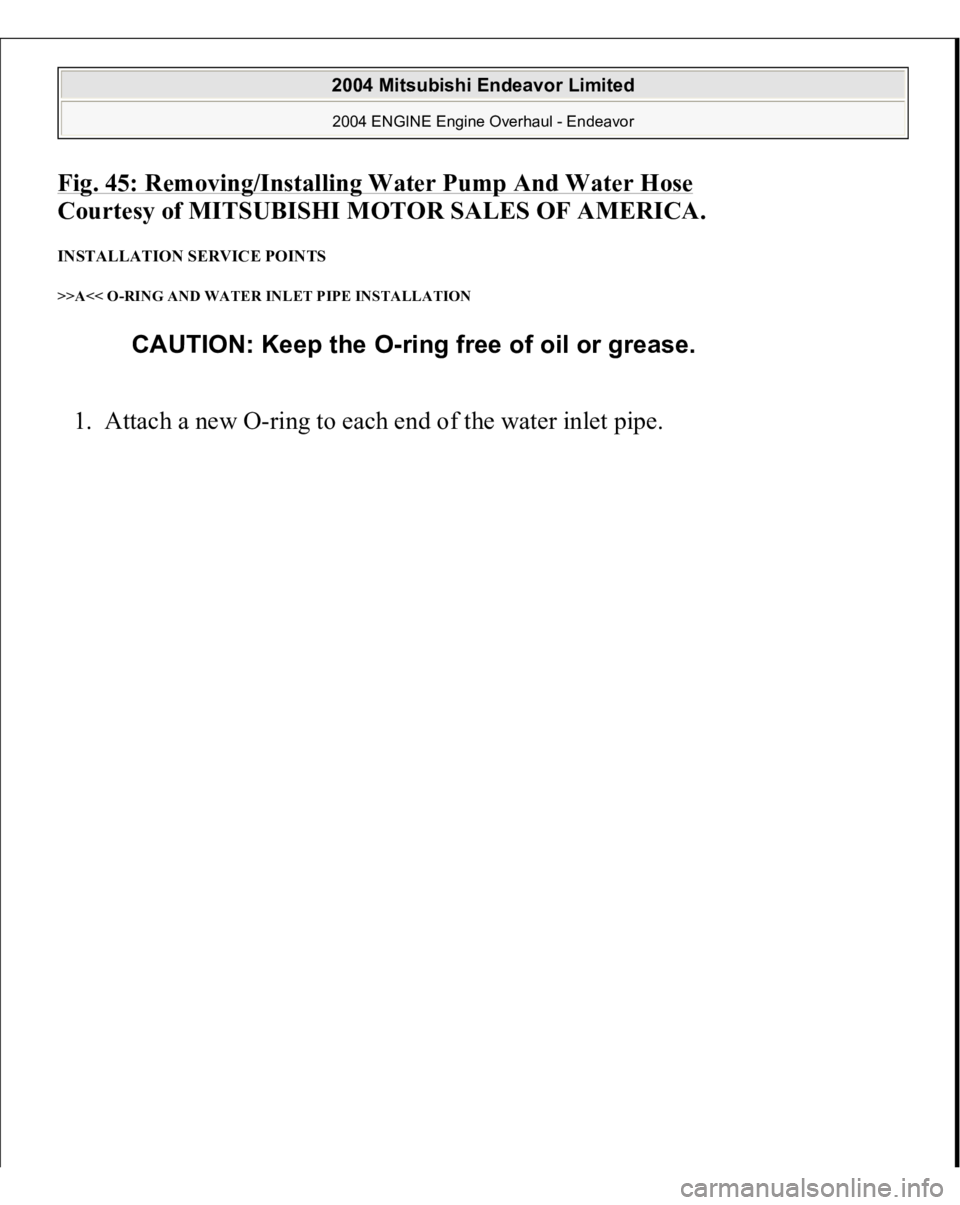

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 45: Removing/Installing Water Pump And Water Hose Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINTS >>A<< O-RING AND WATER INLET PIPE INSTALLATION 1. Attach a new O-ri

Page 1368 of 3870

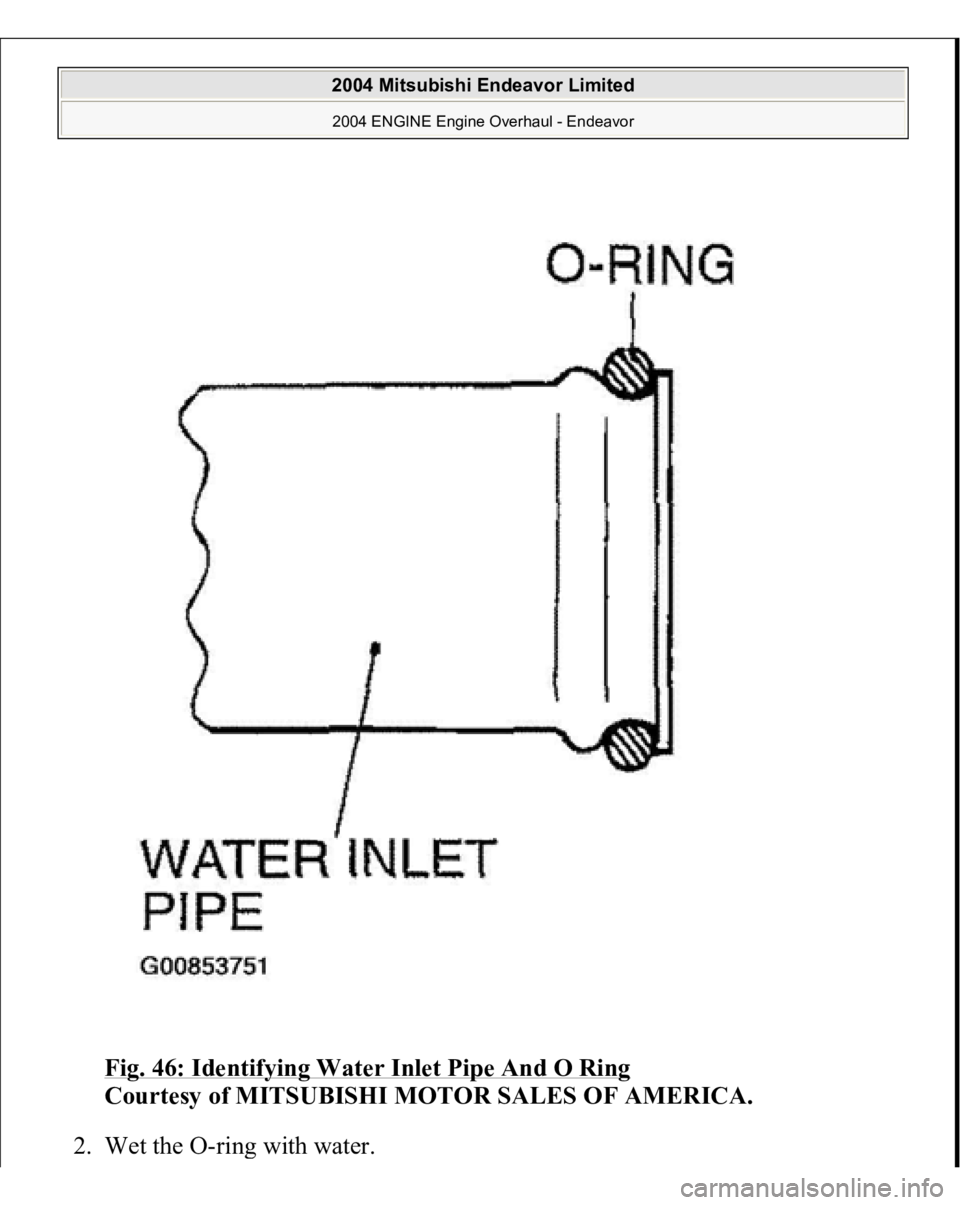

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 46: Identifying Water Inlet Pipe And O Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Wet the O-rin g with water. 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Ende
