Page 3009 of 3870

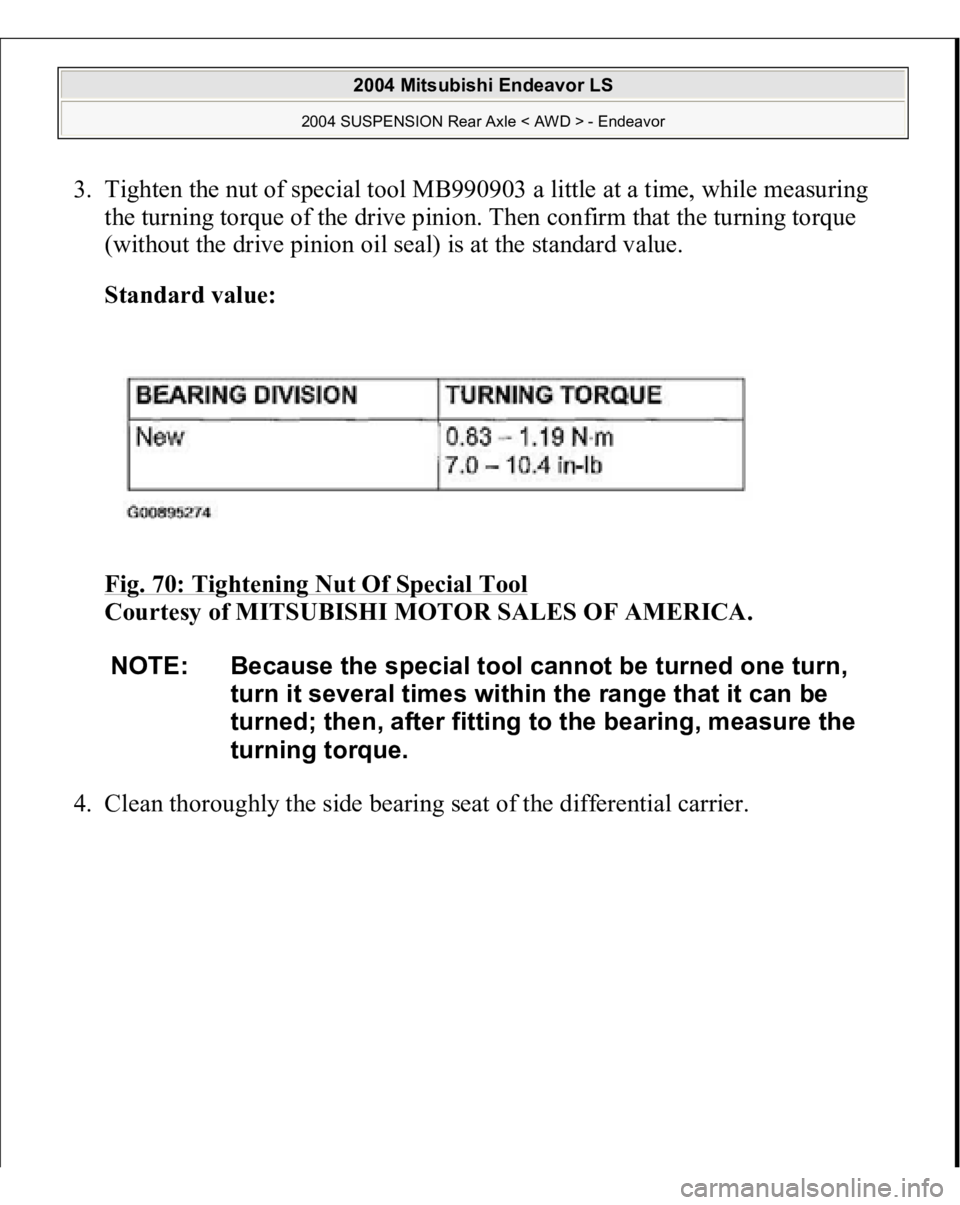

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Tighten the nut of special tool MB990903 a little at a time, while measuring the turning torque of the drive pinion. Then confirm that the turning torque (without the drive pinion oil seal) is at

Page 3010 of 3870

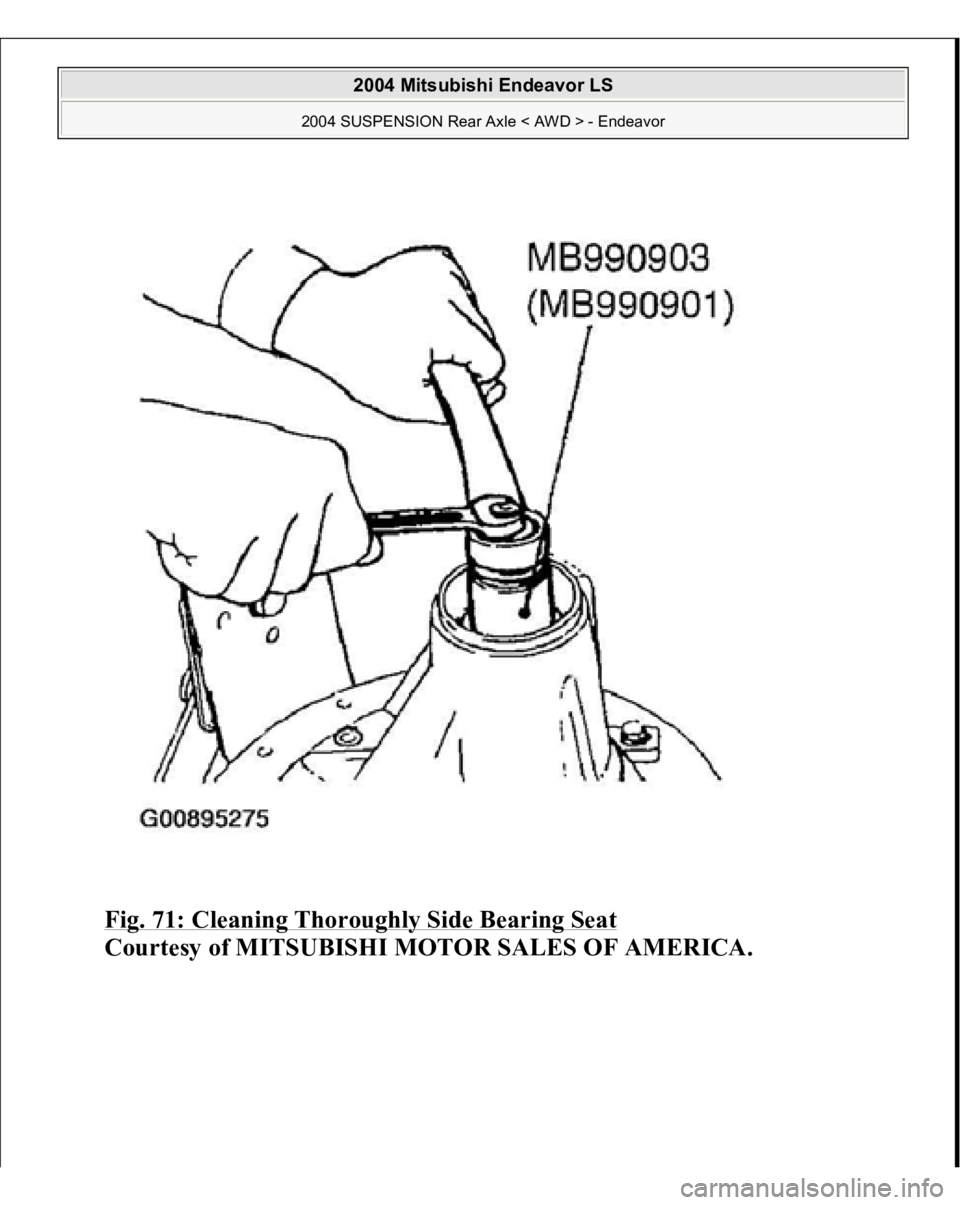

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 71: Cleaning Thoroughly Side Bearing Seat Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 3011 of 3870

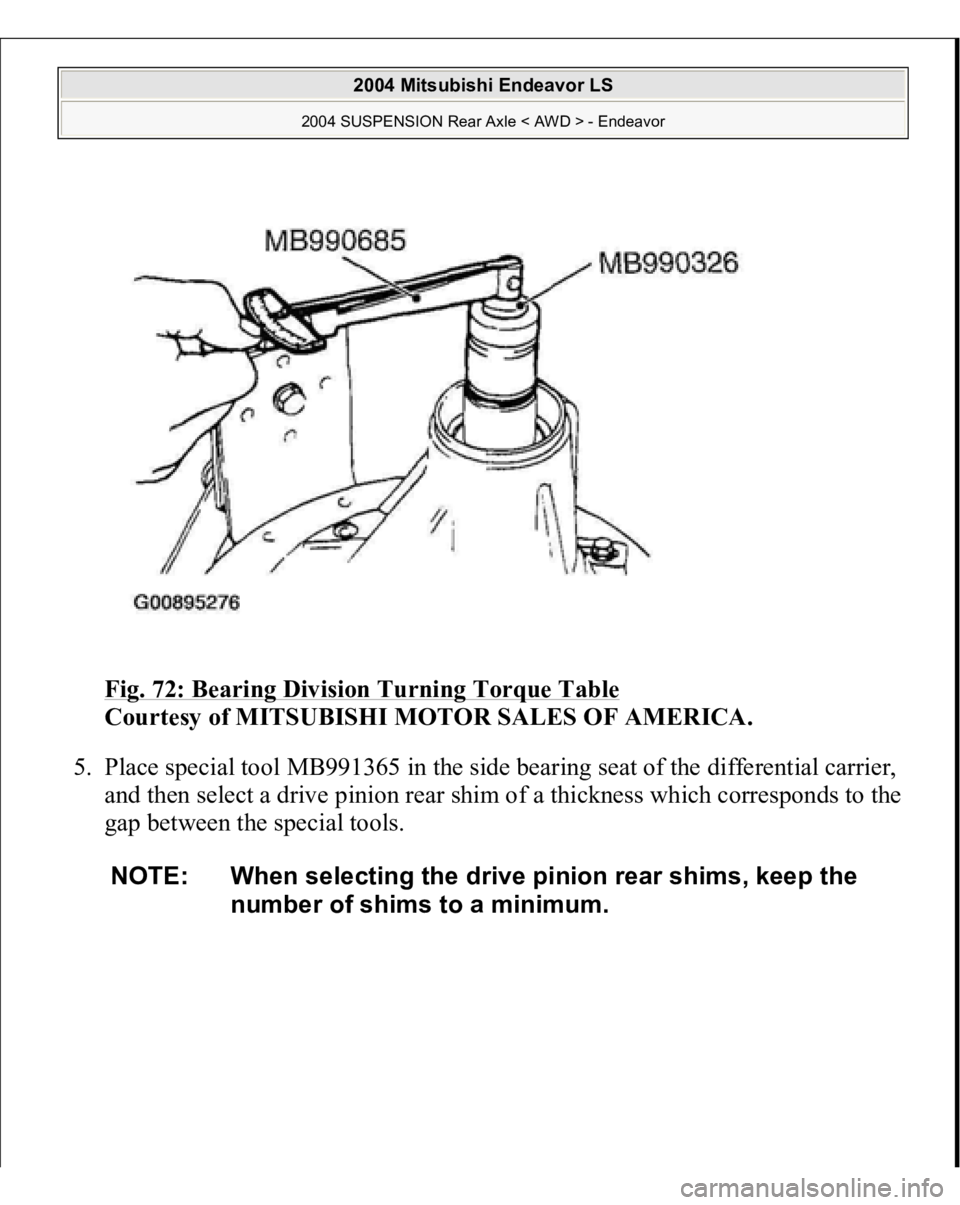

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 72: Bearing Division Turning Torque Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 5. Place special tool MB991365 in the side bearing seat of the differential carrier, and then select a

Page 3012 of 3870

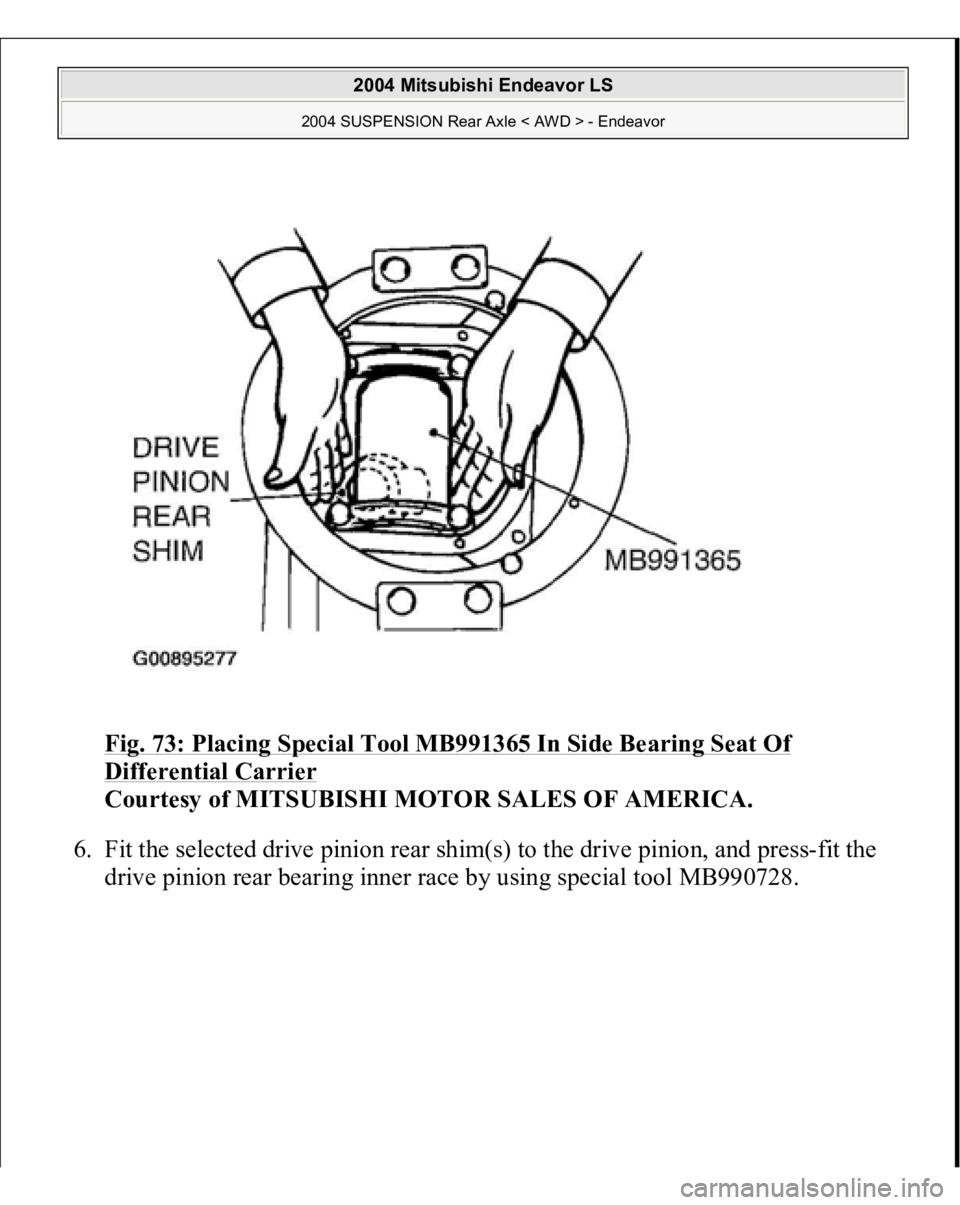

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 73: Placing Special Tool MB991365 In Side Bearing Seat Of Differential Carrier Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. Fit the selected drive pinion rear shim(s) to the drive pinion,

Page 3013 of 3870

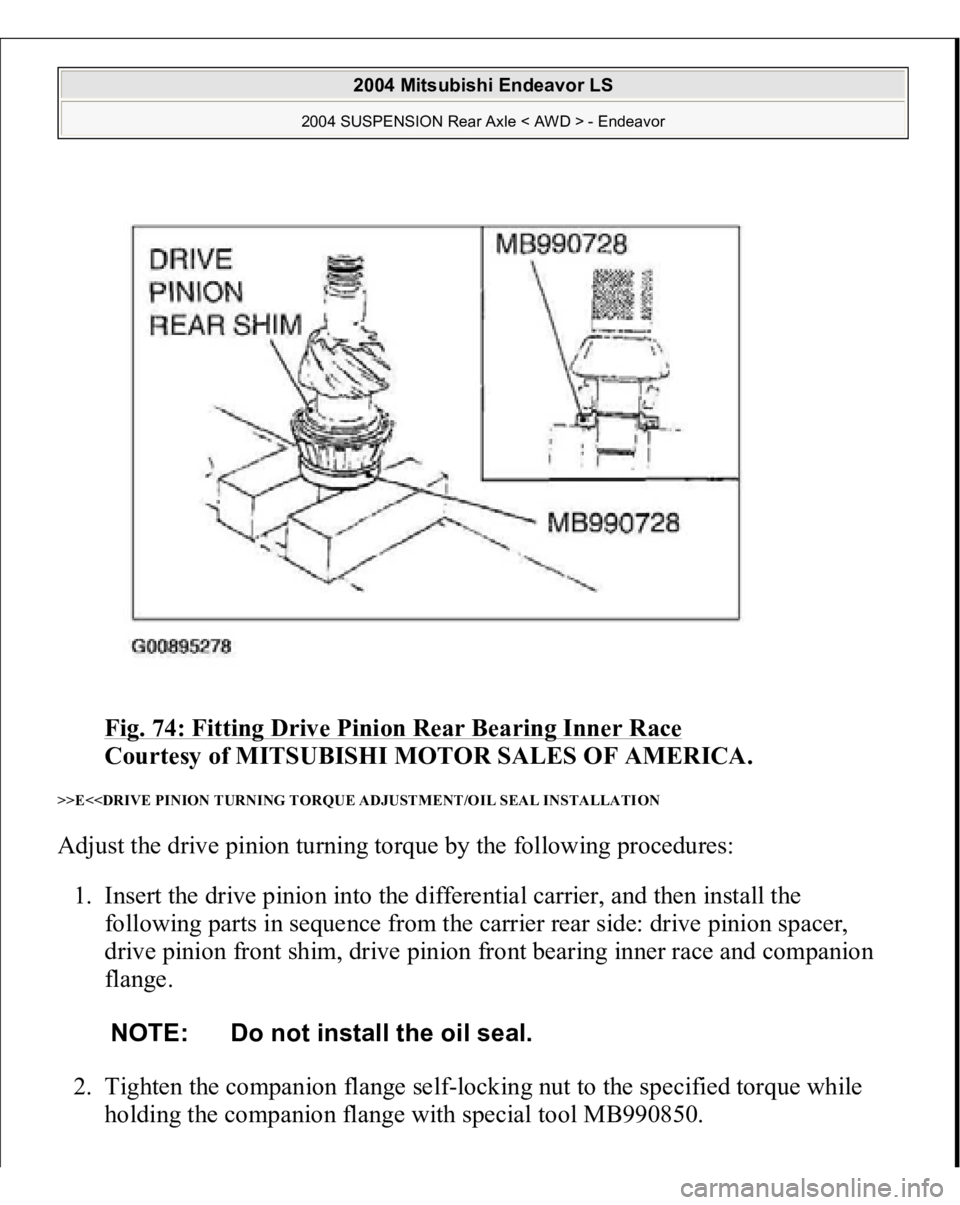

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 74: Fitting Drive Pinion Rear Bearing Inner Race Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>E<<DRIVE PINION TURNING TORQUE ADJUSTMENT/OIL SEAL INSTALLATION Adjust the drive pinion turnin

Page 3014 of 3870

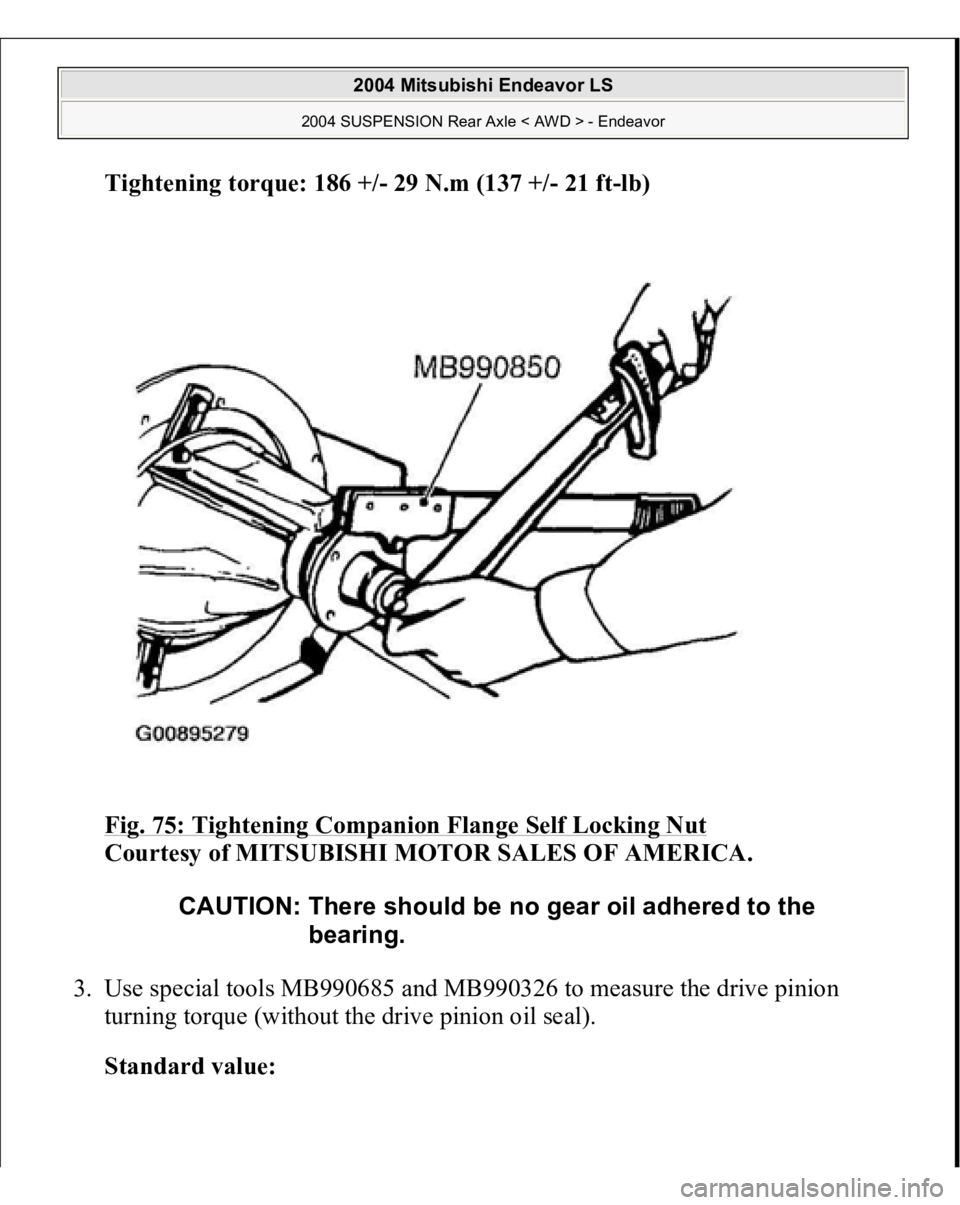

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Tightening torque: 186 +/- 29 N.m (137 +/- 21 f t-lb) Fig. 75: Tightening Companion Flange Self Locking Nut Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Use special tools MB990685 and MB9903

Page 3015 of 3870

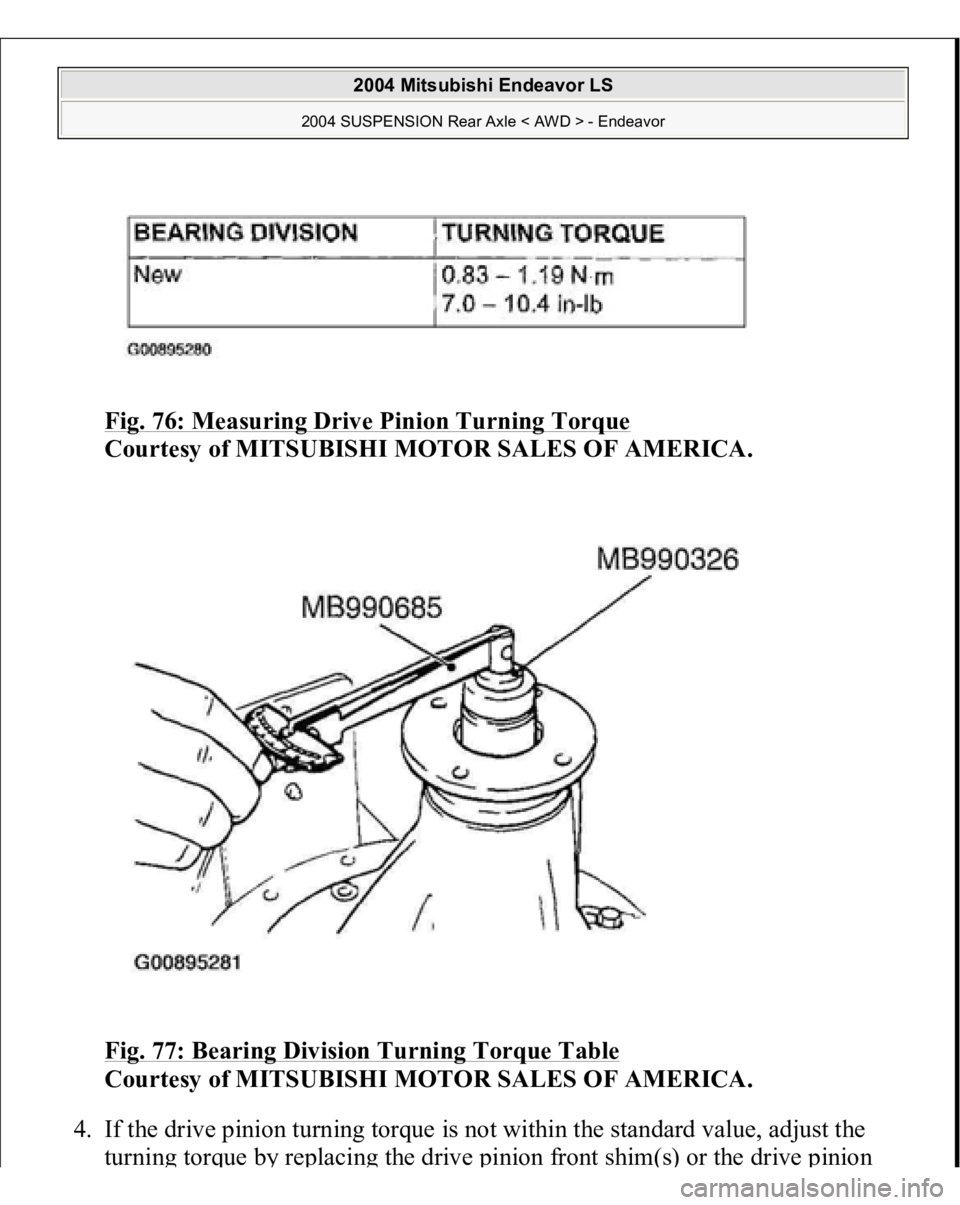

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 76: Measuring Drive Pinion Turning Torque Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 77: Bearing Division Turning Torque Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. If t

Page 3016 of 3870

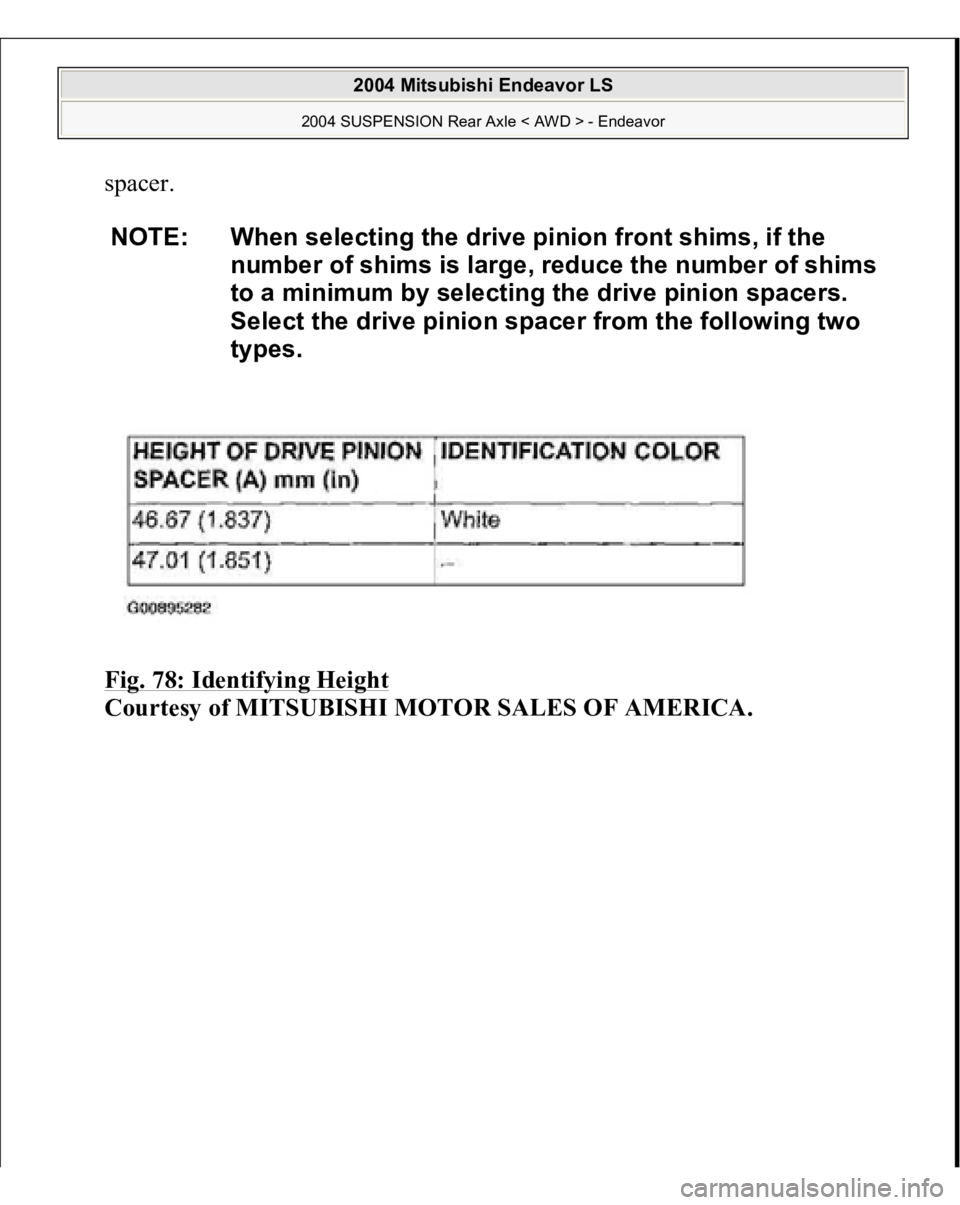

MITSUBISHI ENDEAVOR 2004 Service Repair Manual spacer. Fig. 78: Identifying Height Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: When selecting the drive pinion front shims, if the number of shims is large, reduce the number of shims t
