Page 1825 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Identifying Special Tools Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. VIDEO ENTERTAINMENT SYSTEM DIAGNOSIS TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. Foll

Page 1826 of 3870

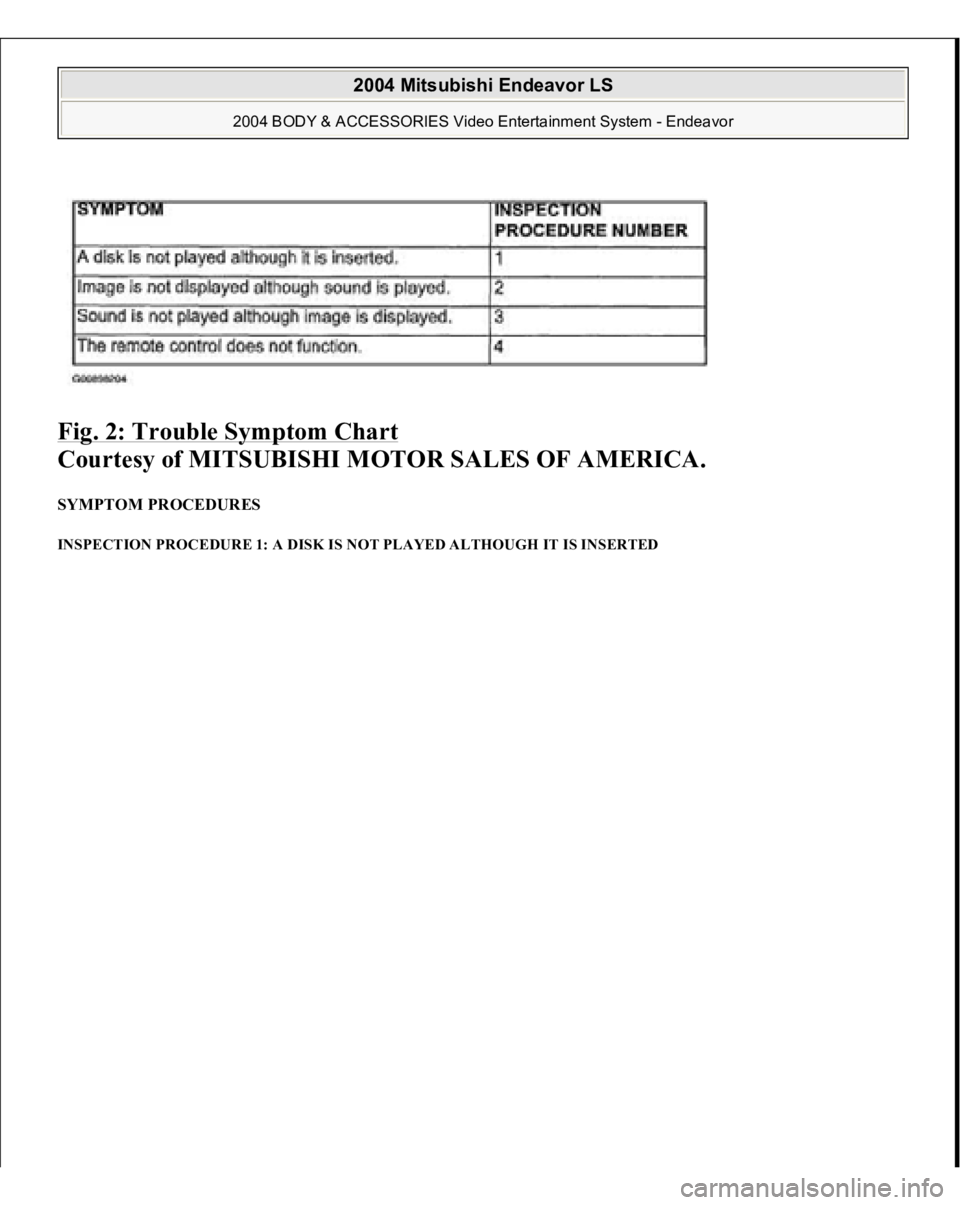

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Trouble Symptom Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: A DISK IS NOT PLAYED ALTHOUGH IT IS INSERTED 2004 Mitsubishi Endeavor LS 2

Page 1827 of 3870

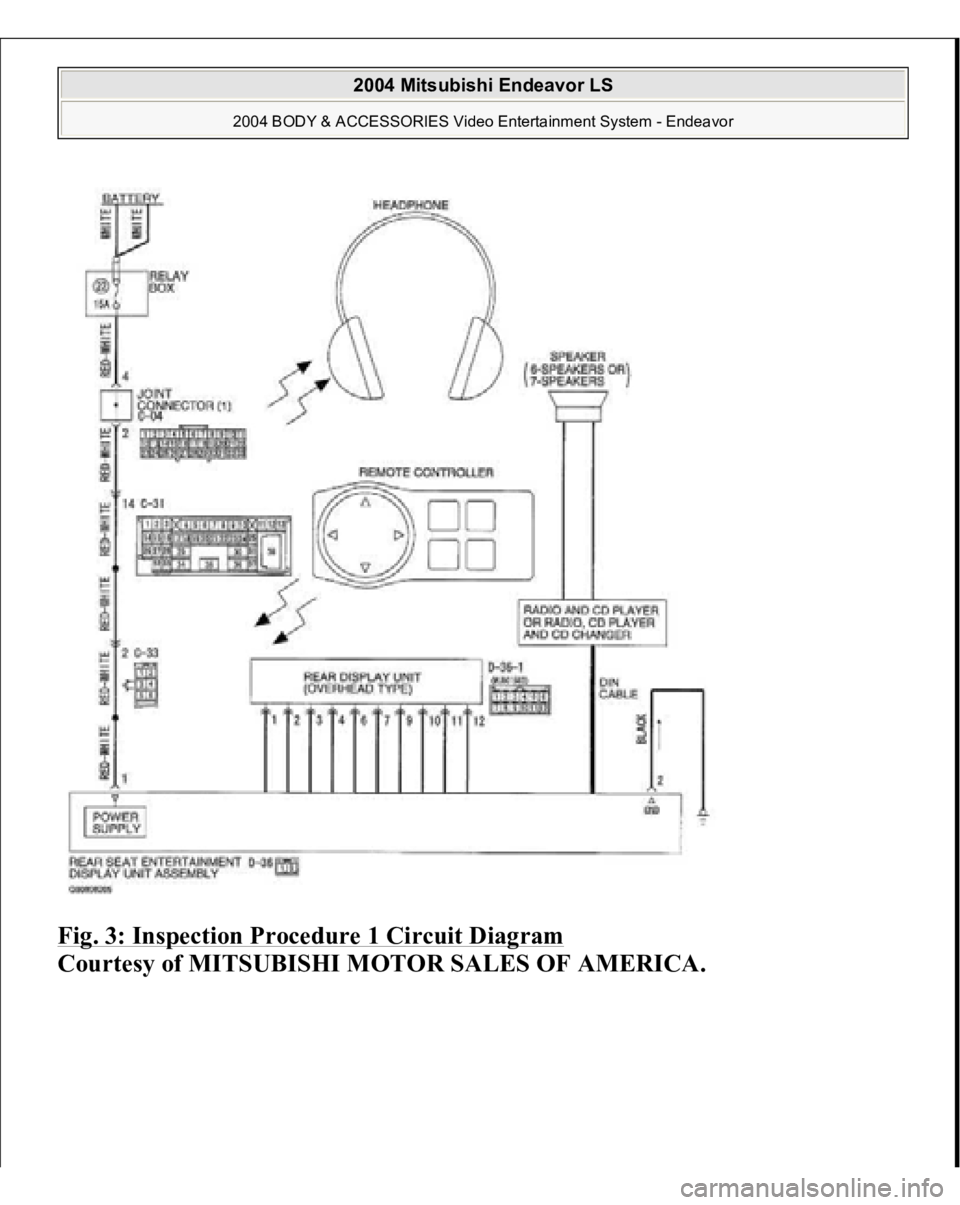

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Inspection Procedure 1 Circuit Diagram Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Video Entertainment System - Endeavor

Page 1828 of 3870

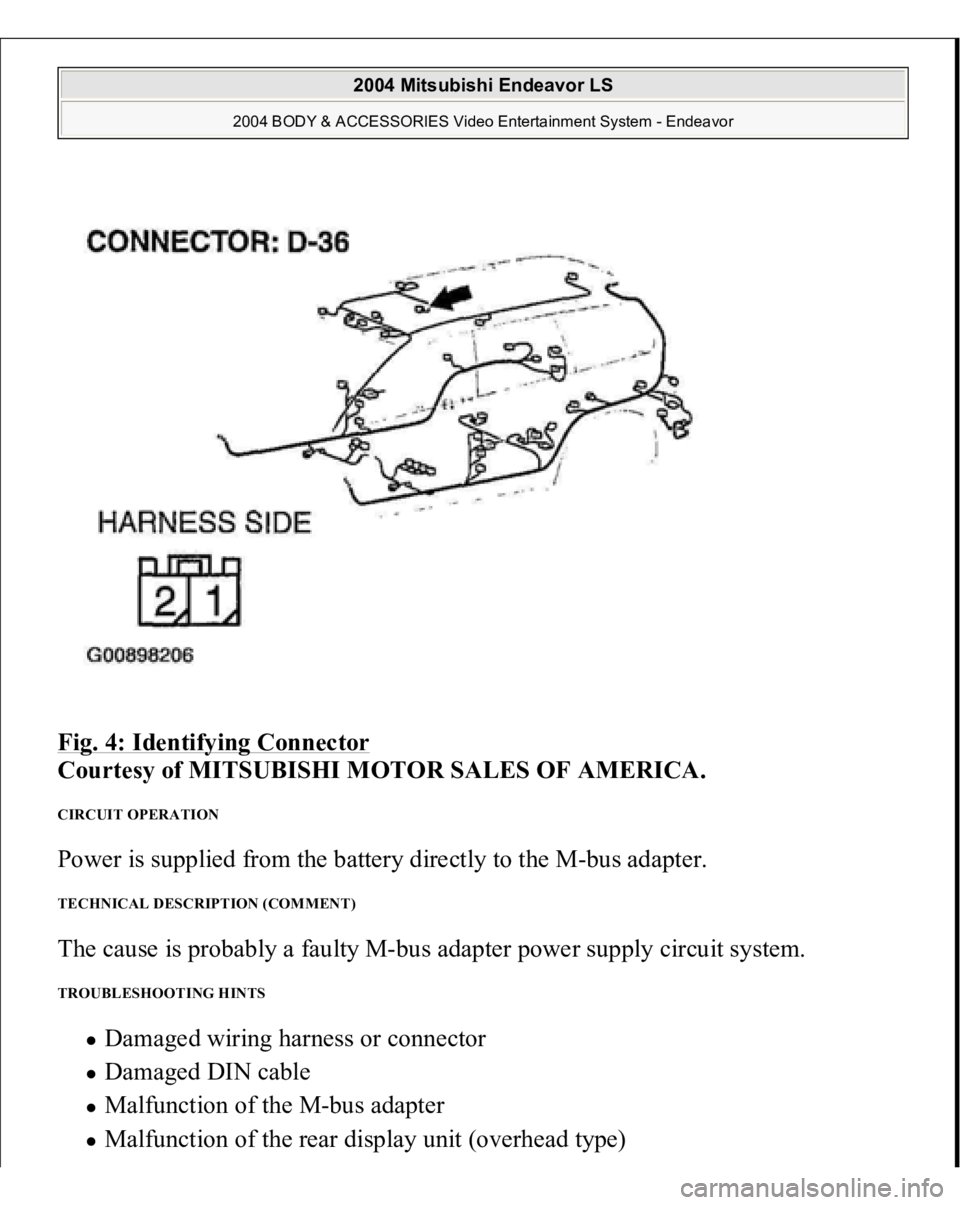

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Identifying Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION Power is supplied from the battery directly to the M-bus adapter. TECHNICAL DESCRIPTION (COMMENT) The

Page 1829 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Malfunction of the radio/CD player DIAGNOSTIC PROCEDURE STEP 1. Confirm the disk. Confirm that the disk complies with the market specifications. Q: Is the check result normal? YES: Go to Step 2

Page 1830 of 3870

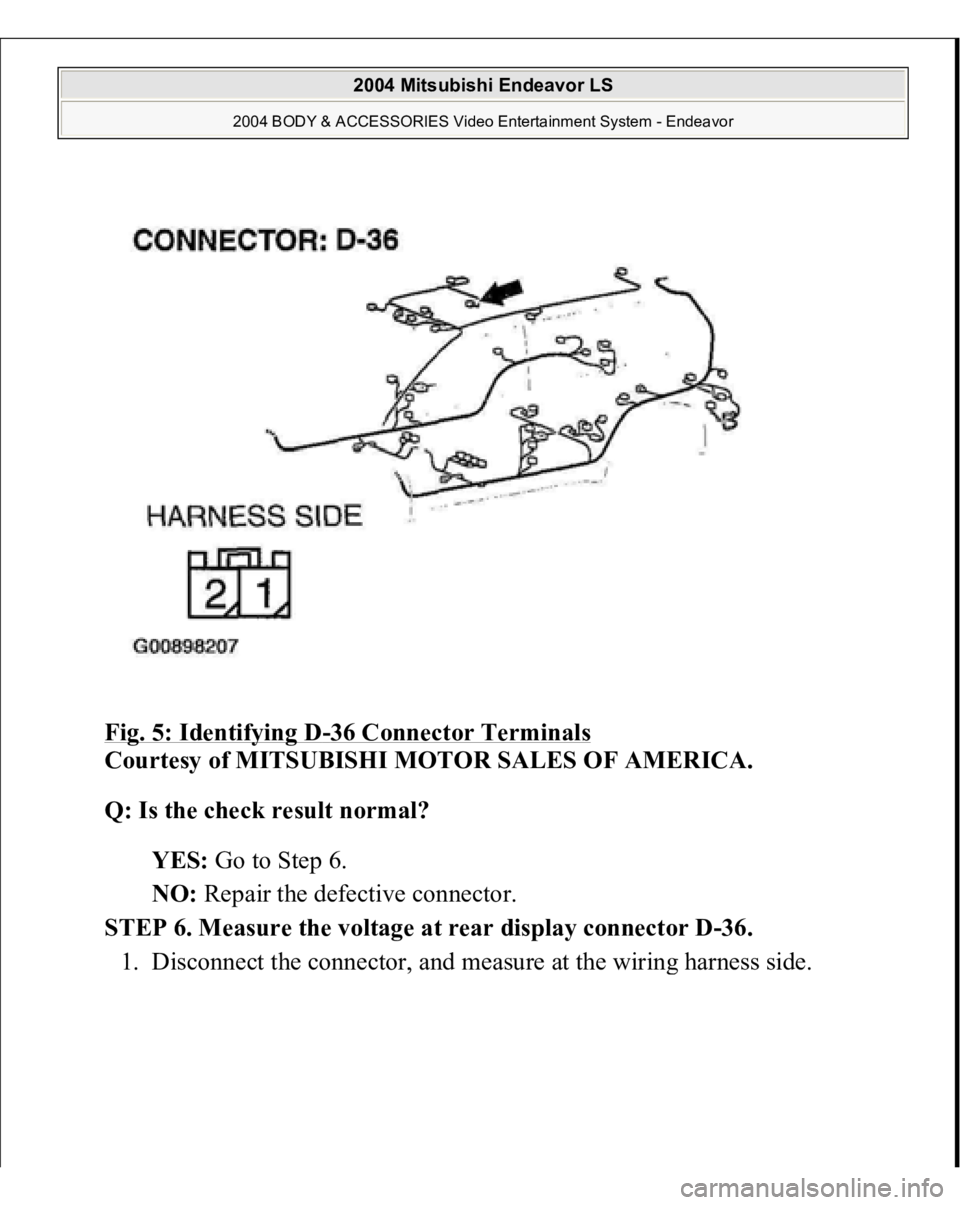

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Identifying D -36 Connector Terminals Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the check result normal? YES: Go to Step 6. NO: Repair the defective connector. STEP 6. Meas

Page 1831 of 3870

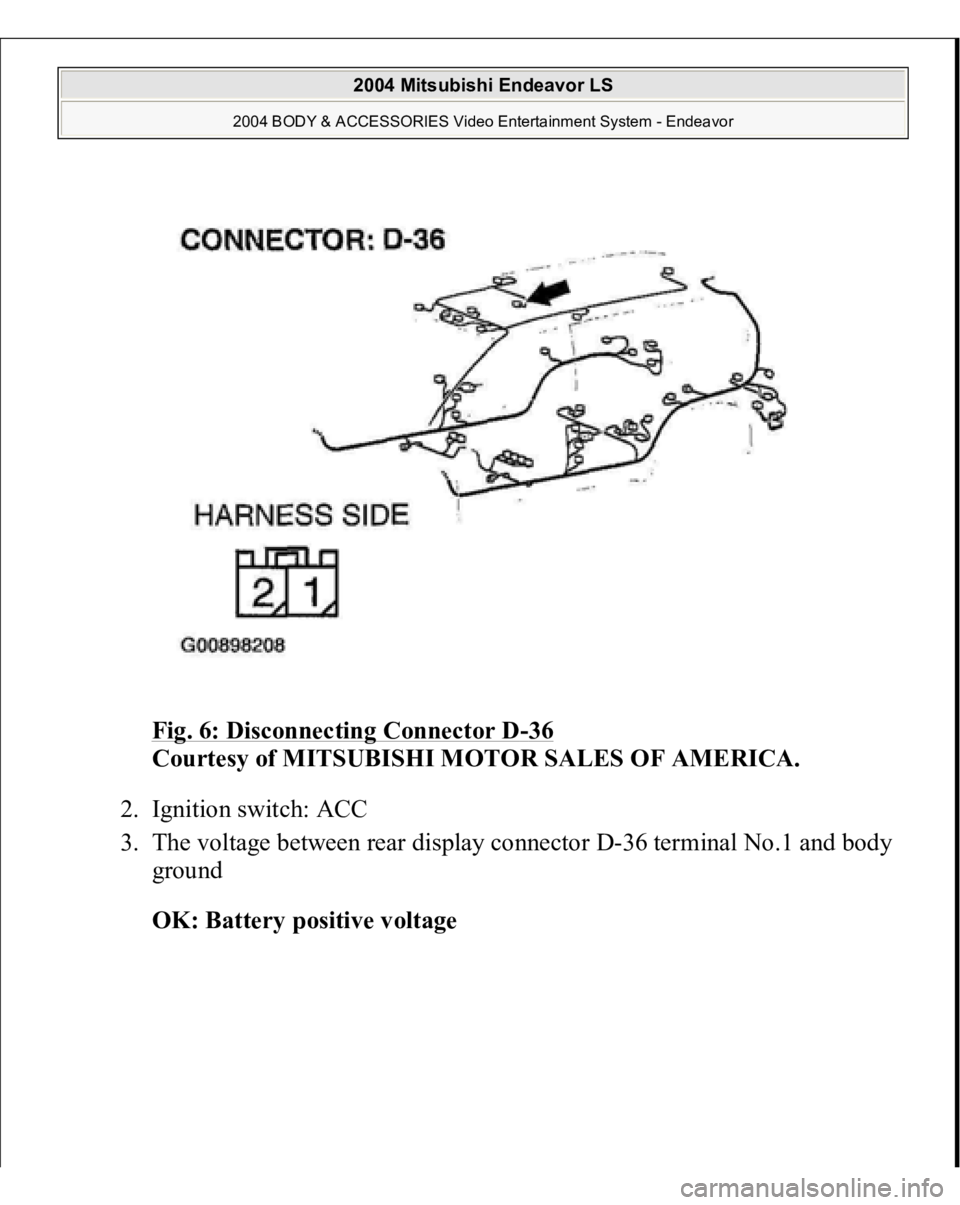

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Disconnecting Connector D -36 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Ignition switch: ACC 3. The voltage between rear display connector D-36 terminal No.1 and body ground OK:

Page 1832 of 3870

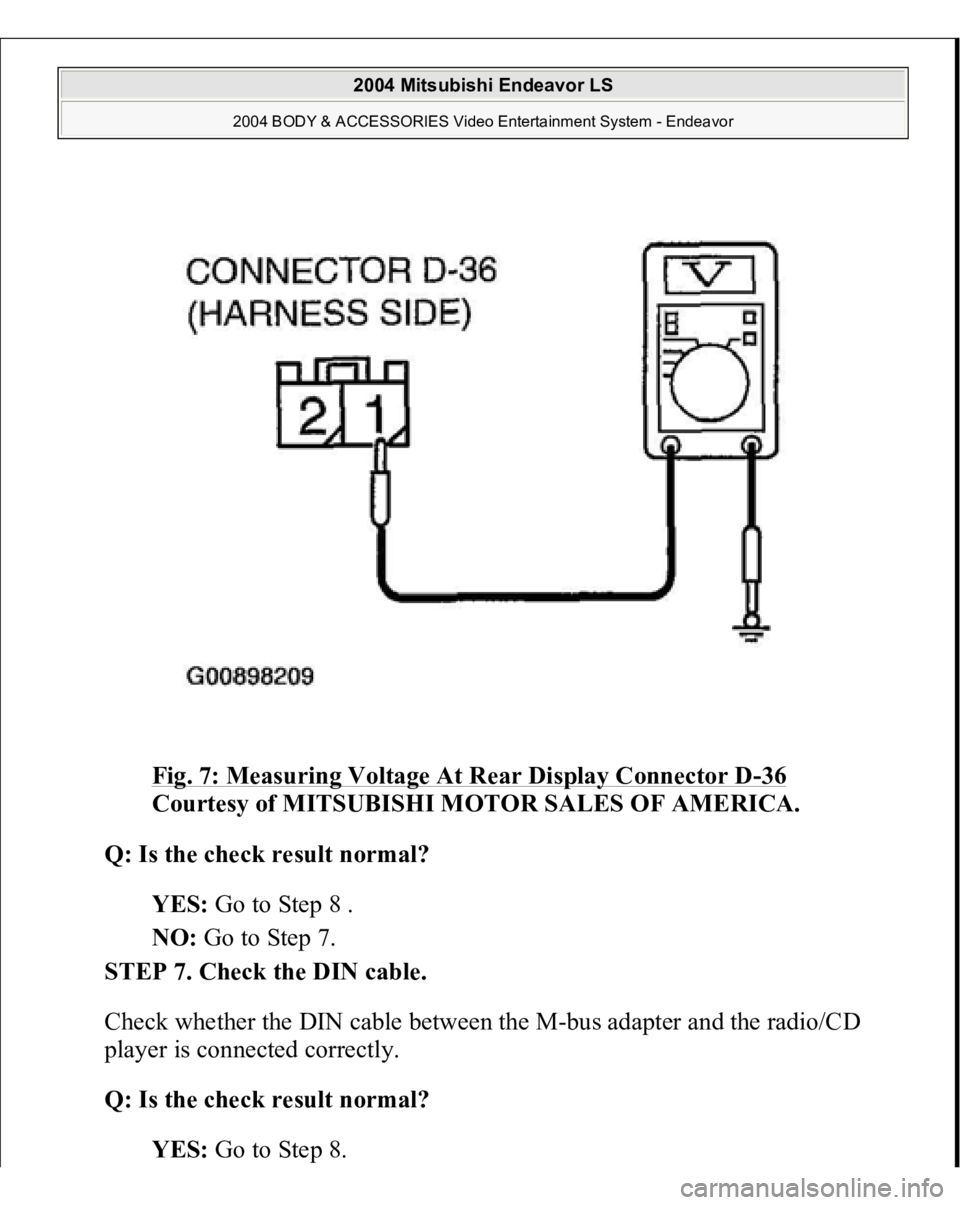

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Measuring Voltage At Rear Display Connector D -36 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the check result normal? YES: Go to Step 8 . NO: Go to Step 7. STEP 7. Check the
