Page 713 of 3870

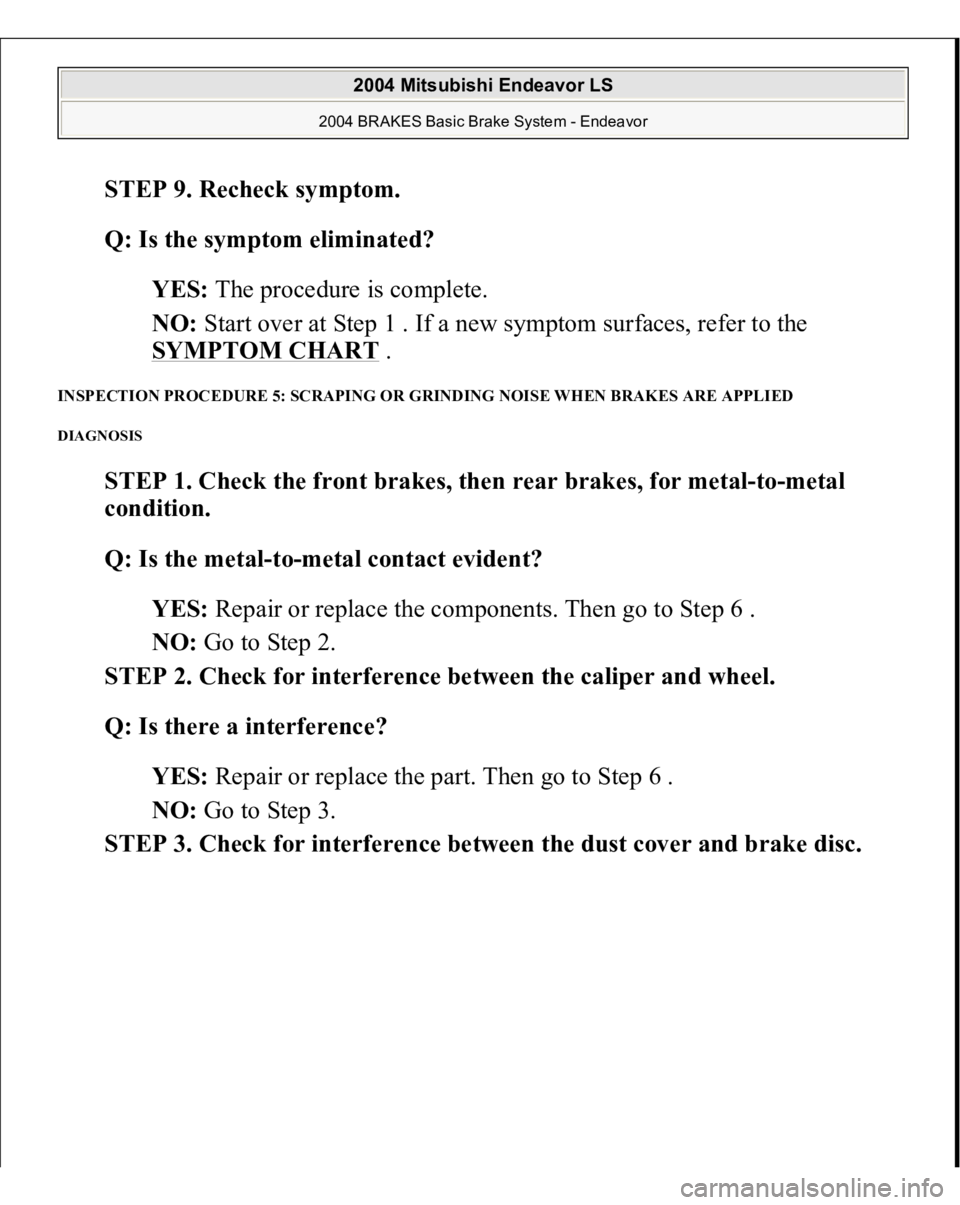

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 9. Recheck symptom. Q: Is the symptom eliminated? YES: The procedure is complete. NO: Start over at Step 1 . If a new symptom surfaces, refer to the SYMPTOM CHART . INSPECTION PROCEDURE

Page 714 of 3870

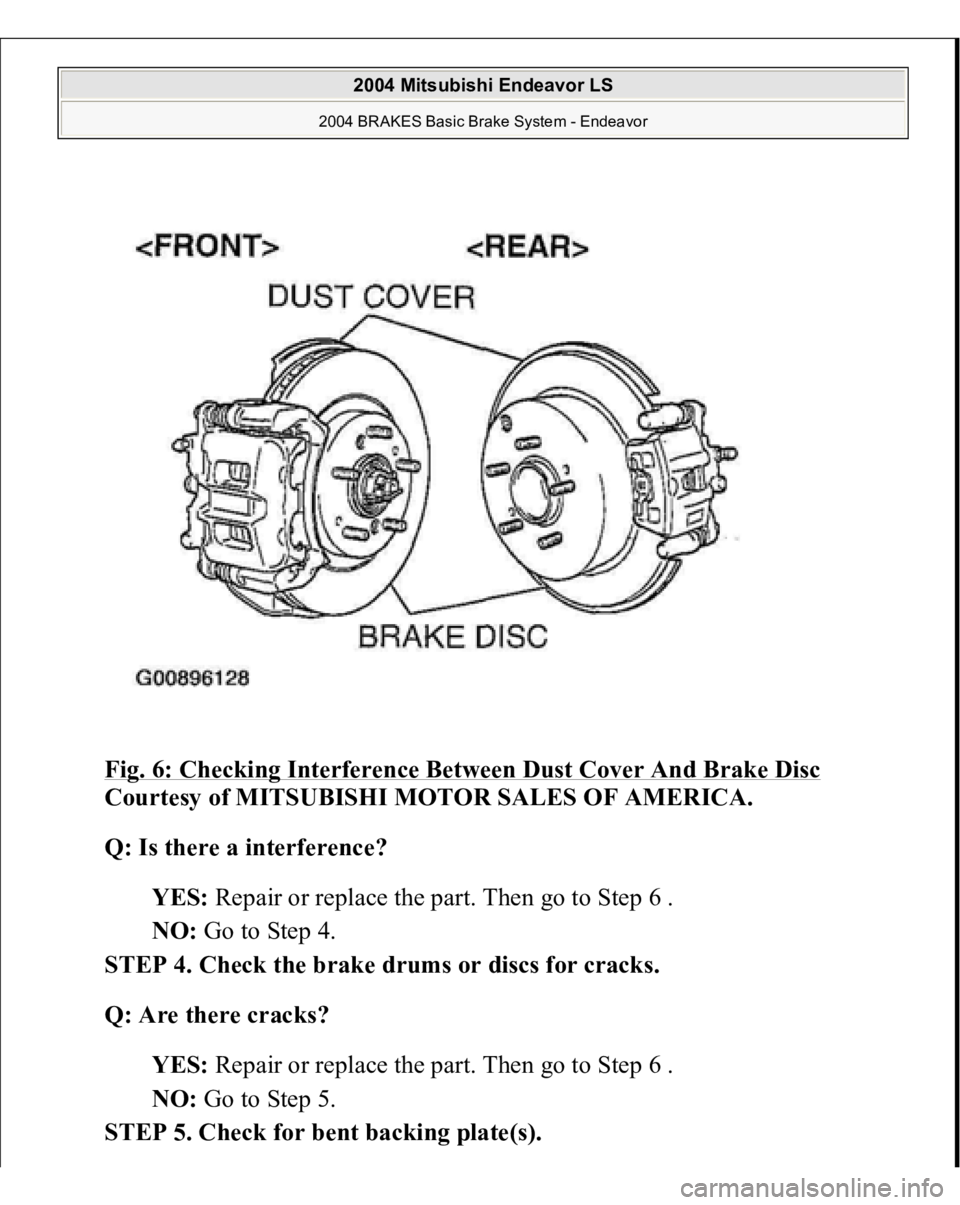

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Checking Interference Between Dust Cover And Brake Disc Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is there a interference? YES: Repair or replace the part. Then go to Step 6 . N

Page 715 of 3870

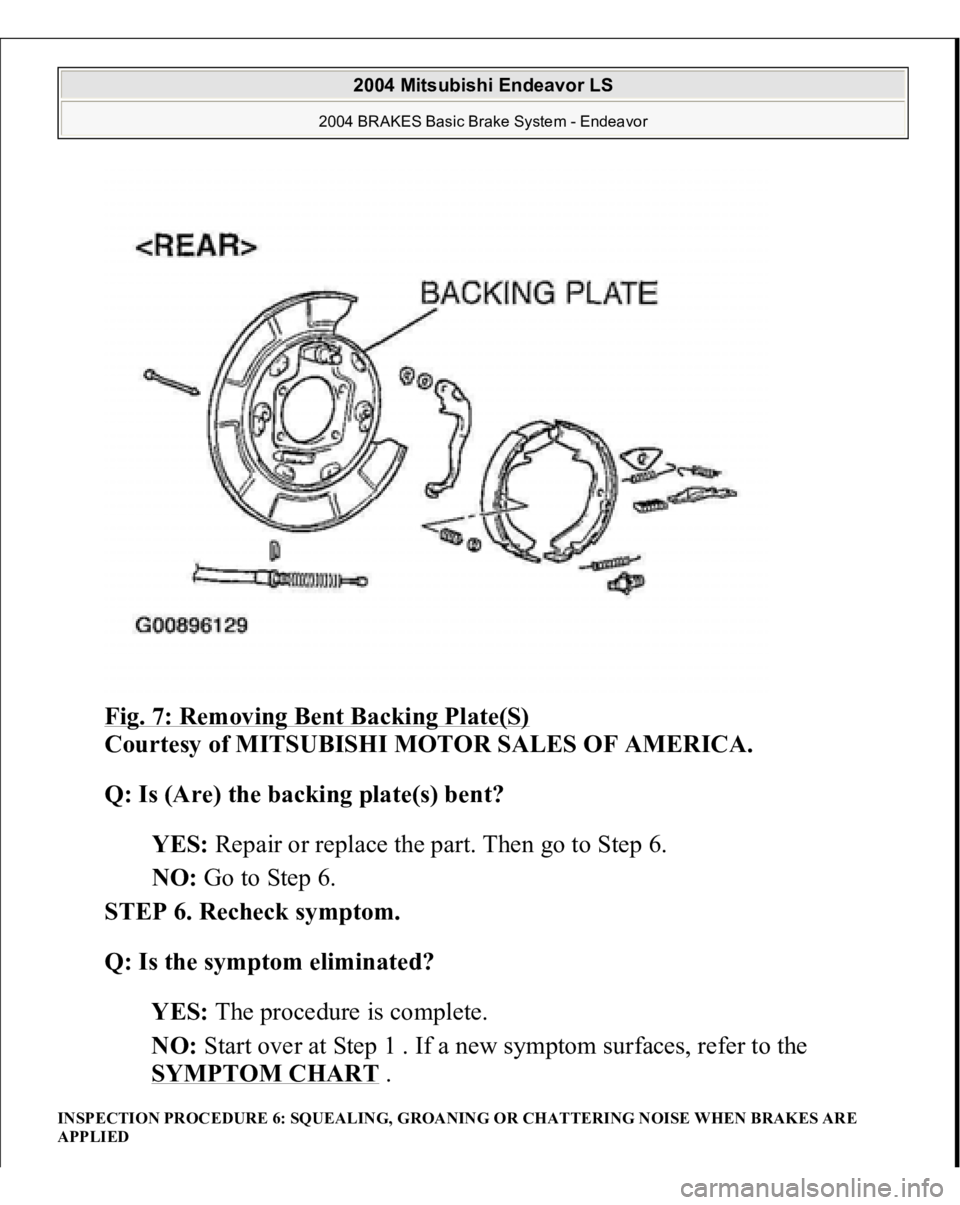

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Removing Bent Backing Plate(S) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is (Are) the backing plate(s) bent? YES: Repair or replace the part. Then go to Step 6. NO: Go to Step 6

Page 716 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DIAGNOSI S STEP 1. Check the brake disc and pads for wear or cutting. Q: Is there a wear or cutting? YES: Repair or replace the part. Then go to Step 4 . NO: Go to Step 2. STEP 2. Check the ca

Page 717 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is there a fault? YES: Replace the part. Then go to Step 10 . NO: Go to Step 2. STEP 2. Check whether the drum is damaged due to interference with the backing plate or shoe. Q: Is there a d

Page 718 of 3870

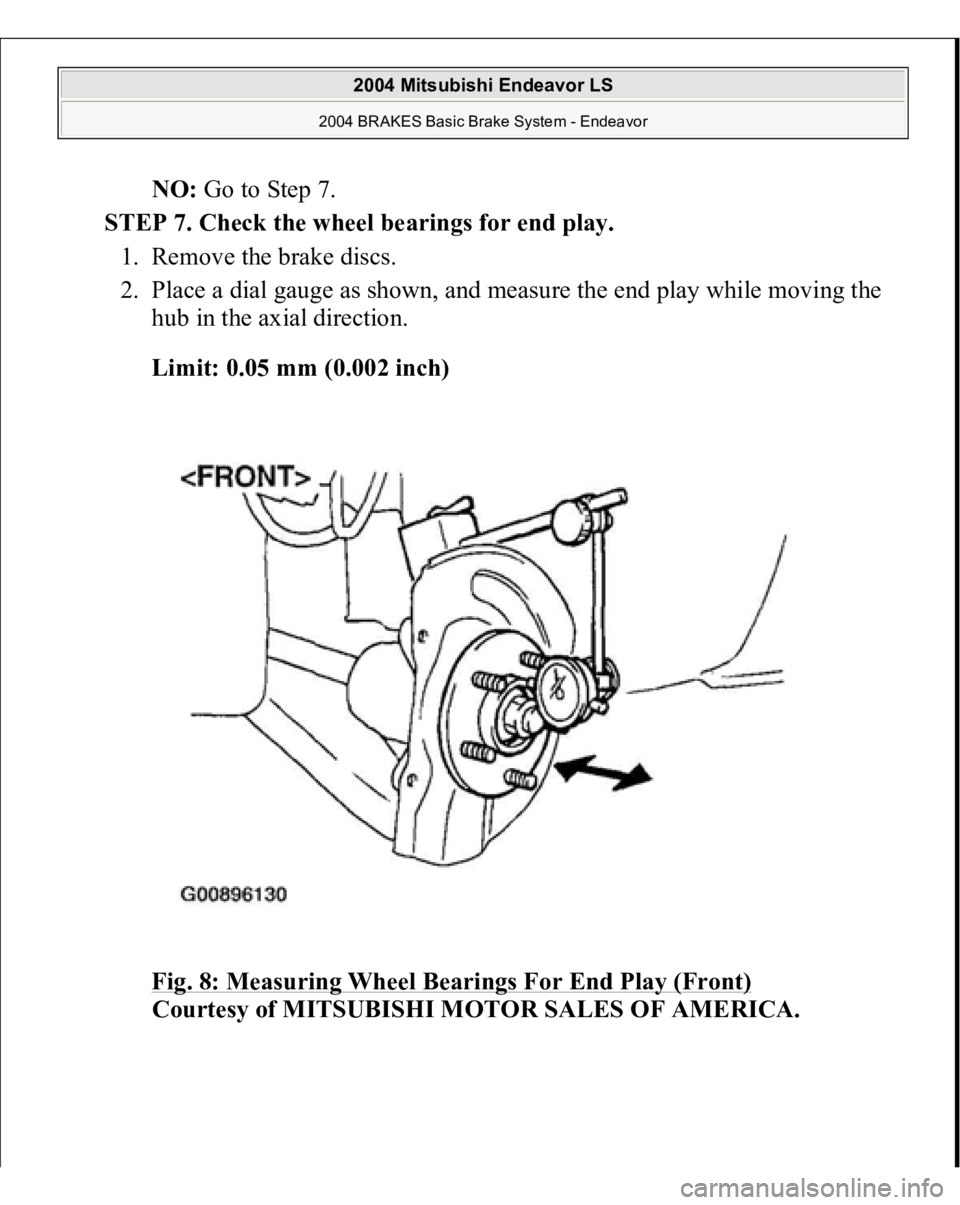

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Go to Step 7. STEP 7. Check the wheel bearings for end play. 1. Remove the brake discs. 2. Place a dial gauge as shown, and measure the end play while moving the hub in the axial direction.

Page 719 of 3870

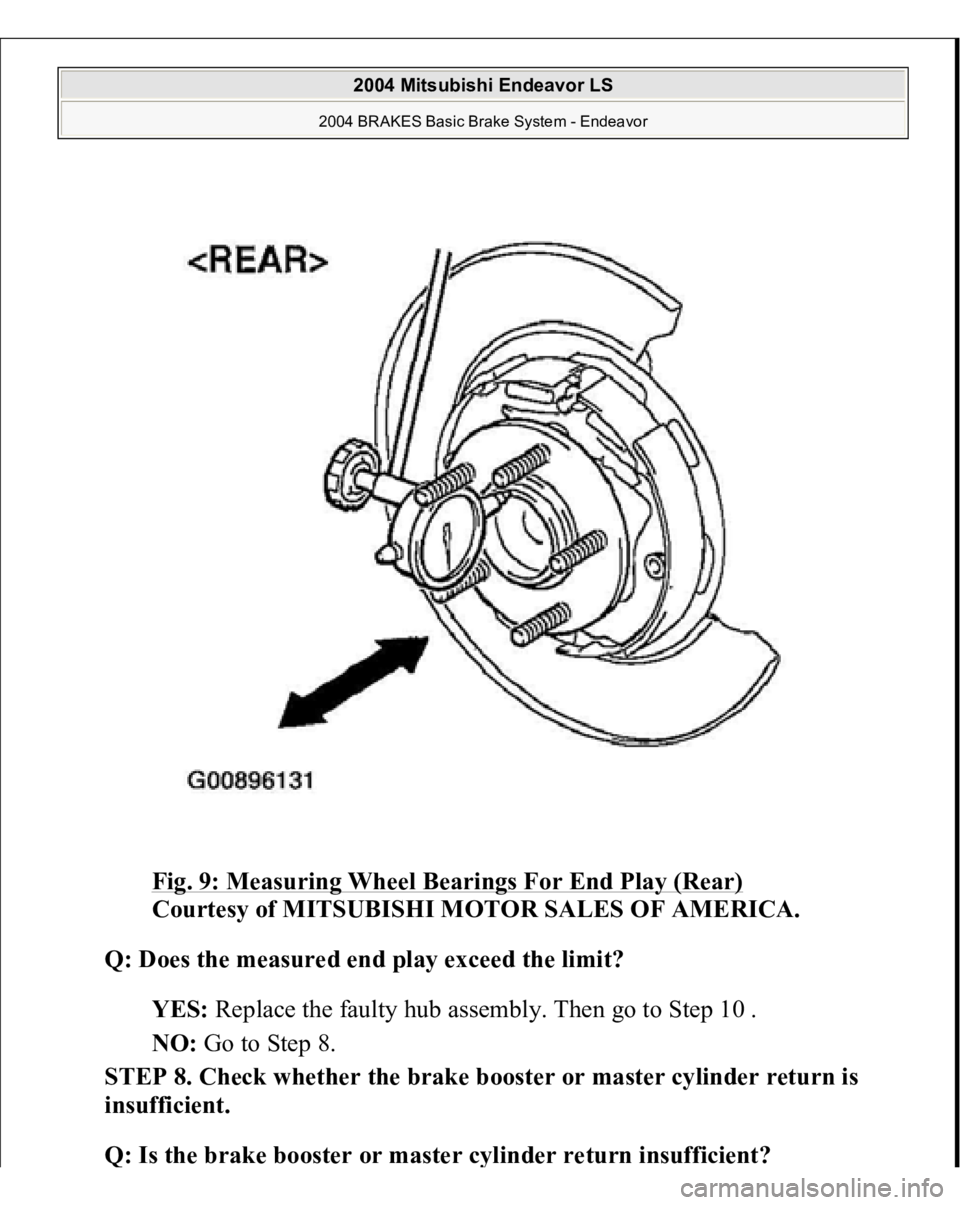

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Measuring Wheel Bearings For End Play (Rear) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Does the measured end play exceed the limit? YES: Replace the faulty hub assembly. Then go t

Page 720 of 3870

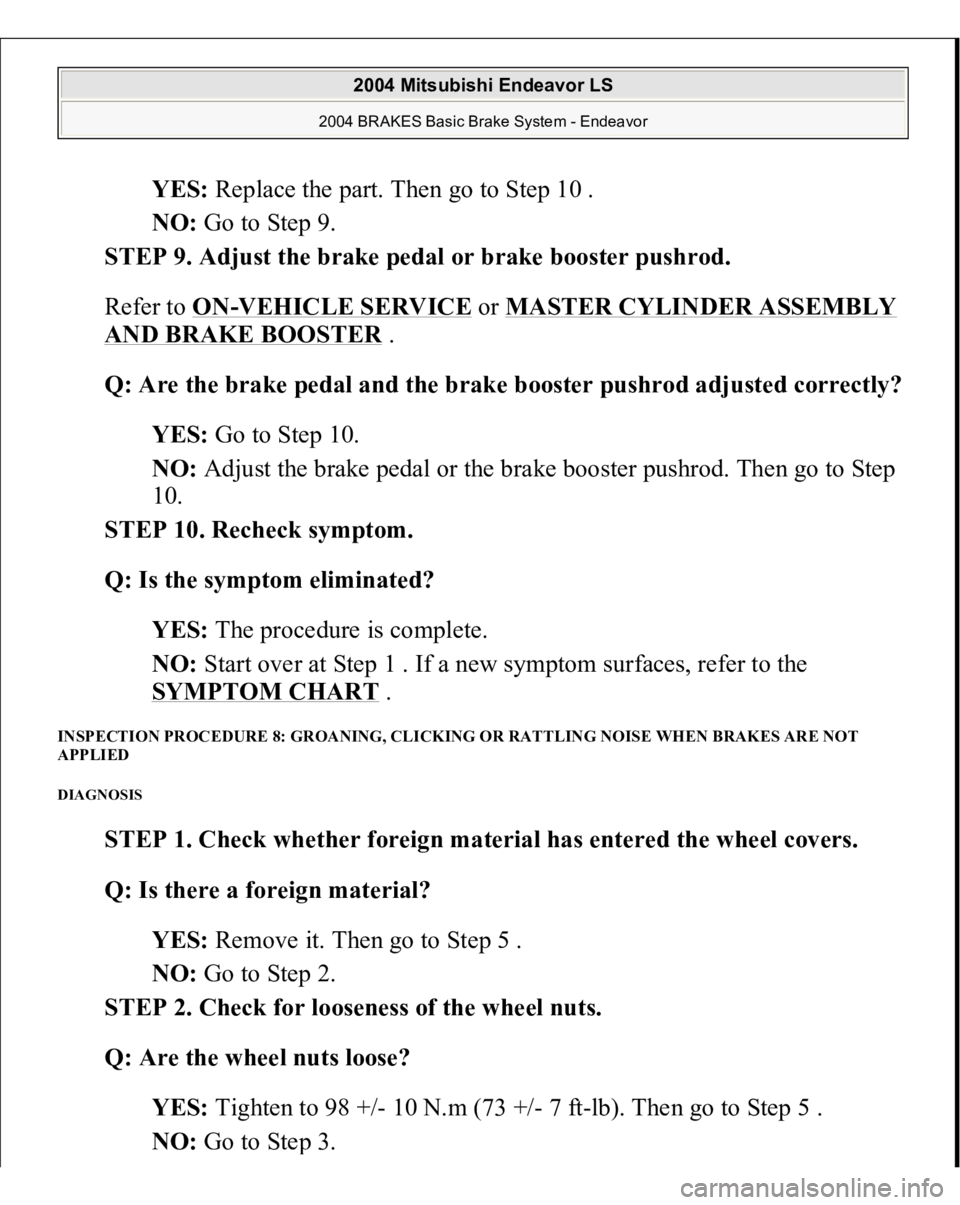

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Replace the part. Then go to Step 10 . NO: Go to Step 9. STEP 9. Adjust the brake pedal or brake booster pushrod. Refer to ON -VEHICLE SERVICE or MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER
