Page 521 of 3870

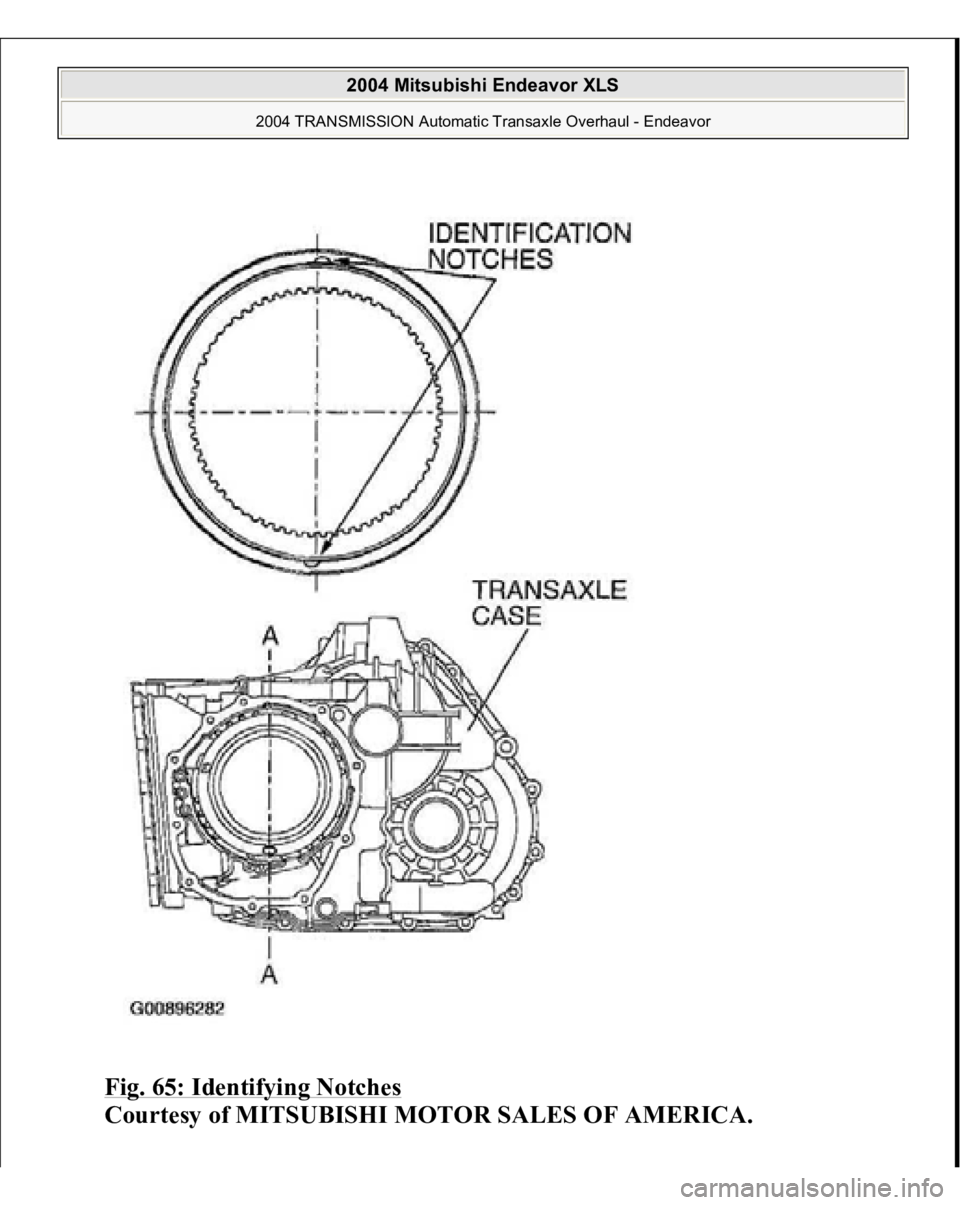

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Identifying Notches Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 522 of 3870

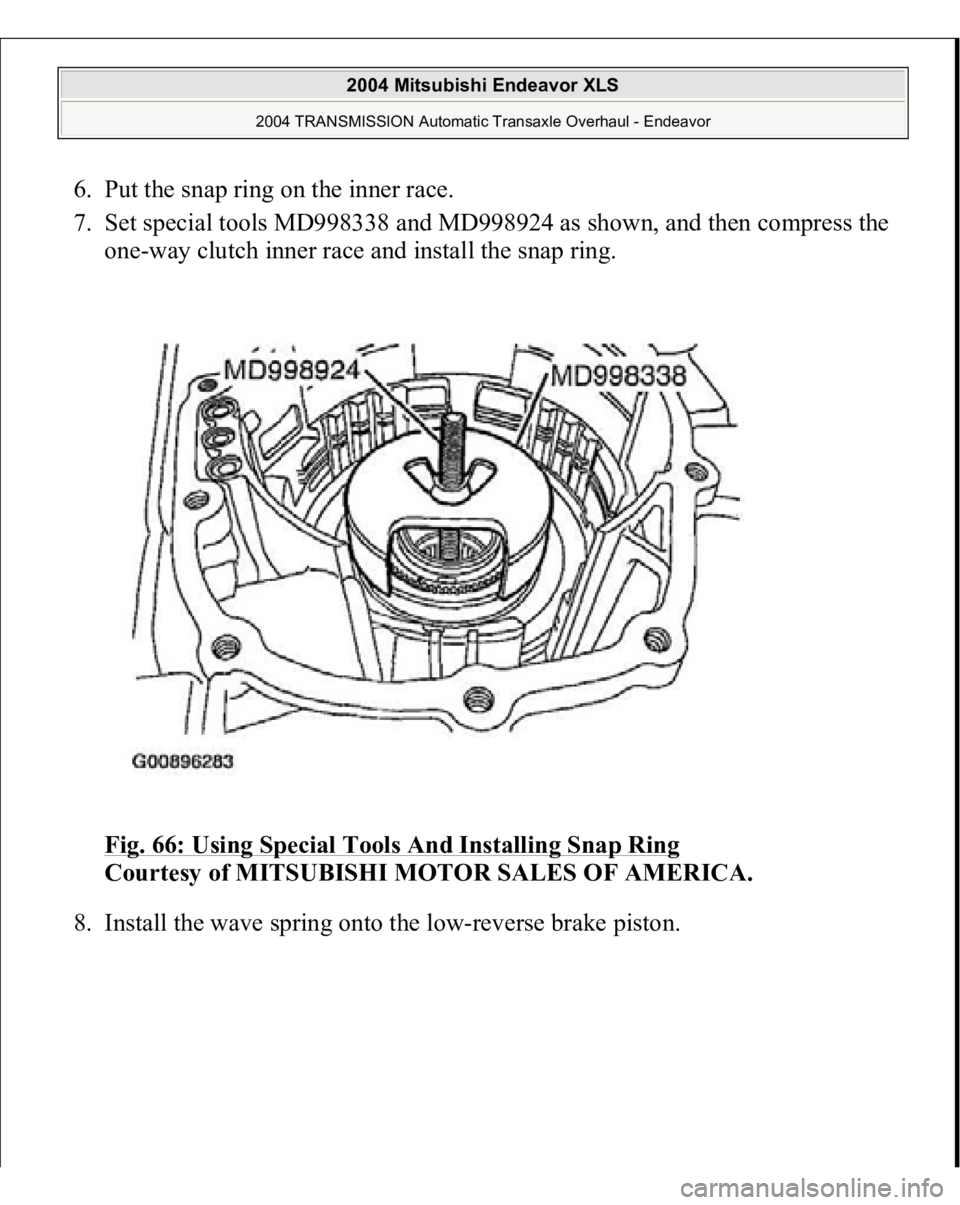

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Put the snap ring on the inner race. 7. Set special tools MD998338 and MD998924 as shown, and then compress the one-way clutch inner race and install the snap ring. Fig. 66: Using Special Tools

Page 523 of 3870

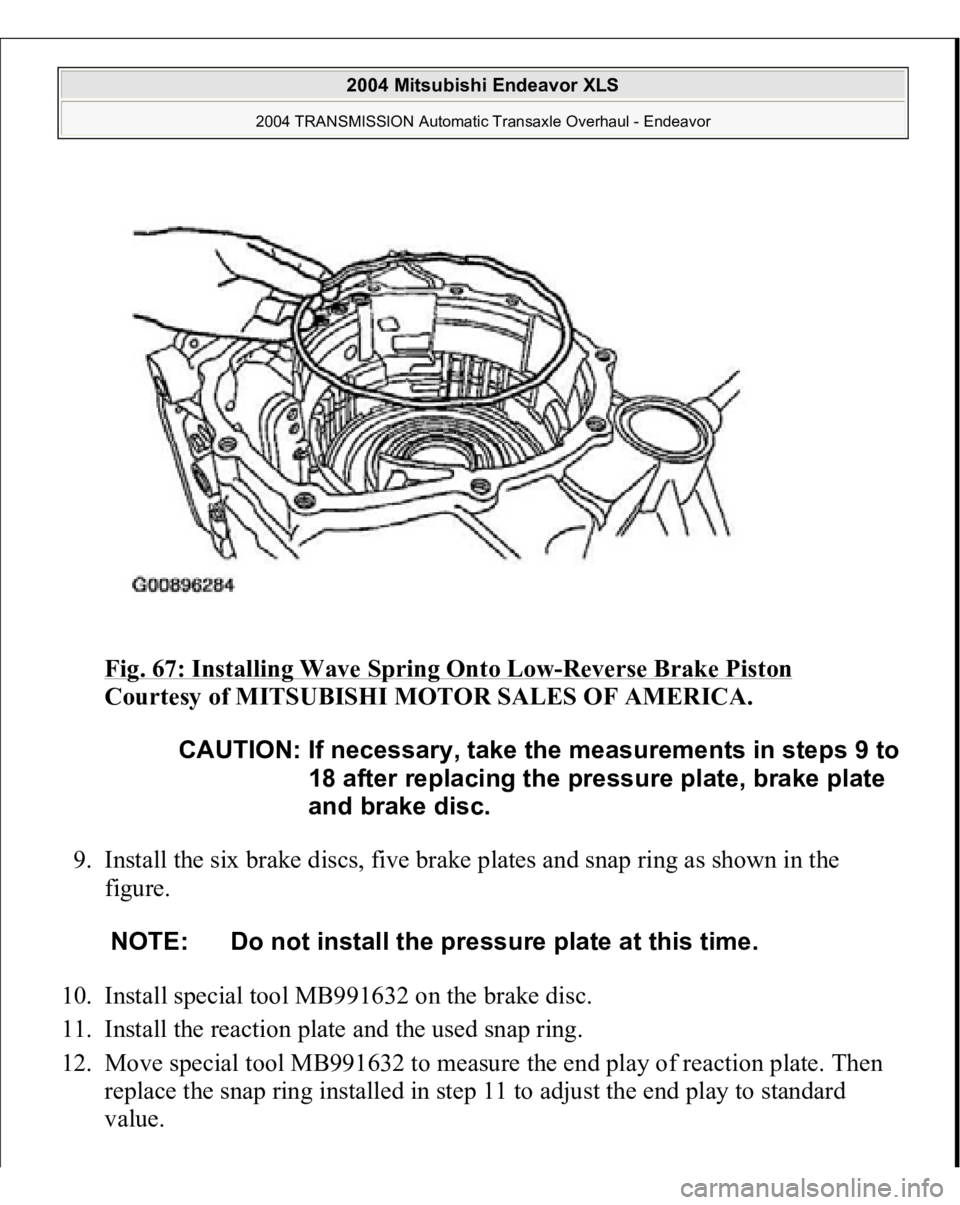

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: Installing Wave Spring Onto Low -Reverse Brake Piston Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 9. Install the six brake discs, five brake plates and snap ring as shown in the figure

Page 524 of 3870

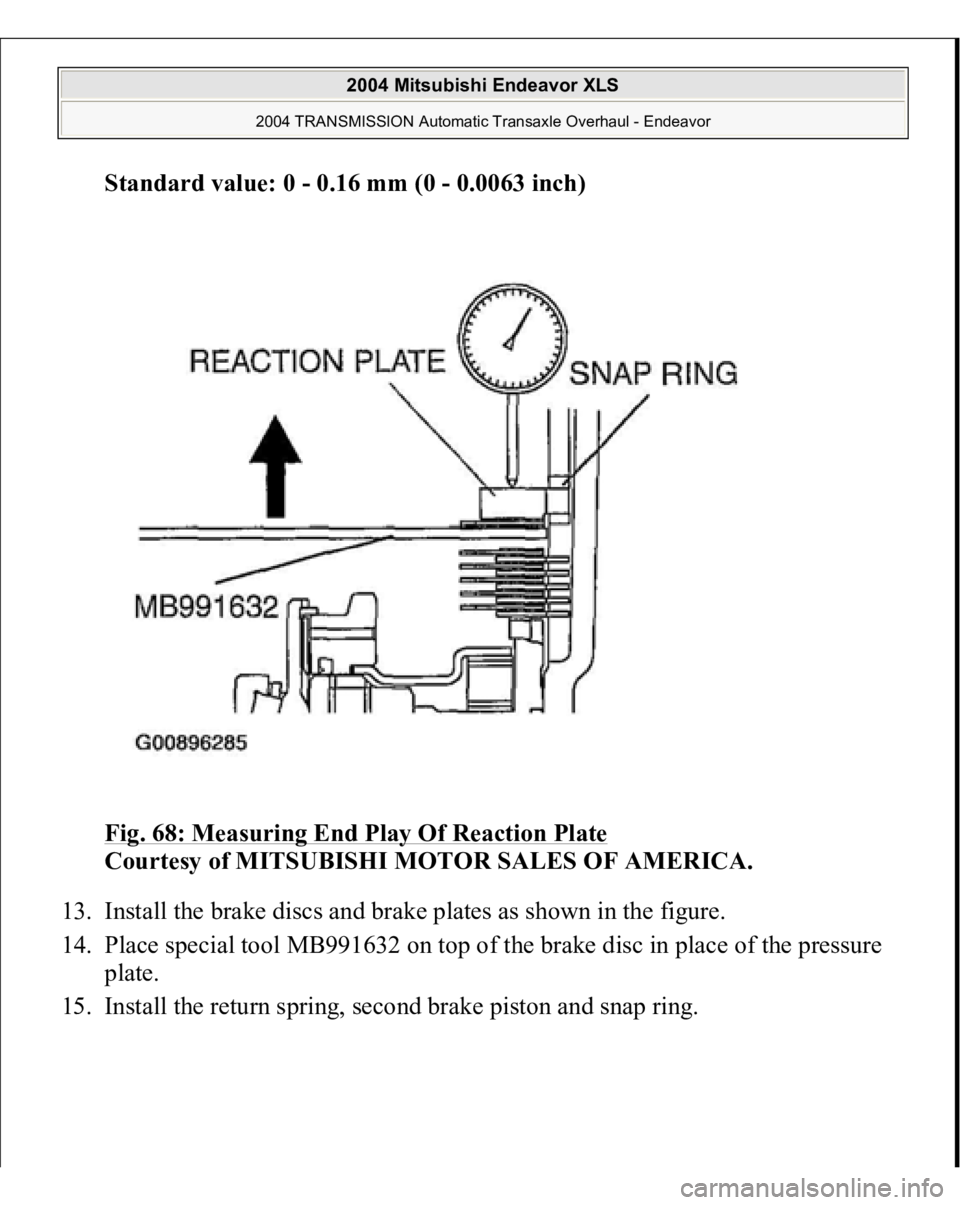

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Standard value: 0 - 0.16 mm (0 - 0.0063 inch) Fig. 68: Measuring End Play Of Reaction Plate Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 13. Install the brake discs and brake plates as shown in

Page 525 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 69: Placing Special Tool On Top Of Brake Disc In Place Of Pressure Plate Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 16. Move special tool MB991632 and measure its movement. Standard value

Page 526 of 3870

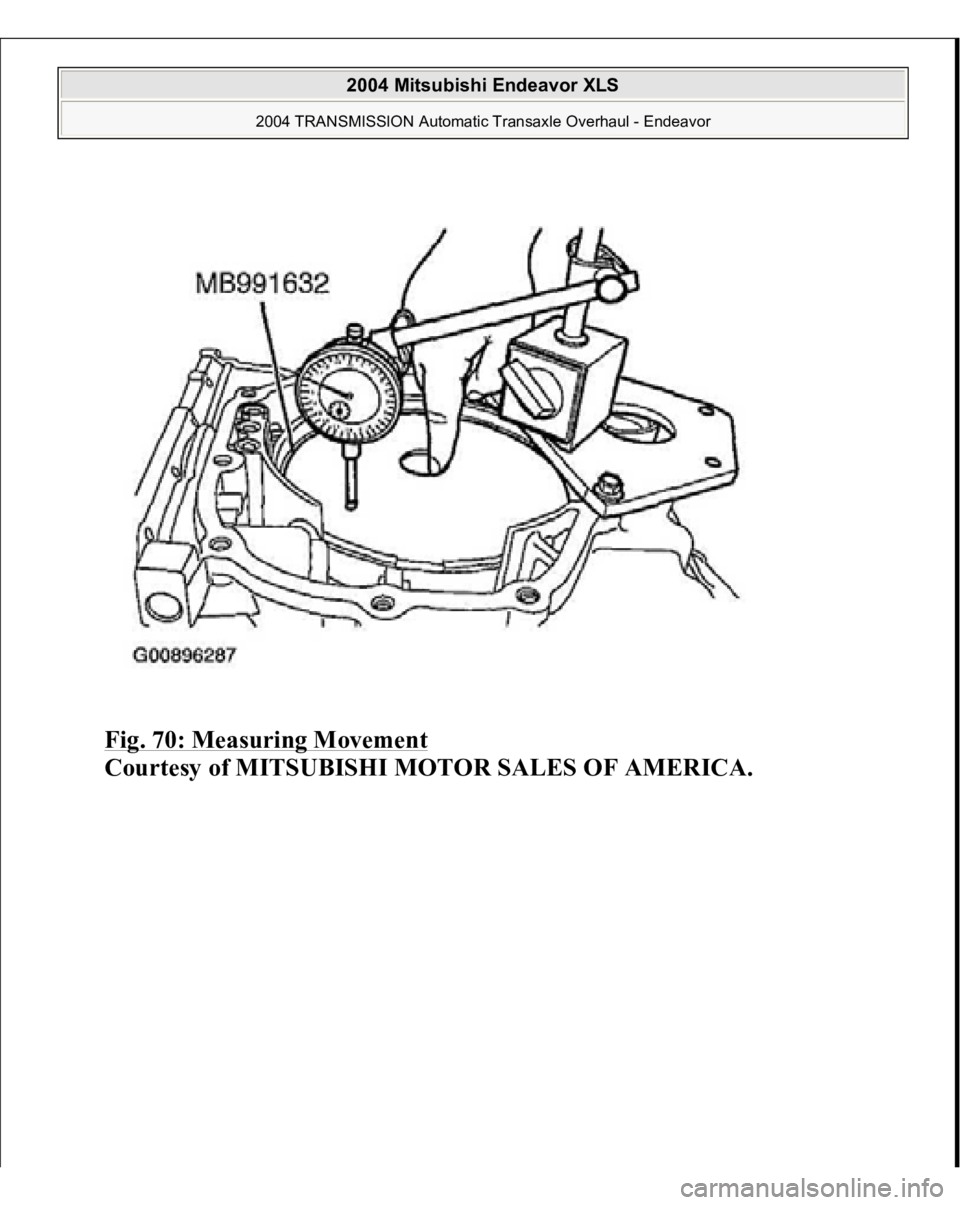

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 70: Measuring Movement Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 527 of 3870

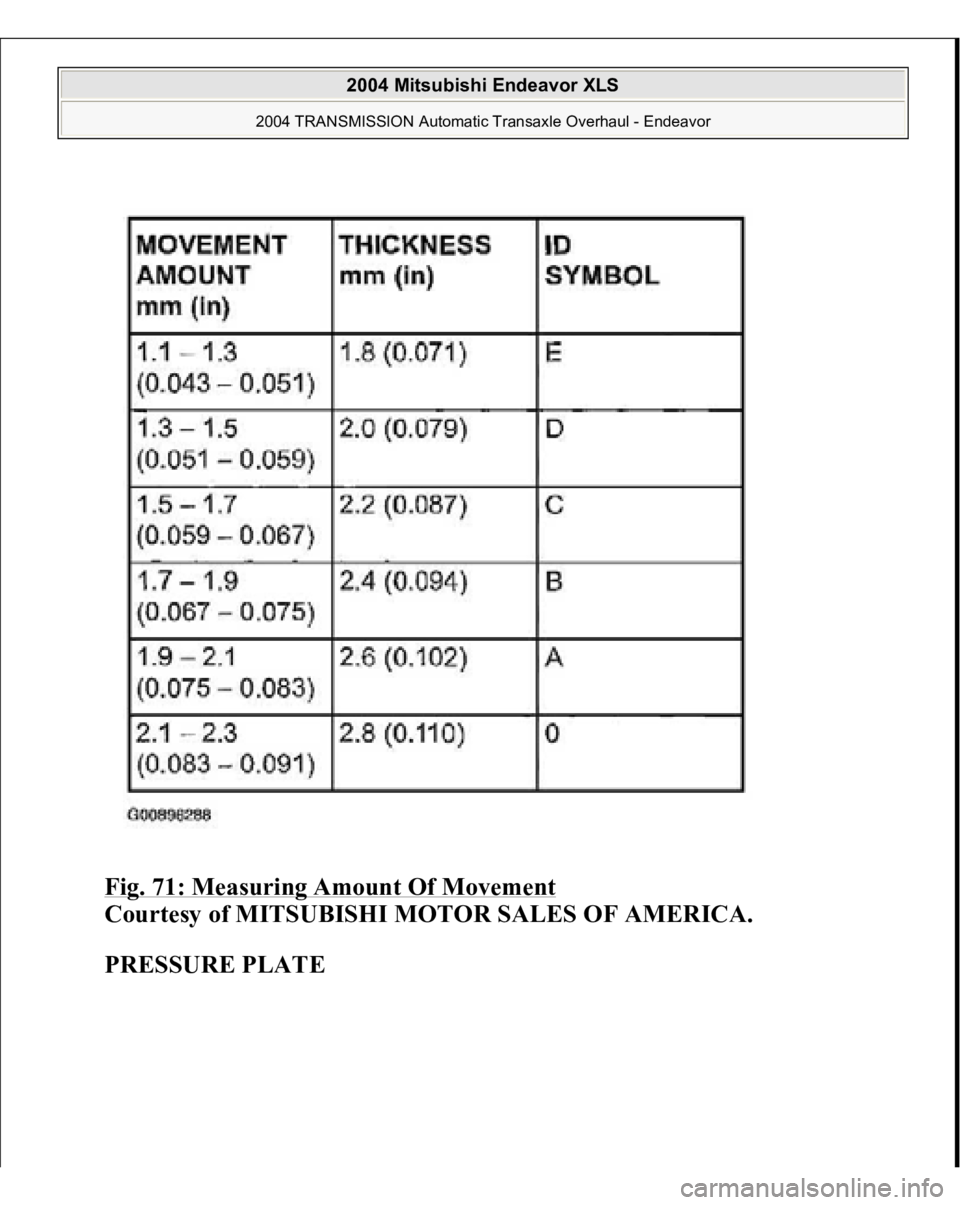

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 71: Measuring Amount Of Movement Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. PRESSURE PLATE 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 528 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 72: Pressure Plate Thickness Moving Amount Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 18. Turn the transaxle over so that the installation surface of the torque converter housing is
