Page 2097 of 3870

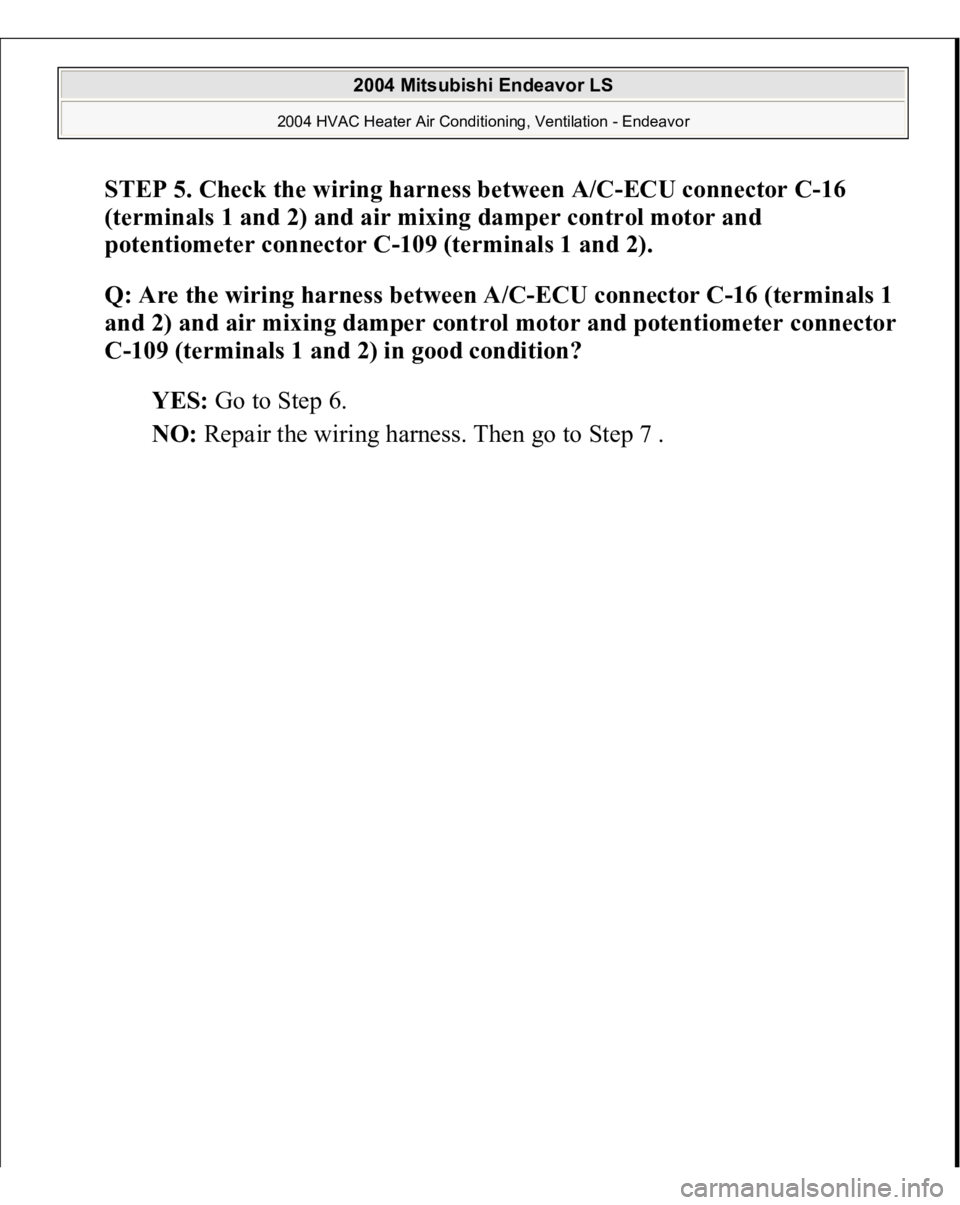

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 5. Check the wiring harness between A/C-ECU connector C-16 (terminals 1 and 2) and air mixing damper control motor and potentiometer connector C-109 (terminals 1 and 2). Q: Are the wiring har

Page 2098 of 3870

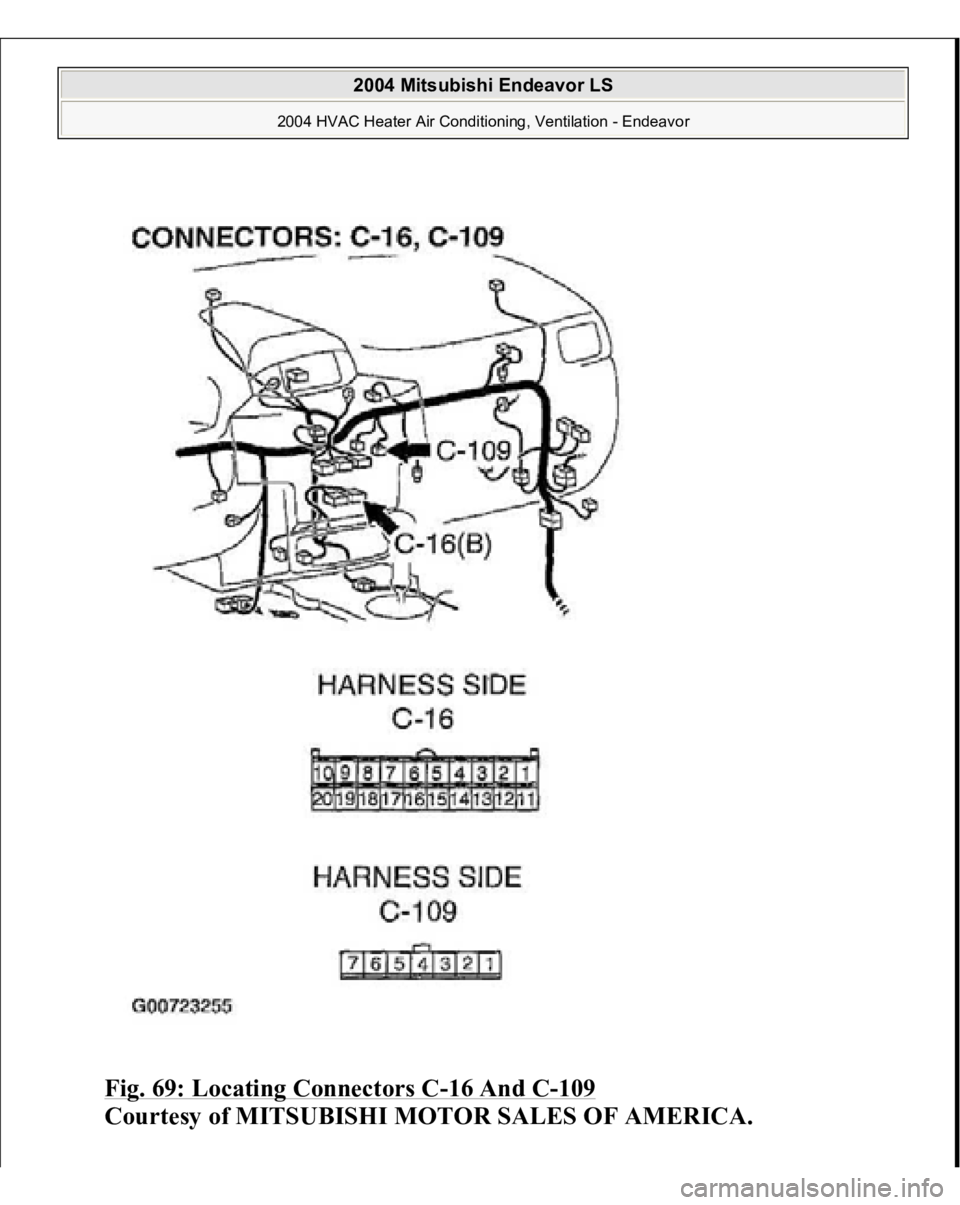

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 69: Locating Connectors C -16 And C -109 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2099 of 3870

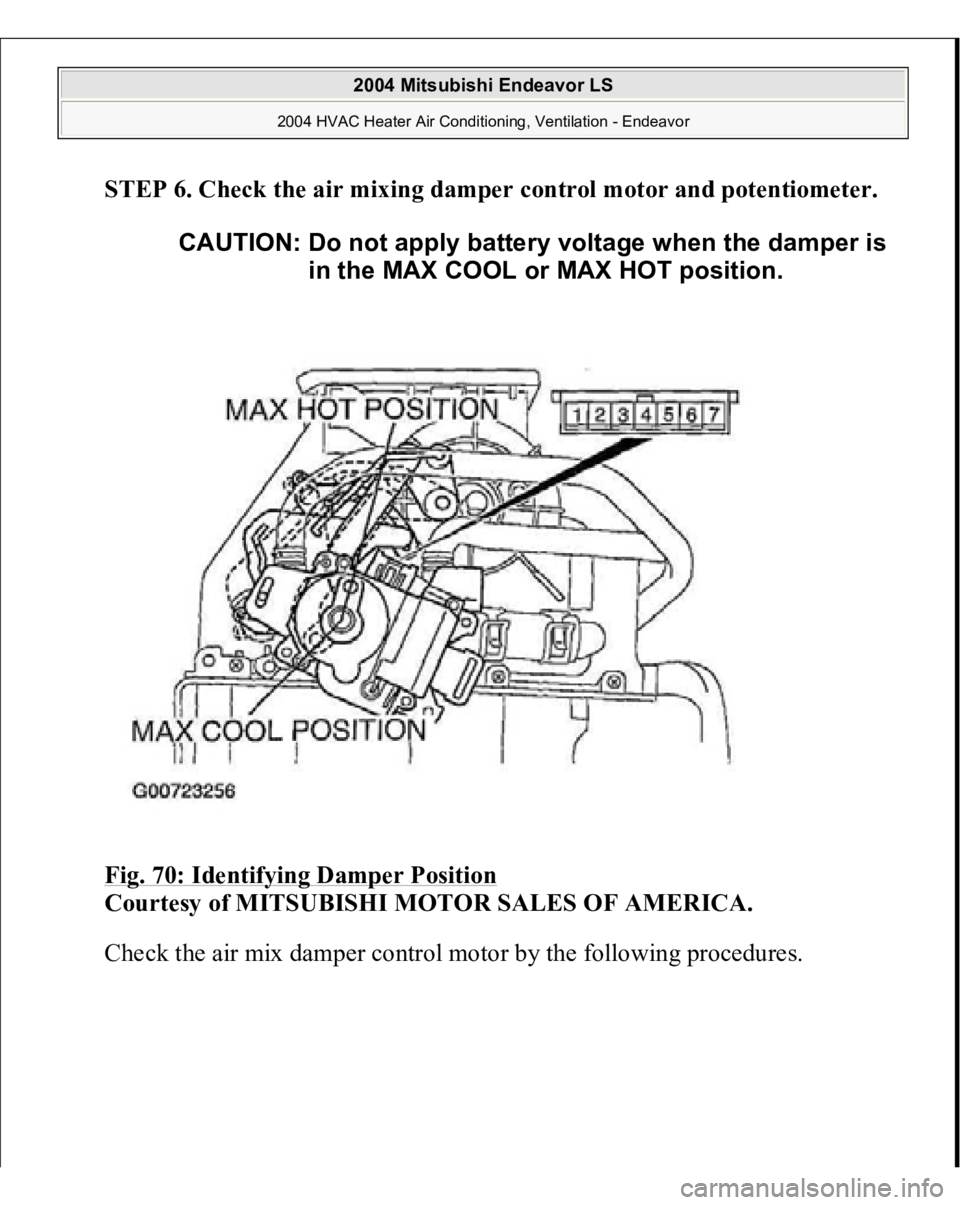

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 6. Check the air mixing damper control motor and potentiometer. Fig. 70: Identifying Damper Position Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Check the air mix dam per control motor b

Page 2100 of 3870

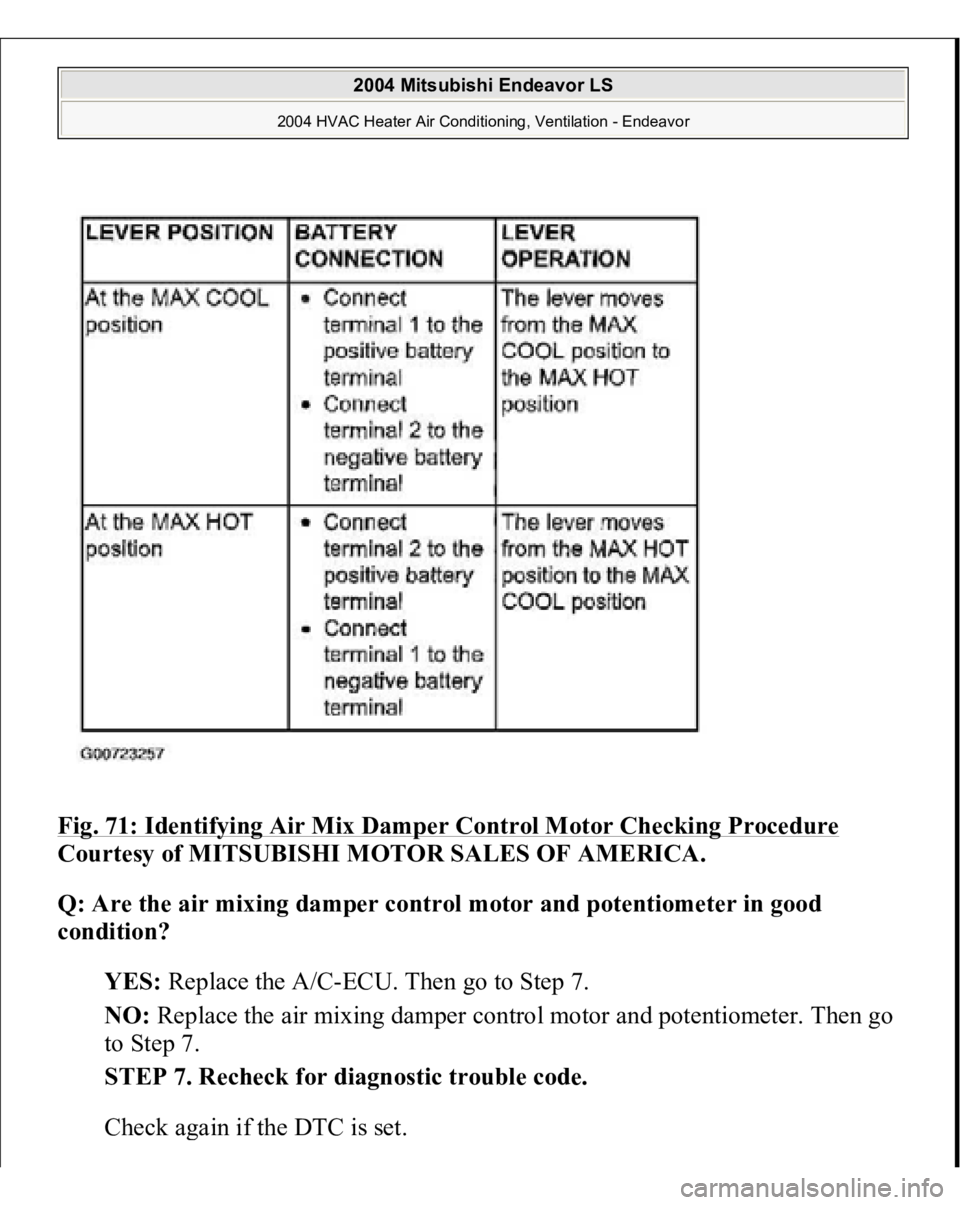

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 71: Identifying Air Mix Damper Control Motor Checking Procedure Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are the air mixing damper control motor and potentiometer in good condition?

Page 2101 of 3870

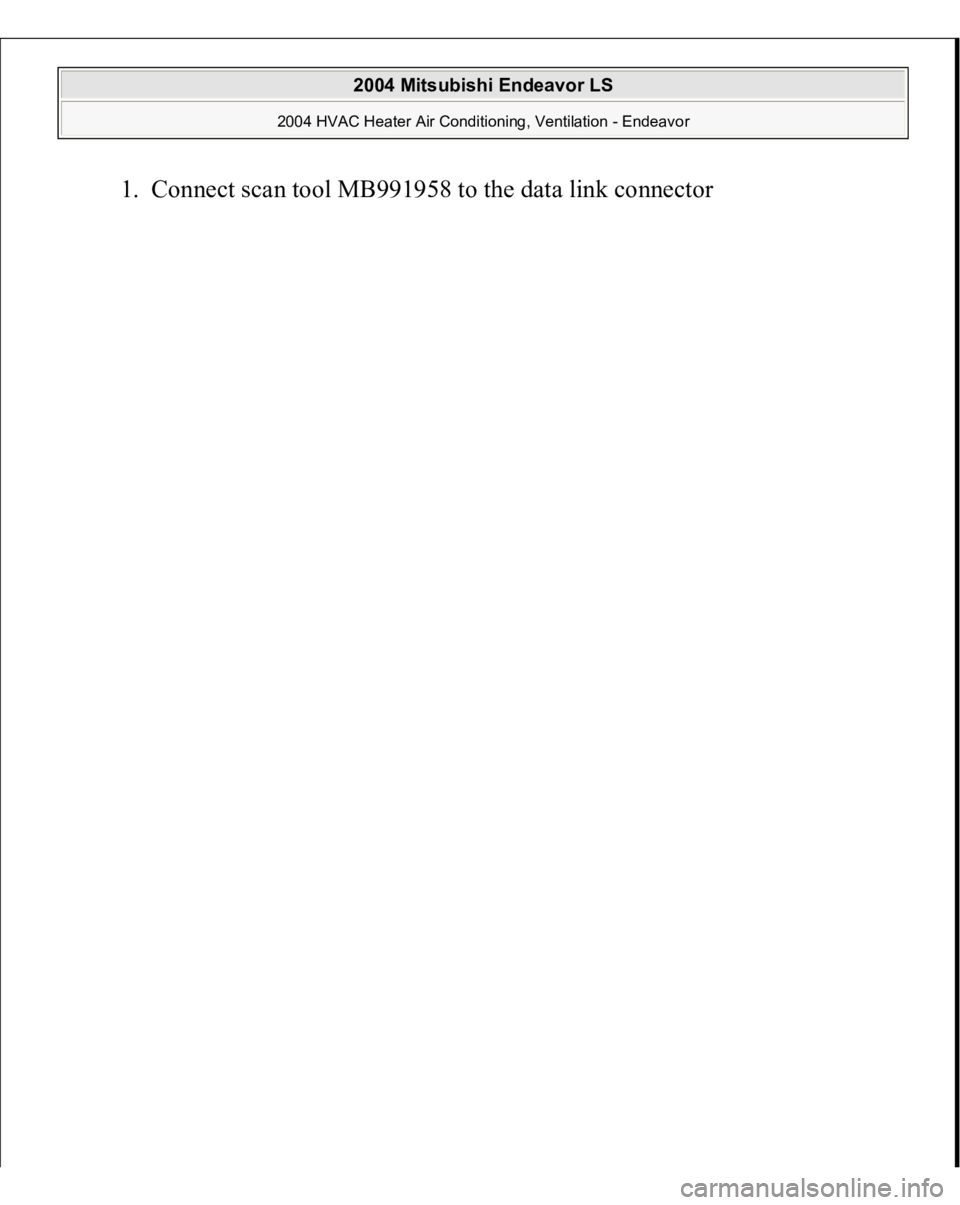

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect scan tool MB991958 to the data link connec tor 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2102 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 72: Connectin g Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2103 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Check if the DTC is set. 4. Turn the ignition switch to the "LOCK" (OFF) posit

Page 2104 of 3870

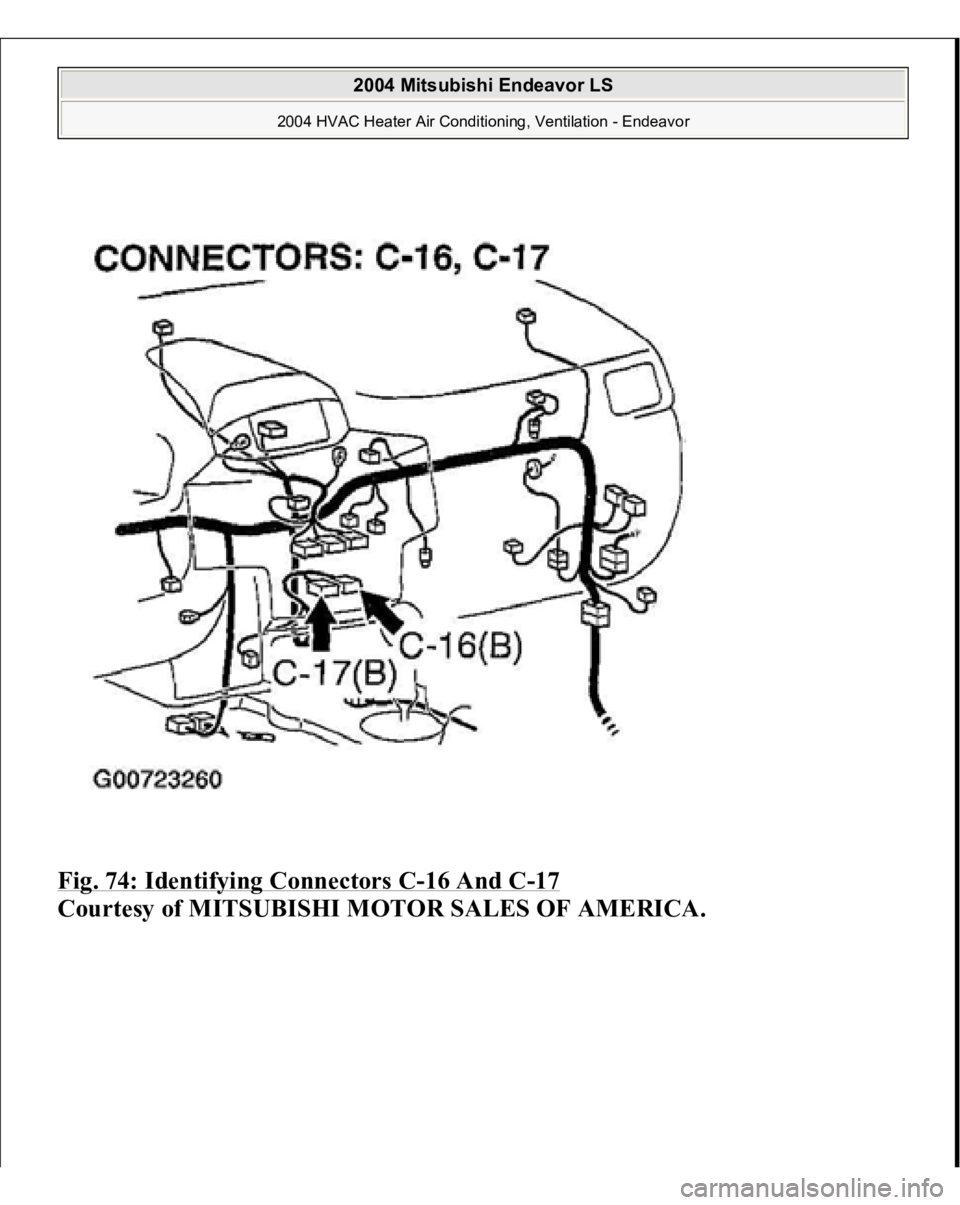

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 74: Identifying Connectors C -16 And C -17 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
