Page 2617 of 3870
dama
ged terminals, or terminals
pushed back in the connector
.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2618 of 3870
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2619 of 3870

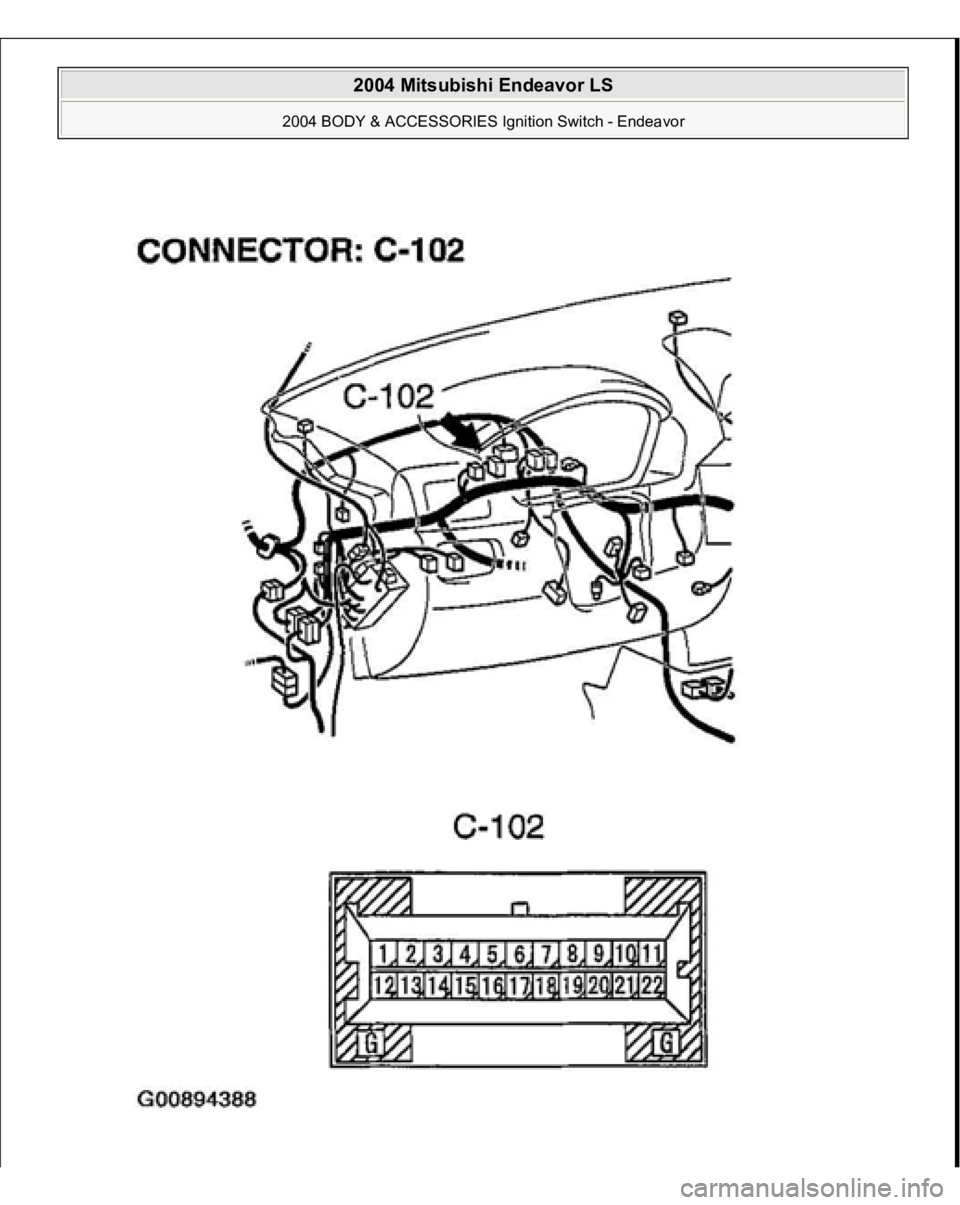

Fig. 78: Checking Combination Meter Connector C
-102 For Loose
Corroded Or Damaged Terminals
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is combination meter connector C-102 in good condition?
YES: Go to Step 7.
NO: Repair or replace the damaged component(s). Check to see that all
meters operate.
STEP 7. Check the wiring harness between combination meter connector
C-102 (terminal 1) and the battery.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2620 of 3870
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2621 of 3870
Fig. 79: Checking Wiring Harness Between Combination Meter Connector C
-102 And Battery
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-31 and joint
connector C-04 for loose, corroded, or damaged
terminals, or terminals pushed back in the connector. If
intermediate connector C-31 or joint connector C-04 is
damaged, repair or replace it.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2622 of 3870

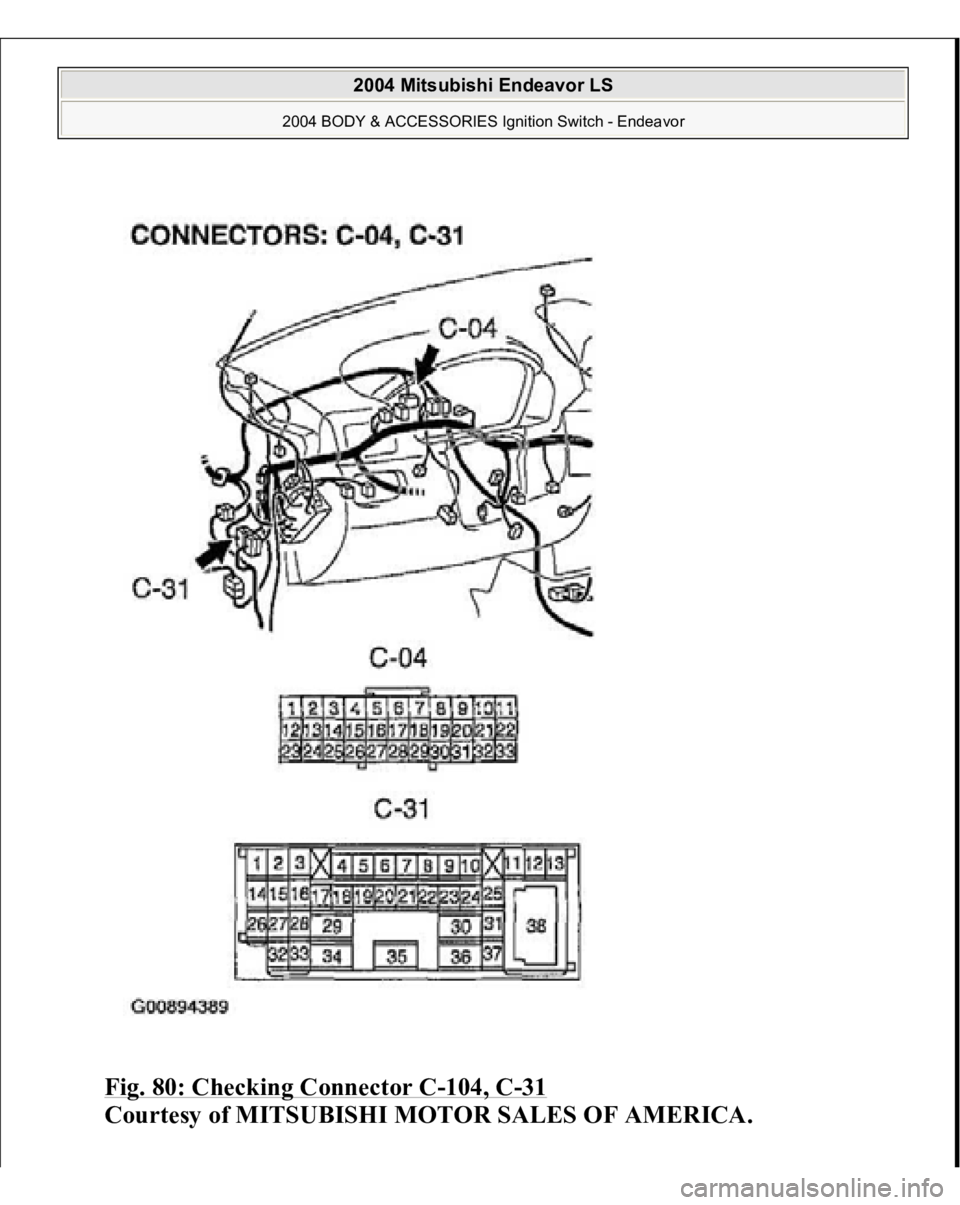

Fig. 80: Checking Connector C
-104, C
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2623 of 3870
Q: Is the wiring harness between combination meter connector C-102
(terminal 1) and the battery in good condition?
YES: Go to Step 8.
NO: Repair the wiring harness. Check to see that all meters operate.
STEP 8. Retest the system.
Q: Is the malfunction eliminated?
YES: The procedure is complete. (If no malfunctions are found in all
steps, an intermittent malfunction is suspected. Refer to HOW TO USE
TROUBLESHOOTING/ INSPECTION SERVICE POINT
).
NO: Go to Step 1.
INSPECTION PROCEDURE 4: The Immobilizer Indicator Light does not Illuminate. < FROM TO JANUARY 2004 >
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor
Page 2624 of 3870
Fig. 81: Immobilizer Indicator Light Circuit Diagram & Connector Identification
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION If the requirements for starting the engine are not satisfied, the immobilizer-ECU
flashes the immobilizer indicator for 30 seconds.
