Page 2281 of 3870

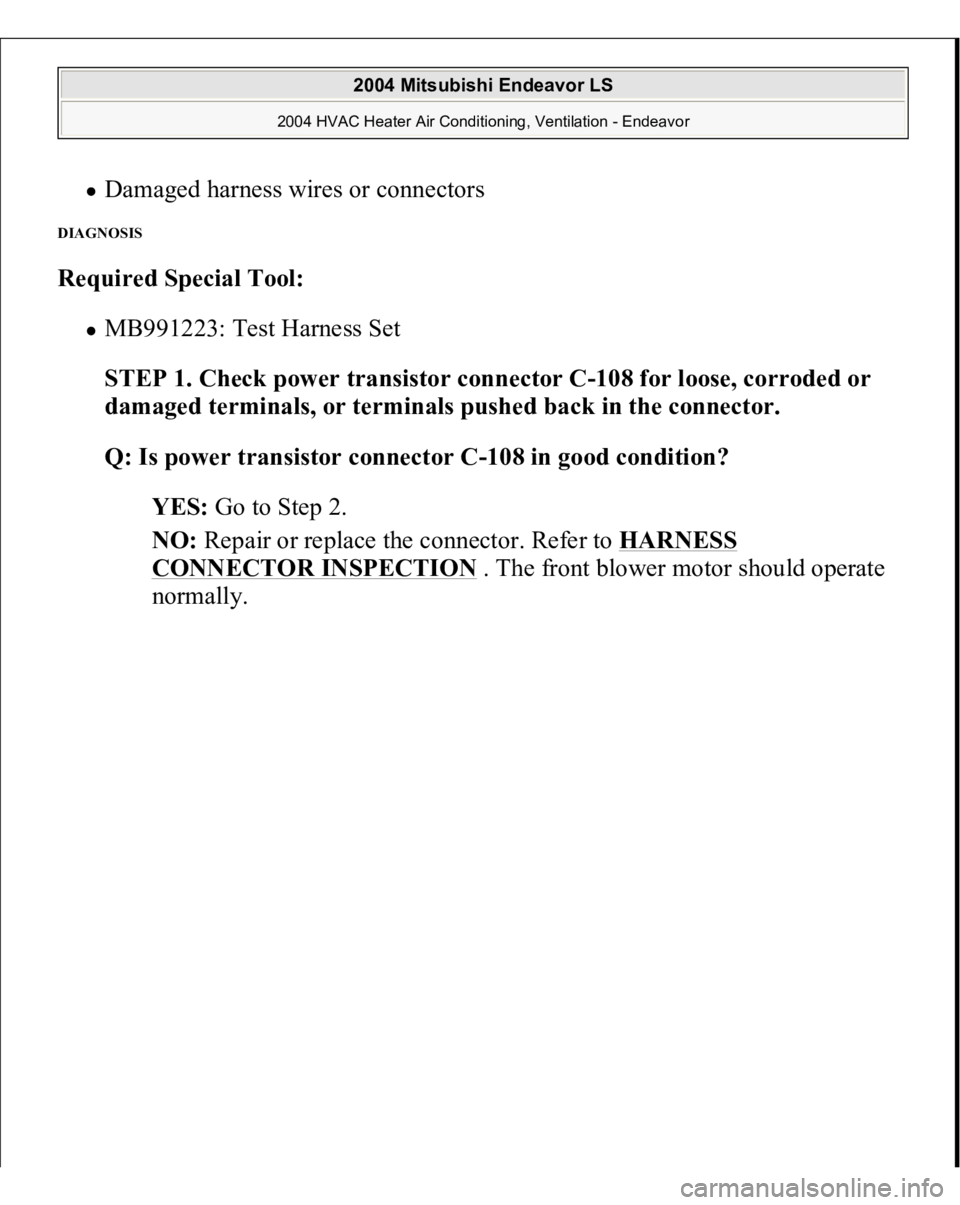

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Damaged harness wires or connectors DIAGNOSIS Required Special Tool: MB991223: Test Harness Set STEP 1. Check power transistor connector C-108 for loose, corroded or damaged terminals, or termi

Page 2282 of 3870

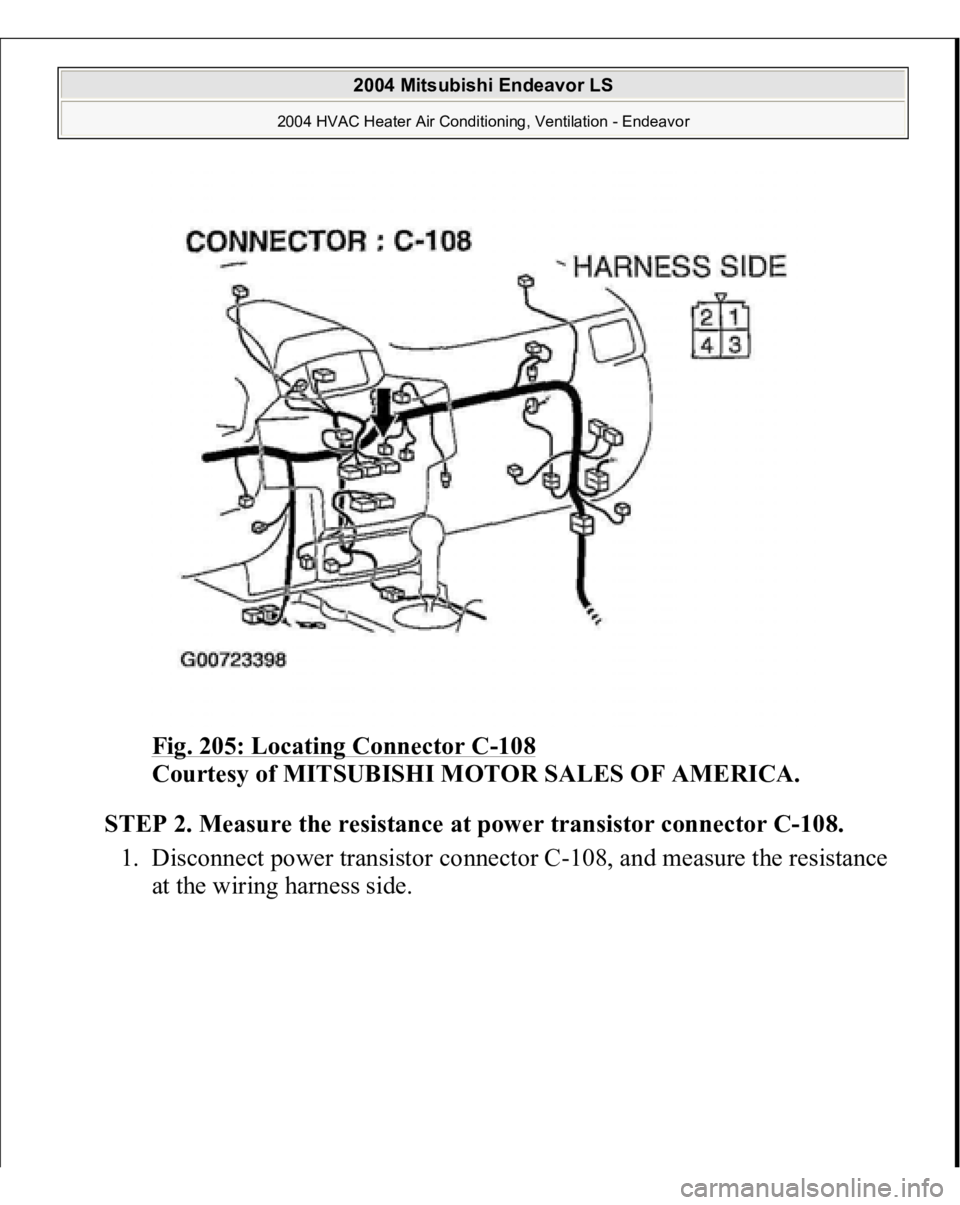

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 205: Locating Connector C -108 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 2. Measure the resistance at power transistor connector C-108. 1. Disconnect power transistor connector C-

Page 2283 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 206: Locating Connector C -108 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the resistance value between terminal 2 and ground. The measured value should be 2 ohms or less. Q:

Page 2284 of 3870

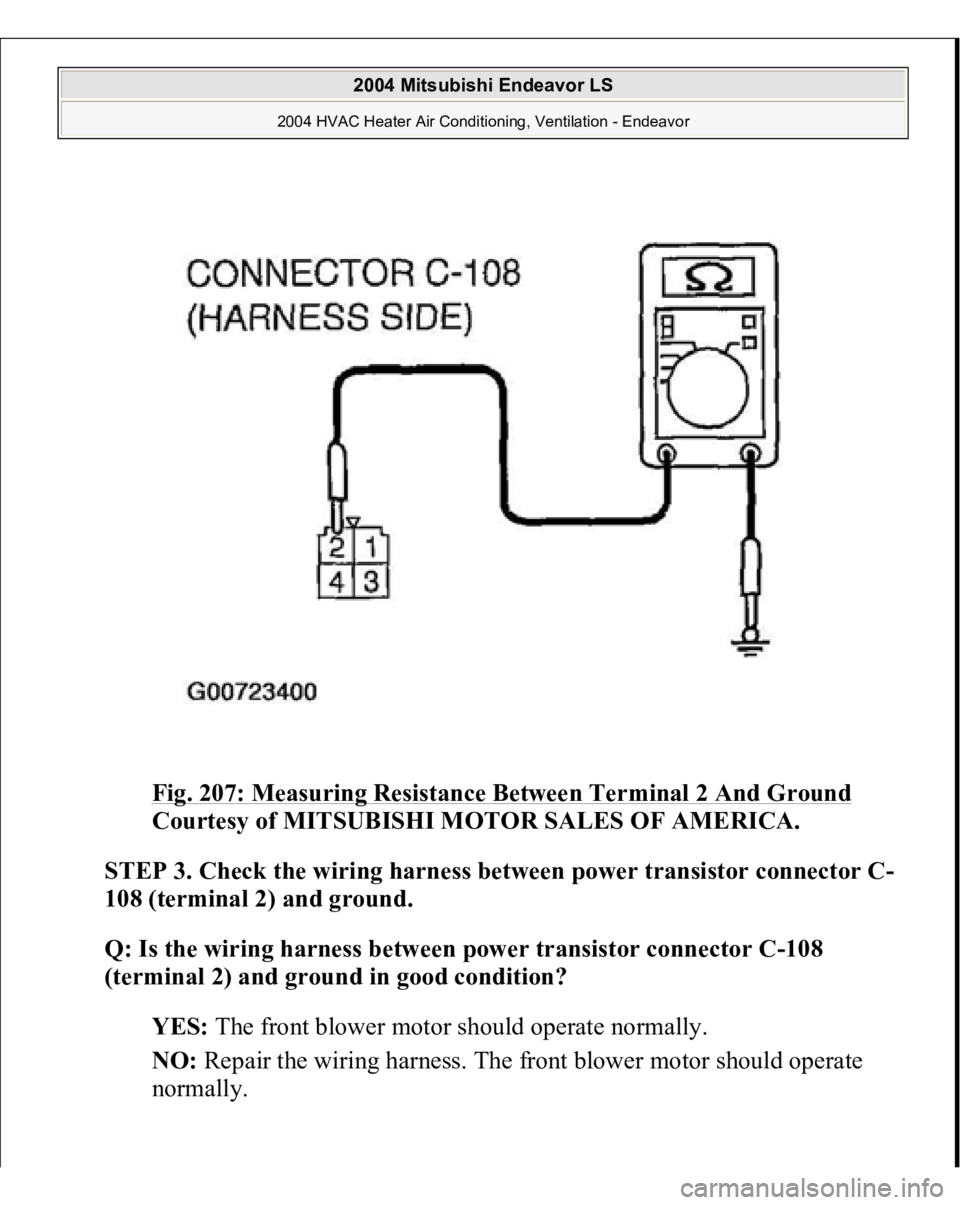

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 207: Measuring Resistance Between Terminal 2 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 3. Check the wiring harness between power transistor connector C- 108 (terminal 2)

Page 2285 of 3870

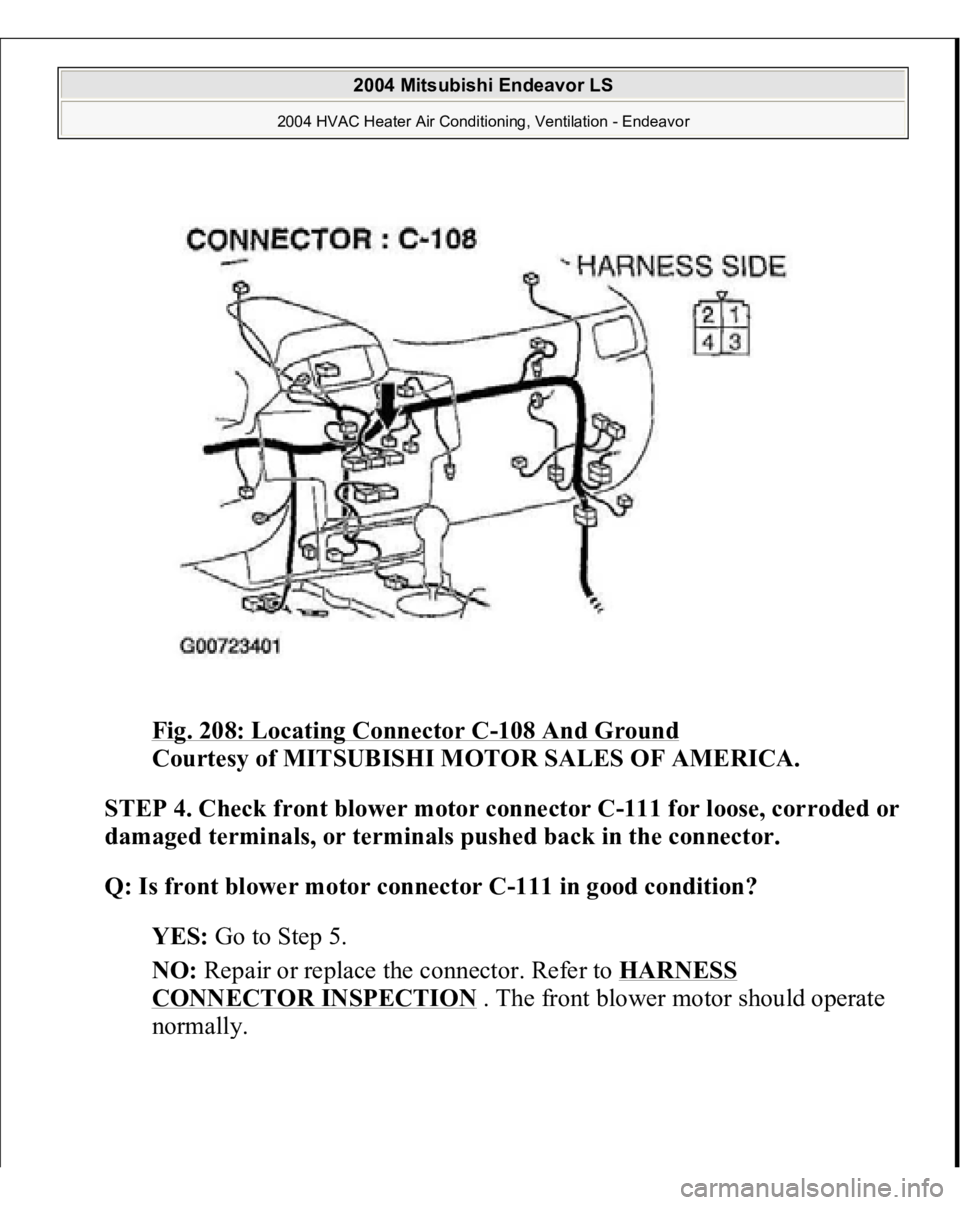

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 208: Locating Connector C -108 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 4. Check front blower motor connector C-111 for loose, corroded or damaged terminals, or termina

Page 2286 of 3870

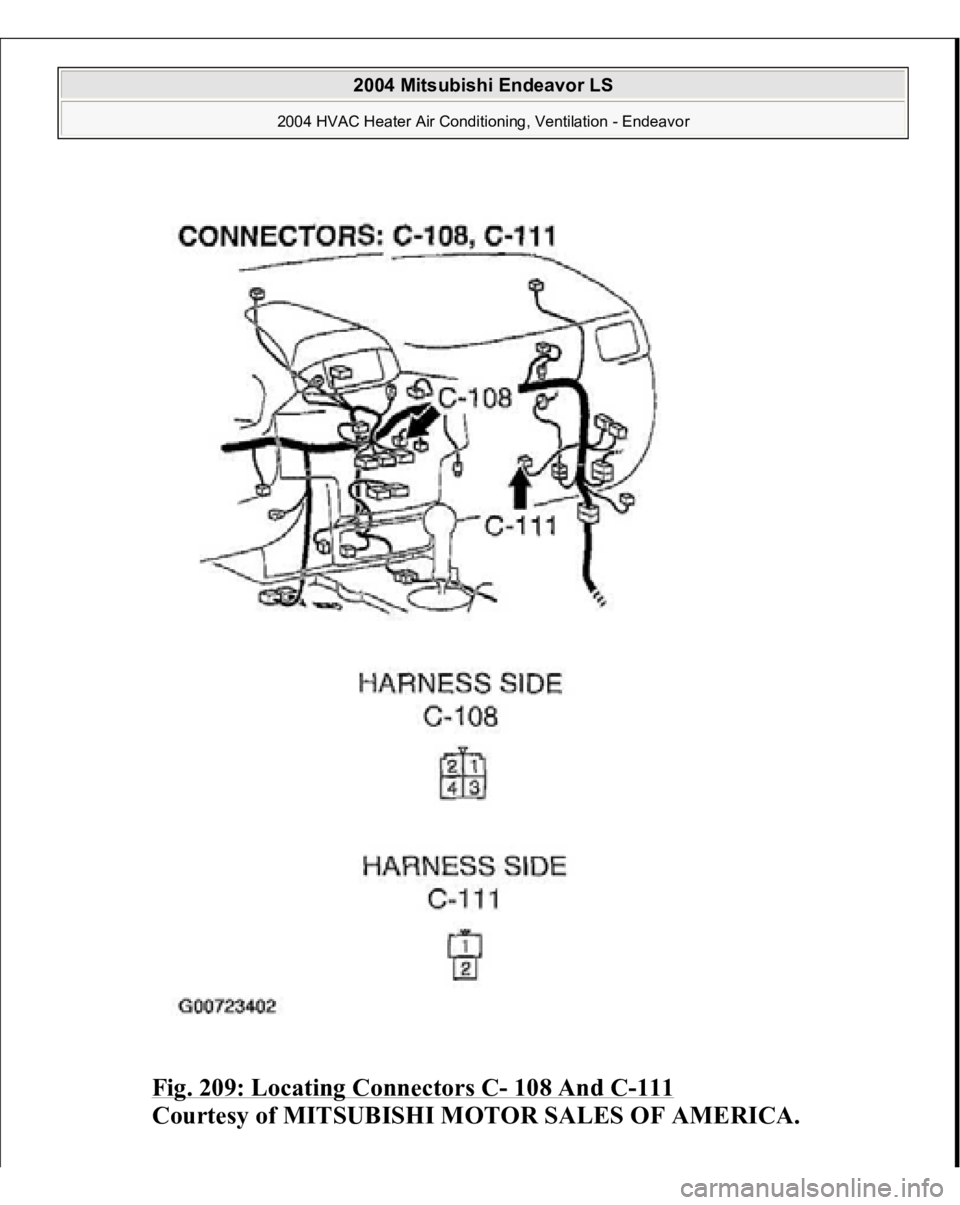

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 209: Locating Connectors C - 108 And C -111 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2287 of 3870

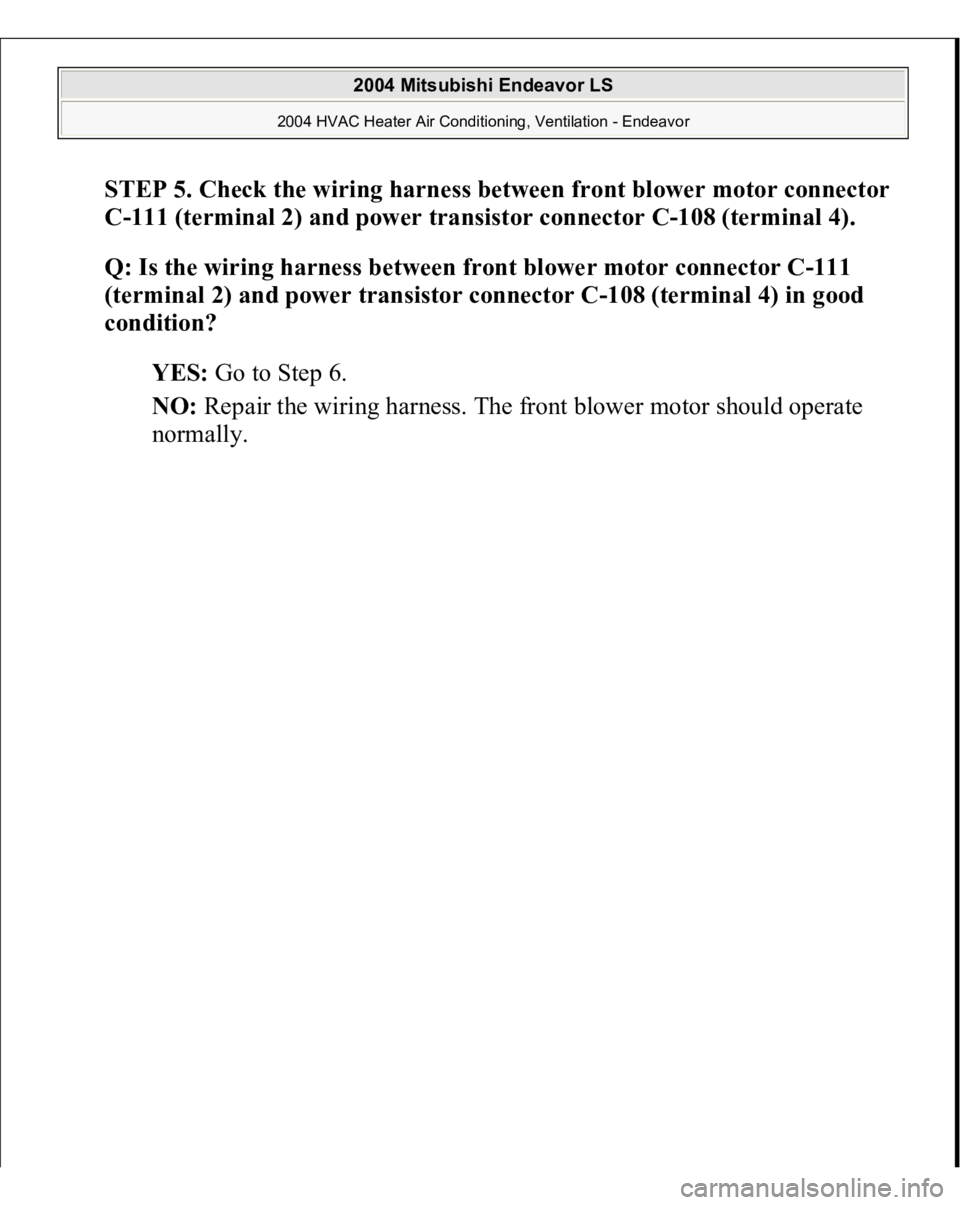

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 5. Check the wiring harness between front blower motor connector C-111 (terminal 2) and power transistor connector C-108 (terminal 4). Q: Is the wiring harness between front blower motor conne

Page 2288 of 3870

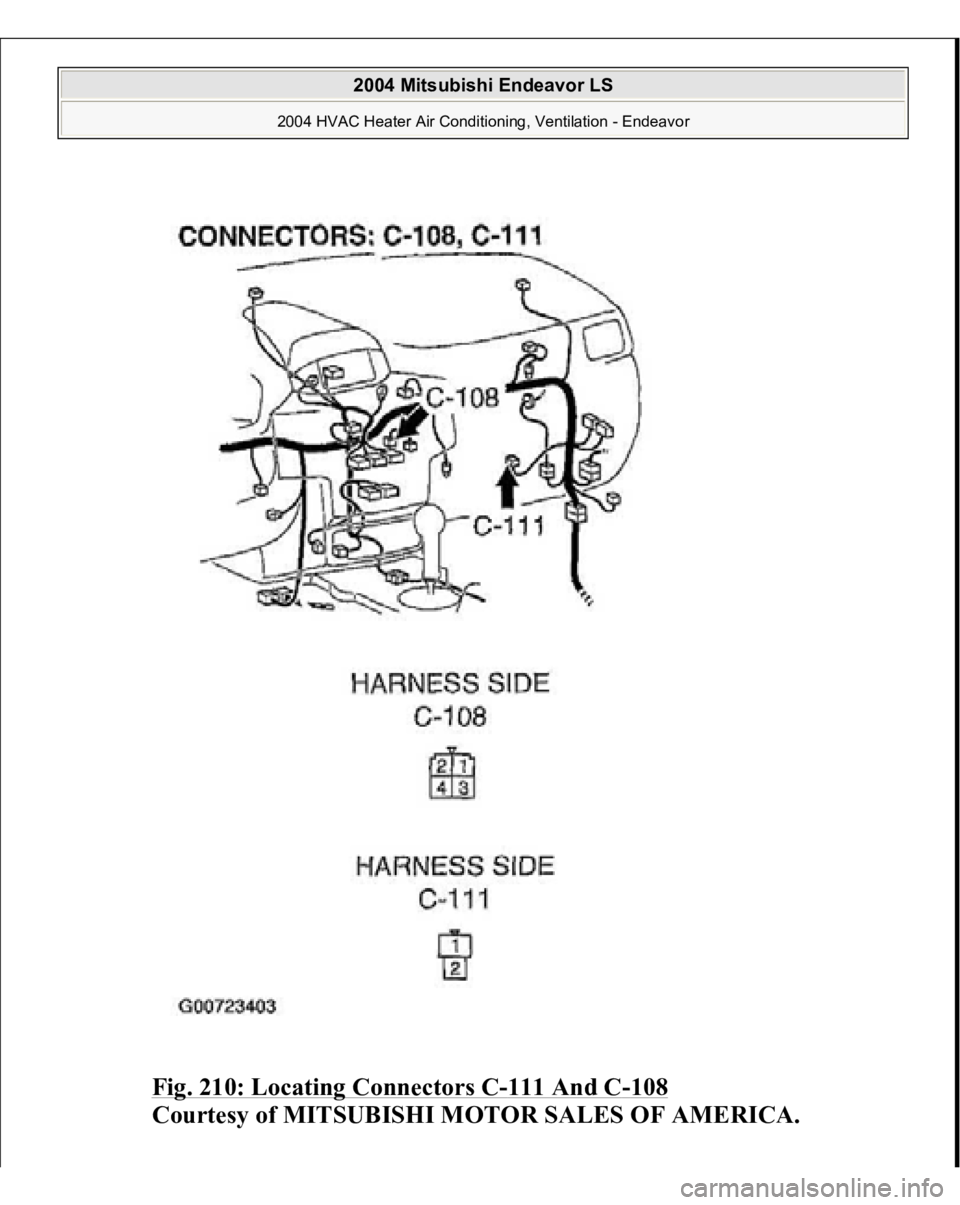

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 210: Locating Connectors C -111 And C -108 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
