Page 1937 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Installing Inner Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. TORQUE SPECIFICATIONS For tor que s pecifications, see Fig. 4 . 2004 Mitsubishi Endeavor LS 2004 DRIVE AXLES Axle S

Page 1938 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 SUSPENSION Front - Endeavor GENERAL DESCRIPTION The front suspension is a McPherson strut with coil spring. The shock absorber is gas-filled hydraulic double-acting type. CONSTRUCTION DIAGRAM

Page 1939 of 3870

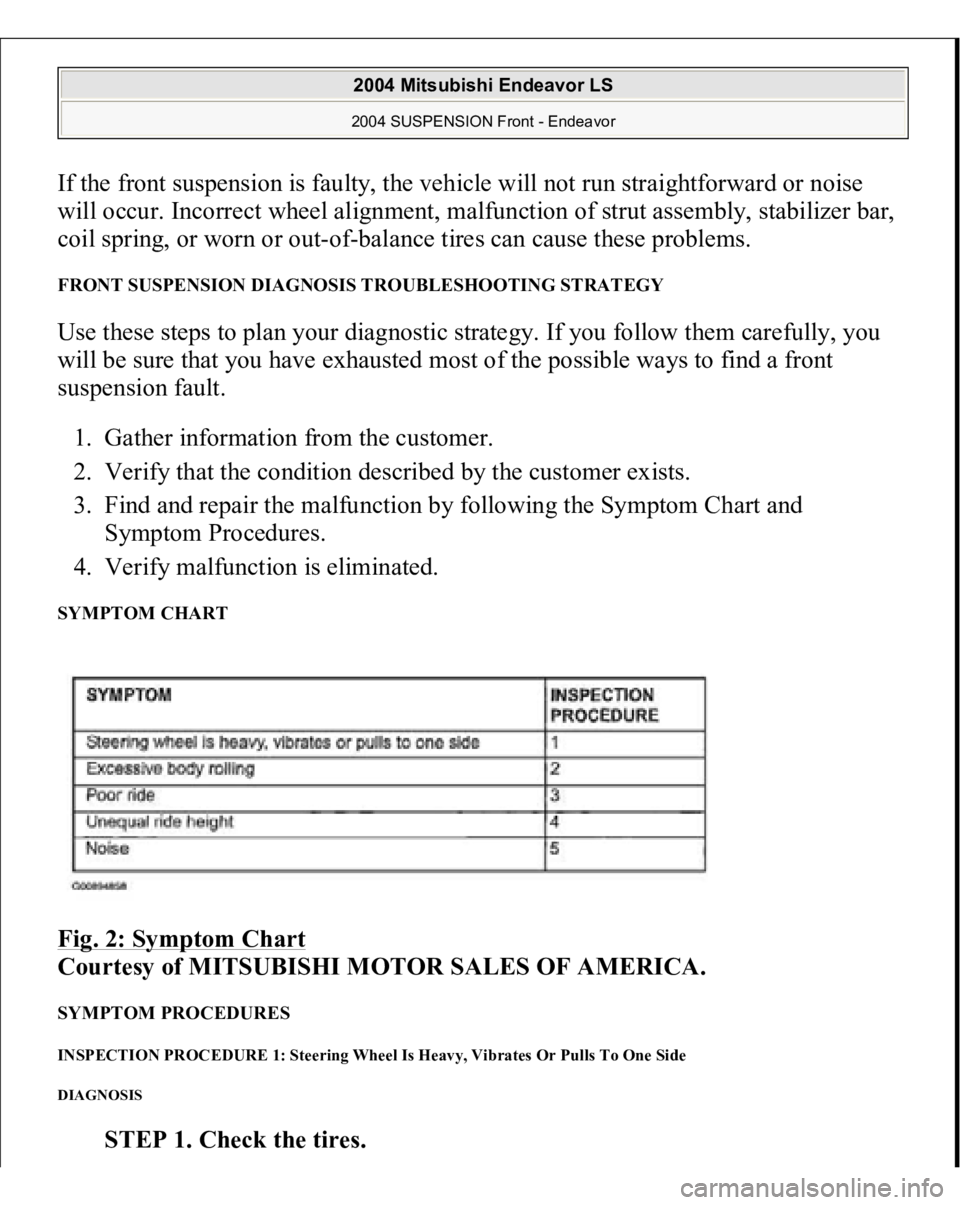

MITSUBISHI ENDEAVOR 2004 Service Repair Manual If the front suspension is faulty, the vehicle will not run straightforward or noise will occur. Incorrect wheel alignment, malfunction of strut assembly, stabilizer bar, coil spring, or worn or out

Page 1940 of 3870

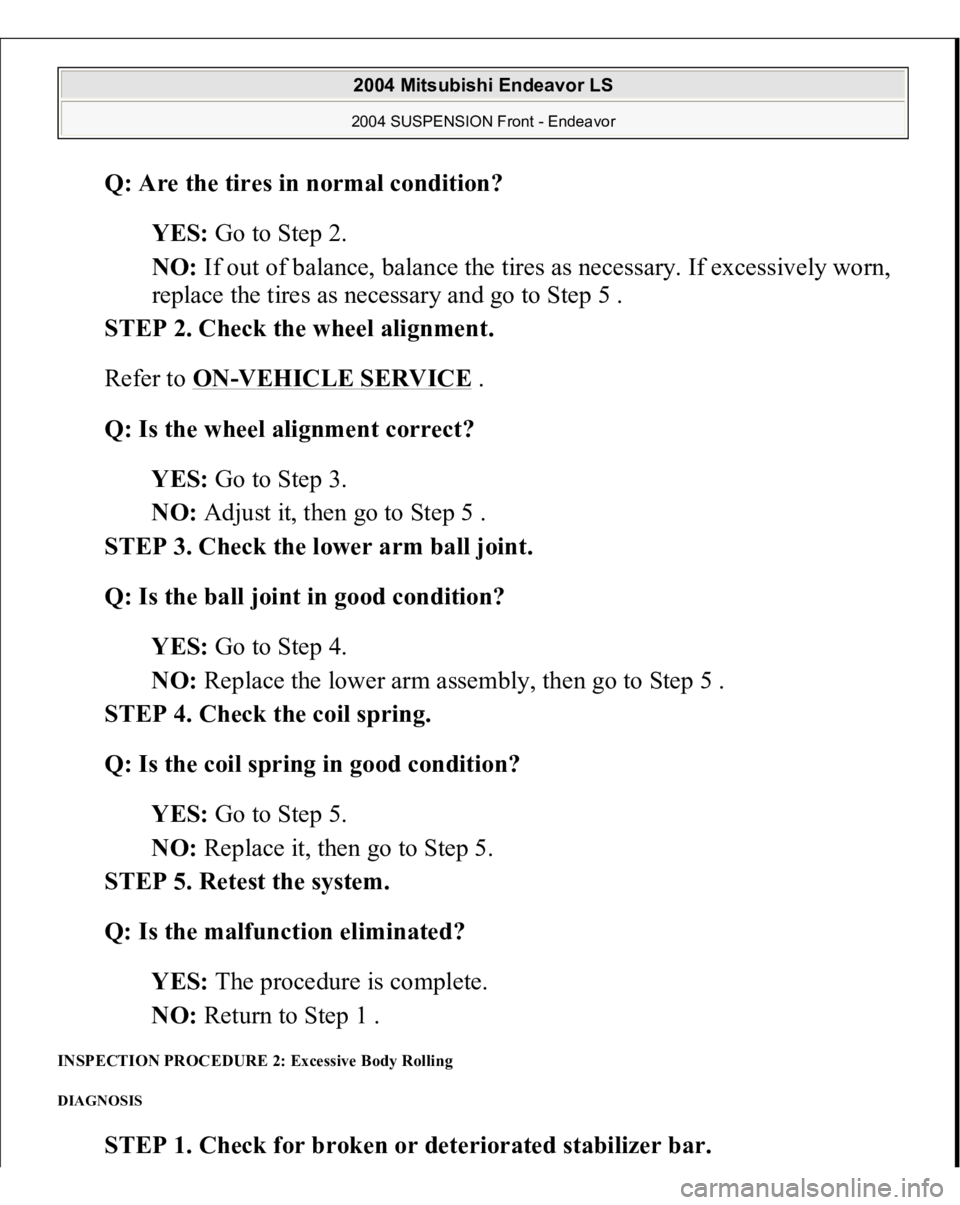

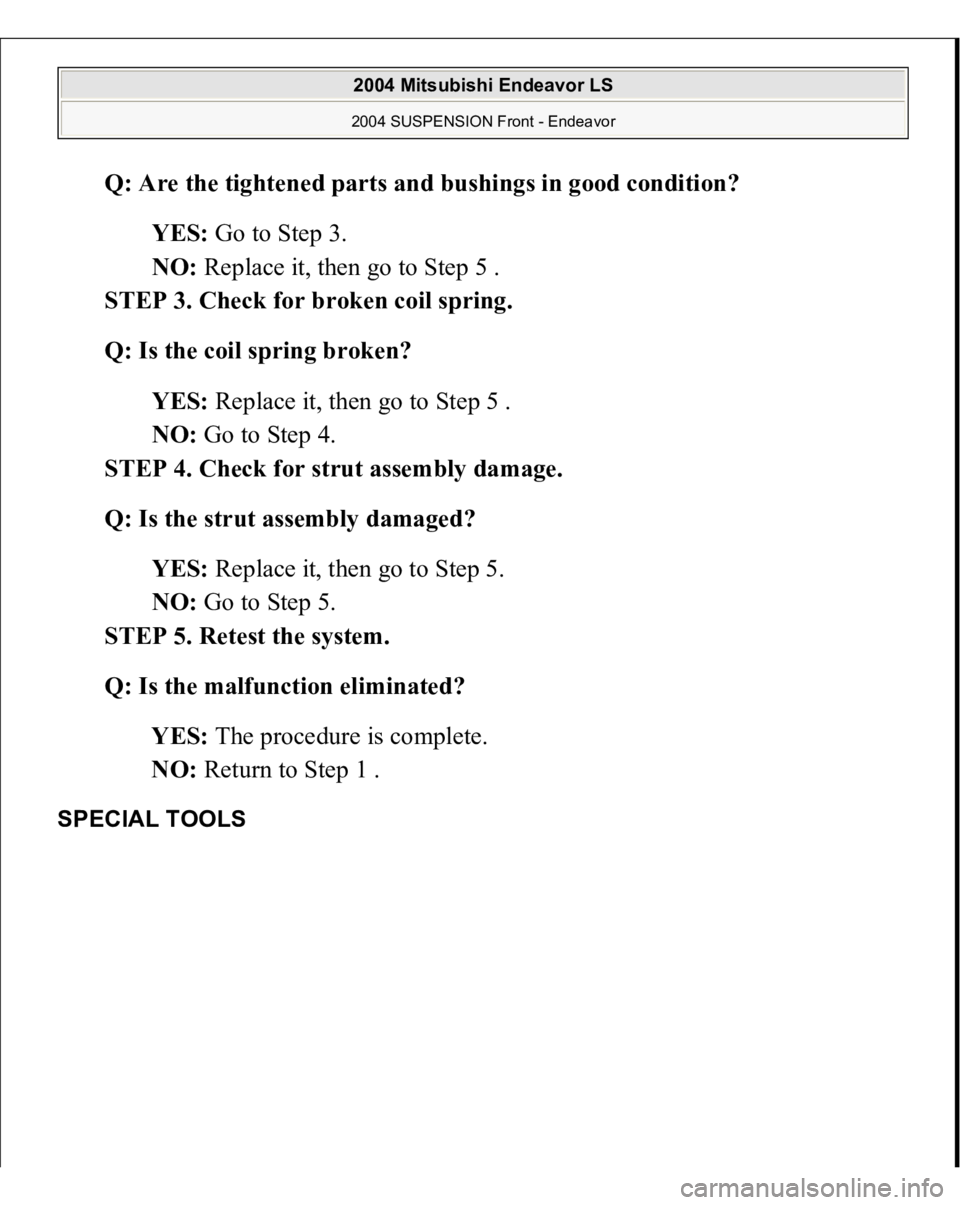

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Are the tires in normal condition? YES: Go to Step 2. NO: If out of balance, balance the tires as necessary. If excessively worn, replace the tires as necessary and go to Step 5 . STEP 2. Ch

Page 1941 of 3870

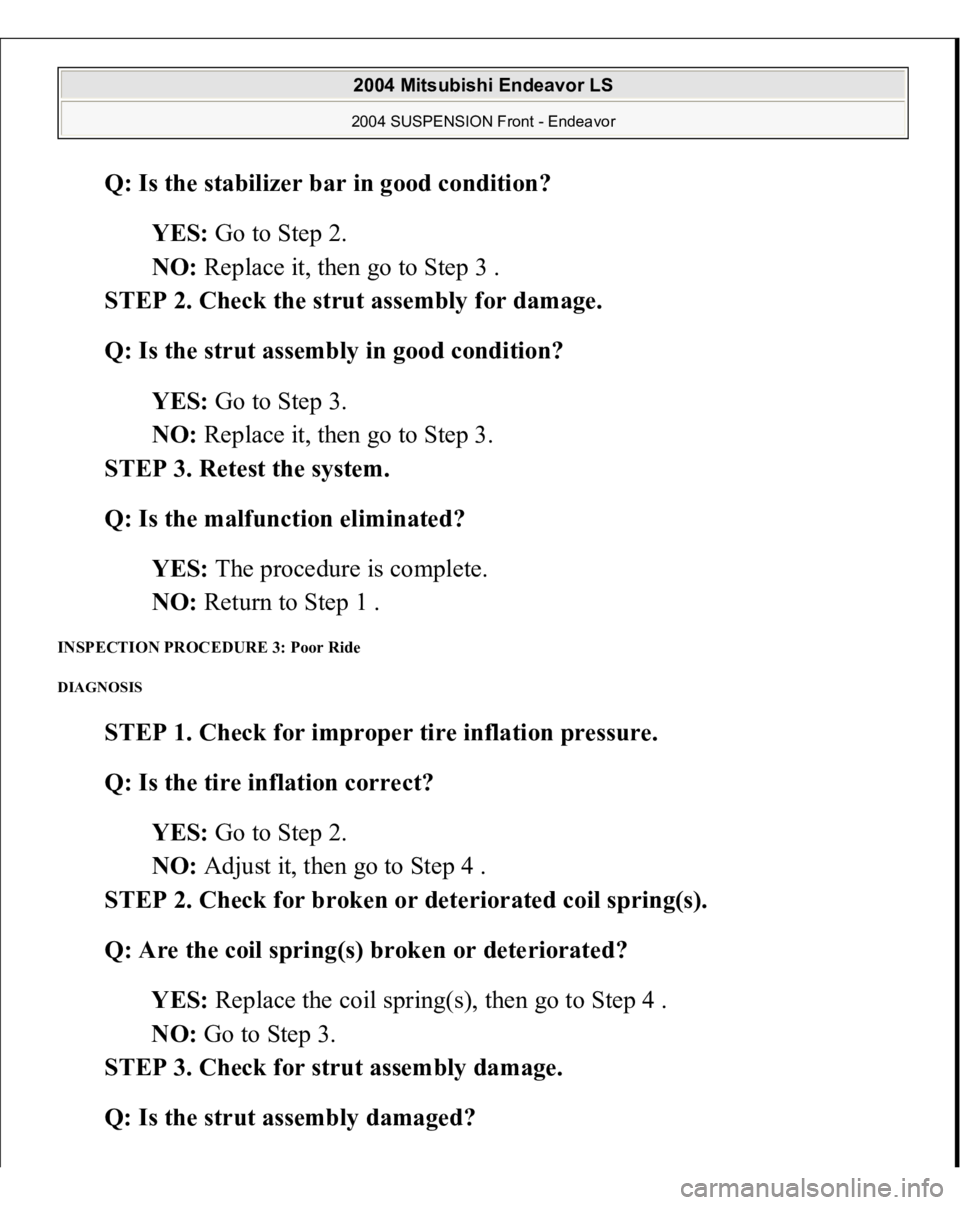

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the stabilizer bar in good condition? YES: Go to Step 2. NO: Replace it, then go to Step 3 . STEP 2. Check the strut assembly for damage. Q: Is the strut assembly in good condition? YES

Page 1942 of 3870

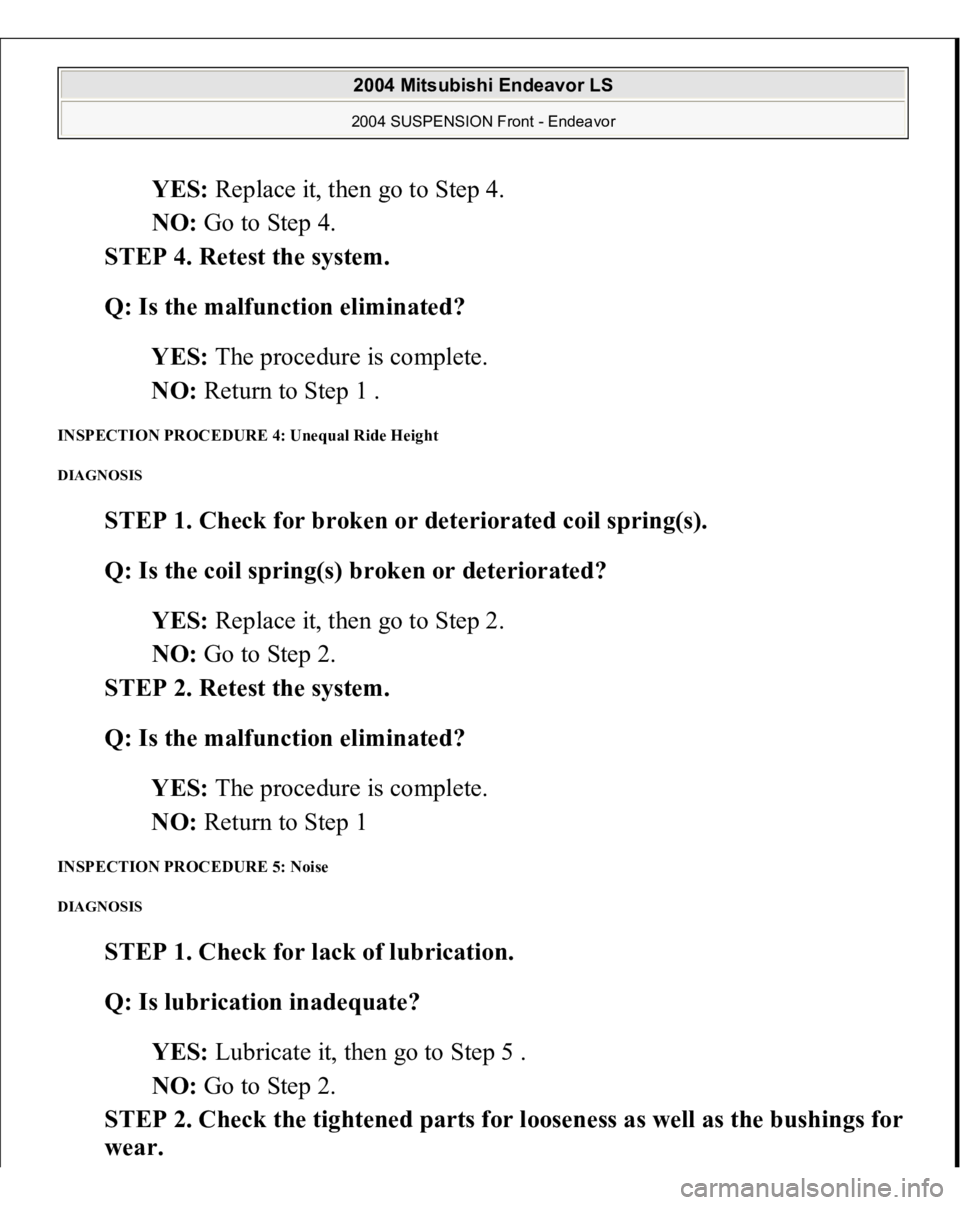

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Replace it, then go to Step 4. NO: Go to Step 4. STEP 4. Retest the system. Q: Is the malfunction eliminated? YES: The procedure is complete. NO: Return to Step 1 . INSPECTION PROCEDUR

Page 1943 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Are the tightened parts and bushings in good condition? YES: Go to Step 3. NO: Replace it, then go to Step 5 . STEP 3. Check for broken coil spring. Q: Is the coil spring broken? YES: Repl

Page 1944 of 3870

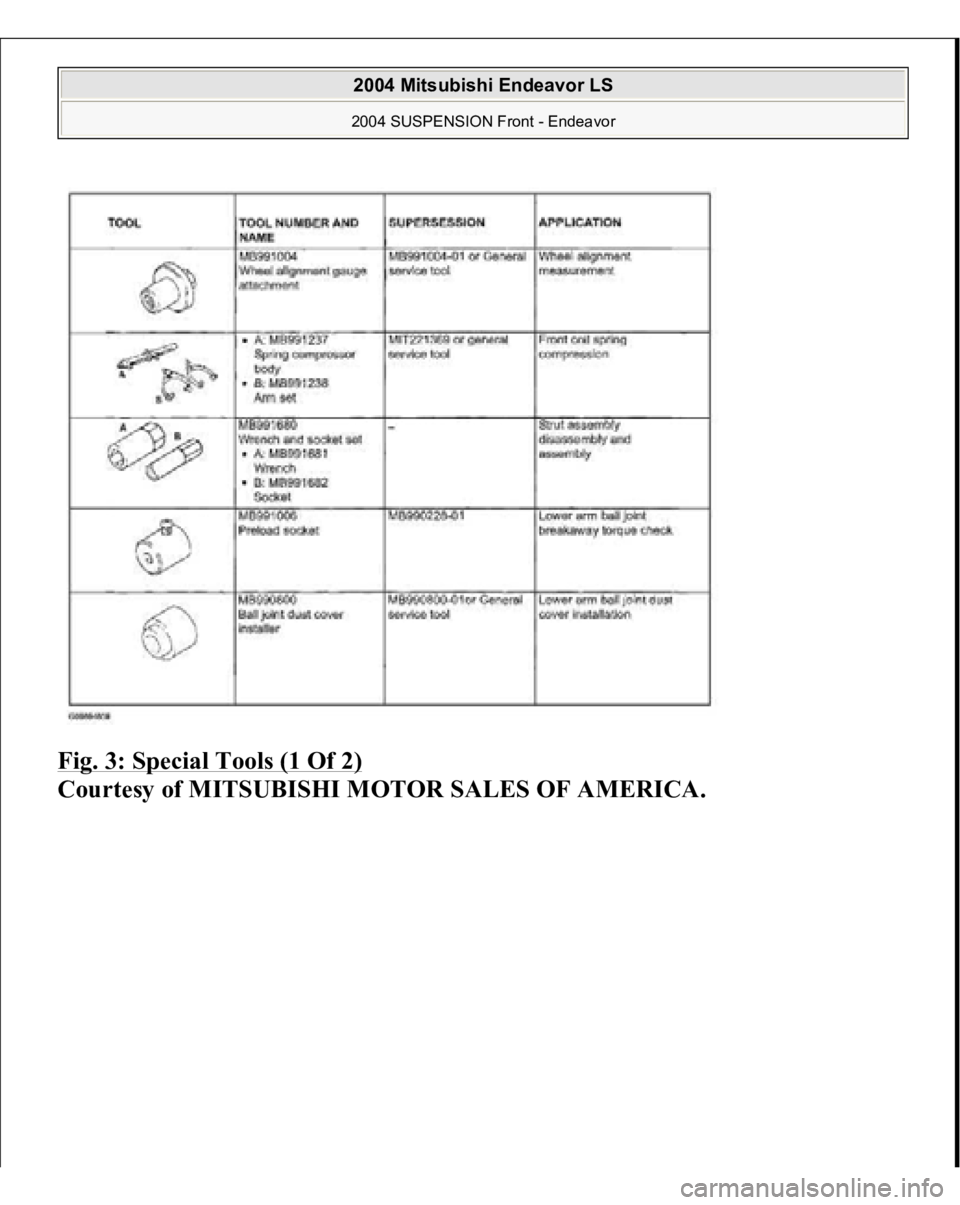

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Special Tools (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 SUSPENSION Front - Endeavor
