Page 2529 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2530 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to "ON" position. 3. Select "Interactive Diagnosis" from the start-up screen. 4. Select "System sel

Page 2531 of 3870

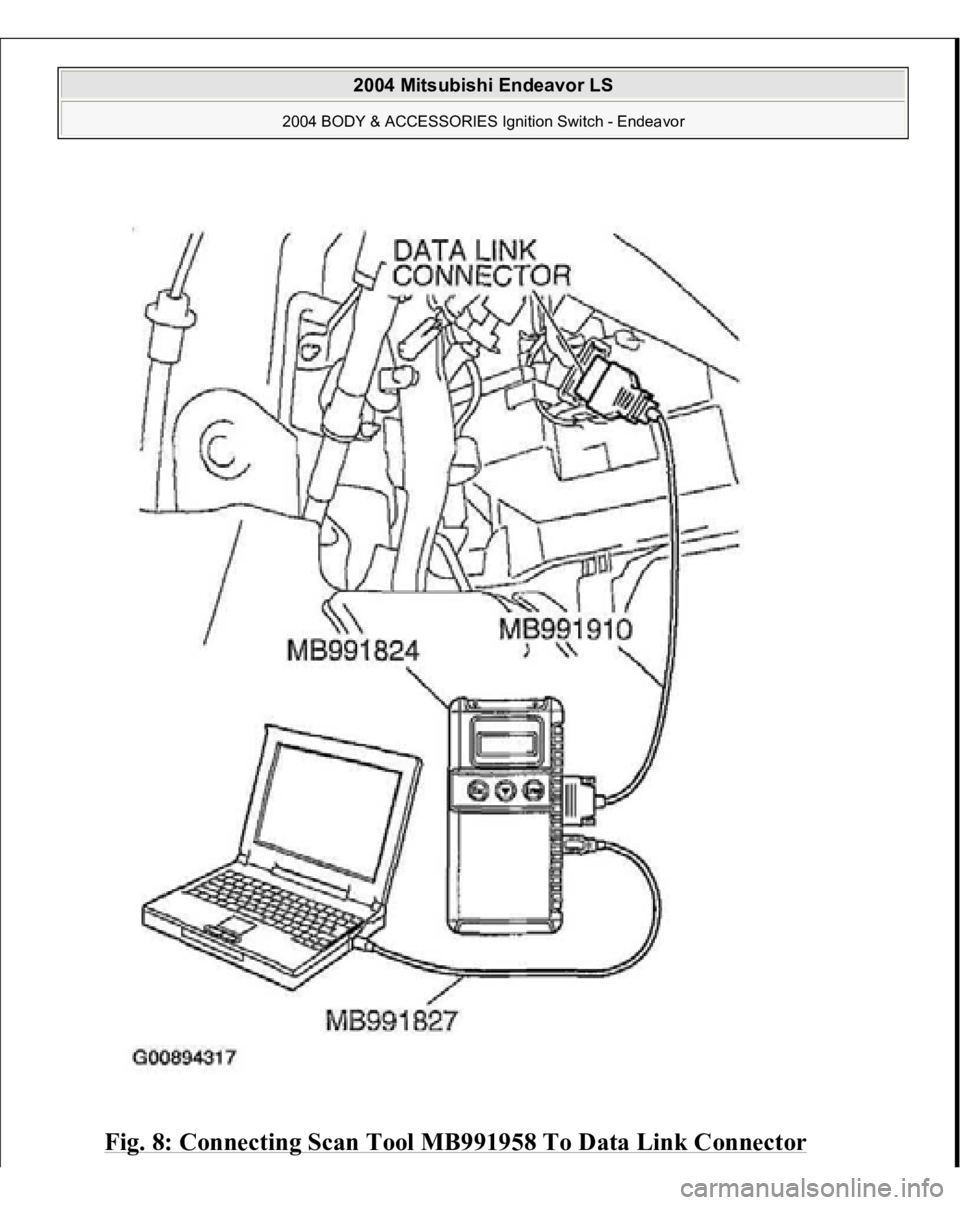

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 8: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2532 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to "ON" position. 3. Select "CAN bus diagnosis" from the start-up screen. 4. When the vehicle informati

Page 2533 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 9: Diagnostic Trouble Code Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DIAGNOSTIC TROUBLE CODE PROCEDURES DTC 11: Transponder Communication System or Radio Interference of Encrypted C

Page 2534 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Ignition Key Ring And Immobilizer -ECU Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The ignition key is powered by the ignit

Page 2535 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DTC SET CONDITION DTC 11 may be set if other ignition keys are in the vicinity of the vehicle as it is being started. The transponder's encrypted code is not sent to the immobilizer-ECU immedi

Page 2536 of 3870

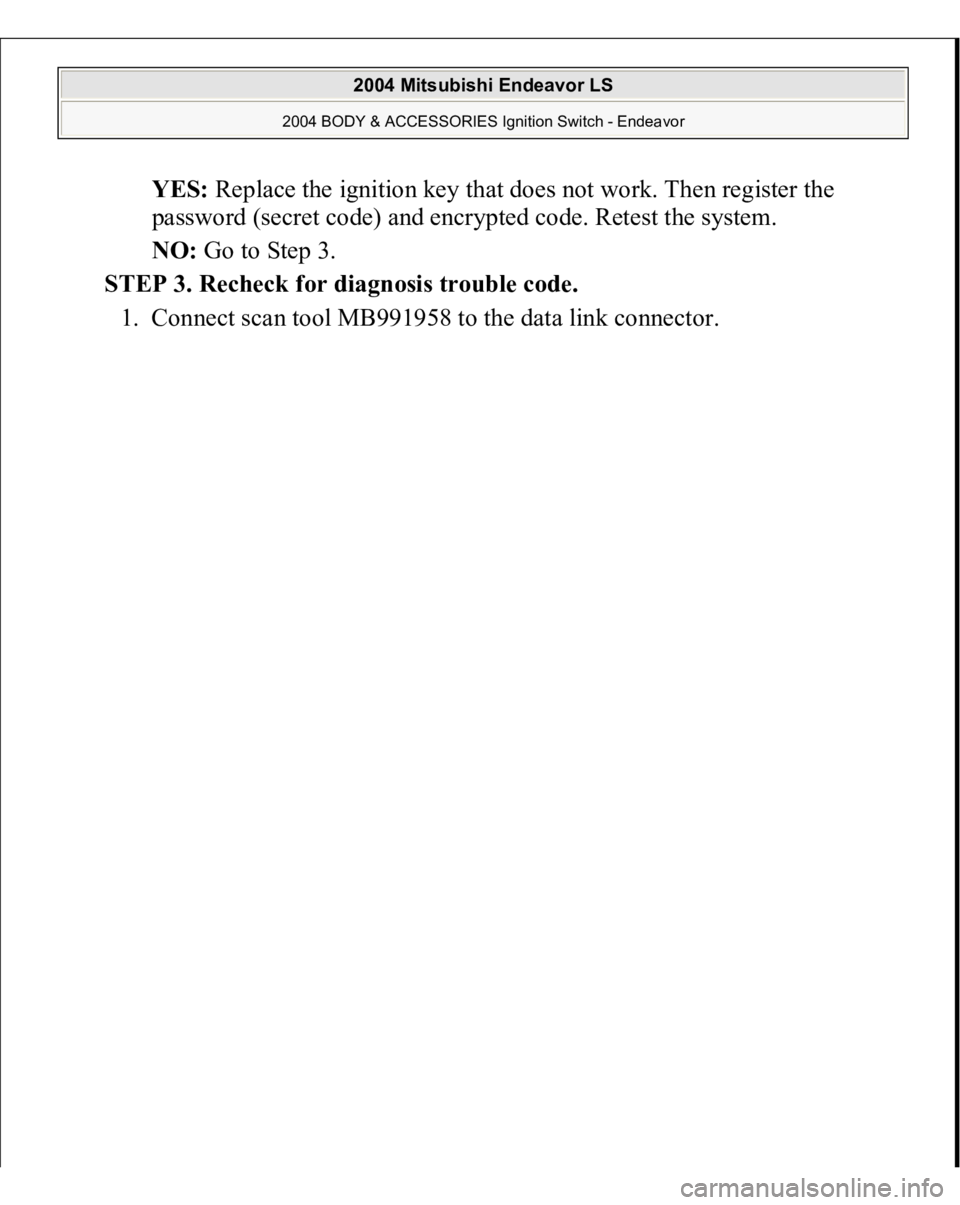

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Replace the ignition key that does not work. Then register the password (secret code) and encrypted code. Retest the system. NO: Go to Step 3. STEP 3. Recheck for diagnosis trouble code. 1.
