Page 2905 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual equation, and use a new bellows band to repeat steps (2) to (3) . W = 5.5 mm (0.22 inch) - A [Example: if (A) is 2.3 mm (0.09 inch), (W) is 3.2 mm (0.13 inch).] Fig. 62: Checking Crimped Width (

Page 2906 of 3870

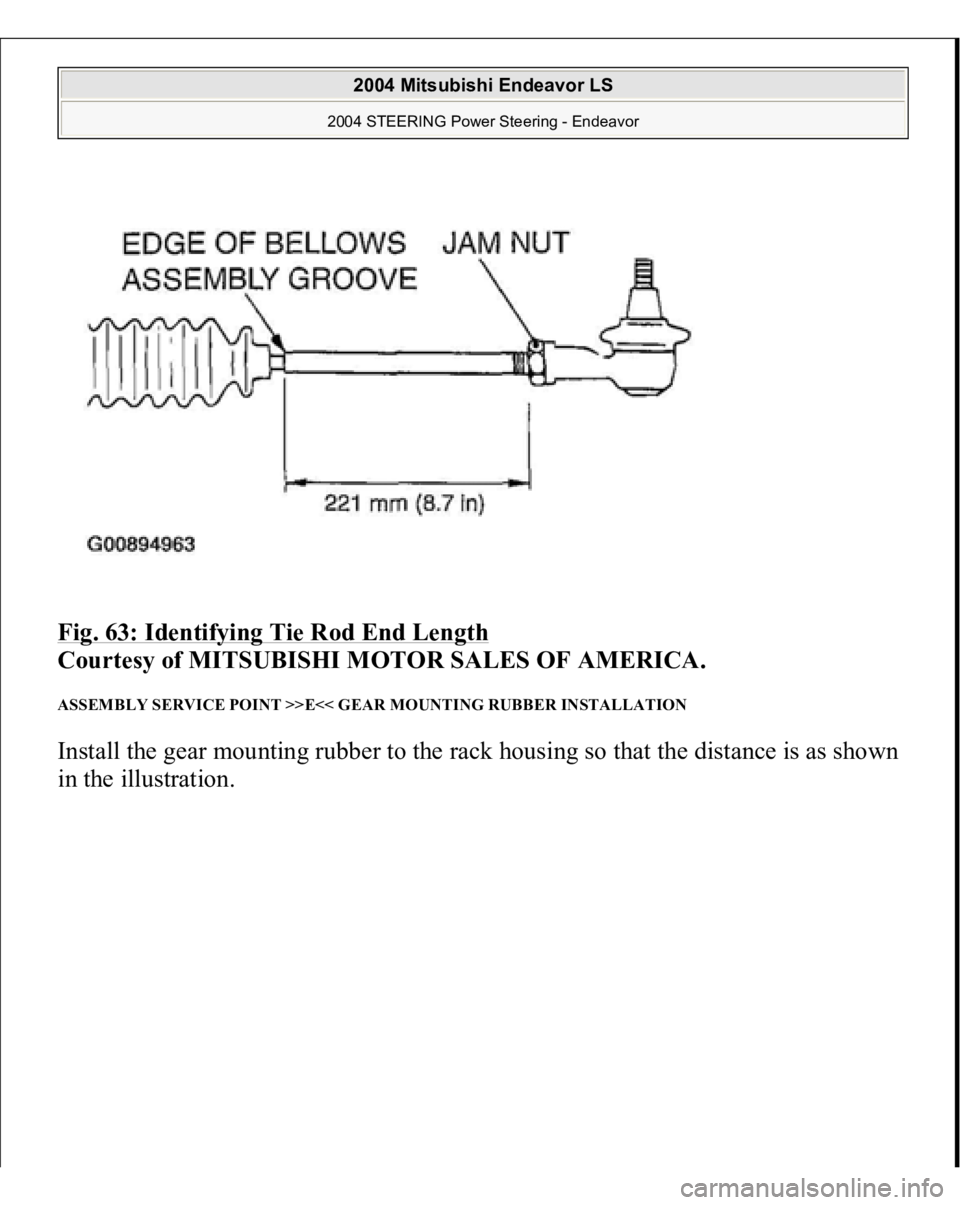

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 63: Identifying Tie Rod End Length Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINT >>E<< GEAR MOUNTING RUBBER INSTALLATION Install the gear mounting rubber to the rack ho

Page 2907 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 64: Identifying Gear Mounting Rubber Distance Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. POWER STEERING OIL PUMP ASSEMBLY REMOVAL AND INSTALLATION 2004 Mitsubishi Endeavor LS 2004 STEER

Page 2908 of 3870

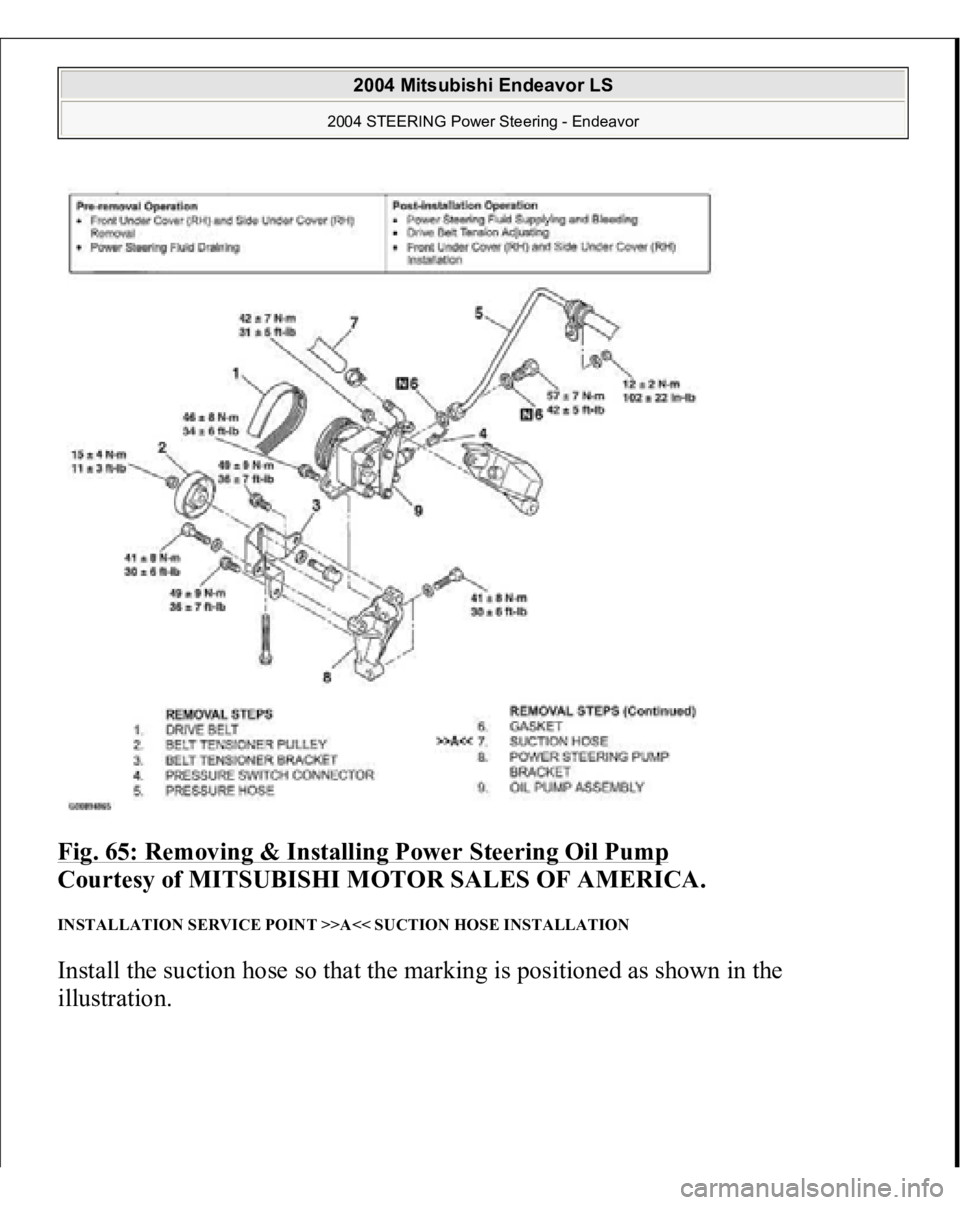

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Removing & Installing Power Steering Oil Pump Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>A<< SUCTION HOSE INSTALLATION Install the suction hose so that the

Page 2909 of 3870

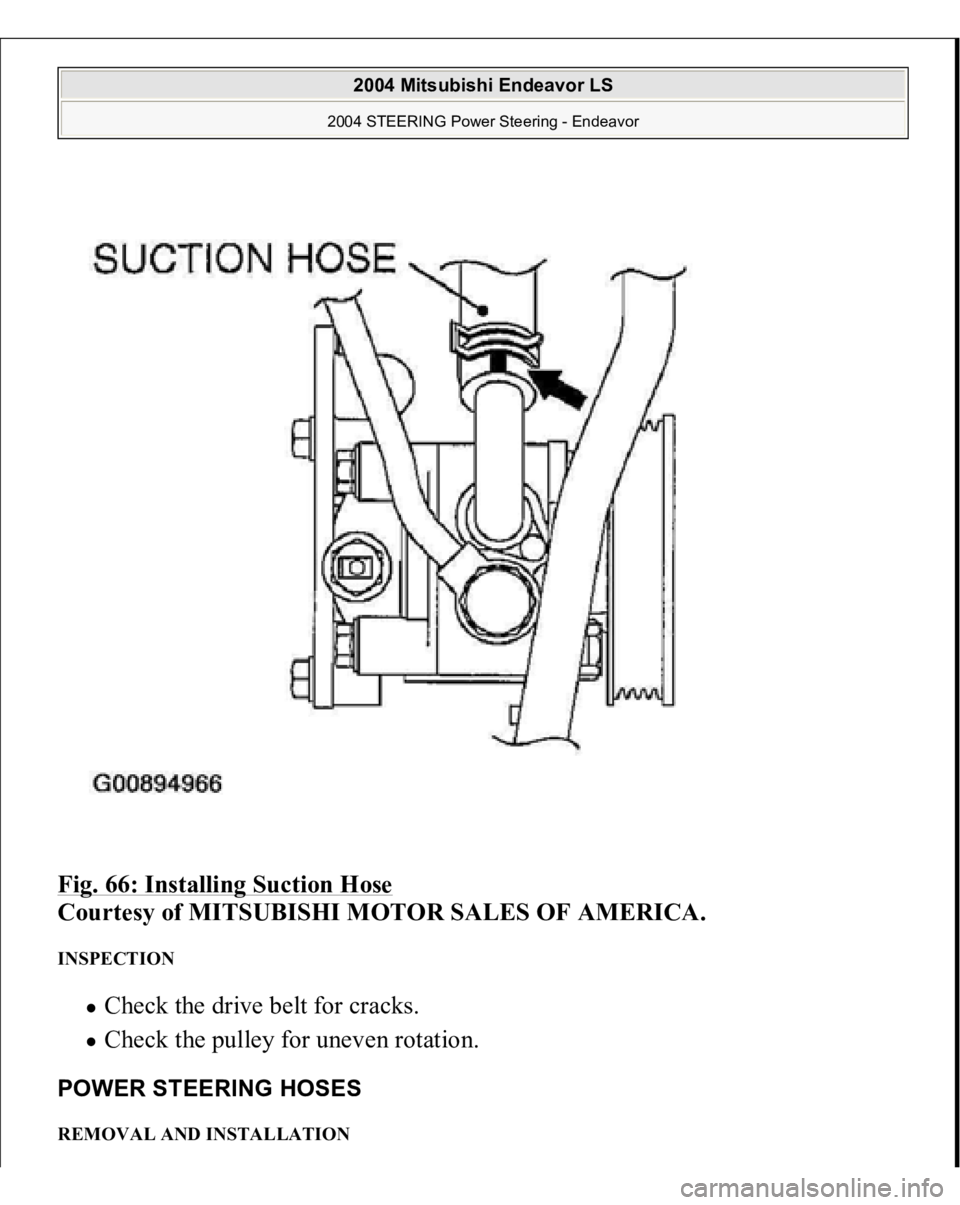

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 66: Installing Suction Hose Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION Check the drive belt for cracks. Check the pulley for uneven rotation. POWER STEERING HOSES REMOVAL AN

Page 2910 of 3870

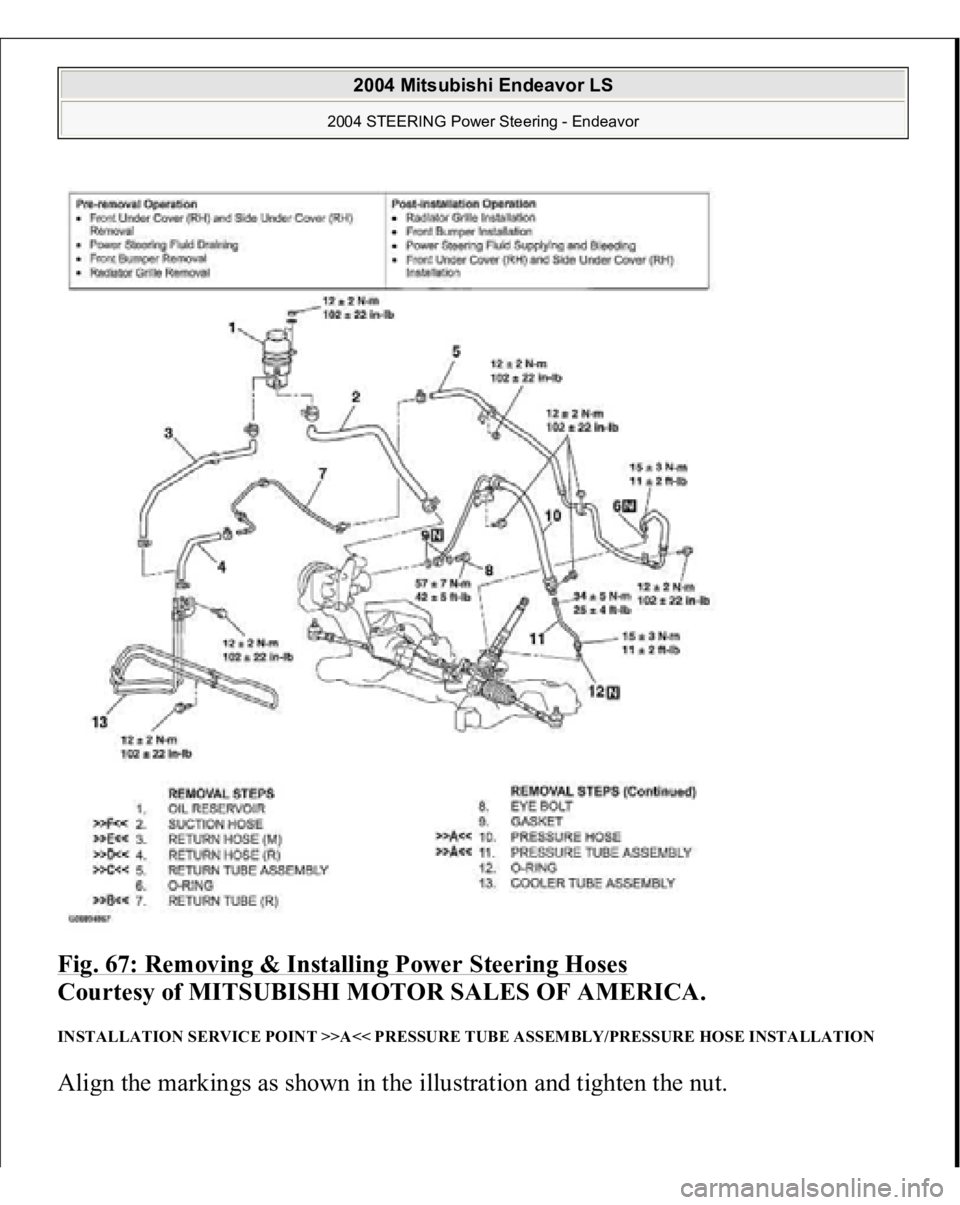

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: Removing & Installing Power Steering Hoses Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>A<< PRESSURE TUBE ASSEMBLY/PRESSURE HOSE INSTALLATION Ali gn the mark

Page 2911 of 3870

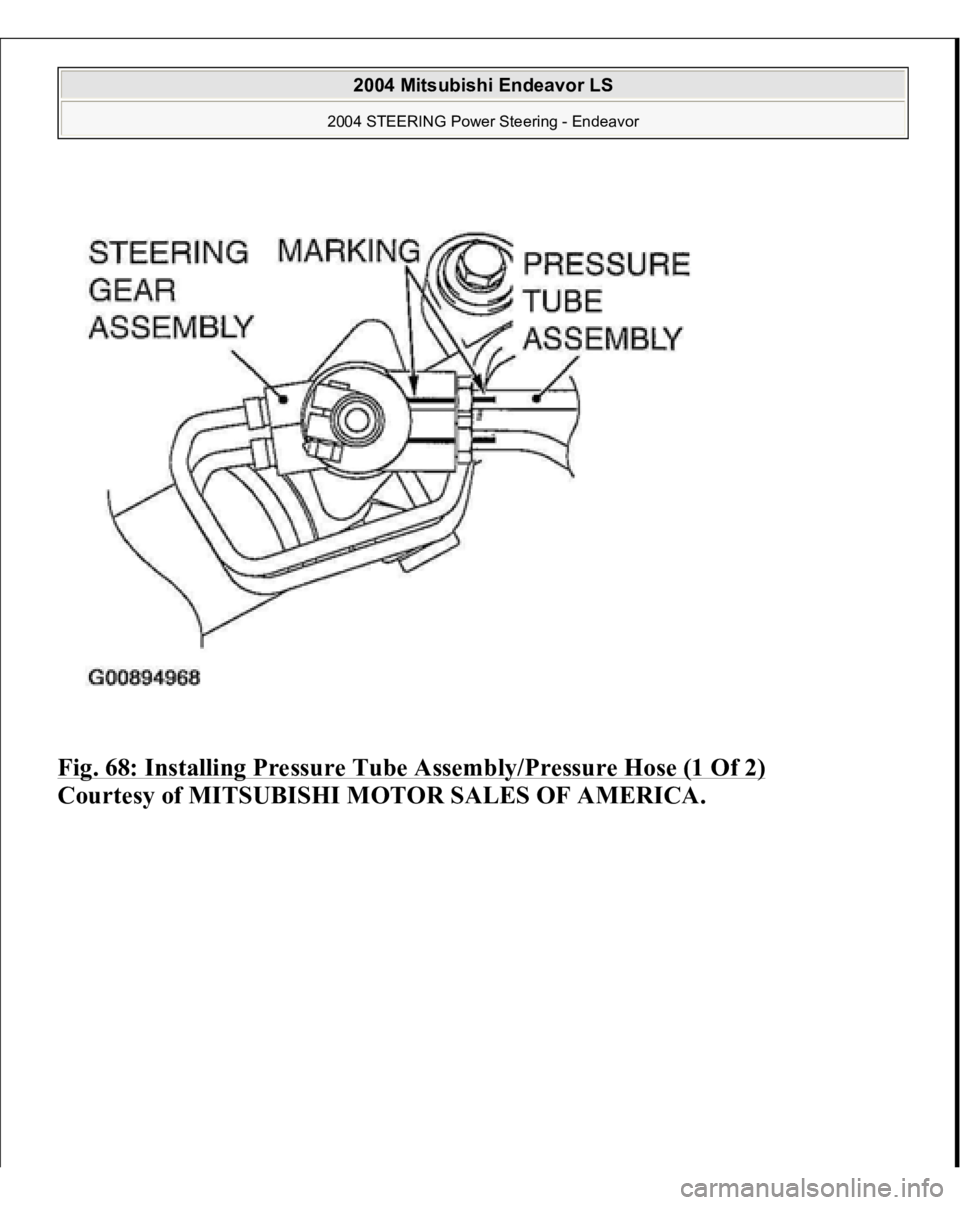

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 68: Installing Pressure Tube Assembly/Pressure Hose (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 STEERING Power Steering - Endeavor

Page 2912 of 3870

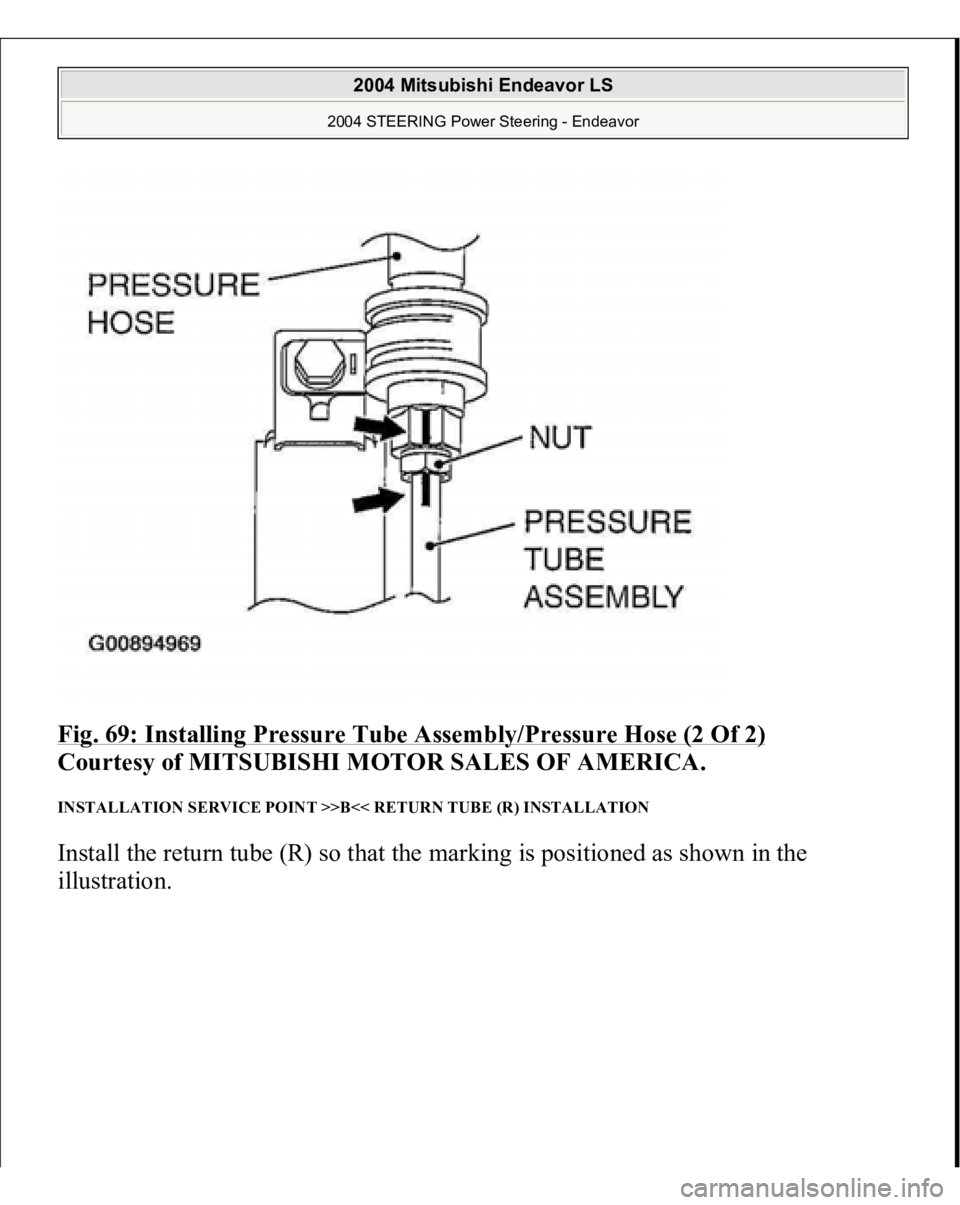

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 69: Installing Pressure Tube Assembly/Pressure Hose (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINT >>B<< RETURN TUBE (R) INSTALLATION Install the return tub
