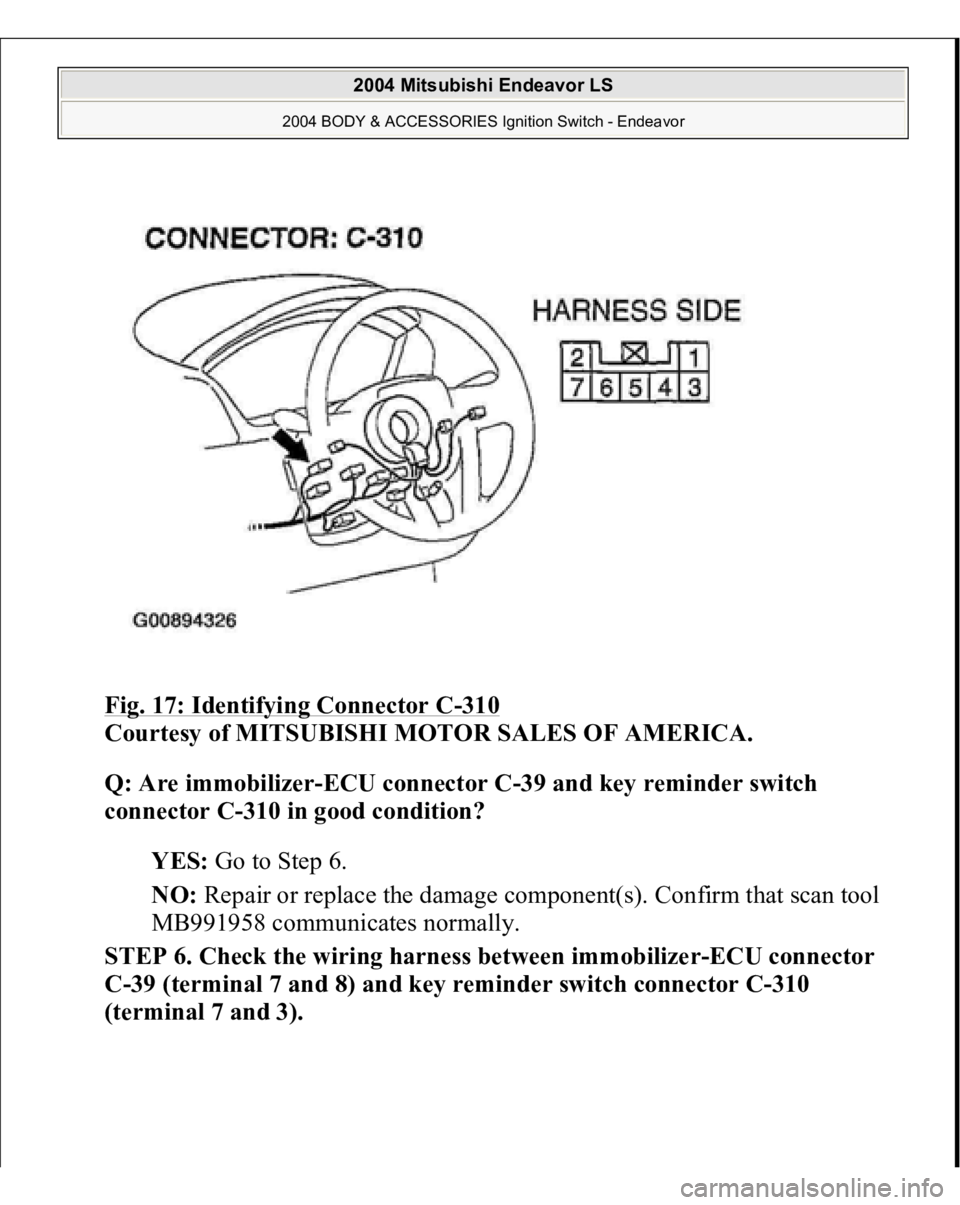

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Identifying Connector C -310 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are immobilizer-ECU connector C-39 and key reminder switch connector C-310 in good condition? YES: Go to S

Page 2546 of 3870

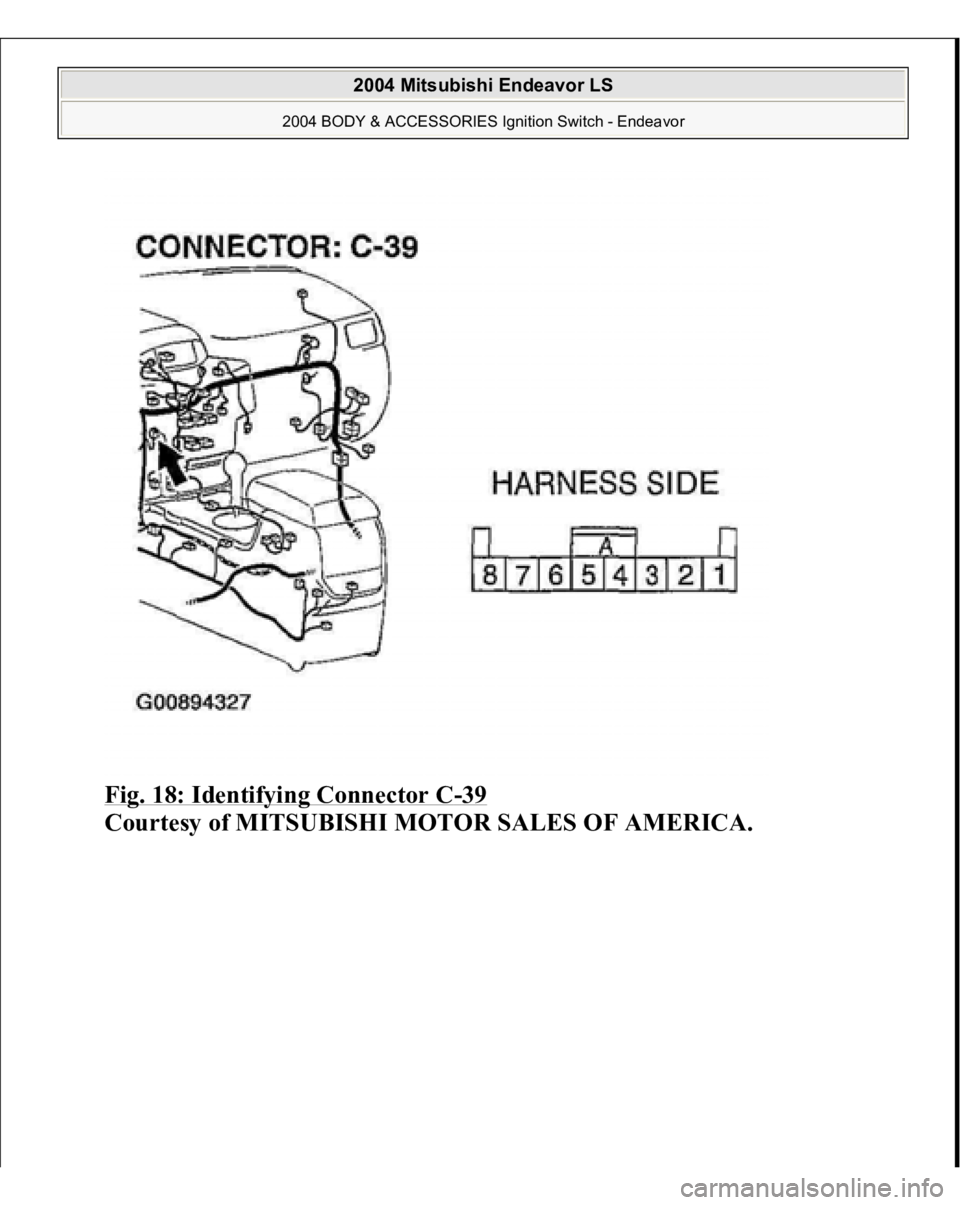

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 18: Identifying Connector C -39 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2547 of 3870

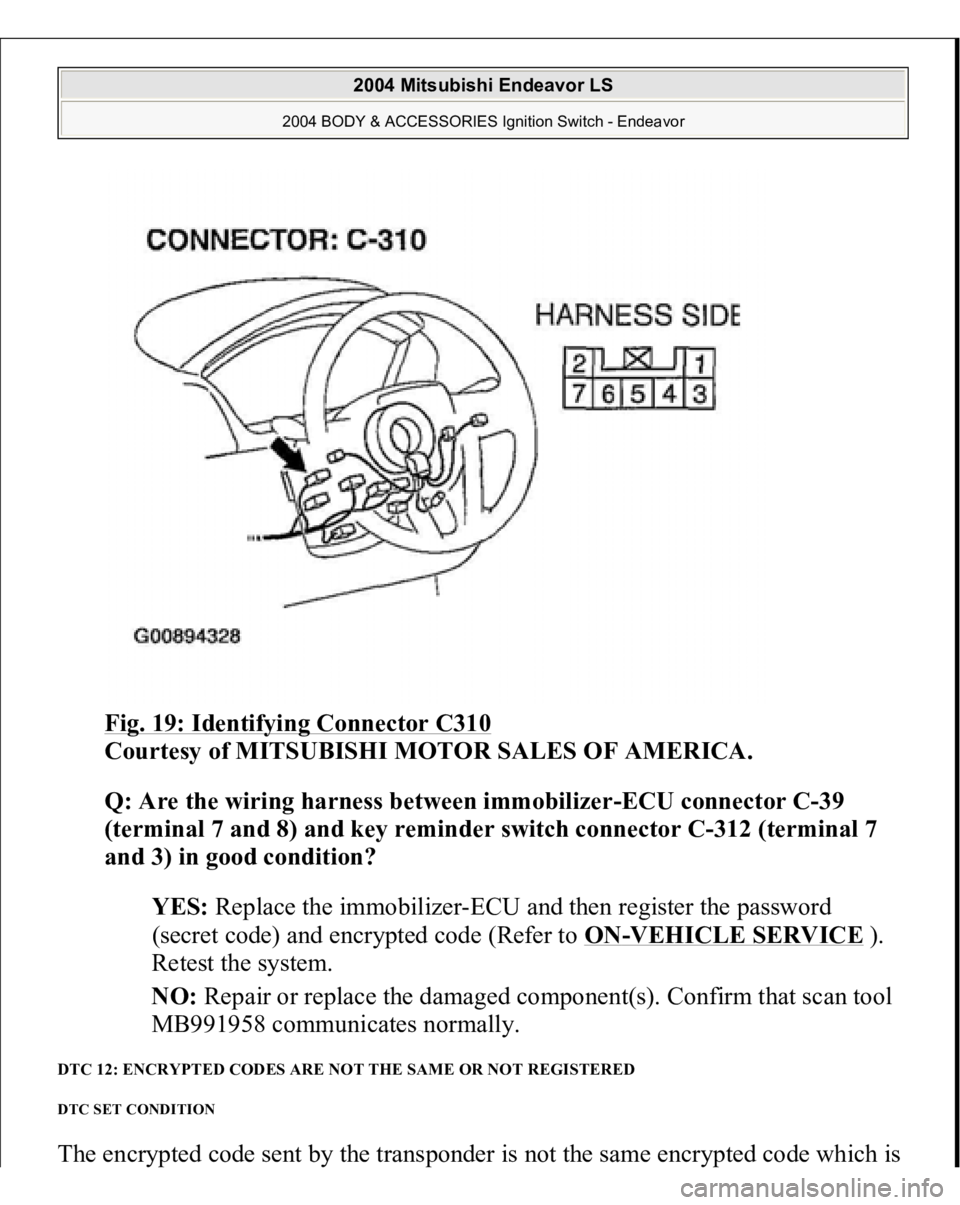

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Identifying Connector C310 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are the wiring harness between immobilizer-ECU connector C-39 (terminal 7 and 8) and key reminder switch conne

Page 2548 of 3870

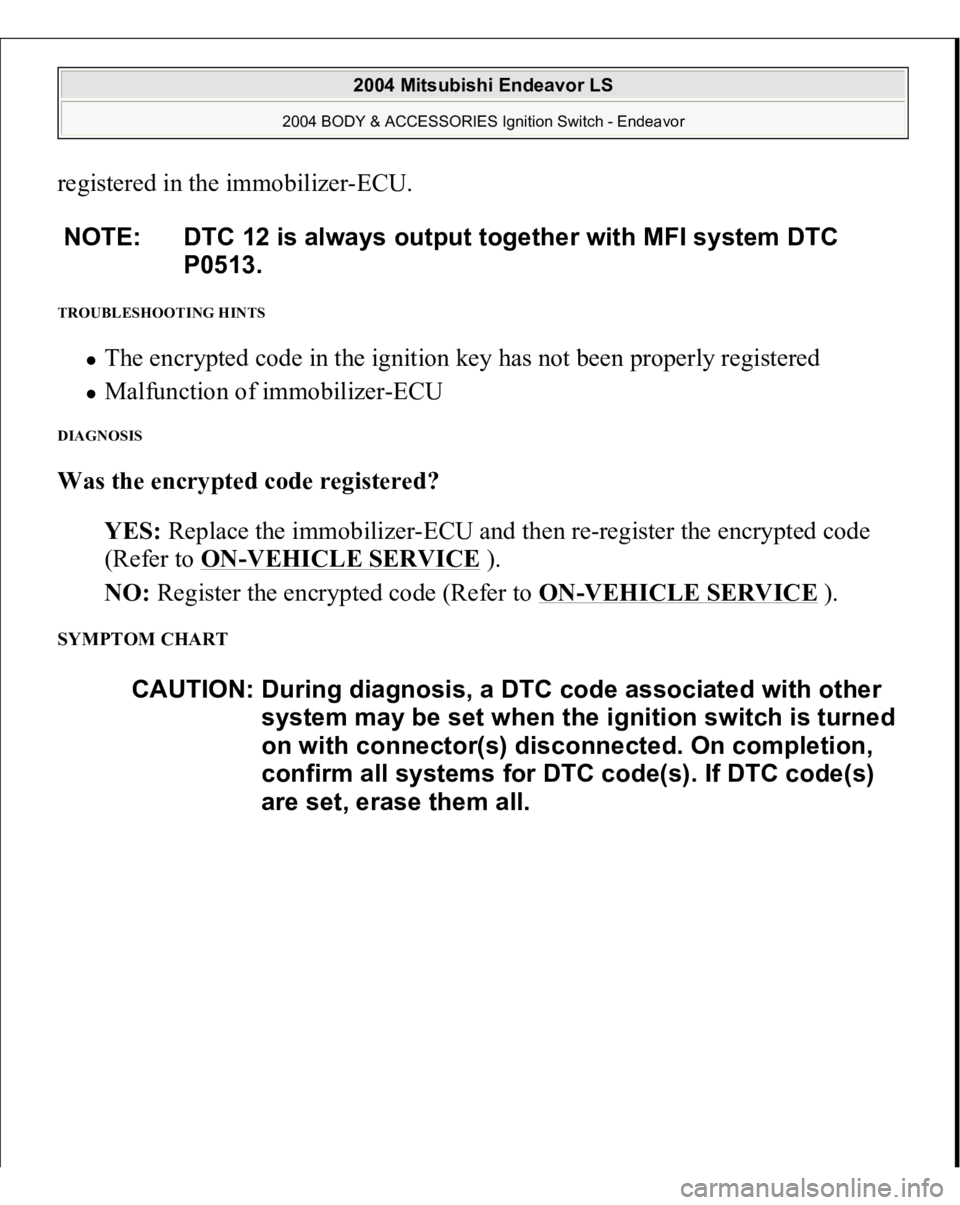

MITSUBISHI ENDEAVOR 2004 Service Repair Manual registered in the immobilizer-ECU. TROUBLESHOOTING HINTS The encrypted code in the ignition key has not been properly registered Malfunction of immobilizer-ECU DIAGNOSIS Was the encrypted code reg

Page 2549 of 3870

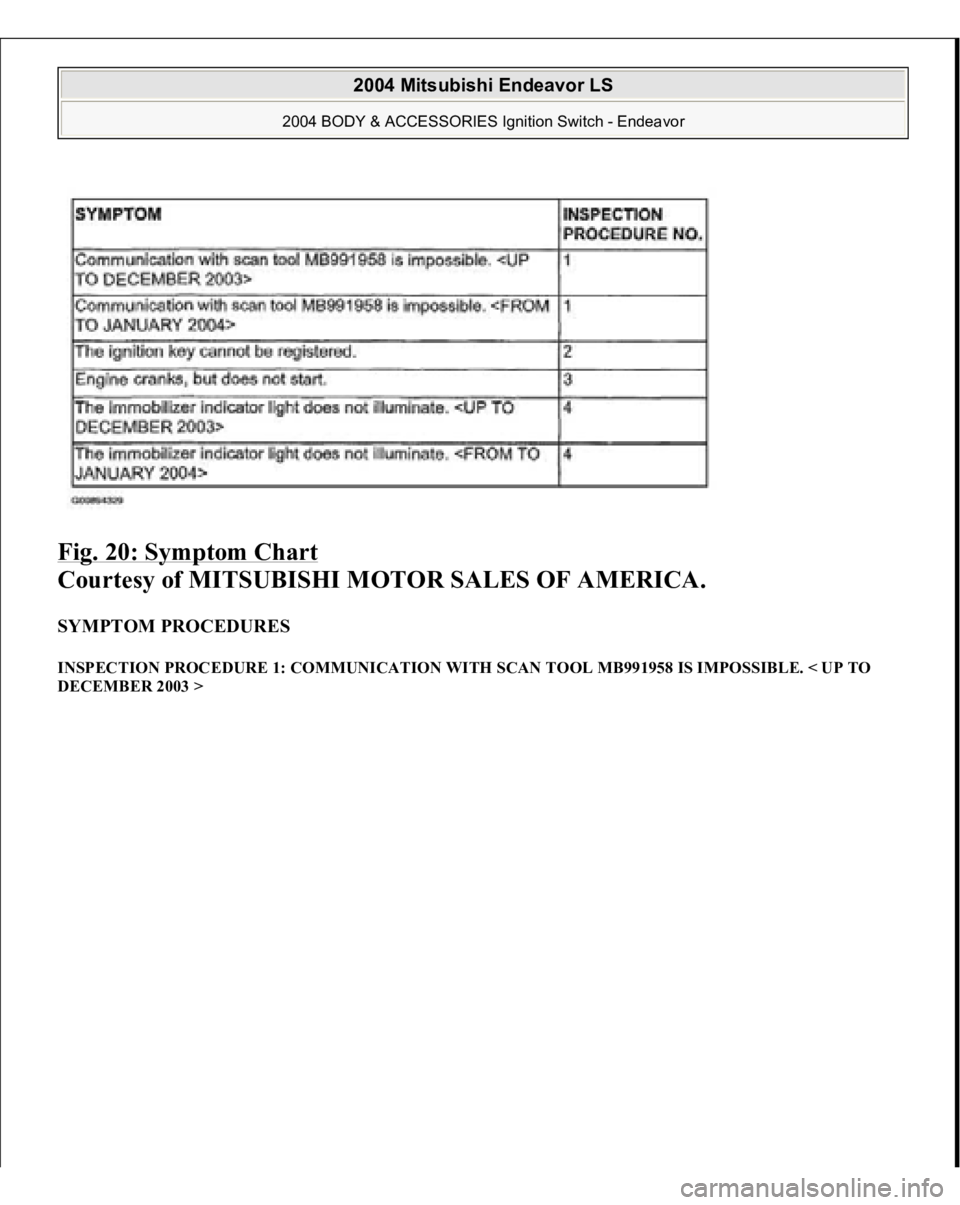

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Symptom Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: COMMUNICATION WITH SCAN TOOL MB991958 IS IMPOSSIBLE. < UP TO DECEMBER 2003 > 2004

Page 2550 of 3870

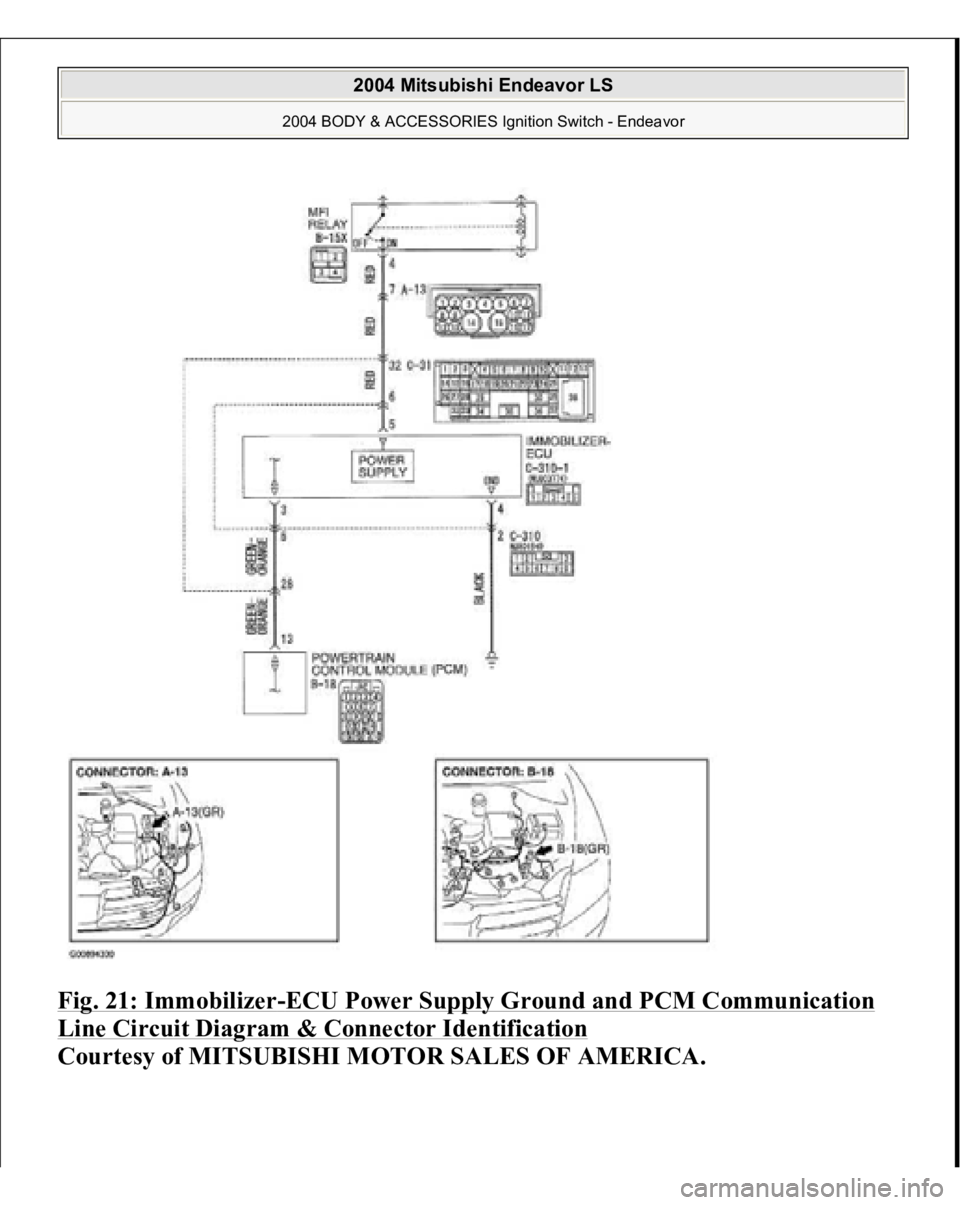

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Immobilizer -ECU Power Supply Ground and PCM Communication Line Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 200

Page 2551 of 3870

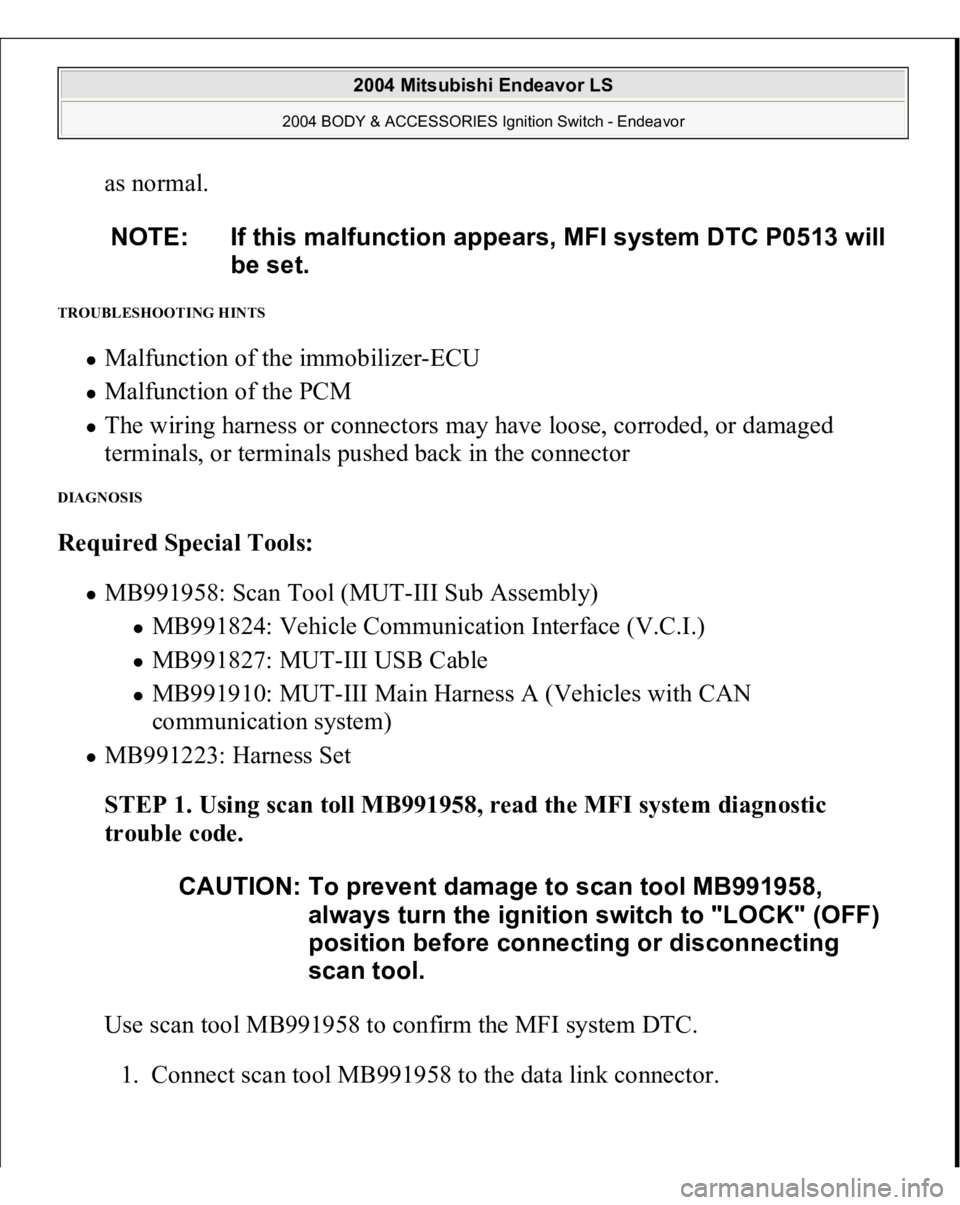

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 22: Identifying Connectors Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The Immobilizer-ECU is energized by the MFI relay when the ignition switch is turned "ON".

Page 2552 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual as normal. TROUBLESHOOTING HINTS Malfunction of the immobilizer-ECU Malfunction of the PCM The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed bac
