Page 969 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 99: Connectin g Scan Tool To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 970 of 3870

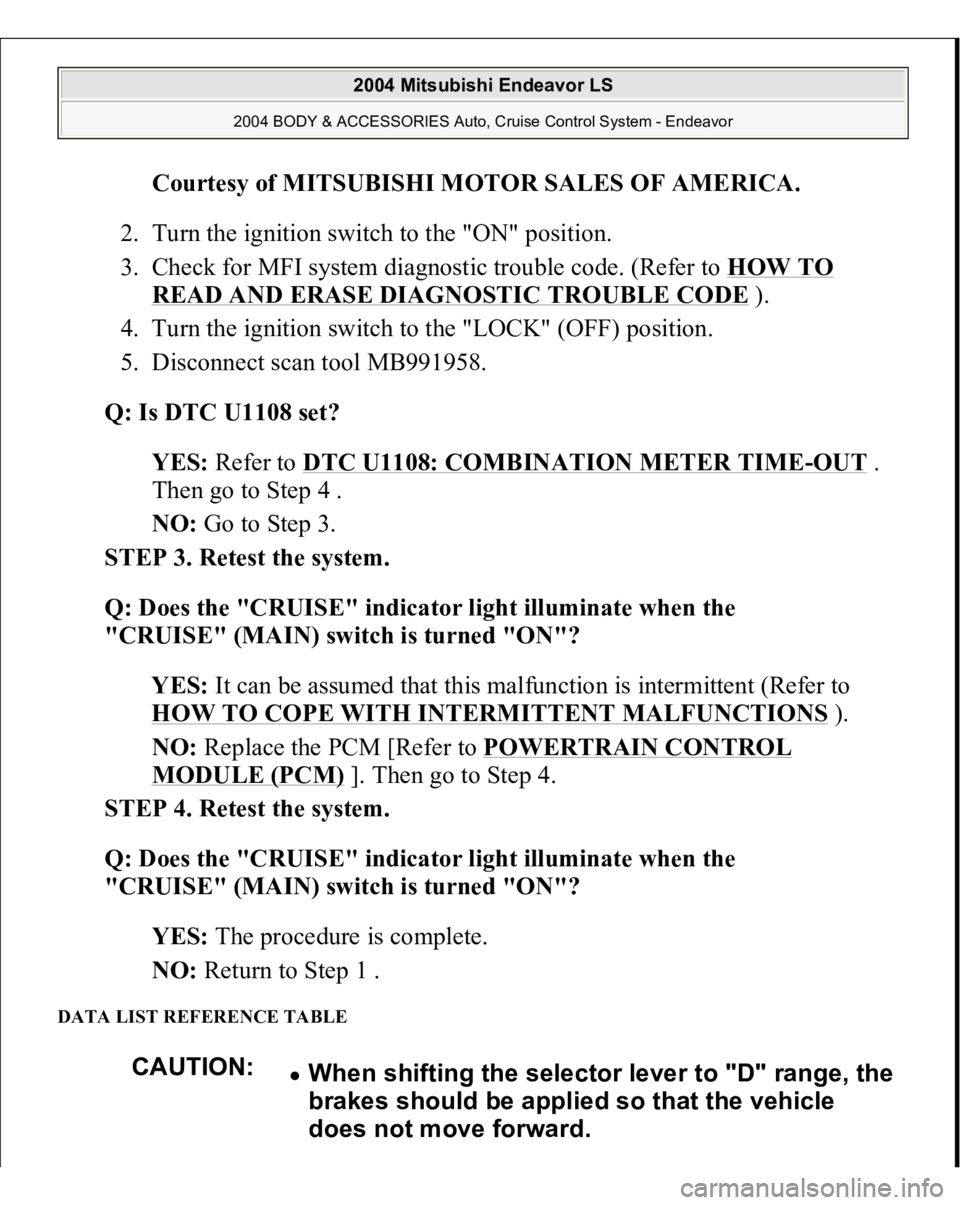

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Check for MFI system diagnostic trouble code. (Refer to HOW TO READ AND ERASE DIAGNOSTI

Page 971 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 100: Data List Reference Table (1 Of 2) Driving tests always need two persons: one driver and one observer. NOTE: *:Disconnect the throttle position sensor connector, and then delete the diag

Page 972 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 101: Data List Reference Table (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. PCM TERMINAL VOLTAGE REFERENCE CHART FOR AUTO-CRUISE CON

Page 973 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 102: Identifying Special Tool -Power Plant ECU Check Harness Connector (Component Side) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 103: Auto Cruise Control System Operation Table (1

Page 974 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 104: Auto Cruise Control System Operation Table (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ON-VEHICLE SERVICE AUTO-CRUISE CONTROL

Page 975 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 105: Turnin g Ignition Switc h 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 976 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Check that the "CRUISE" indicator light within the combination meter illuminates when the "CRUISE" (MAIN) switch is switched "O
