Page 2145 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 100: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav

Page 2146 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. STEP 3. Using scan tool MB991958, check for any diagnostic trouble code.Check if a DTC, which relates to CAN communication-linked systems below, is set. Combination meter DTC indicating a time-o

Page 2147 of 3870

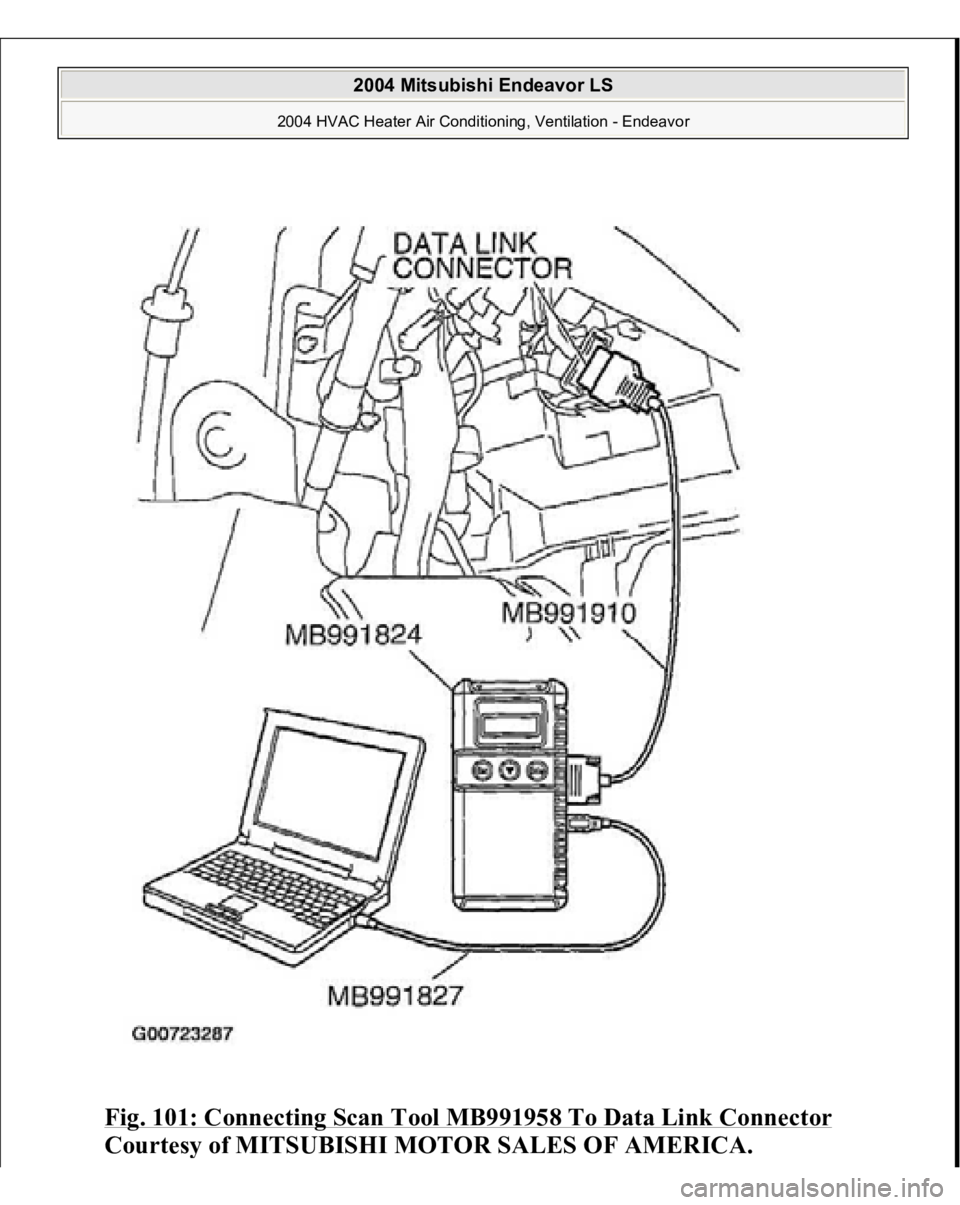

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 101: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav

Page 2148 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 4. STEP 4. Recheck for diagnostic trouble code. Check again if the DTC is set. 1. Turn the ignition switch to the "ON" position. 2. Check if the DTC is set. 3. Turn the ignition switch

Page 2149 of 3870

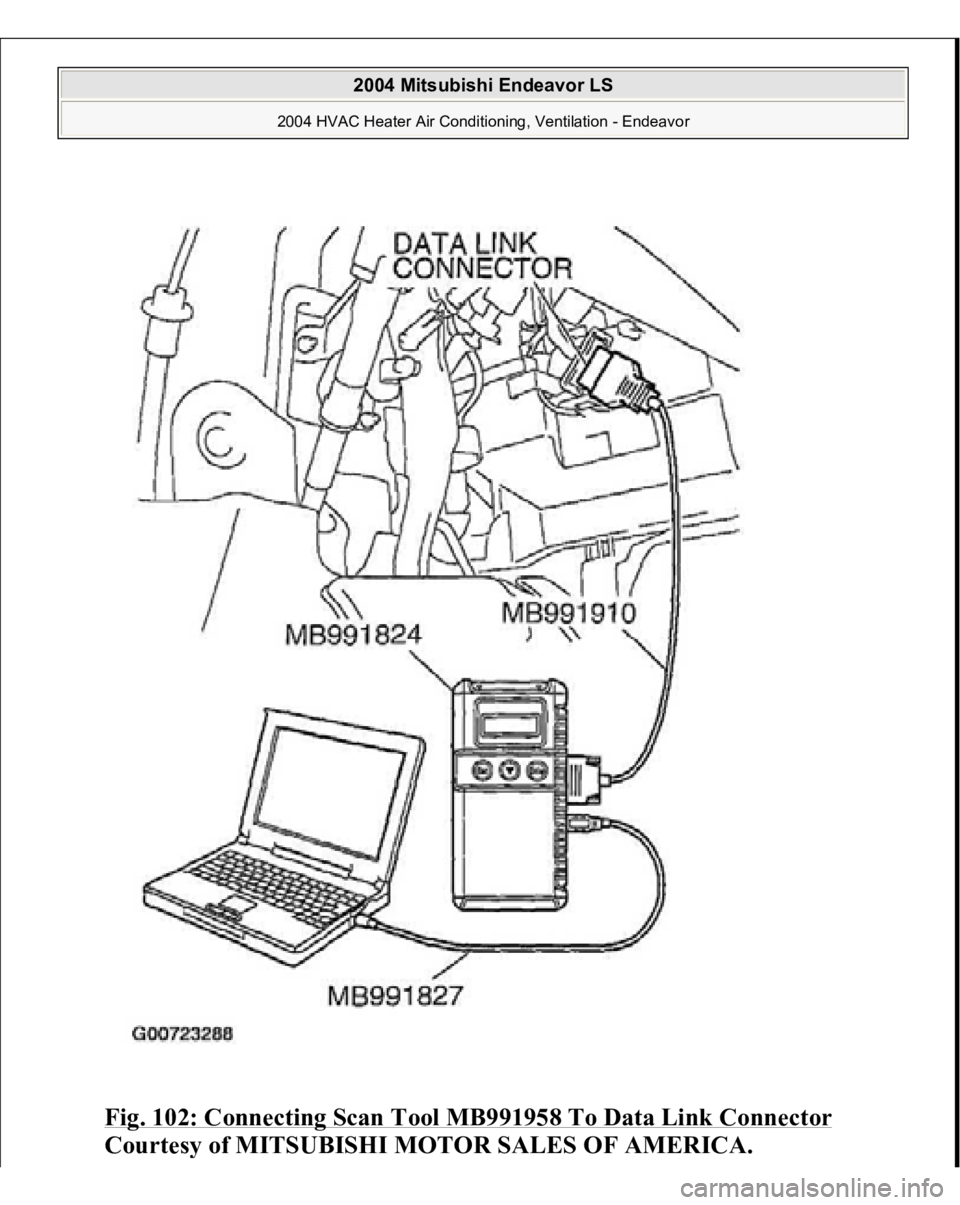

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 102: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav

Page 2150 of 3870

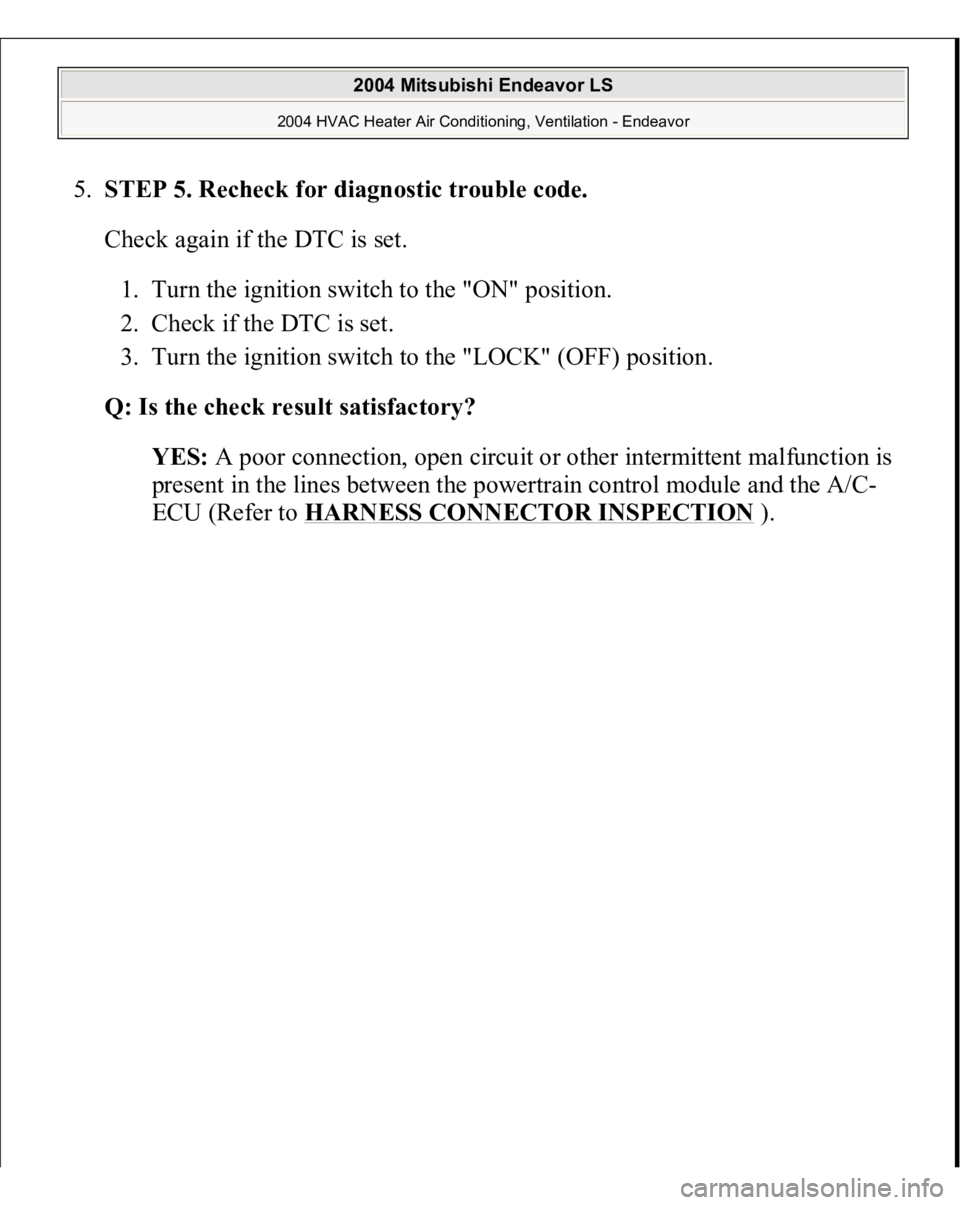

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 5. STEP 5. Recheck for diagnostic trouble code. Check again if the DTC is set. 1. Turn the ignition switch to the "ON" position. 2. Check if the DTC is set. 3. Turn the ignition switch

Page 2151 of 3870

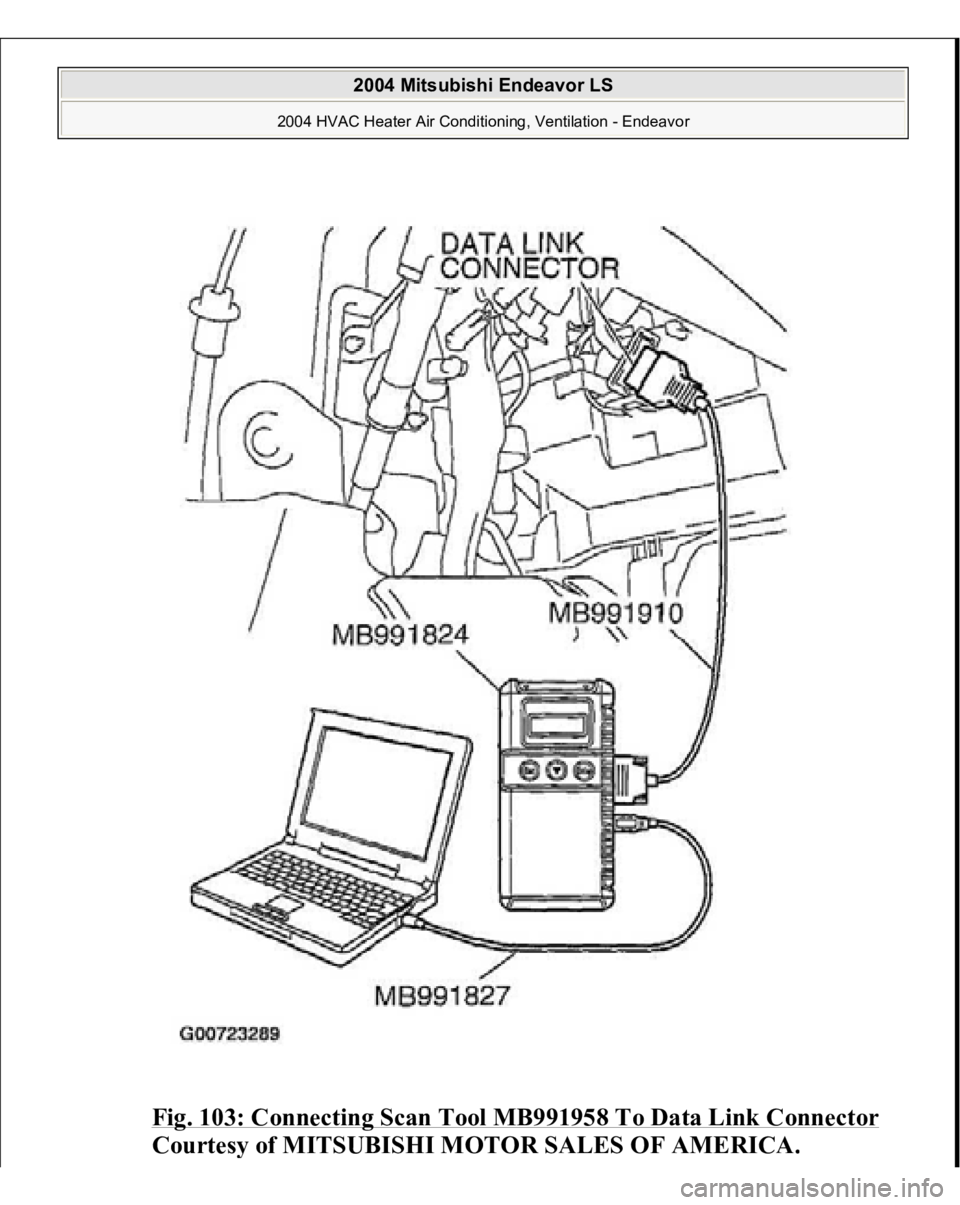

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 103: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav

Page 2152 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Replace the A/C-ECU. On completion, check that the DTC is not reset. DTC U1111: MULTI-CENTER DISPLAY UNIT (MIDDLE GRADE TYPE) TIME-OUT TROUBLE JUDGMENT The A/C-ECU receives signals from the mu
