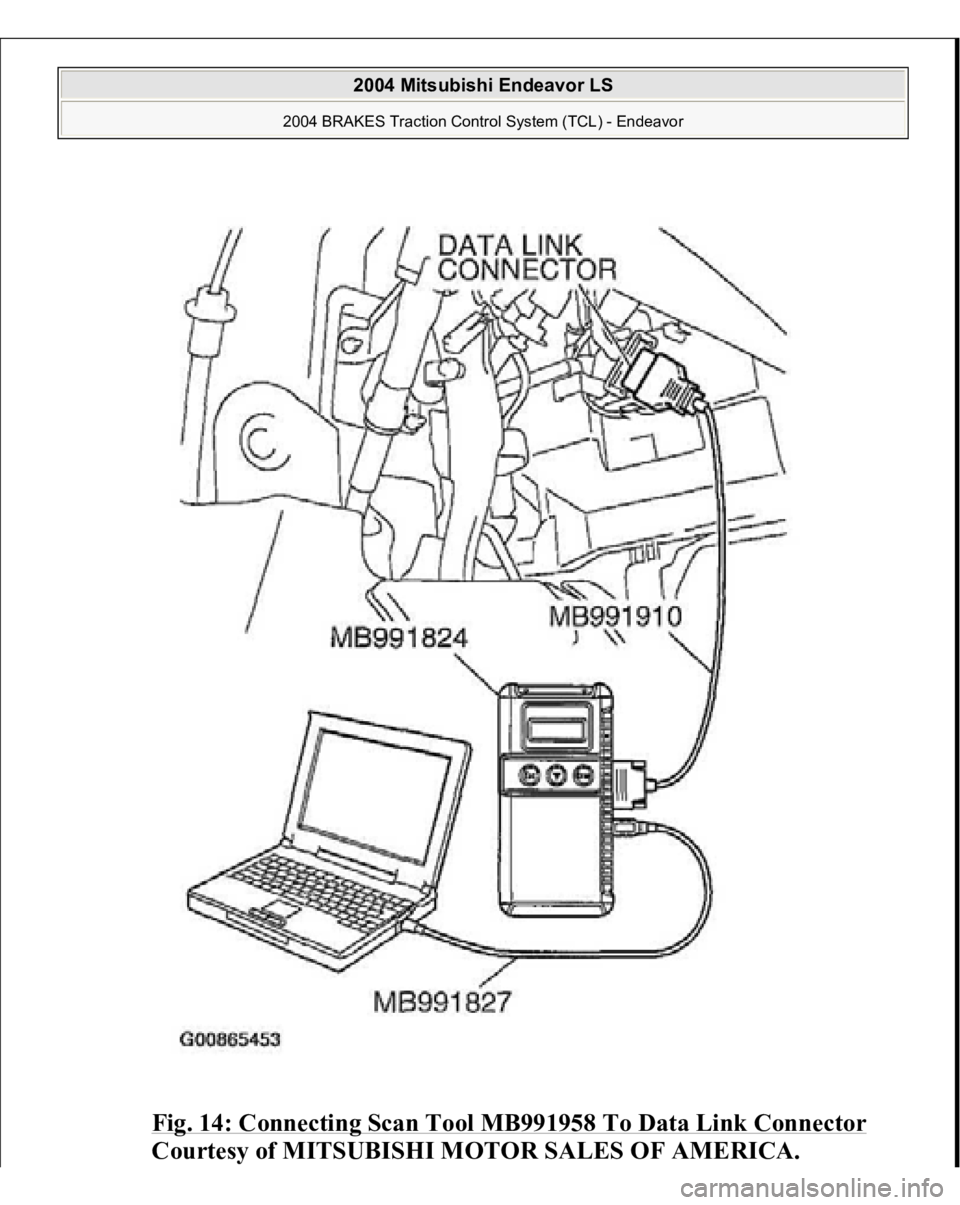

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 14: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor

Page 3610 of 3870

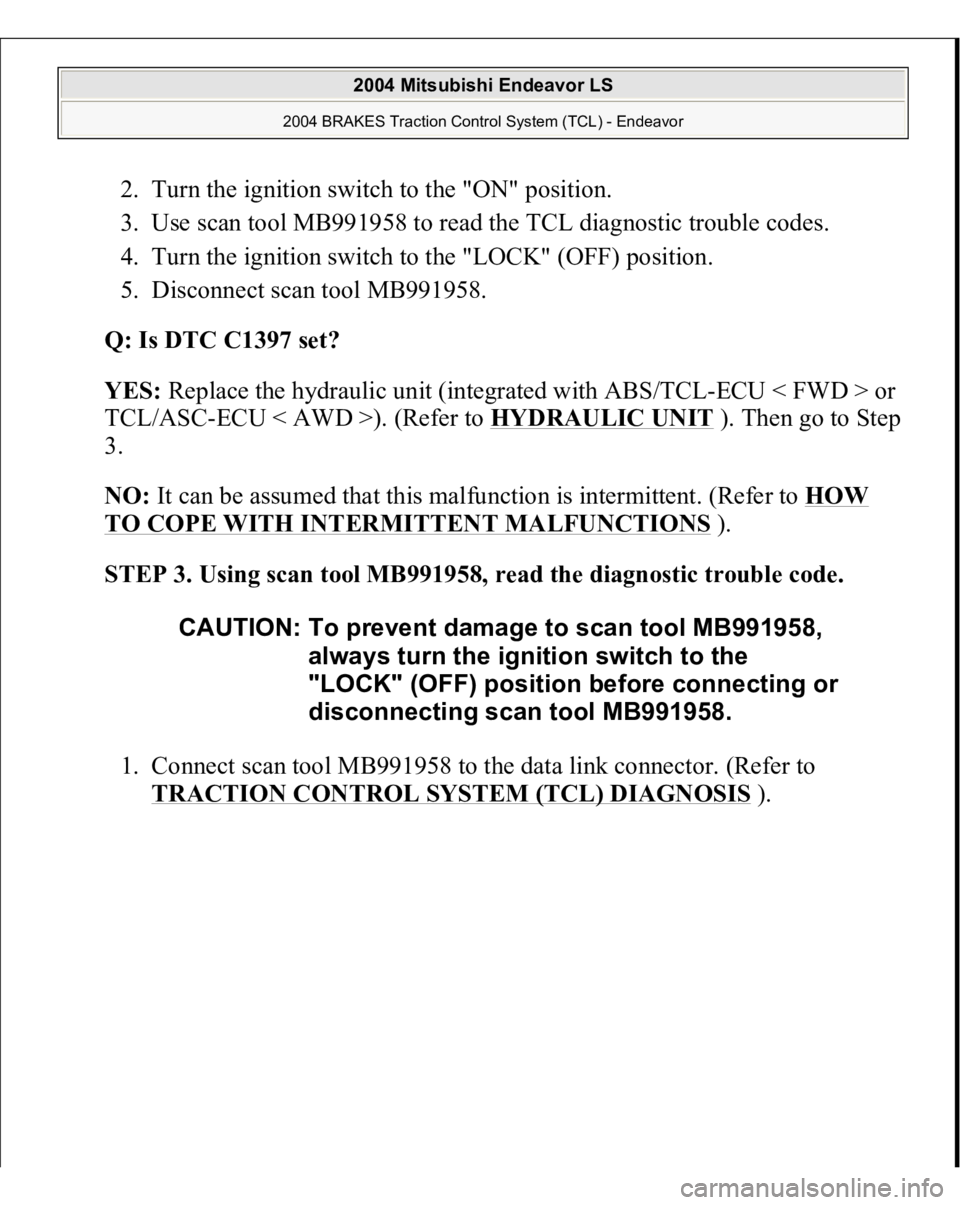

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Use scan tool MB991958 to read the TCL diagnostic trouble codes. 4. Turn the ignition switch to the "LOCK" (OFF) position. 5.

Page 3611 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor

Page 3612 of 3870

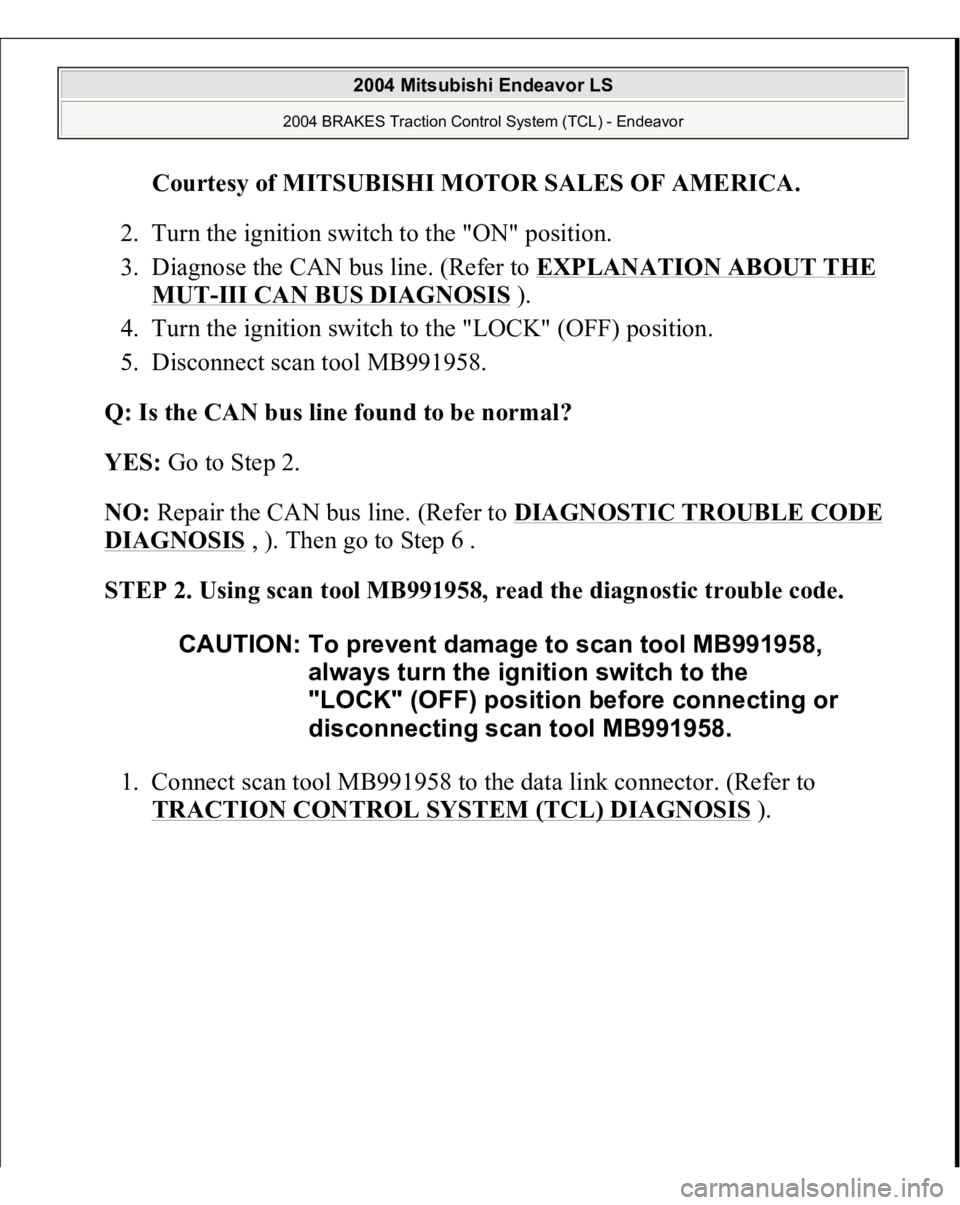

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Use scan tool MB991958 to read the TCL diagnostic trouble codes. 4. Turn the ignition

Page 3613 of 3870

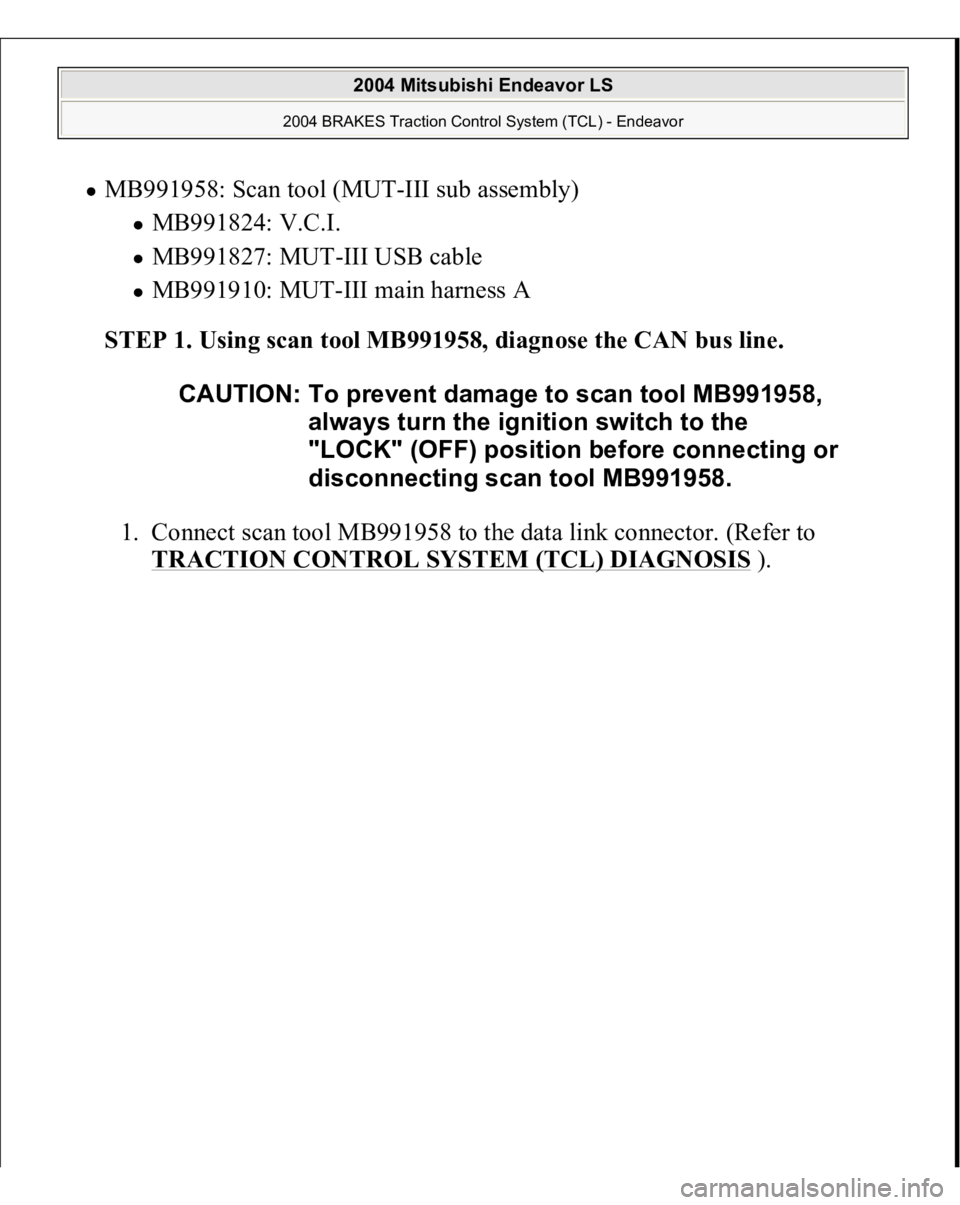

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MB991958: Scan tool (MUT-III sub assembly) MB991824: V.C.I. MB991827: MUT-III USB cable MB991910: MUT-III main harness A STEP 1. Using scan tool MB991958, diagnose the CAN bus line. 1. Connect s

Page 3614 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 16: Connectin g Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor

Page 3615 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. (Refer to EXPLANATION ABOUT THE MUT -III CAN BUS DIAGNOSIS

Page 3616 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 17: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control System (TCL) - Endeavor
