Page 185 of 3870

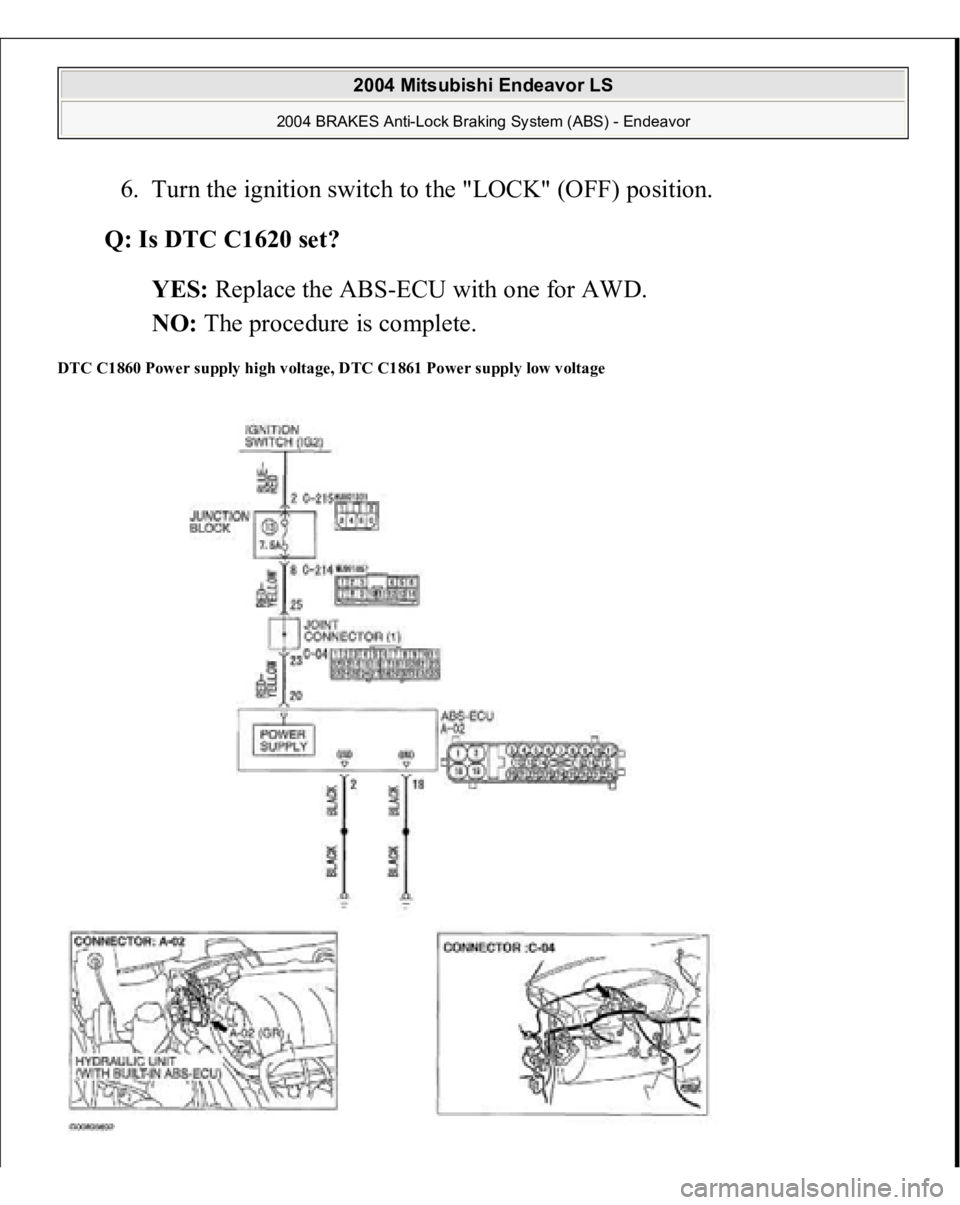

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1620 set? YES: Replace the ABS-ECU with one for AWD. NO: The procedure is complete. DTC C1860 Power supply high vol

Page 186 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 107: ABS -ECU Power Supply And Ground Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 108: Identifying Connectors: C -214, C -215 Courtesy of

Page 187 of 3870

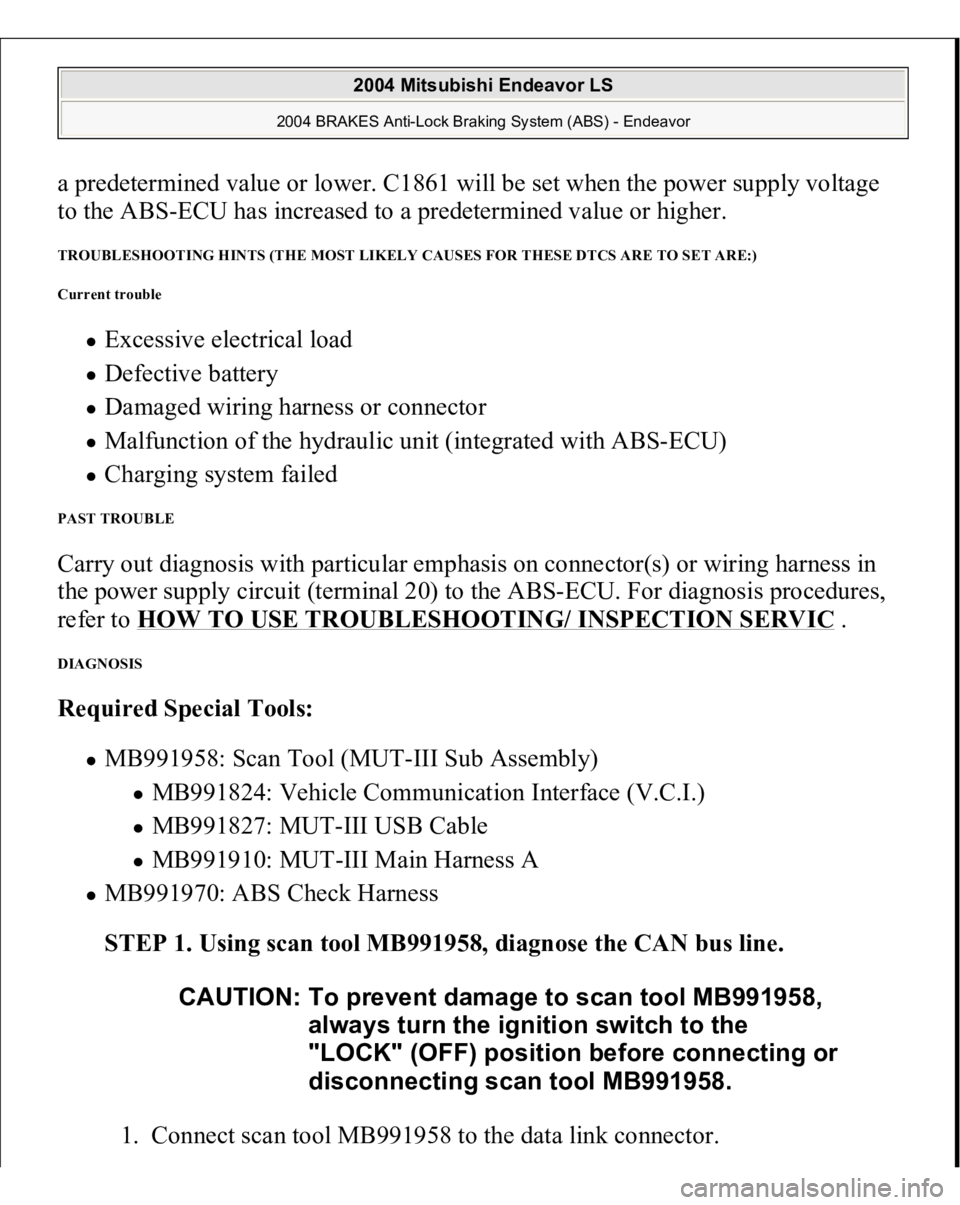

MITSUBISHI ENDEAVOR 2004 Service Repair Manual a predetermined value or lower. C1861 will be set when the power supply voltage to the ABS-ECU has increased to a predetermined value or higher. TROUBLESHOOTING HINTS (THE MOST LIKELY CAUSES FOR THES

Page 188 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 109: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 189 of 3870

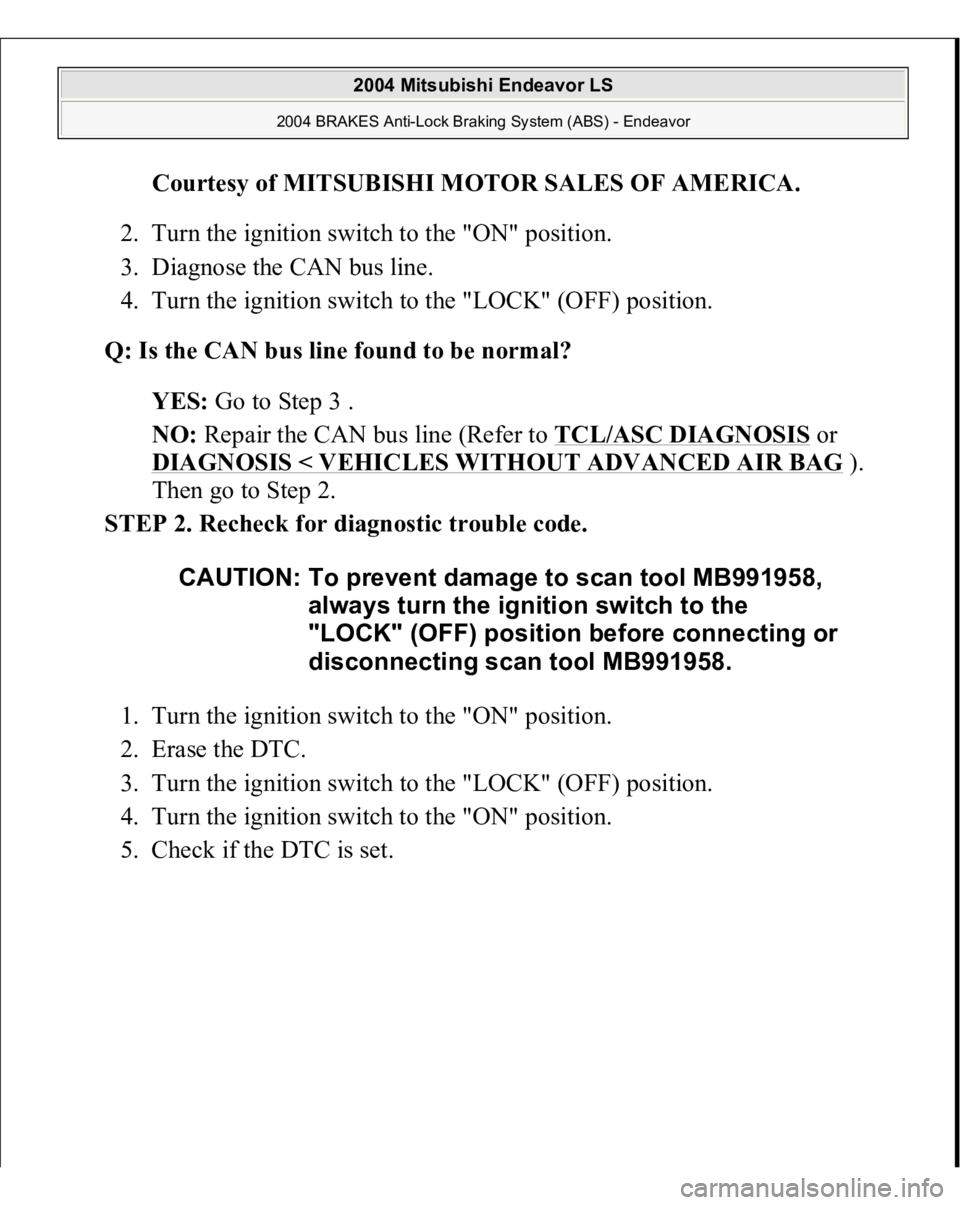

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) pos

Page 190 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 110: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 191 of 3870

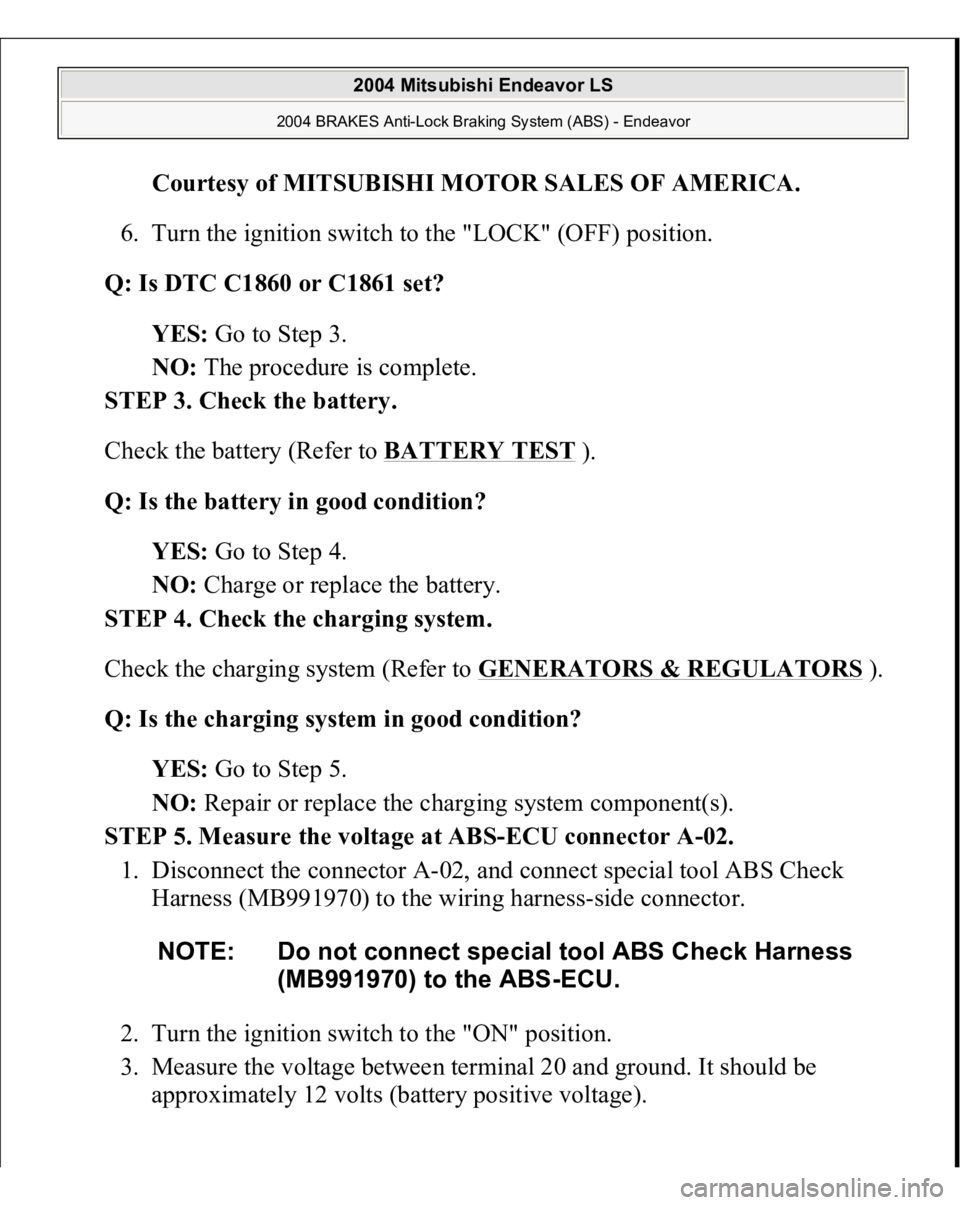

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1860 or C1861 set? YES: Go to Step 3. NO: The procedure is complete.

Page 192 of 3870

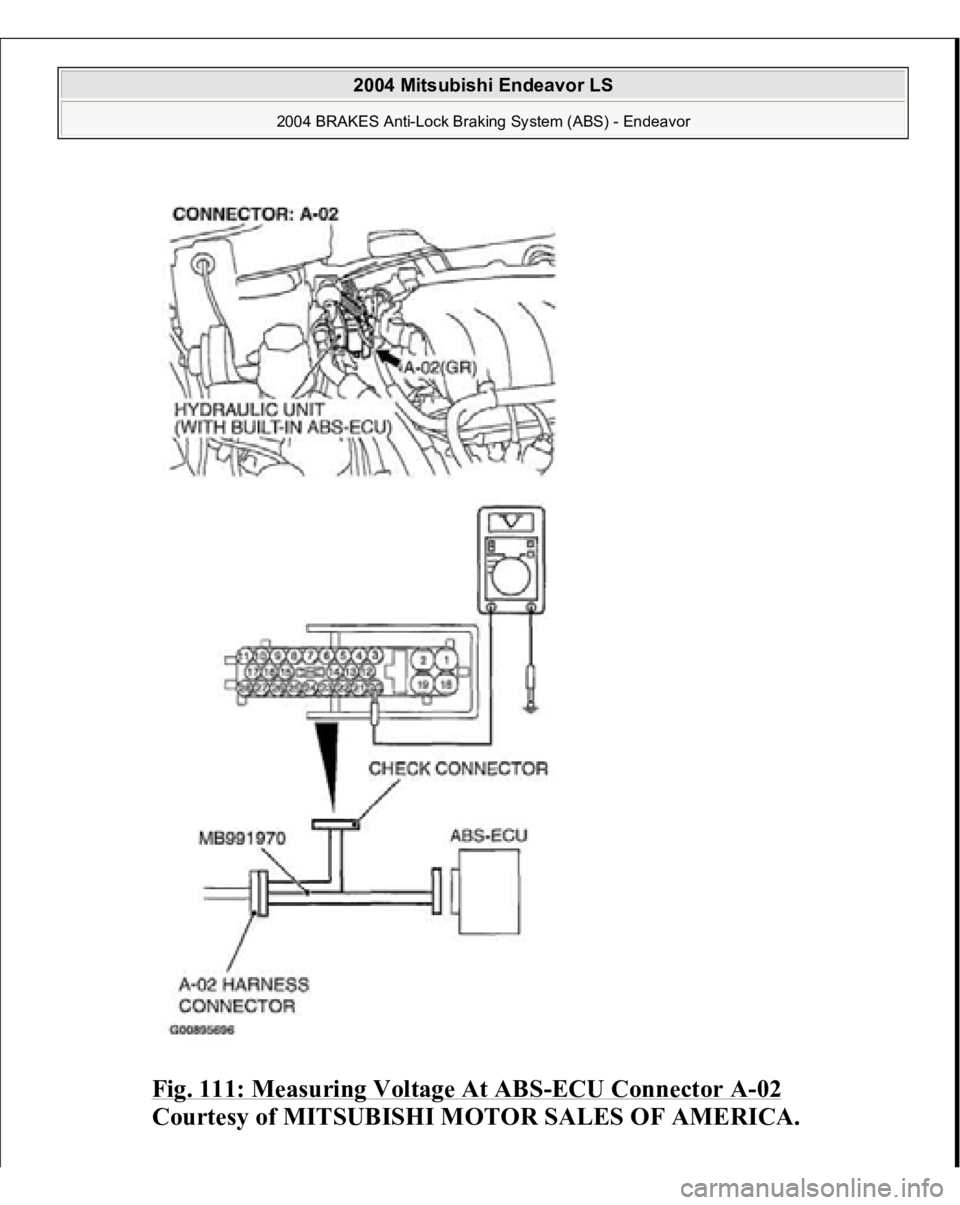

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 111: Measuring Voltage At ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
