Page 2777 of 3870

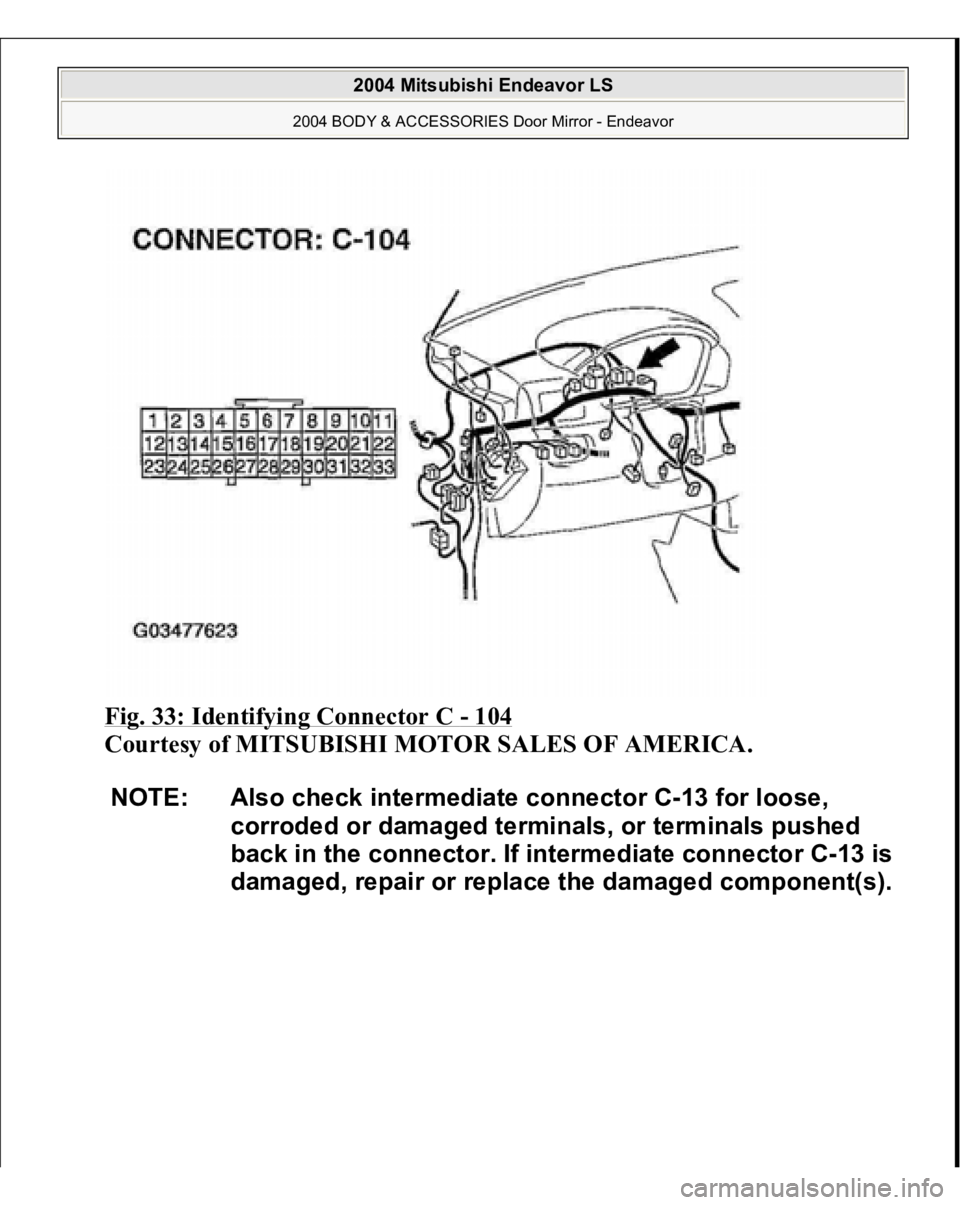

Fig. 33: Identifying Connector C
- 104
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-13 for loose,
corroded or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-13 is
damaged, repair or replace the damaged component(s).
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 2778 of 3870
Fig. 34: Identifying Connector C
- 13
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between the remote controlled mirror (RH)
connector E-01 (terminal 1) and joint connector (2) C-104 (terminal 24) in
good condition?
YES: No action is necessary and testing is complete.
NO: Repair the wiring harness as necessary. And then check to see that
the heater function of the door mirror (RH) operates normally.
DOOR MIRROR REMOVAL AND INSTALLATION
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 2779 of 3870

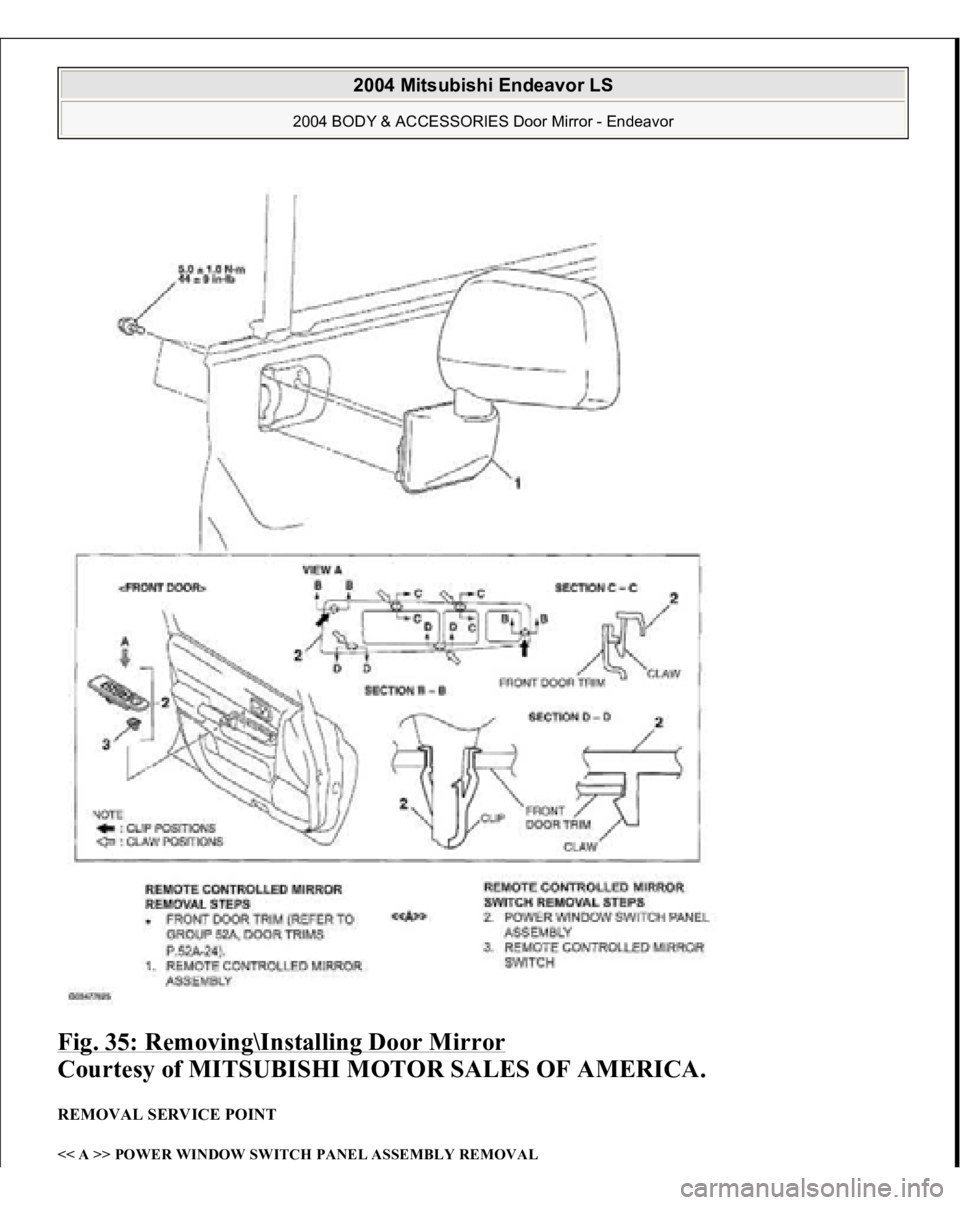

Fig. 35: Removing\Installing Door Mirror
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOVAL SERVICE POINT << A >> POWER WINDOW SWITCH PANEL ASSEMBLY REMOVAL
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 2780 of 3870
Insert special tool MB990874 as shown to remove the power window switch panel
assembly.
Fig. 36: Removing Power Window Switch Panel Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
INSPECTION REMOTE CONTROLLED MIRROR OPERATION CHECK Check that the mirror moves as described in the table when each terminal is
connected to the battery.
REMOTE CONTROLLED MIRROR OPERATION CHECK BATTERY CONNECTION
SPECIFIED CONDITION
Connect terminal 6 to the negative battery
terminal.
Mirror
glass should face
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 2781 of 3870

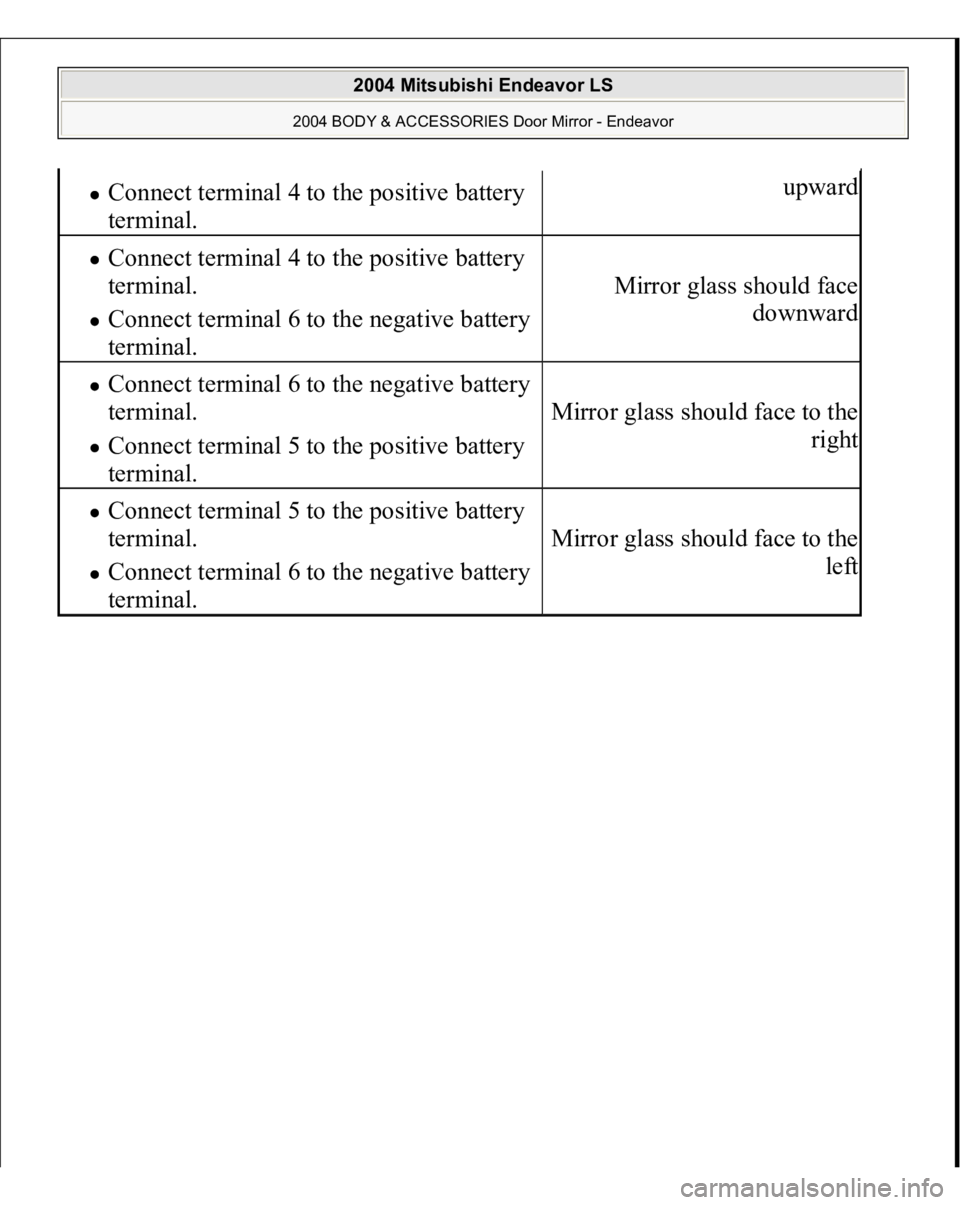

Connect terminal 4 to the positive battery
terminal.
upward
Connect terminal 4 to the positive battery
terminal. Connect terminal 6 to the negative battery
terminal.
Mirror glass should face
downward
Connect terminal 6 to the negative battery
terminal. Connect terminal 5 to the positive battery
terminal.
Mirror glass should face to the
right
Connect terminal 5 to the positive battery
terminal. Connect terminal 6 to the negative battery
terminal.
Mirror glass should face to the
left
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 2782 of 3870
Fig. 37: Locating Outer Mirror Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
REMOTE CONTROLLED MIRROR SWITCH CONTINUITY CHECK REMOTE CONTROLLED MIRROR SWITCH CONTINUITY CHECK SWITCH
POSITION
TESTER CONNECTION
SPECIFIED
CONDITION
OFF
9-2, 9-3, 9-6, 9-10, 9-11, 1-2, 1-3, 1-
6, 1-10, 1-11
Open circuit
Left side
OFF
9-6, 9-10, 9-11, 1-6, 1-10, 1-11
Open circuit
Up
1-6, 9-11
Less than 2 ohms
Down
1-11, 6-9
Right
1-6, 9-10
Left
1-10, 6-9
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Door Mirror - Endeavor
Page 2783 of 3870
Fig. 38: Identifying Remote Controlled Mirror Switch Terminal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

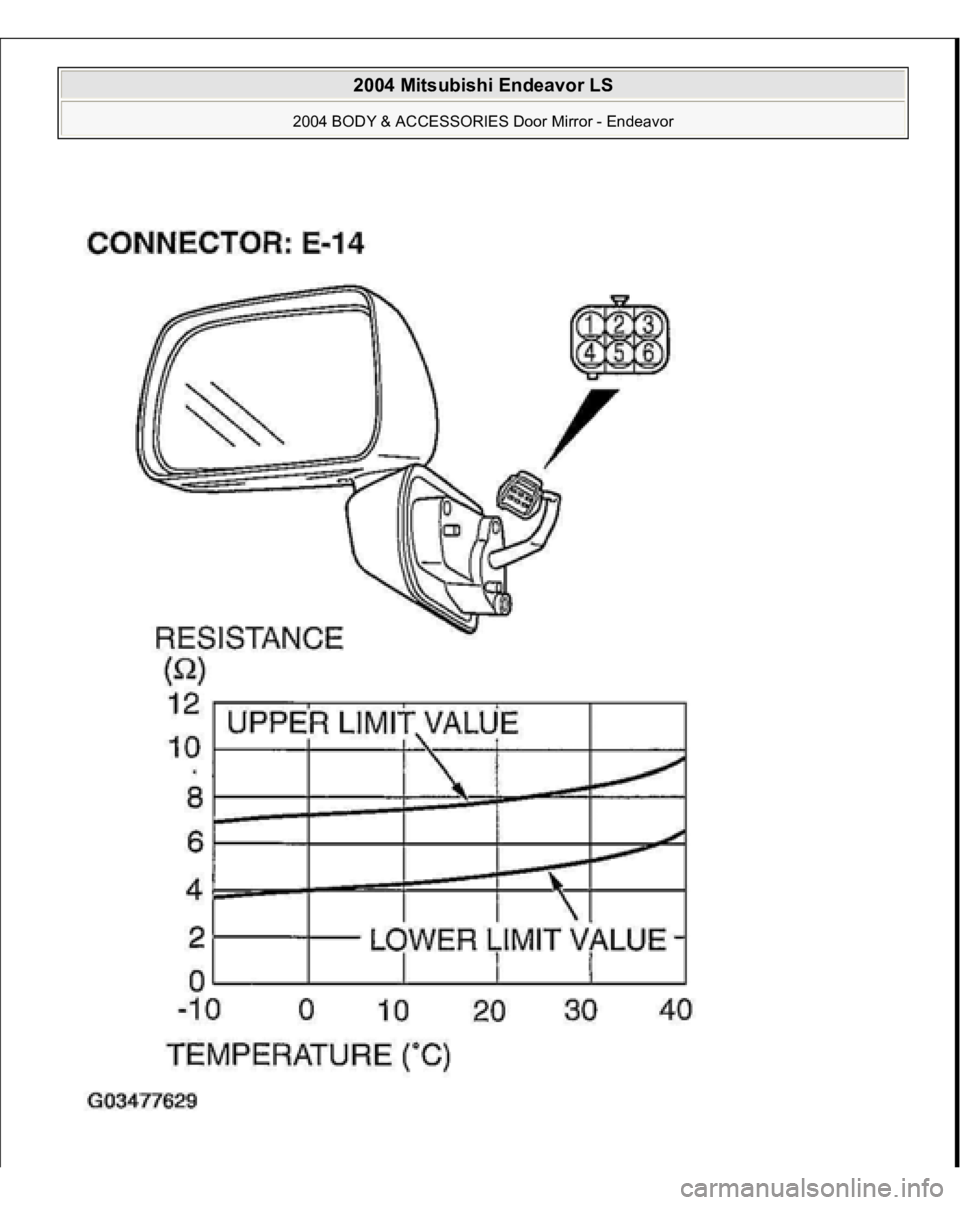

DOOR MIRROR HEATER CHECK Check to see that the resistance shown in the graph is almost satisfied when
measuring the resistance of terminals 1 and 2 of the remote controlled mirror
connectors under 2 or more different temperature conditions.Right side
OFF
9-2, 9-3, 9-6, 1-2, 1-3, 1-6
Open circuit
Up
1-6, 3-9
Less than 2 ohms
Down
1-3, 6-9
Right
1-6, 2-9
Left
1-2, 6-9
CAUTION: When relocating the car between locations with
extremely different temperatures (warm and cold),
leave the car in the location for a while to adapt to
the temperature prior to checking it.
