Page 3249 of 3870

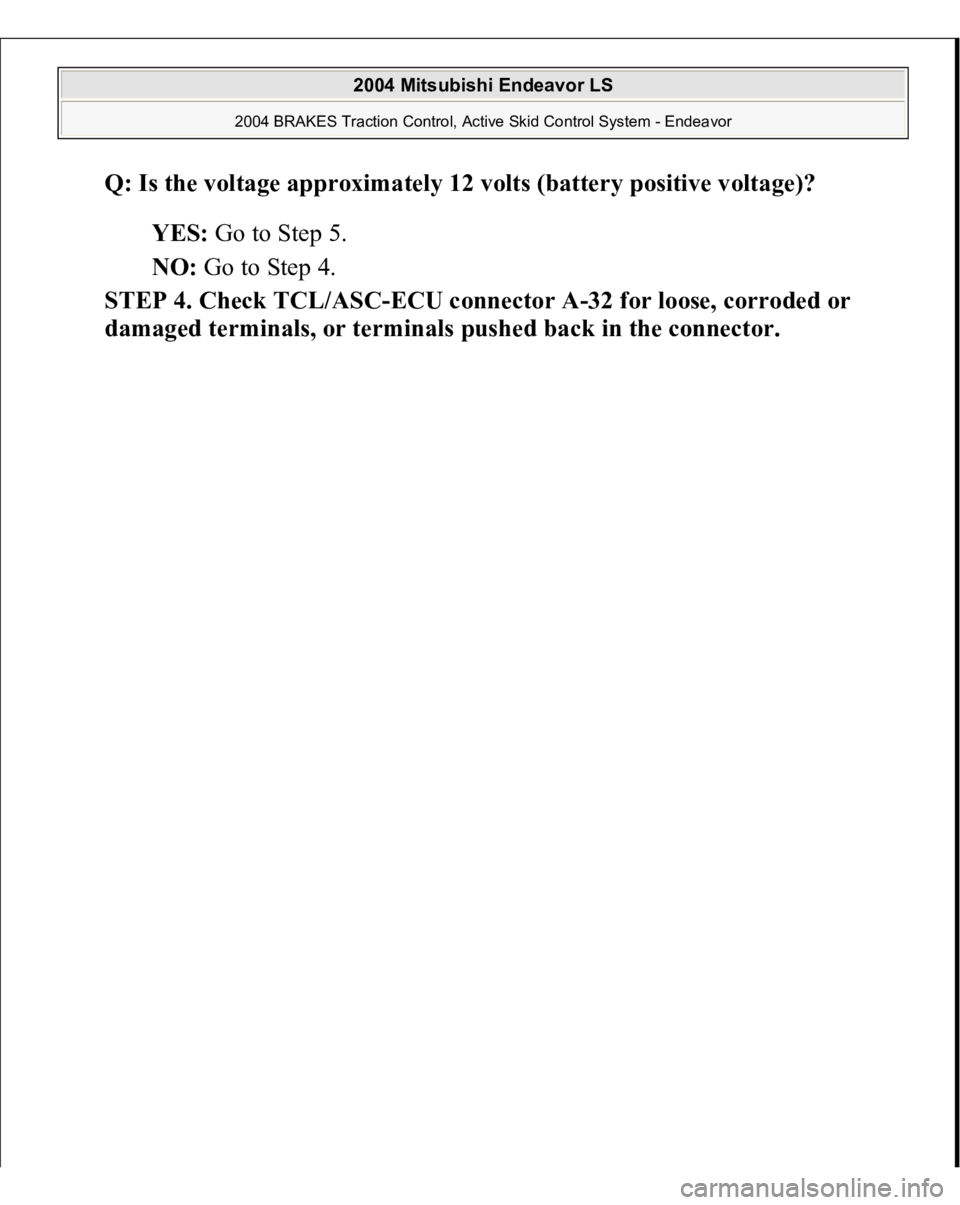

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the voltage approximately 12 volts (battery positive voltage)? YES: Go to Step 5. NO: Go to Step 4. STEP 4. Check TCL/ASC-ECU connector A-32 for loose, corroded or dama ged terminals, or

Page 3250 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 100: Checking TCL/ASC -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3251 of 3870

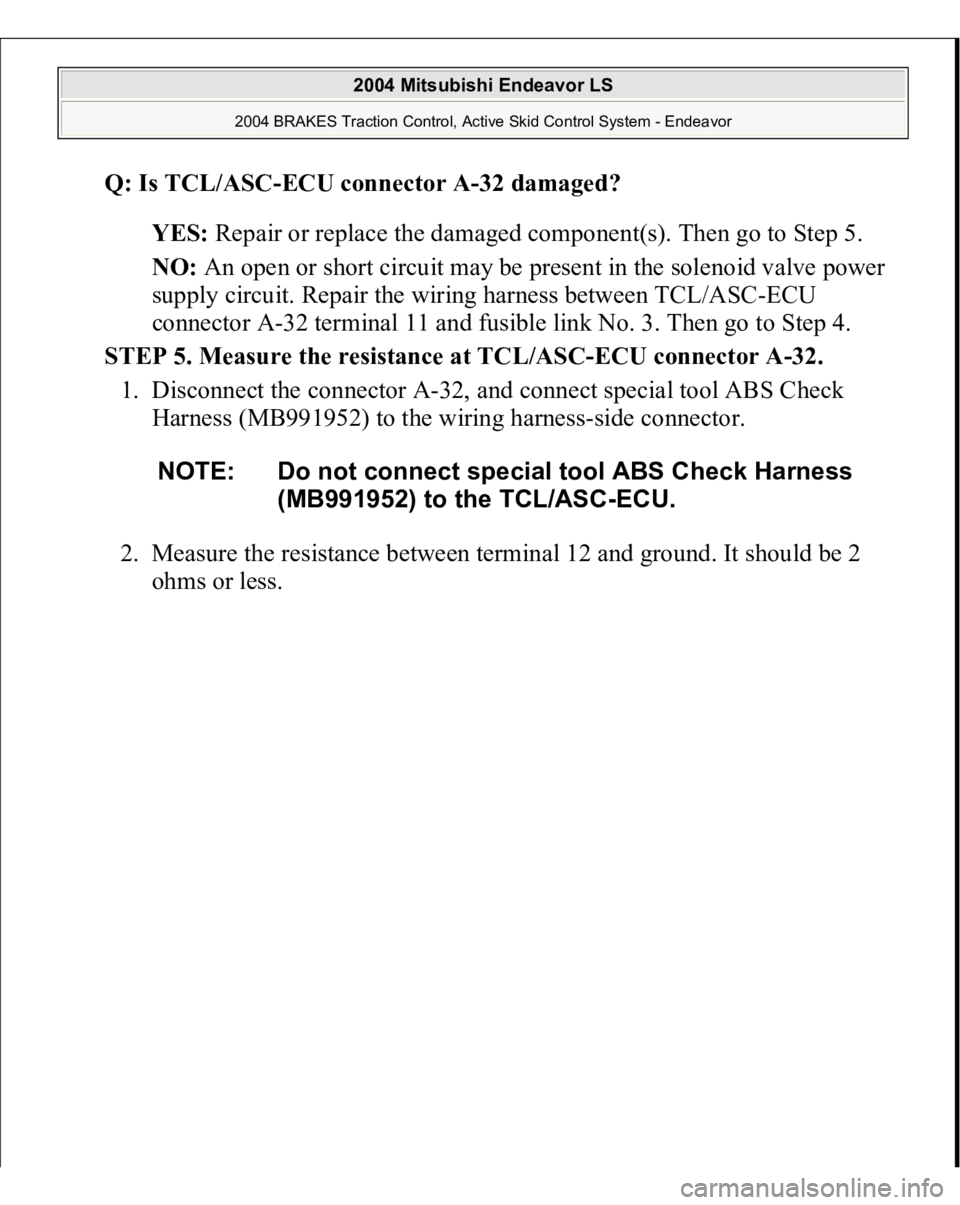

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is TCL/ASC-ECU connector A-32 damaged? YES: Repair or replace the damaged component(s). Then go to Step 5. NO: An open or short circuit may be present in the solenoid valve power supply circui

Page 3252 of 3870

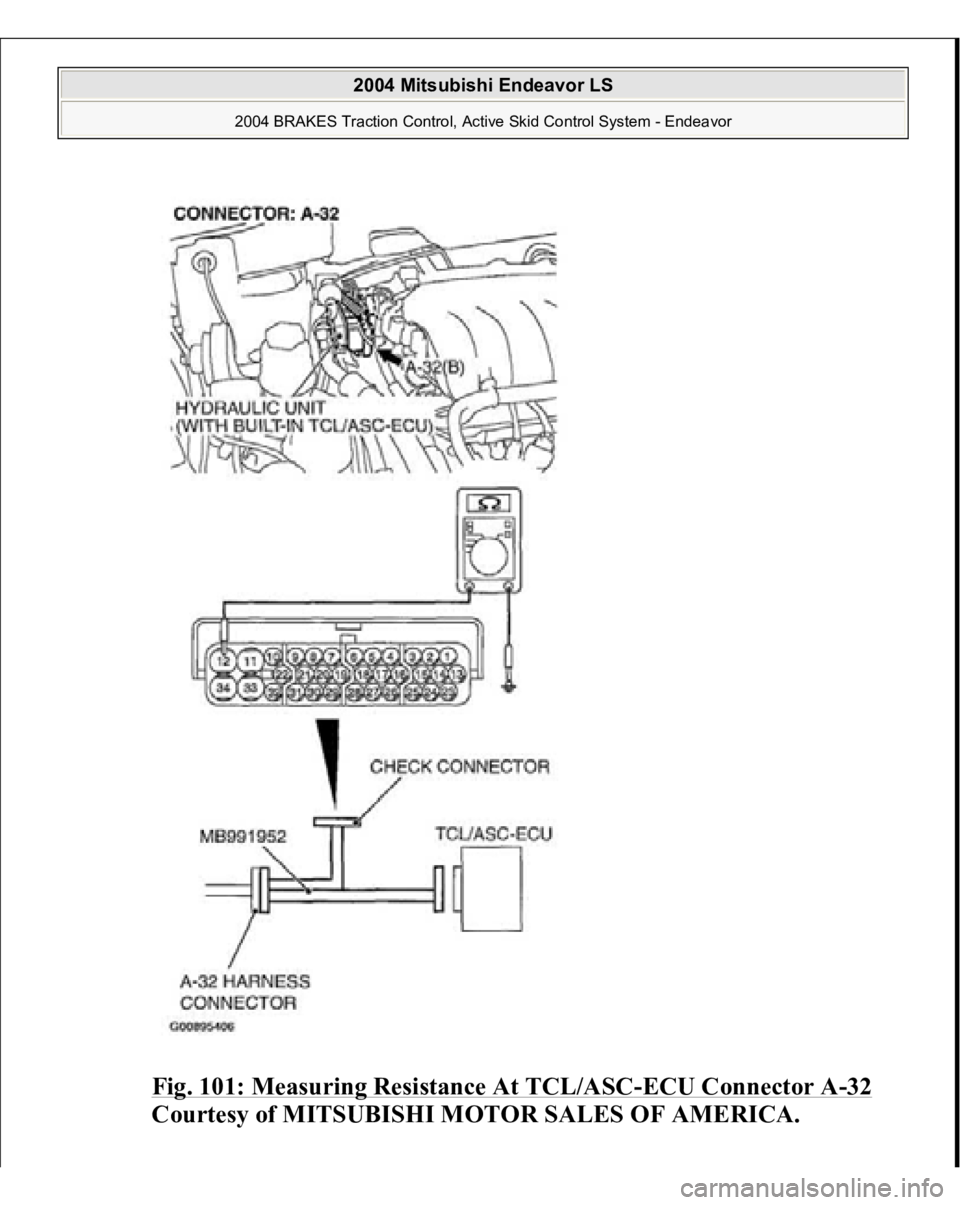

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 101: Measuring Resistance At TCL/ASC -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System -

Page 3253 of 3870

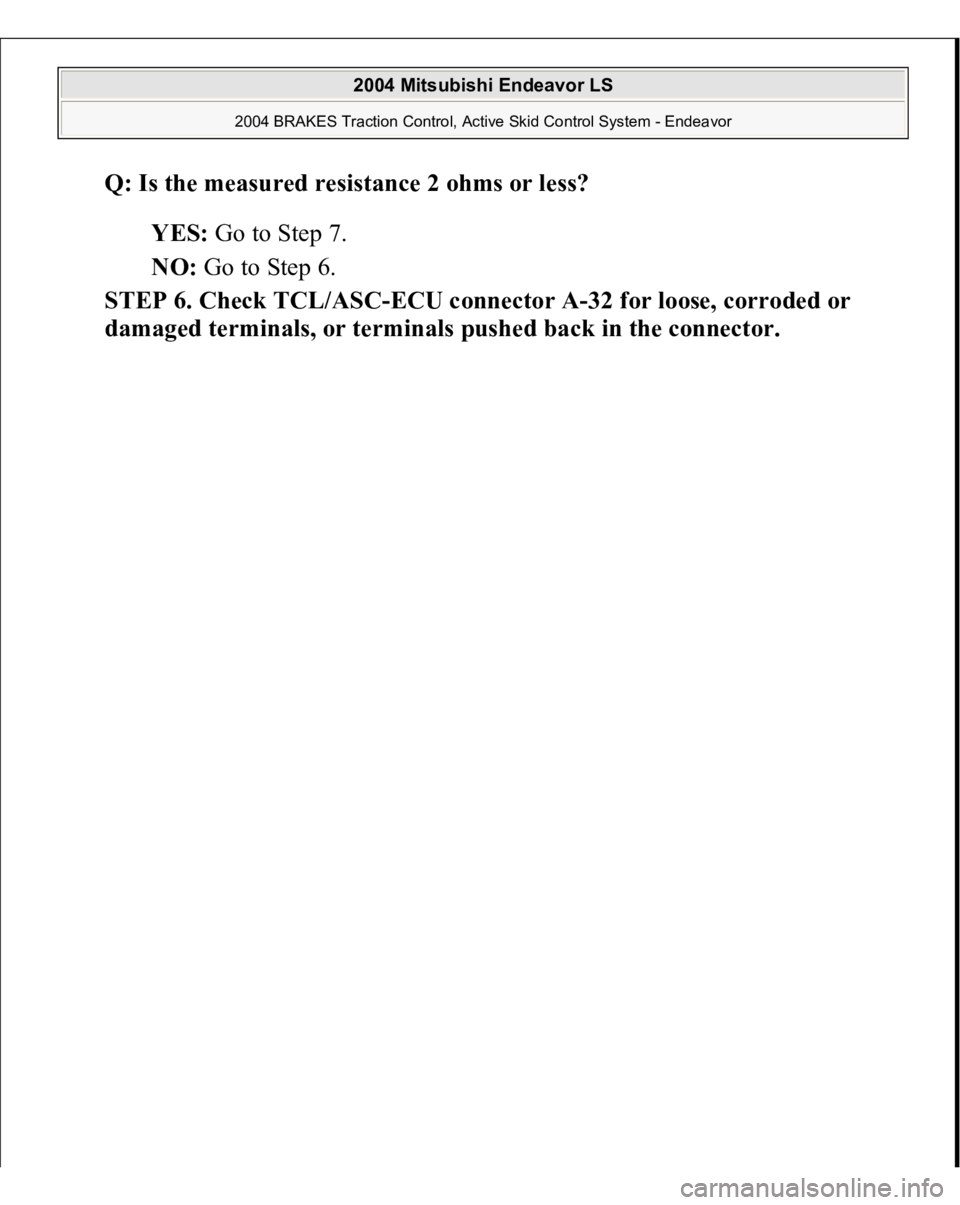

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the measured resistance 2 ohms or less? YES: Go to Step 7. NO: Go to Step 6. STEP 6. Check TCL/ASC-ECU connector A-32 for loose, corroded or dama ged terminals, or terminals pushed back

Page 3254 of 3870

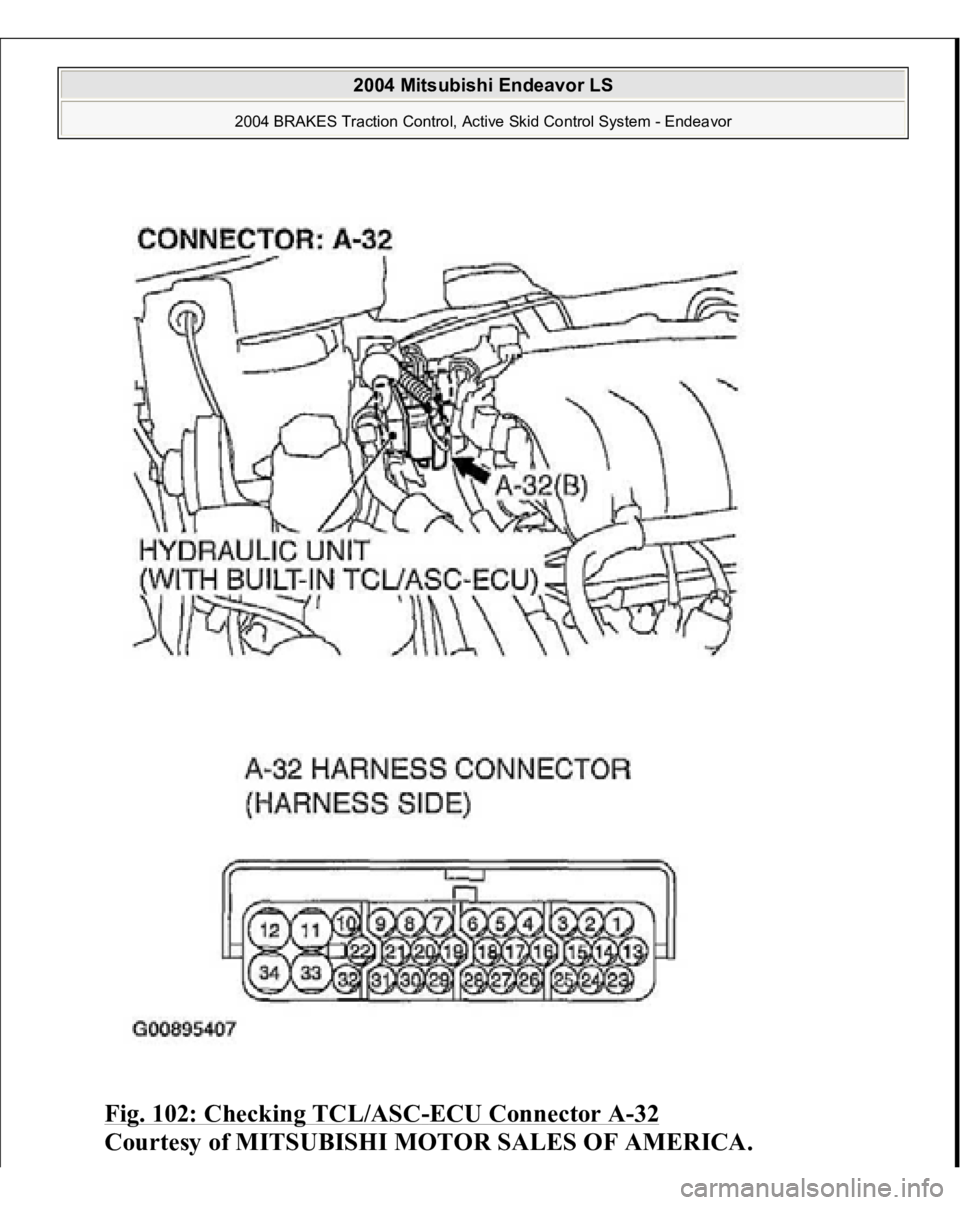

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 102: Checking TCL/ASC -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3255 of 3870

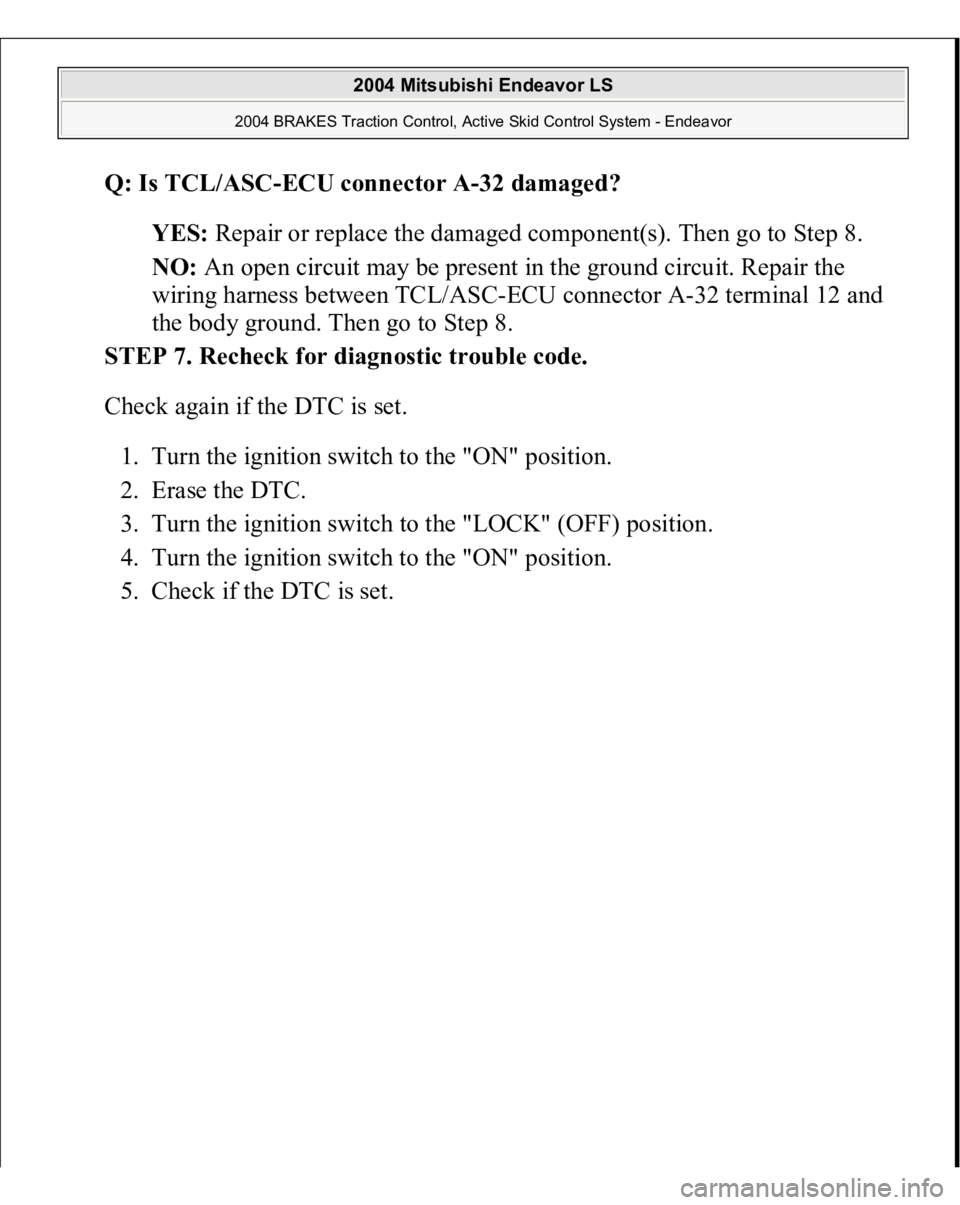

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is TCL/ASC-ECU connector A-32 damaged? YES: Repair or replace the damaged component(s). Then go to Step 8. NO: An open circuit may be present in the ground circuit. Repair the wiring harness b

Page 3256 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 103: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
