Page 985 of 3870

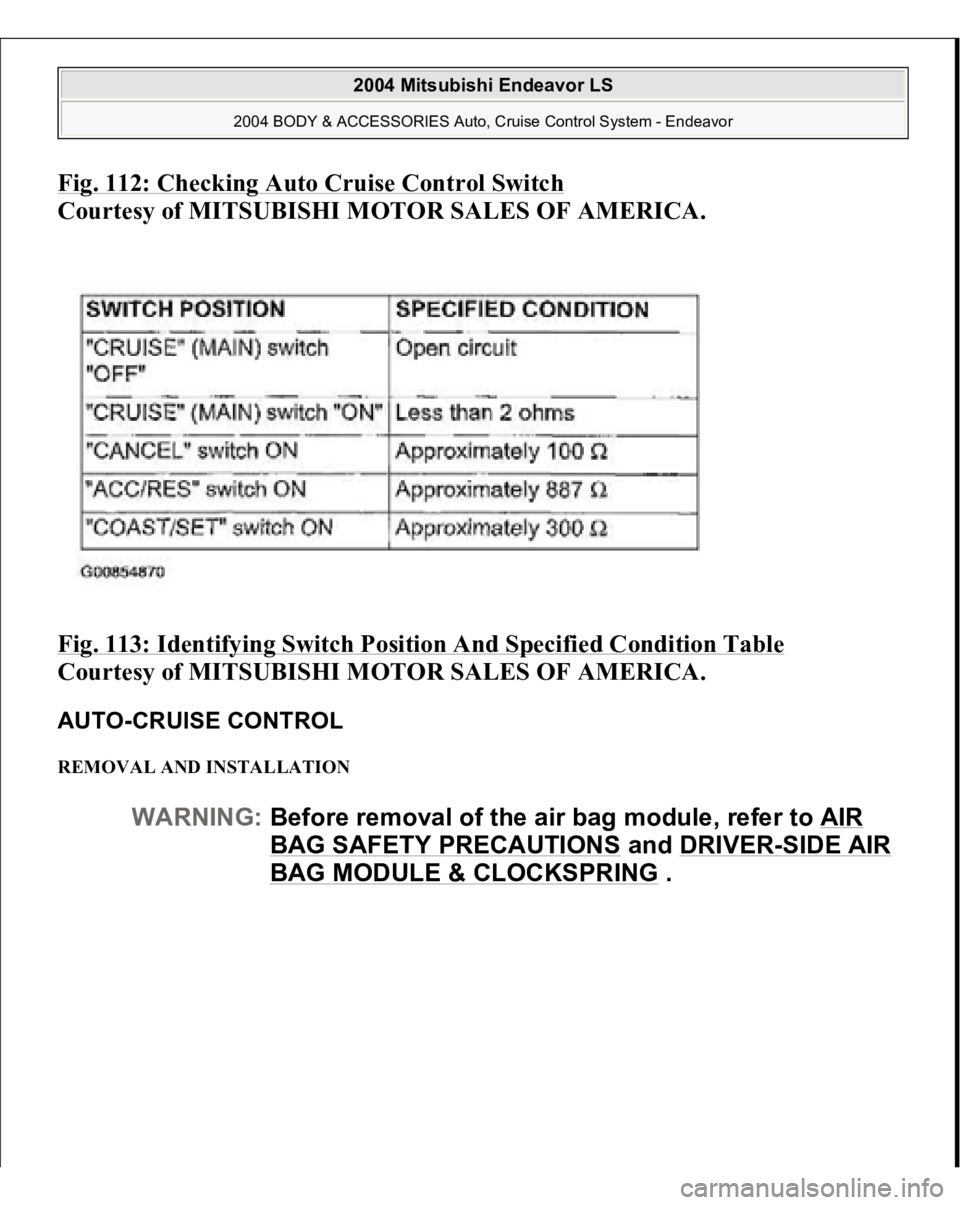

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 112: Checking Auto Cruise Control Switc h Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 113: Identifying Switch Position And Specified Condition Table Courtesy of MITSUBISHI MOTOR SALES

Page 986 of 3870

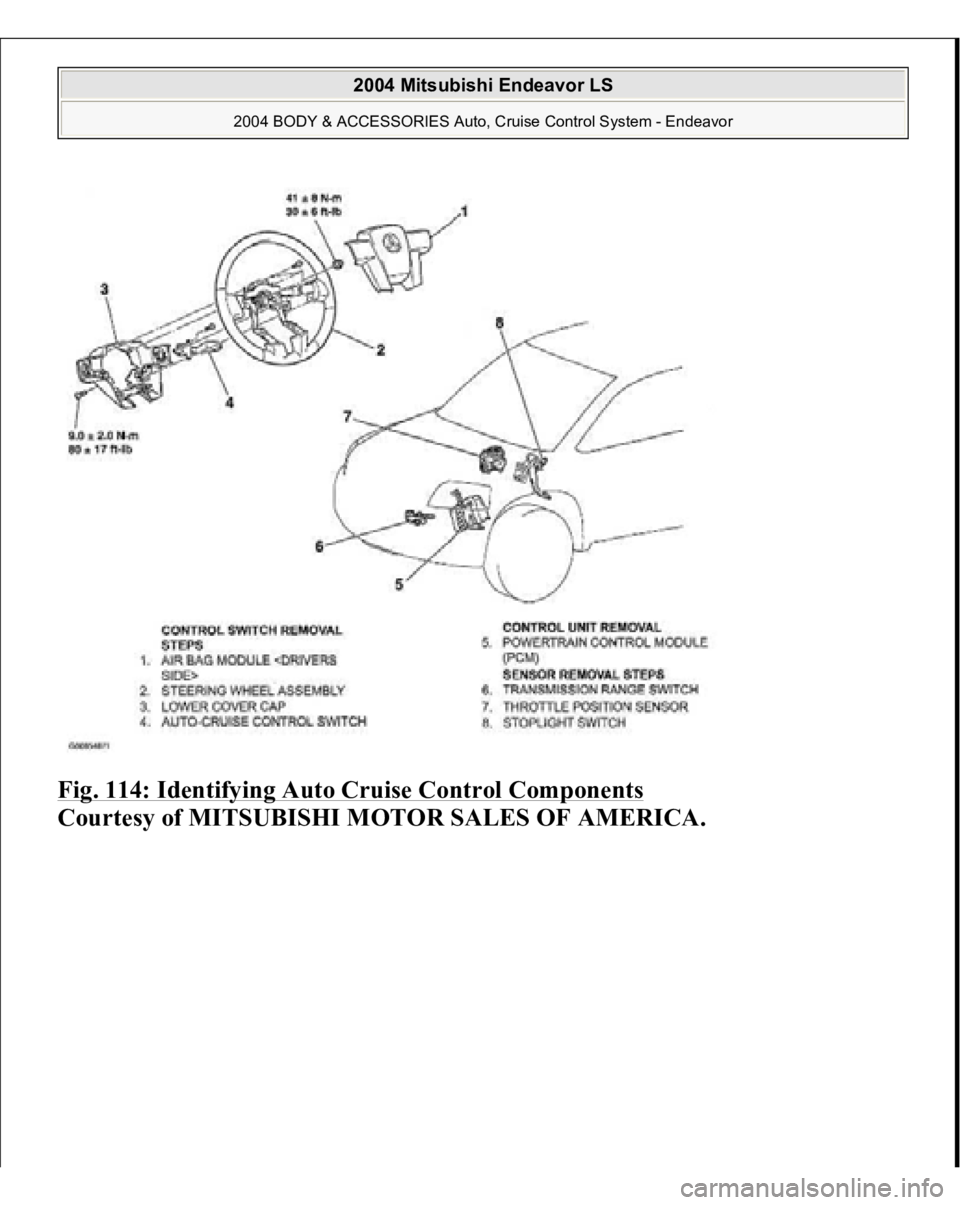

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 114: Identifying Auto Cruise Control Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 987 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 BODY & ACCESSORIES Rear Window Defogger - Endeavor REAR WINDOW DEFOGGER GENERAL DESCRIPTION Rear Defogger operation The defogger relay turns ON if the defogger switch built-in the A/C-ECU is tu

Page 988 of 3870

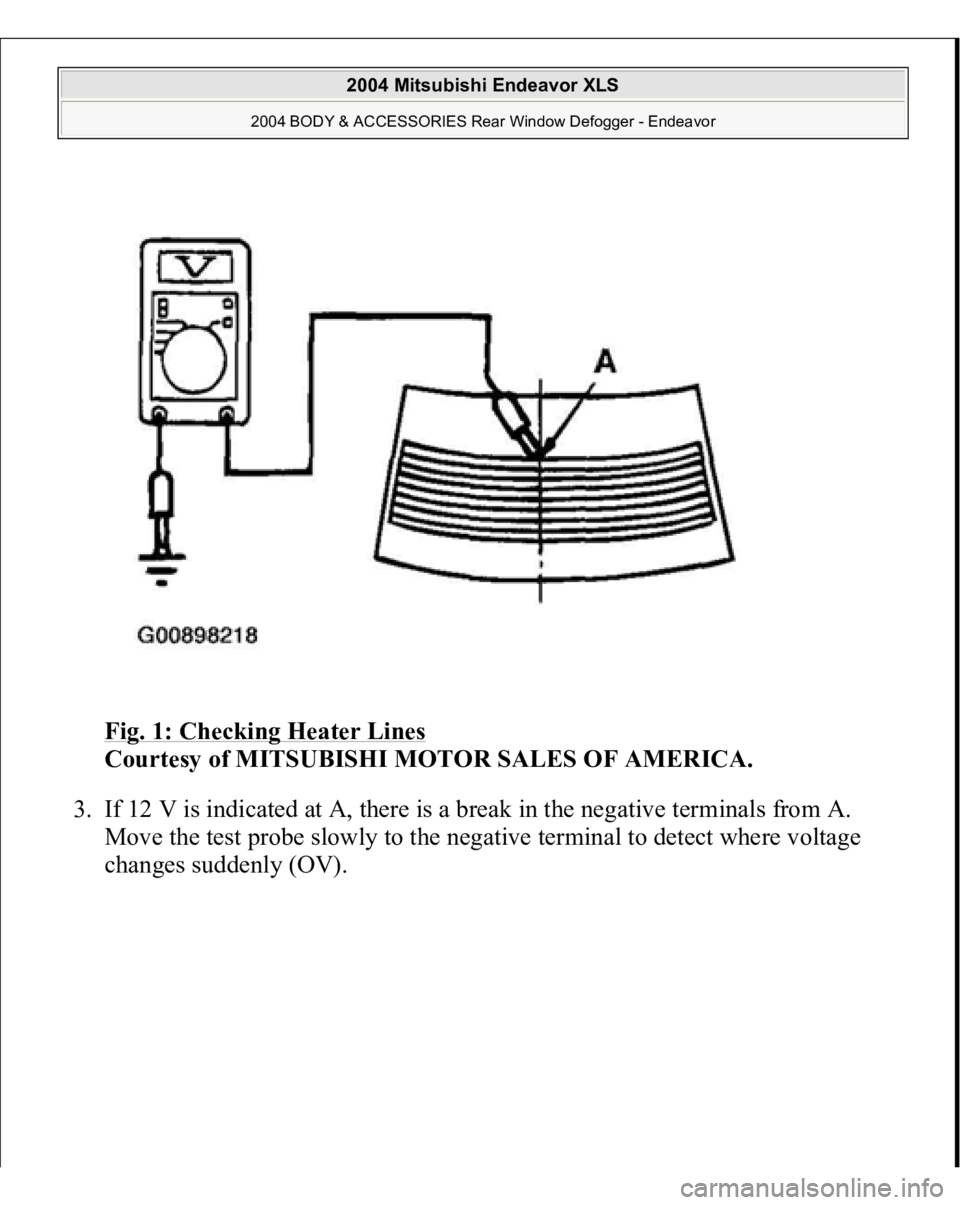

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Checking Heater Lines Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. If 12 V is indicated at A, there is a break in the negative terminals from A. Move the test probe slowly to the nega

Page 989 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor XLS 2004 BODY & ACCESSORIES Rear Window Defogger - Endeavor

Page 990 of 3870

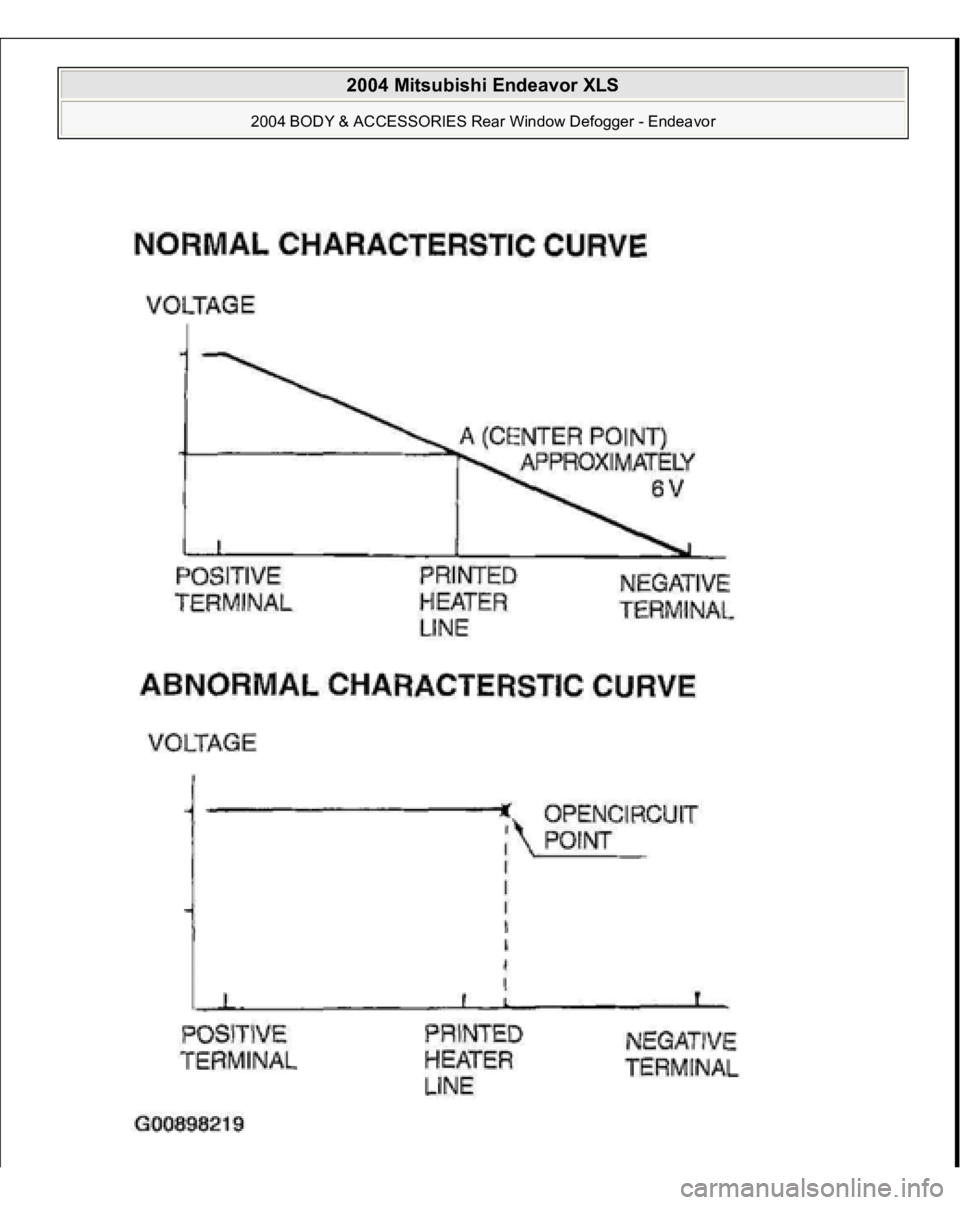

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Identifying Normal And Abnormal Characteristic Curve Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. If 0 V is indicated at A, there is a break in the positive terminals from A. Defect w

Page 991 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Identifying Rear Window Defogger Relay Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 BODY & ACCESSORIES Rear Window Defogger - Endeavor

Page 992 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 BODY & ACCESSORIES Door - Endeavor GENERAL DESCRIPTION OPERATION CENTRAL DOOR LOCKING SYSTEM The central door locking system operates the door lock actuator to lock or unlock the doors and lif
