Page 2185 of 3870

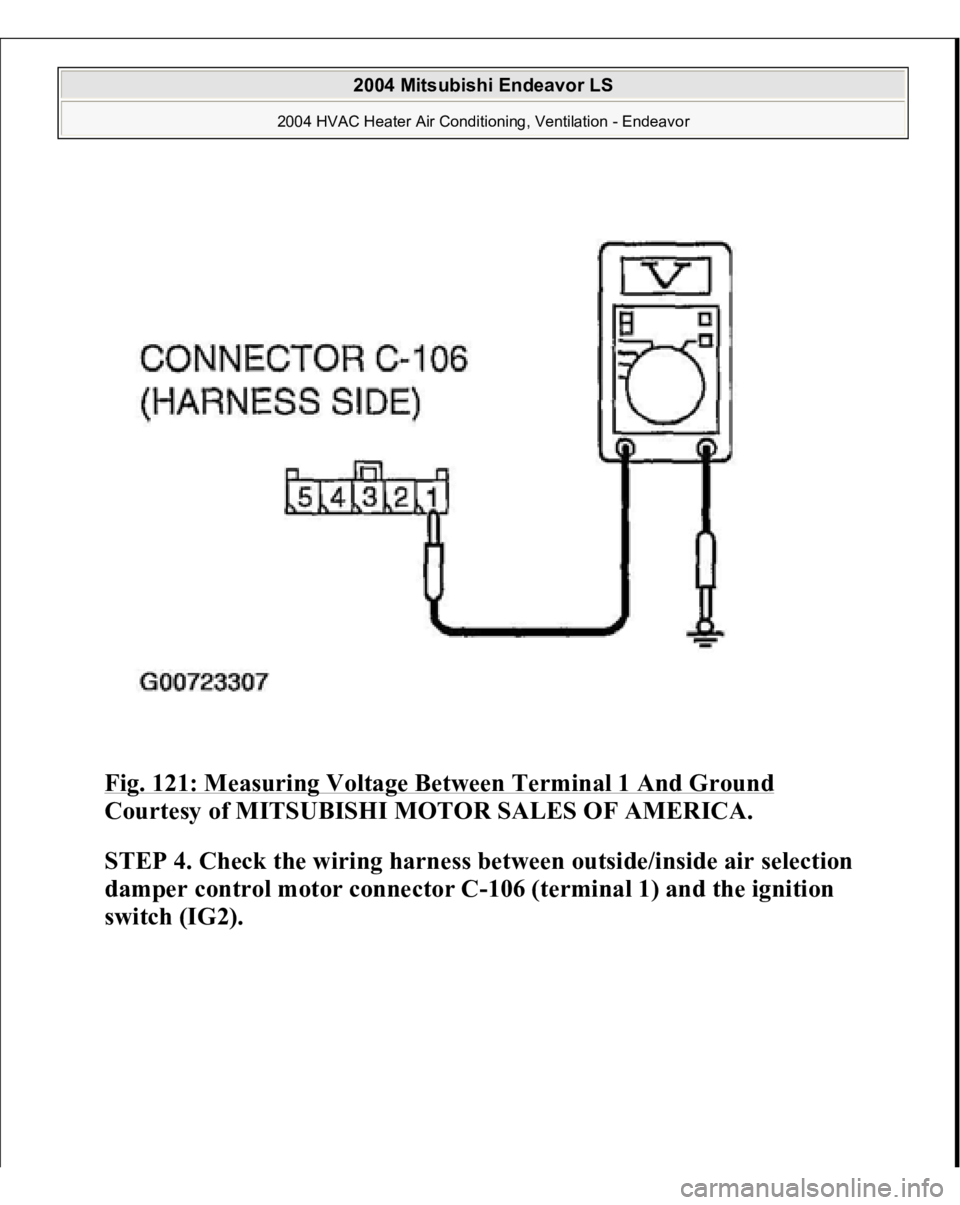

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 121: Measuring Voltage Between Terminal 1 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 4. Check the wiring harness between outside/inside air selection damper control motor

Page 2186 of 3870

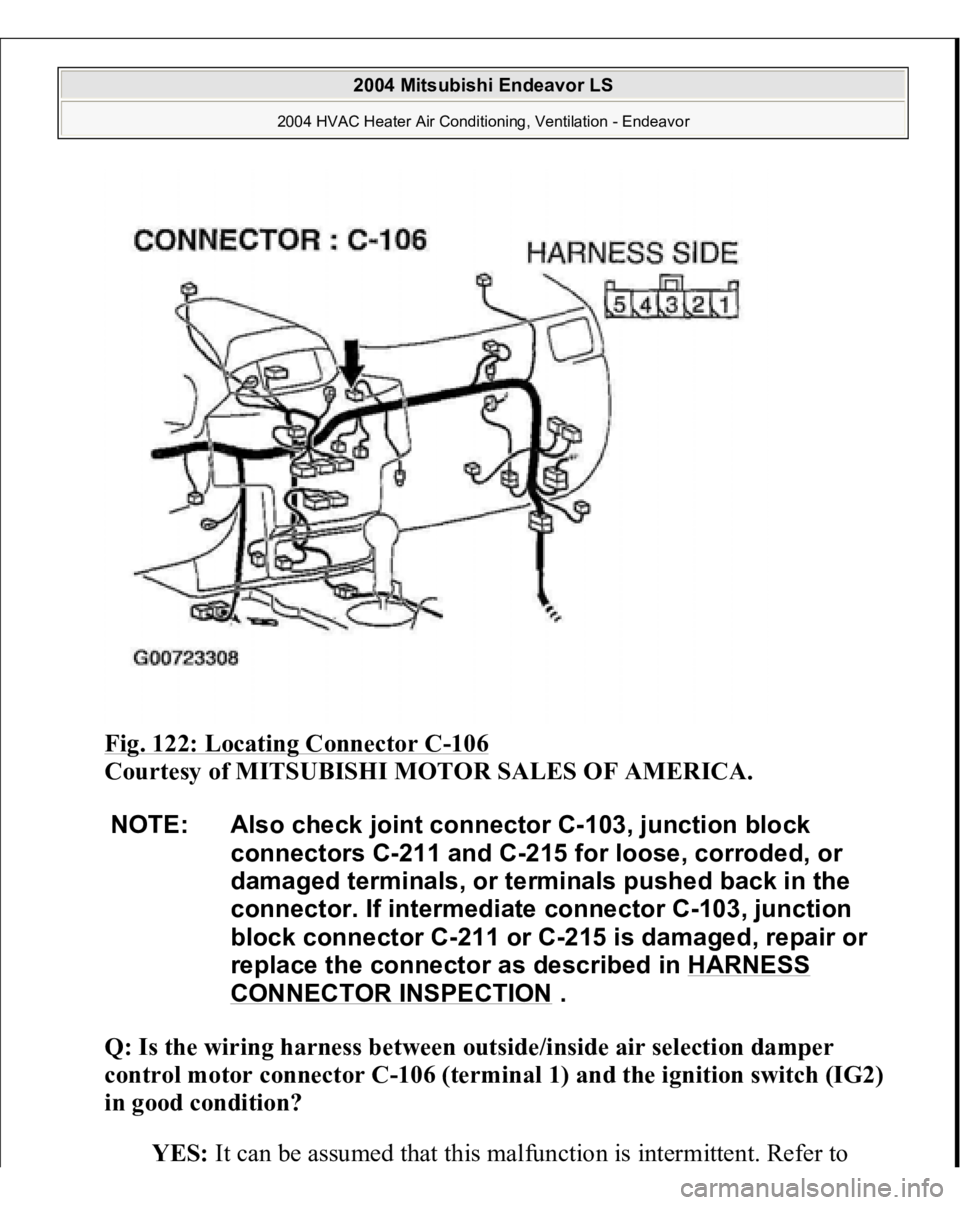

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 122: Locating Connector C -106 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between outside/inside air selection damper control motor connector C-106 (terminal 1)

Page 2187 of 3870

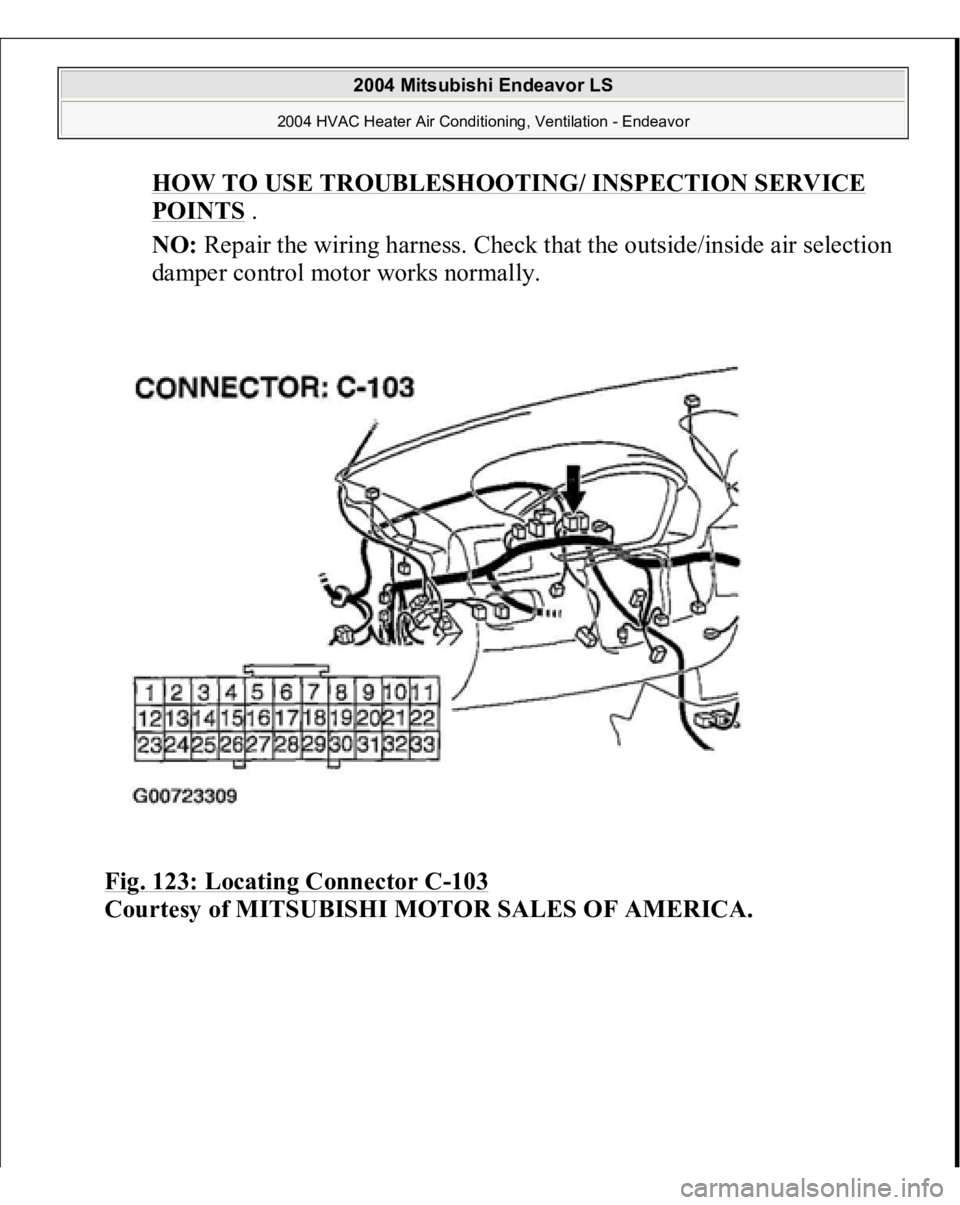

MITSUBISHI ENDEAVOR 2004 Service Repair Manual HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS . NO: Repair the wiring harness. Check that the outside/inside air selection damper control motor works normally. Fig. 123: Locating Connec

Page 2188 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2189 of 3870

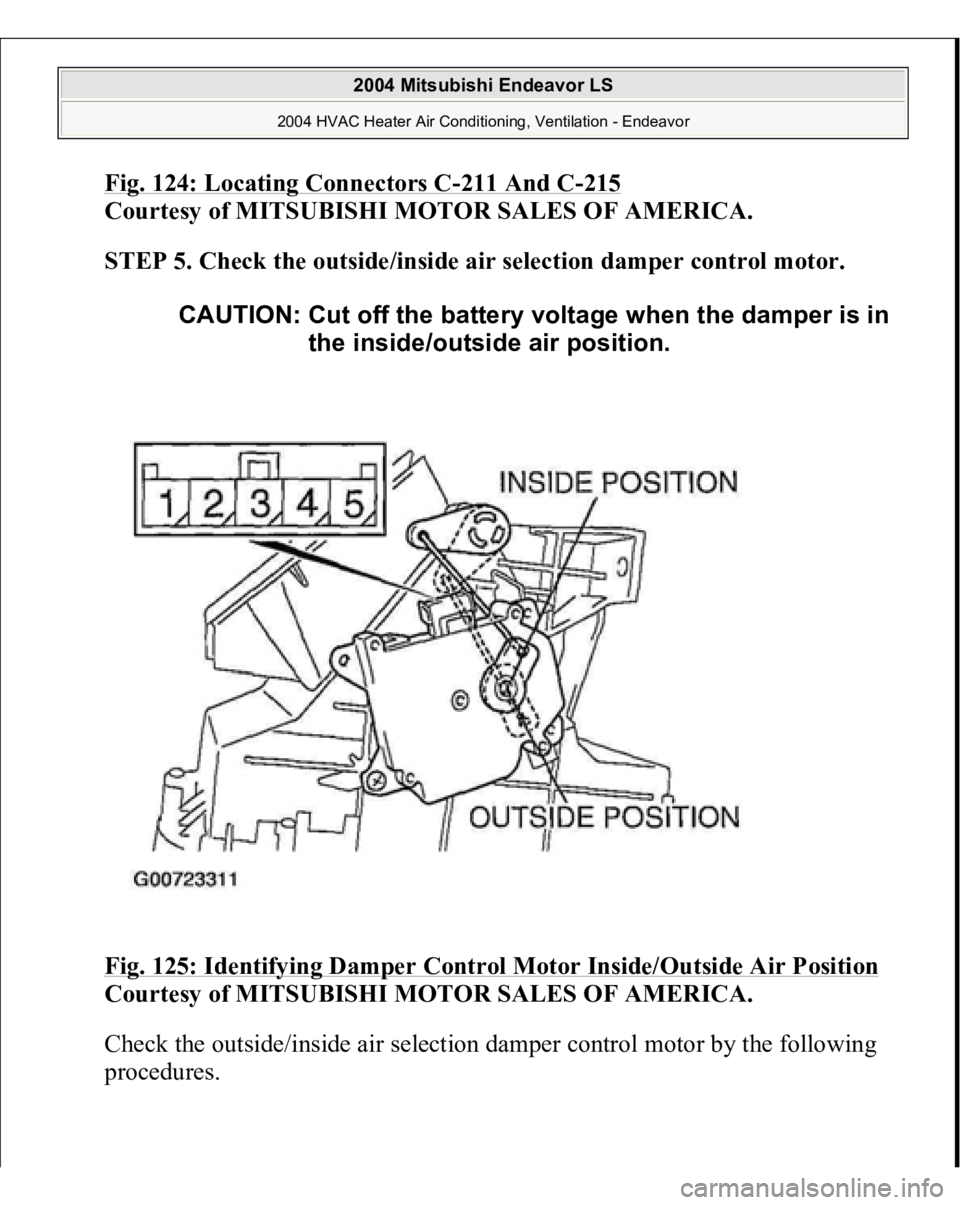

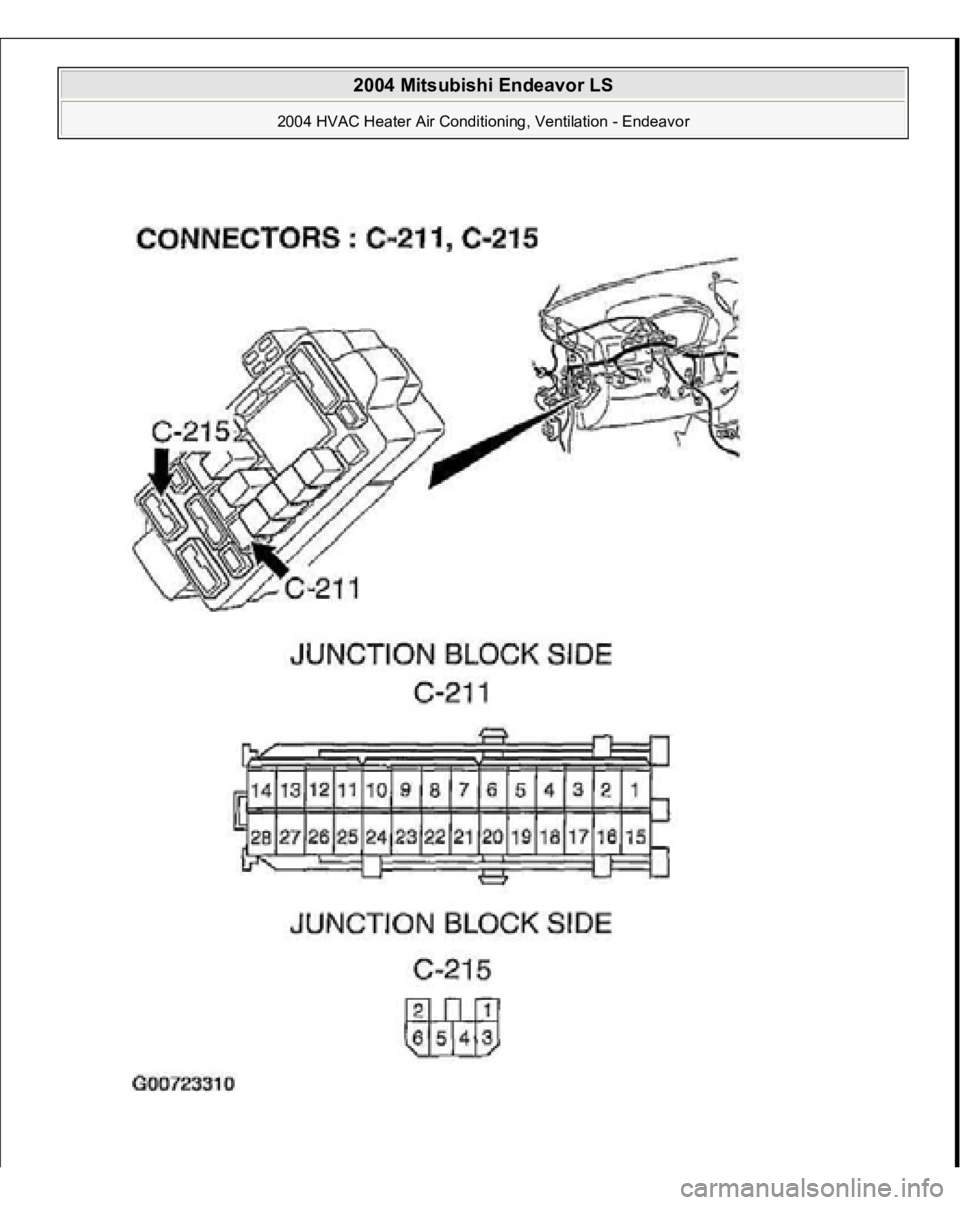

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 124: Locating Connectors C -211 And C -215 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 5. Check the outside/inside air selection damper control motor. Fig. 125: Identifying Damper C

Page 2190 of 3870

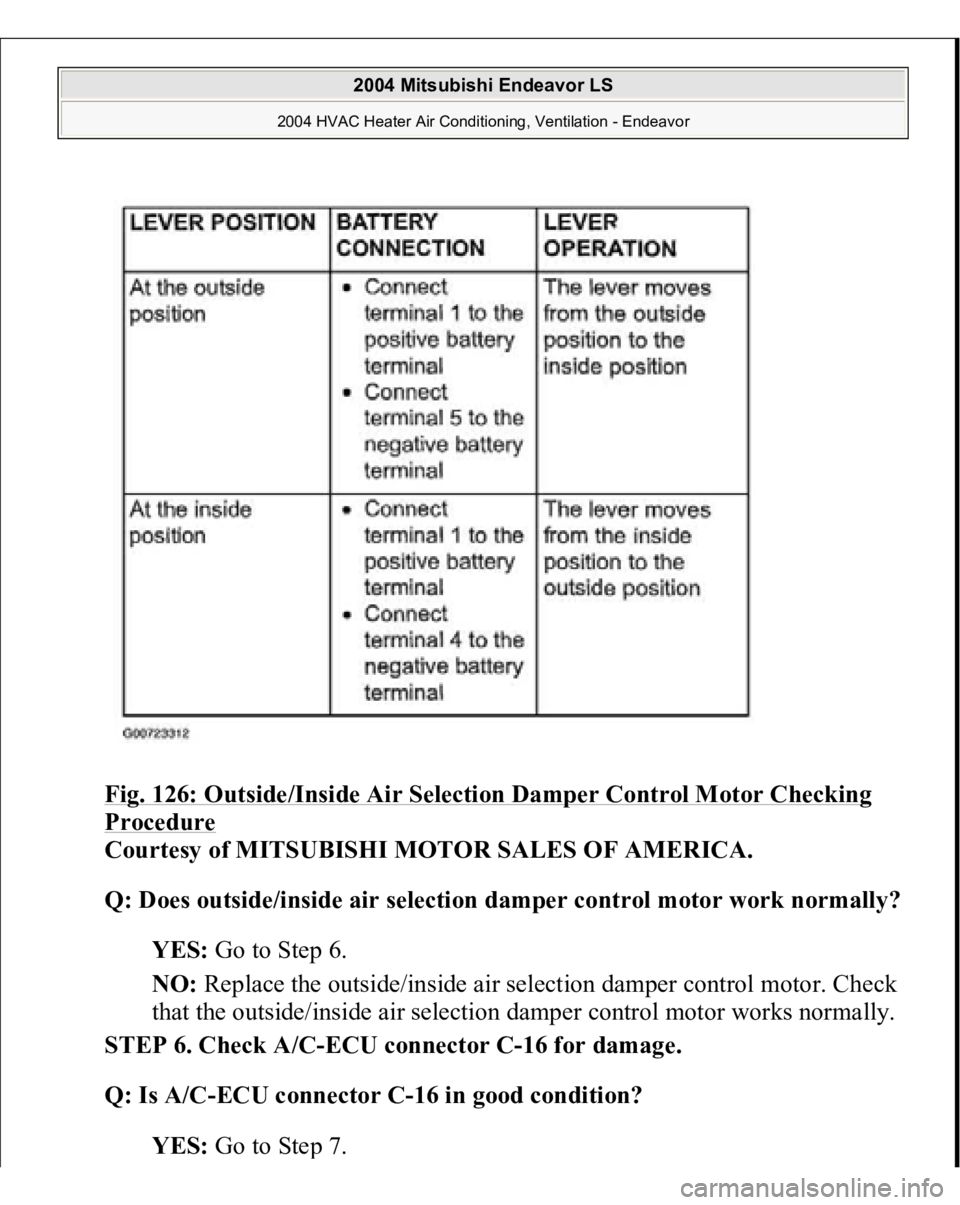

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 126: Outside/Inside Air Selection Damper Control Motor Checking Procedure Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Does outside/inside air selection damper control motor work normall

Page 2191 of 3870

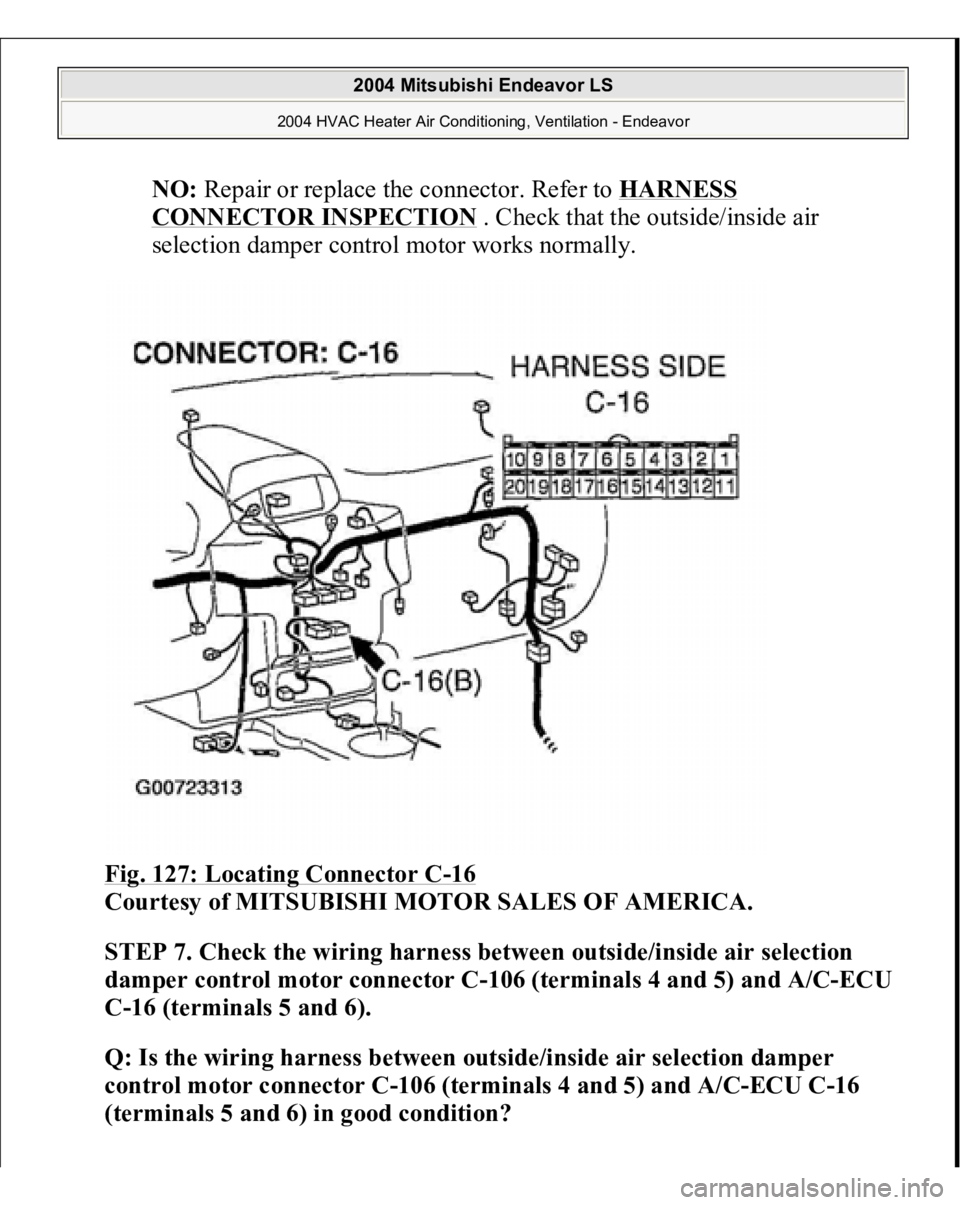

MITSUBISHI ENDEAVOR 2004 Service Repair Manual NO: Repair or replace the connector. Refer to HARNESS CONNECTOR INSPECTION . Check that the outside/inside air selection damper control motor works normally. Fig. 127: Locating Connector C -16

Page 2192 of 3870

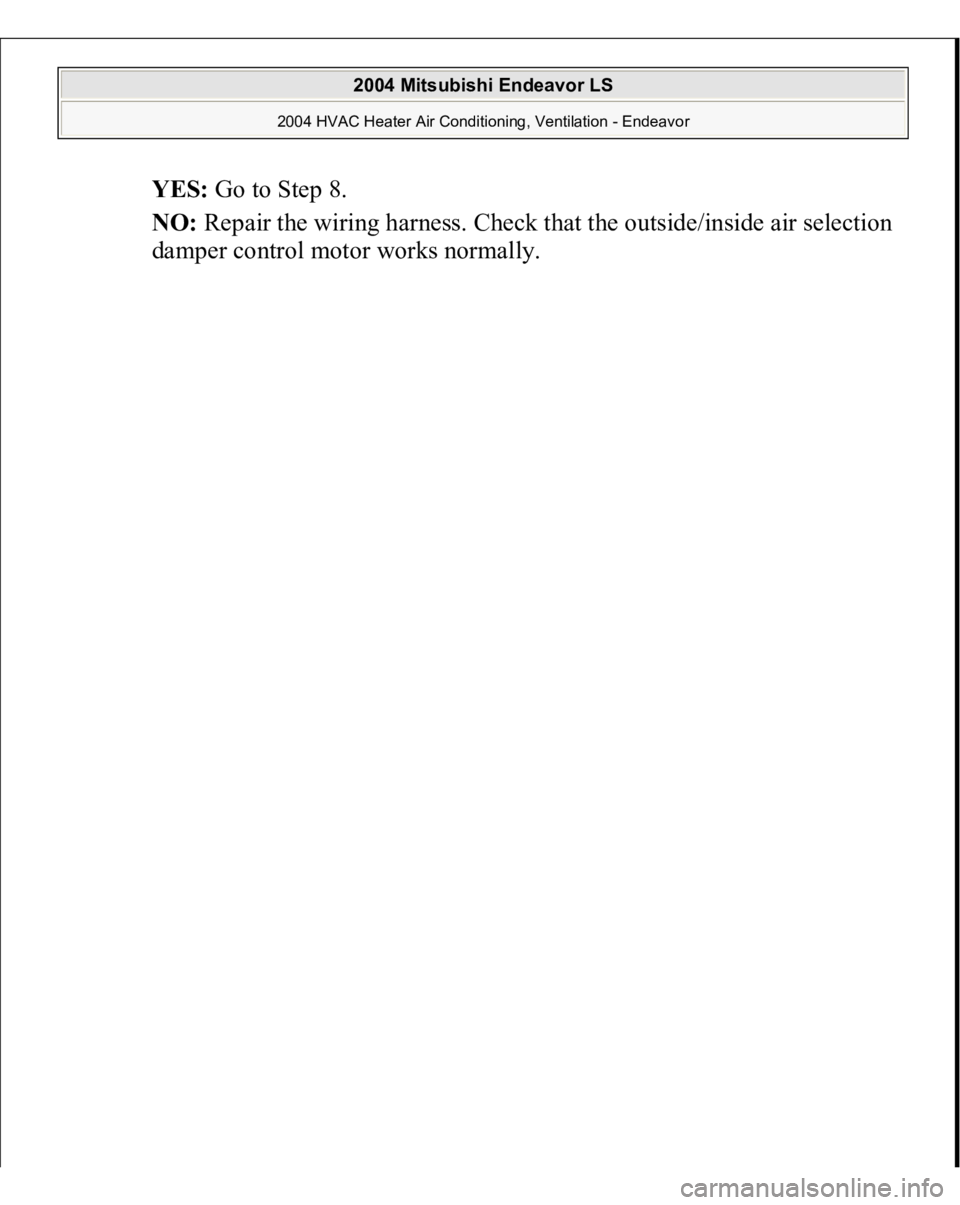

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Go to Step 8. NO: Repair the wiring harness. Check that the outside/inside air selection damper control motor works normally. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditionin
