Page 3489 of 3870

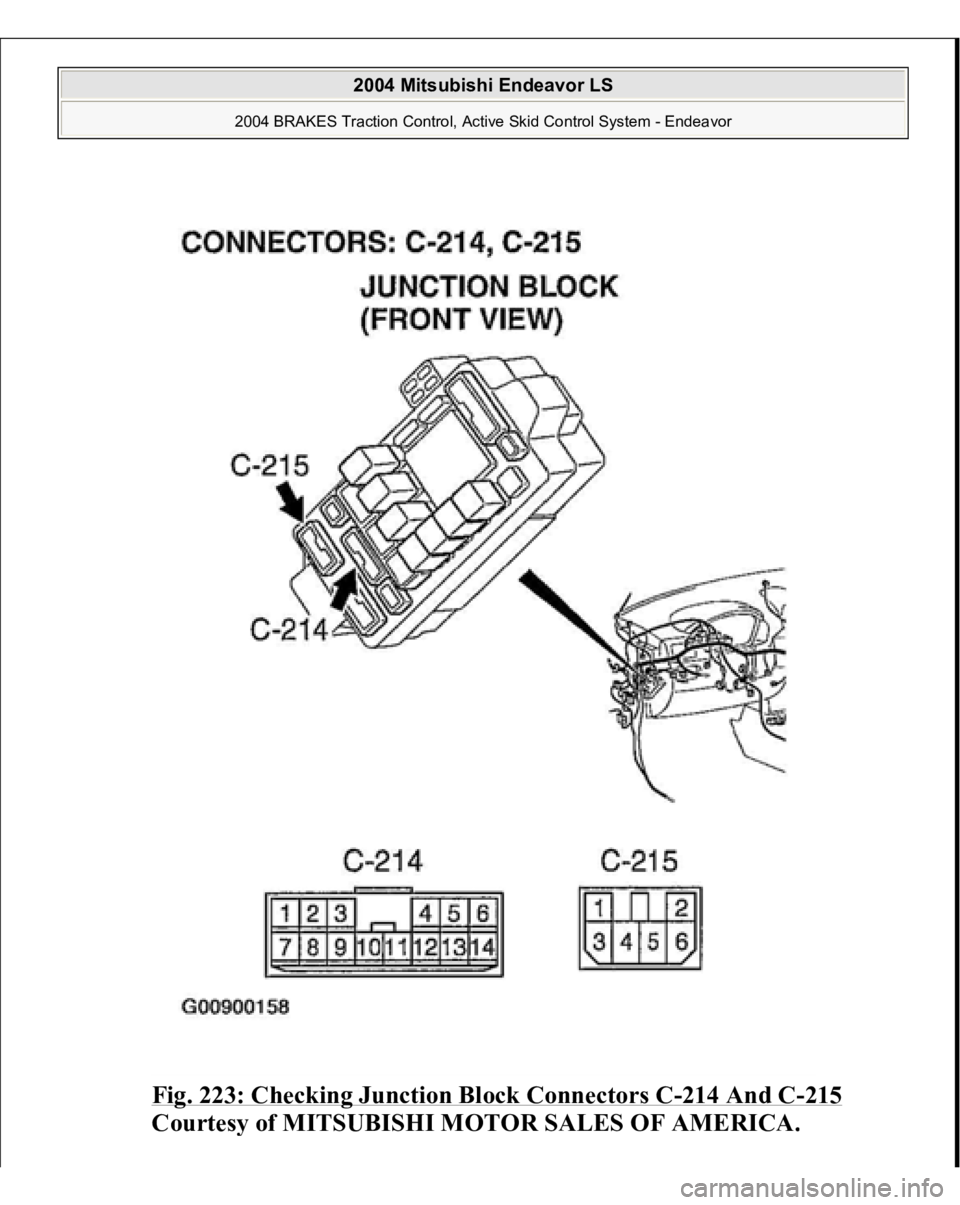

Fig. 223: Checking Junction Block Connectors C
-214 And C
-215
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3490 of 3870
Joint connector (1) C-04
Fig. 224: Checking Joint Connector (1) C
-04
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G and
yaw rate sensor connector C-36
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3491 of 3870
Fig. 225: Checking G And Yaw Rate Sensor Connector C
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the connectors, for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?
YES: An open or short circuit may be present in the power supply line to
the G and yaw rate sensor. Repair the wiring harness between G and yaw
rate sensor connector C-36 terminal 1 and ignition switch connector C-308
terminal 4. Go to Step 7.
NO: Repair or replace the damaged component(s). Then go to Step 7.
STEP 3. Measure the resistance at G and yaw rate sensor connector C-36.
1. Disconnect the G and
yaw rate sensor connector C-36, and measure at the
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3492 of 3870

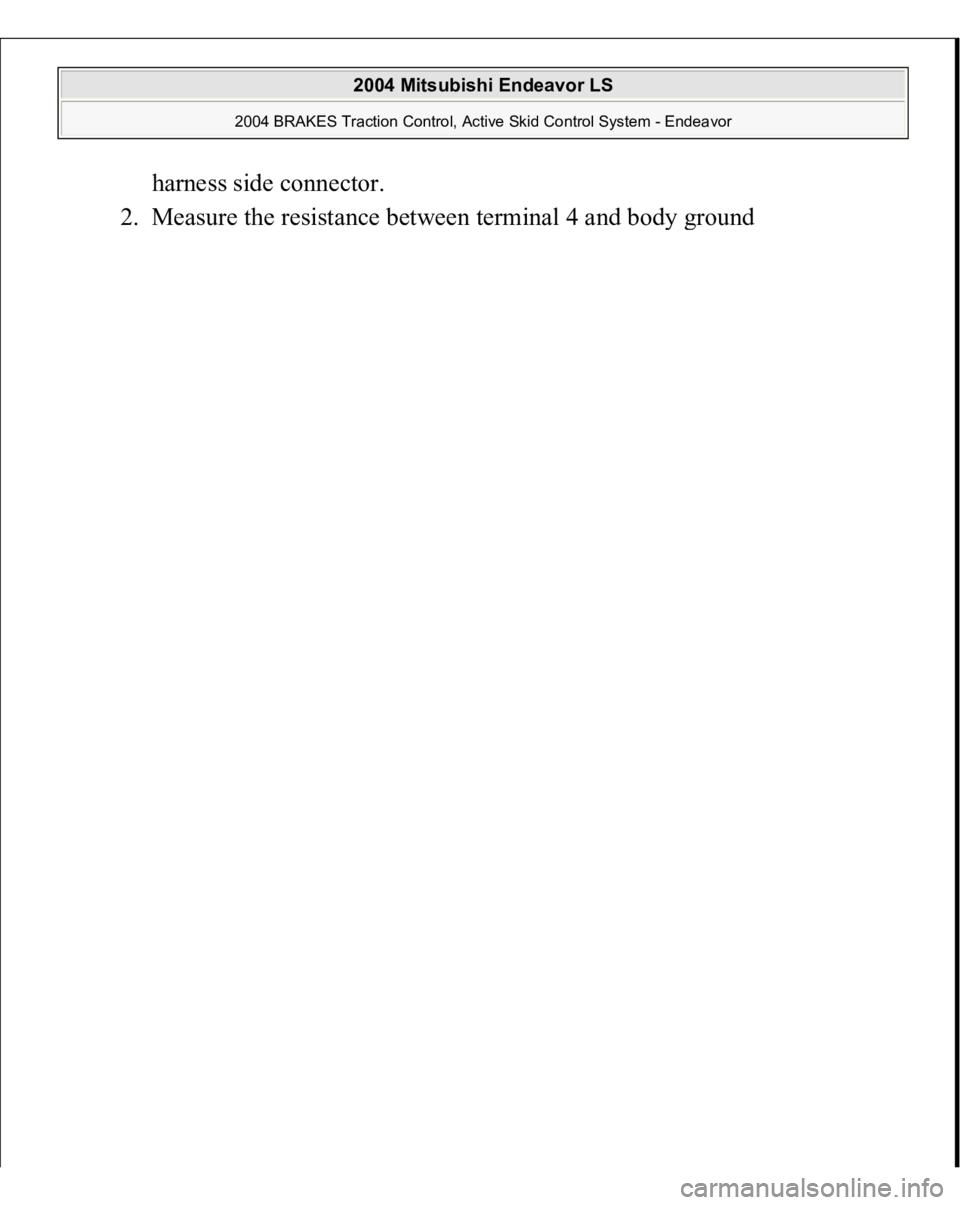

harness side connector.
2. Measure the resistance between terminal 4 and bod
y ground
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3493 of 3870
Fig. 226: Measuring Resistance At G And Yaw Rate Sensor
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3494 of 3870
Connector C
-36 (Step 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 5.
NO: Go to Step 4.
STEP 4. Check G and yaw rate sensor connector C-36 for loose, corroded
or damaged terminals, or terminals pushed back in the connector.
Fig. 227: Checking G And Yaw Rate Sensor Connector C
-36
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are the connectors and terminals in good condition?
YES: An o
pen circuit ma
y be
present in the
ground circuit. Re
pair the
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3495 of 3870

wiring harness between G and yaw rate sensor connector C-36 terminals 4
and the body ground. Then go to Step 7.
NO: Repair or replace the damaged component(s). Then go to Step 7.
STEP 5. Check the battery.
Check the battery (Refer toBATTERY TEST
).
Q: Is the battery in good condition?
YES: Go to Step 6.
NO: Charge or replace the battery. Then go to Step 7.
STEP 6. Check the charging system.
Check the charging system (Refer to GENERATORS & REGULATORS
).
Q: Is the charging system in good condition?
YES: Replace the G and yaw rate sensor (Refer to G AND YAW RATE
SENSOR
). Then go to Step 7.
NO: Repair or replace the charging system component(s). Then go to Step
7.
STEP 7. Using scan tool MB991958, read the TCL/ASC diagnostic trouble
code.
1. Connect scan tool MB991958 to the data link connec
tor. CAUTION: To prevent damage to scan tool always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool.
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
Page 3496 of 3870

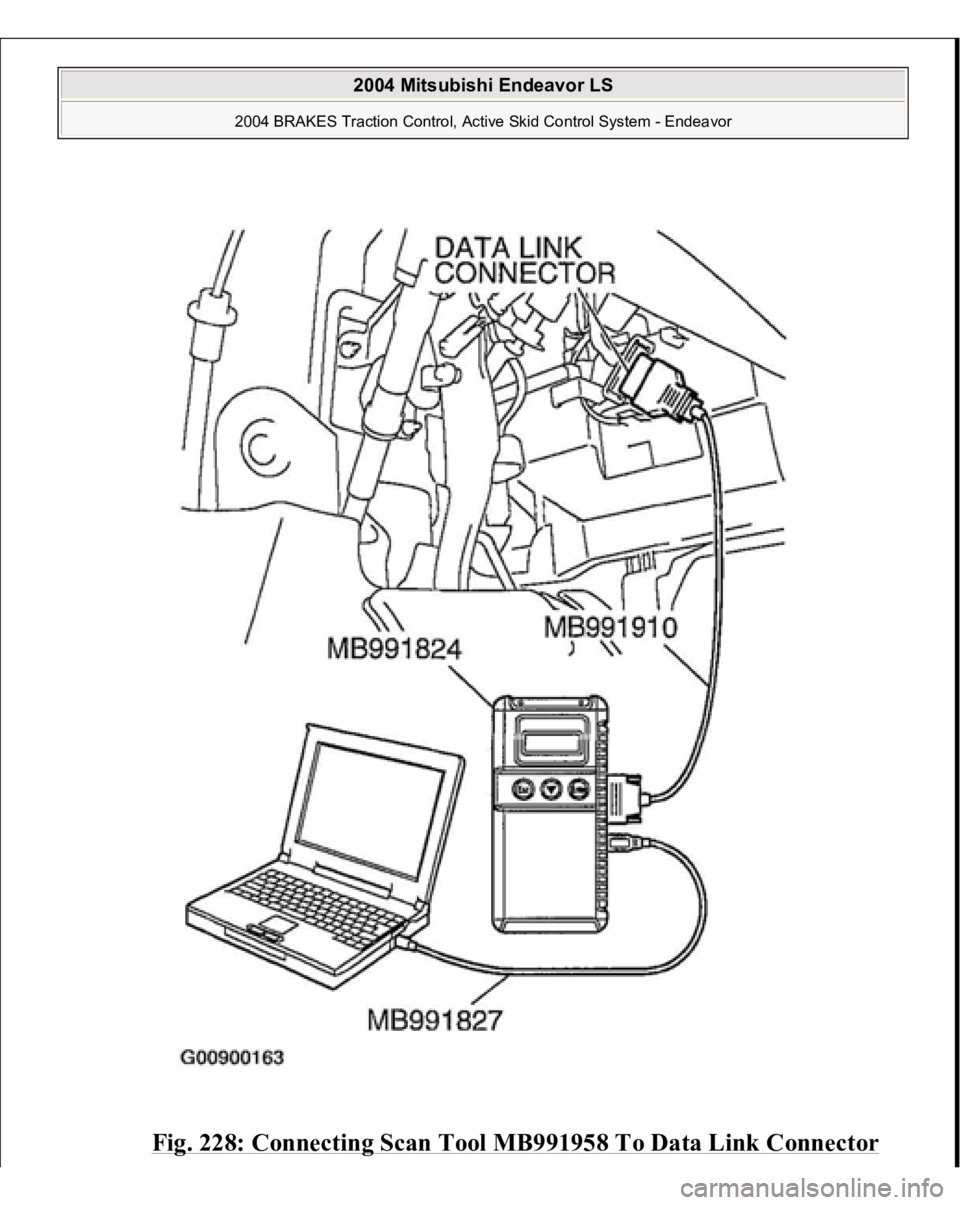

Fig. 228: Connecting Scan Tool MB991958 To Data Link Connector
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
