Page 3209 of 3870

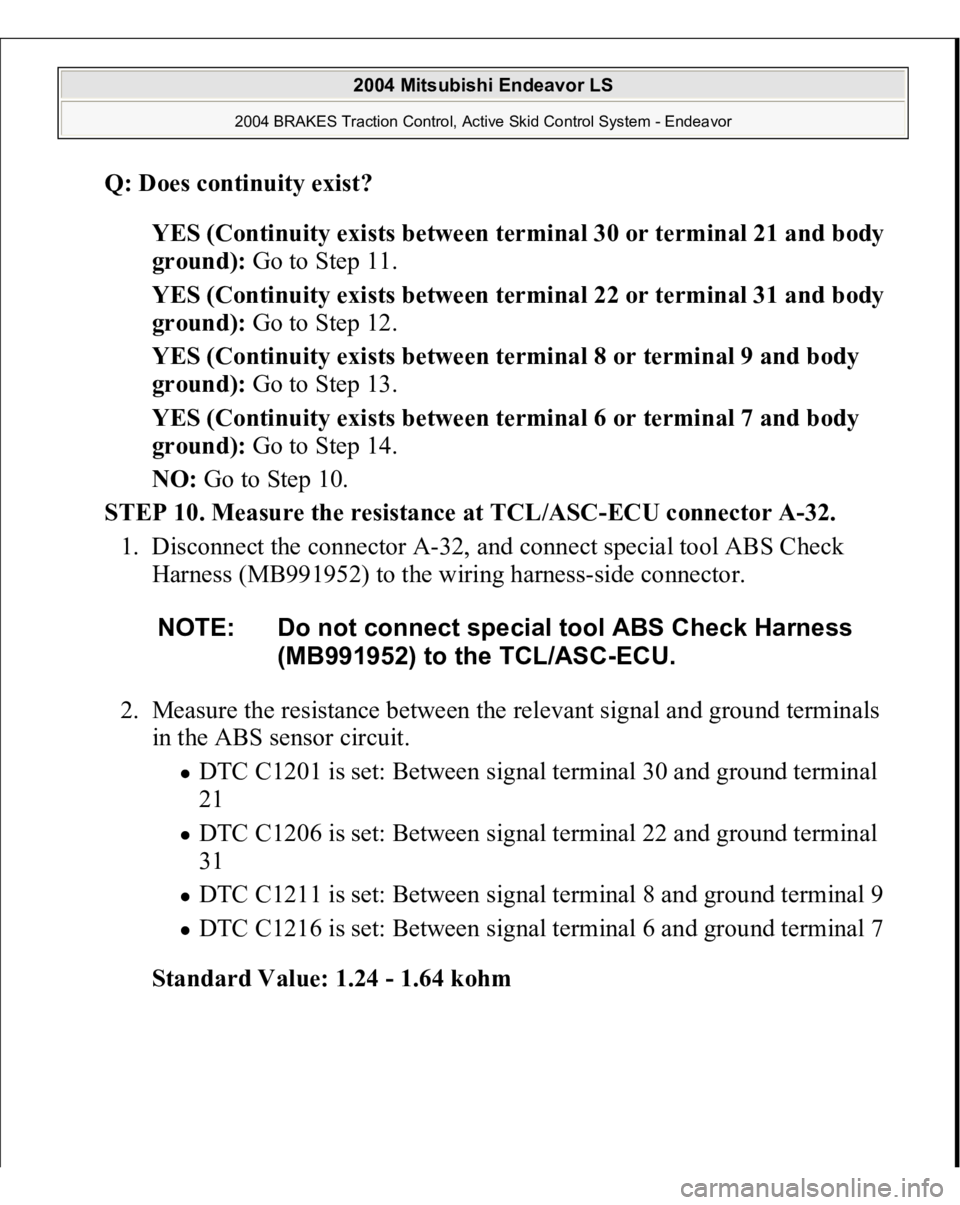

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Does continuity exist? YES (Continuity exists between terminal 30 or terminal 21 and body ground): Go to Step 11. YES (Continuity exists between terminal 22 or terminal 31 and body ground): G

Page 3210 of 3870

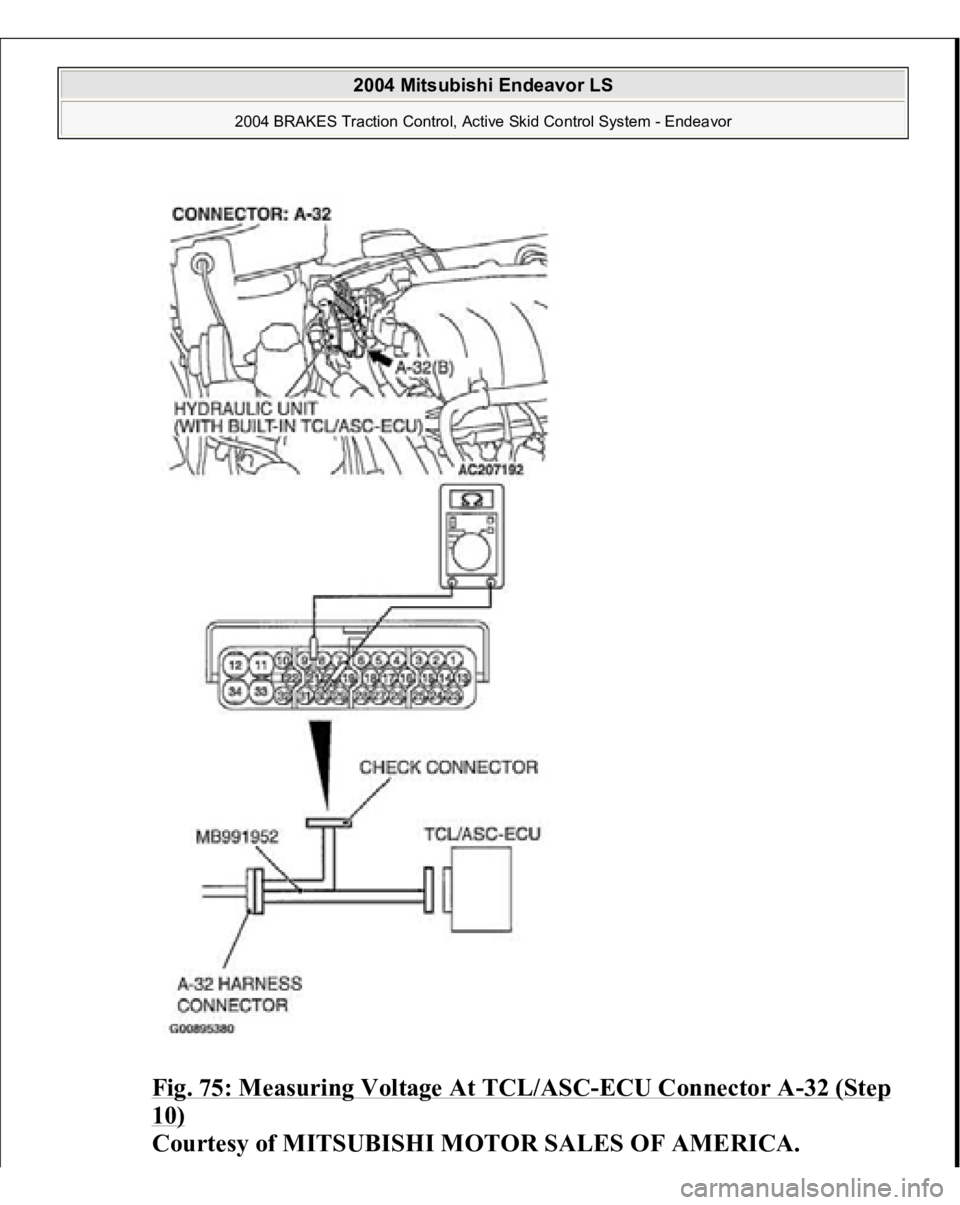

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 75: Measuring Voltage At TCL/ASC -ECU Connector A -32 (Step 10) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control

Page 3211 of 3870

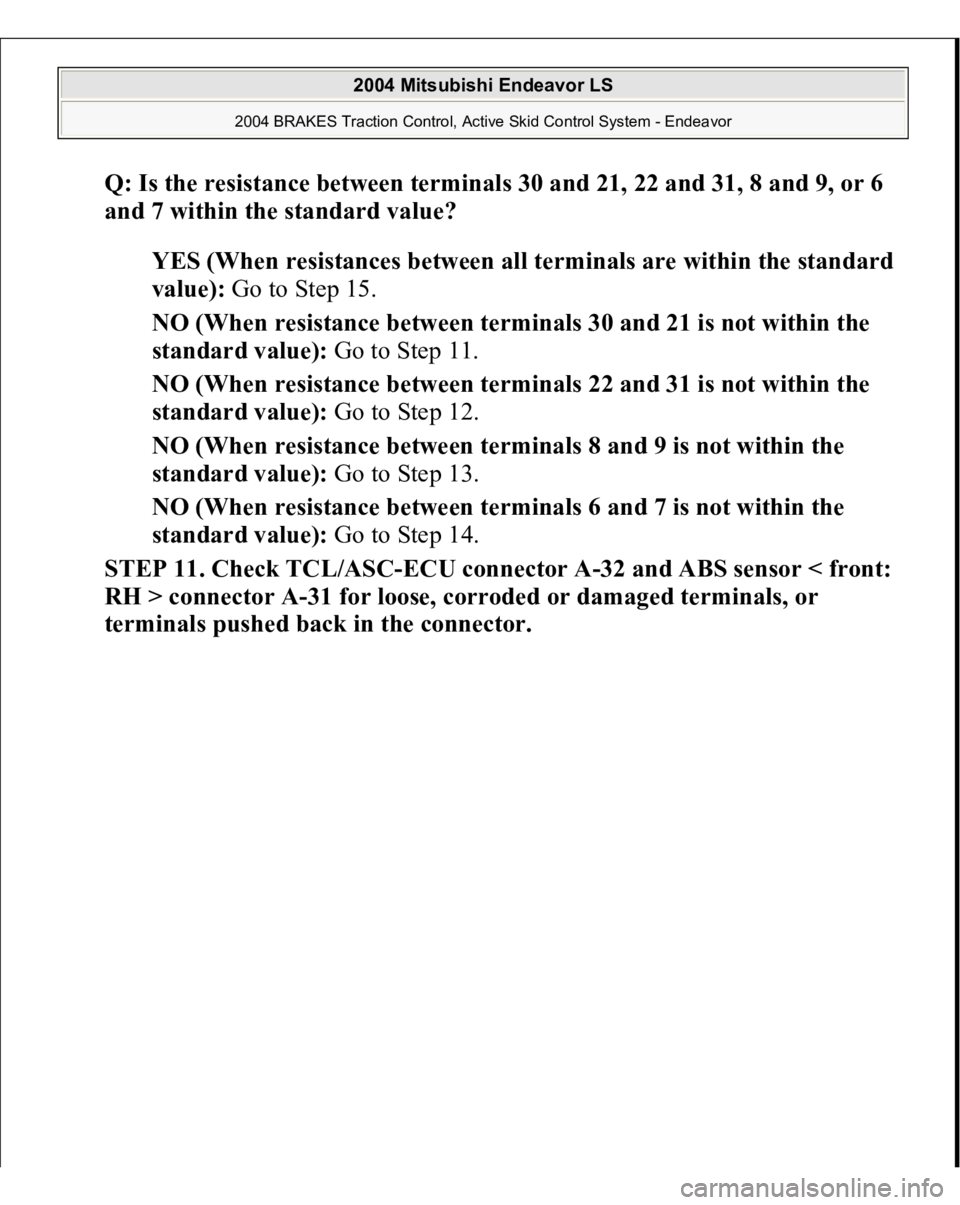

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the resistance between terminals 30 and 21, 22 and 31, 8 and 9, or 6 and 7 within the standard value? YES (When resistances between all terminals are within the standard value): Go to Step 1

Page 3212 of 3870

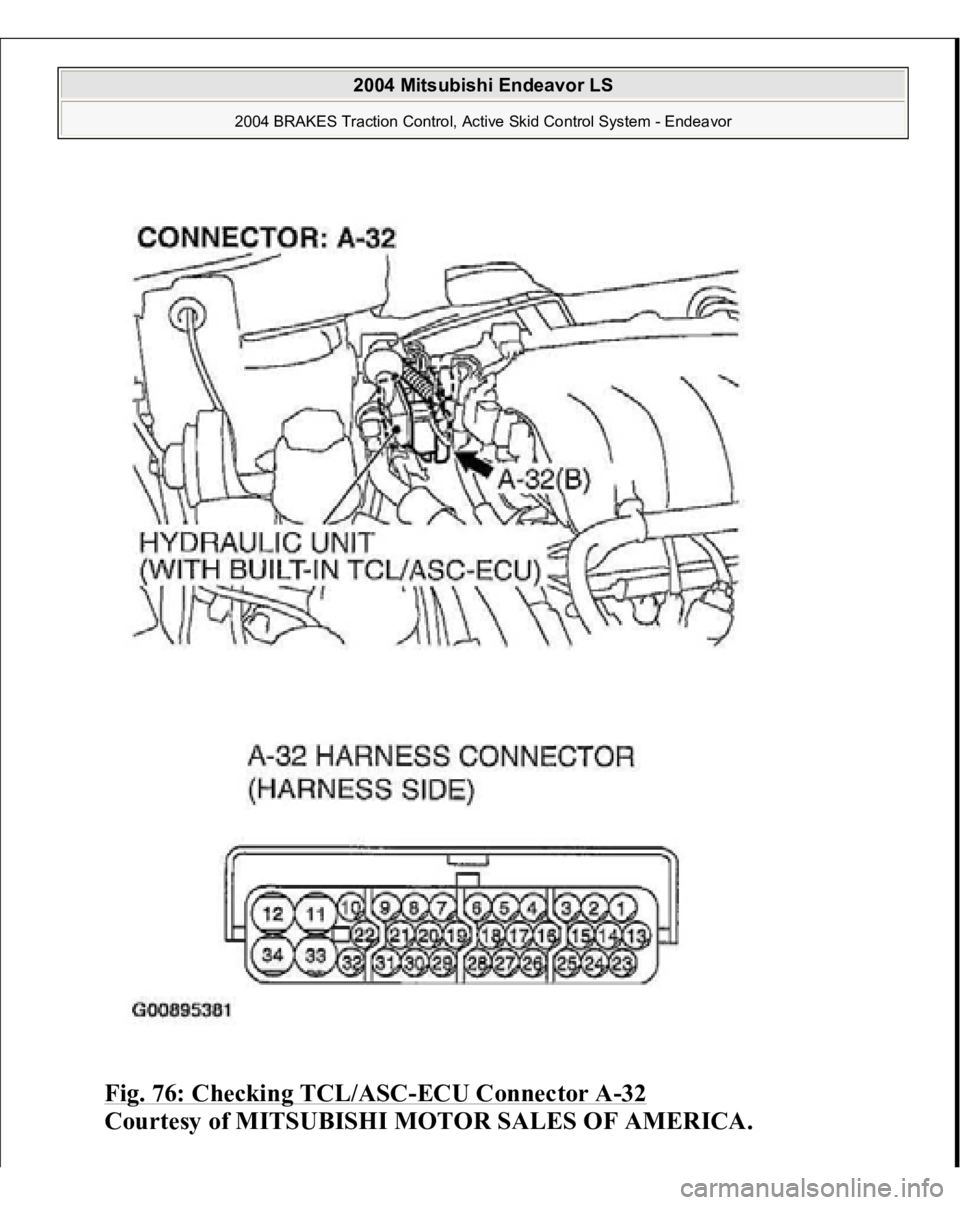

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 76: Checking TCL/ASC -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3213 of 3870

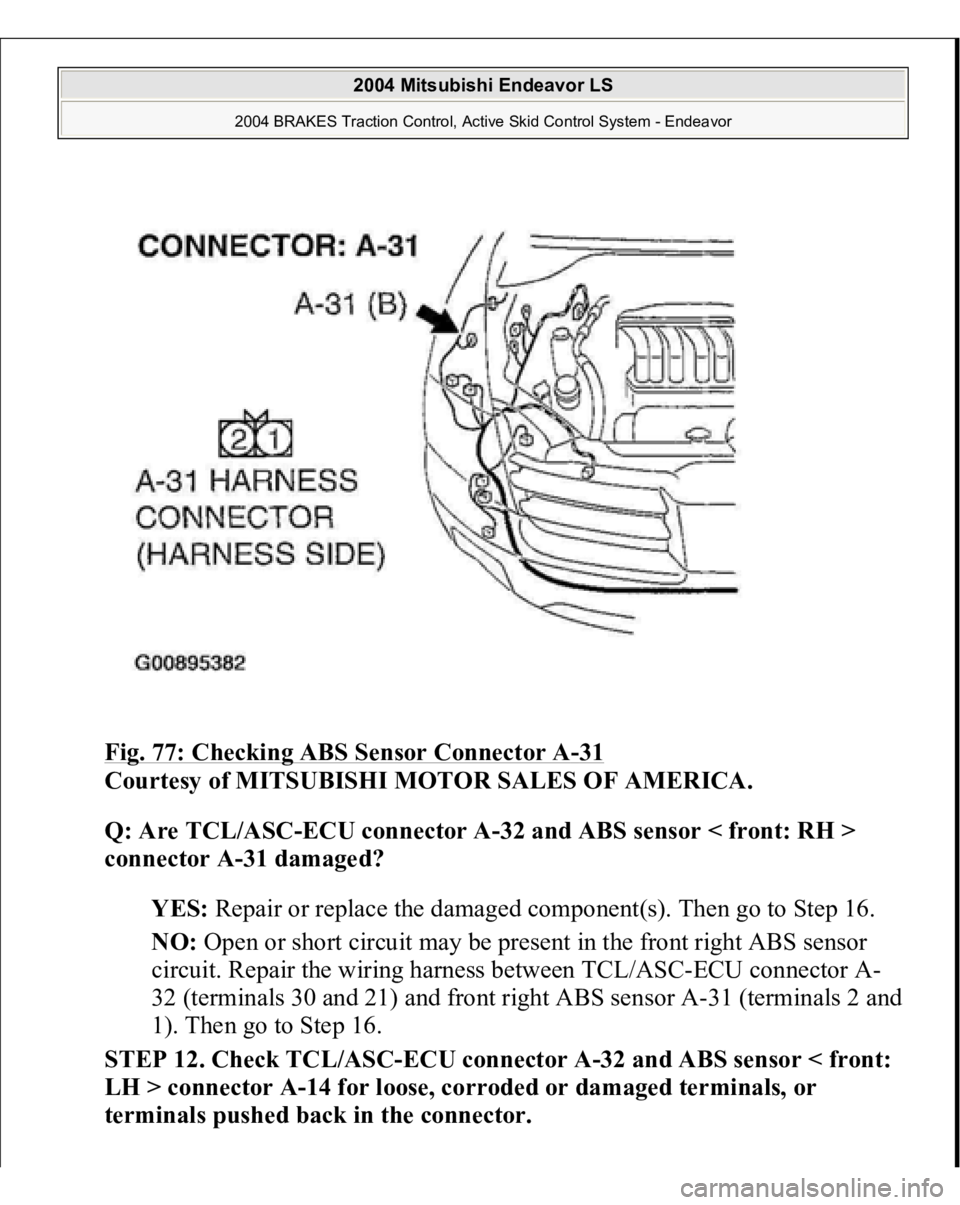

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 77: Checking ABS Sensor Connector A -31 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are TCL/ASC-ECU connector A-32 and ABS sensor < front: RH > connector A-31 damaged? YES: Repair or r

Page 3214 of 3870

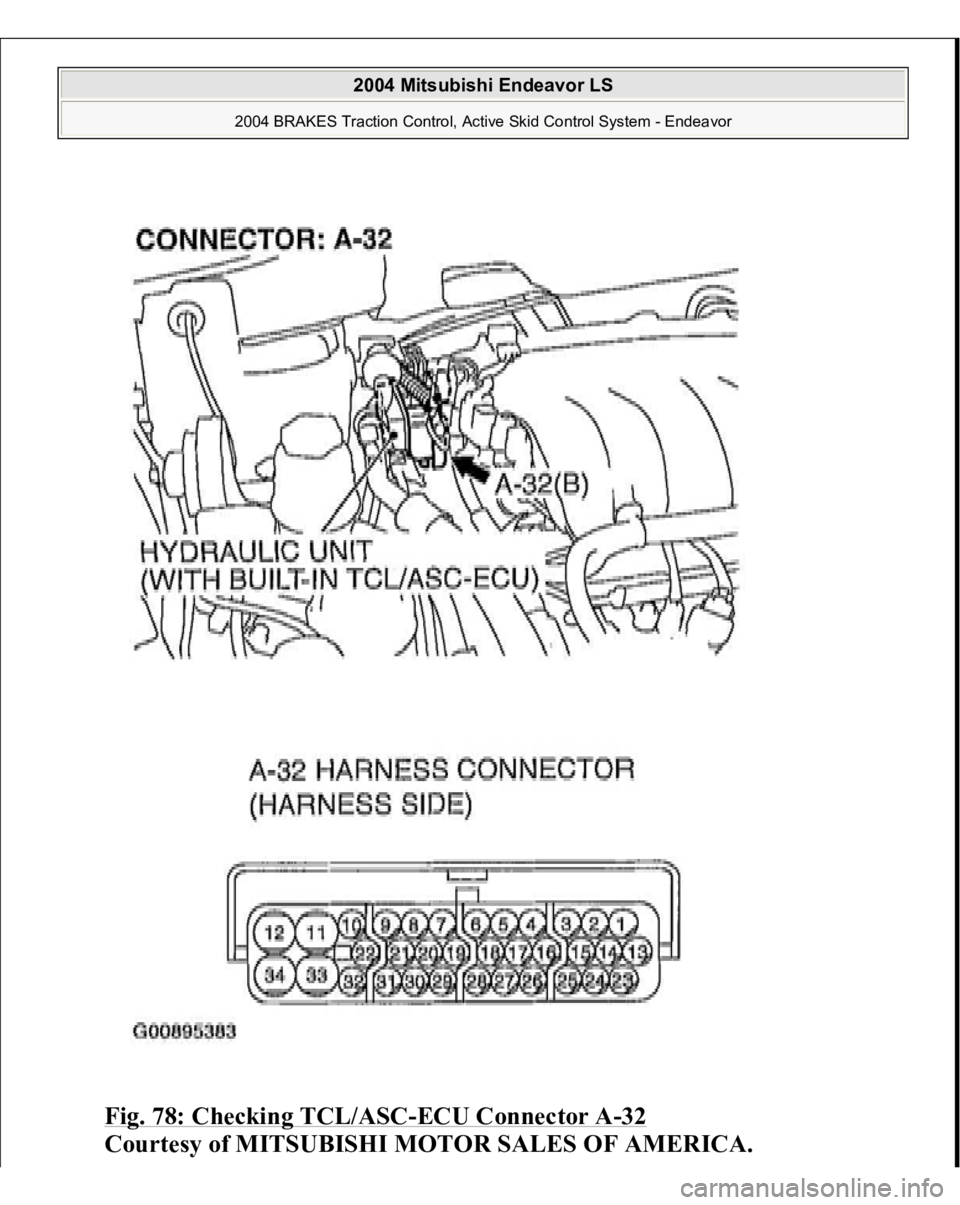

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 78: Checking TCL/ASC -ECU Connector A -32 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3215 of 3870

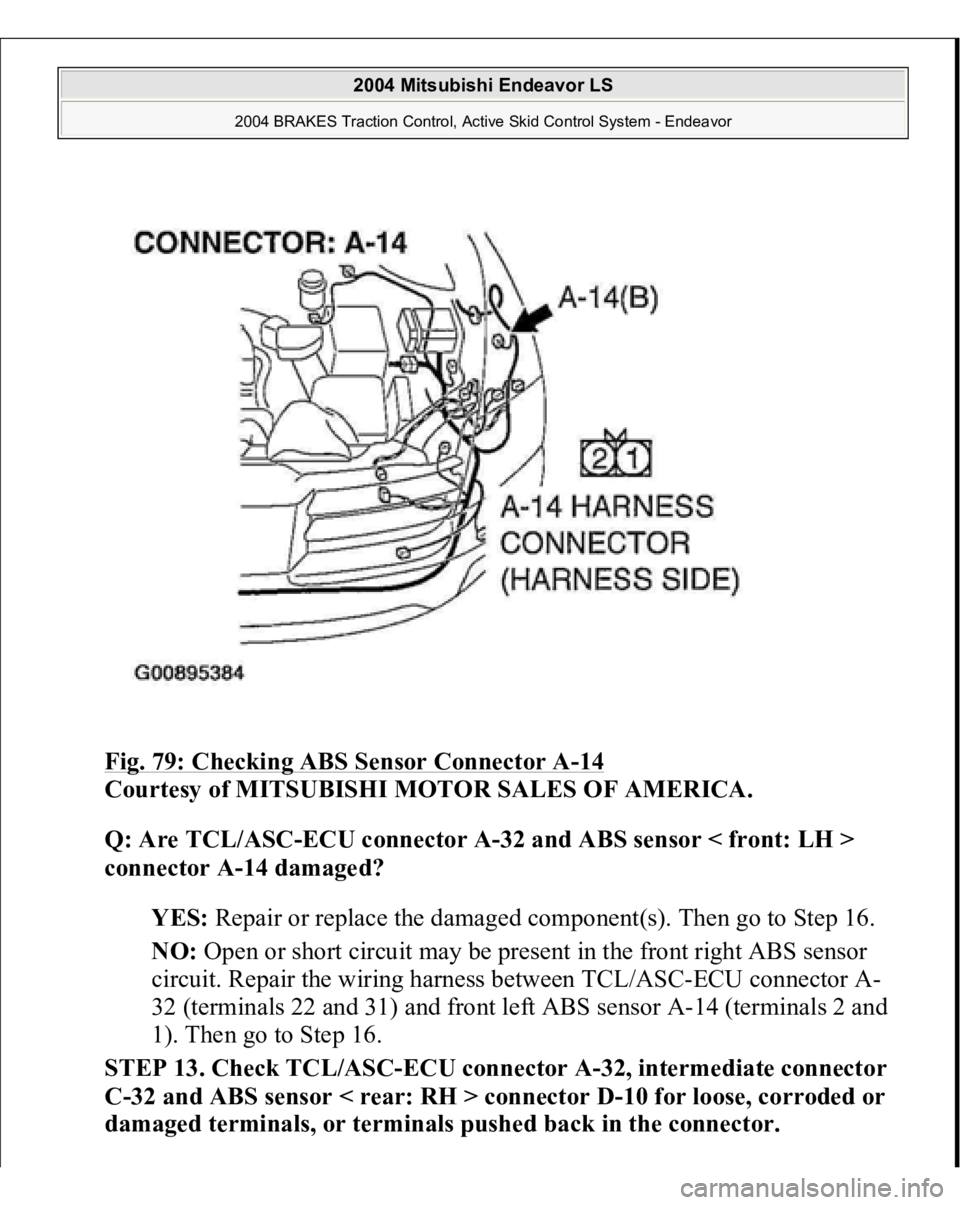

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 79: Checking ABS Sensor Connector A -14 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are TCL/ASC-ECU connector A-32 and ABS sensor < front: LH > connector A-14 damaged? YES: Repair or r

Page 3216 of 3870

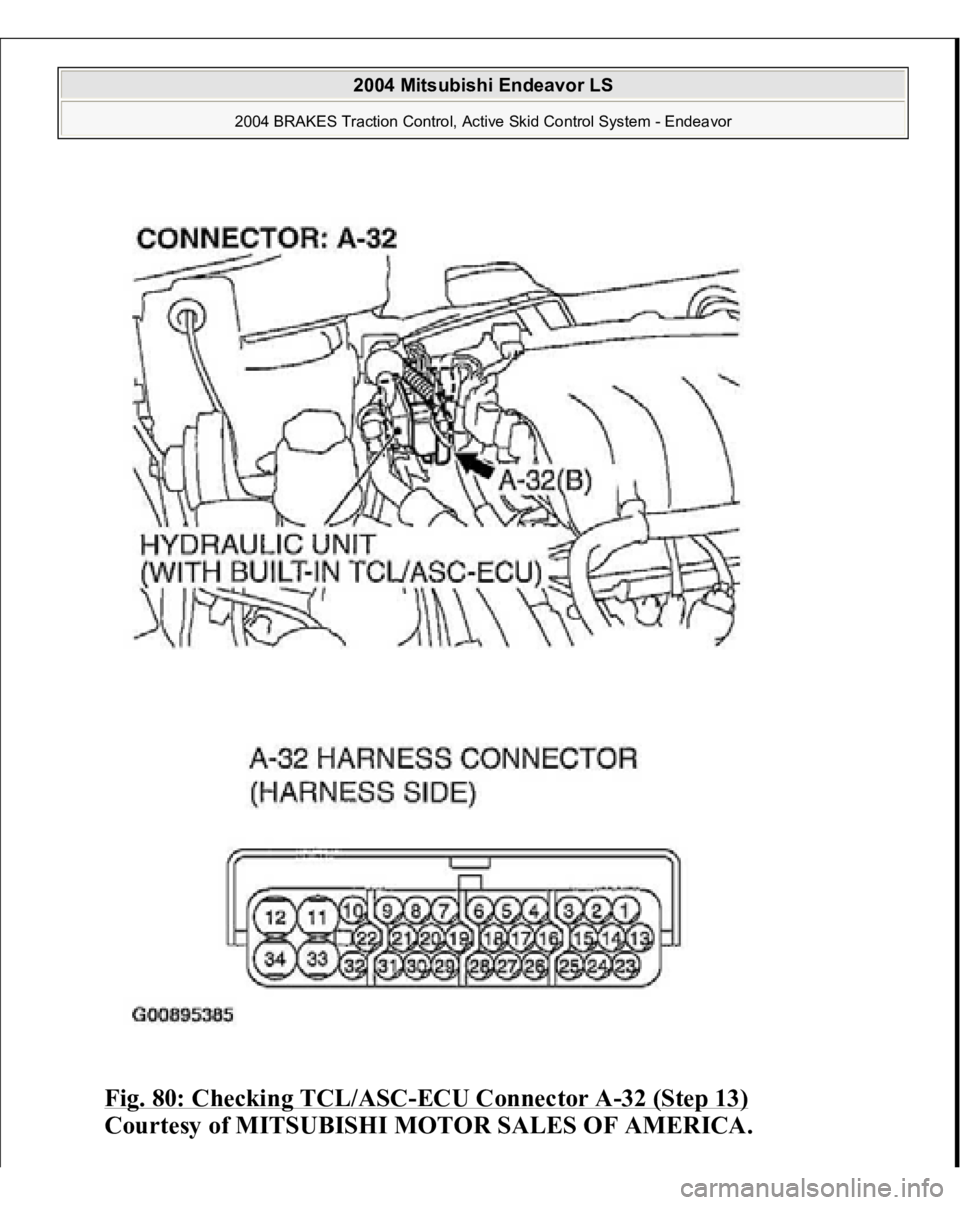

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 80: Checking TCL/ASC -ECU Connector A -32 (Step 13) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Ende
