Page 825 of 3870

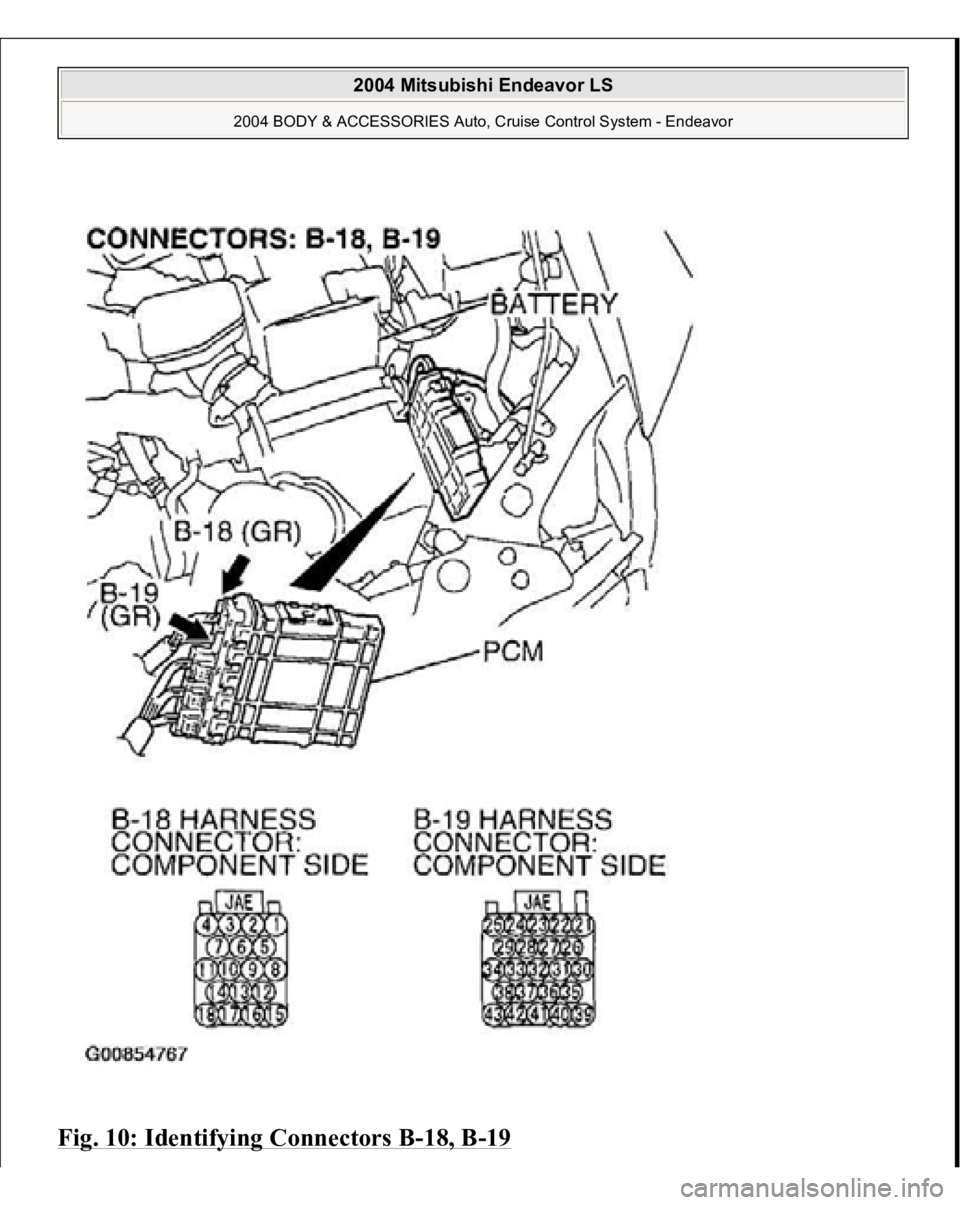

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 10: Identifying Connectors B -18, B -19 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 826 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 827 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 828 of 3870

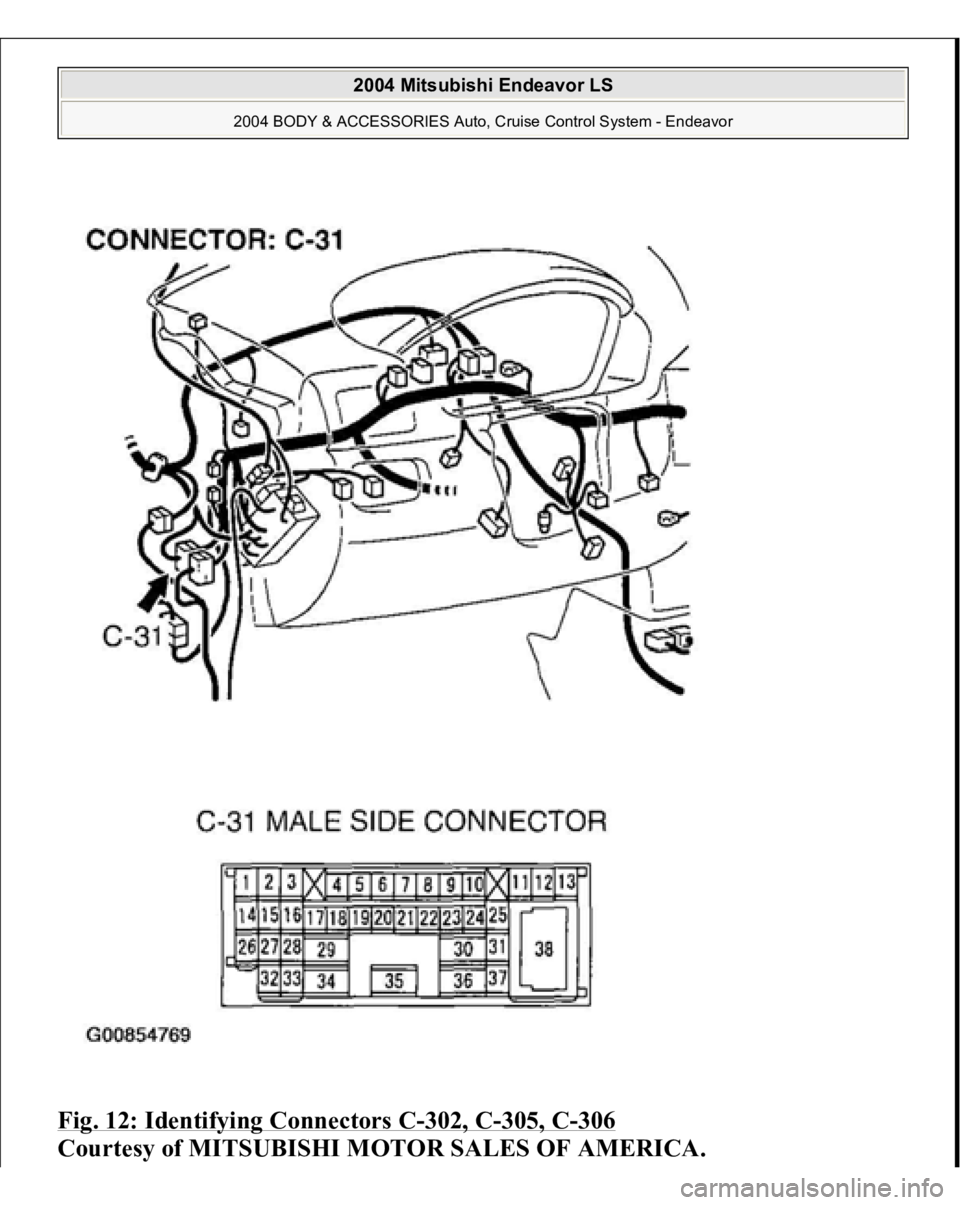

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 11: Identifying Connector C -31 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 829 of 3870

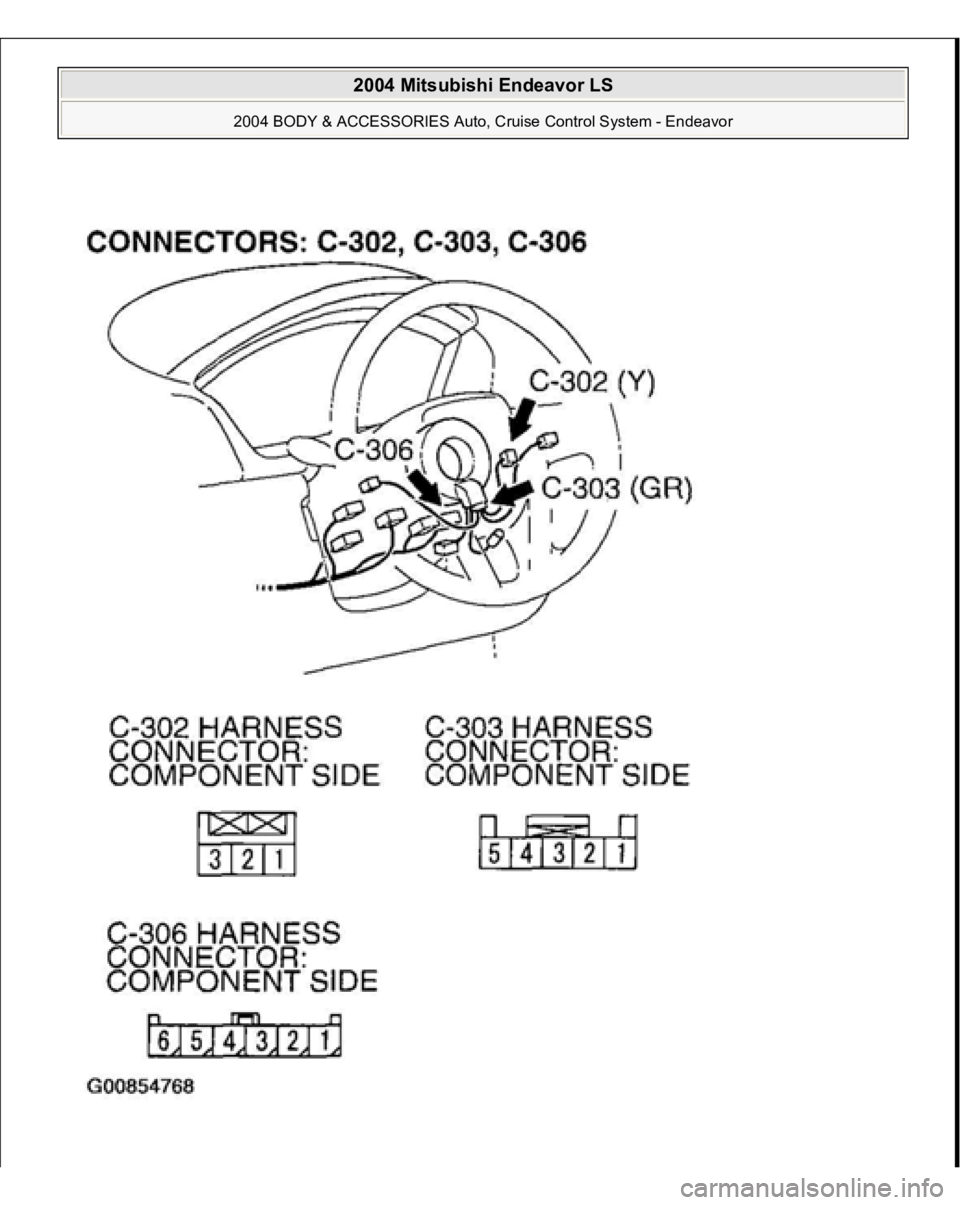

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Identifying Connectors C -302, C -305, C -306 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 830 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CIRCUIT OPERATION This circuit judges the signals of each switch ("COAST/SET", "ACC/RES" and "CANCEL") of the auto-cruise control switch. The PCM detects the state of the aut

Page 831 of 3870

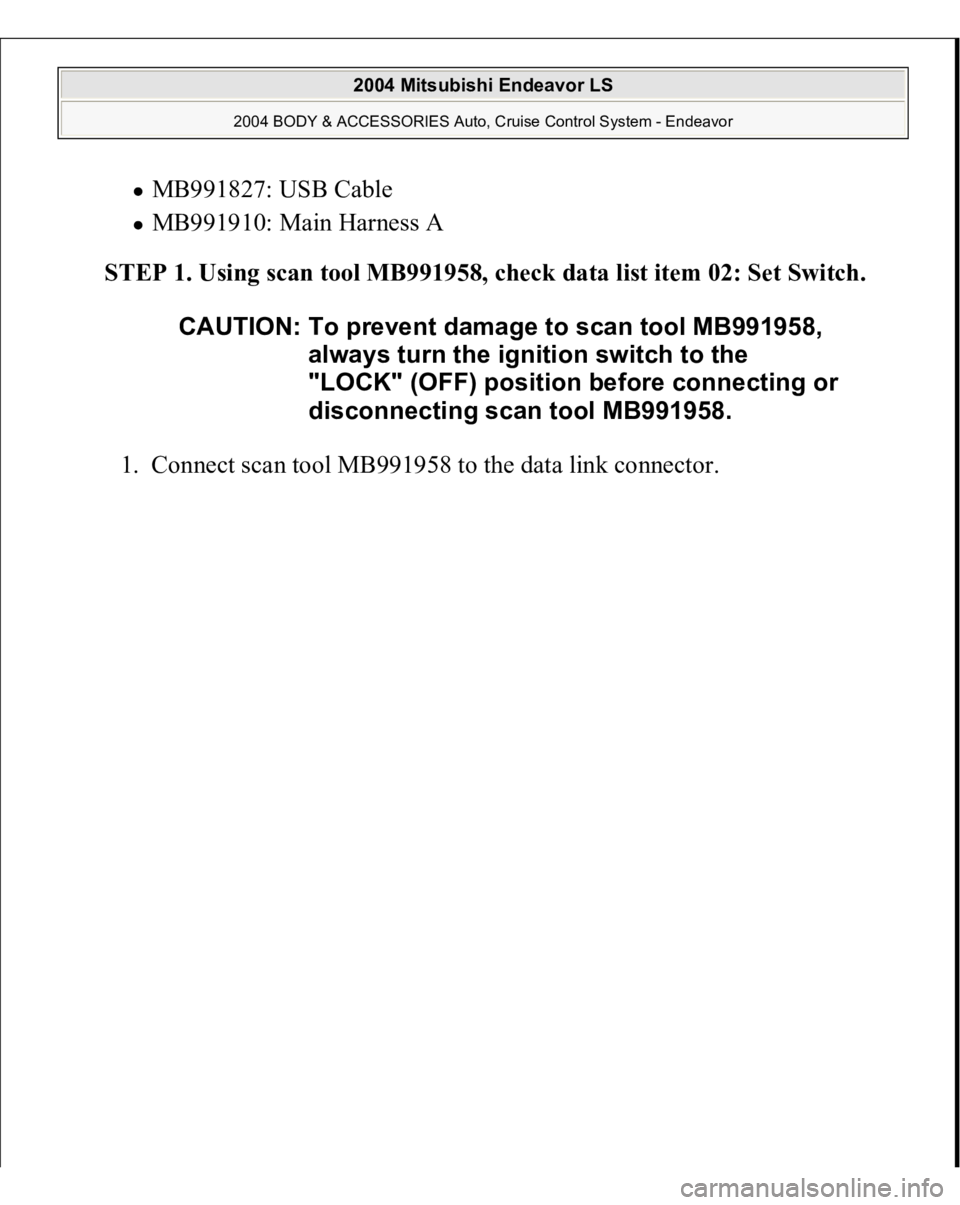

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MB991827: USB Cable MB991910: Main Harness A STEP 1. Using scan tool MB991958, check data list item 02: Set Switch. 1. Connect scan tool MB991958 to the data link connec tor. CAUTION: To prevent

Page 832 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Connecting Scan Tool To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
