MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 122: Using Special Tools And Pressing In Differential Bearing Outer Race Into Torque Converter Housing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 77. Install the torque converter housing t

Page 578 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 123: Identifying Torque Converter Housing Mounting Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 79. Use a micrometer to measure the thickness of the crushed solder beads and record th

Page 579 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 124: Measuring Thickness Of Crushed Solder Beads Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 80. Install the spacer selected in step 79 to the torque converter housing. 81. Use special to

Page 580 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 125: Using Special Tools And Pressing Outer Race Into Housing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 82. Apply a 2 mm (0.08 inch) diameter bead of sealant (MITSUBISHI Genuine Part num

Page 581 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 126: Applying Bead Of Sealant On Torque Converter Housing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 83. Install the two O-rin gs. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automa

Page 582 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 127: Installing Two O -Rings Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 84. Install the torque converter housing and then tighten its 18 mounting bolts to the specified torque. Tightenin

Page 583 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 128: Installing Torque Converter Housing Mounting Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 85. Insert the two O-rings into the grooves of the manual control lever shaft. 86. Inst

Page 584 of 3870

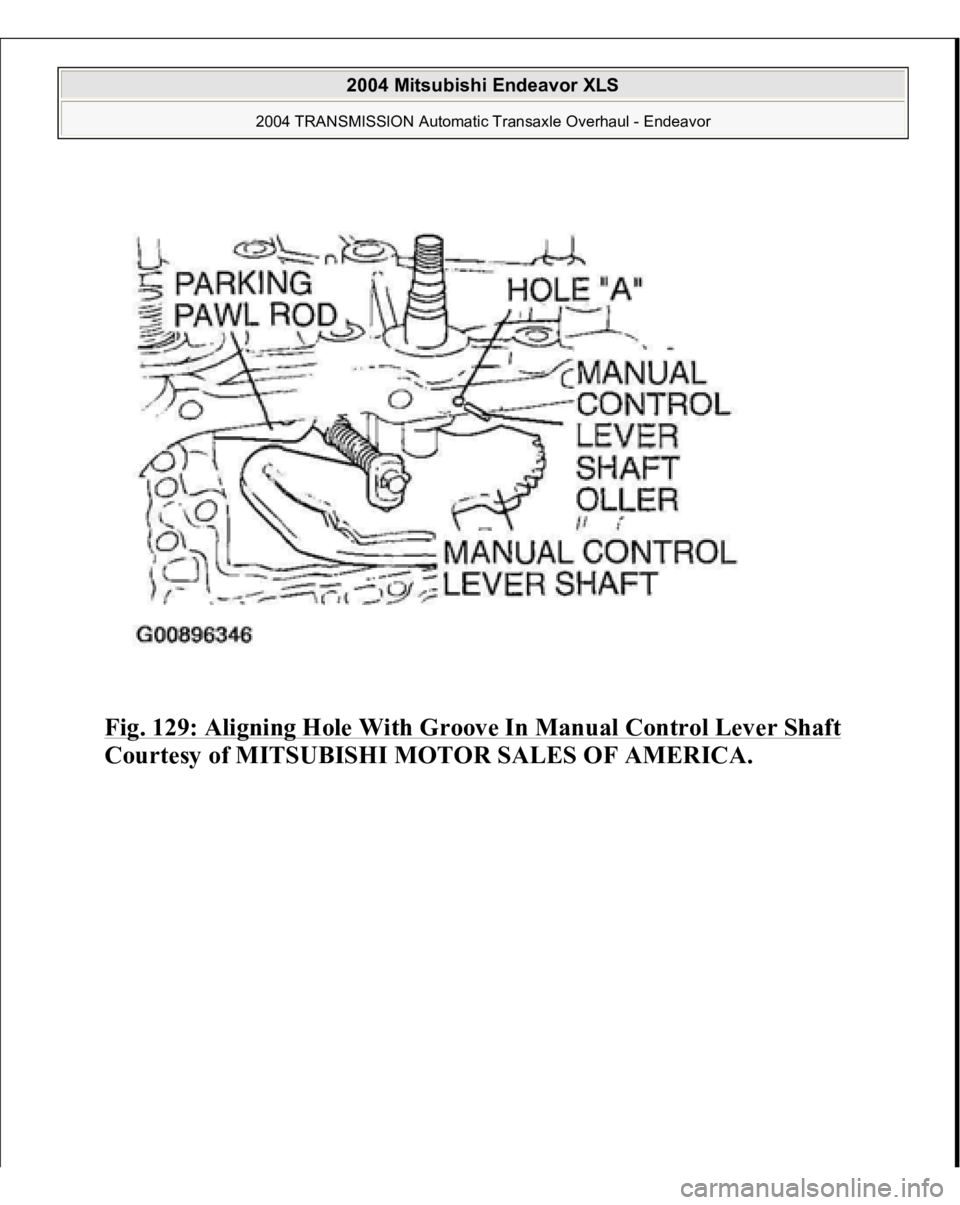

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 129: Aligning Hole With Groove In Manual Control Lever Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Ende
