MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 275: Inserting Thermometer In Center Air Outlet

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

10. Note the discharge air temperature.
PERFORMANCE TEMPERATURE CHART
NOTE: If the A/C clutch

Page 2370 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 276: Performance Temperature Char
t
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

REFRIGERANT LEAK REPAIR PROCEDURE LOST CHARGE If the system has lost all charge due to a leak:
1. Evacuate t

Page 2371 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual weather, vehicle speed, in gear or neutral, engine temperature or any other special
conditions. Noises that develop during A/C operation can often be misleading. For example:
what sounds like a fail

weather, vehicle speed, in gear or neutral, engine temperature or any other special
conditions. Noises that develop during A/C operation can often be misleading. For example:
what sounds like a failed front bearing or connecting rod, may be caused by loose
bolts, nuts, mounting brackets, or a loose clutch assembly. Verify accessory drive
belt tension (power steering or generator).
Improper accessory drive belt tension can cause a misleading noise when the
compressor is engaged and little or no noise when the compressor is disengaged.
Drive belts are speed-sensitive. That is, at different engine speeds, and depending
upon belt tension, belts can develop unusual noises that are often mistaken for
mechanical problems within the compressor. HANDLING TUBING AND FITTINGS Kinks in the refrigerant tubing or sharp bends in the refrigerant hose lines will
greatly reduce the capacity of the entire system. High pressures are produced in the
system when it is operating. Extreme care must be exercised to make sure that all
connections are pressure tight. Dirt and moisture can enter the system when it is
opened for repair or replacement of lines or components. The following precautions
must be observed. The system must be completely discharged before opening any
fitting of connection in the refrigeration system. Open fittings with caution even
after the system has been discharged. If any pressure is noticed as a fitting is
loosened, allow trapped pressure to bleed off very slowly. Never attempt to rebend formed lines to fit. Use the correct line for the installation
you are servicing. A good rule for the flexible hose lines is keep the radius of all
bends at least 10 times the diameter of the hose.
Sharper bends will reduce the flow of refrigerant. The flexible hose lines should be
routed so that they are at least 80 mm (3.1 inches) from the exhaust manifold. It is
good practice to inspect all flexible hose lines at least once a year to make sure they
are in good condition and properly routed.
On standard
plumbin
g fittin
gs with O-rin
gs, these O-rin
gs are not reusable.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2372 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual ADJUSTMENT 1. Select a quiet area for testing. Duplicate conditions as much as possible.
Switch the compressor on and off several times to clearly identify compressor
noise. To duplicate high ambien

Page 2373 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 277: Identifying Front Blower Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

FRONT BLOWER RELAY CONTINUITY CHART

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Vent

Page 2374 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK BATTERY VOLTAGE
TESTER
CONNECTION
SPECIFIED
CONDITION
Not applied
4 - 5
Open circuit
Connect terminal 1 to the
positive battery terminal

Connect ter

Page 2375 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual
2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2376 of 3870

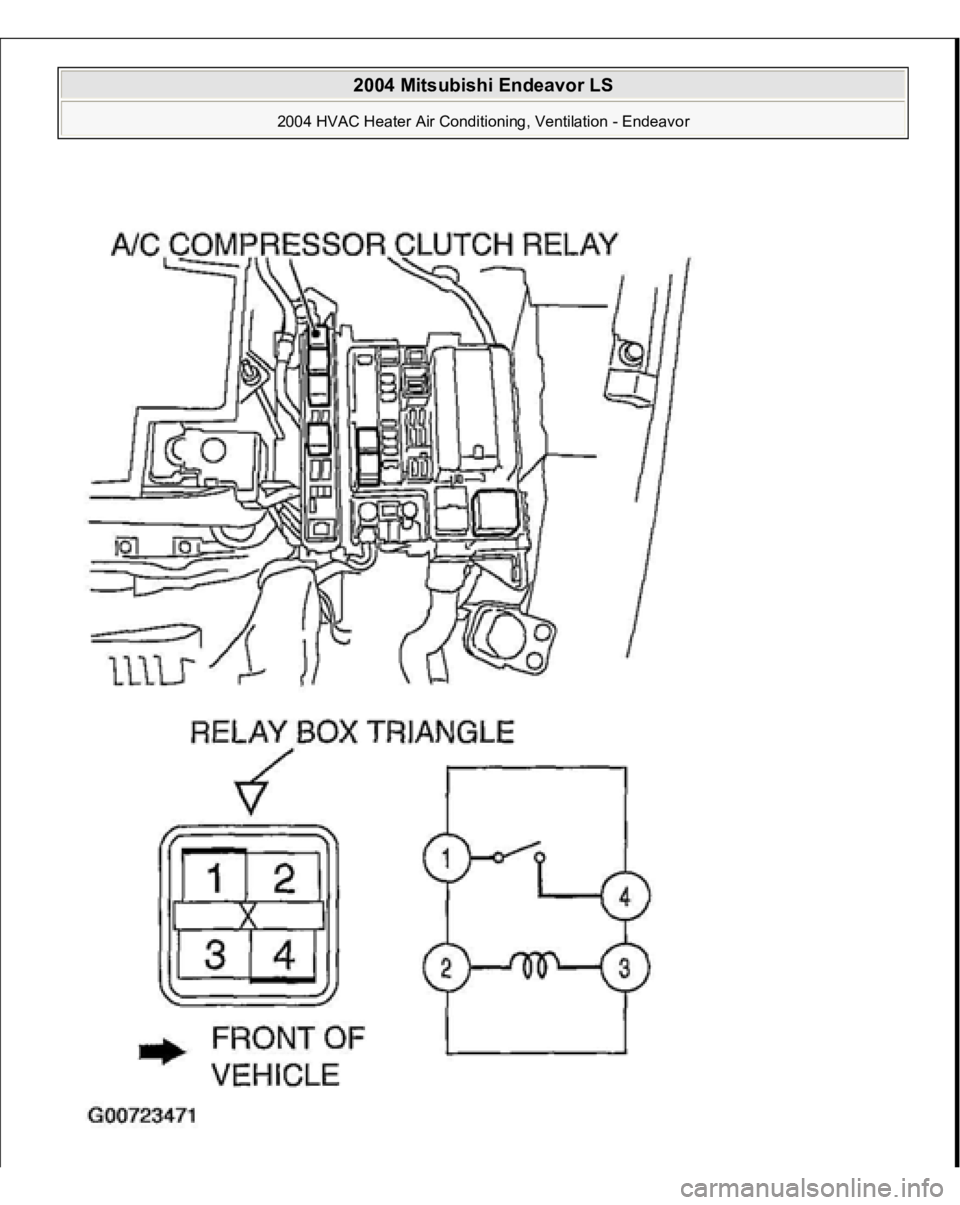

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 278: Identifying A/C Compressor Clutch Relay

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHART

FAN CONTROL RELAY CONTINUITY CHECK BATTERY VOLTAGE
T
