Page 1889 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 36: Identifying Grease Area In PTJ Case Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>G<< PTJ BOOT BAND (SMALL) /PTJ BOOT BAND (LARGE) INSTALLATION Set the PTJ boot bands at the specified d

Page 1890 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 37: Identifying PTJ Boot Dimension Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSPECTION Check the drive shaft for damage, bending or corrosion. Check the inner shaft for damage, bending

Page 1891 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CAUTION: For vehicles with ABS, be careful not to damage the ABS rotor, which is attached to the BJ outer race during disassembly and reassembly. Never disassemble the BJ assembly except when repl

Page 1892 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 DRIVELINE/AXLES Front Axle Hub & Axle Shafts - Endeavor

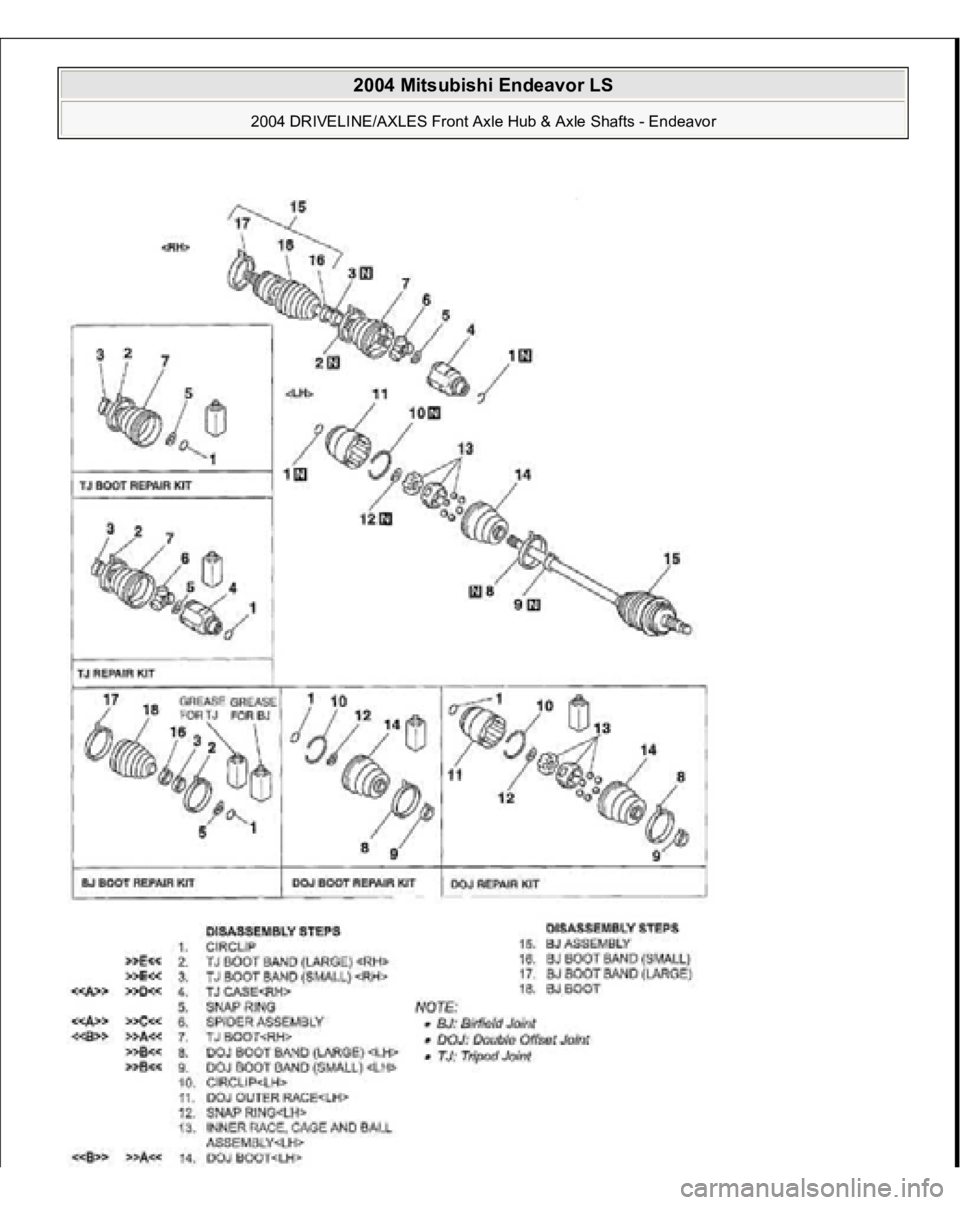

Page 1893 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 38: Disassembling BJ Drive Shaft (AWD) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. LUBRICATION POINTS Fig. 39: Identifying Lubrication Points (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES O

Page 1894 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 40: Identifying Lubrication Points (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DISASSEMBLY SERVICE POINTS << A>> TJ CASE < RH> /SPIDER ASSEMBLY < RH> REMOVAL 1. Wipe off grease fro

Page 1895 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual ASSEMBLY SERVICE POINTS >>A<< DOJ BOOT < LH> /TJ BOOT < RH> INSTALLATION Wrap plastic tape around the shaft spline, and then install the DOJ boot band (small) and DOJ boot, TJ boot band (small) and T

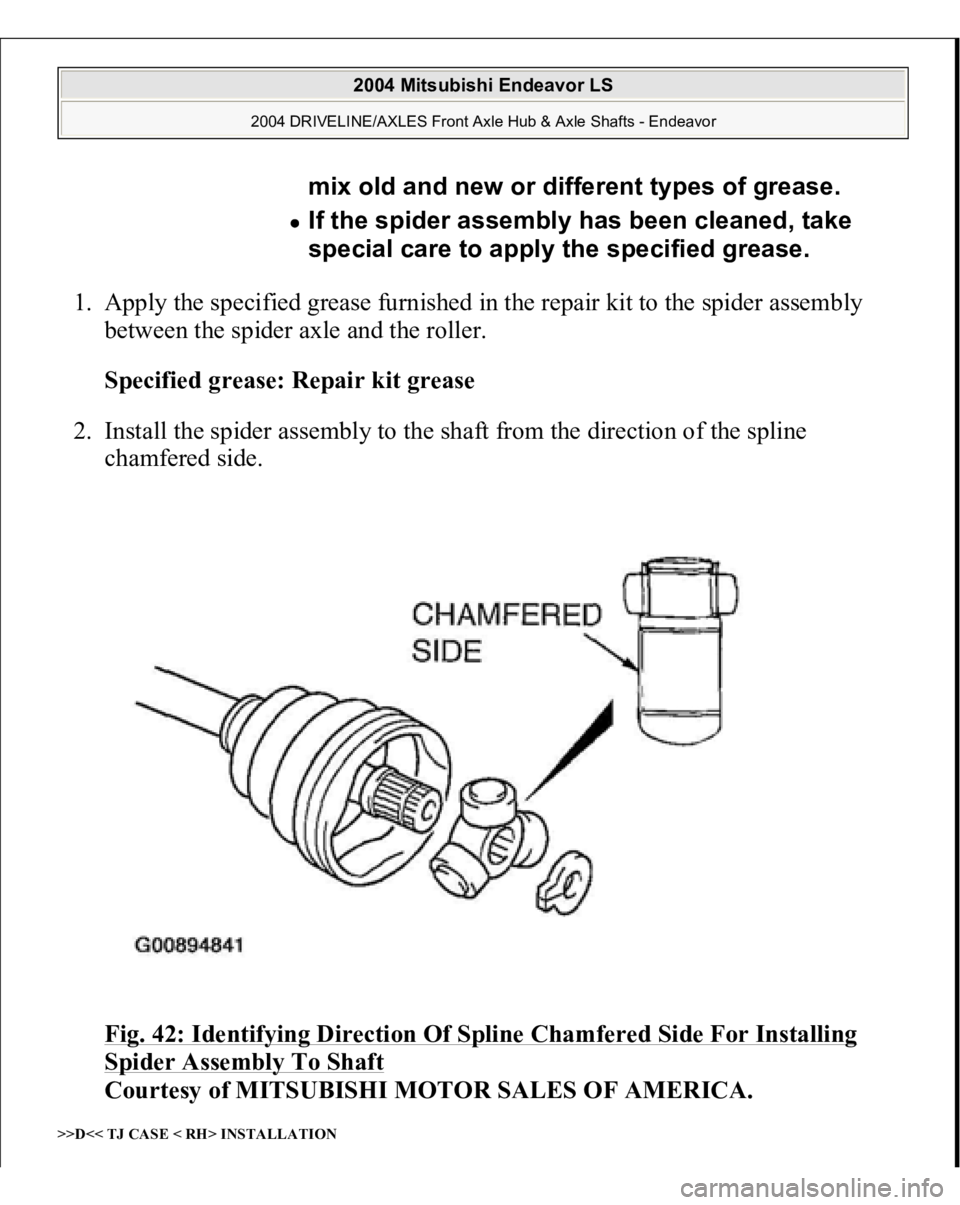

Page 1896 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Apply the specified grease furnished in the repair kit to the spider assembly between the spider axle and the roller. Specified grease: Repair kit grease 2. Install the spider assembly to the s
