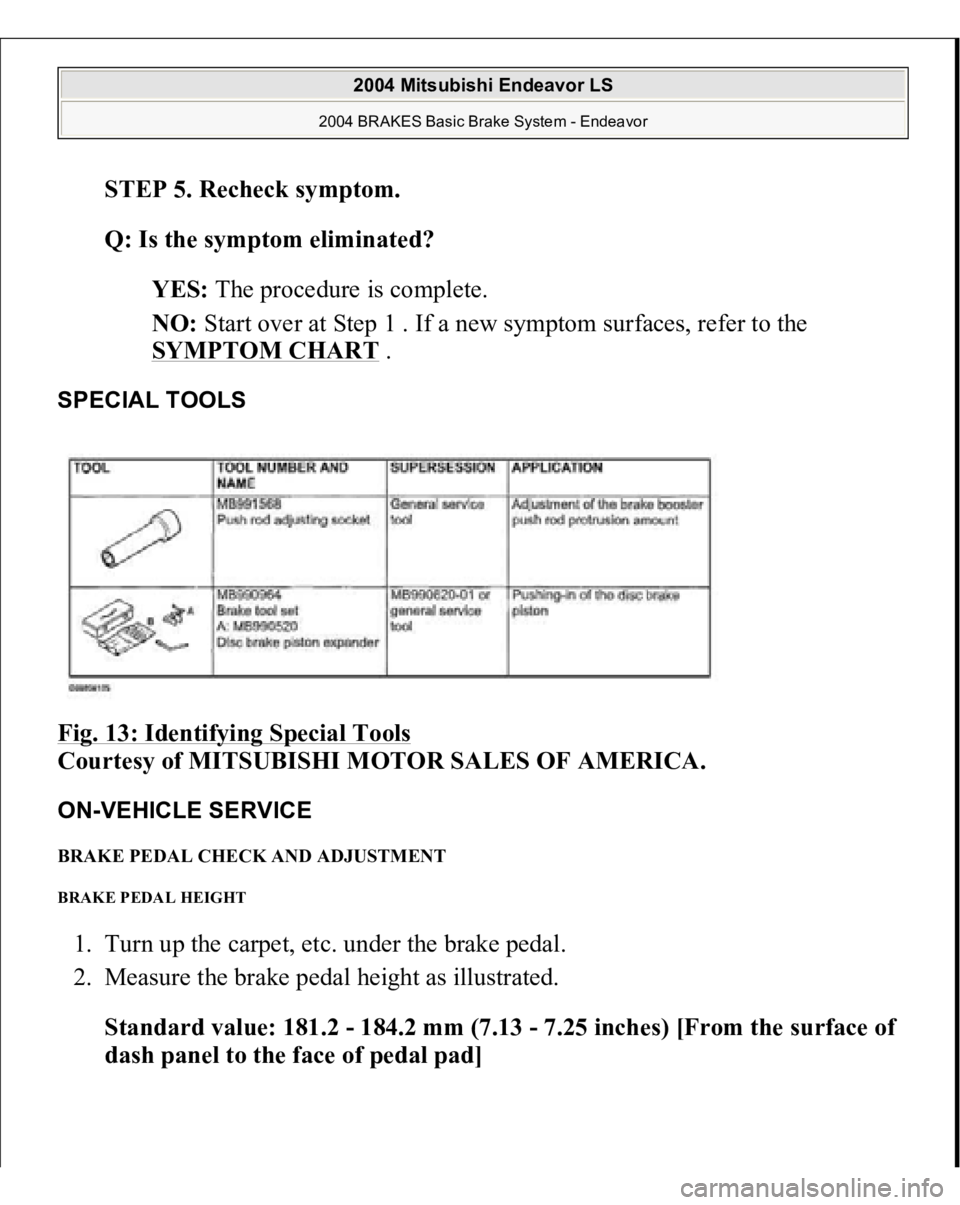

STEP 5. Recheck symptom.
Q: Is the symptom eliminated?
YES: The procedure is complete.
NO: Start over at Step 1 . If a new symptom surfaces, refer to the
SYMPTOM CHART
.
SPECIAL TOOLS Fig. 13: Identifying Special Tools

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE BRAKE PEDAL CHECK AND ADJUSTMENT BRAKE PEDAL HEIGHT 1. Turn up the carpet, etc. under the brake pedal.
2. Measure the brake pedal height as illustrated.
Standard value: 181.2 - 184.2 mm (7.13 - 7.25 inches) [From the surface of
dash panel to the face of pedal pad]
2004 Mitsubishi Endeavor LS
2004 BRAKES Basic Brake System - Endeavor

Fig. 54: Tooth Contact Pattern Specification Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<> DIFFERENTIAL CASE ASSEMBLY/DIFFERENTIAL SIDE BEARING SPACER/DIFFERENTIAL SIDE BEARING
OUTER RACE REMOVAL NOTE: Check the tooth contact pattern to confirm that the
adjustments of the pinion height and backlash have been
done properly. Continue to adjust the pinion height and
backlash until the tooth contact pattern resembles the
standard pattern. If, even after adjustments have been
made, the correct tooth contact pattern cannot be obtained,
it means that the drive gear and the drive pinion have
become worn beyond the allowable limit. Replace the gear
set.
CAUTION: When taking out the differential case assembly, be
