STR-12
< PRECAUTION >[HR16DE]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001689454
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Page 4924 of 5883
STARTER MOTOR
STR-13
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
ON-VEHICLE REPAIR
STARTER MOTOR

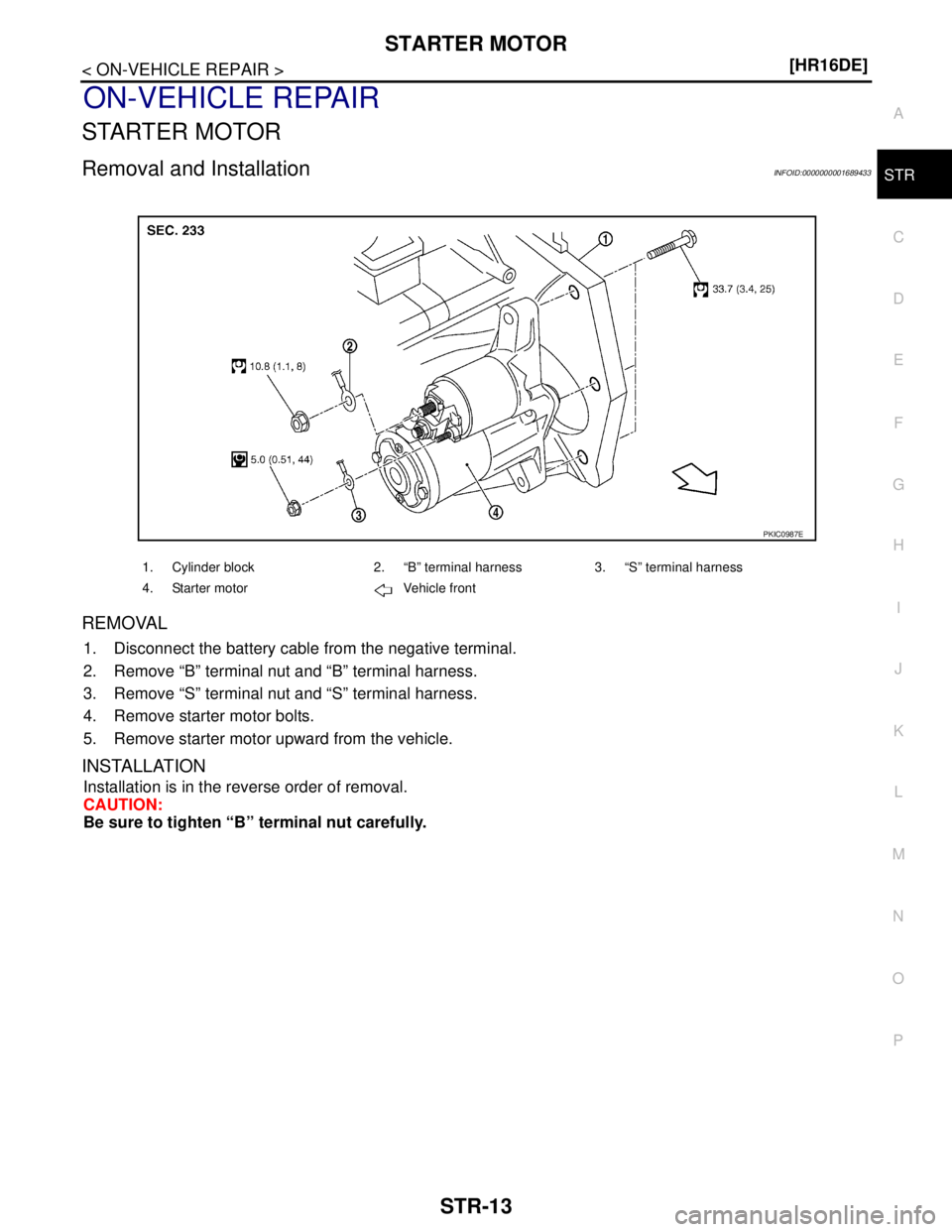

Removal and InstallationINFOID:0000000001689433
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove “B” terminal nut and “B” terminal harness.
3. Remove “S” terminal nut and “S” terminal harness.
4. Remove starter motor bolts.
5. Remove starter motor upward from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Be sure to tighten “B” terminal nut carefully.
1. Cylinder block 2. “B” terminal harness 3. “S” terminal harness
4. Starter motor Vehicle front
PKIC0987E
Page 4925 of 5883
STR-14
< BASIC INSPECTION >[MR18DE]
DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001728603

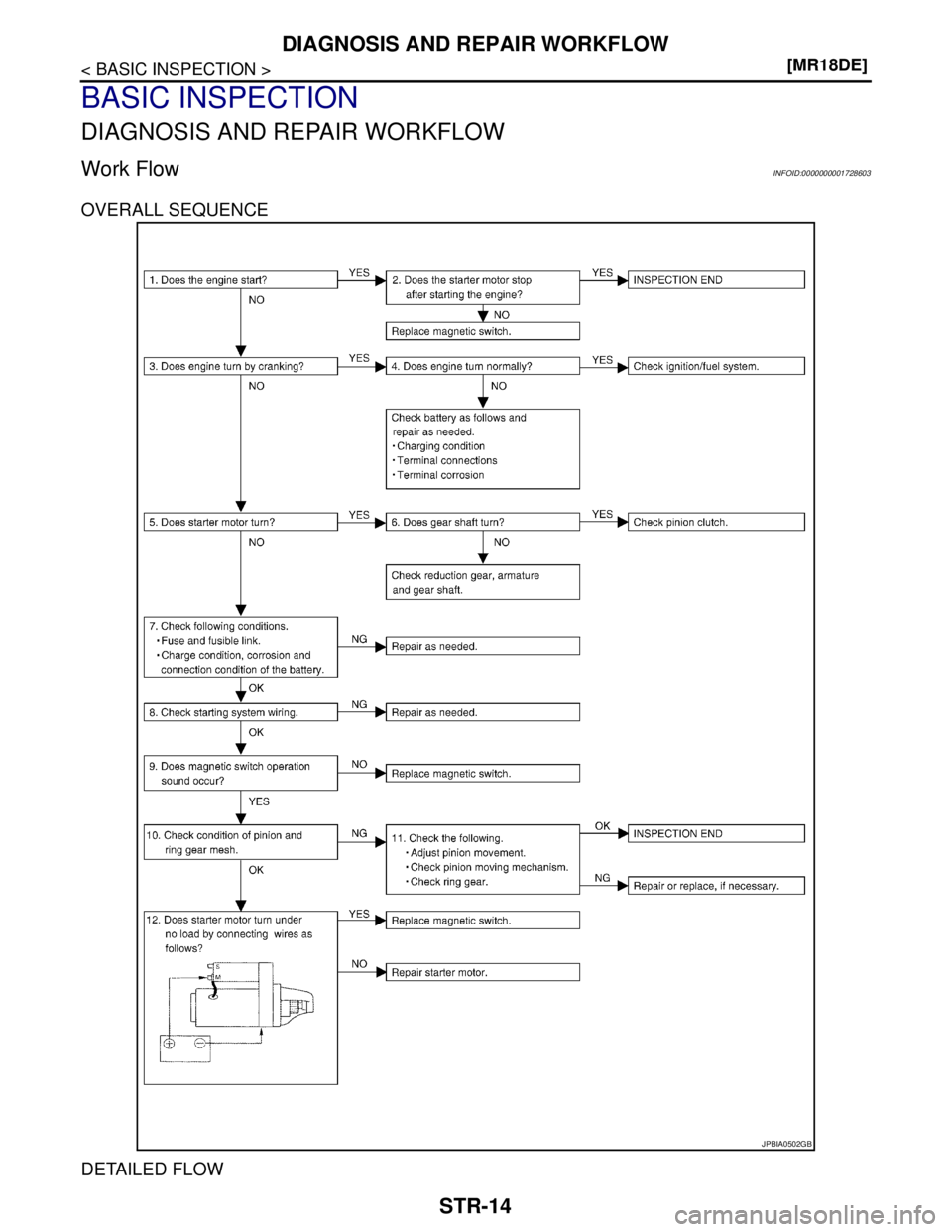

OVERALL SEQUENCE
DETAILED FLOW
JPBIA0502GB
Page 4926 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOW
STR-15
< BASIC INSPECTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
NOTE:
If any malfunction is found, immediately disconnect the battery cable from the negative termina NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOW
STR-15
< BASIC INSPECTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
NOTE:
If any malfunction is found, immediately disconnect the battery cable from the negative termina](/manual-img/5/57395/w960_57395-4925.png)
DIAGNOSIS AND REPAIR WORKFLOW
STR-15
< BASIC INSPECTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
NOTE:
If any malfunction is found, immediately disconnect the battery cable from the negative terminal.
1.CHECK ENGINE START
Crank the engine and check that the engine starts.
Does the engine start?
YES >> GO TO 2
NO >> GO TO 3
2.CHECK THAT THE STARTER MOTOR STOPS
Check that the starter motor stops after starting the engine.
Does the starter motor stop?
YES >> INSPECTION END.
NO >> Replace magnetic switch.
3.CHECK THE ENGINE SPEED WITH CRANKING
Check that the engine runs at cranking.
Does engine turn by cranking?
YES >> GO TO 4
NO >> GO TO 5
4.CHECK THE ENGINE SPEED WITH CRANKING
Check that the engine speed is not low at cranking.
Does engine turn normally?
YES >> Check ignition/fuel system.
NO >> Check charge condition, corrosion and connection condition of the battery. Refer to XX-XX,
"*****".
5.CHECK STARTER MOTOR ACTIVATION
Check that the starter motor runs at cranking.
Does starter motor turn?
YES >> GO TO 6
NO >> GO TO 7
6.CHECK STARTER MOTOR UNIT
1. Remove starter motor.
2. Check that the gear shaft of starter motor rotates.
Does gear shaft turn?
YES >> Check pinion clutch. .
NO >> Check reduction gear, armature and gear shaft.
7.CHECK POWER SUPPLY CIRCUIT
Check the following conditions.
Fuse and fusible link
Charge condition, corrosion and connection condition of the battery. Refer to PG-3, "
How to Handle Battery".
Are these inspection results normal?
YES >> GO TO 8
NO >> Repair as needed.
8.CHECK STARTING SYSTEM WIRING
Check the following.
“B” terminal circuit. Refer to STR-19, "
Description".
“S” terminal circuit. Refer to STR-20, "
Description".
Are these inspection results normal?
YES >> GO TO 9
NO >> Repair as needed.
Page 4927 of 5883
STR-16
< BASIC INSPECTION >[MR18DE]
DIAGNOSIS AND REPAIR WORKFLOW
9.CHECK MAGNETIC SWITCH OPERATION SOUND
Check that a magnetic switch operation sound can be heard when the ignition switch is set at the starting posi-
tion.
Does magnetic switch operation sound occur?
YES >> GO TO 10
NO >> Replace magnetic switch.
10.PINION AND RING GEAR ENGAGEMENT CHECK
Check condition of pinion and ring gear mesh.
Is the inspection result normal?
YES >> GO TO 12
NO >> GO TO 11
11 .CHECK STARTER MOTOR UNIT
Check the following.
Adjust pinion movement.
Check pinion moving mechanism.
Check ring gear.
Are these inspection results normal?
YES >> INSPECTION END
NO >> Repair or replace, if necessary.
12.CHECK STARTER MOTOR UNIT
Check that the starter motor runs when connecting the positive ter-
minal (12 V) to starter motor terminal M and the negative terminal
(ground) to starter motor body.
Does the starter motor run?
YES >> Replace magnetic switch.
NO >> Repair starter motor.
SEL009Z
Page 4928 of 5883
STARTING SYSTEM
STR-17
< FUNCTION DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
FUNCTION DIAGNOSIS
STARTING SYSTEM

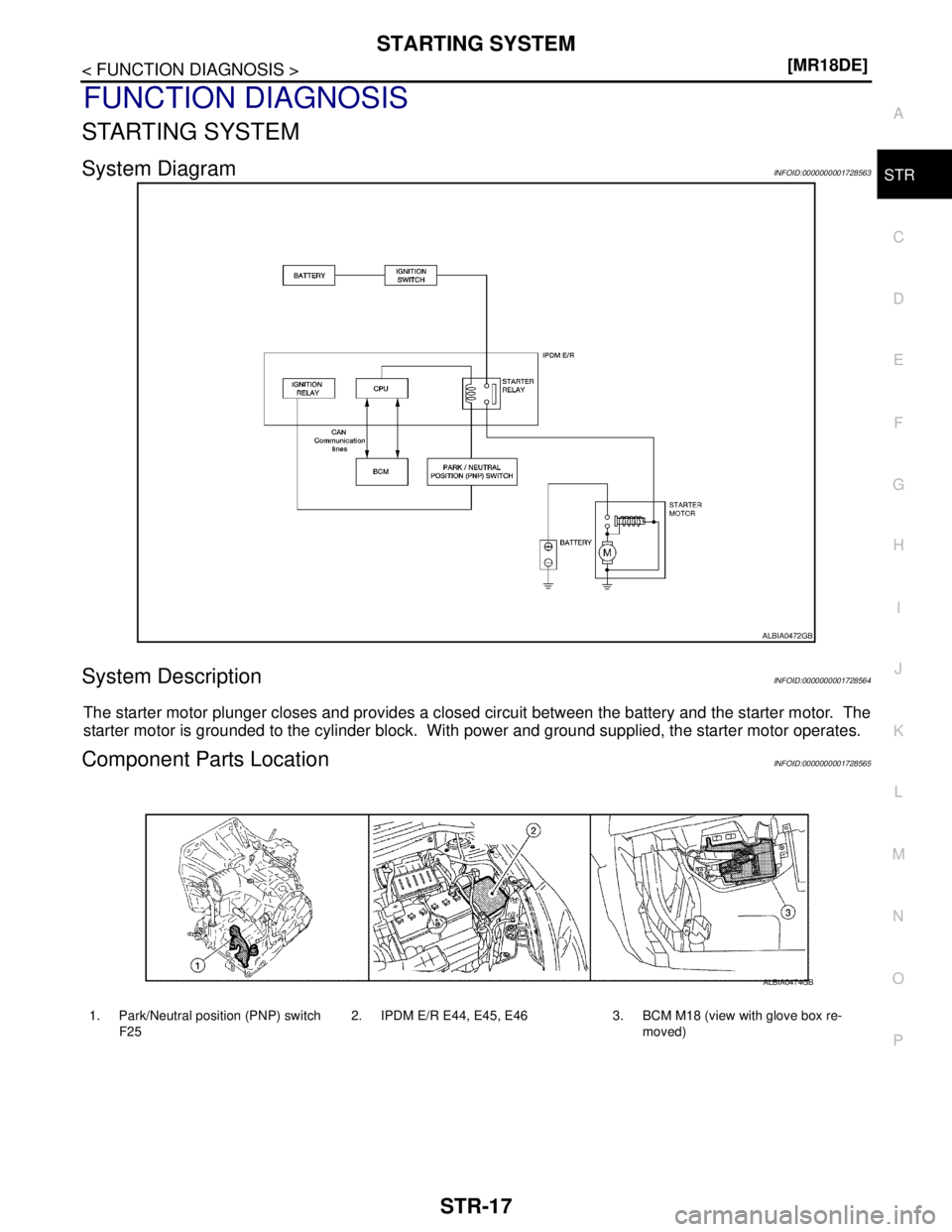

System DiagramINFOID:0000000001728563
System DescriptionINFOID:0000000001728564
The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The
starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.
Component Parts LocationINFOID:0000000001728565
ALBIA0472GB
1. Park/Neutral position (PNP) switch
F252. IPDM E/R E44, E45, E46 3. BCM M18 (view with glove box re-
moved)
