NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOW TM-327 < BASIC INSPECTION >[TYPE 2 (4AT: RE4F03B)] C E F G H I J K L MA B TM N O P >> GO TO 3. 3.ROAD TEST Perform “ROAD TEST”. Refer to TM-482, " Description". >> GO

Page 5274 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-328 < BASIC INSPECTION >[TYPE 2 (4AT: RE4F03B)] DIAGNOSIS AND REPAIR WORKFLOW 1❏ Read the item on cautions concerning fail-safe and understand the customers com- plaint.TM-426 2❏ A/T fluid ins

Page 5275 of 5883

NISSAN TIIDA 2007 Service Repair Manual A/T CONTROL SYSTEM TM-329 < FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)] C E F G H I J K L MA B TM N O P FUNCTION DIAGNOSIS A/T CONTROL SYSTEM Cross-Sectional ViewINFOID:0000000001714309 1. Converter h

Page 5276 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-330 < FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)] A/T CONTROL SYSTEM Shift Mechanism INFOID:0000000001714310 CONSTRUCTION FUNCTION OF CLUTCH AND BRAKE CLUTCH AND BAND CHART 1. Torque converter 2. O

Page 5277 of 5883

NISSAN TIIDA 2007 Service Repair Manual A/T CONTROL SYSTEM TM-331 < FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)] C E F G H I J K L MA B TM N O P  *1: Operates when OD OFF. (OD OFF indicator lamp is on.)  *2: Oil pressure is applied to both

Page 5278 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-332 < FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)] A/T CONTROL SYSTEM Similar to the “N” position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hol

Page 5279 of 5883

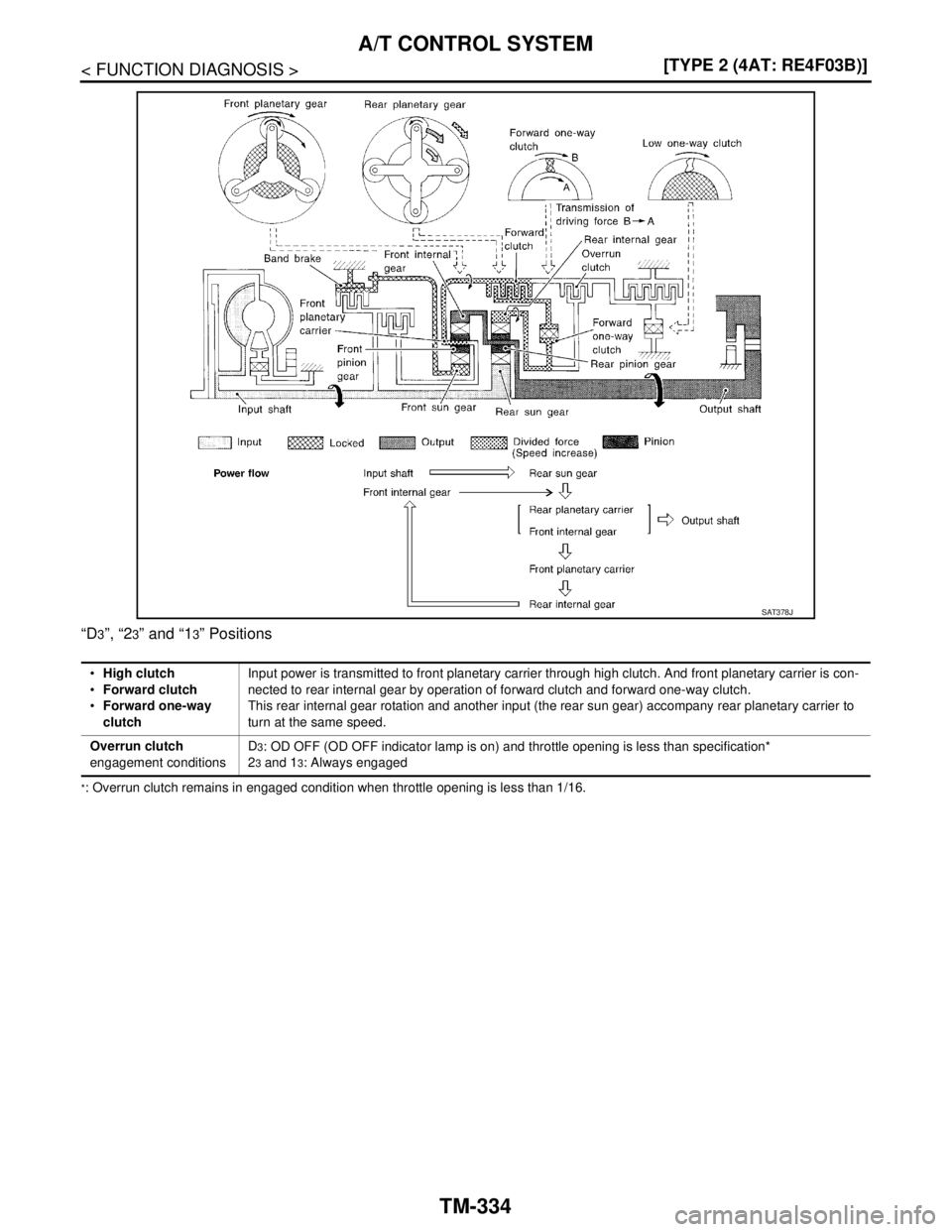

NISSAN TIIDA 2007 Service Repair Manual A/T CONTROL SYSTEM TM-333 < FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)] C E F G H I J K L MA B TM N O P *: Overrun clutch remains in engaged condition when throttle opening is less than 1/16. “D2”

Page 5280 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-334 < FUNCTION DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)] A/T CONTROL SYSTEM “D3”, “23” and “13” Positions *: Overrun clutch remains in engaged condition when throttle opening is less than 1/16
