Page 4617 of 5883
FRONT SEAT
SE-21
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
ON-VEHICLE REPAIR
FRONT SEAT

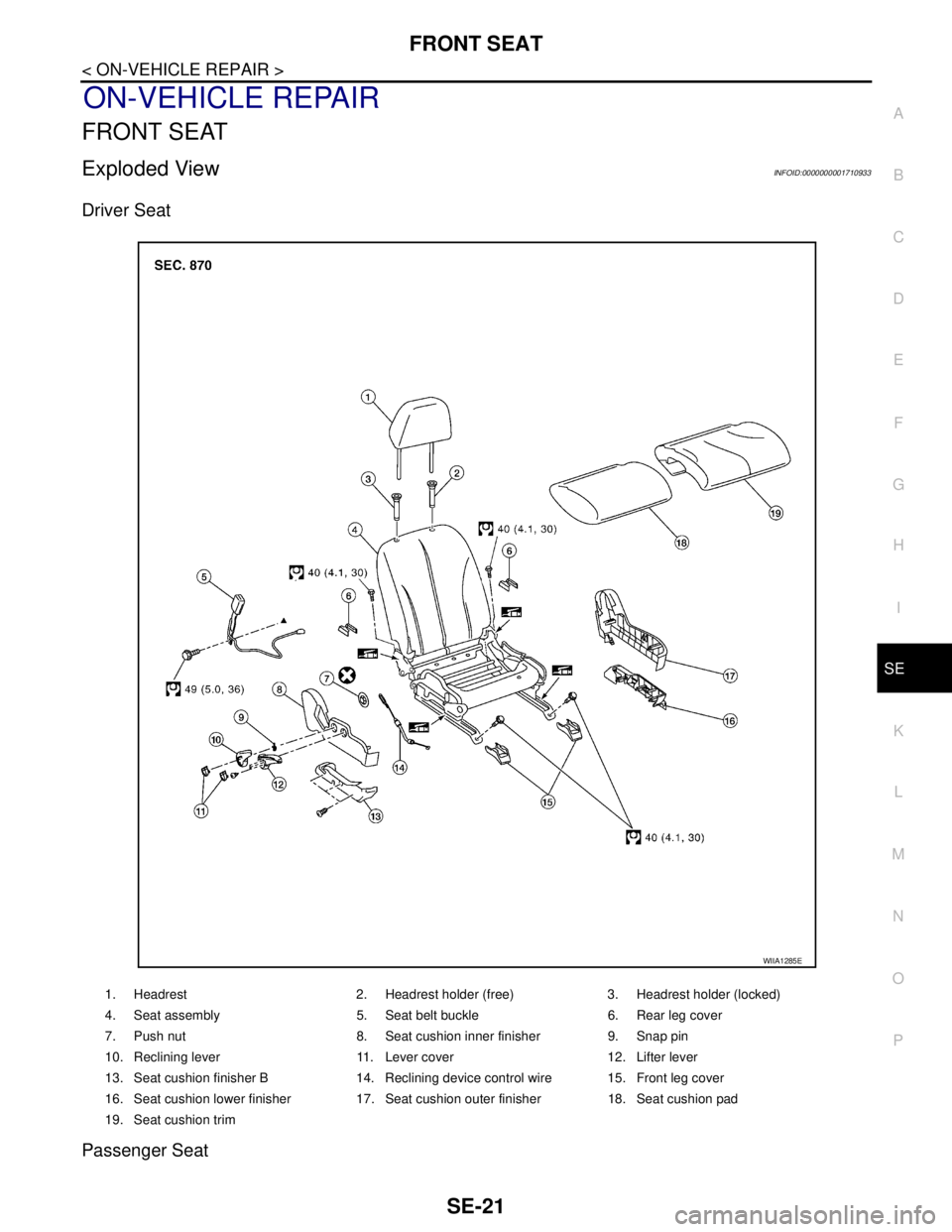

Exploded ViewINFOID:0000000001710933
Driver Seat
Passenger Seat
1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seat assembly 5. Seat belt buckle 6. Rear leg cover
7. Push nut 8. Seat cushion inner finisher 9. Snap pin
10. Reclining lever 11. Lever cover 12. Lifter lever
13. Seat cushion finisher B 14. Reclining device control wire 15. Front leg cover
16. Seat cushion lower finisher 17. Seat cushion outer finisher 18. Seat cushion pad
19. Seat cushion trim
WIIA1285E
Page 4618 of 5883
SE-22
< ON-VEHICLE REPAIR >
FRONT SEAT

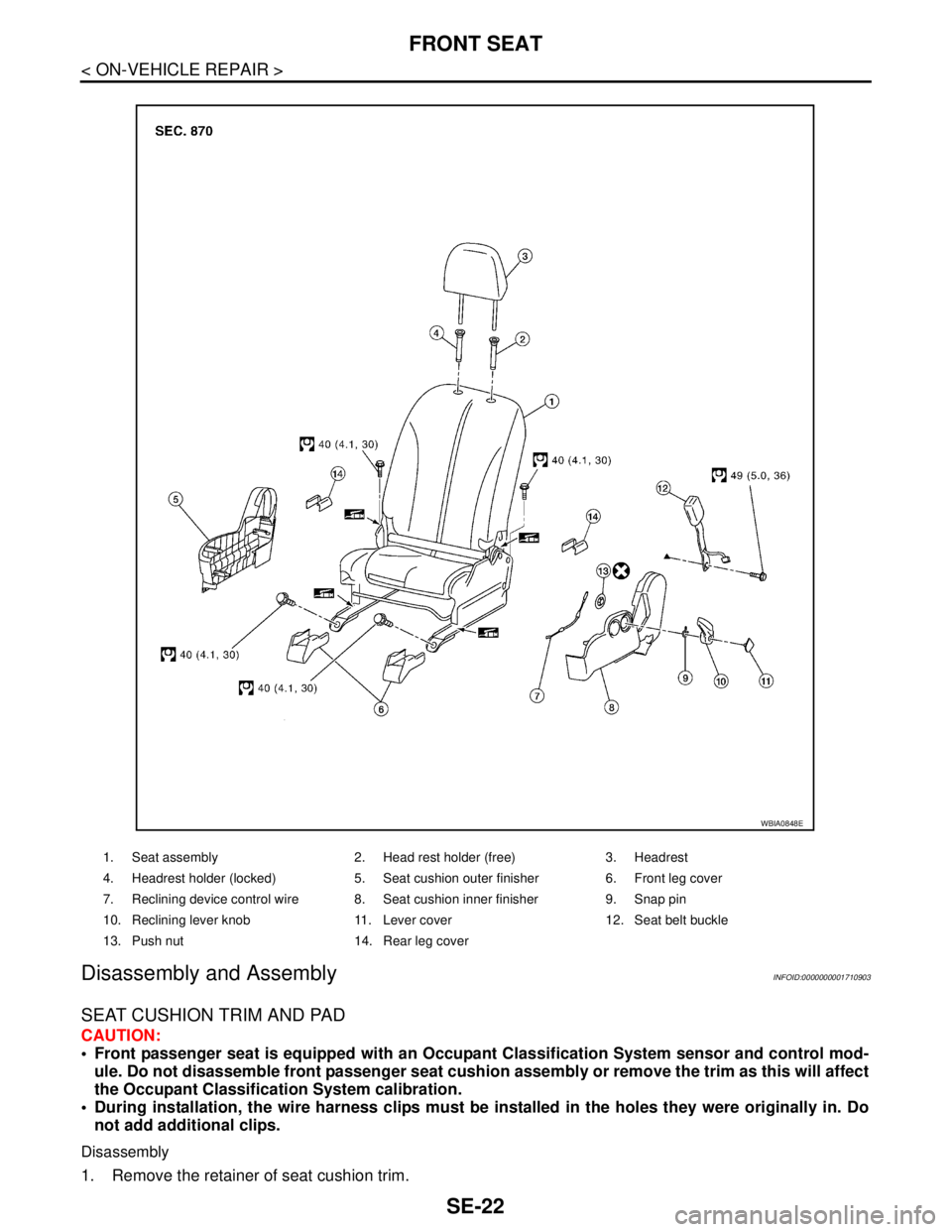

Disassembly and Assembly
INFOID:0000000001710903
SEAT CUSHION TRIM AND PAD
CAUTION:
Front passenger seat is equipped with an Occupant Classification System sensor and control mod-
ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.
During installation, the wire harness clips must be installed in the holes they were originally in. Do
not add additional clips.
Disassembly
1. Remove the retainer of seat cushion trim.
1. Seat assembly 2. Head rest holder (free) 3. Headrest
4. Headrest holder (locked) 5. Seat cushion outer finisher 6. Front leg cover
7. Reclining device control wire 8. Seat cushion inner finisher 9. Snap pin
10. Reclining lever knob 11. Lever cover 12. Seat belt buckle
13. Push nut 14. Rear leg cover
WBIA0848E
Page 4619 of 5883
FRONT SEAT
SE-23
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P

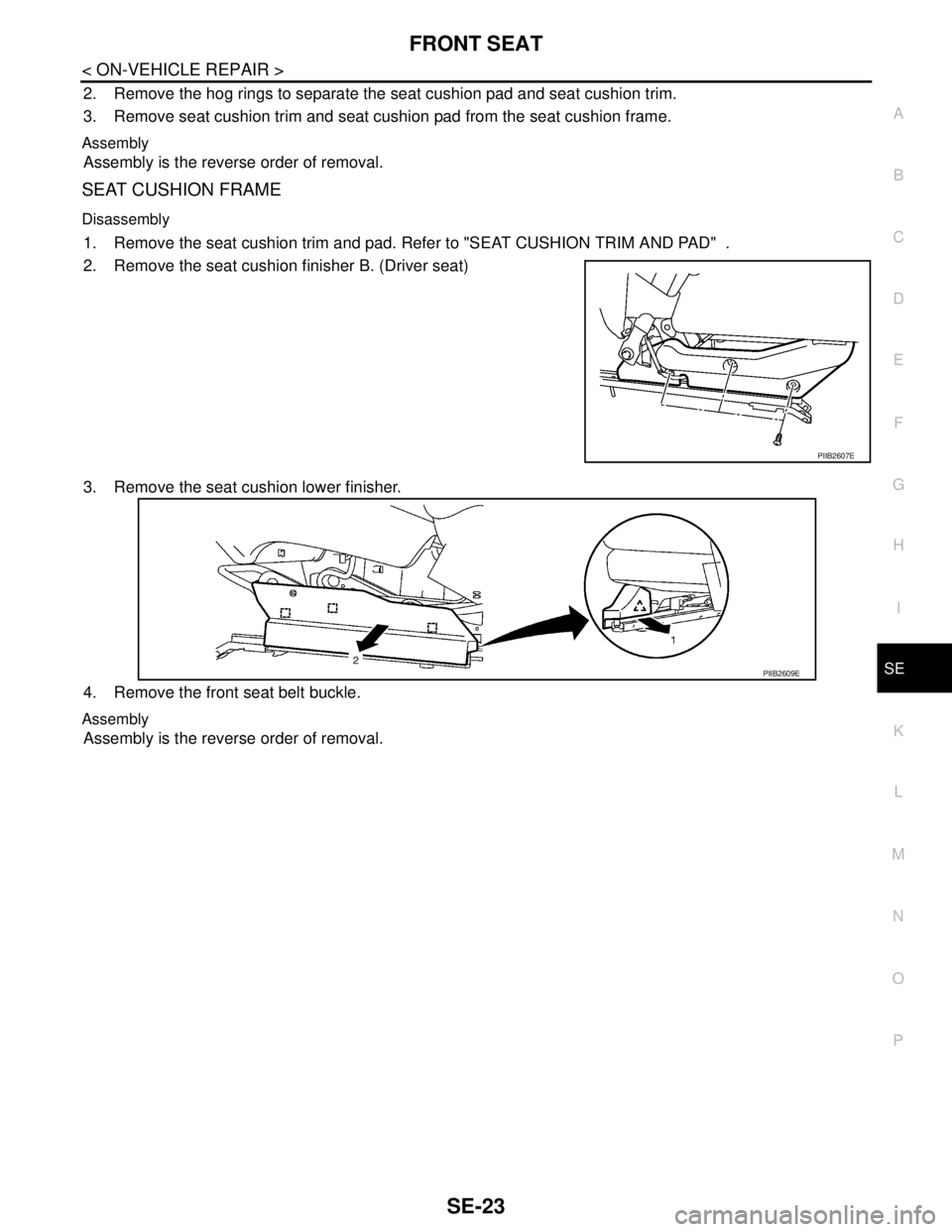

2. Remove the hog rings to separate the seat cushion pad and seat cushion trim.
3. Remove seat cushion trim and seat cushion pad from the seat cushion frame.
Assembly
Assembly is the reverse order of removal.
SEAT CUSHION FRAME
Disassembly
1. Remove the seat cushion trim and pad. Refer to "SEAT CUSHION TRIM AND PAD" .
2. Remove the seat cushion finisher B. (Driver seat)
3. Remove the seat cushion lower finisher.
4. Remove the front seat belt buckle.
Assembly
Assembly is the reverse order of removal.
PIIB2607E
PIIB2609E
Page 4620 of 5883
SE-24
< ON-VEHICLE REPAIR >
REAR SEAT
REAR SEAT

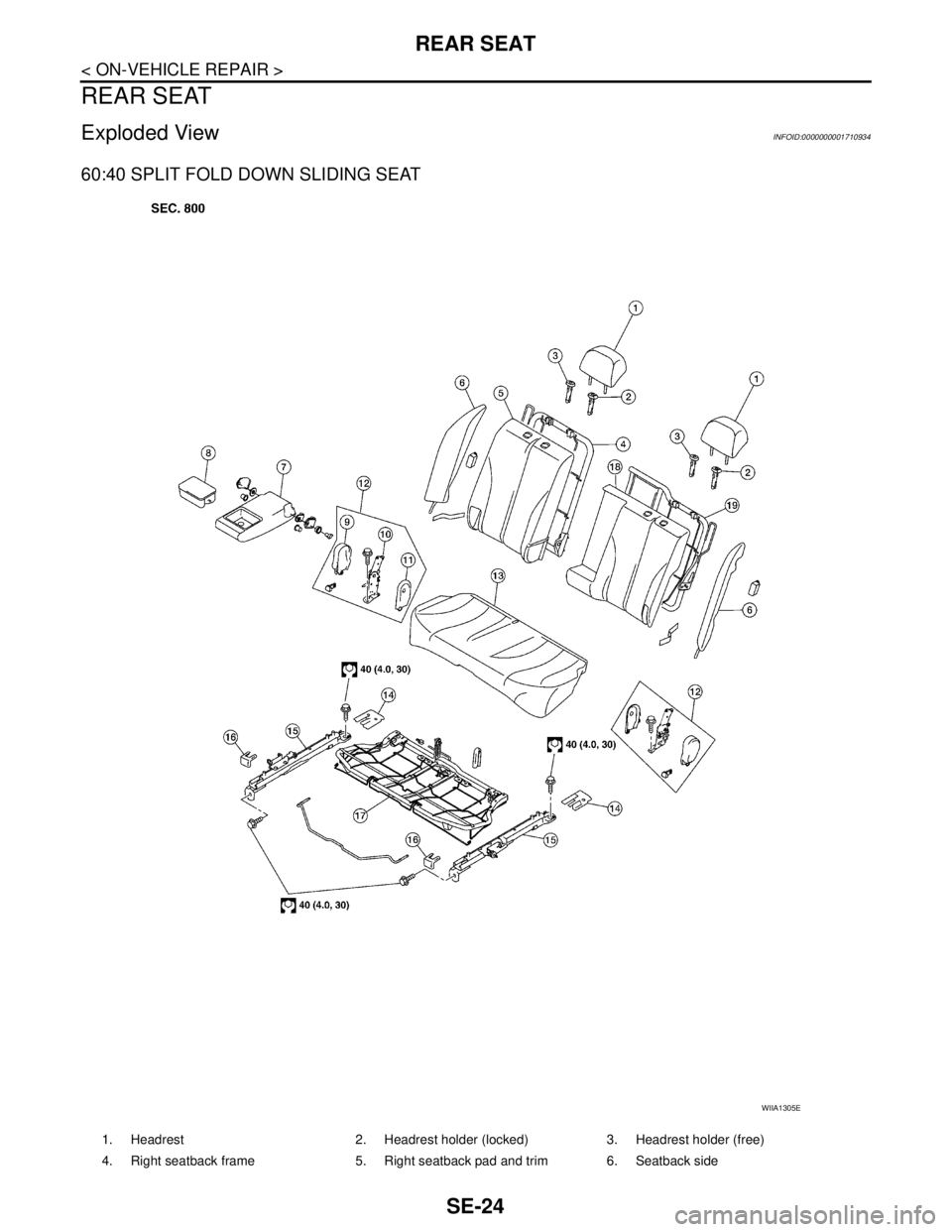

Exploded ViewINFOID:0000000001710934
60:40 SPLIT FOLD DOWN SLIDING SEAT
WIIA1305E
1. Headrest 2. Headrest holder (locked) 3. Headrest holder (free)
4. Right seatback frame 5. Right seatback pad and trim 6. Seatback side
Page 4621 of 5883
REAR SEAT
SE-25
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P

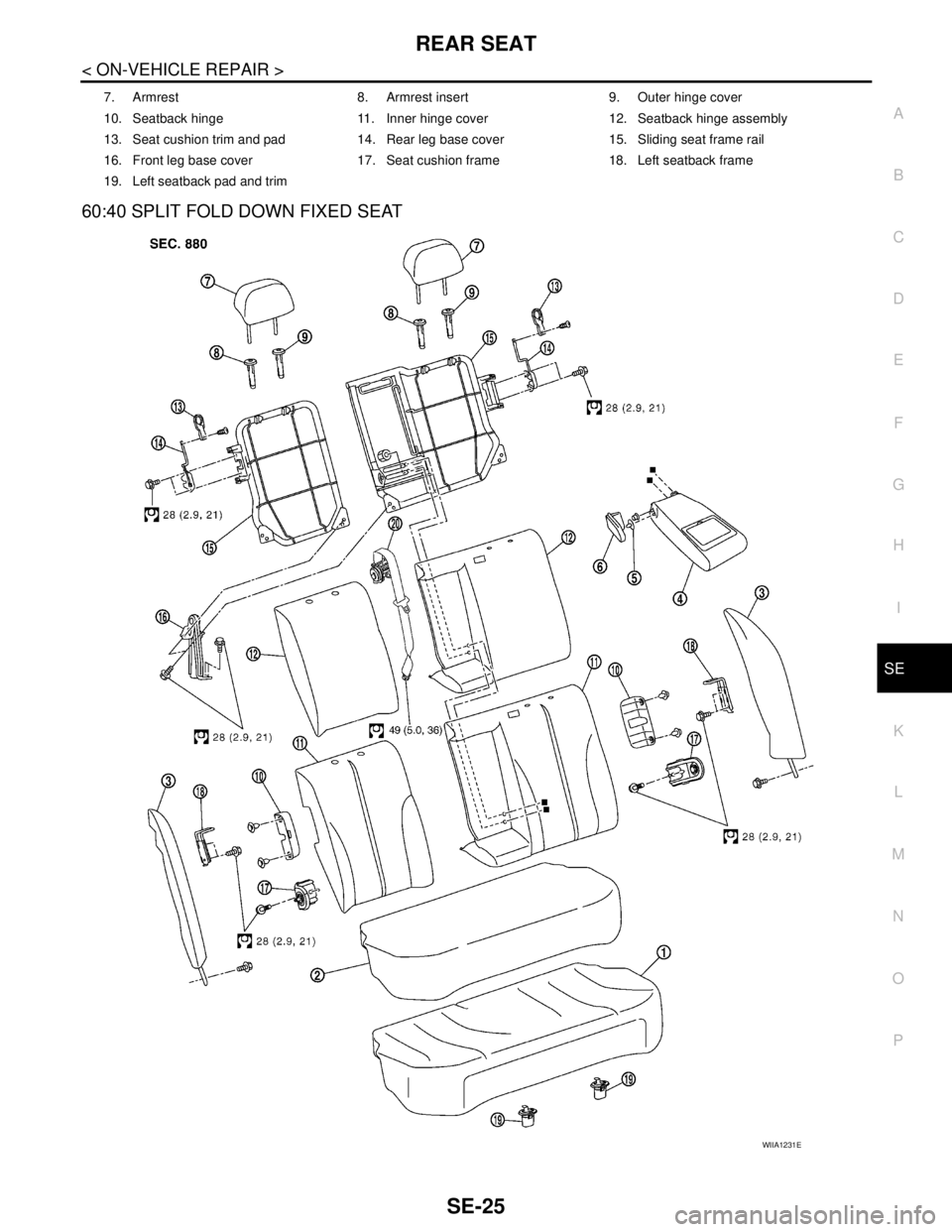

60:40 SPLIT FOLD DOWN FIXED SEAT
7. Armrest 8. Armrest insert 9. Outer hinge cover
10. Seatback hinge 11. Inner hinge cover 12. Seatback hinge assembly
13. Seat cushion trim and pad 14. Rear leg base cover 15. Sliding seat frame rail
16. Front leg base cover 17. Seat cushion frame 18. Left seatback frame
19. Left seatback pad and trim
WIIA1231E
Page 4622 of 5883
SE-26
< ON-VEHICLE REPAIR >
REAR SEAT
Disassembly and Assembly
INFOID:0000000001710914
60:40 SPLIT FOLD DOWN SLIDING SEAT
Disassembly of Armrest
1. Fold up the backside of the seatback trim and then remove the
armrest nuts.
2. Push the armrest toward left side while pulling backward to
remove.
3. Remove the rear seat bushing, and then remove the armrest
hinge cover by pulling it backward.
Assembly of Armrest
Assembly in the reverse order of disassembly.
Disassembly of Seatback Trim and Pad
1. Remove the headrest.
1. Seat cushion trim 2. Seat cushion pad 3. Seatback side
4. Armrest 5. Rear seat bushing 6. Armrest hinge cover
7. Headrest 8. Headrest holder (free) 9. Headrest holder (locked)
10. Striker cover 11. Seatback trim 12. Seatback pad
13. Rear seatback lock knob 14. Rear seat lock assembly 15. Seatback frame
16. Rear seatback center bracket 17. Rear seatback side bracket 18. Rear seat striker
19. Seat cushion hook 20. Seatbelt guide
PIIB2913J
PIIB2915J
PIIB6507E
Page 4623 of 5883
REAR SEAT
SE-27
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P

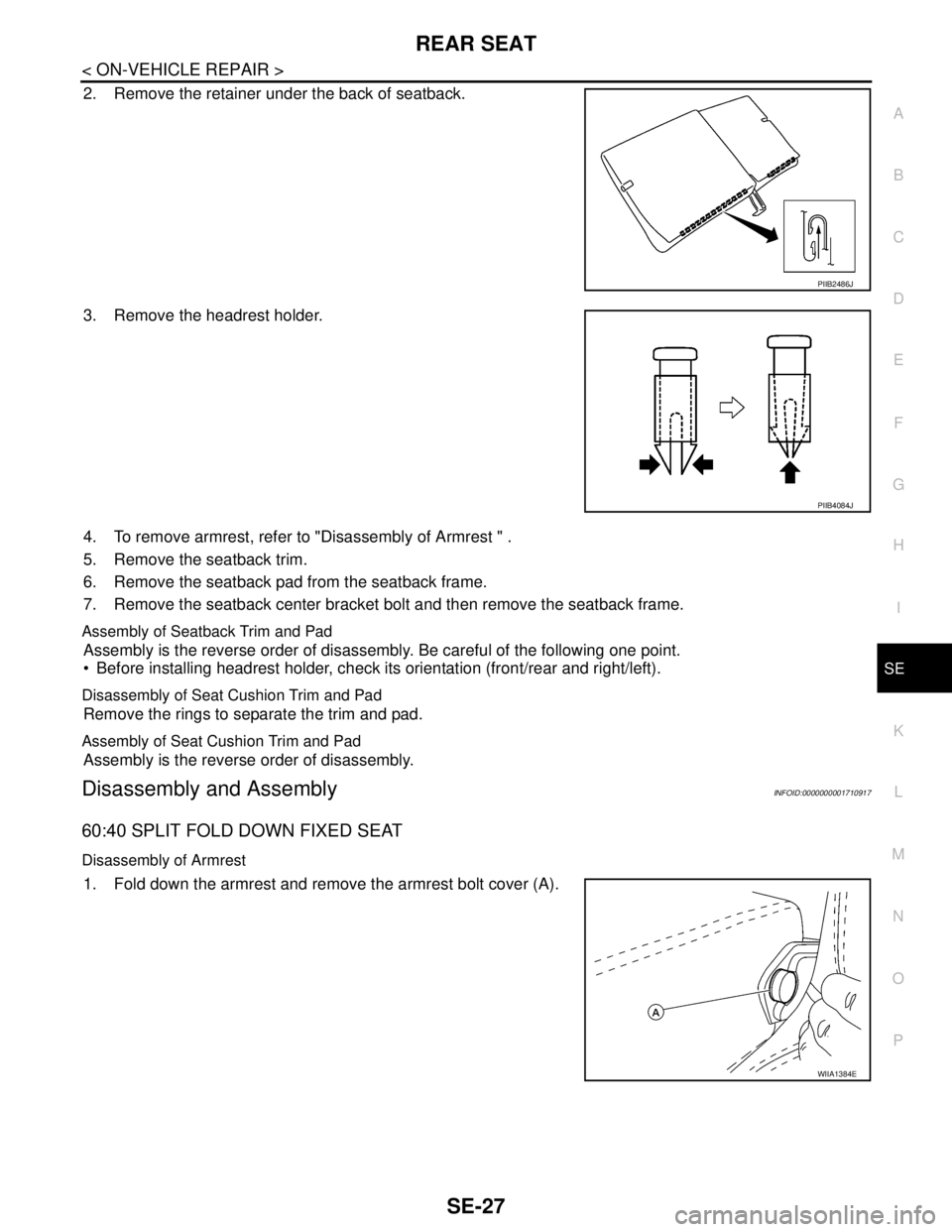

2. Remove the retainer under the back of seatback.
3. Remove the headrest holder.
4. To remove armrest, refer to "Disassembly of Armrest " .
5. Remove the seatback trim.
6. Remove the seatback pad from the seatback frame.
7. Remove the seatback center bracket bolt and then remove the seatback frame.
Assembly of Seatback Trim and Pad
Assembly is the reverse order of disassembly. Be careful of the following one point.
Before installing headrest holder, check its orientation (front/rear and right/left).
Disassembly of Seat Cushion Trim and Pad
Remove the rings to separate the trim and pad.
Assembly of Seat Cushion Trim and Pad
Assembly is the reverse order of disassembly.
Disassembly and AssemblyINFOID:0000000001710917
60:40 SPLIT FOLD DOWN FIXED SEAT
Disassembly of Armrest
1. Fold down the armrest and remove the armrest bolt cover (A).
PIIB2486J
PIIB4084J
WIIA1384E
Page 4624 of 5883
SE-28
< ON-VEHICLE REPAIR >
REAR SEAT

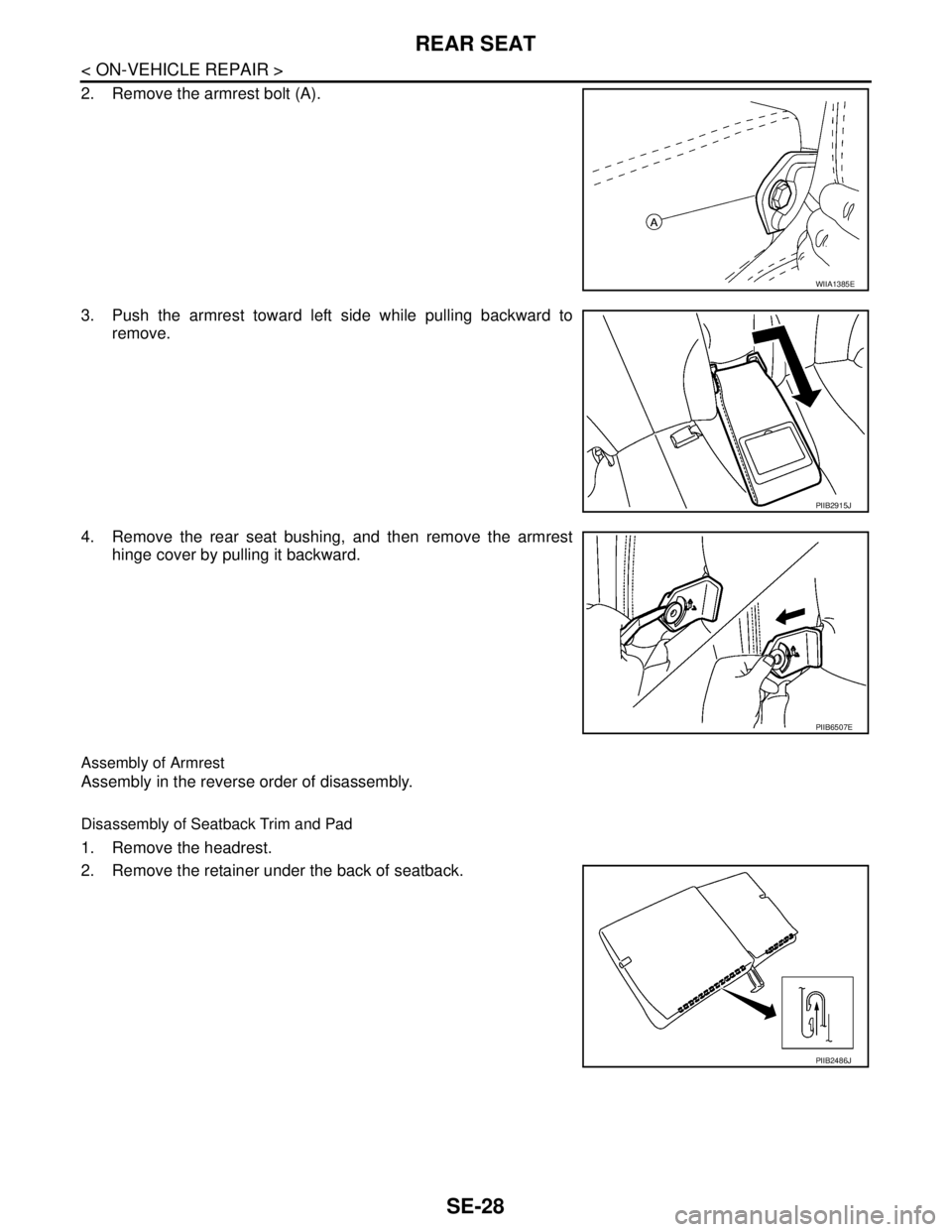

2. Remove the armrest bolt (A).
3. Push the armrest toward left side while pulling backward to
remove.
4. Remove the rear seat bushing, and then remove the armrest
hinge cover by pulling it backward.
Assembly of Armrest
Assembly in the reverse order of disassembly.
Disassembly of Seatback Trim and Pad
1. Remove the headrest.
2. Remove the retainer under the back of seatback.
WIIA1385E
PIIB2915J
PIIB6507E
PIIB2486J
