A/T 2ND GEAR FUNCTION
TM-399
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
OK or NG
OK >> GO TO 4.
NG >> Repair control valve assembly.
4.CHECK DTC
Perform TM-397, "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
NG >> Check control valve again. Repair or replace control valve assembly.
Page 5346 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-400
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 3RD GEAR FUNCTION
A/T 3RD GEAR FUNCTION
DescriptionINFOID:0000000001713086
This malfunction will not be detected while the OD OFF indicator NISSAN TIIDA 2007 Service Repair Manual TM-400
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 3RD GEAR FUNCTION
A/T 3RD GEAR FUNCTION
DescriptionINFOID:0000000001713086
This malfunction will not be detected while the OD OFF indicator](/manual-img/5/57395/w960_57395-5345.png)
TM-400
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 3RD GEAR FUNCTION
A/T 3RD GEAR FUNCTION
DescriptionINFOID:0000000001713086
This malfunction will not be detected while the OD OFF indicator lamp is indicating another self-diagnosis
malfunction.
This malfunction is detected when the A/T does not shift into third gear position as instructed by the TCM.
This is not caused by electrical malfunction (circuits open or shorted) but by mechanical malfunction such as
control valve sticking, improper solenoid valve operation, malfunctioning servo piston or brake band, etc.
On Board Diagnosis LogicINFOID:0000000001713087
Diagnostic trouble code “A/T 3RD GR FNCTN” with CONSULT-III is detected when A/T cannot be shifted to
the 3rd gear position even if electrical circuit is good.
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is higher than the position (3rd) supposed by TCM, the slip ratio will be more than
normal. In case the ratio exceeds the specified value, TCM judges this diagnosis malfunction.
This malfunction will be caused when shift solenoid valve A is stuck closed.
Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck closed: 1, 1, 4* and 4 positions to each gear position
above
*: “A/T 3RD GR FNCTN” is detected.
Possible CauseINFOID:0000000001713088
Shift solenoid valve A
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureINFOID:0000000001713089
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
3. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SE: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the
voltage (cool down the fluid).
4. Select “3RD GR FNCTN P0733” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III and touch “START”.
5. Accelerate vehicle to 60 to 75 km/h (37 to 47 MPH) under the following conditions and release the accel-
erator pedal completely.
THROTTLE POSI: Less than 1.0/8 (at all times during step 4)
SLCT LVR POSI: “D” position
-Make sure that “GEAR” shows “4” after releasing pedal.
Gear position1234
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Page 5347 of 5883
![NISSAN TIIDA 2007 Service Repair Manual A/T 3RD GEAR FUNCTION
TM-401
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
6. Depress accelerator pedal steadily with 3.5/8 - 4.5/8 of “THROTTLE POSI” from a speed NISSAN TIIDA 2007 Service Repair Manual A/T 3RD GEAR FUNCTION
TM-401
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
6. Depress accelerator pedal steadily with 3.5/8 - 4.5/8 of “THROTTLE POSI” from a speed](/manual-img/5/57395/w960_57395-5346.png)
A/T 3RD GEAR FUNCTION
TM-401
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
6. Depress accelerator pedal steadily with 3.5/8 - 4.5/8 of “THROTTLE POSI” from a speed of 60 to 75 km/h
(37 to 47 MPH) until “TESTING” changes to “STOP VEHICLE” or “COMPLETED”. (It will take approxi-
mately 3 seconds.)
If the check result NG appears on CONSULT-III screen, go to TM-401, "
Diagnosis Procedure".
If “STOP VEHICLE” appears on CONSULT-III screen, go to following step.
-Make sure that “GEAR” shows “3” when depressing accelerator pedal with 3.5/8 - 4.5/8 of
“THROTTLE POSI”.
-If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAG RESULTS” for
“TRANSMISSION”. In case a DTC other than “A/T 3RD GR FNCTN” is shown, refer to XX-XX,
"*****".
7. Stop vehicle.
8. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
9. Make sure that “OK” is displayed. (If “NG” is displayed, refer to “Diagnostic Procedure”.)
Refer to TM-401, "
Diagnosis Procedure".
Refer to XX-XX, "*****"
.
Diagnosis ProcedureINFOID:0000000001713090
1.CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Shift solenoid valve A
- Shift solenoid valve B

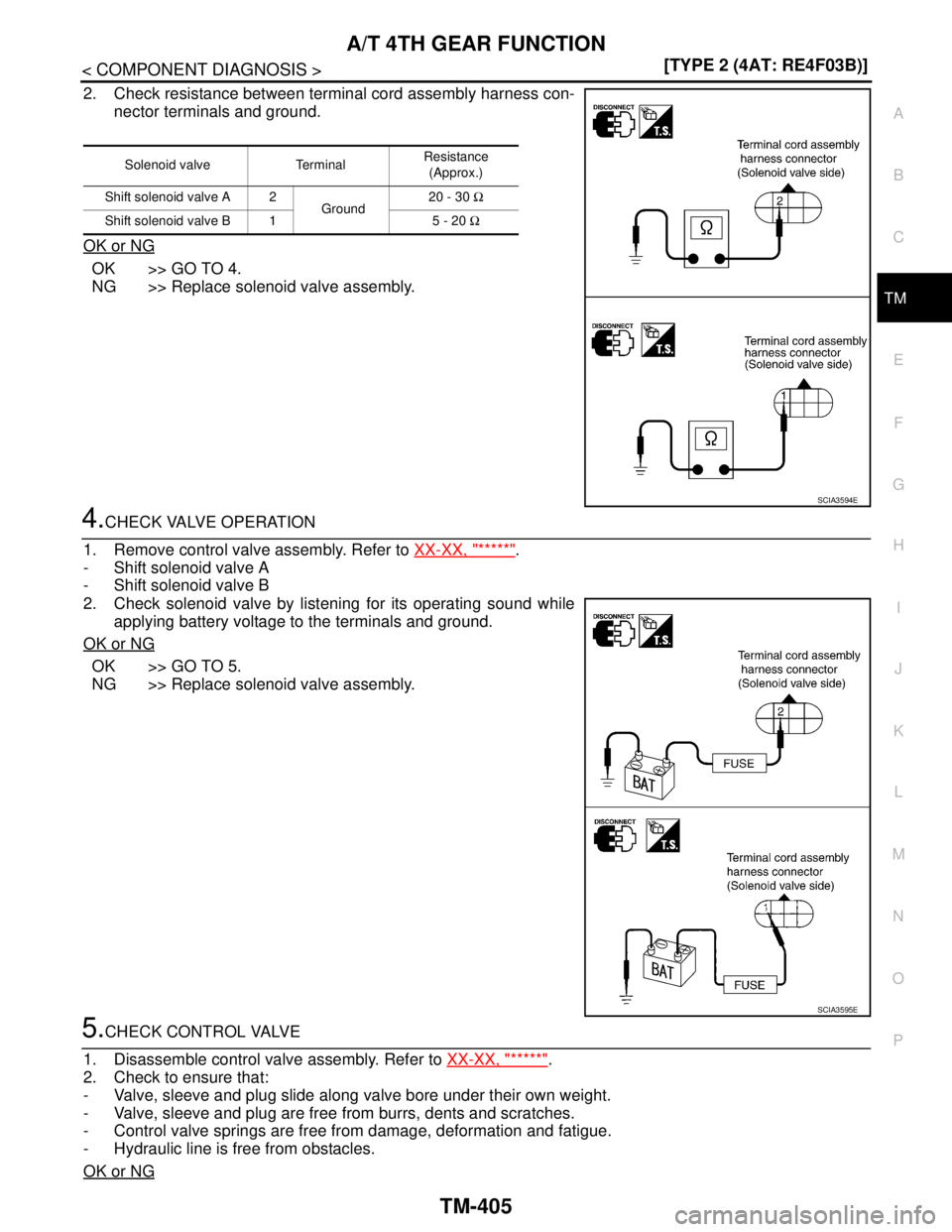

2. Check resistance between terminal cord assembly harness con-
nector terminals and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace shift solenoid valve assembly.
2.CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Shift solenoid valve A
- Shift solenoid valve B
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists. 1 → 2 → 3 → 4
Malfunction for “A/T 3RD GR FNCTN” exists. 1 → 1 → 4 → 4
Solenoid valve TerminalResistance
(Approx.)
Shift solenoid valve A 2
Ground20 - 30 Ω
Shift solenoid valve B 1 5 - 20 Ω
SCIA3594E
Page 5348 of 5883
TM-402
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 3RD GEAR FUNCTION
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace shift solenoid valve assembly.
3.CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to XX-XX, "*****"
.
2. Check to ensure that:
- Valve, sleeve and plug slide along valve bore under their own weight.
- Valve, sleeve and plug are free from burrs, dents and scratches.
- Control valve springs are free from damage, deformation and fatigue.
- Hydraulic line is free from obstacles.
OK or NG
OK >> GO TO 4.
NG >> Repair control valve assembly.
4.CHECK DTC
Perform TM-400, "
DTC Confirmation Procedure".
OK or NG
OK >>INSPECTION END
NG >> Check control valve again. Repair or replace control valve assembly.
SCIA3595E
Page 5349 of 5883
![NISSAN TIIDA 2007 Service Repair Manual A/T 4TH GEAR FUNCTION
TM-403
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
A/T 4TH GEAR FUNCTION
DescriptionINFOID:0000000001713091
This malfunction will not be dete NISSAN TIIDA 2007 Service Repair Manual A/T 4TH GEAR FUNCTION
TM-403
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
A/T 4TH GEAR FUNCTION
DescriptionINFOID:0000000001713091
This malfunction will not be dete](/manual-img/5/57395/w960_57395-5348.png)
A/T 4TH GEAR FUNCTION
TM-403
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
A/T 4TH GEAR FUNCTION
DescriptionINFOID:0000000001713091
This malfunction will not be detected while the OD OFF indicator lamp is indicating another self-diagnosis
malfunction.
This malfunction is detected when the A/T does not shift into fourth gear position or the torque converter
clutch does not lock up as instructed by the TCM. This is not caused by electrical malfunction (circuits open
or shorted) but by mechanical malfunction such as control valve sticking, improper solenoid valve operation,
malfunctioning oil pump or torque converter clutch, etc.
CONSULT-III REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001713092
Diagnostic trouble code “A/T 4TH GR FNCTN” with CONSULT-III is detected when A/T cannot be shifted to
the 4th gear position even if electrical circuit is good.
This diagnosis monitors actual gear position by checking the torque converter slip ratio calculated by TCM
as follows:
Torque converter slip ratio = A x C/B
A: Output shaft revolution signal from revolution sensor
B: Engine speed signal from ECM
C: Gear ratio determined as gear position which TCM supposes
If the actual gear position is much lower than the position (4th) supposed by TCM, the slip ratio will be much
less than normal. In case the ratio does not reach the specified value, TCM judges this diagnosis malfunc-
tion.
This malfunction will be caused when shift solenoid valve B is stuck closed.
Gear positions supposed by TCM are as follows.
In case of gear position with no malfunctions: 1, 2, 3 and 4 positions
In case of gear position with shift solenoid valve A stuck open: 2, 2, 3 and 3* positions
In case of gear position with shift solenoid valve B stuck closed: 1, 2, 2 and 1* positions to each gear position
above
*: “A/T 4TH GR FNCTN” is detected.
Possible CauseINFOID:0000000001713093
Shift solenoid valve A
Shift solenoid valve B
Line pressure solenoid valve
Each clutch
Hydraulic control circuit
DTC Confirmation ProcedureINFOID:0000000001713094
CAUTION:
Always drive vehicle at a safe speed.
If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-III
1. Start engine and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.
2. Touch “START”.
Gear position 1 2 3 4
Shift solenoid valve A ON (Closed) OFF (Open) OFF (Open) ON (Closed)
Shift solenoid valve B ON (Closed) ON (Closed) OFF (Open) OFF (Open)
Item name Condition Display value (Approx.)
LINE PRES DTYSmall throttle opening (Low line pressure) ⇔ Large
throttle opening (High line pressure)0% ⇔ 94%
Page 5350 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-404
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 4TH GEAR FUNCTION
3. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SE: 0.4 - 1.5V
If out NISSAN TIIDA 2007 Service Repair Manual TM-404
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 4TH GEAR FUNCTION
3. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SE: 0.4 - 1.5V
If out](/manual-img/5/57395/w960_57395-5349.png)
TM-404
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 4TH GEAR FUNCTION
3. Make sure that output voltage of A/T fluid temperature sensor is within the range below.
FLUID TEMP SE: 0.4 - 1.5V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the
voltage (cool down the fluid).
4. Select “4TH GR FNCTN P0734” of “DTC WORK SUPPORT” mode for “TRANSMISSION” with CON-
SULT-III and touch “START”.
5. Accelerate vehicle to 55 to 65 km/h (34 to 40 MPH) under the following conditions and release the accel-
erator pedal completely.
THROTTLE POSI: Less than 5.5/8 (at all times during step 4)
SLCT LVR POSI: “D” position
-Make sure that “GEAR” shows “3” after releasing pedal.
6. Depress accelerator pedal steadily with 1.0/8 - 2.0/8 of “THROTTLE POSI” from a speed of 55 to 65 km/h
(34 to 40 MPH) until “TESTING” has turned to “STOP VEHICLE” or “COMPLETED”. (It will take approxi-
mately 3 seconds.)
If the check result NG appears on CONSULT-III screen, go to TM-404, "
Diagnosis Procedure".
If “STOP VEHICLE” appears on CONSULT-III screen, go to following step.
-Make sure that “GEAR” shows “4” when depressing accelerator pedal with 1.0/8 - 2.0/8 of
“THROTTLE POSI”.
-If “TESTING” does not appear on CONSULT-III for a long time, select “SELF-DIAG RESULTS” for
“A/T”. In case a DTC other than “A/T 4TH GR FNCTN” is shown, refer to XX-XX, "*****"
.
7. Stop vehicle.
8. Follow the instruction displayed. (Check for normal shifting referring to the table below.)
9. Make sure that “OK” is displayed. (If “NG” is displayed, refer to “Diagnostic Procedure”.)
Refer to TM-404, "
Diagnosis Procedure".
Refer to XX-XX, "*****"
.
Diagnosis ProcedureINFOID:0000000001713095
1.CHECK SHIFT-UP (D3 TO D4)
During XX-XX, "*****"
.
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> GO TO 2.
2.CHECK LINE PRESSURE
Perform line pressure test. Refer to XX-XX, "*****"
.
OK or NG
OK >> GO TO 3.
NG >> GO TO 7.
3.CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Shift solenoid valve A
- Shift solenoid valve B
Vehicle condition Gear on actual transmission shift pattern when screen is changed to 1 → 2 → 3 → 4
No malfunction exists 1 → 2 → 3 → 4
Malfunction for “A/T 4TH GR FNCTN” exists.2 → 2 → 3 → 3
1 → 2 → 2 → 1
SCIA7190E
Page 5351 of 5883
![NISSAN TIIDA 2007 Service Repair Manual A/T 4TH GEAR FUNCTION
TM-405
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
2. Check resistance between terminal cord assembly harness con-
nector terminals and ground. NISSAN TIIDA 2007 Service Repair Manual A/T 4TH GEAR FUNCTION
TM-405
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
2. Check resistance between terminal cord assembly harness con-
nector terminals and ground.](/manual-img/5/57395/w960_57395-5350.png)
A/T 4TH GEAR FUNCTION
TM-405
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
2. Check resistance between terminal cord assembly harness con-
nector terminals and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace solenoid valve assembly.
4.CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Shift solenoid valve A
- Shift solenoid valve B
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace solenoid valve assembly.
5.CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to XX-XX, "*****"
.
2. Check to ensure that:
- Valve, sleeve and plug slide along valve bore under their own weight.
- Valve, sleeve and plug are free from burrs, dents and scratches.
- Control valve springs are free from damage, deformation and fatigue.
- Hydraulic line is free from obstacles.
OK or NG
Solenoid valve TerminalResistance
(Approx.)
Shift solenoid valve A 2
Ground20 - 30 Ω
Shift solenoid valve B 1 5 - 20 Ω
SCIA3594E
SCIA3595E
Page 5352 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-406
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 4TH GEAR FUNCTION
OK >> GO TO 6.
NG >> Repair control valve.
6.CHECK SHIFT-UP (D3 TO D4)
During XX-XX, "*****"
.
Does A/T shift from D
3 to D4 NISSAN TIIDA 2007 Service Repair Manual TM-406
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 4TH GEAR FUNCTION
OK >> GO TO 6.
NG >> Repair control valve.
6.CHECK SHIFT-UP (D3 TO D4)
During XX-XX, "*****"
.
Does A/T shift from D
3 to D4](/manual-img/5/57395/w960_57395-5351.png)
TM-406
< COMPONENT DIAGNOSIS >[TYPE 2 (4AT: RE4F03B)]
A/T 4TH GEAR FUNCTION
OK >> GO TO 6.
NG >> Repair control valve.
6.CHECK SHIFT-UP (D3 TO D4)
During XX-XX, "*****"
.
Does A/T shift from D
3 to D4 at the specified speed?
YES >> GO TO 11.
NO >> Check control valve again. Repair or replace control
valve assembly.
7.CHECK VALVE RESISTANCE
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Line pressure solenoid valves
2. Check resistance between terminal cord assembly harness con-
nector terminal and ground.
OK or NG
OK >> GO TO 8.
NG >> Replace solenoid valve assembly.
8.CHECK VALVE OPERATION
1. Remove control valve assembly. Refer to XX-XX, "*****"
.
- Line pressure solenoid valves
2. Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
OK or NG
OK >> GO TO 9.
NG >> Replace solenoid valve assembly.
9.CHECK CONTROL VALVE
1. Disassemble control valve assembly. Refer to XX-XX, "*****"
.
2. Check line pressure circuit valves for sticking.
- Pilot valve
- Shift solenoid valve A
- Shift solenoid valve B
OK or NG
OK >> GO TO 10.
NG >> Repair or replace control valve.
10.CHECK SHIFT-UP (D3 TO D4)
SCIA7190E
Solenoid valve TerminalResistance
(Approx.)
Line pressure solenoid valve 4 Ground 2.5 - 5 Ω
SCIA4951E
SCIA3275E
