HAC-132
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
AMBIENT SENSOR

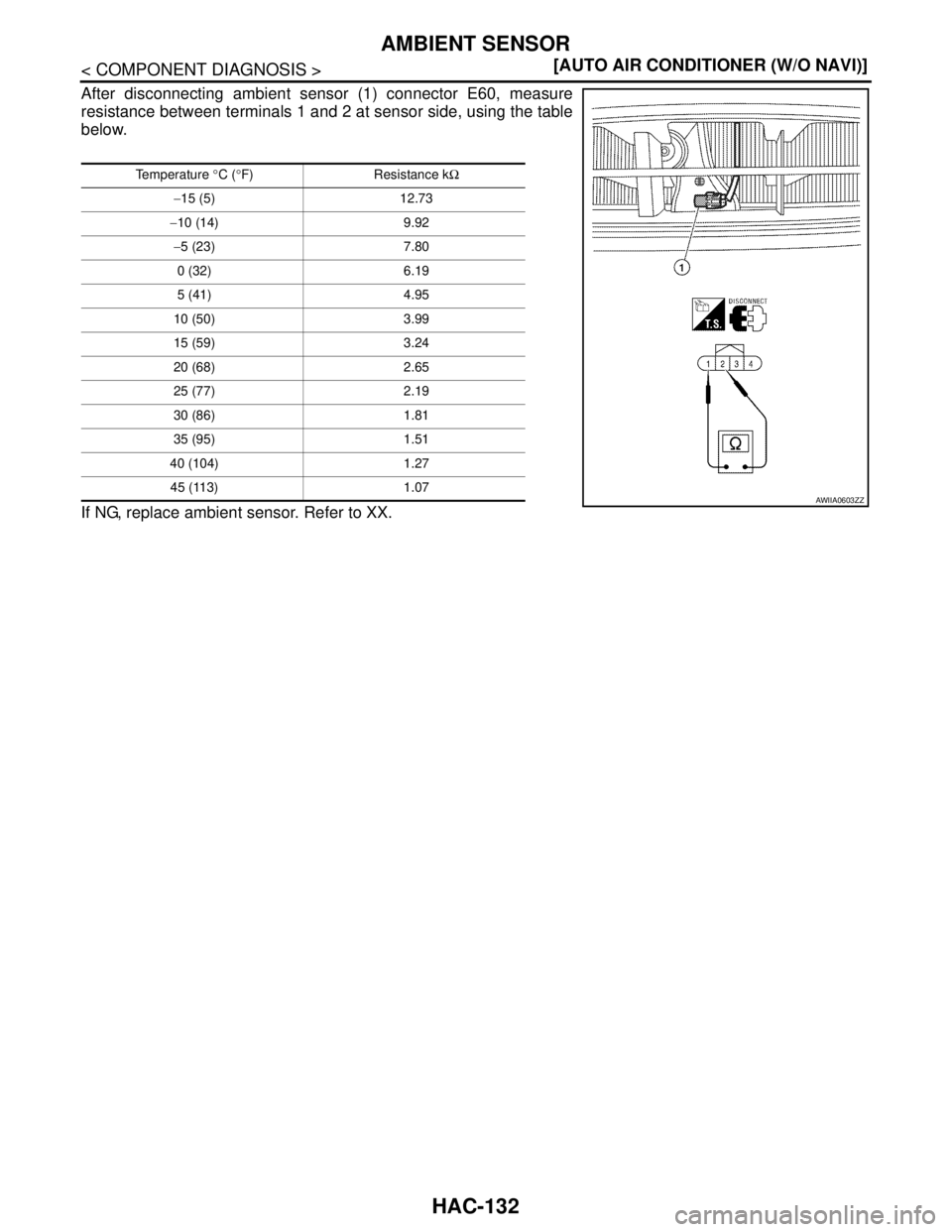

After disconnecting ambient sensor (1) connector E60, measure
resistance between terminals 1 and 2 at sensor side, using the table
below.
If NG, replace ambient sensor. Refer to XX.
Temperature °C (°F) Resistance kΩ
−15 (5) 12.73
−10 (14) 9.92
−5 (23) 7.80
0 (32) 6.19
5 (41) 4.95
10 (50) 3.99
15 (59) 3.24
20 (68) 2.65
25 (77) 2.19
30 (86) 1.81
35 (95) 1.51
40 (104) 1.27
45 (113) 1.07
AWIIA0603ZZ
Page 3466 of 5883
IN-VEHICLE SENSOR
HAC-133
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
IN-VEHICLE SENSOR
Component DescriptionINFOID:0000000001547438
COMPONENT DESCRIPTION
In-vehicle Sensor

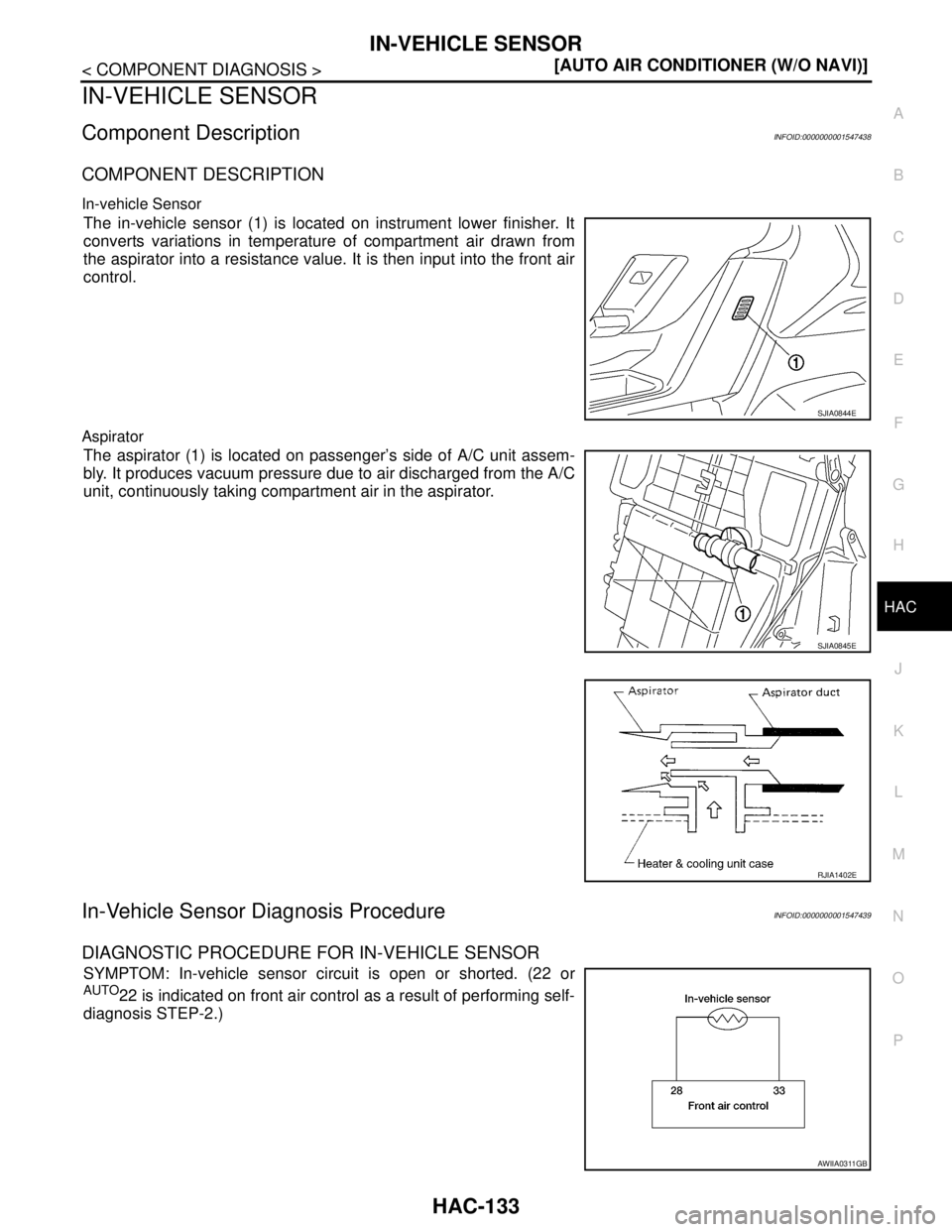

The in-vehicle sensor (1) is located on instrument lower finisher. It
converts variations in temperature of compartment air drawn from
the aspirator into a resistance value. It is then input into the front air
control.
Aspirator
The aspirator (1) is located on passenger’s side of A/C unit assem-
bly. It produces vacuum pressure due to air discharged from the A/C
unit, continuously taking compartment air in the aspirator.
In-Vehicle Sensor Diagnosis ProcedureINFOID:0000000001547439
DIAGNOSTIC PROCEDURE FOR IN-VEHICLE SENSOR
SYMPTOM: In-vehicle sensor circuit is open or shorted. (22 or
AUTO22 is indicated on front air control as a result of performing self-
diagnosis STEP-2.)
SJIA0844E
SJIA0845E
RJIA1402E
AWIIA0311GB
Page 3467 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-134
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
IN-VEHICLE SENSOR

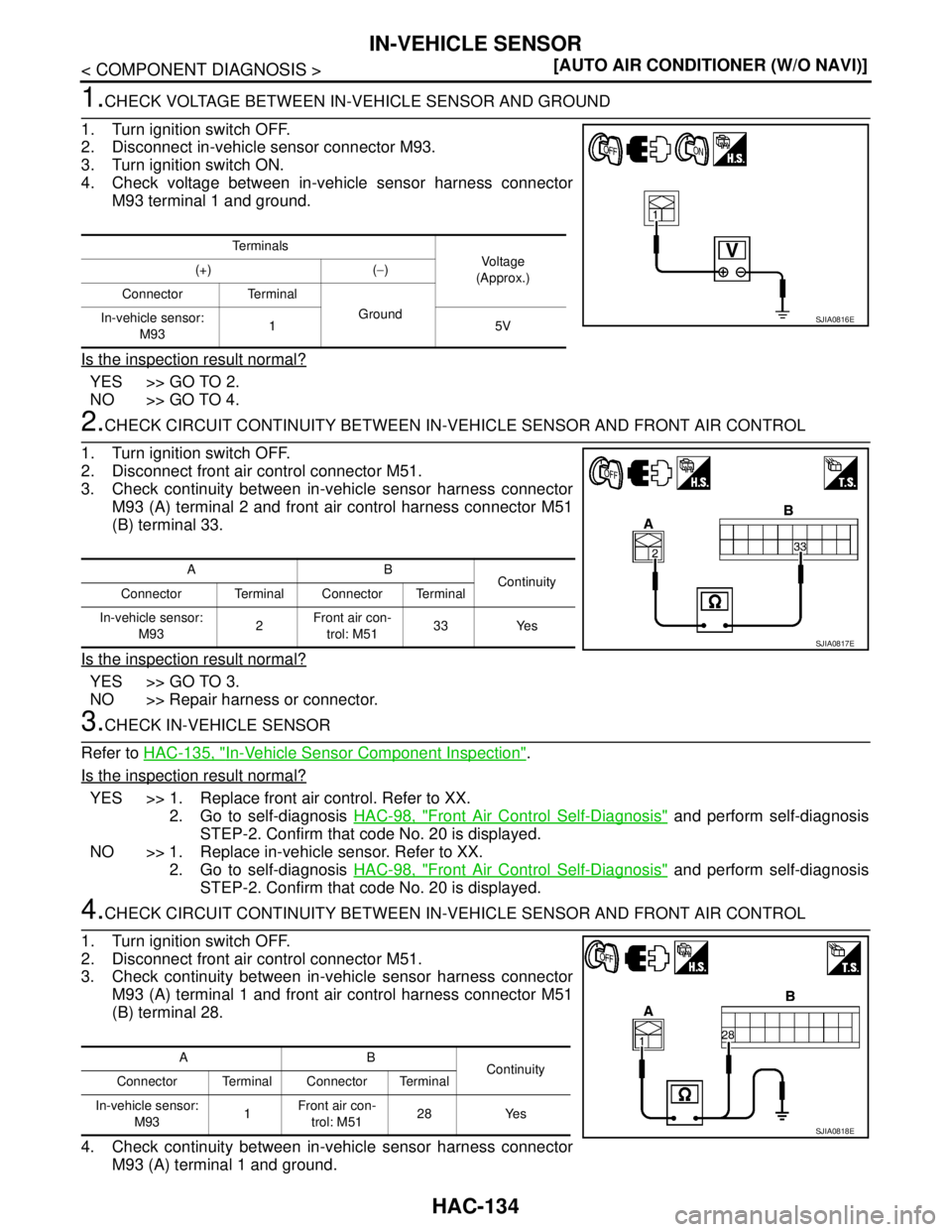

1.CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor con NISSAN TIIDA 2007 Service Repair Manual HAC-134
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
IN-VEHICLE SENSOR
1.CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor con](/manual-img/5/57395/w960_57395-3466.png)
HAC-134
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
IN-VEHICLE SENSOR
1.CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect in-vehicle sensor connector M93.
3. Turn ignition switch ON.
4. Check voltage between in-vehicle sensor harness connector
M93 terminal 1 and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector M51.
3. Check continuity between in-vehicle sensor harness connector
M93 (A) terminal 2 and front air control harness connector M51
(B) terminal 33.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK IN-VEHICLE SENSOR
Refer to HAC-135, "
In-Vehicle Sensor Component Inspection".
Is the inspection result normal?
YES >> 1. Replace front air control. Refer to XX.
2. Go to self-diagnosis HAC-98, "
Front Air Control Self-Diagnosis" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
NO >> 1. Replace in-vehicle sensor. Refer to XX.
2. Go to self-diagnosis HAC-98, "
Front Air Control Self-Diagnosis" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
4.CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector M51.
3. Check continuity between in-vehicle sensor harness connector
M93 (A) terminal 1 and front air control harness connector M51
(B) terminal 28.
4. Check continuity between in-vehicle sensor harness connector
M93 (A) terminal 1 and ground.
Te r m i n a l s
Vo l ta g e
(Approx.) (+) (−)
Connector Terminal
Ground
In-vehicle sensor:
M9315V
SJIA0816E
AB
Continuity
Connector Terminal Connector Terminal
In-vehicle sensor:
M932Front air con-
trol: M5133 Yes
SJIA0817E
AB
Continuity
Connector Terminal Connector Terminal
In-vehicle sensor:
M931Front air con-
trol: M5128 Yes
SJIA0818E
Page 3468 of 5883
IN-VEHICLE SENSOR
HAC-135
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
Is the inspection result normal?
YES >> 1. Replace front air control. Refer to XX.
2. Go to self-diagnosis HAC-98, "
Front Air Control Self-Diagnosis" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
NO >> Repair harness or connector.
In-Vehicle Sensor Component InspectionINFOID:0000000001547440
COMPONENT INSPECTION
In-vehicle Sensor

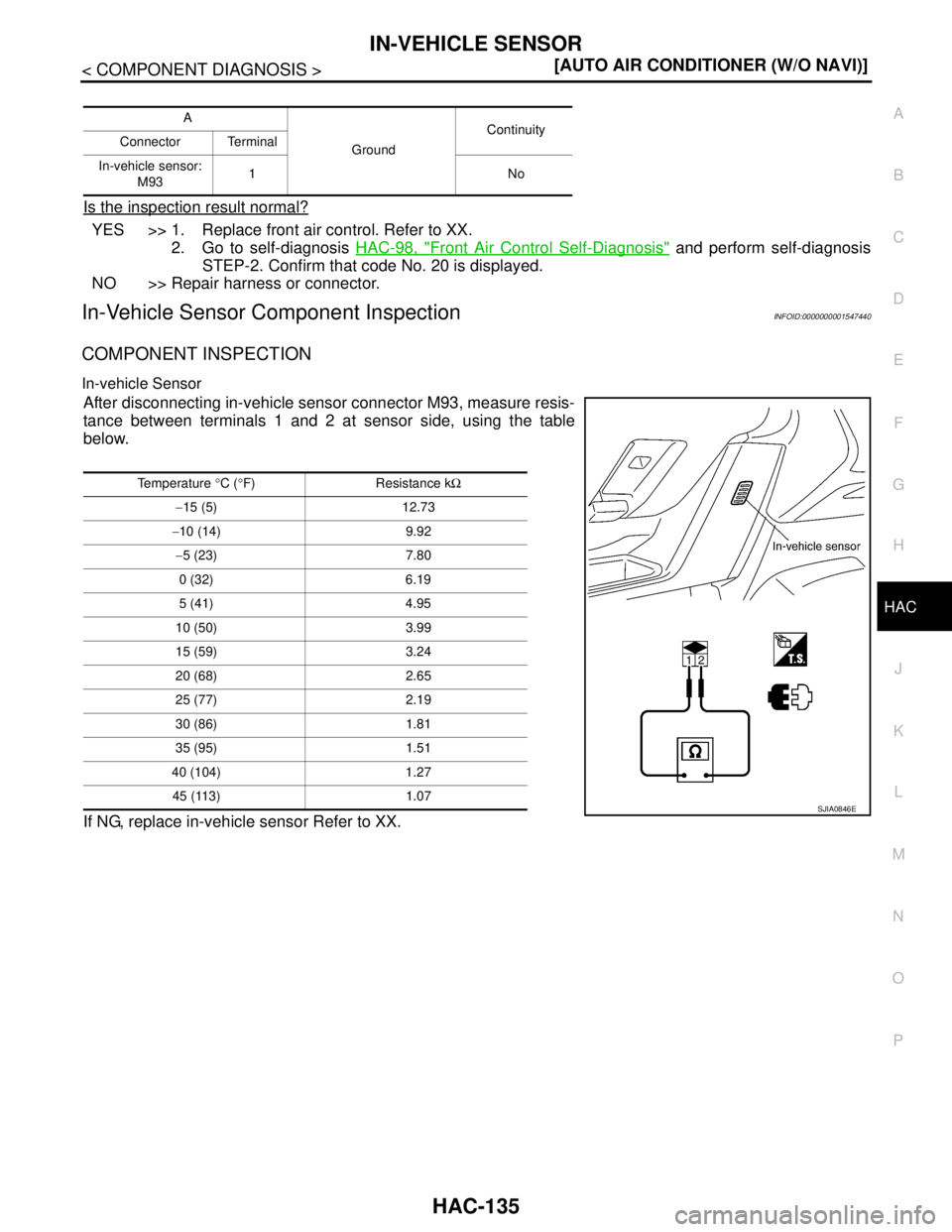

After disconnecting in-vehicle sensor connector M93, measure resis-
tance between terminals 1 and 2 at sensor side, using the table
below.
If NG, replace in-vehicle sensor Refer to XX.
A
GroundContinuity
Connector Terminal
In-vehicle sensor:
M931No
Temperature °C (°F) Resistance kΩ
−15 (5) 12.73
−10 (14) 9.92
−5 (23) 7.80
0 (32) 6.19
5 (41) 4.95
10 (50) 3.99
15 (59) 3.24
20 (68) 2.65
25 (77) 2.19
30 (86) 1.81
35 (95) 1.51
40 (104) 1.27
45 (113) 1.07
SJIA0846E
Page 3469 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-136
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
SUNLOAD SENSOR
SUNLOAD SENSOR
System DescriptionINFOID:0000000001547443
COMPONENT DESCRIPTION
Sunload Sensor
The sunload sensor (1) is NISSAN TIIDA 2007 Service Repair Manual HAC-136
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
SUNLOAD SENSOR
SUNLOAD SENSOR
System DescriptionINFOID:0000000001547443
COMPONENT DESCRIPTION
Sunload Sensor
The sunload sensor (1) is](/manual-img/5/57395/w960_57395-3468.png)
HAC-136
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
SUNLOAD SENSOR
SUNLOAD SENSOR
System DescriptionINFOID:0000000001547443
COMPONENT DESCRIPTION
Sunload Sensor
The sunload sensor (1) is located on the instrument upper mask. It
detects sunload entering through windshield by means of a photo
diode. The sensor converts the sunload into a current value which is
then input into the front air control.
SUNLOAD INPUT PROCESS
The front air control also includes a processing circuit which averages the variations in detected sunload over
a period of time. This prevents drastic swings in the ATC system operation due to small or quick variations in
detected sunload.
For example, consider driving along a road bordered by an occasional group of large trees. The sunload
detected by the sunload sensor will vary whenever the trees obstruct the sunlight. The processing circuit aver-
ages the detected sunload over a period of time, so that the (insignificant) effect of the trees momentarily
obstructing the sunlight does not cause any change in the ATC system operation. On the other hand, shortly
after entering a long tunnel, the system will recognize the change in sunload, and the system will react accord-
ingly.
Sunload Sensor Diagnosis ProcedureINFOID:0000000001547442
DIAGNOSTIC PROCEDURE FOR SUNLOAD SENSOR
SYMPTOM: Sunload sensor circuit is open or shorted. (25 or AUTO25
is indicated on front air control as a result of performing self-diagno-
sis STEP-2.)
1.CHECK VOLTAGE BETWEEN SUNLOAD SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect sunload sensor connector M94.
3. Turn ignition switch ON.
4. Check voltage between sunload sensor harness connector M94
terminal 1 and ground.
Is the inspection result normal?
SJIA0819E
AWIIA0312GB
Te r m i n a l s
Voltag e
(Approx.) (+) (−)
Connector Terminal
Ground
Sunload sensor: M94 1 5V
SJIA0821E
Page 3470 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SUNLOAD SENSOR
HAC-137
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FR NISSAN TIIDA 2007 Service Repair Manual SUNLOAD SENSOR
HAC-137
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FR](/manual-img/5/57395/w960_57395-3469.png)
SUNLOAD SENSOR
HAC-137
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
YES >> GO TO 2.
NO >> GO TO 4.

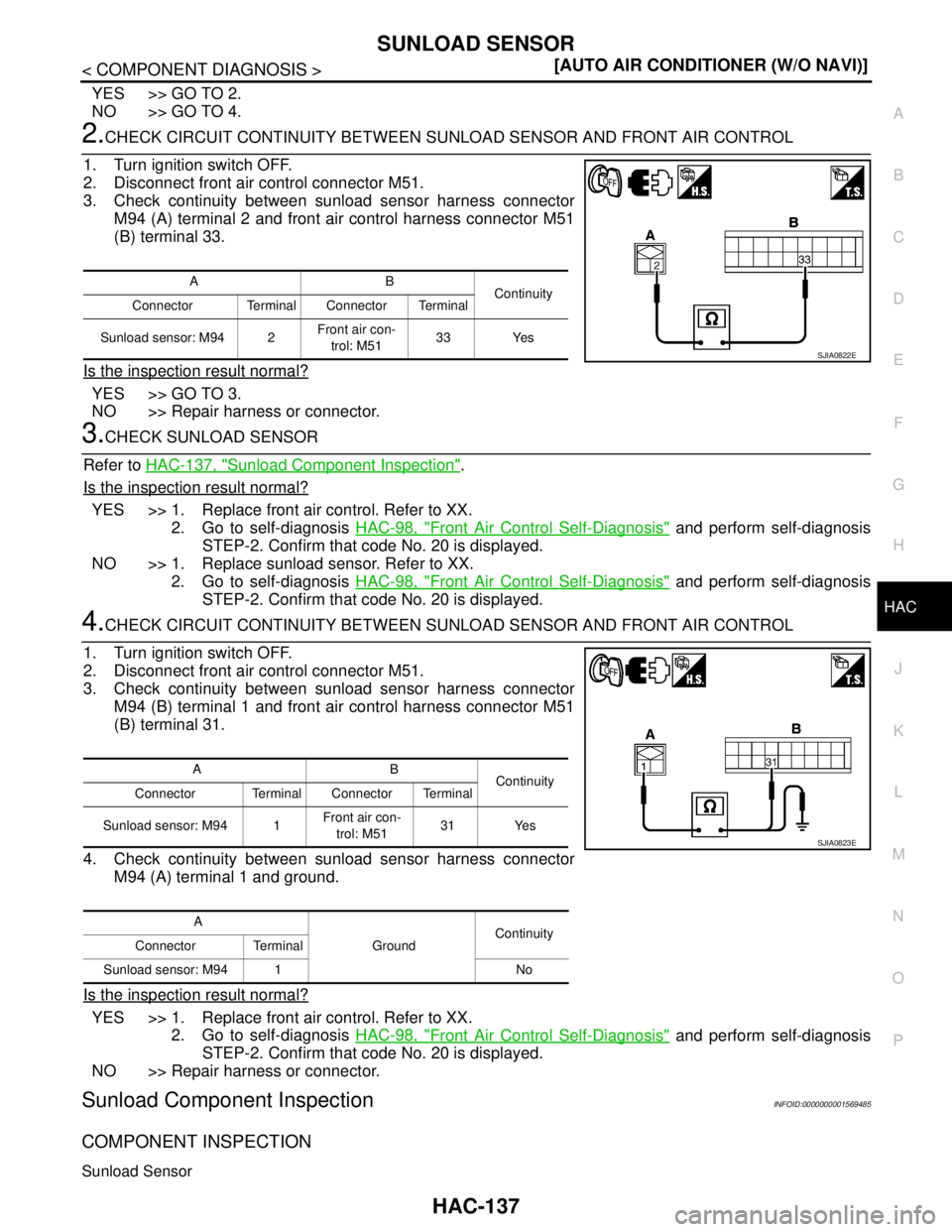

2.CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector M51.
3. Check continuity between sunload sensor harness connector
M94 (A) terminal 2 and front air control harness connector M51
(B) terminal 33.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK SUNLOAD SENSOR
Refer to HAC-137, "
Sunload Component Inspection".
Is the inspection result normal?
YES >> 1. Replace front air control. Refer to XX.
2. Go to self-diagnosis HAC-98, "
Front Air Control Self-Diagnosis" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
NO >> 1. Replace sunload sensor. Refer to XX.
2. Go to self-diagnosis HAC-98, "
Front Air Control Self-Diagnosis" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
4.CHECK CIRCUIT CONTINUITY BETWEEN SUNLOAD SENSOR AND FRONT AIR CONTROL
1. Turn ignition switch OFF.
2. Disconnect front air control connector M51.
3. Check continuity between sunload sensor harness connector
M94 (B) terminal 1 and front air control harness connector M51
(B) terminal 31.
4. Check continuity between sunload sensor harness connector
M94 (A) terminal 1 and ground.
Is the inspection result normal?
YES >> 1. Replace front air control. Refer to XX.
2. Go to self-diagnosis HAC-98, "
Front Air Control Self-Diagnosis" and perform self-diagnosis
STEP-2. Confirm that code No. 20 is displayed.
NO >> Repair harness or connector.
Sunload Component InspectionINFOID:0000000001569485
COMPONENT INSPECTION
Sunload Sensor
AB
Continuity
Connector Terminal Connector Terminal
Sunload sensor: M94 2Front air con-
trol: M5133 Yes
SJIA0822E
AB
Continuity
Connector Terminal Connector Terminal
Sunload sensor: M94 1Front air con-
trol: M5131 Yes
A
GroundContinuity
Connector Terminal
Sunload sensor: M94 1 No
SJIA0823E
Page 3471 of 5883
HAC-138
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
SUNLOAD SENSOR

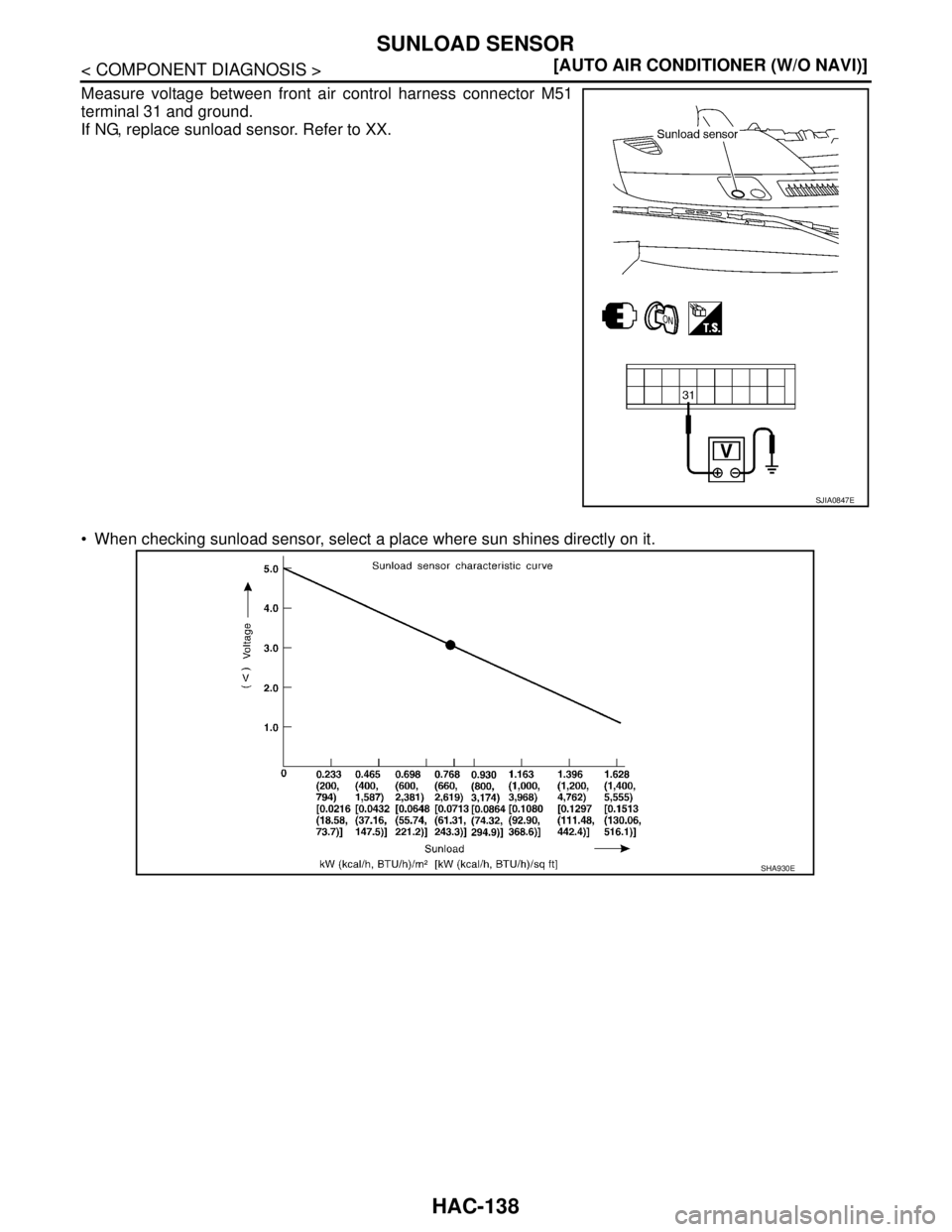

Measure voltage between front air control harness connector M51
terminal 31 and ground.
If NG, replace sunload sensor. Refer to XX.
When checking sunload sensor, select a place where sun shines directly on it.
SJIA0847E
SHA930E
Page 3472 of 5883
![NISSAN TIIDA 2007 Service Repair Manual INTAKE SENSOR
HAC-139
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

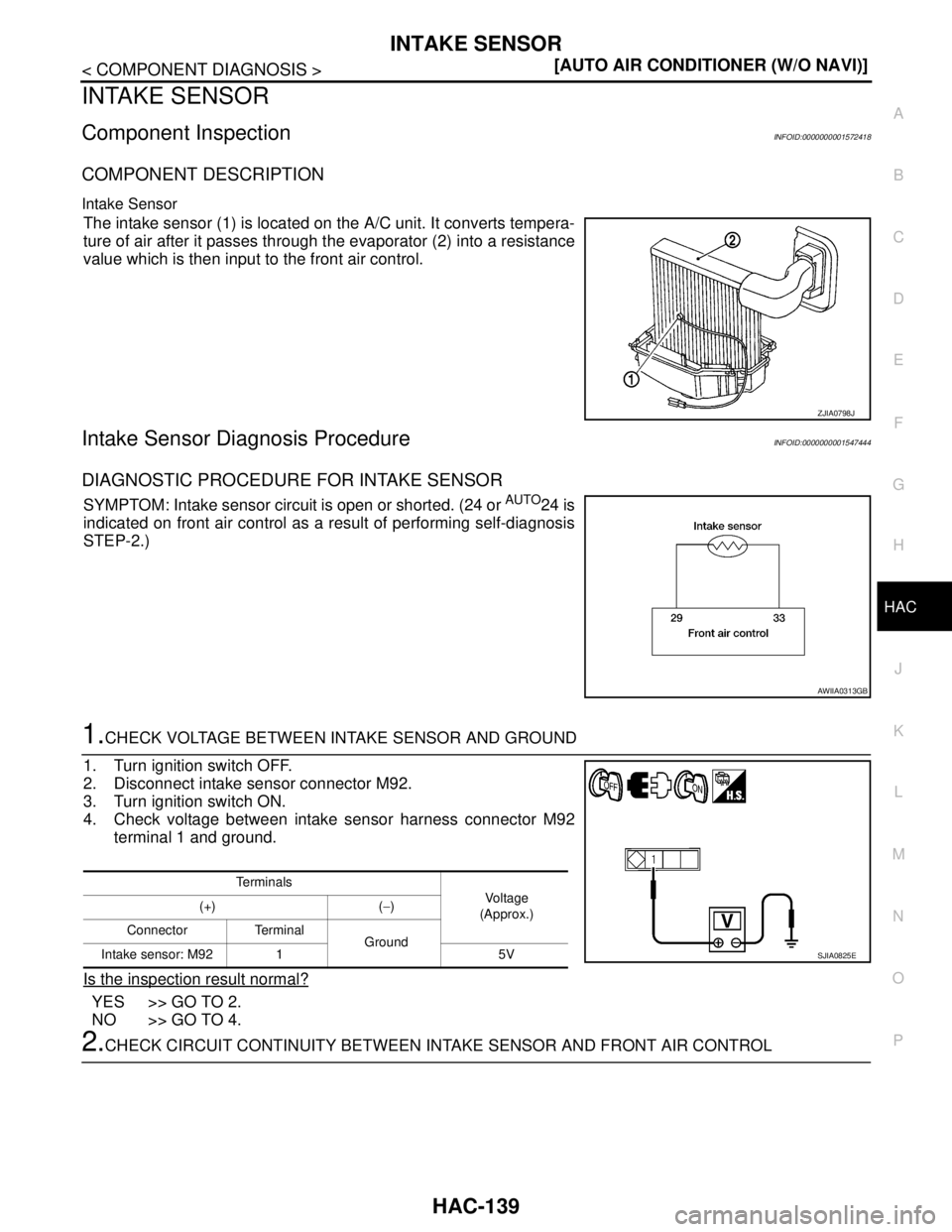

INTAKE SENSOR
Component InspectionINFOID:0000000001572418
COMPONENT DESCRIPTION
Intake S NISSAN TIIDA 2007 Service Repair Manual INTAKE SENSOR
HAC-139
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INTAKE SENSOR
Component InspectionINFOID:0000000001572418
COMPONENT DESCRIPTION
Intake S](/manual-img/5/57395/w960_57395-3471.png)
INTAKE SENSOR
HAC-139
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/O NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
INTAKE SENSOR
Component InspectionINFOID:0000000001572418
COMPONENT DESCRIPTION
Intake Sensor
The intake sensor (1) is located on the A/C unit. It converts tempera-
ture of air after it passes through the evaporator (2) into a resistance
value which is then input to the front air control.
Intake Sensor Diagnosis ProcedureINFOID:0000000001547444
DIAGNOSTIC PROCEDURE FOR INTAKE SENSOR
SYMPTOM: Intake sensor circuit is open or shorted. (24 or AUTO24 is
indicated on front air control as a result of performing self-diagnosis
STEP-2.)
1.CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND
1. Turn ignition switch OFF.
2. Disconnect intake sensor connector M92.
3. Turn ignition switch ON.
4. Check voltage between intake sensor harness connector M92
terminal 1 and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND FRONT AIR CONTROL
ZJIA0798J
AWIIA0313GB
Te r m i n a l s
Voltag e
(Approx.) (+) (−)
Connector Terminal
Ground
Intake sensor: M92 1 5V
SJIA0825E
