EM-138
< PREPARATION >[MR18DE]
PREPARATION
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000001337772
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

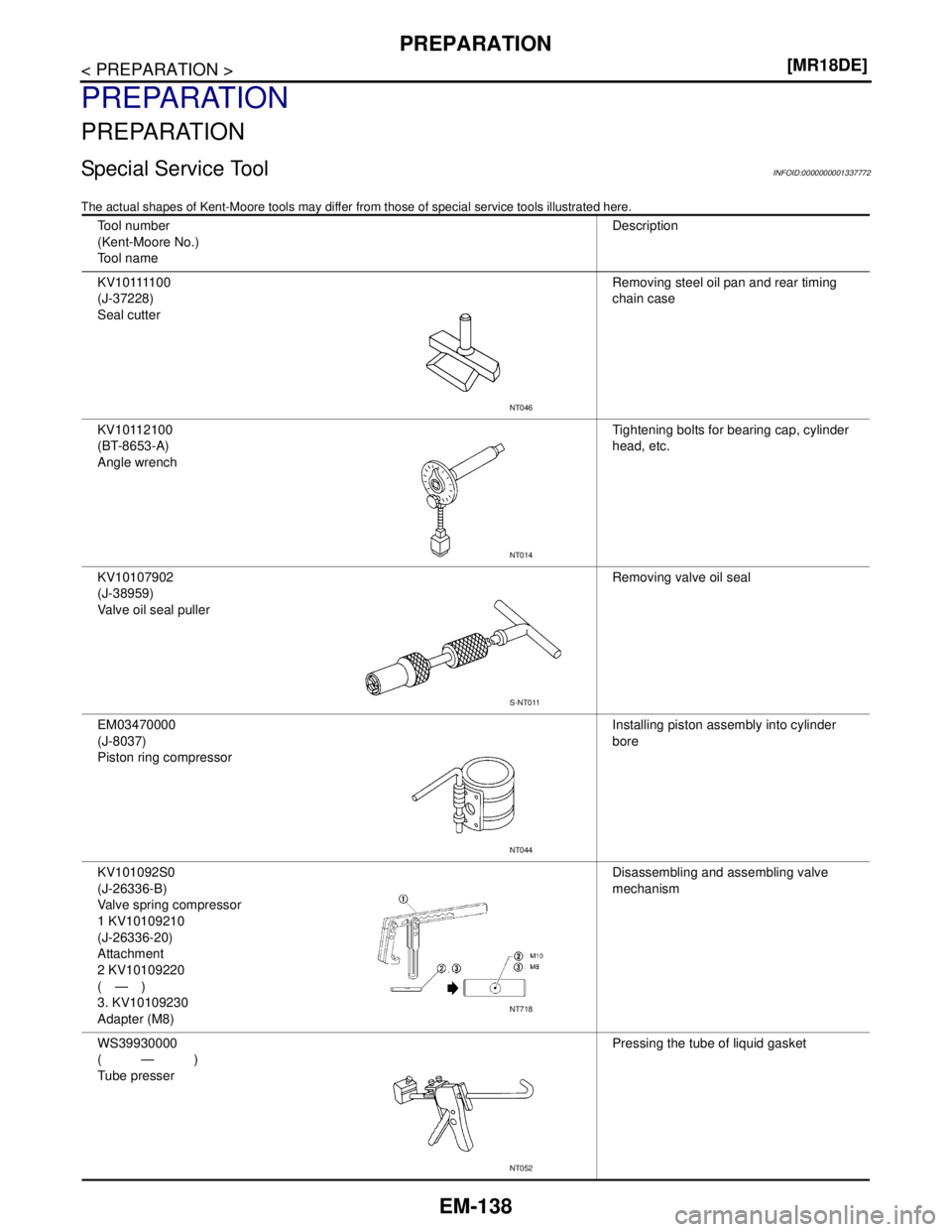

Tool number
(Kent-Moore No.)
Tool nameDescription
K V 1 0 1111 0 0
(J-37228)
Seal cutterRemoving steel oil pan and rear timing
chain case
KV10112100
(BT-8653-A)
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc.
KV10107902
(J-38959)
Valve oil seal pullerRemoving valve oil seal
EM03470000
(J-8037)
Piston ring compressorInstalling piston assembly into cylinder
bore
KV101092S0
(J-26336-B)
Valve spring compressor
1 KV10109210
(J-26336-20)
Attachment
2 KV10109220
(—)
3. KV10109230
Adapter (M8)Disassembling and assembling valve
mechanism
WS39930000
(—)
Tube presserPressing the tube of liquid gasket
NT046
NT014
S-NT011
NT044
NT718
NT052
Page 2786 of 5883
PREPARATION
EM-139
< PREPARATION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

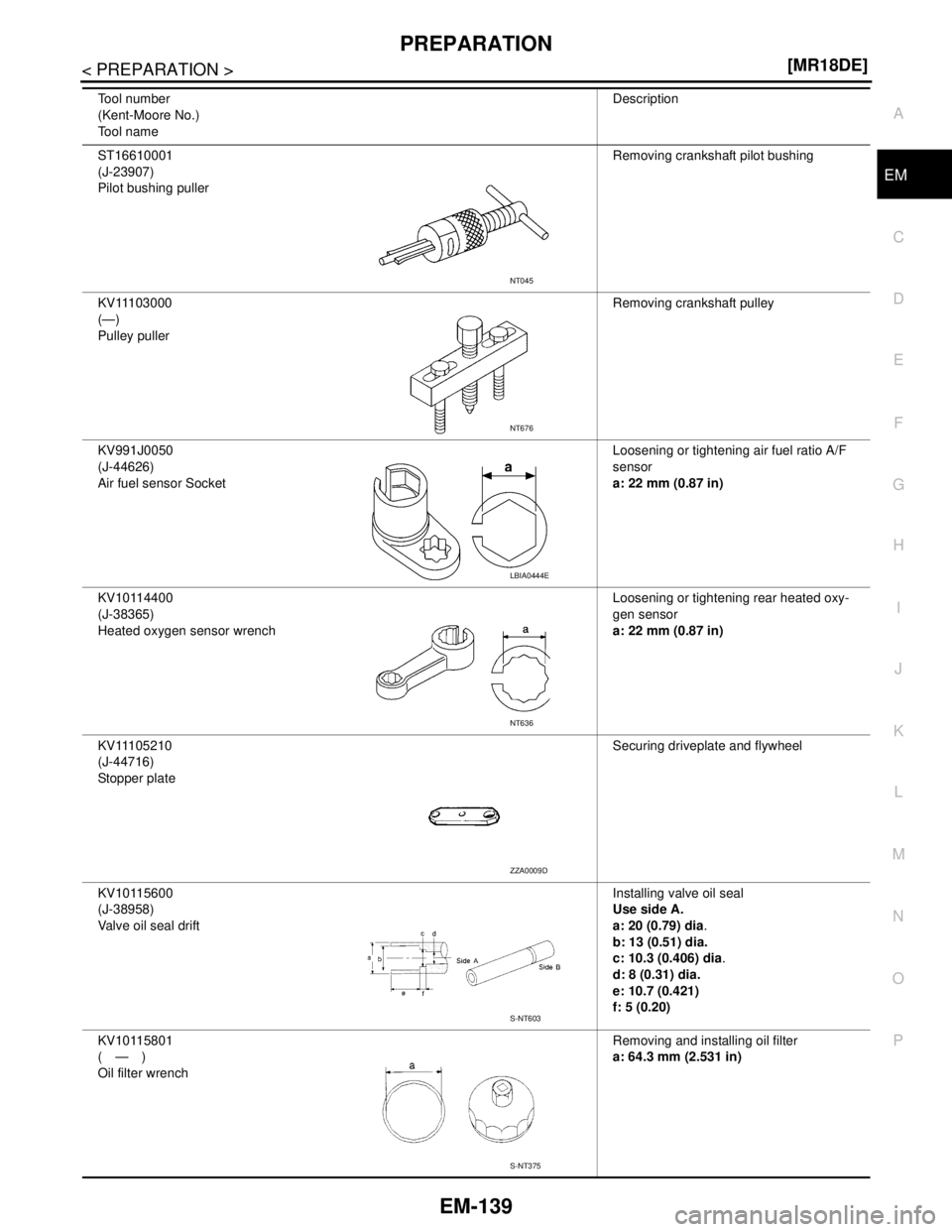

ST16610001
(J-23907)
Pilot bushing pullerRemoving crankshaft pilot bushing
KV11103000
(—)
Pulley pullerRemoving crankshaft pulley
KV991J0050
(J-44626)
Air fuel sensor SocketLoosening or tightening air fuel ratio A/F
sensor
a: 22 mm (0.87 in)
KV10114400
(J-38365)
Heated oxygen sensor wrenchLoosening or tightening rear heated oxy-
gen sensor
a: 22 mm (0.87 in)
KV11105210
(J-44716)
Stopper plateSecuring driveplate and flywheel
KV10115600
(J-38958)
Valve oil seal driftInstalling valve oil seal
Use side A.
a: 20 (0.79) dia.
b: 13 (0.51) dia.
c: 10.3 (0.406) dia.
d: 8 (0.31) dia.
e: 10.7 (0.421)
f: 5 (0.20)
KV10115801
(—)
Oil filter wrenchRemoving and installing oil filter
a: 64.3 mm (2.531 in) Tool number
(Kent-Moore No.)
Tool nameDescription
NT045
NT676
LBIA0444E
NT636
ZZA0009D
S-NT603
S-NT375
Page 2787 of 5883
EM-140
< PREPARATION >[MR18DE]
PREPARATION
Commercial Service Tool
INFOID:0000000001337773
(Kent-Moore No.)
Tool nameDescription
(BT-3373-F)
Belt tension gaugeChecking drive belt tension
Power toolLoosening bolts and nuts
Spark plug wrench Removing and installing spark plug
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
KV10109300
(—)
Pulley holderRemoving and installing crankshaft pulley
AMA126
PBIC0190E
PBIC2982E
NT048
NT030
NT628
Page 2788 of 5883
PREPARATION
EM-141
< PREPARATION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
KV10111800
Valve guide driftRemoving and installing valve guide
Valve guide reamer (1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleanerReconditioning the exhaust system threads
before installing a new oxygen sensor (Use
with anti-seize lubricant shown below.)
a: J-43897-18 (18 mm dia.) for zirconia ox-
ygen sensor
b: J-43897-12 (12 mm dia.) for titania oxy-
gen sensor
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads
E20 Torx® Socket
(J-45816)Removing and installing drive plate and fly-
wheel bolts (Kent-Moore No.)
Tool nameDescription
PBIC4012E
PBIC4013E
AEM488
AEM489
LBIA0285E
Page 2789 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EM-142
< ON-VEHICLE MAINTENANCE >[MR18DE]
DRIVE BELTS
ON-VEHICLE MAINTENANCE
DRIVE BELTS
ComponentINFOID:0000000001337776
Checking Drive BeltsINFOID:0000000001337777
WARNING:
Be sure to perform this s NISSAN TIIDA 2007 Service Repair Manual EM-142
< ON-VEHICLE MAINTENANCE >[MR18DE]
DRIVE BELTS
ON-VEHICLE MAINTENANCE
DRIVE BELTS
ComponentINFOID:0000000001337776
Checking Drive BeltsINFOID:0000000001337777
WARNING:
Be sure to perform this s](/manual-img/5/57395/w960_57395-2788.png)
EM-142
< ON-VEHICLE MAINTENANCE >[MR18DE]
DRIVE BELTS
ON-VEHICLE MAINTENANCE
DRIVE BELTS
ComponentINFOID:0000000001337776
Checking Drive BeltsINFOID:0000000001337777
WARNING:
Be sure to perform this step when the engine is stopped.
Make sure that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use range
(A).
NOTE:
Check the drive belt auto-tensioner indication when the engine is cold.
When new drive belt is installed, the indicator (notch on fixed side) should be within the range (B).
Visually check entire drive belt for wear, damage or cracks.
If the indicator (notch on fixed side) is out of the possible use range or belt is damaged, replace drive belt.
Tension AdjustmentINFOID:0000000001337778
Belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.
Removal and InstallationINFOID:0000000001337779
REMOVAL
1. Hold the hexagonal part (A) of drive belt auto-tensioner (1) with
a wrench securely. Then move the wrench handle in the direc-
tion of arrow (loosening direction of tensioner).
CAUTION:
Never place hand in a location where pinching may occur if
the holding tool accidentally comes off.
2. Insert a rod such as short-length screwdriver approximately 6
mm (0.24 in) in diameter into the hole (B) of the retaining boss to
fix drive belt auto-tensioner.
3. Remove drive belt.
INSTALLATION

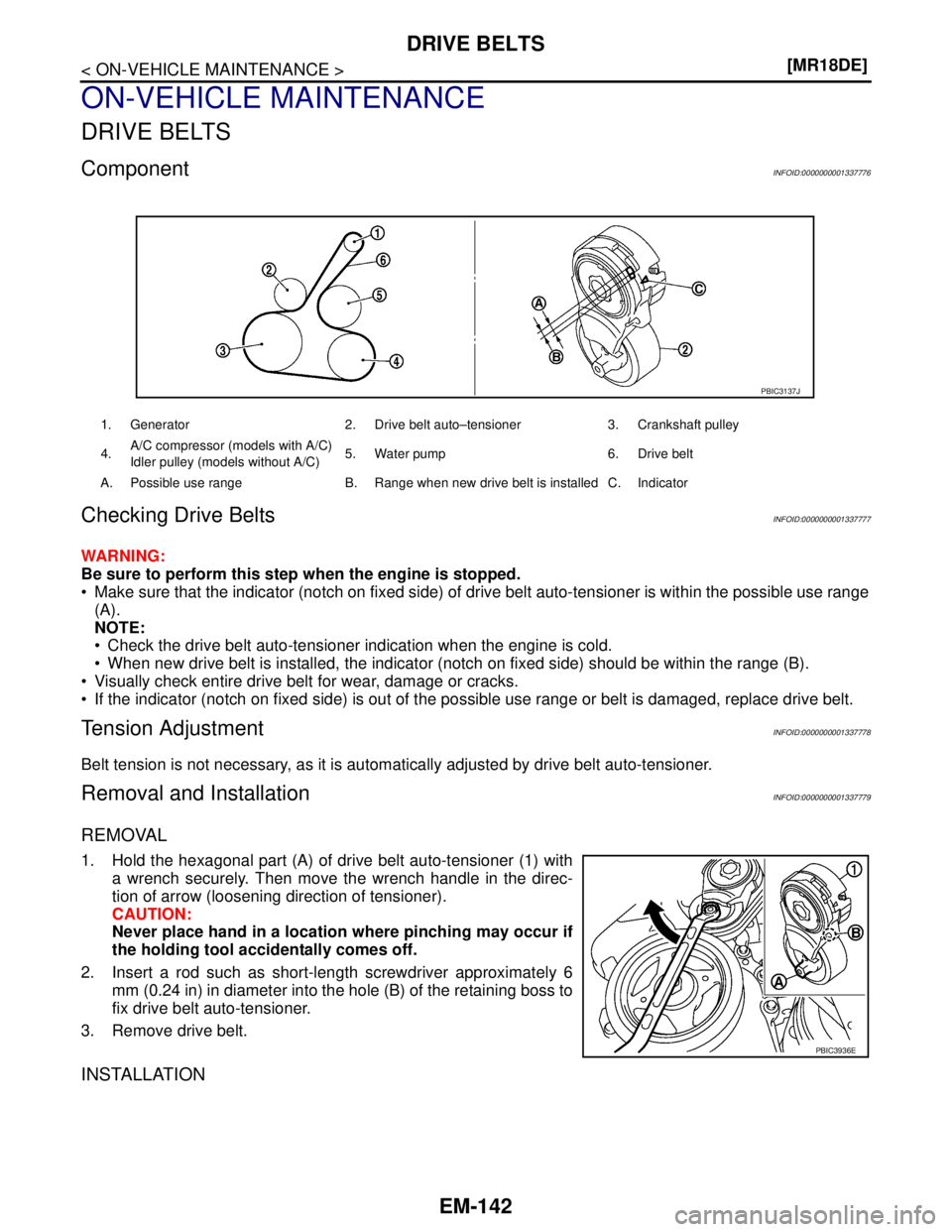

1. Generator 2. Drive belt auto–tensioner 3. Crankshaft pulley
4.A/C compressor (models with A/C)
Idler pulley (models without A/C)5. Water pump 6. Drive belt
A. Possible use range B. Range when new drive belt is installed C. Indicator
PBIC3137J
PBIC3936E
Page 2790 of 5883
![NISSAN TIIDA 2007 Service Repair Manual DRIVE BELTS
EM-143
< ON-VEHICLE MAINTENANCE >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
1. Hold the hexagonal part (A) of drive belt auto-tensioner (1) with
a box wrench securely. Then move the wrench h NISSAN TIIDA 2007 Service Repair Manual DRIVE BELTS
EM-143
< ON-VEHICLE MAINTENANCE >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
1. Hold the hexagonal part (A) of drive belt auto-tensioner (1) with
a box wrench securely. Then move the wrench h](/manual-img/5/57395/w960_57395-2789.png)
DRIVE BELTS
EM-143
< ON-VEHICLE MAINTENANCE >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
1. Hold the hexagonal part (A) of drive belt auto-tensioner (1) with
a box wrench securely. Then move the wrench handle in the
direction of arrow (loosening direction of tensioner).
CAUTION:
Never place hand in a location where pinching may occur if
the holding tool accidentally comes off.
2. Insert a rod such as short-length screwdriver approximately 6
mm (0.24 in) in diameter into the hole (B) of retaining boss to fix
drive belt auto-tensioner.
3. Install drive belt.
CAUTION:
Confirm drive belt is completely set to pulleys.
Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each
pulley groove.
4. Release drive belt auto-tensioner, and apply tension to drive belt.
5. Turn crankshaft pulley clockwise several times to equalize tension between each pulley.
6. Confirm tension of drive belt at indicator (notch on fixed side) is within the possible use range. Refer to
EM-142, "
Checking Drive Belts".
PBIC3936E
Page 2791 of 5883
EM-144
< ON-VEHICLE MAINTENANCE >[MR18DE]
AIR CLEANER FILTER
AIR CLEANER FILTER
Removal and InstallationINFOID:0000000001528960
REMOVAL
1. Push the tabs (A) of both ends of the air cleaner cover (1) into
the inside (B).
2. Pull up the air cleaner cover (1) and remove it (C).
3. Remove air cleaner filter (1) and holder (2) assembly from the
air cleaner case.
4. Remove the air cleaner filter (1) from the holder (2).
INSPECTION AFTER REMOVAL
It is necessary to clean air cleaner filter or replace it at the recommended intervals, more often under dusty
conditions. Refer to MA-7, "
Periodic Maintenance".
Blow air into the back side of air cleaner filter until no objects spray
out.
INSTALLATION
Installation is in the reverse order of removal.
Install the air cleaner cover (1) in the direction shown.
PBIC3557J
PBIC3558J
SMA384C
2 : Air cleaner filter
3 : Holder
PBIC3559J
Page 2792 of 5883
SPARK PLUG
EM-145
< ON-VEHICLE MAINTENANCE >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
SPARK PLUG
ComponentINFOID:0000000001346458
Removal and InstallationINFOID:0000000001346459
REMOVAL
1. Remove intake manifold. Refer to EM-156, "Removal and Installation".
2. Remove ignition coil.
CAUTION:
Handle it carefully and avoid impacts.
Never disassemble.

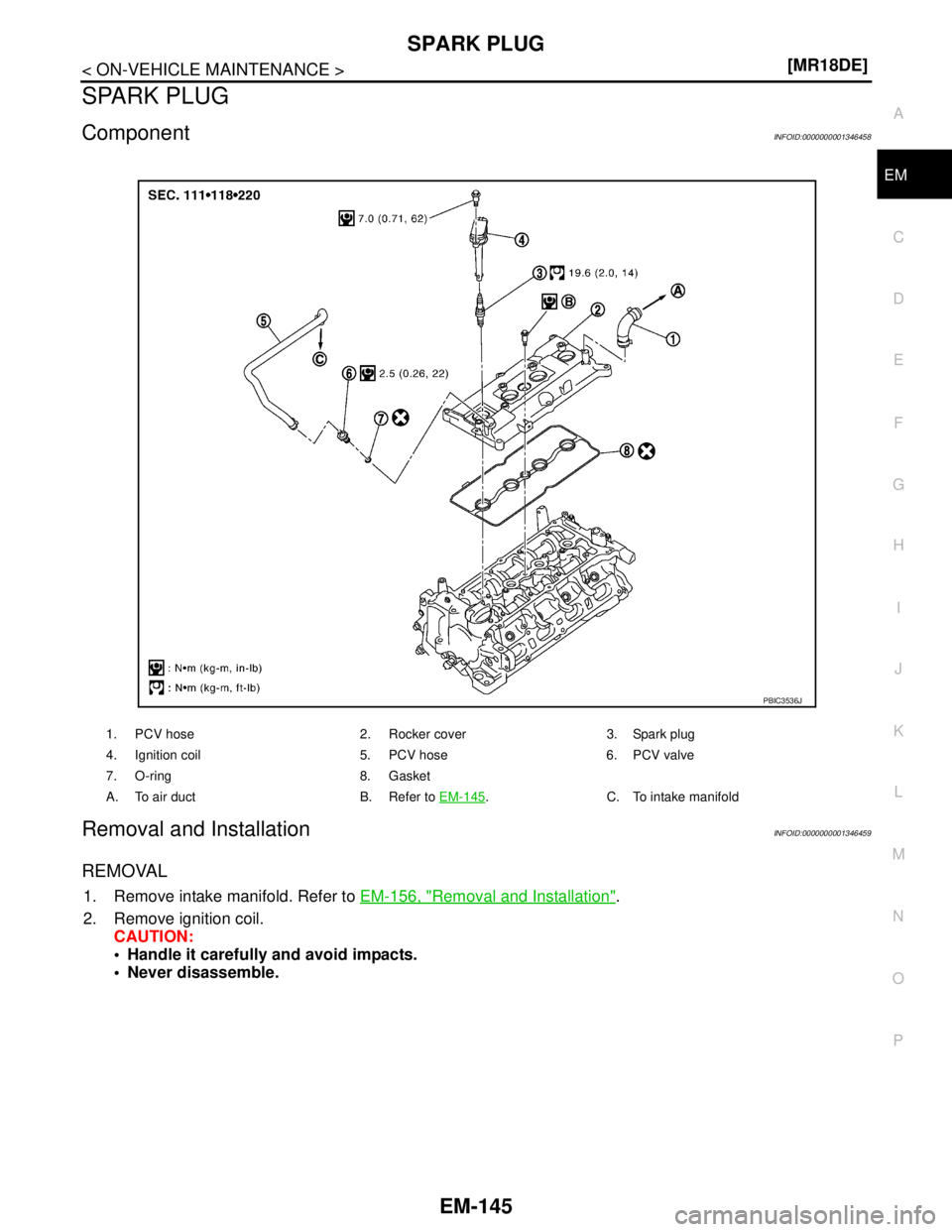

1. PCV hose 2. Rocker cover 3. Spark plug
4. Ignition coil 5. PCV hose 6. PCV valve
7. O-ring 8. Gasket
A. To air duct B. Refer to EM-145
. C. To intake manifold
PBIC3536J
