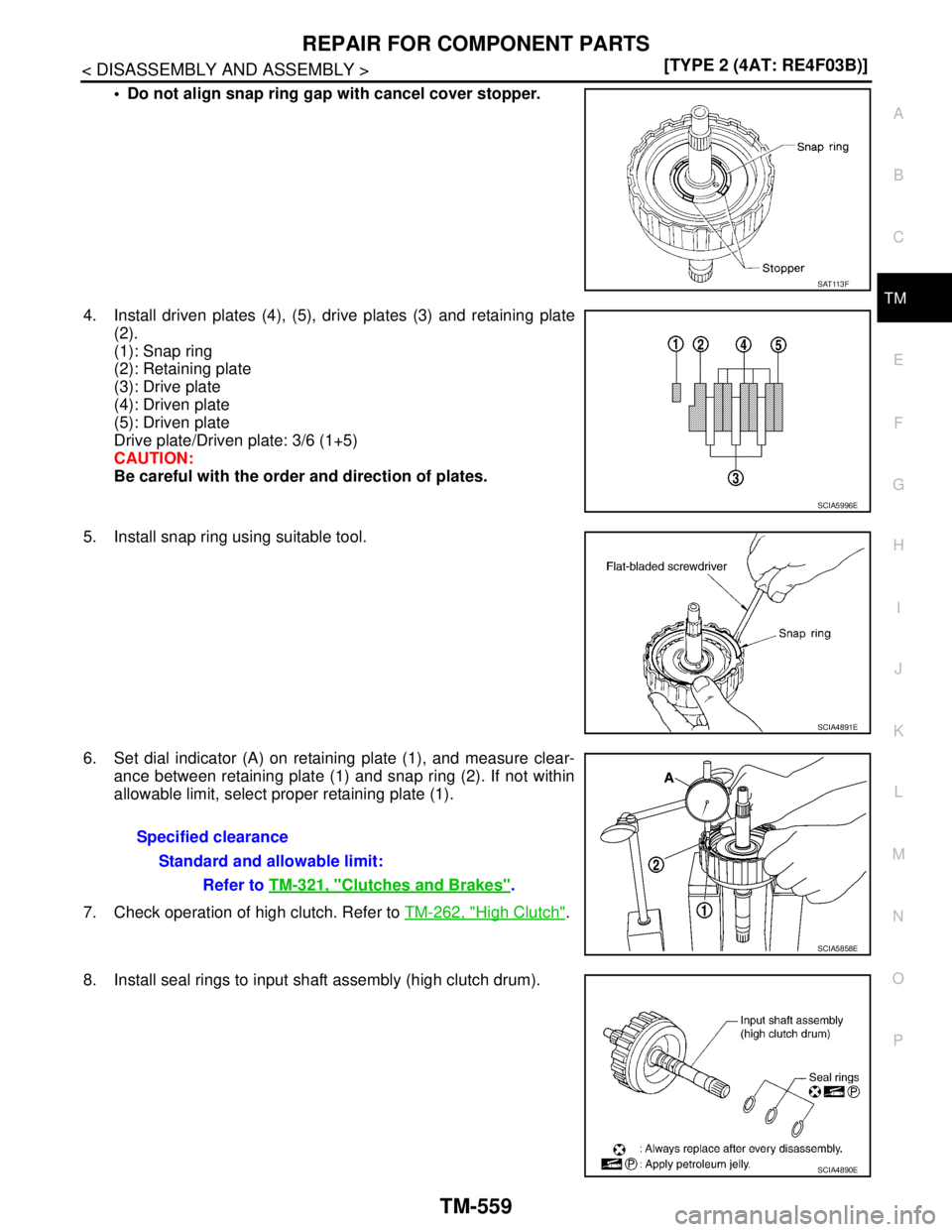

NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS TM-559 < DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)] C E F G H I J K L MA B TM N O P  Do not align snap ring gap with cancel cover stopper. 4. Install driven plates (

Page 5506 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-560 < DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)] REPAIR FOR COMPONENT PARTS CAUTION: Roll paper around seal rings to prevent seal rings from spread- ing. Forward and Overrun ClutchesINFOID:0

Page 5507 of 5883

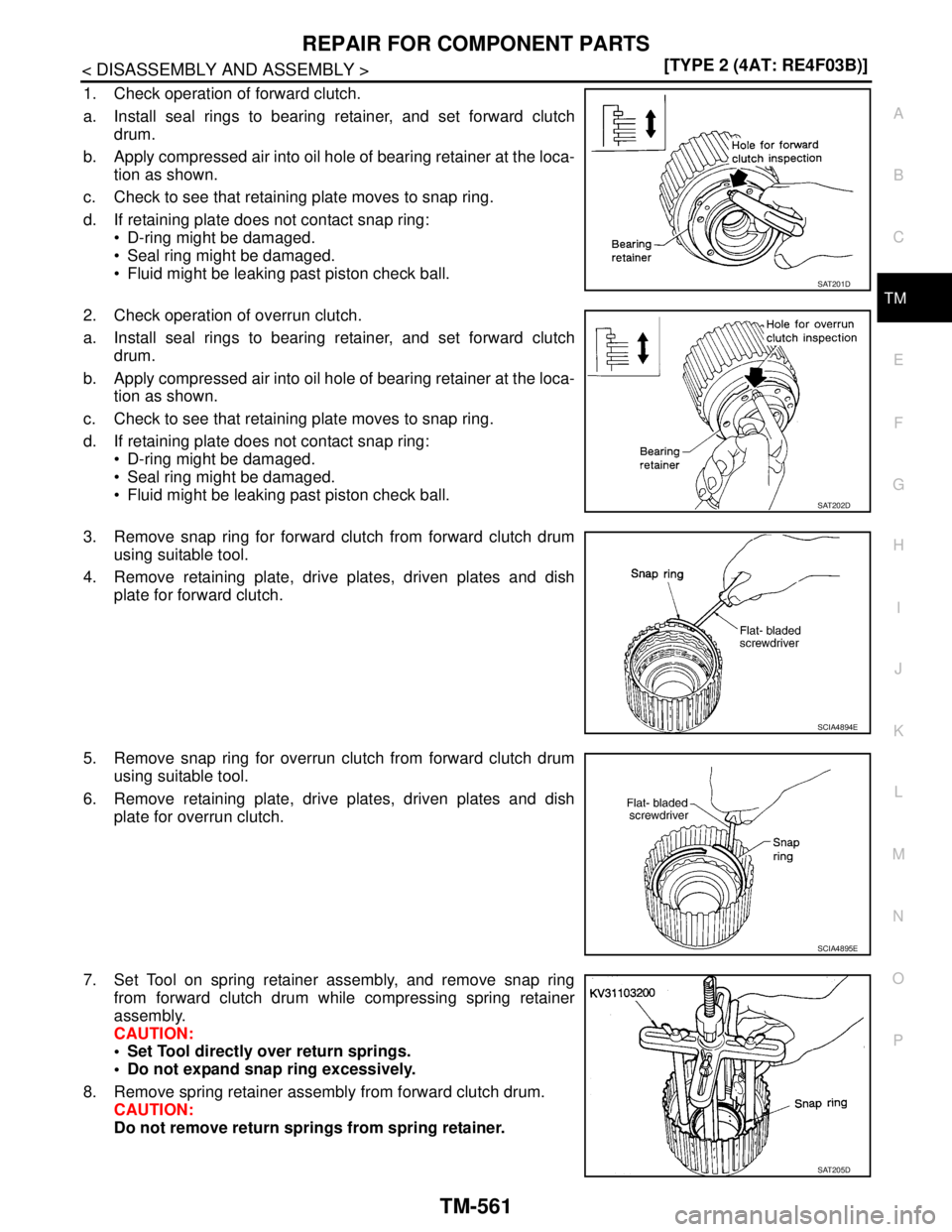

NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS TM-561 < DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)] C E F G H I J K L MA B TM N O P 1. Check operation of forward clutch. a. Install seal rings to bearing retainer, a

Page 5508 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-562 < DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)] REPAIR FOR COMPONENT PARTS 9. Install seal rings to bearing retainer (1), and set forward clutch drum. Then apply compressed air into the oil

Page 5509 of 5883

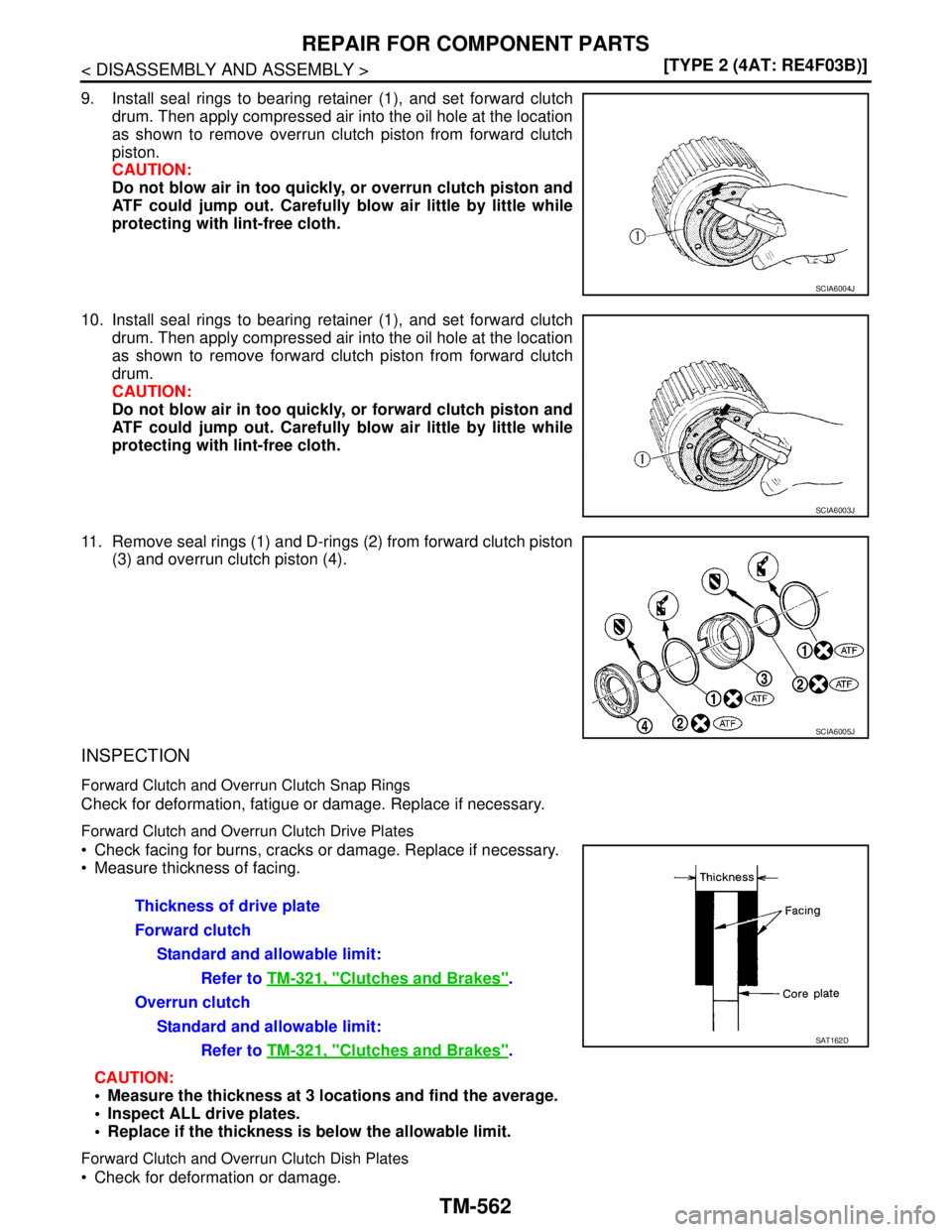

NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS TM-563 < DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)] C E F G H I J K L MA B TM N O P  Measure thickness (t) of dish plate. Replace if damaged, deformed or worn. Forwa

Page 5510 of 5883

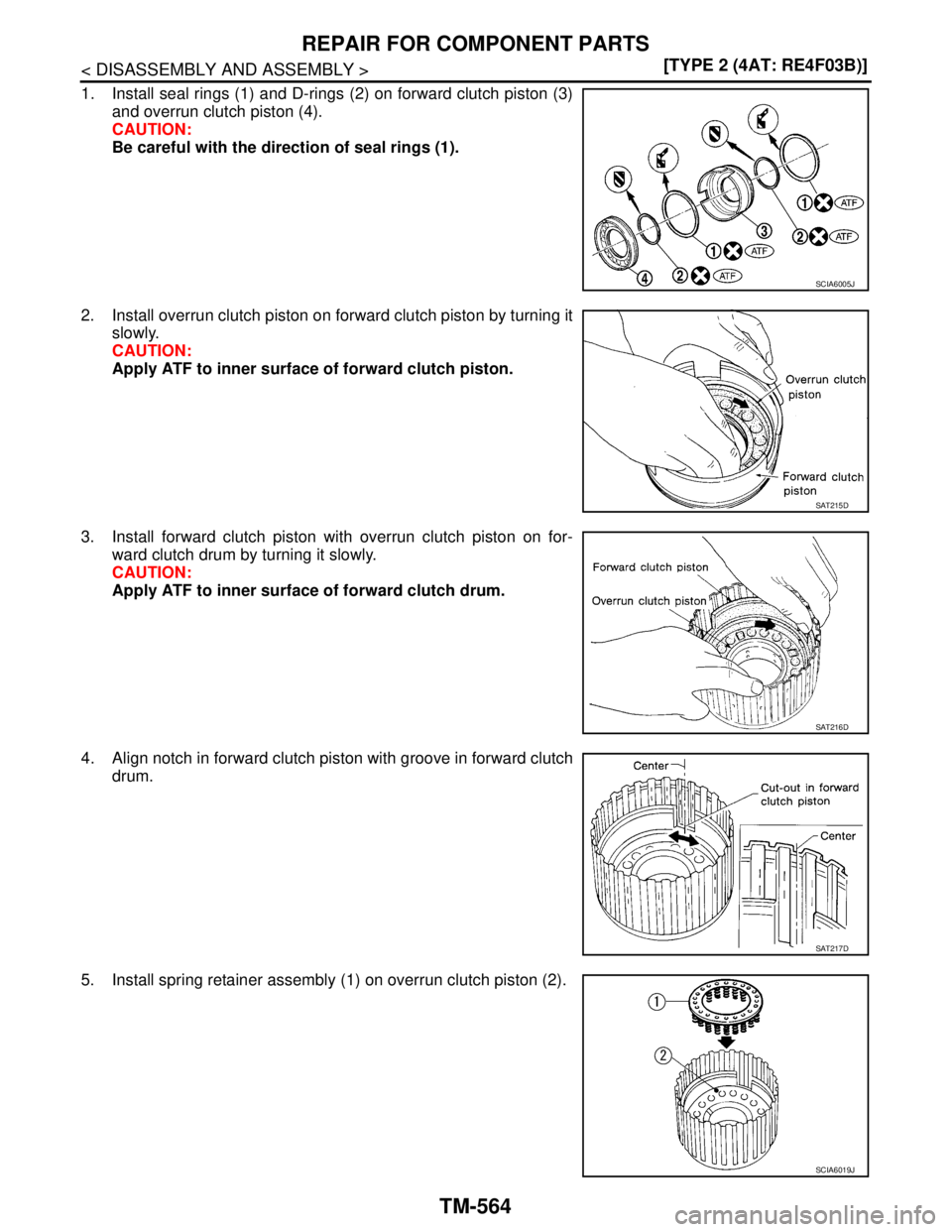

NISSAN TIIDA 2007 Service Repair Manual TM-564 < DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)] REPAIR FOR COMPONENT PARTS 1. Install seal rings (1) and D-rings (2) on forward clutch piston (3) and overrun clutch piston (4). CAUTION: Be

Page 5511 of 5883

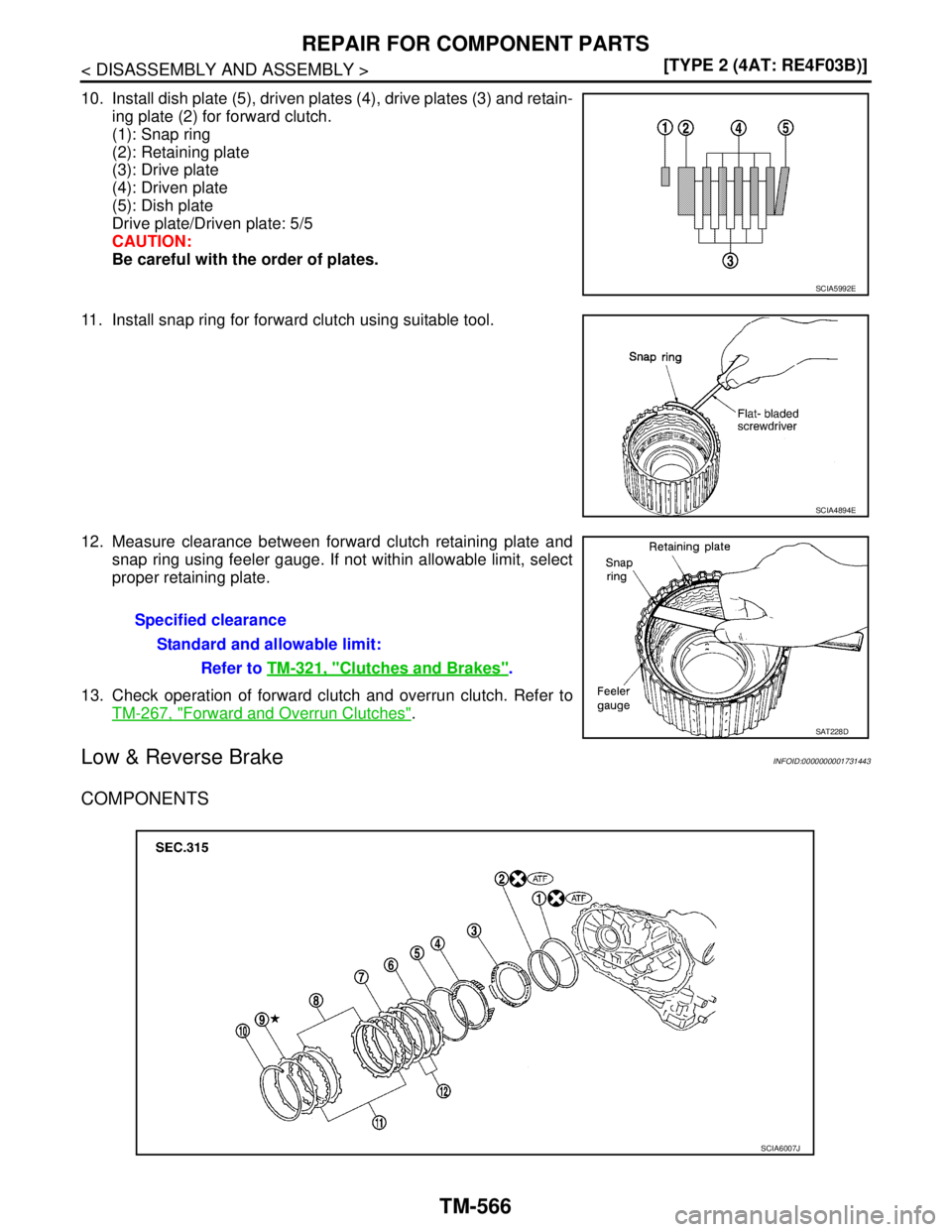

NISSAN TIIDA 2007 Service Repair Manual REPAIR FOR COMPONENT PARTS TM-565 < DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)] C E F G H I J K L MA B TM N O P 6. Set Tool on spring retainer assembly, and install snap ring while compressing s

Page 5512 of 5883

NISSAN TIIDA 2007 Service Repair Manual TM-566 < DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)] REPAIR FOR COMPONENT PARTS 10. Install dish plate (5), driven plates (4), drive plates (3) and retain- ing plate (2) for forward clutch. (1):
