LAN
BCM BRANCH LINE CIRCUIT
LAN-85
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
BCM BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334405
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the BCM for damage, bend and loose connection (unit side and
connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of BCM.
2. Check the resistance between the BCM harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the BCM branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the BCM. Refer to BCS-30, "
Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)>>Replace the BCM. Refer to BCS-57, "Removal and Installation of BCM".
YES (Past error)>>Error was detected in the BCM branch line.
NO >> Repair the power supply and the ground circuit.
BCM harness connector
Resistance (Ω)
Connector No. Terminal No.
M18 19 39 Approx. 54 – 66
Page 3826 of 5883
LAN-86
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
DLC BRANCH LINE CIRCUIT
DLC BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334406
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the data link connector for damage, bend and loose connection
(connector side and harness side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
Check the resistance between the data link connector terminals.
Is the measurement value within the specification?
YES (Present error)>>Check the CAN system type decision again.
YES (Past error)>>Error was detected in the data link connector branch line circuit.
NO >> Repair the data link connector branch line.
Data link connector
Resistance (Ω)
Connector No. Terminal No.
M22 6 14 Approx. 54 – 66
Page 3827 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN
EPS BRANCH LINE CIRCUIT
LAN-87
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
EPS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334407
INSPECTION PROCEDURE
1. NISSAN TIIDA 2007 Service Repair Manual LAN
EPS BRANCH LINE CIRCUIT
LAN-87
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
EPS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334407
INSPECTION PROCEDURE
1.](/manual-img/5/57395/w960_57395-3826.png)
LAN
EPS BRANCH LINE CIRCUIT
LAN-87
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
EPS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334407
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the EPS control unit for damage, bend and loose connection (unit
side and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of EPS control unit.
2. Check the resistance between the EPS control unit harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the EPS control unit branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the EPS control unit. Refer to STC-9, "
Diagnosis Proce-
dure".
Is the inspection result normal?
YES (Present error)>>Replace the EPS control unit. Refer to ST-9, "Removal and Installation".
YES (Past error)>>Error was detected in the EPS control unit branch line.
NO >> Repair the power supply and the ground circuit.
EPS control unit harness connector
Resistance (Ω)
Connector No. Terminal No.
M53 9 16 Approx. 54 – 66
Page 3828 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN-88
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
I-KEY BRANCH LINE CIRCUIT
I-KEY BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334408
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ig NISSAN TIIDA 2007 Service Repair Manual LAN-88
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
I-KEY BRANCH LINE CIRCUIT
I-KEY BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334408
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ig](/manual-img/5/57395/w960_57395-3827.png)
LAN-88
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
I-KEY BRANCH LINE CIRCUIT
I-KEY BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334408
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the Intelligent Key unit for damage, bend and loose connection
(unit side and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of Intelligent Key unit.
2. Check the resistance between the Intelligent Key unit harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the Intelligent Key unit branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the Intelligent Key unit. Refer to SEC-37, "
INTELLIGENT
KEY UNIT : Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)>>Replace the Intelligent Key unit. Refer to SEC-79, "Removal and Installation".
YES (Past error)>>Error was detected in the Intelligent Key unit branch line.
NO >> Repair the power supply and the ground circuit.
Intelligent Key unit harness connector
Resistance (Ω)
Connector No. Terminal No.
M52 2 3 Approx. 54 – 66
Page 3829 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN
M&A BRANCH LINE CIRCUIT
LAN-89
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
M&A BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334409
INSPECTION PROCEDURE
1. NISSAN TIIDA 2007 Service Repair Manual LAN
M&A BRANCH LINE CIRCUIT
LAN-89
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
M&A BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334409
INSPECTION PROCEDURE
1.](/manual-img/5/57395/w960_57395-3828.png)
LAN
M&A BRANCH LINE CIRCUIT
LAN-89
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
M&A BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334409
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the combination meter for damage, bend and loose connection
(unit side and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of combination meter.
2. Check the resistance between the combination meter harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the combination meter branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the combination meter. Refer to MWI-26, "
COMBINATION
METER : Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)>>Replace the combination meter. Refer to MWI-94, "Removal and Installation".
YES (Past error)>>Error was detected in the combination meter branch line.
NO >> Repair the power supply and the ground circuit.
Combination meter harness connector
Resistance (Ω)
Connector No. Terminal No.
M24 1 2 Approx. 54 – 66
Page 3830 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN-90
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
ABS BRANCH LINE CIRCUIT
ABS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334412
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Dis NISSAN TIIDA 2007 Service Repair Manual LAN-90
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
ABS BRANCH LINE CIRCUIT
ABS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334412
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Dis](/manual-img/5/57395/w960_57395-3829.png)
LAN-90
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
ABS BRANCH LINE CIRCUIT
ABS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334412
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the ABS actuator and electric unit (control unit) for damage, bend
and loose connection (unit side and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of ABS actuator and electric unit (control unit).
2. Check the resistance between the ABS actuator and electric unit (control unit) harness connector termi-
nals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the ABS actuator and electric unit (control unit) branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the ABS actuator and electric unit (control unit). Refer to the
following.
ABS models: BRC-36, "
Diagnosis Procedure"
ESP models: BRC-116, "Diagnosis Procedure"
Is the inspection result normal?
YES (Present error)>>Replace the ABS actuator and electric unit (control unit). Refer to the following.
ABS models: BRC-85, "
Removal and Installation"
ESP models: BRC-184, "Removal and Installation"
YES (Past error)>>Error was detected in the ABS actuator and electric unit (control unit) branch line.
NO >> Repair the power supply and the ground circuit.
ABS actuator and electric unit (control unit) harness connector
Resistance (Ω)
Connector No. Terminal No.
E33 26 15 Approx. 54 – 66
Page 3831 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-91
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334414
INSPECTION PROCED NISSAN TIIDA 2007 Service Repair Manual LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-91
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334414
INSPECTION PROCED](/manual-img/5/57395/w960_57395-3830.png)
LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-91
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001334414
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the IPDM E/R for damage, bend and loose connection (unit side
and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of IPDM E/R.
2. Check the resistance between the IPDM E/R harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the IPDM E/R branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the IPDM E/R. Refer to PCS-16, "
Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)>>Replace the IPDM E/R. Refer to PCS-30, "Removal and Installation of IPDM E/R".
YES (Past error)>>Error was detected in the IPDM E/R branch line.
NO >> Repair the power supply and the ground circuit.
IPDM E/R harness connector
Resistance (Ω)
Connector No. Terminal No.
E46 41 40 Approx. 108 – 132
Page 3832 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN-92
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000001334415
INSPECTION PROCEDURE
1.CONNECTOR INSPECTION
1. Turn t NISSAN TIIDA 2007 Service Repair Manual LAN-92
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000001334415
INSPECTION PROCEDURE
1.CONNECTOR INSPECTION
1. Turn t](/manual-img/5/57395/w960_57395-3831.png)
LAN-92
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 3)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000001334415
INSPECTION PROCEDURE
1.CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect all the unit connectors on CAN communication system.
4. Check terminals and connectors for damage, bend and loose connection.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS CONTINUITY (SHORT CIRCUIT)
Check the continuity between the data link connector terminals.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Check the harness and repair the root cause.
3.CHECK HARNESS CONTINUITY (SHORT CIRCUIT)
Check the continuity between the data link connector and the ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Check the harness and repair the root cause.

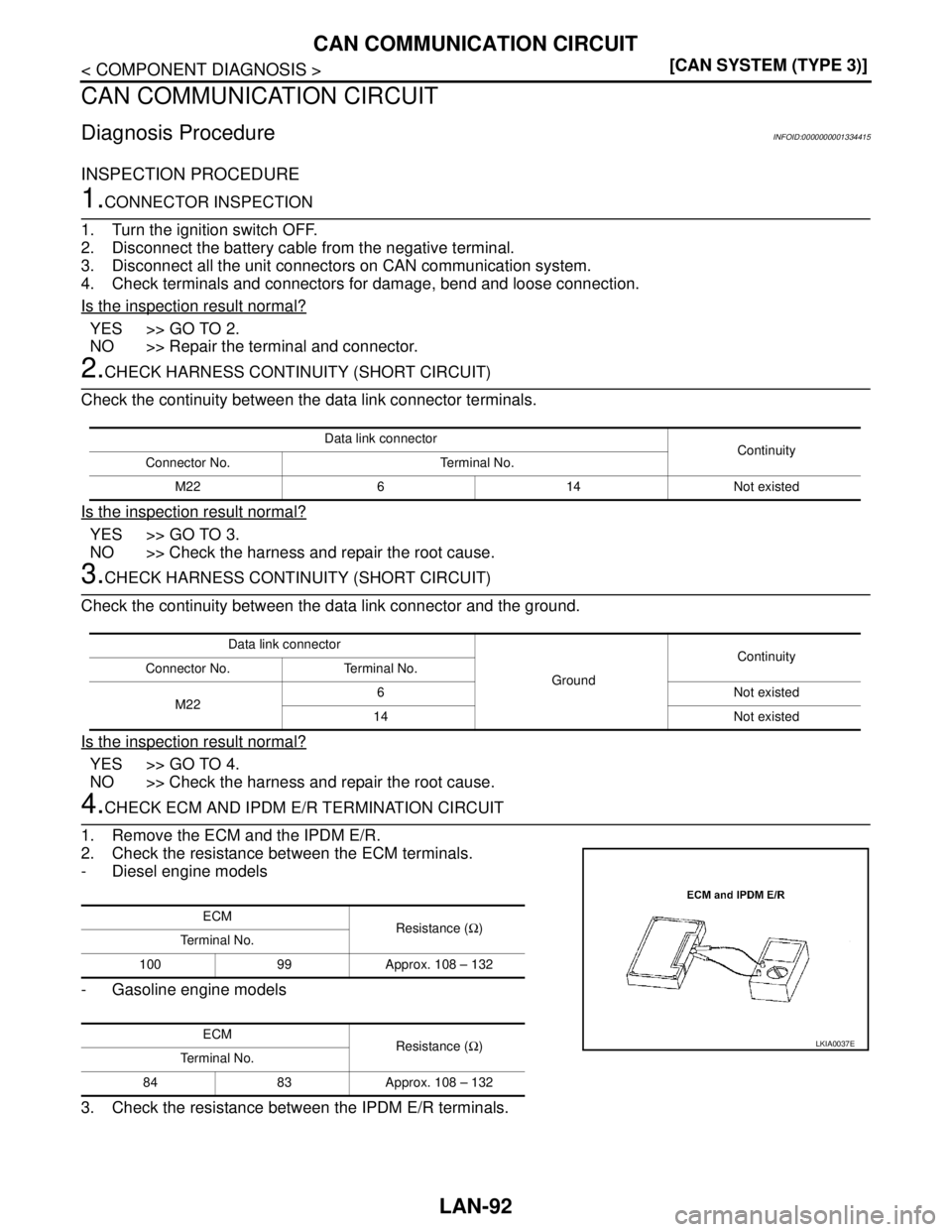

4.CHECK ECM AND IPDM E/R TERMINATION CIRCUIT
1. Remove the ECM and the IPDM E/R.
2. Check the resistance between the ECM terminals.
- Diesel engine models
- Gasoline engine models
3. Check the resistance between the IPDM E/R terminals.
Data link connector
Continuity
Connector No. Terminal No.
M22 6 14 Not existed
Data link connector
GroundContinuity
Connector No. Terminal No.
M226 Not existed
14 Not existed
ECM
Resistance (Ω)
Te r m i n a l N o .
100 99 Approx. 108 – 132
ECM
Resistance (Ω)
Te r m i n a l N o .
84 83 Approx. 108 – 132
LKIA0037E
