Page 3545 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-212
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
CONSULT-III Function (BCM)INFOID:0000000001547320
CONSULT-III can display each diagnostic it NISSAN TIIDA 2007 Service Repair Manual HAC-212
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
CONSULT-III Function (BCM)INFOID:0000000001547320
CONSULT-III can display each diagnostic it](/manual-img/5/57395/w960_57395-3544.png)
HAC-212
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
DIAGNOSIS SYSTEM (BCM)
DIAGNOSIS SYSTEM (BCM)
CONSULT-III Function (BCM)INFOID:0000000001547320
CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.
DATA MONITOR
Display Item List
BCM diagnostic
test itemDiagnostic mode Description
Inspection by partWORK SUPPORTSupports inspections and adjustments. Commands are transmitted to the BCM for
setting the status suitable for required operation, input/output signals are received
from the BCM and received data is displayed.
DATA MONITOR Displays BCM input/output data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
SELF-DIAG RESULTS Displays BCM self-diagnosis results.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ECU PART NUMBER BCM part number can be read.
CONFIGURATION Performs BCM configuration read/write functions.
Monitor item name “operation or
unit”Contents
IGN ON SW “ON/OFF”Displays “IGN Position (ON)/OFF, ACC Position (OFF)” status as judged from ignition switch signal
through the CAN communication.
FAN ON SIG “ON/OFF”Displays “FAN (ON)/FAN (OFF)” status as judged from blower motor switch signal through CAN com-
munication.
AIR COND SW “ON/OFF”Displays “COMP (ON)/COMP (OFF)” status as judged from air conditioner switch signal through the
CAN communication.
Page 3546 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SELF-DIAGNOSIS FUNCTION
HAC-213
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
SELF-DIAGNOSIS FUNCTION
Front Air Control Self-DiagnosisINFOID:0000000001547321
D NISSAN TIIDA 2007 Service Repair Manual SELF-DIAGNOSIS FUNCTION
HAC-213
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
SELF-DIAGNOSIS FUNCTION
Front Air Control Self-DiagnosisINFOID:0000000001547321
D](/manual-img/5/57395/w960_57395-3545.png)
SELF-DIAGNOSIS FUNCTION
HAC-213
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
SELF-DIAGNOSIS FUNCTION
Front Air Control Self-DiagnosisINFOID:0000000001547321
DESCRIPTION
The self-diagnostic system diagnoses sensors, door motors, blower motor, etc. by system line. Refer to appli-
cable sections (items) for details. Shifting from usual control to the self-diagnostic system is accomplished by
starting the engine (turning the ignition switch ON) and pressing intake switch for at least 5 seconds. The
intake switch must be pressed within 10 seconds after starting the engine (ignition switch is turned ON). This
system will be cancelled by either pressing A/C switch or turning the ignition switch OFF. Shifting from one
step to another is accomplished by means of turning blower control dial, as required.
FUNCTION CONFIRMATION PROCEDURE
1.SET IN SELF-DIAGNOSTIC MODE
1. Set temperature control dial at 22°C (72°.
2. Set mode control dial to B/L or FOOT position.
3. Set blower control dial to OFF position.
4. Turn ignition switch ON.
AWIIA0326GB
Page 3547 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-214
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
5. Set in self-diagnostic mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.) NISSAN TIIDA 2007 Service Repair Manual HAC-214
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
5. Set in self-diagnostic mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.)](/manual-img/5/57395/w960_57395-3546.png)
HAC-214
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
5. Set in self-diagnostic mode as follows. Within 10 seconds after starting engine (ignition switch is turned
ON.), press intake switch for at least 5 seconds.
CAUTION:
If battery voltage drops below 12V during diagnosis STEP-3, door motor speed becomes slower and
as a result, the system may generate an error even when operation is usual. To avoid this, start engine
before performing this diagnosis.
>> GO TO 2.
2.STEP-1: LEDS ARE CHECKED
1. Check rear defogger switch, A/C switch and intake switch LEDs illumination.
2. Check indicator LEDs illumination.
OK or NG
OK >> GO TO 3.
NG >> Does not illuminate rear defogger switch, A/C switch
and intake switch LEDs illumination. Refer to HAC-
311, "Self-Diagnosis".
3.STEP-2: CHECK TO ADVANCE SELF-DIAGNOSIS STEP-2
Turn blower control dial to AUTO position.
CAUTION:
When switched to STEP-2, LEDs of FRE and REC position blinks for approximately 5 seconds.
Check intake switch (FRE, REC) indicator LEDs illumination
OK >> GO TO 4.
NG >> Replace front air control (Blower control dial is malfunctioning.)
4.CHECK TO RETURN SELF-DIAGNOSIS STEP-1
Turn blower control dial to OFF position.
Return to self
-diagnosis STEP-1?
YES >> GO TO 5.
NO >> Replace front air control (Blower control dial is malfunctioning.)
5.STEP-2: SENSOR CIRCUIT ARE CHECKED
1. Turn blower control dial to AUTO position.
CAUTION:
When switched to STEP-2, LEDs of FRE and REC position blinks for approximately 5 seconds.
2. Check intake switch (FRE, REC) indicator LEDs illumination.
OK or NG
OK >> GO TO 6.
NG >> GO TO 9.
6.STEP-3: AIR MIX DOOR AND MODE DOOR MOTOR ARE CHECKED
AWIIA0327GB
AWIIA0328GB
Page 3548 of 5883
![NISSAN TIIDA 2007 Service Repair Manual SELF-DIAGNOSIS FUNCTION
HAC-215
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
1. Turn mode control dial to AUTO, VENT or B/L position. (Except
for FOOT, D/F an NISSAN TIIDA 2007 Service Repair Manual SELF-DIAGNOSIS FUNCTION
HAC-215
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
1. Turn mode control dial to AUTO, VENT or B/L position. (Except
for FOOT, D/F an](/manual-img/5/57395/w960_57395-3547.png)
SELF-DIAGNOSIS FUNCTION
HAC-215
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

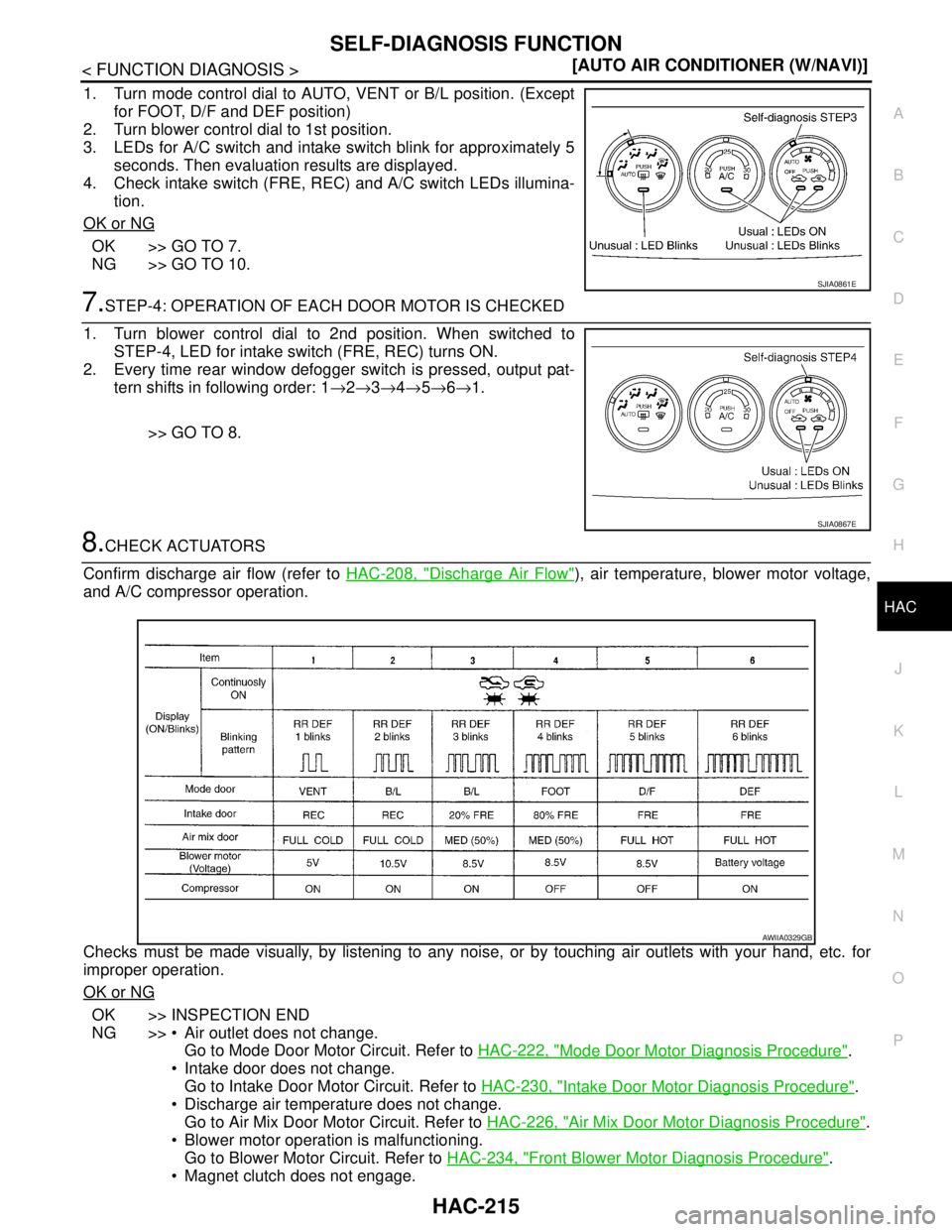

1. Turn mode control dial to AUTO, VENT or B/L position. (Except
for FOOT, D/F and DEF position)
2. Turn blower control dial to 1st position.
3. LEDs for A/C switch and intake switch blink for approximately 5
seconds. Then evaluation results are displayed.
4. Check intake switch (FRE, REC) and A/C switch LEDs illumina-
tion.
OK or NG
OK >> GO TO 7.
NG >> GO TO 10.
7.STEP-4: OPERATION OF EACH DOOR MOTOR IS CHECKED
1. Turn blower control dial to 2nd position. When switched to
STEP-4, LED for intake switch (FRE, REC) turns ON.
2. Every time rear window defogger switch is pressed, output pat-
tern shifts in following order: 1→2→3→4→5→6→1.
>> GO TO 8.
8.CHECK ACTUATORS
Confirm discharge air flow (refer to HAC-208, "
Discharge Air Flow"), air temperature, blower motor voltage,
and A/C compressor operation.
Checks must be made visually, by listening to any noise, or by touching air outlets with your hand, etc. for
improper operation.
OK or NG
OK >> INSPECTION END
NG >> Air outlet does not change.
Go to Mode Door Motor Circuit. Refer to HAC-222, "
Mode Door Motor Diagnosis Procedure".
Intake door does not change.
Go to Intake Door Motor Circuit. Refer to HAC-230, "
Intake Door Motor Diagnosis Procedure".
Discharge air temperature does not change.
Go to Air Mix Door Motor Circuit. Refer to HAC-226, "
Air Mix Door Motor Diagnosis Procedure".
Blower motor operation is malfunctioning.
Go to Blower Motor Circuit. Refer to HAC-234, "
Front Blower Motor Diagnosis Procedure".
Magnet clutch does not engage.
SJIA0861E
SJIA0867E
AWIIA0329GB
Page 3549 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-216
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
Go to Magnet Clutch Circuit. Refer to HAC-239, "Magnet Clutch Diagnosis Procedure".
9.CHECK MALFUNCTION SENSOR
Ref NISSAN TIIDA 2007 Service Repair Manual HAC-216
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
Go to Magnet Clutch Circuit. Refer to HAC-239, "Magnet Clutch Diagnosis Procedure".
9.CHECK MALFUNCTION SENSOR
Ref](/manual-img/5/57395/w960_57395-3548.png)
HAC-216
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
Go to Magnet Clutch Circuit. Refer to HAC-239, "Magnet Clutch Diagnosis Procedure".

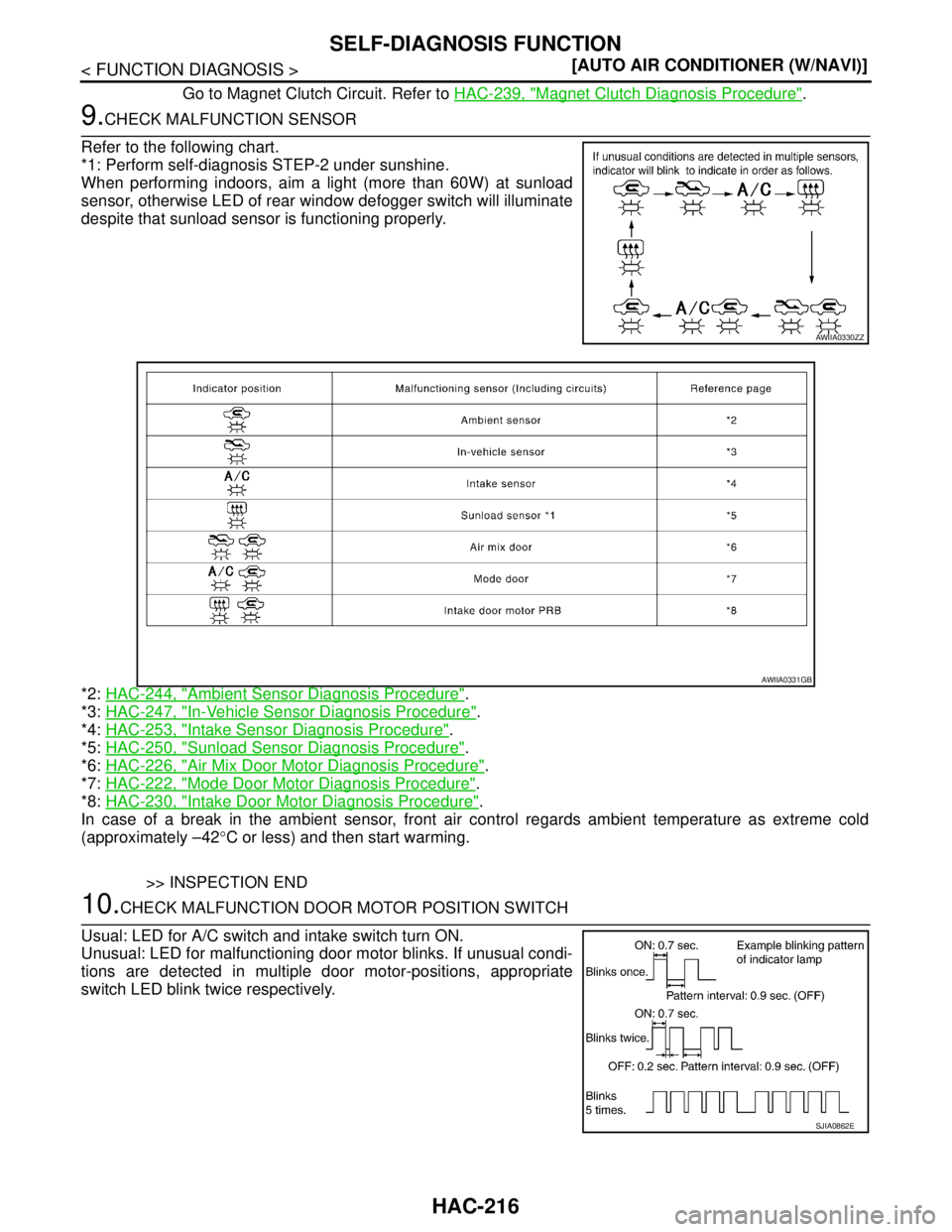

9.CHECK MALFUNCTION SENSOR
Refer to the following chart.
*1: Perform self-diagnosis STEP-2 under sunshine.
When performing indoors, aim a light (more than 60W) at sunload
sensor, otherwise LED of rear window defogger switch will illuminate
despite that sunload sensor is functioning properly.
*2: HAC-244, "
Ambient Sensor Diagnosis Procedure".
*3: HAC-247, "
In-Vehicle Sensor Diagnosis Procedure".
*4: HAC-253, "
Intake Sensor Diagnosis Procedure".
*5: HAC-250, "
Sunload Sensor Diagnosis Procedure".
*6: HAC-226, "
Air Mix Door Motor Diagnosis Procedure".
*7: HAC-222, "
Mode Door Motor Diagnosis Procedure".
*8: HAC-230, "
Intake Door Motor Diagnosis Procedure".
In case of a break in the ambient sensor, front air control regards ambient temperature as extreme cold
(approximately –42°C or less) and then start warming.
>> INSPECTION END
10.CHECK MALFUNCTION DOOR MOTOR POSITION SWITCH
Usual: LED for A/C switch and intake switch turn ON.
Unusual: LED for malfunctioning door motor blinks. If unusual condi-
tions are detected in multiple door motor-positions, appropriate
switch LED blink twice respectively.
AWIIA0330ZZ
AWIIA0331GB
SJIA0862E
Page 3550 of 5883
SELF-DIAGNOSIS FUNCTION
HAC-217
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P

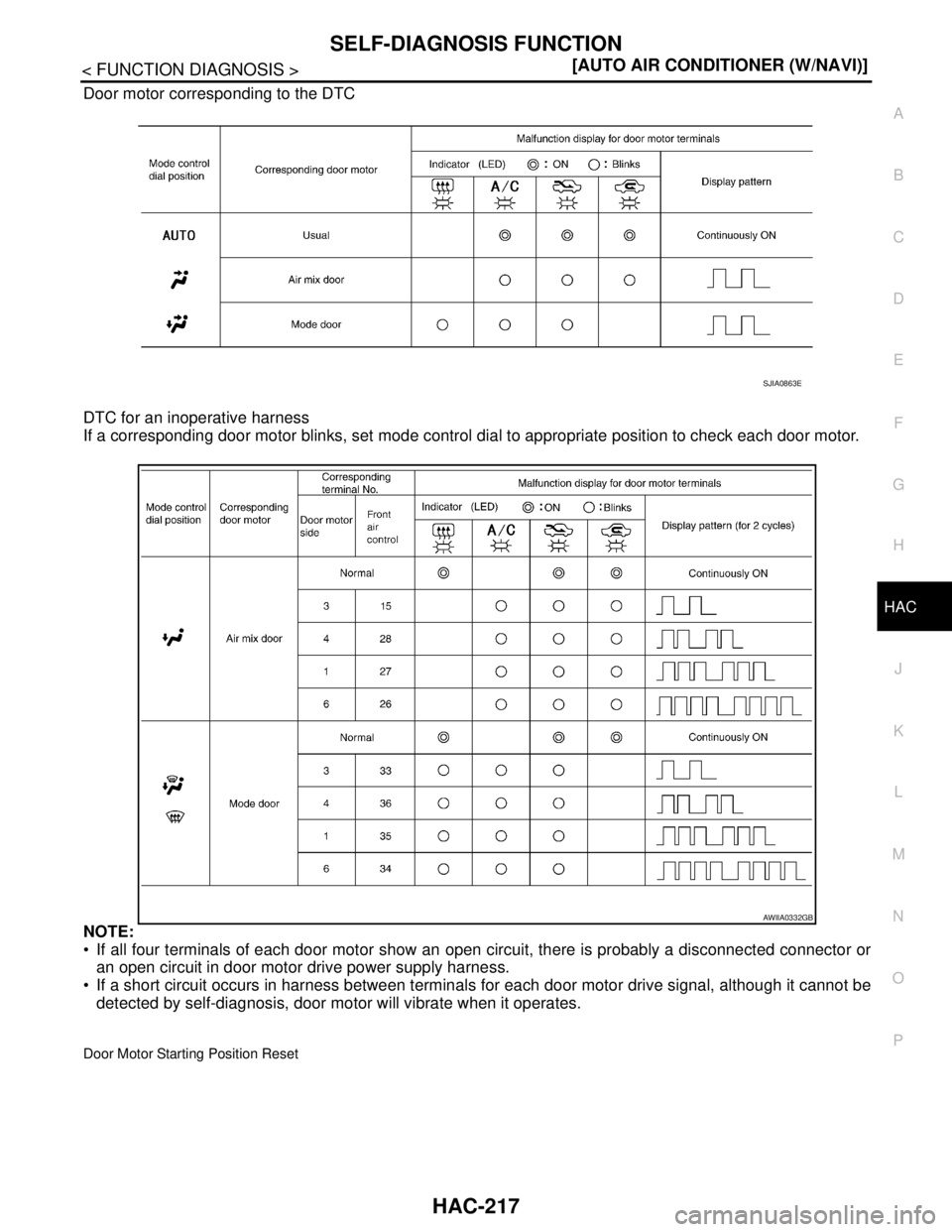

Door motor corresponding to the DTC
DTC for an inoperative harness
If a corresponding door motor blinks, set mode control dial to appropriate position to check each door motor.
NOTE:
If all four terminals of each door motor show an open circuit, there is probably a disconnected connector or
an open circuit in door motor drive power supply harness.
If a short circuit occurs in harness between terminals for each door motor drive signal, although it cannot be
detected by self-diagnosis, door motor will vibrate when it operates.

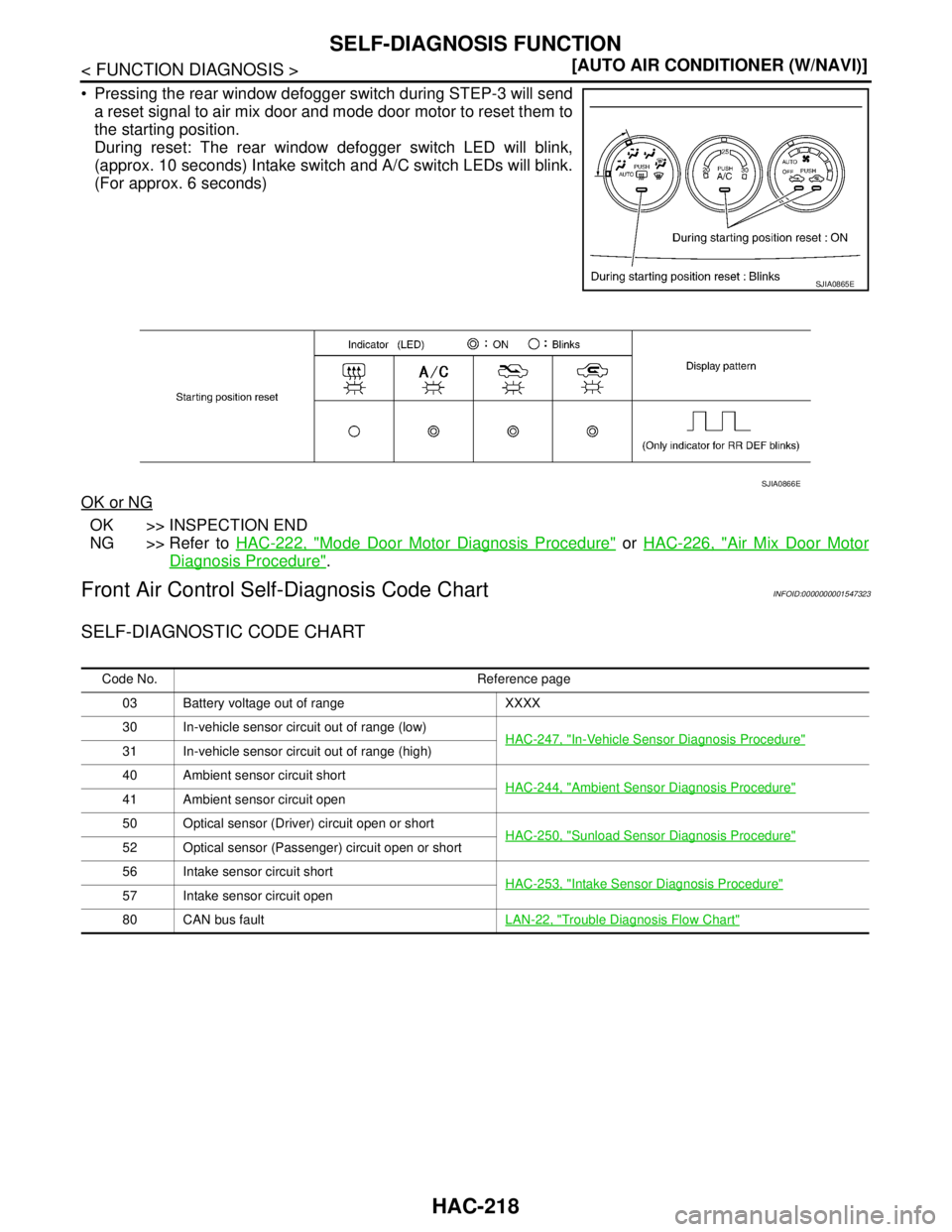

Door Motor Starting Position Reset
SJIA0863E
AWIIA0332GB
Page 3551 of 5883
![NISSAN TIIDA 2007 Service Repair Manual HAC-218
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
Pressing the rear window defogger switch during STEP-3 will send
a reset signal to air mix door and mode door mo NISSAN TIIDA 2007 Service Repair Manual HAC-218
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
Pressing the rear window defogger switch during STEP-3 will send
a reset signal to air mix door and mode door mo](/manual-img/5/57395/w960_57395-3550.png)
HAC-218
< FUNCTION DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
SELF-DIAGNOSIS FUNCTION
Pressing the rear window defogger switch during STEP-3 will send
a reset signal to air mix door and mode door motor to reset them to
the starting position.
During reset: The rear window defogger switch LED will blink,
(approx. 10 seconds) Intake switch and A/C switch LEDs will blink.
(For approx. 6 seconds)
OK or NG
OK >> INSPECTION END
NG >> Refer to HAC-222, "
Mode Door Motor Diagnosis Procedure" or HAC-226, "Air Mix Door Motor
Diagnosis Procedure".
Front Air Control Self-Diagnosis Code ChartINFOID:0000000001547323
SELF-DIAGNOSTIC CODE CHART
SJIA0865E
SJIA0866E
Code No. Reference page
03 Battery voltage out of range XXXX
30 In-vehicle sensor circuit out of range (low)
HAC-247, "
In-Vehicle Sensor Diagnosis Procedure"31 In-vehicle sensor circuit out of range (high)
40 Ambient sensor circuit short
HAC-244, "
Ambient Sensor Diagnosis Procedure"41 Ambient sensor circuit open
50 Optical sensor (Driver) circuit open or short
HAC-250, "
Sunload Sensor Diagnosis Procedure"52 Optical sensor (Passenger) circuit open or short
56 Intake sensor circuit short
HAC-253, "
Intake Sensor Diagnosis Procedure"57 Intake sensor circuit open
80 CAN bus faultLAN-22, "
Trouble Diagnosis Flow Chart"
Page 3552 of 5883
![NISSAN TIIDA 2007 Service Repair Manual MODE DOOR MOTOR
HAC-219
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
COMPONENT DIAGNOSIS
MODE DOOR MOTOR
System DescriptionINFOID:0000000001547326
SYSTEM DES NISSAN TIIDA 2007 Service Repair Manual MODE DOOR MOTOR
HAC-219
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
COMPONENT DIAGNOSIS
MODE DOOR MOTOR
System DescriptionINFOID:0000000001547326
SYSTEM DES](/manual-img/5/57395/w960_57395-3551.png)
MODE DOOR MOTOR
HAC-219
< COMPONENT DIAGNOSIS >[AUTO AIR CONDITIONER (W/NAVI)]
C
D
E
F
G
H
J
K
L
MA
B
HAC
N
O
P
COMPONENT DIAGNOSIS
MODE DOOR MOTOR
System DescriptionINFOID:0000000001547326
SYSTEM DESCRIPTION
Component Parts
Mode door control system components are:
Front air control
Mode door motor
In-vehicle sensor
Ambient sensor
Sunload sensor
System Operation
The front air control receives data from each of the sensors. When a drive signal is input from front air control
to door motor, a step motor built into the door motor rotates according to the drive signal, and then stops at the
position of target door.
Mode door changes to manual select mode by turning mode control dial of the controller. That allows mode
door to be fixed.
Pressing AUTO switch allows automatic control by front air control, and mode door is fixed in the FOOT posi-
tion by pressing OFF switch.
During automatic operation of mode door, mode door position (VENT, B/L, FOOT) is selected according to the
temperature of blow-off wind calculated by front air control based on the target opening angle of air mix door
and the amount of solar radiation. And only when ambient temperature is extremely low with the mode door in
the FOOT position, D/F is selected and prevents windshield fogging.
AWIIA0333GB
