NISSAN TIIDA 2007 Service Repair Manual DLK-532 < COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK] DOOR LOCK ACTUATOR 2.CHECK DOOR LOCK ACTUATOR HARNESS 1. Disconnect BCM and rear door lock actuator LH. 2. Check continuity between BCM conn

Page 1122 of 5883

NISSAN TIIDA 2007 Service Repair Manual DOOR LOCK ACTUATOR DLK-533 < COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK] C D E F G H I J L MA B DLK N O P REAR RH : Diagnosis ProcedureINFOID:0000000001530657 1.CHECK DOOR LOCK ACTUATOR SIGNAL 1

Page 1123 of 5883

NISSAN TIIDA 2007 Service Repair Manual DLK-534 < COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK] DOOR LOCK ACTUATOR 2. Check continuity between BCM connector (A) M20 terminals 67, 77 and ground. Is the inspection result normal? YES >> R

Page 1124 of 5883

NISSAN TIIDA 2007 Service Repair Manual DOOR LOCK ACTUATOR DLK-535 < COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK] C D E F G H I J L MA B DLK N O P Is the inspection result normal? YES >> GO TO 2. NO >> GO TO 4. 2.CHECK BACK DOOR LOCK A

Page 1125 of 5883

NISSAN TIIDA 2007 Service Repair Manual DLK-536 < COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK] DOOR LOCK ACTUATOR 2. Check continuity between BCM connector M20 terminals 68 and ground. Is the inspection result normal? YES >> Harness is

Page 1126 of 5883

NISSAN TIIDA 2007 Service Repair Manual TRUNK LID OPENER ACTUATOR DLK-537 < COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK] C D E F G H I J L MA B DLK N O P TRUNK LID OPENER ACTUATOR DescriptionINFOID:0000000001530662 Performs trunk lid o

Page 1127 of 5883

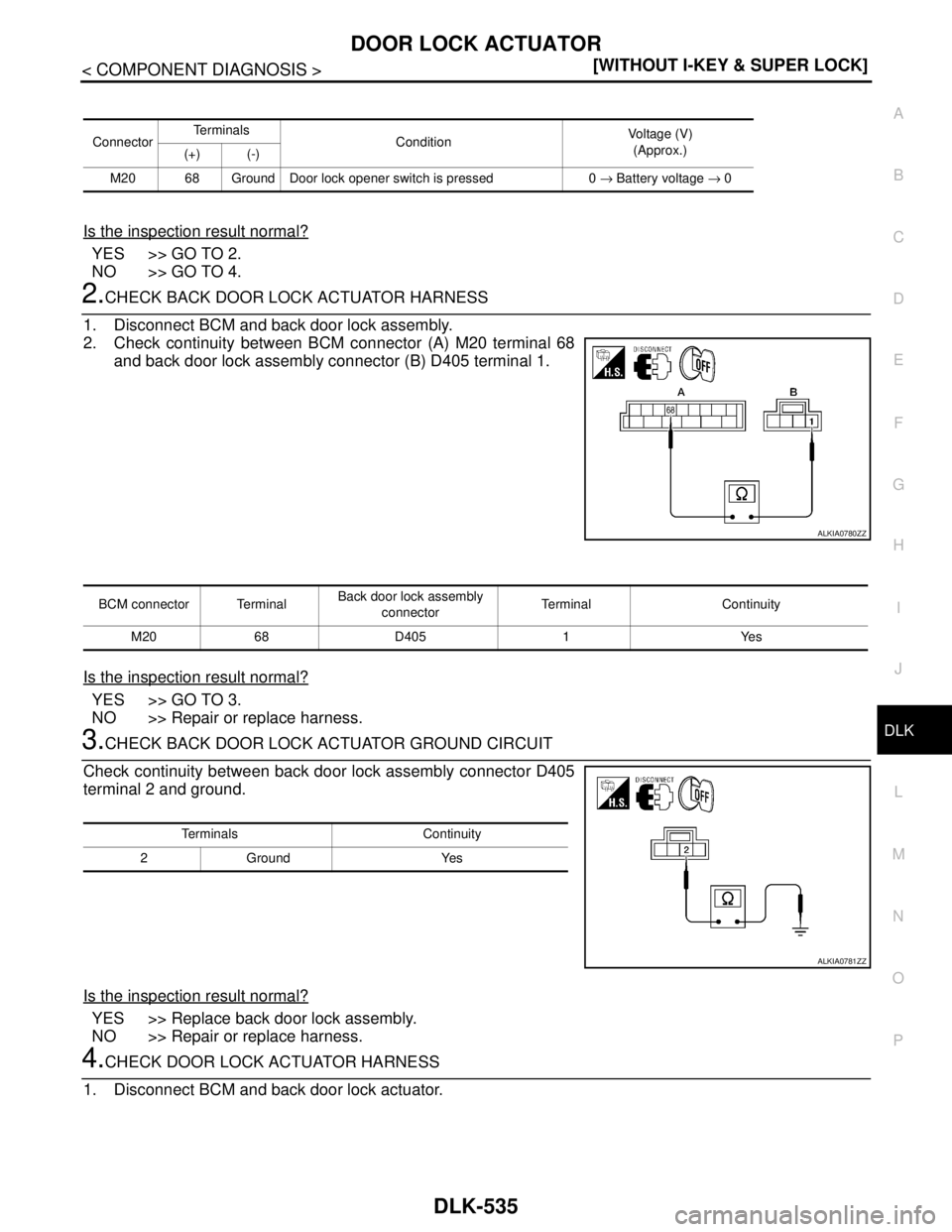

NISSAN TIIDA 2007 Service Repair Manual DLK-538 < COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK] TRUNK LID OPENER ACTUATOR 3. Check continuity between BCM connector (A) M20 terminal 68 and ground. Is the inspection result normal? YES >>

Page 1128 of 5883

NISSAN TIIDA 2007 Service Repair Manual TRUNK LID OPENER ACTUATOR DLK-539 < COMPONENT DIAGNOSIS >[WITHOUT I-KEY & SUPER LOCK] C D E F G H I J L MA B DLK N O P Is the inspection result normal? YES >> INSPECTION END. NO >> Replace trunk lamp
