FINAL DRIVE
Exploded ViewINFOID:0000000001381659
Refer to TM-635, "Exploded View".

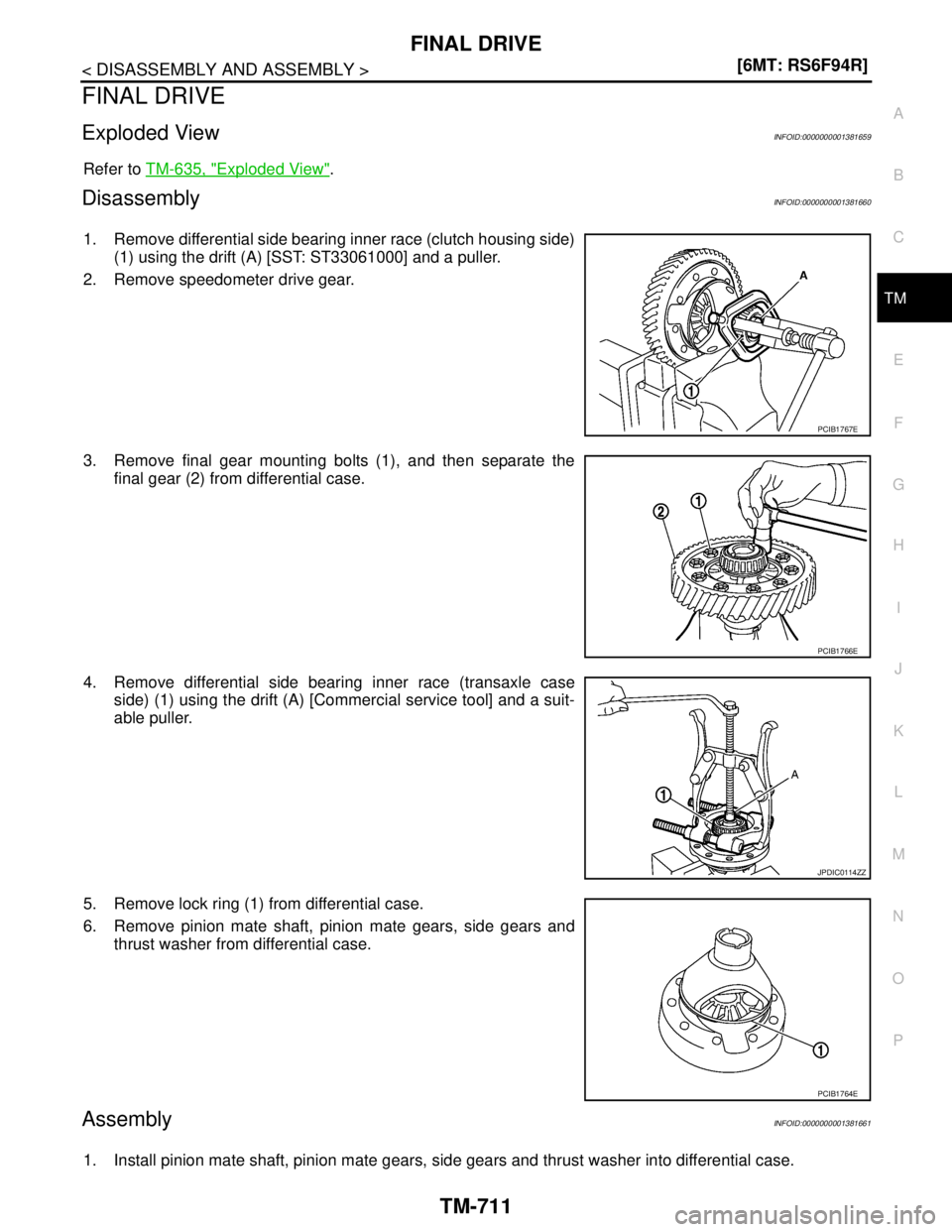

DisassemblyINFOID:0000000001381660
1. Remove differential side bearing inner race (clutch housing side)
(1) using the drift (A) [SST: ST33061000] and a puller.
2. Remove speedometer drive gear.
3. Remove final gear mounting bolts (1), and then separate the
final gear (2) from differential case.
4. Remove differential side bearing inner race (transaxle case
side) (1) using the drift (A) [Commercial service tool] and a suit-
able puller.
5. Remove lock ring (1) from differential case.
6. Remove pinion mate shaft, pinion mate gears, side gears and
thrust washer from differential case.
AssemblyINFOID:0000000001381661
1. Install pinion mate shaft, pinion mate gears, side gears and thrust washer into differential case.
PCIB1767E
PCIB1766E
JPDIC0114ZZ
PCIB1764E
Page 5658 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-712
< DISASSEMBLY AND ASSEMBLY >[6MT: RS6F94R]
FINAL DRIVE

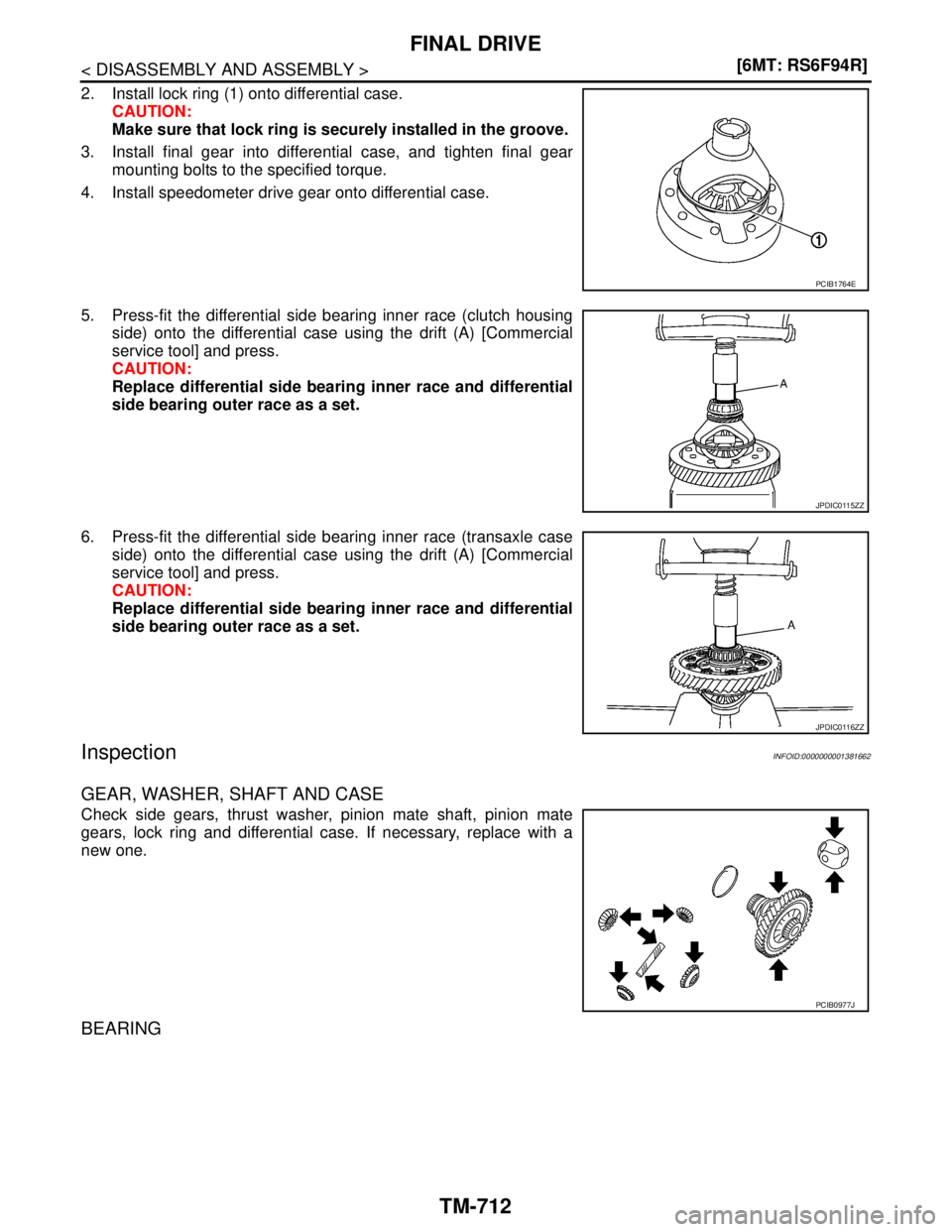

2. Install lock ring (1) onto differential case.
CAUTION:
Make sure that lock ring is securely installed in the groove.
3. Install final g NISSAN TIIDA 2007 Service Repair Manual TM-712
< DISASSEMBLY AND ASSEMBLY >[6MT: RS6F94R]
FINAL DRIVE
2. Install lock ring (1) onto differential case.
CAUTION:
Make sure that lock ring is securely installed in the groove.
3. Install final g](/manual-img/5/57395/w960_57395-5657.png)
TM-712
< DISASSEMBLY AND ASSEMBLY >[6MT: RS6F94R]
FINAL DRIVE
2. Install lock ring (1) onto differential case.
CAUTION:
Make sure that lock ring is securely installed in the groove.
3. Install final gear into differential case, and tighten final gear
mounting bolts to the specified torque.
4. Install speedometer drive gear onto differential case.
5. Press-fit the differential side bearing inner race (clutch housing
side) onto the differential case using the drift (A) [Commercial
service tool] and press.
CAUTION:
Replace differential side bearing inner race and differential
side bearing outer race as a set.
6. Press-fit the differential side bearing inner race (transaxle case
side) onto the differential case using the drift (A) [Commercial
service tool] and press.
CAUTION:
Replace differential side bearing inner race and differential
side bearing outer race as a set.
InspectionINFOID:0000000001381662
GEAR, WASHER, SHAFT AND CASE
Check side gears, thrust washer, pinion mate shaft, pinion mate
gears, lock ring and differential case. If necessary, replace with a
new one.
BEARING
PCIB1764E
JPDIC0115ZZ
JPDIC0116ZZ
PCIB0977J
Page 5659 of 5883
FINAL DRIVE
TM-713
< DISASSEMBLY AND ASSEMBLY >[6MT: RS6F94R]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Check for bearing damage and rough rotation. If necessary, replace
with a new one.
CAUTION:
When replacing tapered roller bearing, replace outer and inner
races as a set.
SPD715
Page 5660 of 5883
TM-714
< DISASSEMBLY AND ASSEMBLY >[6MT: RS6F94R]
SHIFT FORK AND FORK ROD
SHIFT FORK AND FORK ROD
Exploded ViewINFOID:0000000001381663
Refer to TM-635, "Exploded View".
DisassemblyINFOID:0000000001381664
Refer to TM-639, "Disassembly" for disassembly procedure.
AssemblyINFOID:0000000001381665
Refer to TM-645, "Assembly" for assembly procedure.
InspectionINFOID:0000000001381666

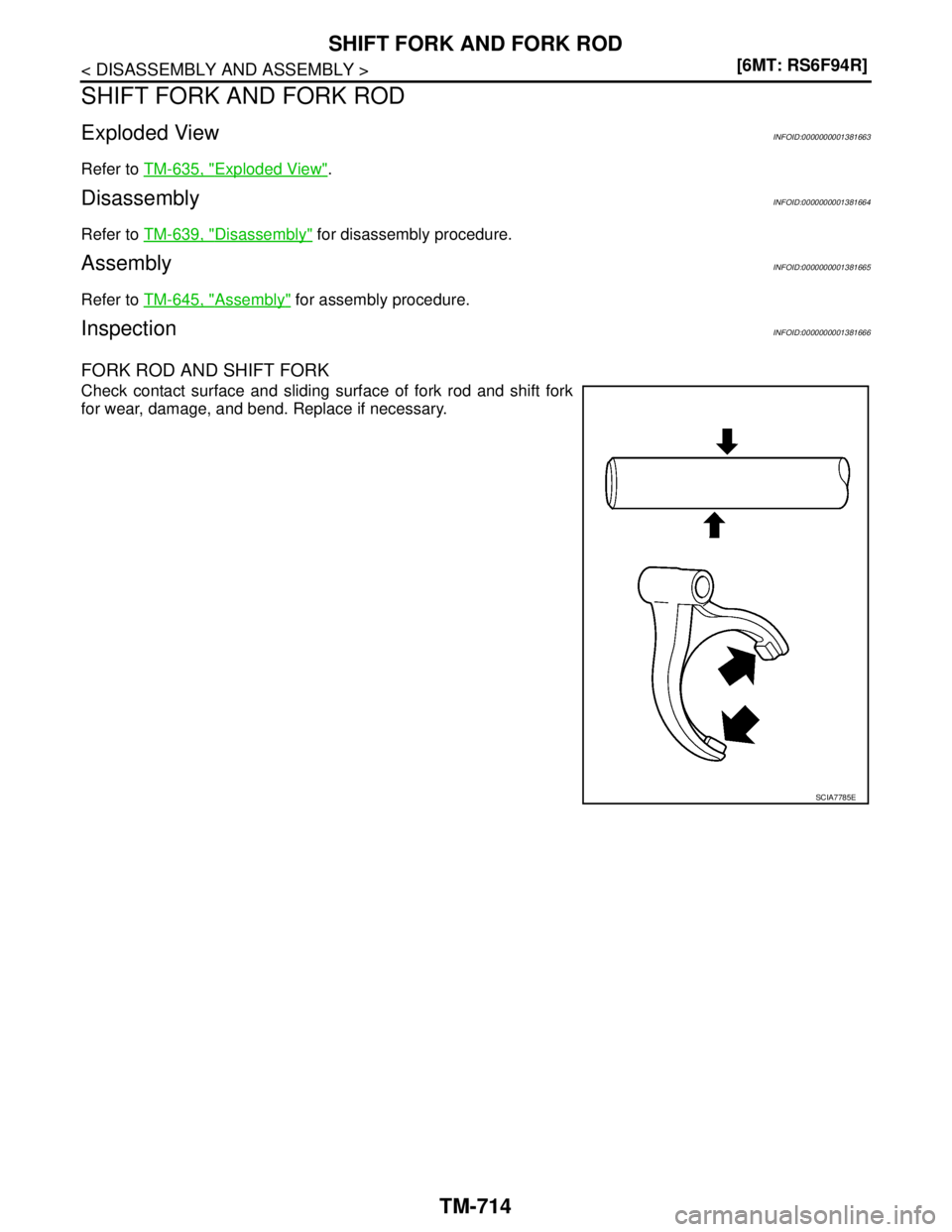

FORK ROD AND SHIFT FORK
Check contact surface and sliding surface of fork rod and shift fork
for wear, damage, and bend. Replace if necessary.
SCIA7785E
Page 5661 of 5883
SERVICE DATA AND SPECIFICATIONS (SDS)
TM-715
< SERVICE DATA AND SPECIFICATIONS (SDS) [6MT: RS6F94R]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000001381667
TRANSAXLE
Engine type MR18DE K9K
Transaxle modelRS6F94R
Number of speeds6
Synchromesh typeWarner
Shift pattern
Gear ratio 1st3.7273
2nd 2.1053 1.9474
3rd 1.4516 1.3226
4th 1.1714 0.975
5th 0.9714 0.7632
6th 0.8108 0.6383
Reverse 3.6865
Final gear 3.9333 3.7333
Number of teeth Input gear 1st 11
2nd 19
3rd 31
4th 35 40
5th 35 38
6th 37 47
Reverse 11
Main gear 1st 41
2nd 40 37
3rd 45 41
4th 41 39
5th 34 29
6th 30
Reverse 42
Reverse idler gear Input/Output 28/29
Final gear Final Gear/Pinion 59/15 56/15
Side Gear/Pinion
mate gear13/10
Oil capacity
(US pt, Imp pt)Approx. 2.0 (4-1/4, 3-1/2)
Remarks Reverse synchronizer Installed
Triple-cone synchronizer 1st and 2nd
PCIB1769E
