EM-42
< ON-VEHICLE REPAIR >[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
OIL PAN (UPPER) AND OIL STRAINER
ComponentINFOID:0000000001532078
Removal and InstallationINFOID:0000000001532079
NOTE:
The oil strainer and oil pump are included in the oil pan (upper). Individual disassembly is prohibited.
REMOVAL
NOTE:
When removing oil pan (lower) only, steps “2” and “3” are not necessary. Perform step “5” after completing
step “4”.
1. Remove engine undercover using power tool.
2. Remove engine and transaxle assembly from the vehicle, and then separate engine and transaxle. Refer
to EM-89, "
Removal and Installation".
3. Install engine assembly to widely use engine stand. Refer to EM-94, "
Setting".
4. Drain engine oil. Refer to LU-7, "
Draining".
5. Remove the oil pan (lower) using the following procedure.

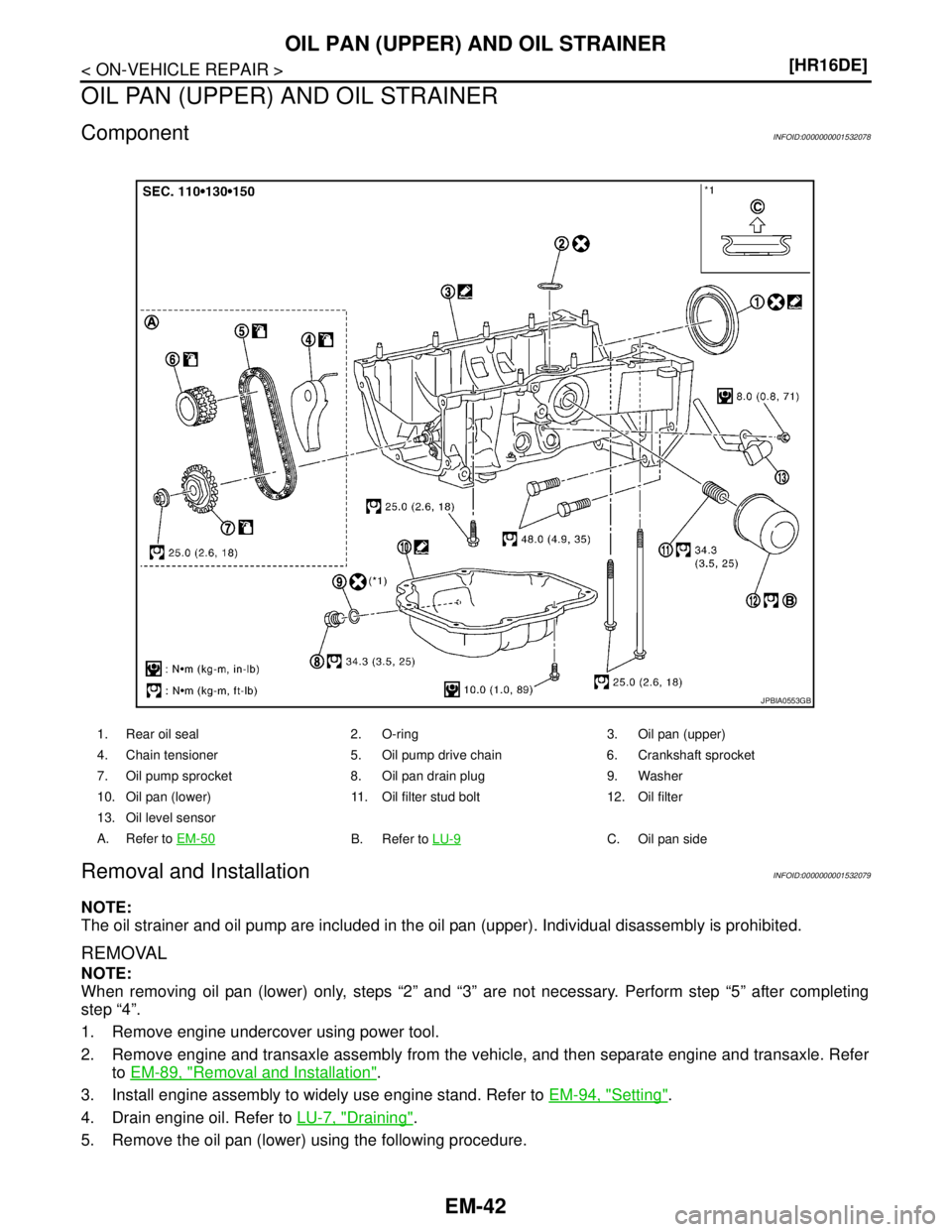

1. Rear oil seal 2. O-ring 3. Oil pan (upper)
4. Chain tensioner 5. Oil pump drive chain 6. Crankshaft sprocket
7. Oil pump sprocket 8. Oil pan drain plug 9. Washer
10. Oil pan (lower) 11. Oil filter stud bolt 12. Oil filter
13. Oil level sensor
A. Refer to EM-50
B. Refer to LU-9C. Oil pan side
JPBIA0553GB
Page 2690 of 5883
![NISSAN TIIDA 2007 Service Repair Manual OIL PAN (UPPER) AND OIL STRAINER
EM-43
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
a. Loosen bolts in the reverse of the order shown.
b. Insert the seal cutter (SST: KV10111100) betw NISSAN TIIDA 2007 Service Repair Manual OIL PAN (UPPER) AND OIL STRAINER
EM-43
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
a. Loosen bolts in the reverse of the order shown.
b. Insert the seal cutter (SST: KV10111100) betw](/manual-img/5/57395/w960_57395-2689.png)
OIL PAN (UPPER) AND OIL STRAINER
EM-43
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

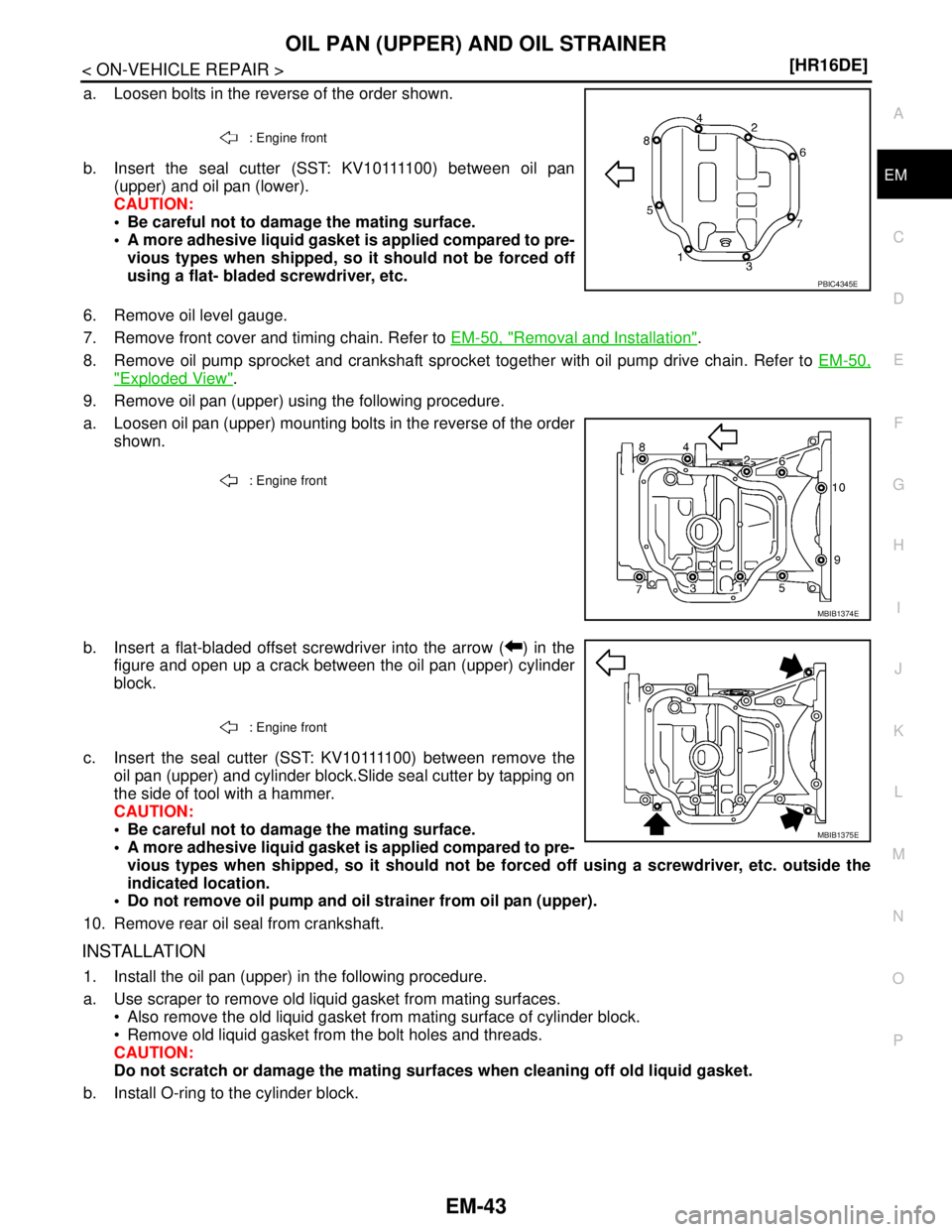

a. Loosen bolts in the reverse of the order shown.
b. Insert the seal cutter (SST: KV10111100) between oil pan
(upper) and oil pan (lower).
CAUTION:
Be careful not to damage the mating surface.
A more adhesive liquid gasket is applied compared to pre-
vious types when shipped, so it should not be forced off
using a flat- bladed screwdriver, etc.
6. Remove oil level gauge.
7. Remove front cover and timing chain. Refer to EM-50, "
Removal and Installation".
8. Remove oil pump sprocket and crankshaft sprocket together with oil pump drive chain. Refer to EM-50,
"Exploded View".
9. Remove oil pan (upper) using the following procedure.
a. Loosen oil pan (upper) mounting bolts in the reverse of the order
shown.
b. Insert a flat-bladed offset screwdriver into the arrow ( ) in the
figure and open up a crack between the oil pan (upper) cylinder
block.
c. Insert the seal cutter (SST: KV10111100) between remove the
oil pan (upper) and cylinder block.Slide seal cutter by tapping on
the side of tool with a hammer.
CAUTION:
Be careful not to damage the mating surface.
A more adhesive liquid gasket is applied compared to pre-
vious types when shipped, so it should not be forced off using a screwdriver, etc. outside the
indicated location.
Do not remove oil pump and oil strainer from oil pan (upper).
10. Remove rear oil seal from crankshaft.
INSTALLATION
1. Install the oil pan (upper) in the following procedure.
a. Use scraper to remove old liquid gasket from mating surfaces.
Also remove the old liquid gasket from mating surface of cylinder block.
Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
b. Install O-ring to the cylinder block.
: Engine front
PBIC4345E
: Engine front
MBIB1374E
: Engine front
MBIB1375E
Page 2691 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EM-44
< ON-VEHICLE REPAIR >[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER

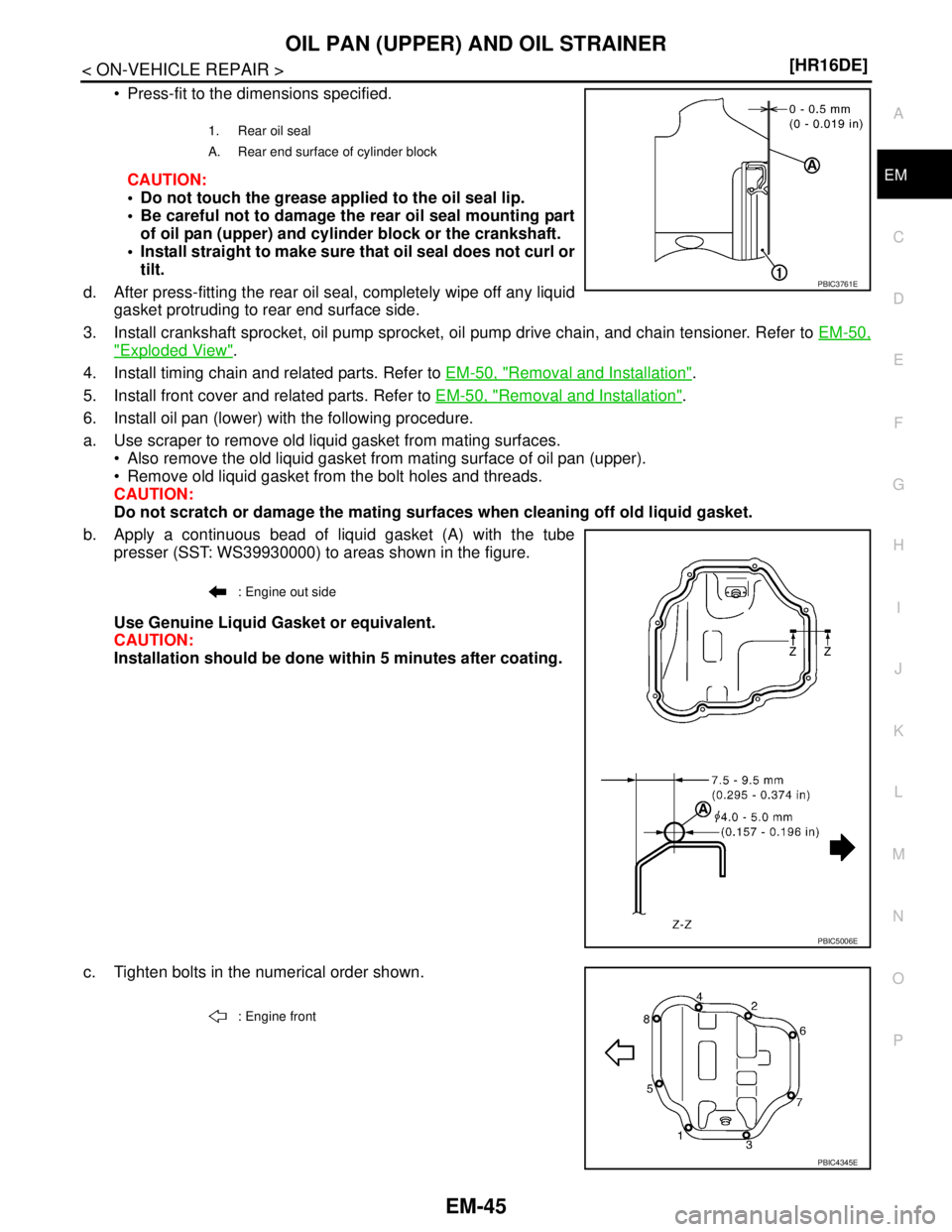

c. Apply a continuous bead of liquid gasket (C) with the tube
presser (SST: WS39930000) to areas shown.
Use Genuine Liquid Gasket o NISSAN TIIDA 2007 Service Repair Manual EM-44
< ON-VEHICLE REPAIR >[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
c. Apply a continuous bead of liquid gasket (C) with the tube
presser (SST: WS39930000) to areas shown.
Use Genuine Liquid Gasket o](/manual-img/5/57395/w960_57395-2690.png)
EM-44
< ON-VEHICLE REPAIR >[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
c. Apply a continuous bead of liquid gasket (C) with the tube
presser (SST: WS39930000) to areas shown.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
Installation should be done within 5 minutes after coating.
d. Tighten bolts in the numerical order shown.
CAUTION:
Install avoiding misalignment of both oil pan gasket and O-
ring.
The bolts are different according to the installation position.
Follow the numbers shown.
2. Install rear oil seal with the following procedure:
CAUTION:
The installation of rear oil seal should be completed within 5 minutes after installing oil pan
(upper).
Do not touch oil seal lip.
a. Wipe off any liquid gasket protruding to the rear oil seal mounting part of oil pan (upper) and cylinder block
using a spatula.
b. Apply the liquid gasket lightly to entire outside area of new rear oil seal.
Use Genuine Liquid Gasket or equivalent.
c. Press-fit the rear oil seal using a drift with outer diameter 113
mm (4.45 in) and inner diameter 90 mm (3.54 in) (commercial
service tool) (A).
A : 2 mm (0.07 in) protruded to outside
B : 2 mm (0.07 in) protruded to rear oil seal mounting side
: Engine front
: Engine out side
PBIC4344E
: Engine front
M8 × 179 mm (7.09 in) : No. 9, 10
M8 × 25 mm (0.98 in) : No. 4, 7, 8
M8 × 90 mm (3.54 in) : No. 1, 2, 3, 5, 6 MBIB1374E
PBIC3660E
Page 2692 of 5883
![NISSAN TIIDA 2007 Service Repair Manual OIL PAN (UPPER) AND OIL STRAINER
EM-45
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Press-fit to the dimensions specified.
CAUTION:
Do not touch the grease applied to the oil seal NISSAN TIIDA 2007 Service Repair Manual OIL PAN (UPPER) AND OIL STRAINER
EM-45
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Press-fit to the dimensions specified.
CAUTION:
Do not touch the grease applied to the oil seal](/manual-img/5/57395/w960_57395-2691.png)
OIL PAN (UPPER) AND OIL STRAINER
EM-45
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Press-fit to the dimensions specified.
CAUTION:
Do not touch the grease applied to the oil seal lip.
Be careful not to damage the rear oil seal mounting part
of oil pan (upper) and cylinder block or the crankshaft.
Install straight to make sure that oil seal does not curl or
tilt.
d. After press-fitting the rear oil seal, completely wipe off any liquid
gasket protruding to rear end surface side.
3. Install crankshaft sprocket, oil pump sprocket, oil pump drive chain, and chain tensioner. Refer to EM-50,
"Exploded View".
4. Install timing chain and related parts. Refer to EM-50, "
Removal and Installation".
5. Install front cover and related parts. Refer to EM-50, "
Removal and Installation".
6. Install oil pan (lower) with the following procedure.
a. Use scraper to remove old liquid gasket from mating surfaces.
Also remove the old liquid gasket from mating surface of oil pan (upper).
Remove old liquid gasket from the bolt holes and threads.
CAUTION:
Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
b. Apply a continuous bead of liquid gasket (A) with the tube
presser (SST: WS39930000) to areas shown in the figure.
Use Genuine Liquid Gasket or equivalent.
CAUTION:
Installation should be done within 5 minutes after coating.
c. Tighten bolts in the numerical order shown.
1. Rear oil seal
A. Rear end surface of cylinder block
: Engine out side
PBIC3761E
PBIC5006E
: Engine front
PBIC4345E
Page 2693 of 5883
EM-46
< ON-VEHICLE REPAIR >[HR16DE]
OIL PAN (UPPER) AND OIL STRAINER
7. Install oil pan drain plug.
For installation direction of washer. Refer to EM-42, "
Component".
8. Installation is in the reverse order of removal.
CAUTION:
Do not fill engine with engine oil until at least 30 minutes after oil pan is installed.
INSPECTION AFTER INSTALLATION
1. Check engine oil level and adjust engine oil. Refer to LU-6, "Inspection".
2. Check for leakage of engine oil when engine is warmed.
3. Stop engine and wait for 10 minutes.
4. Check engine oil level again. Refer to LU-6, "
Inspection".
Page 2694 of 5883
IGNITION COIL, SPARK PLUG AND ROCKER COVER
EM-47
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
IGNITION COIL, SPARK PLUG AND ROCKER COVER
Exploded ViewINFOID:0000000001381409
Removal and InstallationINFOID:0000000001381410
REMOVAL
1. Remove intake manifold. Refer to EM-29, "Exploded View".
2. Remove ignition coil.
CAUTION:
Handle ignition coil carefully and avoid impacts.
Never disassemble.
3. Remove ground cable (RH).
4. Support the bottom surface of engine using a transmission jack, and then remove the engine mounting
bracket and insulator (RH). Refer to EM-89, "
Exploded View".

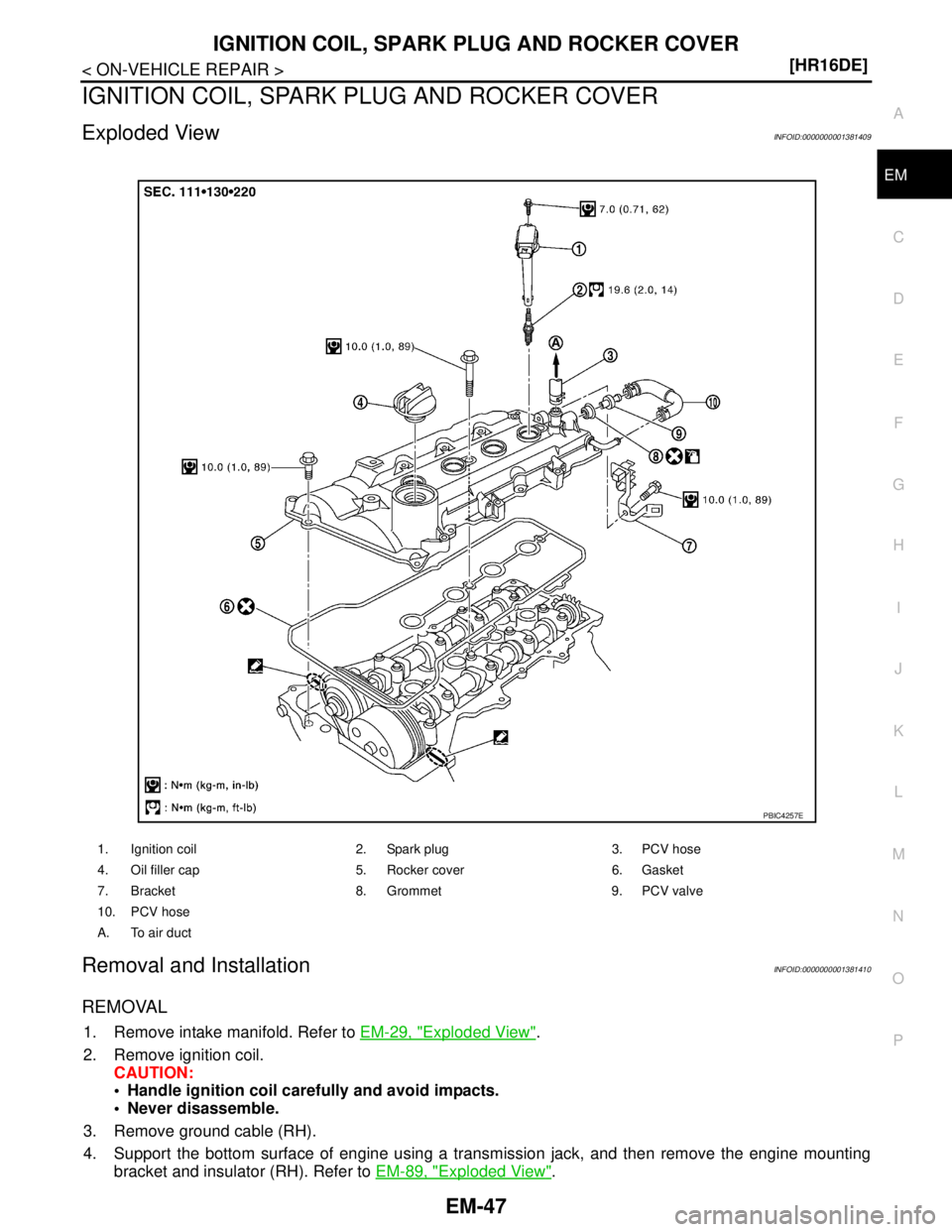

1. Ignition coil 2. Spark plug 3. PCV hose
4. Oil filler cap 5. Rocker cover 6. Gasket
7. Bracket 8. Grommet 9. PCV valve
10. PCV hose
A. To air duct
PBIC4257E
Page 2695 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EM-48
< ON-VEHICLE REPAIR >[HR16DE]
IGNITION COIL, SPARK PLUG AND ROCKER COVER
5. Remove fuel tube protector.
6. Remove oil filler cap.
7. Remove rocker cover.
Loosen bolts in reverse order shown.
N NISSAN TIIDA 2007 Service Repair Manual EM-48
< ON-VEHICLE REPAIR >[HR16DE]
IGNITION COIL, SPARK PLUG AND ROCKER COVER
5. Remove fuel tube protector.
6. Remove oil filler cap.
7. Remove rocker cover.
Loosen bolts in reverse order shown.
N](/manual-img/5/57395/w960_57395-2694.png)
EM-48
< ON-VEHICLE REPAIR >[HR16DE]
IGNITION COIL, SPARK PLUG AND ROCKER COVER
5. Remove fuel tube protector.
6. Remove oil filler cap.
7. Remove rocker cover.
Loosen bolts in reverse order shown.
NOTE:
13 and 14 shown are used to tighten the fuel tube protector.
8. Remove rocker cover gasket from rocker cover.
9. Use scraper to remove all traces of liquid gasket from cylinder head and front cover.
CAUTION:
Never scratch or damage the mating surface when cleaning off old liquid gasket.
INSTALLATION
1. Install the rocker cover with the following procedure.
a. Install the gasket to the rocker cover.
Check for damage or foreign material.
Make sure that it is securely inserted in the mounting groove of
rocker cover.
For the 2 bolt holes shown, push the gasket into the boss for
the rocker cover bolt hole to prevent it from falling.
b. Apply liquid gasket to the position shown.
Use Genuine Liquid Gasket or equivalent.
2. Install rocker cover to the cylinder head.
CAUTION:
Make sure the gasket is not dropped.
3. Install rocker cover.
: Engine front
PBIC3670E
KBIA3331J
1 : Cylinder head
2 : Front cover
PBIC3671E
Page 2696 of 5883
IGNITION COIL, SPARK PLUG AND ROCKER COVER
EM-49
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Tighten bolts in two steps separately in numerical order as
shown.
4. Install in the reverse order of removal, for the remaining parts.
: Engine front
PBIC3670E
