Install control valves.
For installation procedures, refer to TM-545, "
Control Valve Upper
Body".
Retainer Plate (Control Valve Lower Body)
Install proper retainer plates.
Unit: mm (in)
Reverse ClutchINFOID:0000000001731440

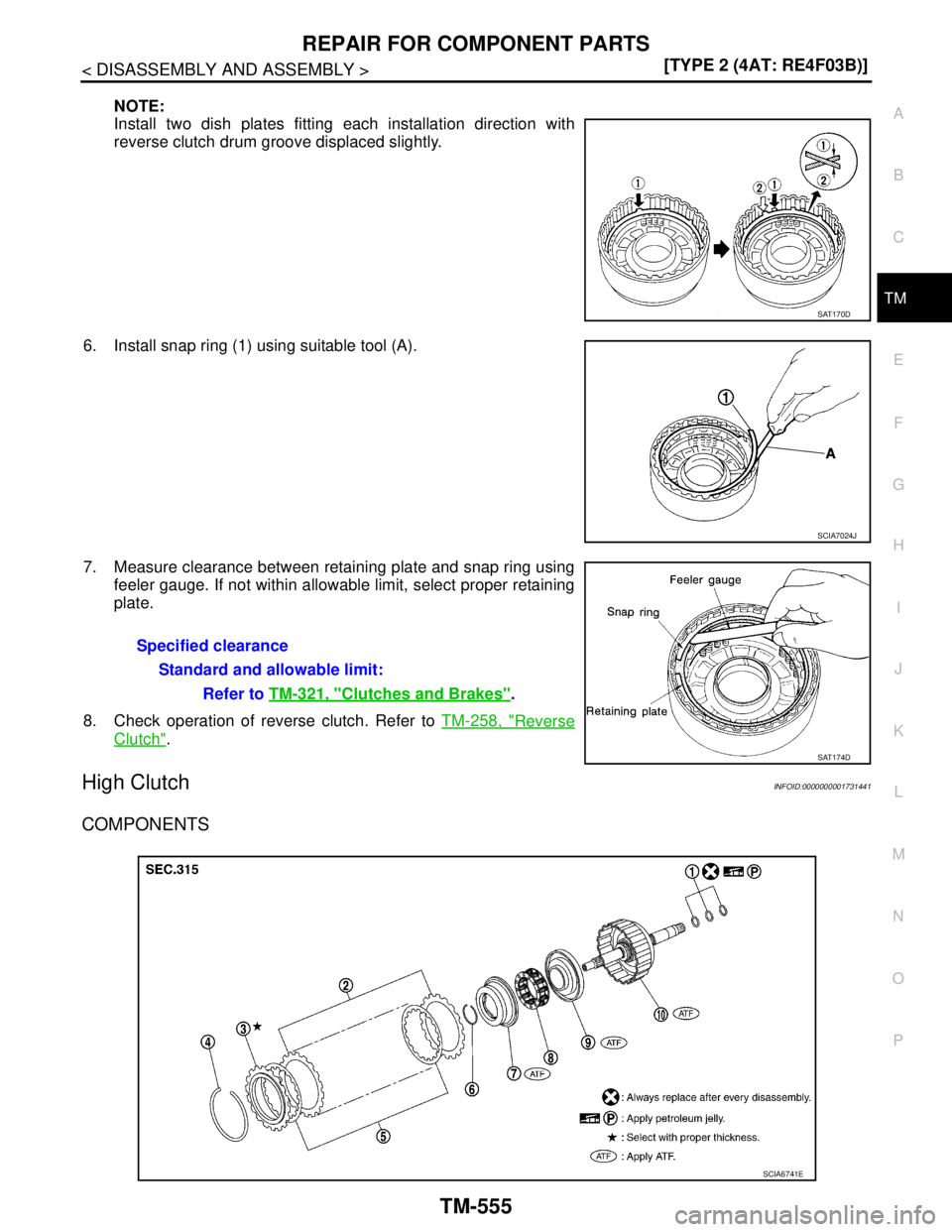

COMPONENTS
DISASSEMBLY
SCIA4978E
Lo-
cat-
ionRetainer plate designation Width “A” Length “B” Type
L3 Pressure regulator valve
6.0
(0.236)28.0
(1.102)I L4 Overrun clutch control valve
L5 Accumulator control valve
L6 Shift valve A
L7 Shuttle valve
L12 Shift valve B17.0
(0.669)24.0
(0.945)II
L13 Pressure modifier valve6.0
(0.236)28.0
(1.102)I
SAT089F
1. Reverse clutch drum 2. D-ring 3. Seal ring
4. Reverse clutch piston 5. Spring retainer assembly 6. Snap ring
7. Dish plate 8. Driven plate 9. Retaining plate
10. Snap ring 11. Drive plate
SCIA6939J
Page 5498 of 5883
![NISSAN TIIDA 2007 Service Repair Manual TM-552
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
1. Check operation of reverse clutch
a. Install seal rings to drum support of oil pump assembly, and set
reverse c NISSAN TIIDA 2007 Service Repair Manual TM-552
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
1. Check operation of reverse clutch
a. Install seal rings to drum support of oil pump assembly, and set
reverse c](/manual-img/5/57395/w960_57395-5497.png)

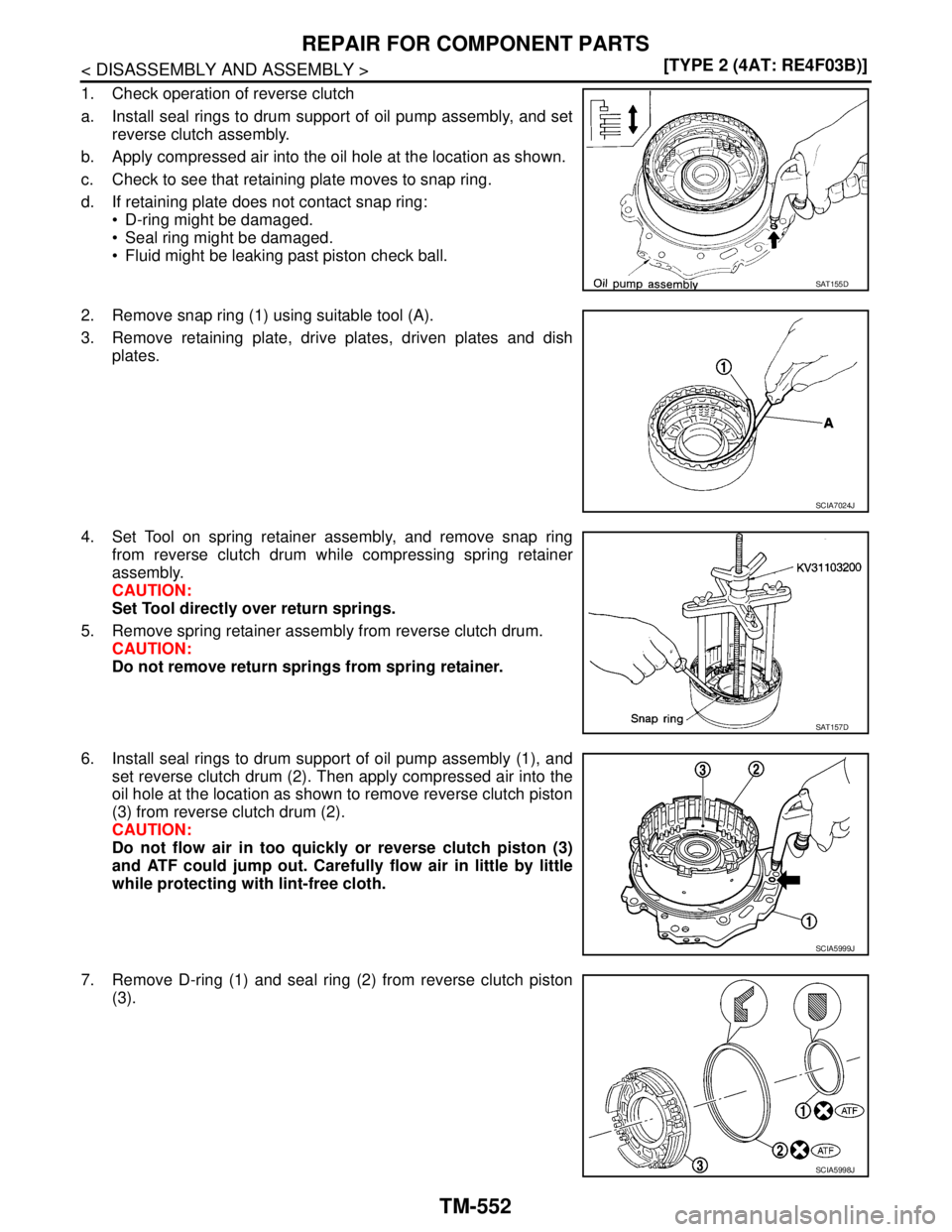

TM-552
< DISASSEMBLY AND ASSEMBLY >[TYPE 2 (4AT: RE4F03B)]
REPAIR FOR COMPONENT PARTS
1. Check operation of reverse clutch
a. Install seal rings to drum support of oil pump assembly, and set
reverse clutch assembly.
b. Apply compressed air into the oil hole at the location as shown.
c. Check to see that retaining plate moves to snap ring.
d. If retaining plate does not contact snap ring:
D-ring might be damaged.
Seal ring might be damaged.
Fluid might be leaking past piston check ball.
2. Remove snap ring (1) using suitable tool (A).
3. Remove retaining plate, drive plates, driven plates and dish
plates.
4. Set Tool on spring retainer assembly, and remove snap ring
from reverse clutch drum while compressing spring retainer
assembly.
CAUTION:
Set Tool directly over return springs.
5. Remove spring retainer assembly from reverse clutch drum.
CAUTION:
Do not remove return springs from spring retainer.
6. Install seal rings to drum support of oil pump assembly (1), and
set reverse clutch drum (2). Then apply compressed air into the
oil hole at the location as shown to remove reverse clutch piston
(3) from reverse clutch drum (2).
CAUTION:
Do not flow air in too quickly or reverse clutch piston (3)
and ATF could jump out. Carefully flow air in little by little
while protecting with lint-free cloth.

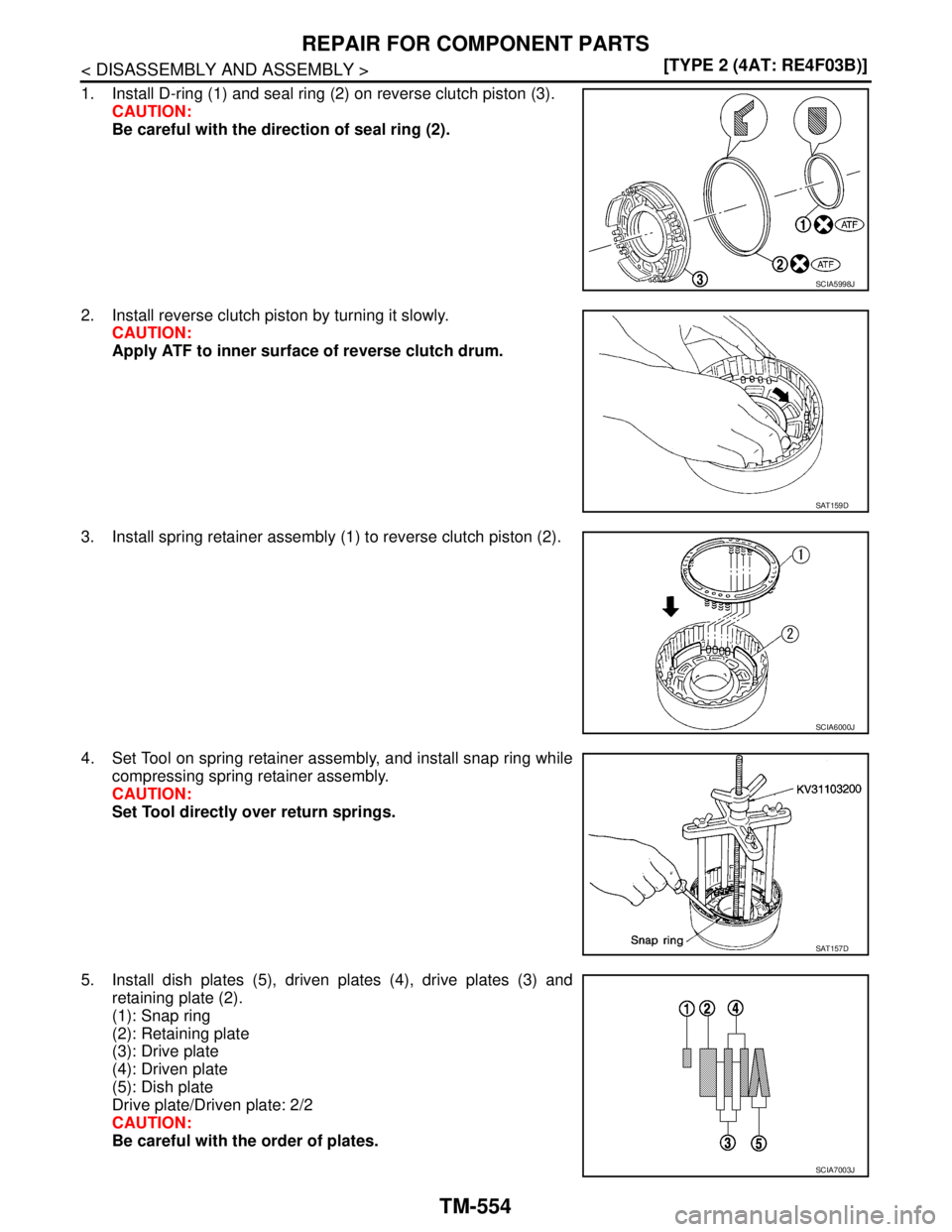

7. Remove D-ring (1) and seal ring (2) from reverse clutch piston
(3).
SAT155D
SCIA7024J
SAT157D
