EM-218
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
Apply new engine oil sufficiently to the cylinder bore, piston and crankshaft pin.
Match the cylinder position with the cylinder number (C) on
connecting rod to install.
Install so that front mark (A) on the piston head faces the front
of engine.
Using a piston ring compressor [SST: EM03470000 (J-8037)]
(A) or suitable tool, install piston with the front mark on the pis-
ton head facing the front of the engine.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interference of the connecting rod
big end.
22. Install connecting rod cap.
Match the stamped cylinder number marks (C) on connecting
rod with those on connecting rod cap to install.
23. Tighten connecting rod bolt with the following procedure:
CAUTION:
Make sure that there is no gap in the thrust surface (A) of
the joint between connecting rod (1) and connecting rod
bearing cap (2) and that these parts are in the correct
position. And then, tighten the connecting rod bolts.
If the connecting rod bolts are reused, measure the outer
diameter. Refer to EM-219, "
Inspection After Disassem-
bly".
24. Apply new engine oil to the threads and seats of connecting rod
bolts.
25. Tighten bolts in three steps
After tightening connecting rod bolt, make sure that crankshaft rotates smoothly.
Check the connecting rod side clearance. Refer to EM-219, "
Inspection After Disassembly".
26. Install oil pan (upper). Refer to EM-166
.
B : Oil hole
D : Big end diameter grade
E : Small end diameter grade
F : Front mark (connecting rod bearing cap)
PBIC3587J
PBIC3244J
A : Front mark (piston)
B : Oil hole
D : Big end diameter grade
E : Small end diameter grade
F : Front mark (connecting rod bearing cap)
PBIC3587J
Step 1 : 27.4 N·m (2.8 kg-m, 20 ft-lb)
Step 2 : 0 N·m (0 kg-m, 0 ft-lb)
Step 3 : 19.6 N·m (2.0 kg-m, 14 ft-lb)
PBIC3510J
Page 2866 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ENGINE UNIT
EM-219
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
NOTE:
Install the rear oil seal after installing the oil pan (upper).
27. Install rear oil seal. Refer to EM-166 NISSAN TIIDA 2007 Service Repair Manual ENGINE UNIT
EM-219
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
NOTE:
Install the rear oil seal after installing the oil pan (upper).
27. Install rear oil seal. Refer to EM-166](/manual-img/5/57395/w960_57395-2865.png)
ENGINE UNIT
EM-219
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
NOTE:
Install the rear oil seal after installing the oil pan (upper).
27. Install rear oil seal. Refer to EM-166
.
28. Install flywheel.
Secure crankshaft using Tool. (A), and tighten bolts crosswise
over several times.
29. Install knock sensor (1) with connector facing toward the rear of
engine.
CAUTION:
Never tighten bolts while holding the connector.
If any impact by dropping is applied to knock sensor,
replace it with a new one.
NOTE:
Make sure that there is no foreign material on the cylinder
block mating surface and the back surface of knock sensor.
Make sure that knock sensor does not interfere with other parts.
30. Install crankshaft position sensor (POS) and crankshaft position sensor (POS) cover.
CAUTION:
Avoid impacts such as a dropping.
Keep it away from metal particles.
Never place sensor in a location where it is exposed to magnetism.
31. Install oil filter (for intake valve timing control) (1) in the direction
shown.
Make sure that the oil filter does not protrude from the upper
surface of cylinder block (2) after installation.
32. Assemble in the reverse order of disassembly.
Inspection After DisassemblyINFOID:0000000001337814
CRANKSHAFT END PLAY
Tool number : KV11105210 (J-44716)
AWBIA011 7ZZ
A : Cylinder block left side
: Engine front
PBIC3246J
PBIC3260J
Page 2867 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EM-220
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
Measure the clearance between thrust bearings and crankshaft
arm when crankshaft is moved fully forward or backward with a dial
indicator (A). NISSAN TIIDA 2007 Service Repair Manual EM-220
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
Measure the clearance between thrust bearings and crankshaft
arm when crankshaft is moved fully forward or backward with a dial
indicator (A).](/manual-img/5/57395/w960_57395-2866.png)

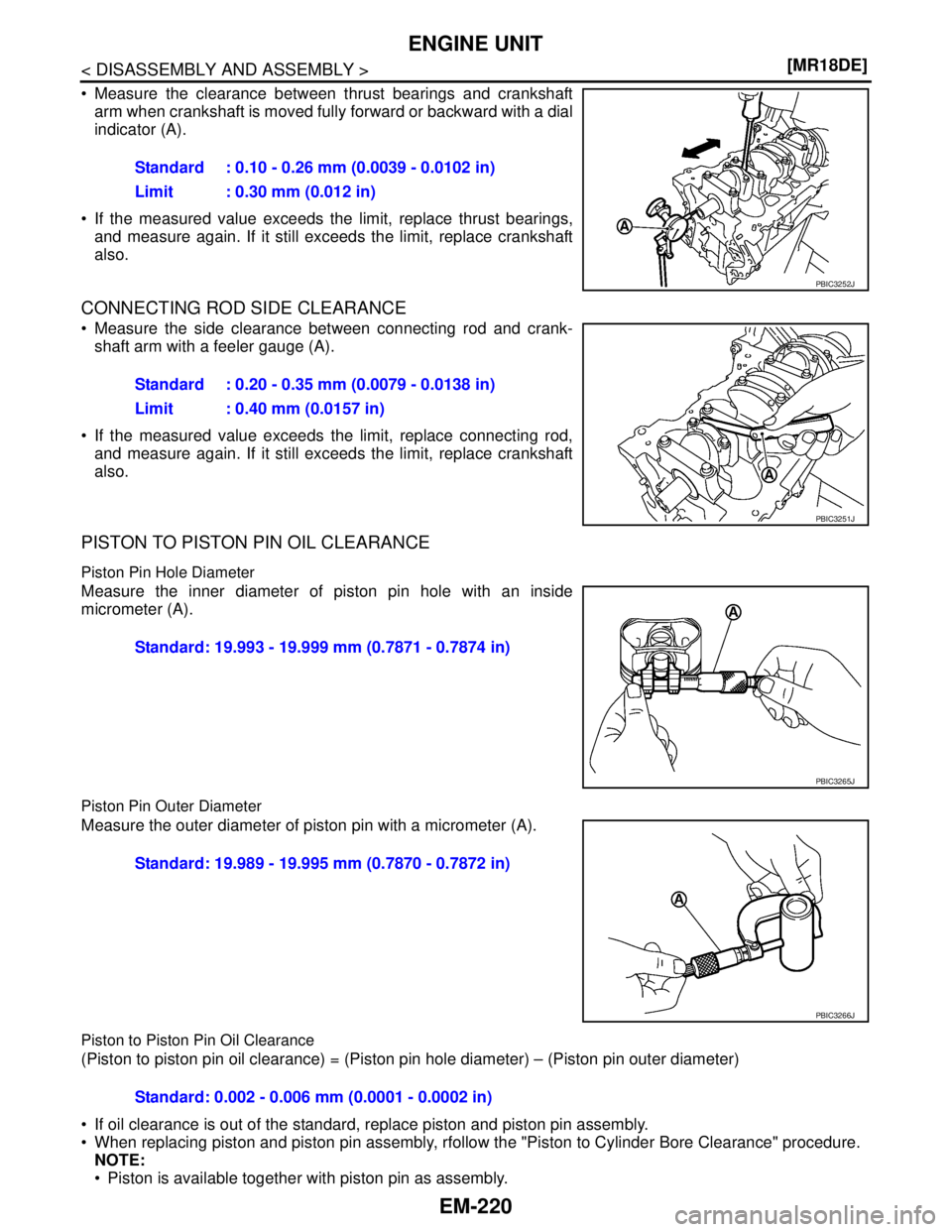

EM-220
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
Measure the clearance between thrust bearings and crankshaft
arm when crankshaft is moved fully forward or backward with a dial
indicator (A).
If the measured value exceeds the limit, replace thrust bearings,
and measure again. If it still exceeds the limit, replace crankshaft
also.
CONNECTING ROD SIDE CLEARANCE
Measure the side clearance between connecting rod and crank-
shaft arm with a feeler gauge (A).
If the measured value exceeds the limit, replace connecting rod,
and measure again. If it still exceeds the limit, replace crankshaft
also.
PISTON TO PISTON PIN OIL CLEARANCE
Piston Pin Hole Diameter
Measure the inner diameter of piston pin hole with an inside
micrometer (A).
Piston Pin Outer Diameter
Measure the outer diameter of piston pin with a micrometer (A).
Piston to Piston Pin Oil Clearance
(Piston to piston pin oil clearance) = (Piston pin hole diameter) – (Piston pin outer diameter)
If oil clearance is out of the standard, replace piston and piston pin assembly.
When replacing piston and piston pin assembly, rfollow the "Piston to Cylinder Bore Clearance" procedure.
NOTE:
Piston is available together with piston pin as assembly.Standard : 0.10 - 0.26 mm (0.0039 - 0.0102 in)
Limit : 0.30 mm (0.012 in)
PBIC3252J
Standard : 0.20 - 0.35 mm (0.0079 - 0.0138 in)
Limit : 0.40 mm (0.0157 in)
PBIC3251J
Standard: 19.993 - 19.999 mm (0.7871 - 0.7874 in)
PBIC3265J
Standard: 19.989 - 19.995 mm (0.7870 - 0.7872 in)
PBIC3266J
Standard: 0.002 - 0.006 mm (0.0001 - 0.0002 in)
Page 2868 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ENGINE UNIT
EM-221
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, n NISSAN TIIDA 2007 Service Repair Manual ENGINE UNIT
EM-221
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, n](/manual-img/5/57395/w960_57395-2867.png)

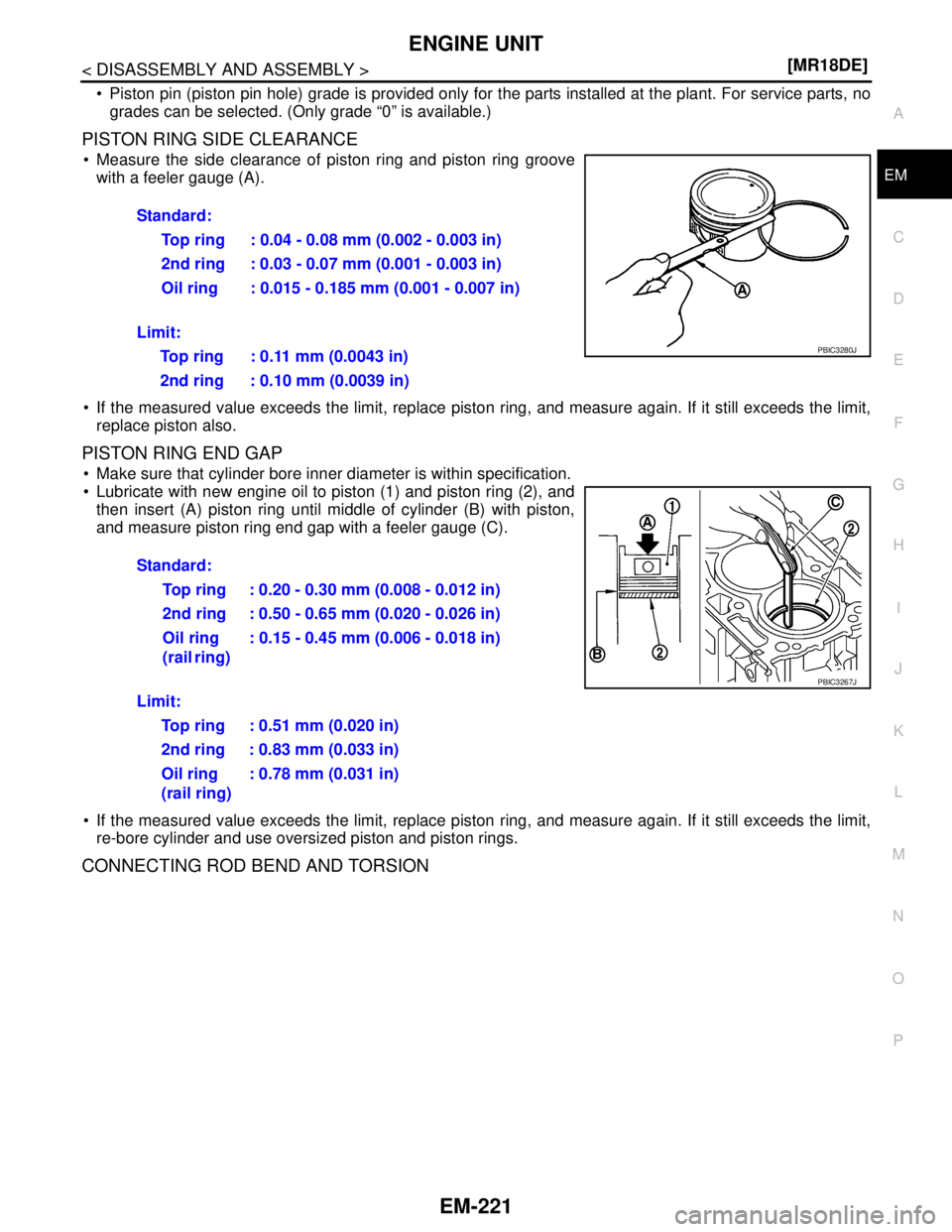

ENGINE UNIT
EM-221
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Piston pin (piston pin hole) grade is provided only for the parts installed at the plant. For service parts, no
grades can be selected. (Only grade “0” is available.)
PISTON RING SIDE CLEARANCE
Measure the side clearance of piston ring and piston ring groove
with a feeler gauge (A).
If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
replace piston also.
PISTON RING END GAP
Make sure that cylinder bore inner diameter is within specification.
Lubricate with new engine oil to piston (1) and piston ring (2), and
then insert (A) piston ring until middle of cylinder (B) with piston,
and measure piston ring end gap with a feeler gauge (C).
If the measured value exceeds the limit, replace piston ring, and measure again. If it still exceeds the limit,
re-bore cylinder and use oversized piston and piston rings.
CONNECTING ROD BEND AND TORSION
Standard:
Top ring : 0.04 - 0.08 mm (0.002 - 0.003 in)
2nd ring : 0.03 - 0.07 mm (0.001 - 0.003 in)
Oil ring : 0.015 - 0.185 mm (0.001 - 0.007 in)
Limit:
Top ring : 0.11 mm (0.0043 in)
2nd ring : 0.10 mm (0.0039 in)
PBIC3280J
Standard:
Top ring : 0.20 - 0.30 mm (0.008 - 0.012 in)
2nd ring : 0.50 - 0.65 mm (0.020 - 0.026 in)
Oil ring
(rail ring) : 0.15 - 0.45 mm (0.006 - 0.018 in)
Limit:
Top ring : 0.51 mm (0.020 in)
2nd ring : 0.83 mm (0.033 in)
Oil ring
(rail ring): 0.78 mm (0.031 in)
PBIC3267J
Page 2869 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EM-222
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
Check with a connecting rod aligner.
If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END DIAMETER
Install con NISSAN TIIDA 2007 Service Repair Manual EM-222
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
Check with a connecting rod aligner.
If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END DIAMETER
Install con](/manual-img/5/57395/w960_57395-2868.png)

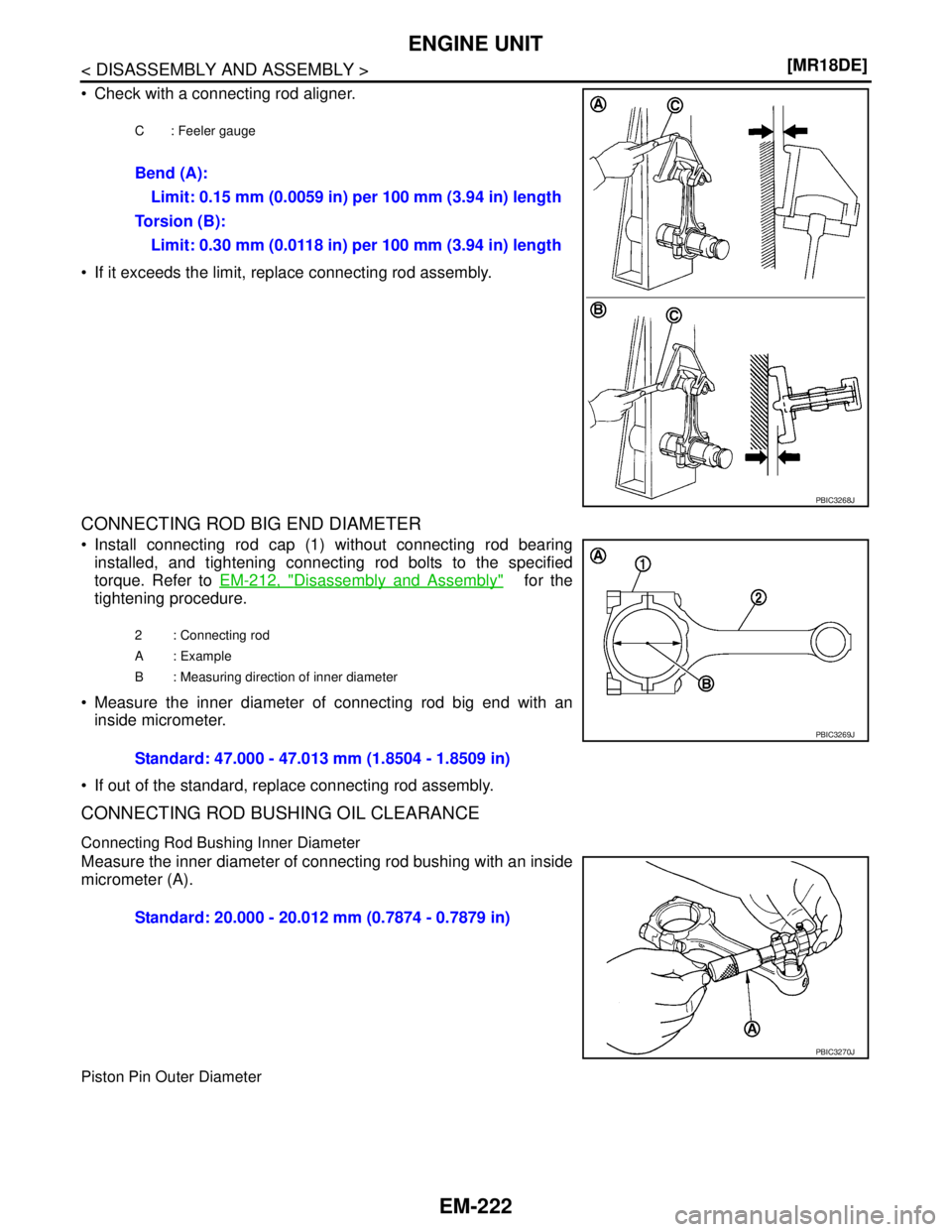

EM-222
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
Check with a connecting rod aligner.
If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG END DIAMETER
Install connecting rod cap (1) without connecting rod bearing
installed, and tightening connecting rod bolts to the specified
torque. Refer to EM-212, "
Disassembly and Assembly" for the
tightening procedure.
Measure the inner diameter of connecting rod big end with an
inside micrometer.
If out of the standard, replace connecting rod assembly.
CONNECTING ROD BUSHING OIL CLEARANCE
Connecting Rod Bushing Inner Diameter
Measure the inner diameter of connecting rod bushing with an inside
micrometer (A).
Piston Pin Outer Diameter
C : Feeler gauge
Bend (A):
Limit: 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
To r s i o n ( B ) :
Limit: 0.30 mm (0.0118 in) per 100 mm (3.94 in) length
PBIC3268J
2 : Connecting rod
A : Example
B : Measuring direction of inner diameter
Standard: 47.000 - 47.013 mm (1.8504 - 1.8509 in)
PBIC3269J
Standard: 20.000 - 20.012 mm (0.7874 - 0.7879 in)
PBIC3270J
Page 2870 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ENGINE UNIT
EM-223
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Measure the outer diameter of piston pin with a micrometer (A).
Connecting Rod Bushing Oil Clearance
(Connecting NISSAN TIIDA 2007 Service Repair Manual ENGINE UNIT
EM-223
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Measure the outer diameter of piston pin with a micrometer (A).
Connecting Rod Bushing Oil Clearance
(Connecting](/manual-img/5/57395/w960_57395-2869.png)
ENGINE UNIT
EM-223
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Measure the outer diameter of piston pin with a micrometer (A).
Connecting Rod Bushing Oil Clearance
(Connecting rod bushing oil clearance) = (Connecting rod bushing inner diameter) – (Piston pin outer diame-
ter)
If the measured value is out of the standard, replace connecting rod assembly and/or piston and piston pin
assembly.
If replacing piston and piston pin assembly, refer to "PISTON TO PISTON PIN OIL CLEARANCE".
If replacing connecting rod assembly, refer to "Connecting Rod Bushing Oil Clearance" to select connecting
rod bearing.
CYLINDER BLOCK TOP SURFACE DISTORTION
Using a scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, or
other contamination.
CAUTION:
Be careful not to allow gasket flakes to enter engine oil or engine coolant passages.
Measure the distortion on the cylinder block upper face at some
different points in six directions with a straight edge (A) and feeler
gauge (B).
If it exceeds the limit, replace cylinder block.
MAIN BEARING HOUSING INNER DIAMETER
Install main bearing cap without main bearings installed, and tighten main bearing cap bolts to the specified
torque. Refer to EM-212, "
Disassembly and Assembly" for the tightening procedure.
Measure the inner diameter of main bearing housing with a bore gauge.
Measure the position shown [5 mm (0.20 in)] backward from main
bearing housing front side in the 2 directions as shown. The
smaller one is the measured value.
If out of the standard, replace cylinder block and main bearing
caps assembly.
NOTE:
Main bearing caps cannot be replaced as a single, because it is machined together with cylinder block. Standard: 19.989 - 19.995 mm (0.7870 - 0.7872 in)
PBIC3266J
Standard : 0.005 - 0.023 mm (0.0002 - 0.0009 in)
Limit : 0.03 mm (0.0012 in)
Limit: 0.1 mm (0.004 in)
PBIC3250J
1 : Cylinder block
2 : Main bearing cap
: Engine front
Standard: 55.997 - 56.017 mm (2.2046 - 2.2054 in)
PBIC4005E
Page 2871 of 5883
![NISSAN TIIDA 2007 Service Repair Manual EM-224
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
Using a bore gauge (A), measure the cylinder bore for wear, out-
of-round and t NISSAN TIIDA 2007 Service Repair Manual EM-224
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
Using a bore gauge (A), measure the cylinder bore for wear, out-
of-round and t](/manual-img/5/57395/w960_57395-2870.png)
EM-224
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
ENGINE UNIT
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
Using a bore gauge (A), measure the cylinder bore for wear, out-
of-round and taper at six different points on each cylinder. (“X” and
“Y” directions at “A”, “B” and “C”) (“Y” is in longitudinal direction of
engine)
NOTE:
When determining cylinder bore grade, measure the cylinder bore
“X” direction at “B” position.
If the measured value exceeds the limit, or if there are scratches
and/or seizure on the cylinder inner wall, replace cylinder block.
NOTE:
Oversize piston is not provided.
Piston Skirt Diameter
Measure the outer diameter of piston skirt with a micrometer (A).
Piston to Cylinder Bore Clearance
Calculate by piston skirt diameter and cylinder bore inner diameter (direction “X”, position “B”).
(Clearance) = (Cylinder bore inner diameter) – (Piston skirt diameter)
If it exceeds the limit, replace piston and piston pin assembly and/or cylinder block. Refer to EM-230, "
How
to Select Piston and Bearing".
CRANKSHAFT MAIN JOURNAL DIAMETER
Standard inner diameter:
84.000 - 84.020 mm (3.3071 - 3.3079 in)
Out-of-round (Difference between “X” and “Y”):
0.015 mm (0.0006 in)
Taper limit (Difference between “A” and “C”):
0.01 mm (0.0004 in)
PBIC4014E
Measure point
: Distance from the top 39.9 mm (1.571 in)
Standard
: 83.970 - 83.990 mm (3.3059 - 3.3067 in)
PBIC3272J
Standard : 0.020 - 0.040 mm (0.0008 - 0.0016 in)
Limit : 0.08 mm (0.0031 in)
Page 2872 of 5883
![NISSAN TIIDA 2007 Service Repair Manual ENGINE UNIT
EM-225
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Measure the outer diameter of crankshaft main journals with a
micrometer (A).
If out of the standard, measur NISSAN TIIDA 2007 Service Repair Manual ENGINE UNIT
EM-225
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Measure the outer diameter of crankshaft main journals with a
micrometer (A).
If out of the standard, measur](/manual-img/5/57395/w960_57395-2871.png)
ENGINE UNIT
EM-225
< DISASSEMBLY AND ASSEMBLY >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
Measure the outer diameter of crankshaft main journals with a
micrometer (A).
If out of the standard, measure the main bearing oil clearance.
Then use undersize bearing. Refer to "MAIN BEARING OIL
CLEARANCE".
CRANKSHAFT PIN JOURNAL DIAMETER
Measure the outer diameter of crankshaft pin journal with a micrometer.
If out of the standard, measure the connecting rod bearing oil clearance. Then use undersize bearing. Refer
to "CONNECTING ROD BEARING OIL CLEARANCE".
OUT-OF-ROUND AND TAPER OF CRANKSHAFT
Measure the dimensions at four different points as shown on each
main journal and pin journal with a micrometer.
Out-of-round is indicated by the difference in dimensions between
“X” and “Y” at “A” and “B”.
Taper is indicated by the difference in dimension between “A” and
“B” at “X” and “Y”.
If the measured value exceeds the limit, correct or replace crankshaft.
If corrected, measure the bearing oil clearance of the corrected main journal and/or pin journal. Then select
main bearing and/or connecting rod bearing. Refer to "MAIN BEARING OIL CLEARANCE" and/or "CON-
NECTING ROD BEARING OIL CLEARANCE".
CRANKSHAFT RUNOUT
Place a V-block on a precise flat table to support the journals on
the both end of the crankshaft.
Place a dial indicator (A) straight up on the No. 3 journal.
While rotating crankshaft, read the movement of the pointer on the
dial indicator. (Total indicator reading)
If it exceeds the limit, replace crankshaft.
CONNECTING ROD BEARING OIL CLEARANCE
Method by Calculation
Standard: 51.959 - 51.979 mm (2.0456 - 2.0464 in) dia.
PBIC3457J
Standard: 43.953 - 43.971 mm (1.7304-1.7311 in) dia.
Limit:
Out-of-round (Difference between “X” and “Y”)
: 0.0035 mm (0.0001 in)
Taper (Difference between “A” and “B”)
: 0.0035 mm (0.0001 in)
PBIC3459J
Standard : 0.05 mm (0.0020 in)
Limit : 0.10 mm (0.0040 in)
PBIC3458J
