2007 NISSAN TIIDA Service Repair Manual

check engine brakes TPMS clutch keyless flat tire

Page 2841 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-194
< ON-VEHICLE REPAIR >[MR18DE]
CAMSHAFT
4. Clean the mating area of intake valve timing control solenoid
valve. Insert a clean shop cloth (with no oil adhesion) into the oil
hole (A) of the cyli

EM-194
< ON-VEHICLE REPAIR >[MR18DE]
CAMSHAFT
4. Clean the mating area of intake valve timing control solenoid
valve. Insert a clean shop cloth (with no oil adhesion) into the oil
hole (A) of the cylinder head.
5. Install engine mounting bracket (RH), engine mounting insulator,
and torque rod (RH) under the Step 4 condition. (With intake
valve timing control solenoid valve removed, and a shop cloth
inserted into the oil hole.) Refer to EM-207, "
Component".
6. Crank engine, and then make sure that engine oil comes out
from intake valve timing control solenoid valve hole (A). End crank after checking.
Check engine oil leakage by oil amount adhered to the waste inserted into the oil hole.
WARNING:
Be careful not to touch rotating parts (drive belts, idler pulley, and crankshaft pulley, etc.).
CAUTION:
Do not perform cranking without installing right engine mount bracket, right engine mount insu-
lator, and right torque rod.
Prevent splashing by using a shop cloth so as to prevent the worker from injury from engine oil
and so as to prevent engine oil contamination.
Prevent splashing by using a shop cloth so as to prevent engine oil from being splashed to
engine and vehicle. Especially, be careful not to apply engine oil to rubber parts of drive belts,
engine mounting insulator, etc. Wipe engine oil off immediately if it is splashed.
7. Perform the following inspection if engine oil does not come out from intake valve timing control solenoid
valve oil hole of the cylinder head.
Remove oil filter (for intake valve timing control), and then clean it. Refer to EM-186, "
Component".
Clean oil groove between oil strainer and intake valve timing control solenoid valve. Refer to LU-11,
"Lubrication Circuit".
8. Remove components between intake valve timing control solenoid valve and camshaft sprocket (INT),
and then check each oil groove for clogging.
Clean oil groove if necessary. Refer to LU-11, "
Lubrication Circuit".
9. Installation of the remaining components is in the reverse order of removal
1 : Front cover
:Vehicle front
WBIA0781E

Page 2842 of 5883

NISSAN TIIDA 2007 Service Repair Manual OIL SEAL
EM-195
< ON-VEHICLE REPAIR >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
OIL SEAL
Removal and Installation of Valve Oil SealINFOID:0000000001337800
REMOVAL
1. Remove camshafts. Refer to EM-186, "

Page 2843 of 5883

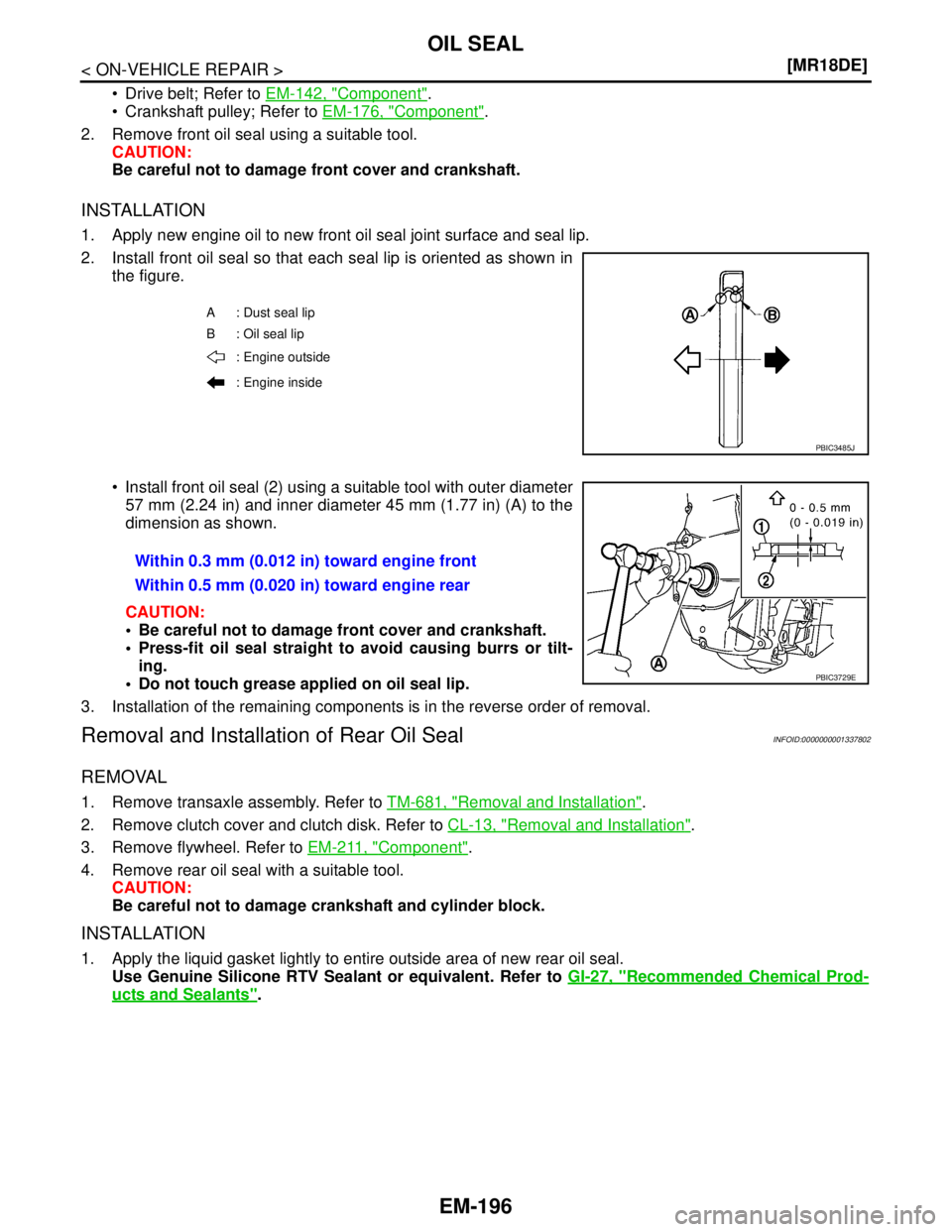

NISSAN TIIDA 2007 Service Repair Manual EM-196
< ON-VEHICLE REPAIR >[MR18DE]
OIL SEAL
Drive belt; Refer to EM-142, "Component".
Crankshaft pulley; Refer to EM-176, "
Component".
2. Remove front oil seal using a suitable tool.
CAUTION:
B

Page 2844 of 5883

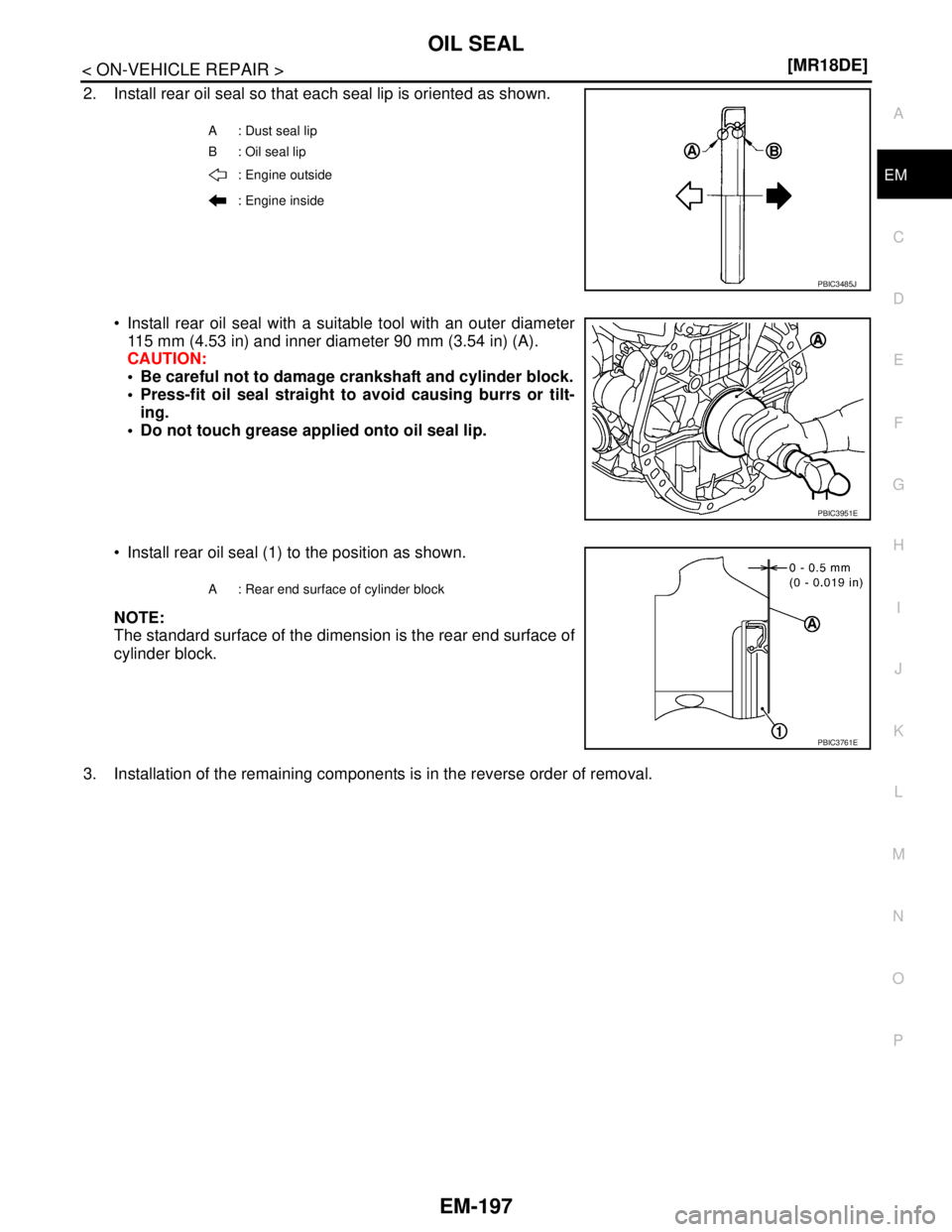

NISSAN TIIDA 2007 Service Repair Manual OIL SEAL
EM-197
< ON-VEHICLE REPAIR >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
2. Install rear oil seal so that each seal lip is oriented as shown.
Install rear oil seal with a suitable tool with an

Page 2845 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-198
< ON-VEHICLE REPAIR >[MR18DE]

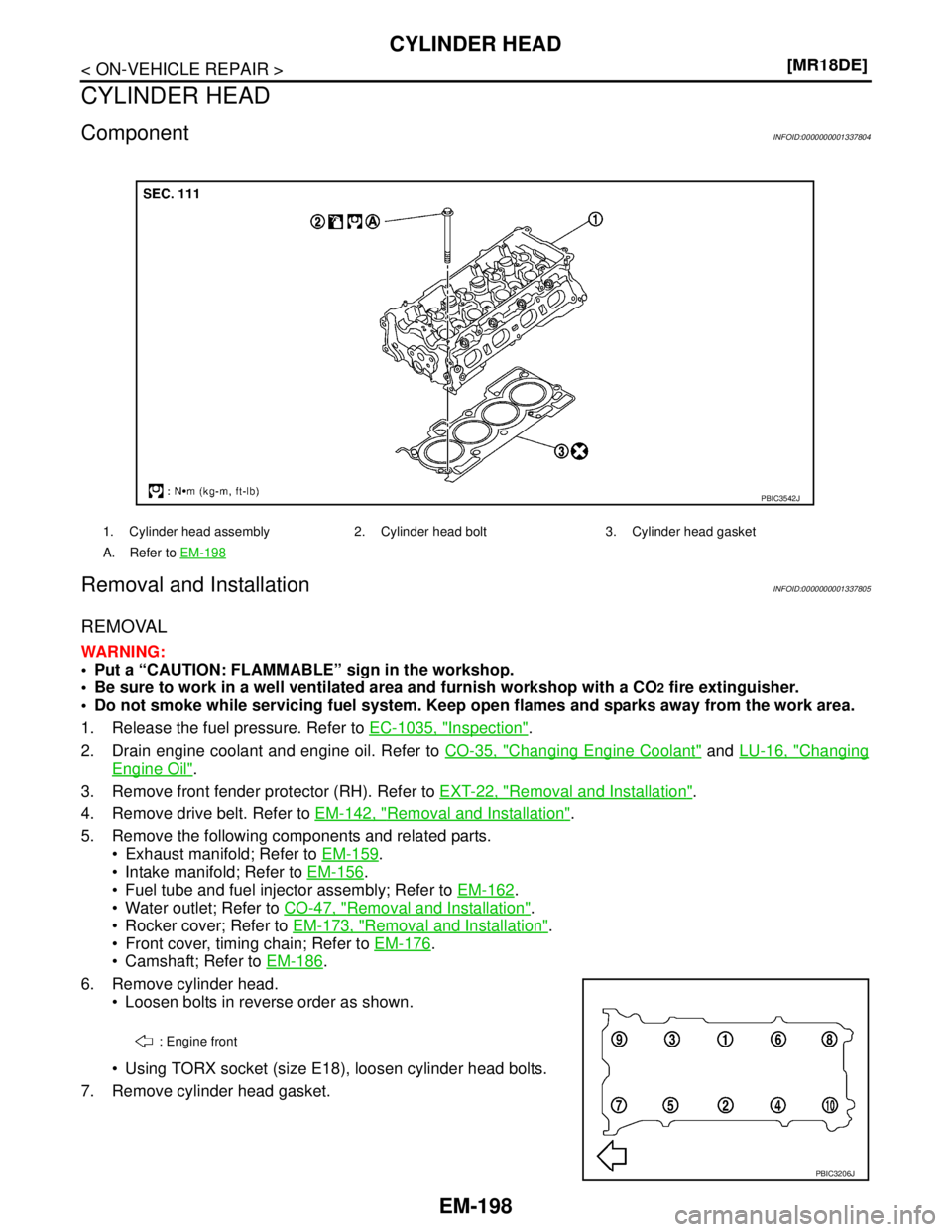

CYLINDER HEAD
CYLINDER HEAD
ComponentINFOID:0000000001337804
Removal and InstallationINFOID:0000000001337805
REMOVAL
WARNING:
Put a “CAUTION: FLAMMABLE” sign

Page 2846 of 5883

NISSAN TIIDA 2007 Service Repair Manual CYLINDER HEAD
EM-199
< ON-VEHICLE REPAIR >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

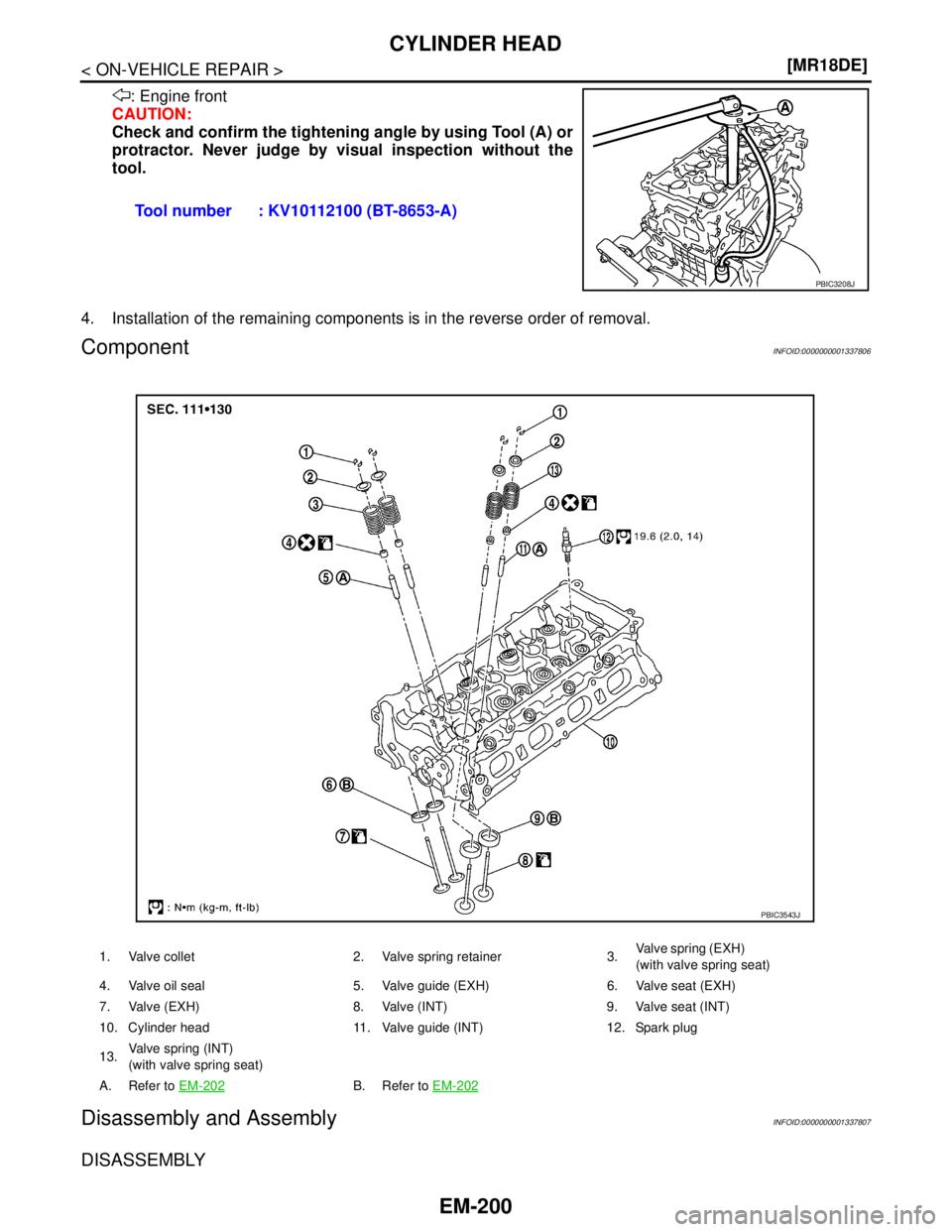

INSPECTION AFTER REMOVAL
Cylinder Head Bolts Outer Diameter
Cylinder head bolts are tightened by plastic zone tight

Page 2847 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-200
< ON-VEHICLE REPAIR >[MR18DE]
CYLINDER HEAD
: Engine front
CAUTION:
Check and confirm the tightening angle by using Tool (A) or
protractor. Never judge by visual inspection without the
tool.
4.

Page 2848 of 5883

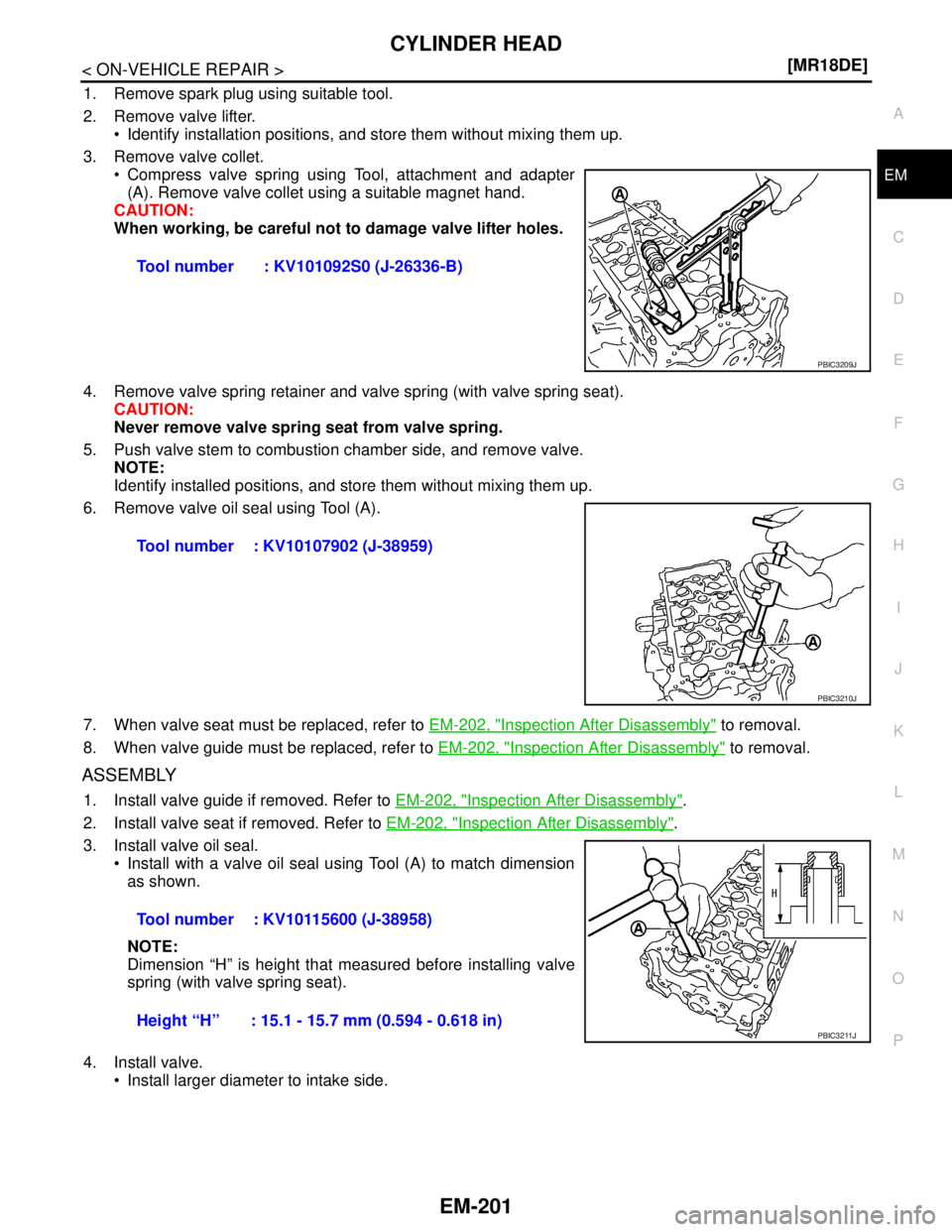

NISSAN TIIDA 2007 Service Repair Manual CYLINDER HEAD
EM-201
< ON-VEHICLE REPAIR >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
1. Remove spark plug using suitable tool.
2. Remove valve lifter.
Identify installation positions, and store them w
