2007 NISSAN TIIDA Service Repair Manual

tire type automatic transmission airbag off wipers spare tire alternator belt

Load previous 8 pages

Page 5801 of 5883

NISSAN TIIDA 2007 Service Repair Manual WT-6
< ON-VEHICLE REPAIR >
ROAD WHEEL TIRE ASSEMBLY
ON-VEHICLE REPAIR
ROAD WHEEL TIRE ASSEMBLY
Balancing WheelsINFOID:0000000001716763
Adjust wheel balance using road wheel center.
CAUTION:
Be caref

Page 5802 of 5883

NISSAN TIIDA 2007 Service Repair Manual SERVICE DATA AND SPECIFICATIONS (SDS)
WT-7
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
D
F
G
H
I
J
K
L
MA
B
WT
N
O
P

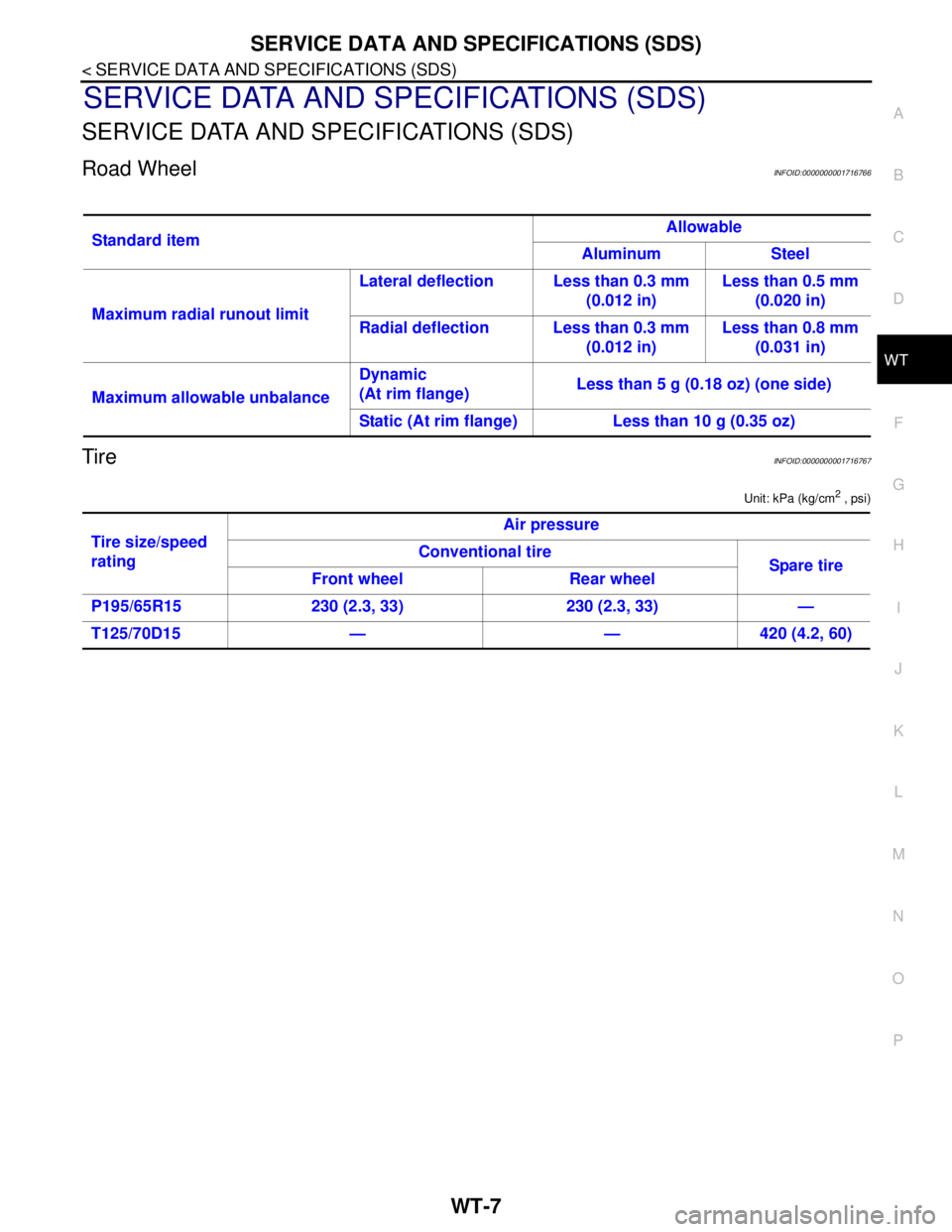

SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Road Whe

Page 5803 of 5883

NISSAN TIIDA 2007 Service Repair Manual WW-1
DRIVER CONTROLS
C
D
E
F
G
H
I
J
K
M
SECTION WW
A
B
WW
N
O
P
CONTENTS
WIPER & WASHER
BASIC INSPECTION ....................................3
DIAGNOSIS AND REPAIR WORKFLOW ..........3
Work Flow .

WW-1
DRIVER CONTROLS
C
D
E
F
G
H
I
J
K
M
SECTION WW
A
B
WW
N
O
P
CONTENTS
WIPER & WASHER
BASIC INSPECTION ....................................3
DIAGNOSIS AND REPAIR WORKFLOW ..........3
Work Flow .................................................................3
FUNCTION DIAGNOSIS ...............................4
FRONT WIPER AND WASHER SYSTEM ..........4
System Diagram ........................................................4
System Description ...................................................4
Component Parts Location ........................................7
Component Description ............................................8
REAR WIPER AND WASHER SYSTEM ............9
System Diagram ........................................................9
System Description ...................................................9
Component Parts Location ......................................11
Component Description ..........................................11
HEADLAMP WASHER SYSTEM .......................12
System Diagram ......................................................12
System Description .................................................12
Component Parts Location ......................................13
Component Description ..........................................13
DIAGNOSIS SYSTEM (BCM) ............................14
COMMON ITEM .........................................................14
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
14
WIPER .......................................................................14
WIPER : CONSULT-III Function (BCM - WIPER) ....14
DIAGNOSIS SYSTEM (IPDM E/R) .....................16
Diagnosis Description .............................................16
CONSULT - III Function (IPDM E/R) .......................16
COMPONENT DIAGNOSIS .........................17
WIPER AND WASHER FUSE, FUSIBLE LINK
....
17
Description ..............................................................17
Diagnosis Procedure ...............................................17
FRONT WIPER MOTOR LO CIRCUIT ..............18
Component Function Check ....................................18
Diagnosis Procedure ...............................................18
FRONT WIPER MOTOR HI CIRCUIT ...............20
Component Function Check ....................................20
Diagnosis Procedure ...............................................20
FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ..................................................................
22
Component Function Check ....................................22
Diagnosis Procedure ...............................................22
FRONT WIPER MOTOR GROUND CIRCUIT ...24
Diagnosis Procedure ...............................................24
WASHER SWITCH ............................................25
Description ...............................................................25
Component Inspection .............................................25
LIGHT & RAIN SENSOR ..................................27
Description ...............................................................27
Diagnosis Procedure ...............................................27
REAR WIPER MOTOR CIRCUIT ......................28
Component Function Check ....................................28
Diagnosis Procedure ...............................................28
REAR WIPER AUTO STOP SIGNAL CIRCUIT
...
30
Component Function Check ....................................30
Diagnosis Procedure ...............................................30
HEADLAMP WASHER RELAY ........................32
Component Inspection .............................................32
HEADLAMP WASHER CIRCUIT ......................33
Component Function Check ....................................33
Diagnosis Procedure ...............................................33
FRONT WIPER AND WASHER SYSTEM ........36

Page 5804 of 5883

NISSAN TIIDA 2007 Service Repair Manual WW-2
Wiring Diagram .......................................................36
REAR WIPER AND WASHER SYSTEM ...........41
Wiring Diagram .......................................................41
HEA

WW-2
Wiring Diagram .......................................................36
REAR WIPER AND WASHER SYSTEM ...........41
Wiring Diagram .......................................................41
HEADLAMP WASHER SYSTEM ......................47
Wiring Diagram .......................................................47
ECU DIAGNOSIS ........................................51
BCM (BODY CONTROL MODULE) ..................51
Reference Value .....................................................51
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................
52
Reference Value .....................................................52
Fail Safe .................................................................52
SYMPTOM DIAGNOSIS .............................54
WIPER AND WASHER SYSTEM SYMPTOMS
...
54
Symptom Table ......................................................54
NORMAL OPERATING CONDITION ................57
Description ..............................................................57
FRONT WIPER DOES NOT OPERATE ............58
Description ..............................................................58
Diagnosis Procedure ..............................................58
HEADLAMP WASHER DOES NOT OPER-
ATE ....................................................................
60
Description ..............................................................60
Diagnosis Procedure ..............................................60
PRECAUTION .............................................61
PRECAUTIONS .................................................61
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
61
Precaution for Procedure without Cowl Top Cover ...61
ON-VEHICLE REPAIR ................................62
HEADLAMP WASHER NOZZLE AND TUBE ...62
Exploded View ........................................................62
Removal and Installation .........................................62
Inspection ................................................................63
WASHER TANK ................................................64
Removal and Installation .........................................64
WASHER PUMP ................................................65
Removal and Installation .........................................65
HEADLAMP WASHER PUMP ..........................66
Removal and Installation .........................................66
FRONT WASHER NOZZLE AND TUBE ...........67
Washer Tube Layout ...............................................67
Removal and Installation .........................................67
Inspection ................................................................67
Adjustment ..............................................................68
FRONT WIPER ARM .........................................69
Exploded View ........................................................69
Removal and Installation .........................................70
Adjustment ..............................................................71
FRONT WIPER DRIVE ASSEMBLY .................72
Exploded View ........................................................72
Removal and Installation .........................................73
Adjustment ..............................................................73
RAIN SENSOR ..................................................75
Exploded View ........................................................75
Removal and Installation .........................................75
WIPER AND WASHER SWITCH ......................76
Exploded View ........................................................76
Removal and Installation .........................................76
REAR WIPER MOTOR ......................................77
Exploded View ........................................................77
Removal and Installation .........................................77
Adjustment ..............................................................78
REAR WASHER NOZZLE AND TUBE .............80
Washer Tube Layout ...............................................80
Removal and Installation .........................................80
Adjustment ..............................................................81

Page 5805 of 5883

NISSAN TIIDA 2007 Service Repair Manual DIAGNOSIS AND REPAIR WORKFLOW
WW-3
< BASIC INSPECTION >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000001381621
DETAILED FLOW
1. LISTEN TO CUSTO

Page 5806 of 5883

NISSAN TIIDA 2007 Service Repair Manual WW-4
< FUNCTION DIAGNOSIS >
FRONT WIPER AND WASHER SYSTEM
FUNCTION DIAGNOSIS
FRONT WIPER AND WASHER SYSTEM

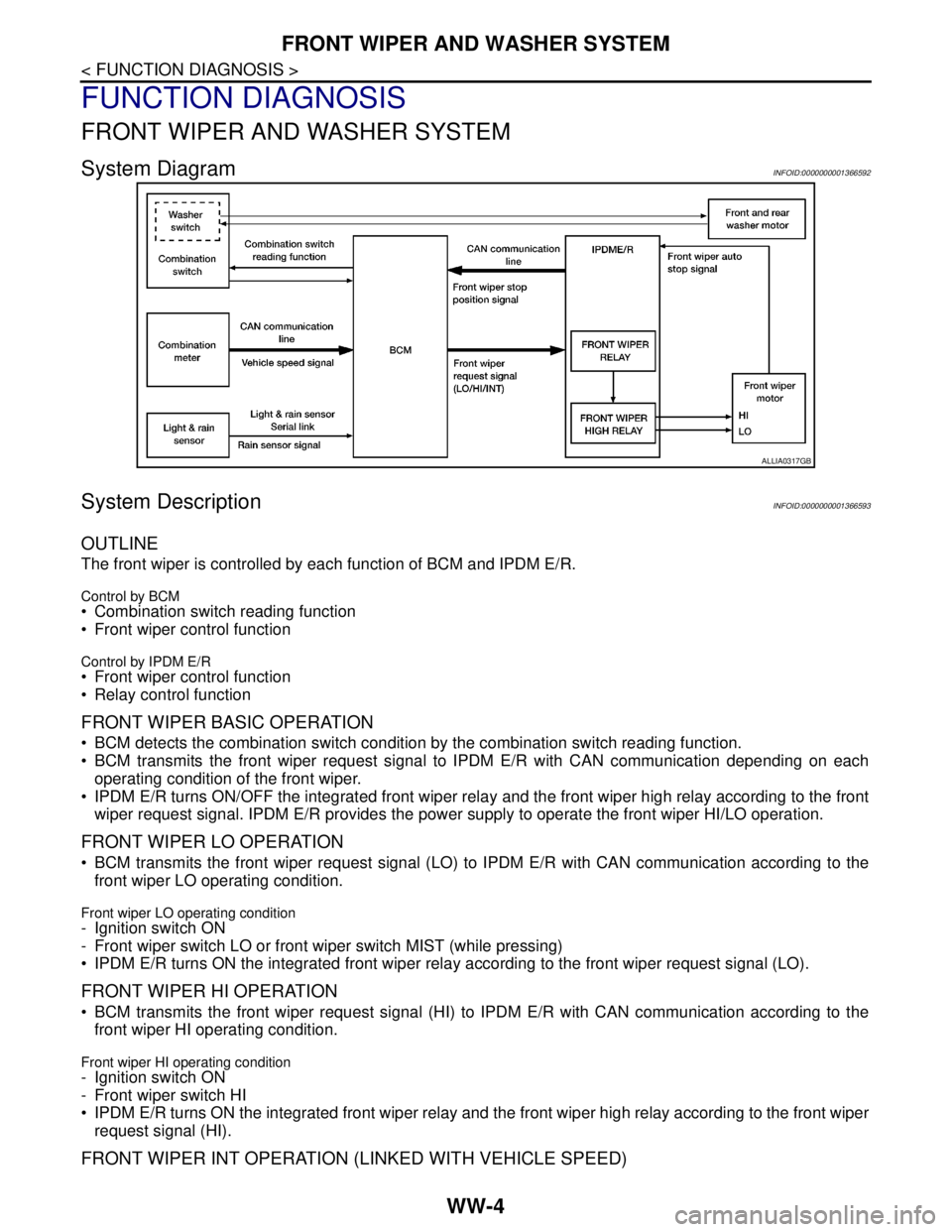

System DiagramINFOID:0000000001366592
System DescriptionINFOID:0000000001366593
OUTLINE
The f

Page 5807 of 5883

NISSAN TIIDA 2007 Service Repair Manual FRONT WIPER AND WASHER SYSTEM
WW-5
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
BCM transmits the front wiper request signal (INT) to IPDM E/R with CAN communication according to the
front

FRONT WIPER AND WASHER SYSTEM
WW-5
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P

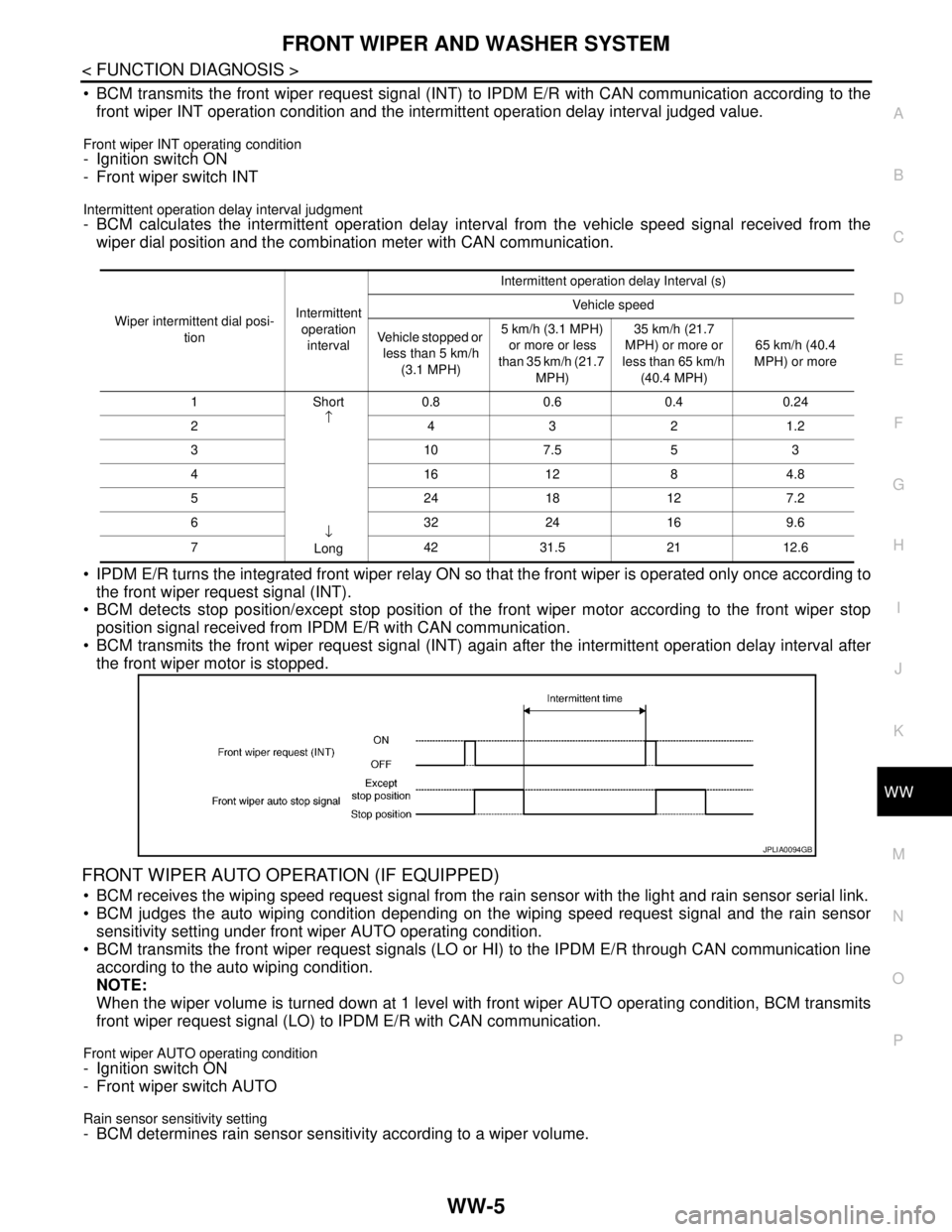

BCM transmits the front wiper request signal (INT) to IPDM E/R with CAN communication according to the
front wiper INT operation condition and the intermittent operation delay interval judged value.
Front wiper INT operating condition- Ignition switch ON
- Front wiper switch INT
Intermittent operation delay interval judgment- BCM calculates the intermittent operation delay interval from the vehicle speed signal received from the
wiper dial position and the combination meter with CAN communication.
IPDM E/R turns the integrated front wiper relay ON so that the front wiper is operated only once according to
the front wiper request signal (INT).
BCM detects stop position/except stop position of the front wiper motor according to the front wiper stop
position signal received from IPDM E/R with CAN communication.
BCM transmits the front wiper request signal (INT) again after the intermittent operation delay interval after
the front wiper motor is stopped.
FRONT WIPER AUTO OPERATION (IF EQUIPPED)
BCM receives the wiping speed request signal from the rain sensor with the light and rain sensor serial link.
BCM judges the auto wiping condition depending on the wiping speed request signal and the rain sensor
sensitivity setting under front wiper AUTO operating condition.
BCM transmits the front wiper request signals (LO or HI) to the IPDM E/R through CAN communication line
according to the auto wiping condition.
NOTE:
When the wiper volume is turned down at 1 level with front wiper AUTO operating condition, BCM transmits
front wiper request signal (LO) to IPDM E/R with CAN communication.
Front wiper AUTO operating condition- Ignition switch ON
- Front wiper switch AUTO
Rain sensor sensitivity setting- BCM determines rain sensor sensitivity according to a wiper volume.
Wiper intermittent dial posi-
tionIntermittent
operation
intervalIntermittent operation delay Interval (s)
Vehicle speed
Vehicle stopped or
less than 5 km/h
(3.1 MPH)5 km/h (3.1 MPH)
or more or less
than 35 km/h (21.7
MPH)35 km/h (21.7
MPH) or more or
less than 65 km/h
(40.4 MPH)65 km/h (40.4
MPH) or more
1Short
↑
↓
Long0.8 0.6 0.4 0.24
2 4321.2
3107.553
4161284.8
5 2418127.2
6 3224169.6
7 4231.52112.6
JPLIA0094GB

Page 5808 of 5883

NISSAN TIIDA 2007 Service Repair Manual WW-6
< FUNCTION DIAGNOSIS >
FRONT WIPER AND WASHER SYSTEM
IPDM E/R turns ON the integrated front wiper relay and front wiper HI relay according to the front wiper
request signal (LO or HI).
Light

WW-6
< FUNCTION DIAGNOSIS >
FRONT WIPER AND WASHER SYSTEM
IPDM E/R turns ON the integrated front wiper relay and front wiper HI relay according to the front wiper
request signal (LO or HI).
Light and rain sensor transmits rain sensor signal to BCM for HI operation immediately after sensing the
raindrops increase under the wiper motor LO operating with the front wiper switch AUTO.

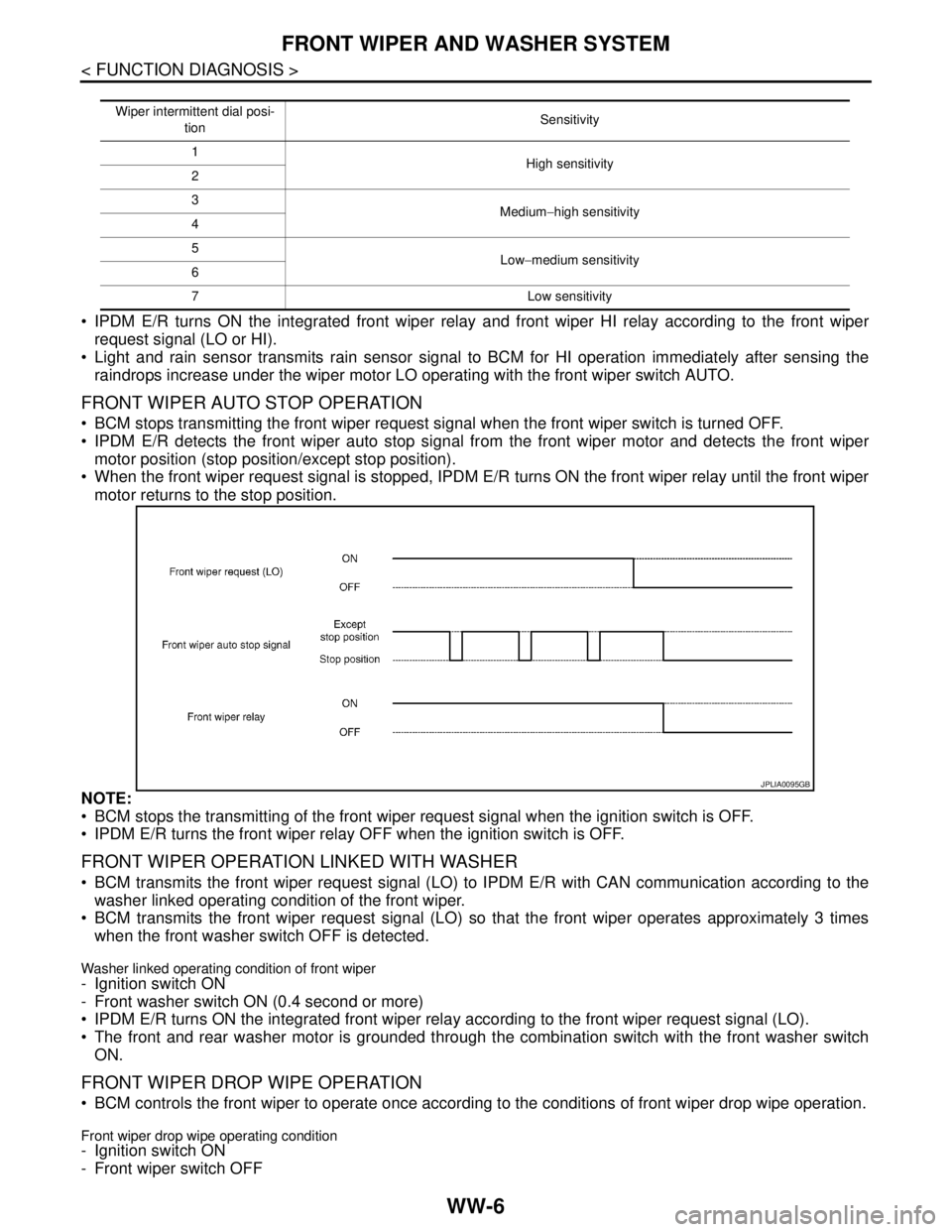

FRONT WIPER AUTO STOP OPERATION
BCM stops transmitting the front wiper request signal when the front wiper switch is turned OFF.
IPDM E/R detects the front wiper auto stop signal from the front wiper motor and detects the front wiper
motor position (stop position/except stop position).
When the front wiper request signal is stopped, IPDM E/R turns ON the front wiper relay until the front wiper
motor returns to the stop position.
NOTE:
BCM stops the transmitting of the front wiper request signal when the ignition switch is OFF.
IPDM E/R turns the front wiper relay OFF when the ignition switch is OFF.
FRONT WIPER OPERATION LINKED WITH WASHER
BCM transmits the front wiper request signal (LO) to IPDM E/R with CAN communication according to the
washer linked operating condition of the front wiper.
BCM transmits the front wiper request signal (LO) so that the front wiper operates approximately 3 times
when the front washer switch OFF is detected.
Washer linked operating condition of front wiper- Ignition switch ON
- Front washer switch ON (0.4 second or more)
IPDM E/R turns ON the integrated front wiper relay according to the front wiper request signal (LO).
The front and rear washer motor is grounded through the combination switch with the front washer switch
ON.
FRONT WIPER DROP WIPE OPERATION
BCM controls the front wiper to operate once according to the conditions of front wiper drop wipe operation.
Front wiper drop wipe operating condition- Ignition switch ON
- Front wiper switch OFF
Wiper intermittent dial posi-
tionSensitivity
1
High sensitivity
2
3
Medium−high sensitivity
4
5
Low−medium sensitivity
6
7 Low sensitivity
JPLIA0095GB

Load next 8 pages

Page: < prev 1-10 ... 5769-5776 5777-5784 5785-5792 5793-5800 5801-5808 5809-5816 5817-5824 5825-5832 5833-5840 ... 5888 next >

headlamp change time auxiliary battery location compression ratio diagnostic menu reset
