HEADLAMP WASHER SYSTEM

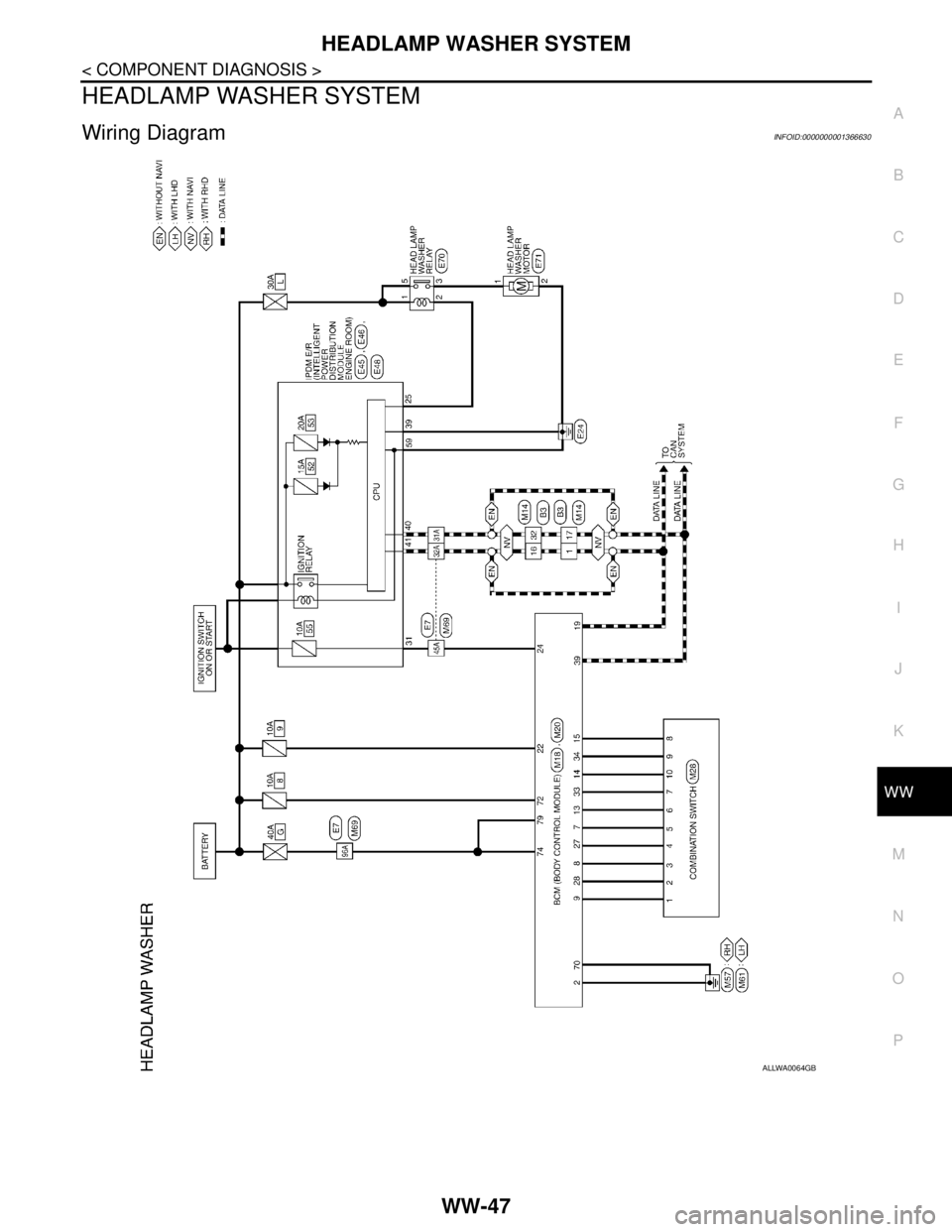

Wiring DiagramINFOID:0000000001366630
ALLWA0064GB
Page 5850 of 5883
WW-48
< COMPONENT DIAGNOSIS >
HEADLAMP WASHER SYSTEM

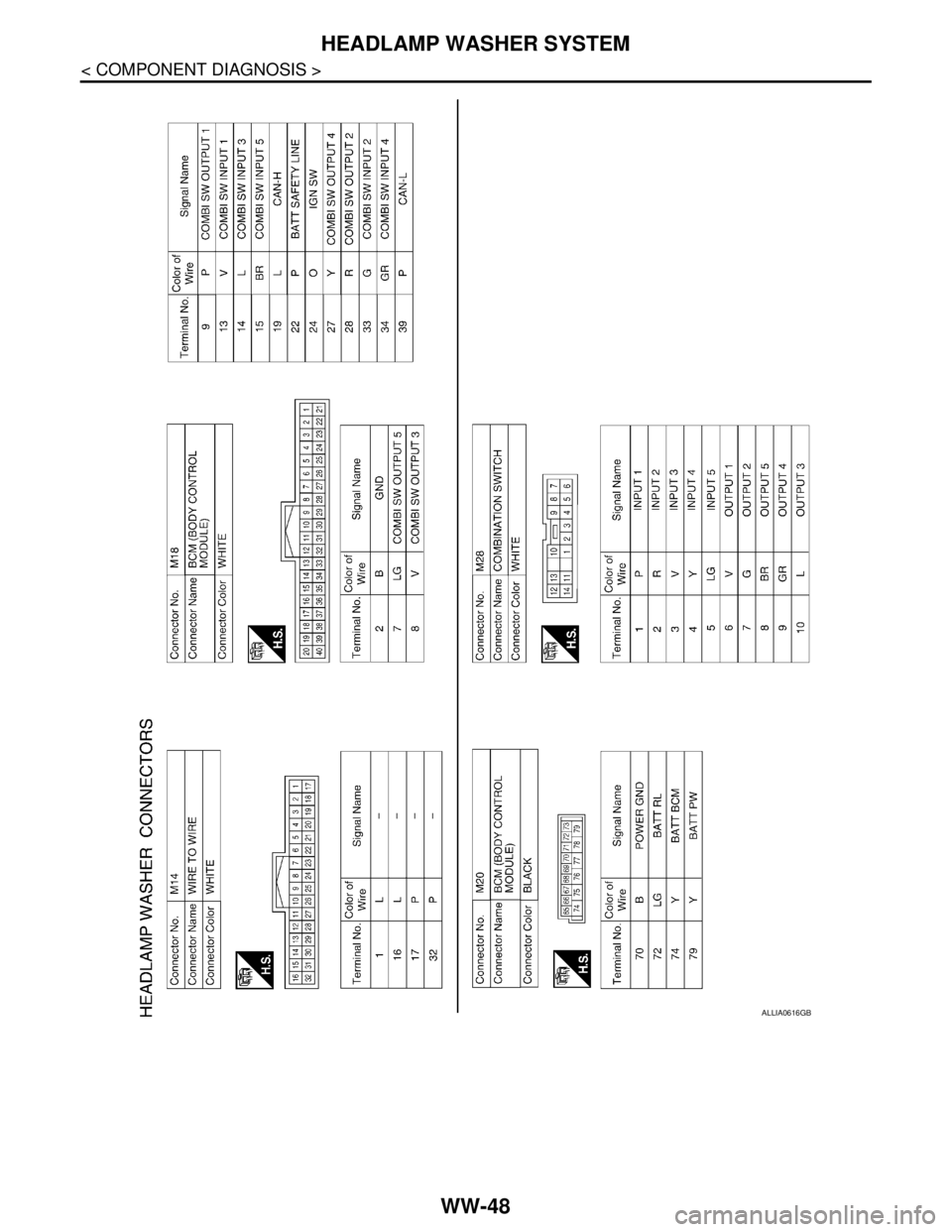

ALLIA0616GB
Page 5851 of 5883
HEADLAMP WASHER SYSTEM
WW-49
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P

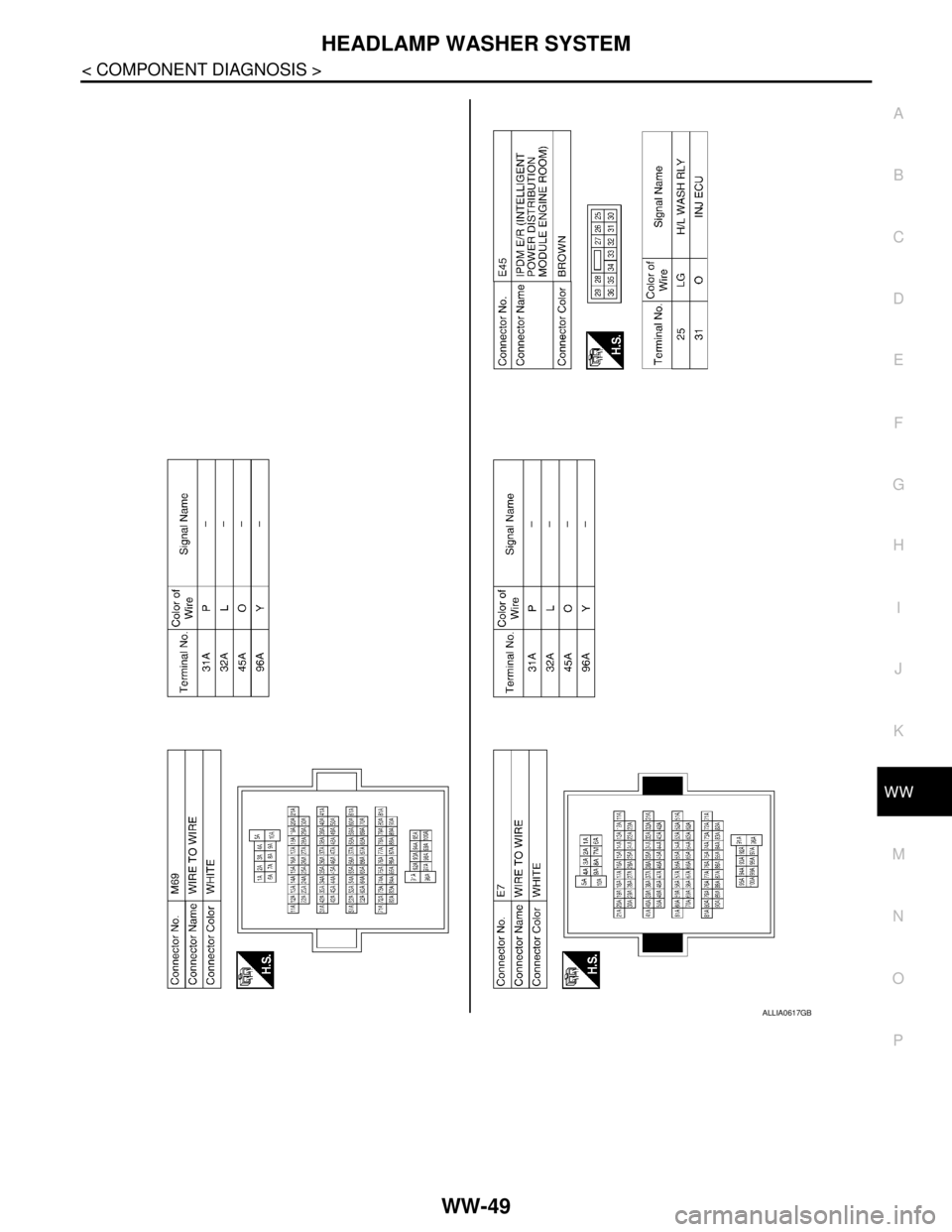

ALLIA0617GB
Page 5852 of 5883
WW-50
< COMPONENT DIAGNOSIS >
HEADLAMP WASHER SYSTEM

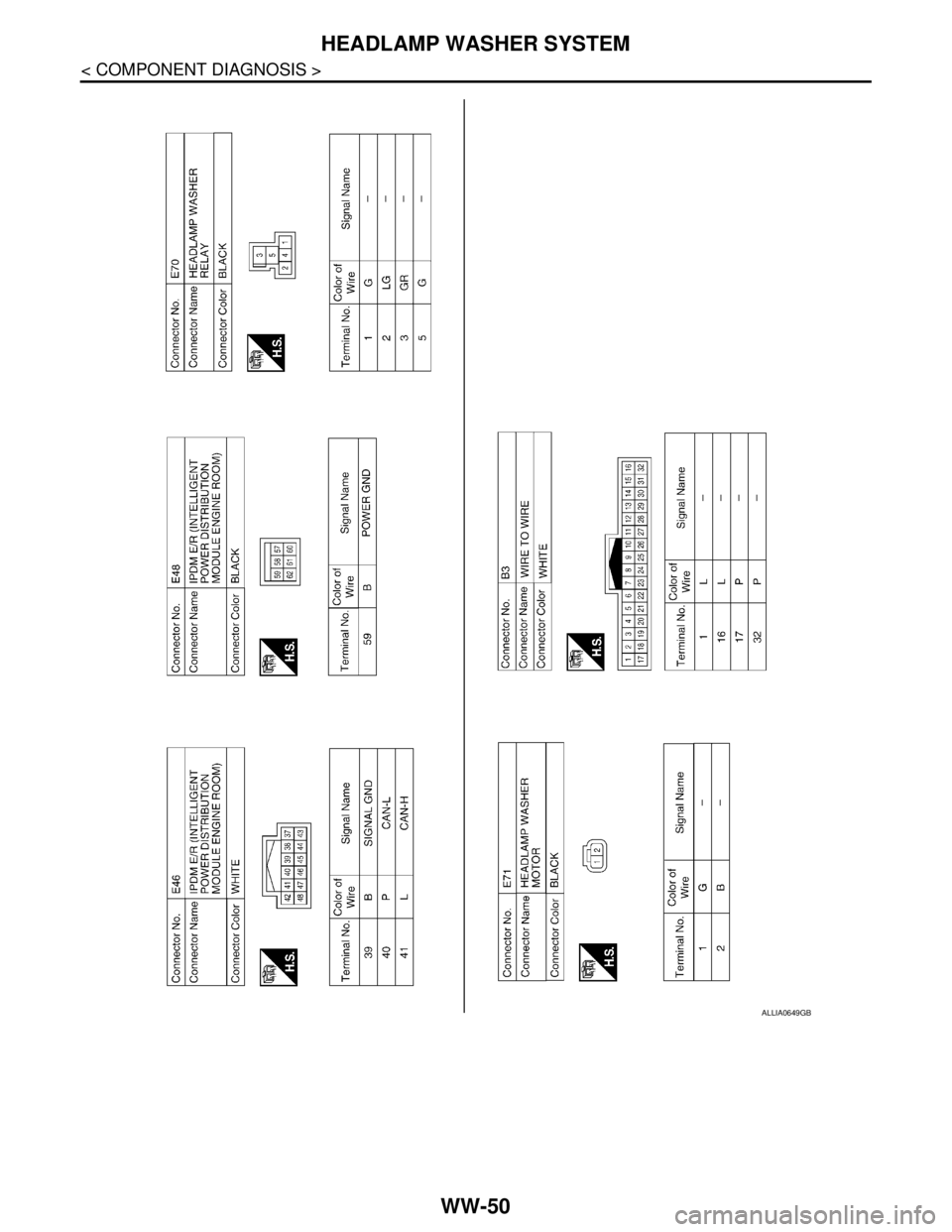

ALLIA0649GB
Page 5853 of 5883

BCM (BODY CONTROL MODULE)
WW-51
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
ECU DIAGNOSIS
BCM (BODY CONTROL MODULE)
Reference ValueINFOID:0000000001366631
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
Refer to BCS-38, "Terminal Layout".
PHYSICAL VALUES
Refer to BCS-39, "Physical Values".
Monitor Item Condition Value/Status
FR WASHER SWFront washer switch OFF OFF
Front washer switch ON ON
FR WIPER LOWFront wiper switch OFF OFF
Front wiper switch LO ON
FR WIPER HIFront wiper switch OFF OFF
Front wiper switch HI ON
FR WIPER INTFront wiper switch OFF OFF
Front wiper switch INT ON
FR WIPER STOPAny position other than front wiper stop position OFF
Front wiper stop position ON
H/L SW POSLighting switch OFF OFF
Lighting switch 2ND ON
LIGHT SW 1STLighting switch OFF OFF
Lighting switch 2ND ON
HI BEAM SWLighting switch OFF OFF
Lighting switch HI ON
H/L WASH SWNOTE:
The item is indicated, but not monitoredOFF
IGN ON SWIgnition switch OFF or ACC OFF
Ignition switch ON ON
IGN SW CANIgnition switch OFF or ACC OFF
Ignition switch ON ON
INT VOLUME Wiper intermittent dial is in a dial position 1 - 7 1 - 7
RR WASHER SWRear washer switch OFF OFF
Rear washer switch ON ON
RR WIPER INTRear wiper switch OFF OFF
Rear wiper switch INT ON
RR WIPER ON Rear wiper switch OFF OFF
Rear wiper switch ON ON
RR WIPER STOPRear wiper stop position OFF
Other than rear wiper stop position ON
VEHICLE SPEED While driving Equivalent to speedometer reading
Page 5854 of 5883

WW-52
< ECU DIAGNOSIS >
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)
Reference ValueINFOID:0000000001366636
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
Refer to xxx.
PHYSICAL VALUES
Refer to xxx.
Fail SafeINFOID:0000000001366638
CAN communication control
When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.
If no CAN communication is available with BCM
Front wiper control
IPDM E/R detects the front wiper stop position with the front wiper auto stop signal.
When the front wiper auto stop signal is in the conditions listed below, IPDM E/R repeats a front wiper 10 sec-
onds operation and 20 seconds stop five times.
Monitor Item Condition Value/Status
HL WASHER REQIgnition switch ON, and low
beam headlamp is ONFront washer switch OFF Off
Front washer switch ON
(When headlamp washer is operat-
ing)On
FR WIP REQ Ignition switch ONFront wiper switch OFF STOP
Front wiper switch INT 1LOW
Front wiper switch LO Low
Front wiper switch HI Hi
WIP AUTO STOP Ignition switch ONFront wiper stop position STOP P
Any position other than front wiper
stop positionACT P
WIP PROT Ignition switch ONFront wiper operates normally Off
Front wiper stops at fail-safe oper-
ationBLOCK
IGN RLYIgnition switch OFF or ACC Off
Ignition switch ON On
IGN ON SWIgnition switch OFF or ACC Off
Ignition switch ON On
Control part Fail-safe in operation
Front wiper The status just before activation of fail-safe control is maintained until the ignition
switch is turned OFF while the front wiper is operating at LO or HI speed.
The front wiper is operated at LO speed until the ignition switch is turned OFF if the
fail-safe control is activated while the front wiper is set in the INT mode and the front
wiper motor is operating.
Headlamp washer Headlamp washer relay OFF
Page 5855 of 5883
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
WW-53
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
MA
B
WW
N
O
P
NOTE:
This operation status can be confirmed on the IPDM E/R “Data Monitor” that displays “BLOCK” for the item
“WIP PROT” while the wiper is stopped.
Ignition switch Front wiper switch Front wiper auto stop signal
ONOFFThe front wiper auto stop signal (stop posi-
tion) cannot be input for 10 seconds.
ONThe front wiper auto stop signal does not
change for 10 seconds.
Page 5856 of 5883

WW-54
< SYMPTOM DIAGNOSIS >
WIPER AND WASHER SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
WIPER AND WASHER SYSTEM SYMPTOMS
Symptom TableINFOID:0000000001366640
CAUTION:
Perform the self-diagnosis with CONSULT-III before performing the diagnosis by symptom. Perform
the diagnosis by DTC if DTC is detected.
Symptom Probable malfunction location Inspection item
Front wiper does not
operate.HI only Combination switch
Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-55, "
Symptom
Ta b l e".
IPDM E/R
Harness between IPDM E/R and front wiper
motor
Front wiper motorFront wiper motor (HI) circuit
Refer to WW-20, "
Compo-
nent Function Check".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
"FR WIP REQ"
LO and INT Combination switch
Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-55, "
Symptom
Ta b l e".
IPDM E/R
Harness between IPDM E/R and front wiper
motor
Front wiper motorFront wiper motor (LO) circuit
Refer to WW-18, "
Compo-
nent Function Check".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
"FR WIP REQ"
INT only Combination switch
Harness between combination switch and BCM
BCMCombination switch
Refer to BCS-55, "
Symptom
Ta b l e".
Front wiper request signal
BCM
IPDM E/RIPDM E/R DATA MONITOR
"FR WIP REQ"
HI, LO, and INTSYMPTOM DIAGNOSIS
“FRONT WIPER DOES NOT OPERATE”
Refer to WW-58, "
Diagnosis Procedure".
