LAN
M&A BRANCH LINE CIRCUIT
LAN-397
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
M&A BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001333713
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the combination meter for damage, bend and loose connection
(unit side and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of combination meter.
2. Check the resistance between the combination meter harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the combination meter branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the combination meter. Refer to MWI-26, "
COMBINATION
METER : Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)>>Replace the combination meter. Refer to MWI-94, "Removal and Installation".
YES (Past error)>>Error was detected in the combination meter branch line.
NO >> Repair the power supply and the ground circuit.
Combination meter harness connector
Resistance (Ω)
Connector No. Terminal No.
M24 1 2 Approx. 54 – 66
Page 4138 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN-398
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
ABS BRANCH LINE CIRCUIT
ABS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001333716
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. D NISSAN TIIDA 2007 Service Repair Manual LAN-398
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
ABS BRANCH LINE CIRCUIT
ABS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001333716
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. D](/manual-img/5/57395/w960_57395-4137.png)
LAN-398
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
ABS BRANCH LINE CIRCUIT
ABS BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001333716
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the ABS actuator and electric unit (control unit) for damage, bend
and loose connection (unit side and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of ABS actuator and electric unit (control unit).
2. Check the resistance between the ABS actuator and electric unit (control unit) harness connector termi-
nals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the ABS actuator and electric unit (control unit) branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the ABS actuator and electric unit (control unit). Refer to the
following.
ABS models: BRC-36, "
Diagnosis Procedure"
ESP models: BRC-116, "Diagnosis Procedure"
Is the inspection result normal?
YES (Present error)>>Replace the ABS actuator and electric unit (control unit). Refer to the following.
ABS models: BRC-85, "
Removal and Installation"
ESP models: BRC-184, "Removal and Installation"
YES (Past error)>>Error was detected in the ABS actuator and electric unit (control unit) branch line.
NO >> Repair the power supply and the ground circuit.
ABS actuator and electric unit (control unit) harness connector
Resistance (Ω)
Connector No. Terminal No.
E33 26 15 Approx. 54 – 66
Page 4139 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-399
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001333718
INSPECTION PROC NISSAN TIIDA 2007 Service Repair Manual LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-399
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001333718
INSPECTION PROC](/manual-img/5/57395/w960_57395-4138.png)
LAN
IPDM-E BRANCH LINE CIRCUIT
LAN-399
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
IPDM-E BRANCH LINE CIRCUIT
Diagnosis ProcedureINFOID:0000000001333718
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the terminals and connectors of the IPDM E/R for damage, bend and loose connection (unit side
and connector side).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect the connector of IPDM E/R.
2. Check the resistance between the IPDM E/R harness connector terminals.
Is the measurement value within the specification?
YES >> GO TO 3.
NO >> Repair the IPDM E/R branch line.
3.CHECK POWER SUPPLY AND GROUND CIRCUIT
Check the power supply and the ground circuit of the IPDM E/R. Refer to PCS-16, "
Diagnosis Procedure".
Is the inspection result normal?
YES (Present error)>>Replace the IPDM E/R. Refer to PCS-30, "Removal and Installation of IPDM E/R".
YES (Past error)>>Error was detected in the IPDM E/R branch line.
NO >> Repair the power supply and the ground circuit.
IPDM E/R harness connector
Resistance (Ω)
Connector No. Terminal No.
E46 41 40 Approx. 108 – 132
Page 4140 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN-400
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000001333719
INSPECTION PROCEDURE
1.CONNECTOR INSPECTION
1. Turn NISSAN TIIDA 2007 Service Repair Manual LAN-400
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000001333719
INSPECTION PROCEDURE
1.CONNECTOR INSPECTION
1. Turn](/manual-img/5/57395/w960_57395-4139.png)
LAN-400
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
CAN COMMUNICATION CIRCUIT
CAN COMMUNICATION CIRCUIT
Diagnosis ProcedureINFOID:0000000001333719
INSPECTION PROCEDURE
1.CONNECTOR INSPECTION
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect all the unit connectors on CAN communication system.
4. Check terminals and connectors for damage, bend and loose connection.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS CONTINUITY (SHORT CIRCUIT)
Check the continuity between the data link connector terminals.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Check the harness and repair the root cause.
3.CHECK HARNESS CONTINUITY (SHORT CIRCUIT)
Check the continuity between the data link connector and the ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Check the harness and repair the root cause.

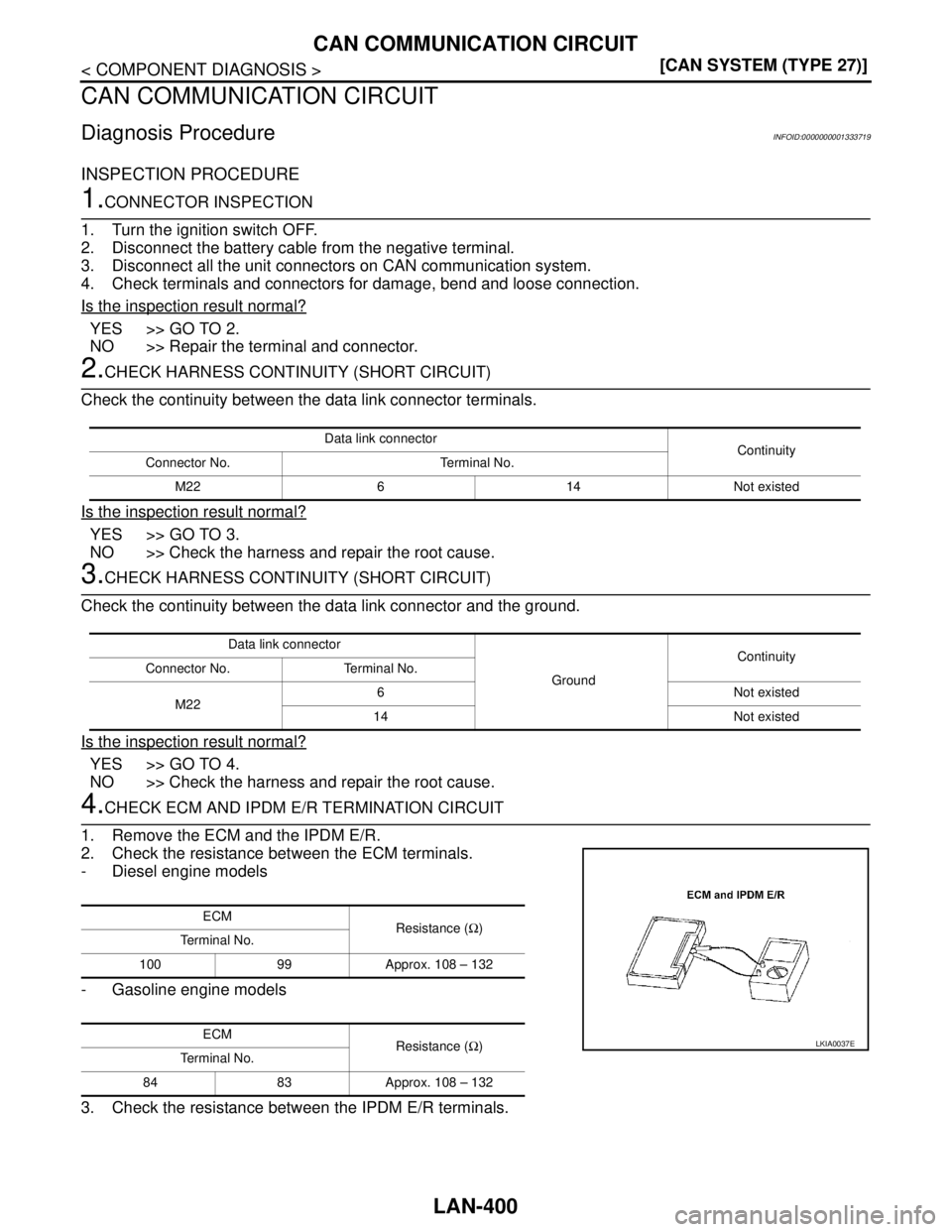

4.CHECK ECM AND IPDM E/R TERMINATION CIRCUIT
1. Remove the ECM and the IPDM E/R.
2. Check the resistance between the ECM terminals.
- Diesel engine models
- Gasoline engine models
3. Check the resistance between the IPDM E/R terminals.
Data link connector
Continuity
Connector No. Terminal No.
M22 6 14 Not existed
Data link connector
GroundContinuity
Connector No. Terminal No.
M226 Not existed
14 Not existed
ECM
Resistance (Ω)
Te r m i n a l N o .
100 99 Approx. 108 – 132
ECM
Resistance (Ω)
Te r m i n a l N o .
84 83 Approx. 108 – 132
LKIA0037E
Page 4141 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN
CAN COMMUNICATION CIRCUIT
LAN-401
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Is the measurement value within the specification?
YES >> GO TO 5.
NO >> Replace the E NISSAN TIIDA 2007 Service Repair Manual LAN
CAN COMMUNICATION CIRCUIT
LAN-401
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Is the measurement value within the specification?
YES >> GO TO 5.
NO >> Replace the E](/manual-img/5/57395/w960_57395-4140.png)
LAN
CAN COMMUNICATION CIRCUIT
LAN-401
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 27)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Is the measurement value within the specification?
YES >> GO TO 5.
NO >> Replace the ECM and/or the IPDM E/R.
5.CHECK SYMPTOM
Connect all the connectors. Check if the symptoms described in the “Symptom (Results from interview with
customer)” are reproduced.
Inspection result
Reproduced>>GO TO 6.
Non-reproduced>>Start the diagnosis again. Follow the trouble diagnosis procedure when past error is
detected.
6.CHECK UNIT REPRODUCTION
Perform the reproduction test as per the following procedure for each unit.
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Disconnect one of the unit connectors of CAN communication system.
NOTE:
ECM and IPDM E/R have a termination circuit. Check other units first.
4. Connect the battery cable to the negative terminal. Check if the symptoms described in the “Symptom
(Results from interview with customer)” are reproduced.
NOTE:
Although unit-related error symptoms occur, do not confuse them with other symptoms.
Inspection result
Reproduced>>Connect the connector. Check other units as per the above procedure.
Non-reproduced>>Replace the unit whose connector was disconnected.
IPDM E/R
Resistance (Ω)
Te r m i n a l N o .
41 40 Approx. 108 – 132
Page 4142 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN-402
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 28)]
MAIN LINE BETWEEN DLC AND AV CIRCUIT
COMPONENT DIAGNOSIS
MAIN LINE BETWEEN DLC AND AV CIRCUIT
Diagnosis ProcedureINFOID:0000000001333671
INSPECTIO NISSAN TIIDA 2007 Service Repair Manual LAN-402
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 28)]
MAIN LINE BETWEEN DLC AND AV CIRCUIT
COMPONENT DIAGNOSIS
MAIN LINE BETWEEN DLC AND AV CIRCUIT
Diagnosis ProcedureINFOID:0000000001333671
INSPECTIO](/manual-img/5/57395/w960_57395-4141.png)
LAN-402
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 28)]
MAIN LINE BETWEEN DLC AND AV CIRCUIT
COMPONENT DIAGNOSIS
MAIN LINE BETWEEN DLC AND AV CIRCUIT
Diagnosis ProcedureINFOID:0000000001333671
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the following terminals and connectors for damage, bend and loose connection (connector side
and harness side).
- Harness connector M14
- Harness connector B3
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
1. Disconnect the harness connectors M14 and B3.
2. Check the continuity between the data link connector and the harness connector.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair the main line between the data link connector and the harness connector M14.
3.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
Check the continuity between the harness connector terminals.
Is the inspection result normal?
YES (Present error)>>Check CAN system type decision again.
YES (Past error)>>Error was detected in the main line between the data link connector and the NAVI control
unit.
NO >> Repair the main line between the harness connector B3 and the NAVI control unit.
Data link connector Harness connector
Continuity
Connector No. Terminal No. Connector No. Terminal No.
M226
M141 Existed
14 17 Existed
Connector No. Terminal No. Continuity
B31 16 Existed
17 32 Existed
Page 4143 of 5883
![NISSAN TIIDA 2007 Service Repair Manual LAN
MAIN LINE BETWEEN AV AND ABS CIRCUIT
LAN-403
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 28)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
MAIN LINE BETWEEN AV AND ABS CIRCUIT
Diagnosis ProcedureINFOID:000000000133 NISSAN TIIDA 2007 Service Repair Manual LAN
MAIN LINE BETWEEN AV AND ABS CIRCUIT
LAN-403
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 28)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
MAIN LINE BETWEEN AV AND ABS CIRCUIT
Diagnosis ProcedureINFOID:000000000133](/manual-img/5/57395/w960_57395-4142.png)
LAN
MAIN LINE BETWEEN AV AND ABS CIRCUIT
LAN-403
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 28)]
C
D
E
F
G
H
I
J
K
L B A
O
P N
MAIN LINE BETWEEN AV AND ABS CIRCUIT
Diagnosis ProcedureINFOID:0000000001333673
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn the ignition switch OFF.
2. Disconnect the battery cable from the negative terminal.
3. Check the following terminals and connectors for damage, bend and loose connection (connector side
and harness side).
- Harness connector B3
- Harness connector M14
- Harness connector M69
- Harness connector E7
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair the terminal and connector.
2.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
1. Disconnect the harness connectors B3 and M14.
2. Check the continuity between the harness connector terminals.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair the main line between the NAVI control unit and the harness connector B3.
3.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
1. Disconnect the harness connectors M69 and E7.
2. Check the continuity between the harness connectors.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair the main line between the harness connectors M14 and M69.
4.CHECK HARNESS CONTINUITY (OPEN CIRCUIT)
1. Disconnect the connector of ABS actuator and electric unit (control unit).
2. Check the continuity between the harness connector and the ABS actuator and electric unit (control unit)
harness connector.
Is the inspection result normal?
YES (Present error)>>Check CAN system type decision again.
Connector No. Terminal No. Continuity
B31 16 Existed
17 32 Existed
Harness connector Harness connector
Continuity
Connector No. Terminal No. Connector No. Terminal No.
M1416
M6932A Existed
32 31A Existed
Harness connectorABS actuator and electric unit (control unit)
harness connector
Continuity
Connector No. Terminal No. Connector No. Terminal No.
E732A
E3326 Existed
31A 15 Existed
Page 4144 of 5883
LAN-404
< COMPONENT DIAGNOSIS >[CAN SYSTEM (TYPE 28)]
MAIN LINE BETWEEN AV AND ABS CIRCUIT
YES (Past error)>>Error was detected in the main line between the NAVI control unit and the ABS actuator
and electric unit (control unit).
NO >> Repair the main line between the harness connector E7 and the ABS actuator and electric unit
(control unit).
