NISSAN TIIDA 2007 Service Repair Manual EM-34
< ON-VEHICLE REPAIR >[HR16DE]
EXHAUST MANIFOLD
1. Tighten nuts in numerical order shown.
2. Tighten to the specified torque again.
: Engine front
PBIC3774E

Page 2682 of 5883

NISSAN TIIDA 2007 Service Repair Manual FUEL INJECTOR AND FUEL TUBE
EM-35
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

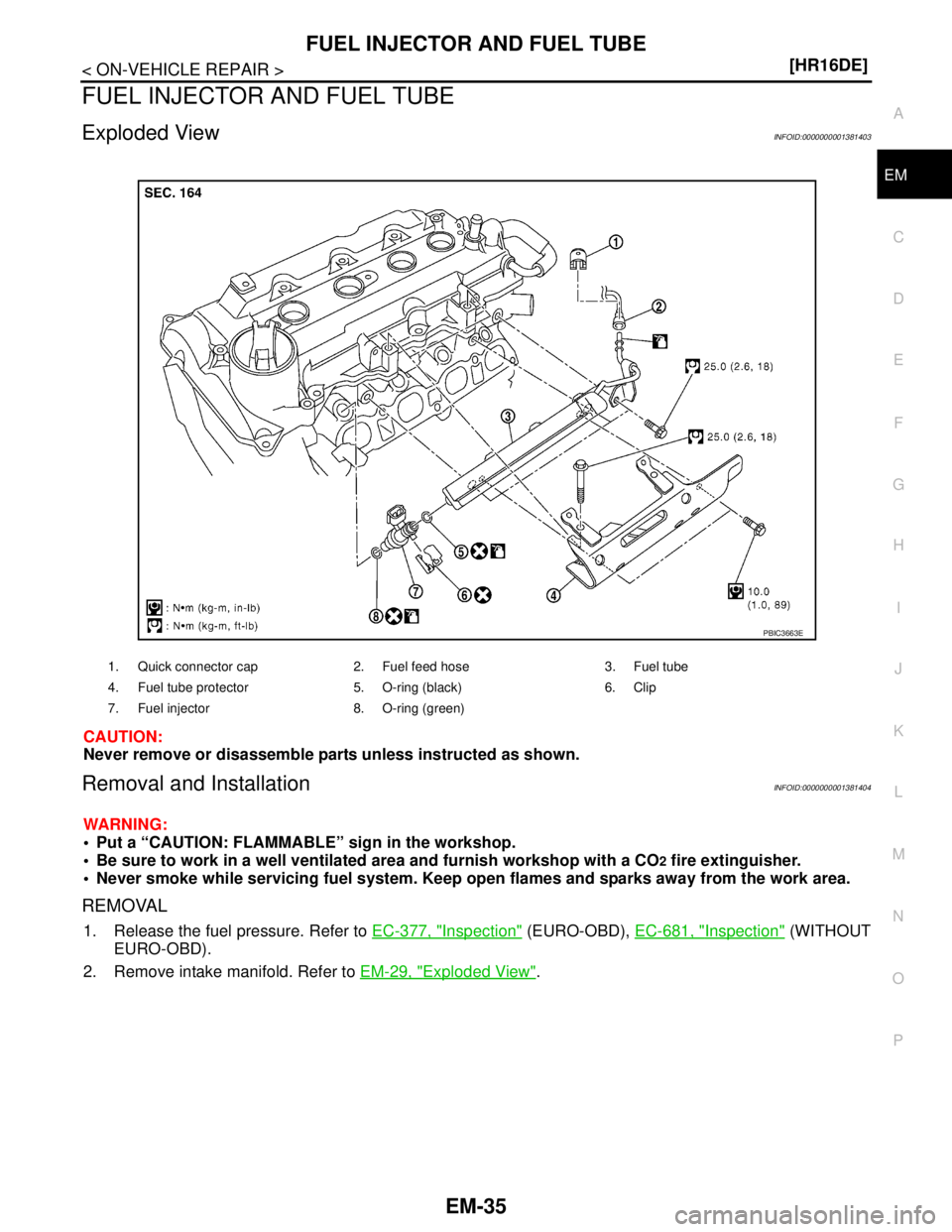

FUEL INJECTOR AND FUEL TUBE
Exploded ViewINFOID:0000000001381403
CAUTION:
Never remove or disassemble pa

Page 2683 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-36
< ON-VEHICLE REPAIR >[HR16DE]
FUEL INJECTOR AND FUEL TUBE

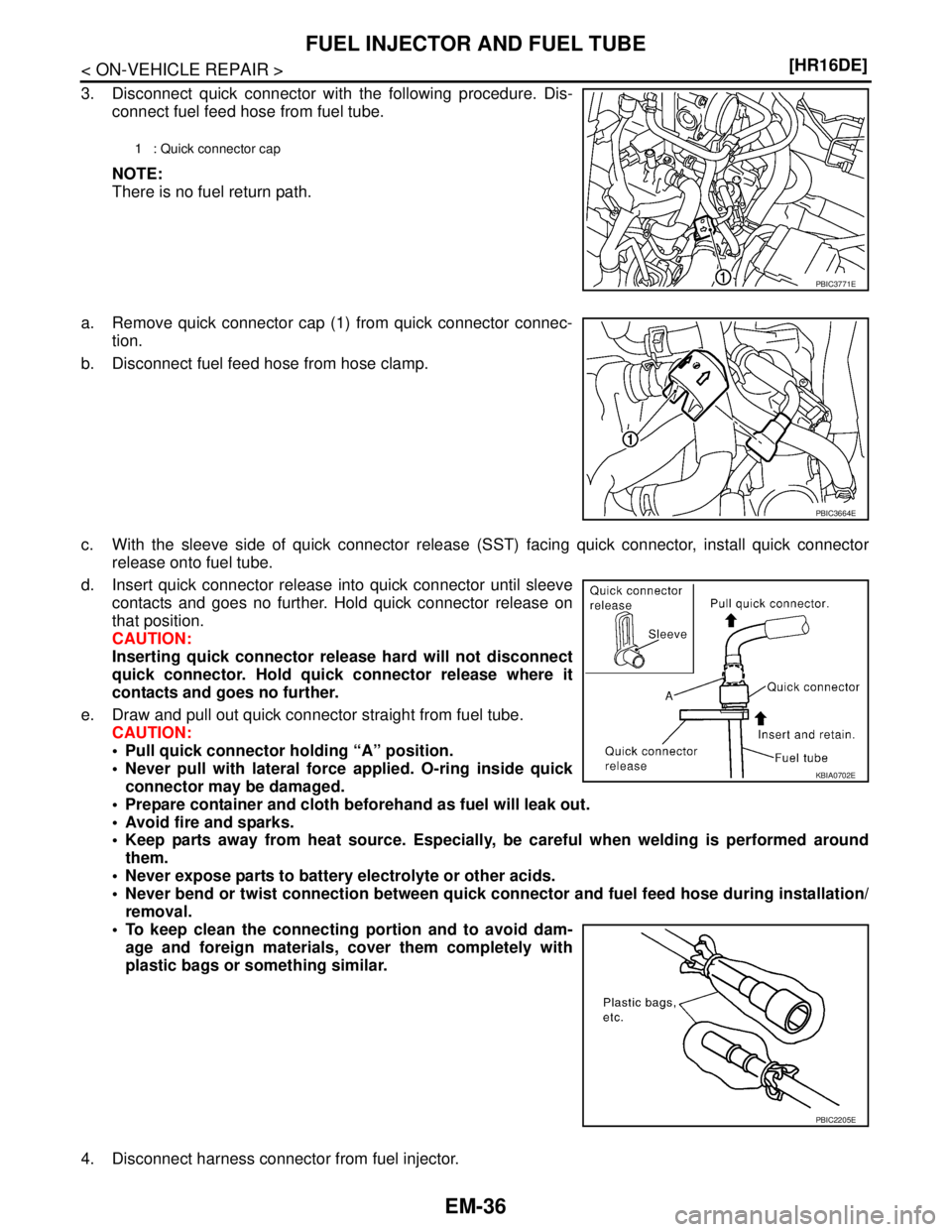

3. Disconnect quick connector with the following procedure. Dis-
connect fuel feed hose from fuel tube.
NOTE:
There is no fuel return pa

Page 2684 of 5883

NISSAN TIIDA 2007 Service Repair Manual FUEL INJECTOR AND FUEL TUBE
EM-37
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

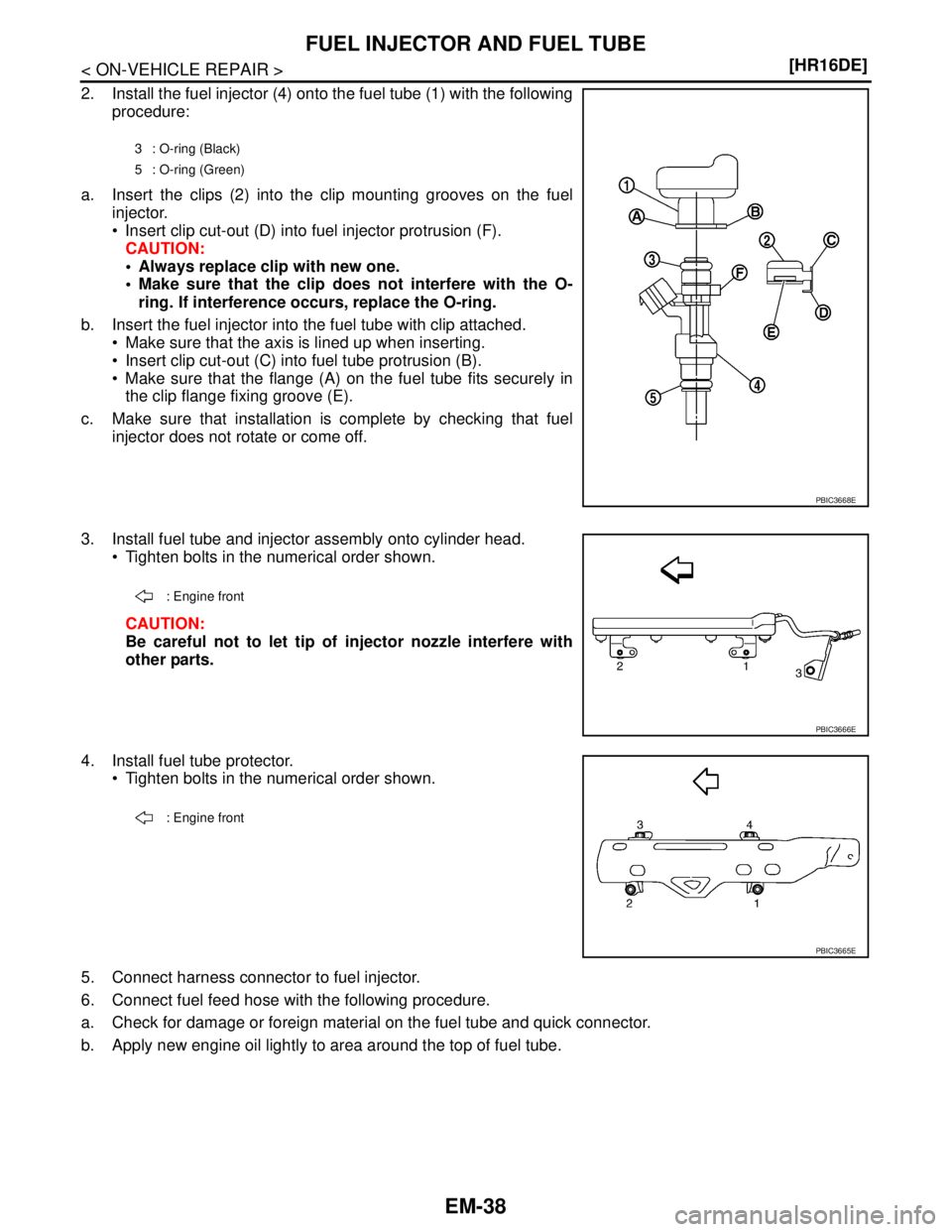

5. Remove fuel tube protector.
Loosen bolts in the reverse of the order shown.
6. Remove the fuel inje

Page 2685 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-38
< ON-VEHICLE REPAIR >[HR16DE]
FUEL INJECTOR AND FUEL TUBE

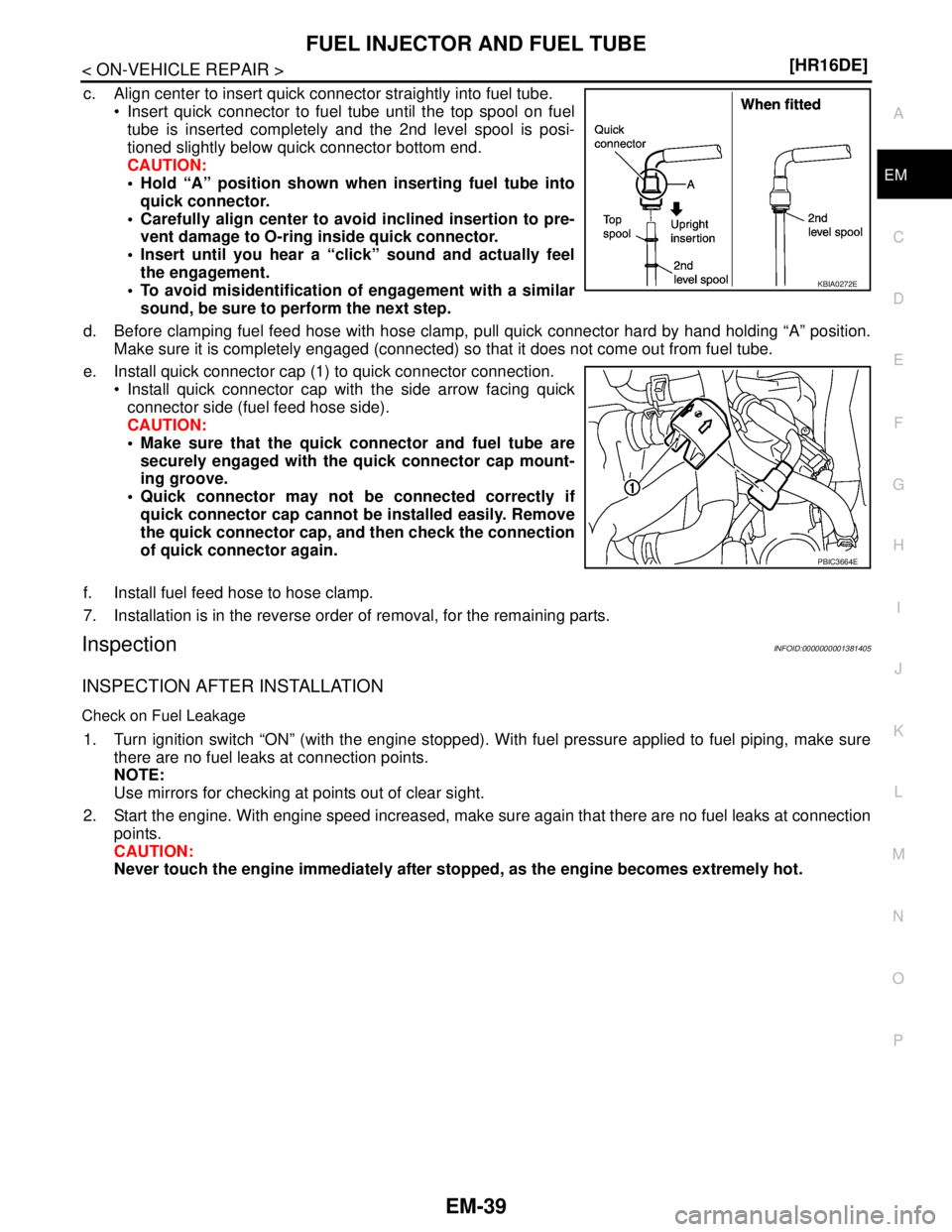

2. Install the fuel injector (4) onto the fuel tube (1) with the following
procedure:
a. Insert the clips (2) into the clip mounting gro

Page 2686 of 5883

NISSAN TIIDA 2007 Service Repair Manual FUEL INJECTOR AND FUEL TUBE
EM-39
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
c. Align center to insert quick connector straightly into fuel tube.
Insert quick connector to fuel tu

FUEL INJECTOR AND FUEL TUBE
EM-39
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
c. Align center to insert quick connector straightly into fuel tube.
Insert quick connector to fuel tube until the top spool on fuel
tube is inserted completely and the 2nd level spool is posi-
tioned slightly below quick connector bottom end.
CAUTION:
Hold “A” position shown when inserting fuel tube into
quick connector.
Carefully align center to avoid inclined insertion to pre-
vent damage to O-ring inside quick connector.
Insert until you hear a “click” sound and actually feel
the engagement.
To avoid misidentification of engagement with a similar
sound, be sure to perform the next step.
d. Before clamping fuel feed hose with hose clamp, pull quick connector hard by hand holding “A” position.
Make sure it is completely engaged (connected) so that it does not come out from fuel tube.
e. Install quick connector cap (1) to quick connector connection.
Install quick connector cap with the side arrow facing quick
connector side (fuel feed hose side).
CAUTION:
Make sure that the quick connector and fuel tube are
securely engaged with the quick connector cap mount-
ing groove.
Quick connector may not be connected correctly if
quick connector cap cannot be installed easily. Remove
the quick connector cap, and then check the connection
of quick connector again.
f. Install fuel feed hose to hose clamp.
7. Installation is in the reverse order of removal, for the remaining parts.
InspectionINFOID:0000000001381405
INSPECTION AFTER INSTALLATION
Check on Fuel Leakage
1. Turn ignition switch “ON” (with the engine stopped). With fuel pressure applied to fuel piping, make sure
there are no fuel leaks at connection points.
NOTE:
Use mirrors for checking at points out of clear sight.
2. Start the engine. With engine speed increased, make sure again that there are no fuel leaks at connection
points.
CAUTION:
Never touch the engine immediately after stopped, as the engine becomes extremely hot.
KBIA0272E
PBIC3664E

Page 2687 of 5883

NISSAN TIIDA 2007 Service Repair Manual EM-40
< ON-VEHICLE REPAIR >[HR16DE]

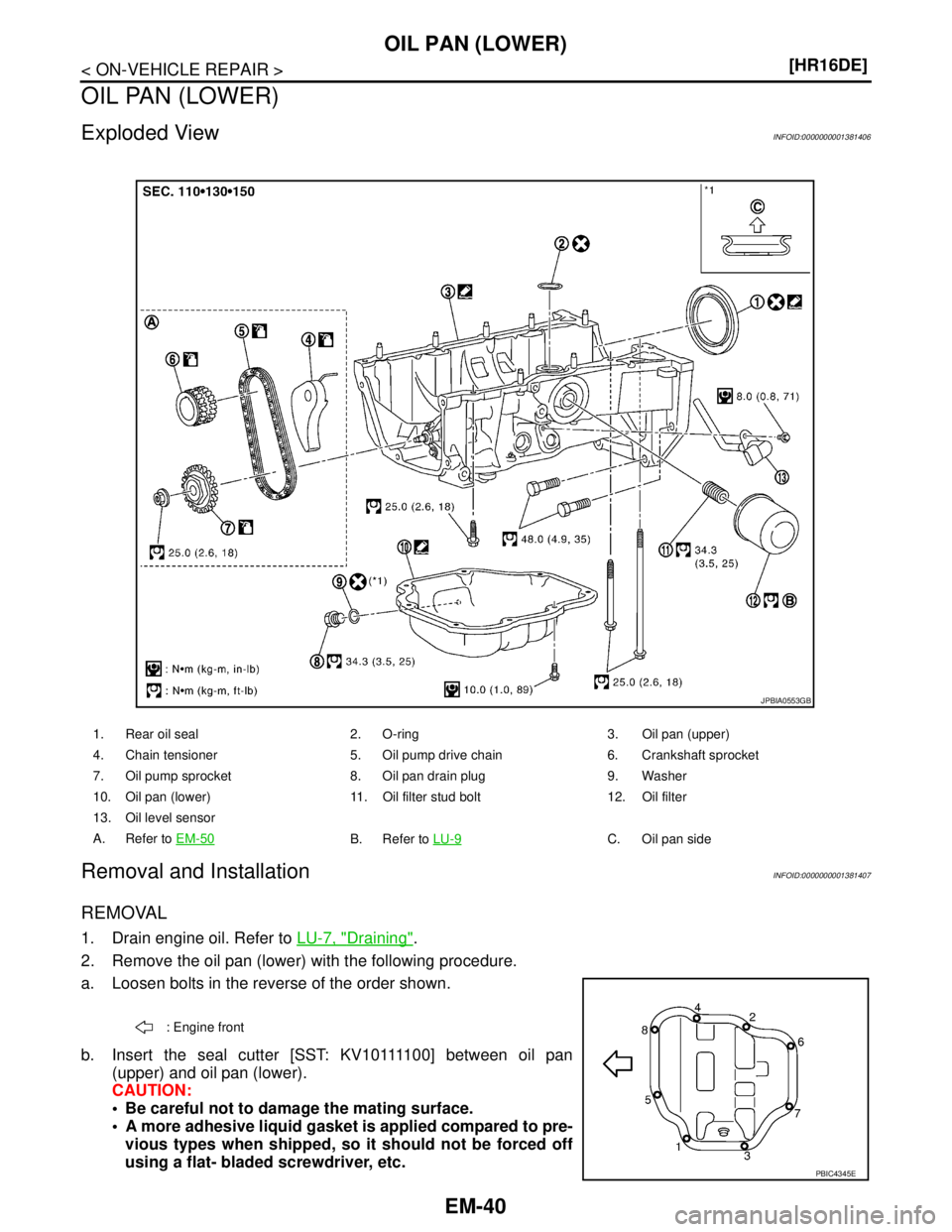

OIL PAN (LOWER)
OIL PAN (LOWER)
Exploded ViewINFOID:0000000001381406
Removal and InstallationINFOID:0000000001381407
REMOVAL
1. Drain engine oil. Refer to LU-7, "Dr

Page 2688 of 5883

NISSAN TIIDA 2007 Service Repair Manual OIL PAN (LOWER)
EM-41
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

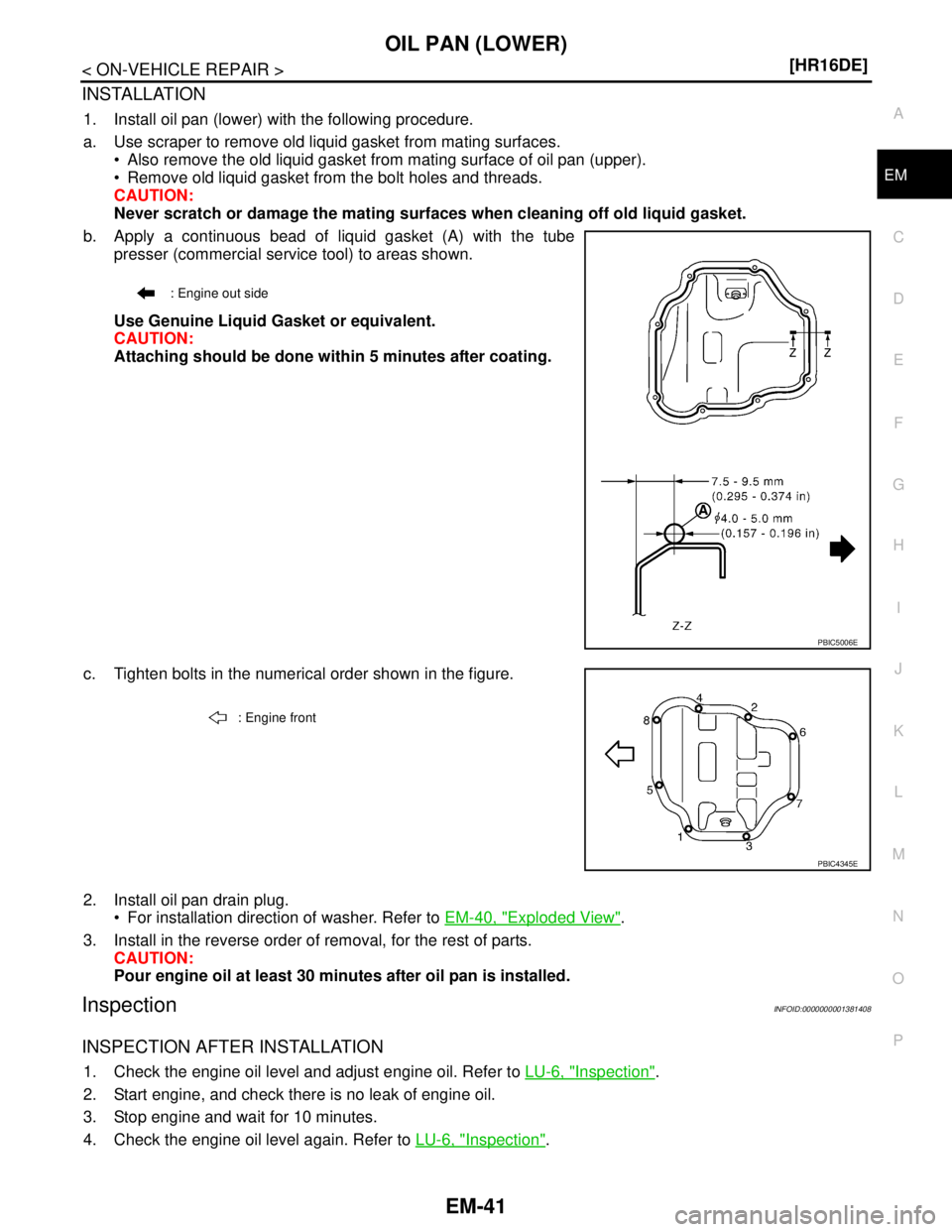

INSTALLATION
1. Install oil pan (lower) with the following procedure.
a. Use scraper to remove old liquid gasket fro
