COMPONENT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
SUNROOF MOTOR ASSEMBLY
SUNROOF MOTOR ASSEMBLY : Diagnosis ProcedureINFOID:0000000001724564
SUNROOF MOTOR ASSEMBLY
1. CHECK SUNROOF MOTOR POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector R4.
3. Turn ignition switch ON.
4. Check voltage between sunroof motor assembly connector R4
terminals 7 and 9 and ground.
Is the voltage as specified?
YES >> GO TO 4
NO, TERMINAL 7>>Check sunroof motor circuit breaker, connector and harness. Refer to PG section, main
wire harness layout.
NO, TERMINAL 9>>GO TO 2
2. CHECK SUNROOF MOTOR RETAINED POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector M20.
3. Check continuity between BCM connector M20 (A) and sunroof
motor assembly connector R4 (B).
4. Check continuity between BCM connector M20 (A) and ground.
Are the continuity test results as specified?
YES >> GO TO 3
NO >> Repair or replace harness.
3. CHECK GROUND CIRCUIT
(+)
(–) Voltage
Connector Terminal
R47
Ground Battery voltage
9
ALKIA1176GB
AB
Continuity
Connector Terminal Connector Terminal
M20 78 R4 9 Yes
A
—Continuity
Connector Terminal
M20 78 Ground No
ALKIA1227GB
Page 4546 of 5883
RF-12
< COMPONENT DIAGNOSIS >
POWER SUPPLY AND GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between sunroof motor assembly connector
R4 terminal 10 and ground.
Is the continuity test result as specified?
YES >> Power supply and ground circuits are OK.
NO >> Repair or replace harness.
SUNROOF MOTOR ASSEMBLY : Special Repair RequirementINFOID:0000000001724565
1. PERFORM INITIALIZATION PROCEDURE
Perform initialization procedure.
Refer to RF-7, "
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Requirement".
Does the sunroof motor assembly operate properly?
YES >> Repair is complete.
NO >> Check fitting adjustment.
Connector Terminal — Continuity
R4 10 Ground Yes
ALKIA1178GB
Page 4547 of 5883

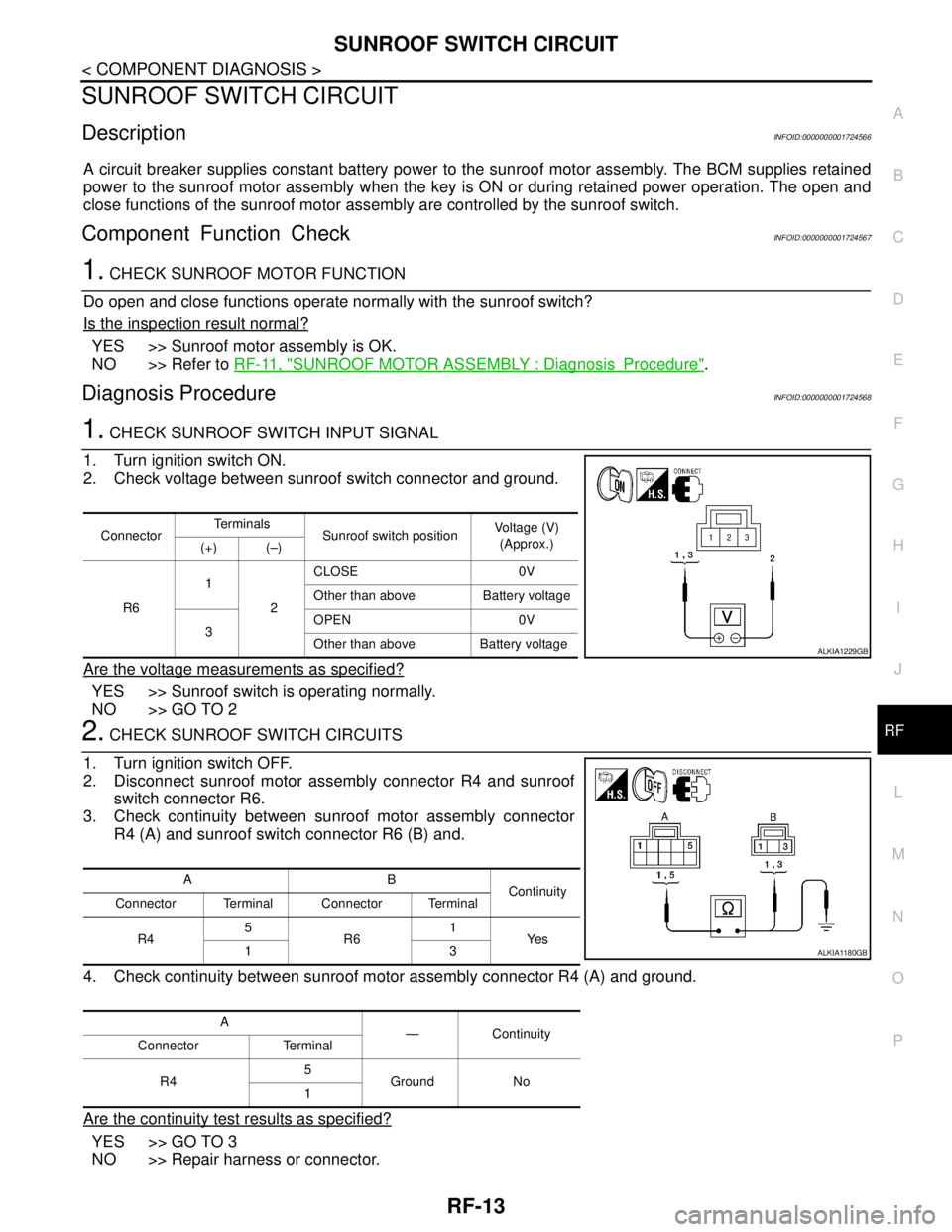

SUNROOF SWITCH CIRCUIT
RF-13
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
SUNROOF SWITCH CIRCUIT
DescriptionINFOID:0000000001724566
A circuit breaker supplies constant battery power to the sunroof motor assembly. The BCM supplies retained
power to the sunroof motor assembly when the key is ON or during retained power operation. The open and
close functions of the sunroof motor assembly are controlled by the sunroof switch.
Component Function CheckINFOID:0000000001724567
1. CHECK SUNROOF MOTOR FUNCTION
Do open and close functions operate normally with the sunroof switch?
Is the inspection result normal?
YES >> Sunroof motor assembly is OK.
NO >> Refer to RF-11, "
SUNROOF MOTOR ASSEMBLY : DiagnosisProcedure".
Diagnosis ProcedureINFOID:0000000001724568
1. CHECK SUNROOF SWITCH INPUT SIGNAL
1. Turn ignition switch ON.
2. Check voltage between sunroof switch connector and ground.
Are the voltage measurements as specified?
YES >> Sunroof switch is operating normally.
NO >> GO TO 2
2. CHECK SUNROOF SWITCH CIRCUITS
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector R4 and sunroof
switch connector R6.
3. Check continuity between sunroof motor assembly connector
R4 (A) and sunroof switch connector R6 (B) and.
4. Check continuity between sunroof motor assembly connector R4 (A) and ground.
Are the continuity test results as specified?
YES >> GO TO 3
NO >> Repair harness or connector.
ConnectorTe r m i n a l s
Sunroof switch positionVoltage (V)
(Approx.)
(+) (–)
R61
2CLOSE 0V
Other than above Battery voltage
3OPEN 0V
Other than above Battery voltage
ALKIA1229GB
AB
Continuity
Connector Terminal Connector Terminal
R45
R61
Ye s
13
A
—Continuity
Connector Terminal
R45
Ground No
1
ALKIA1180GB
Page 4548 of 5883
RF-14
< COMPONENT DIAGNOSIS >
SUNROOF SWITCH CIRCUIT
3. CHECK SUNROOF SWITCH
1. Check continuity between sunroof switch terminals.
Are the continuity test results as specified?
YES >> Sunroof switch is operating normally.
NO >> Replace sunroof switch (map lamp assembly). Refer to
XX-XX, "*****"
.
Terminals Sunroof switch position Continuity
1
2CLOSE Yes
Other than above No
3OPEN Yes
Other than above No
ALKIA1181GB
Page 4549 of 5883

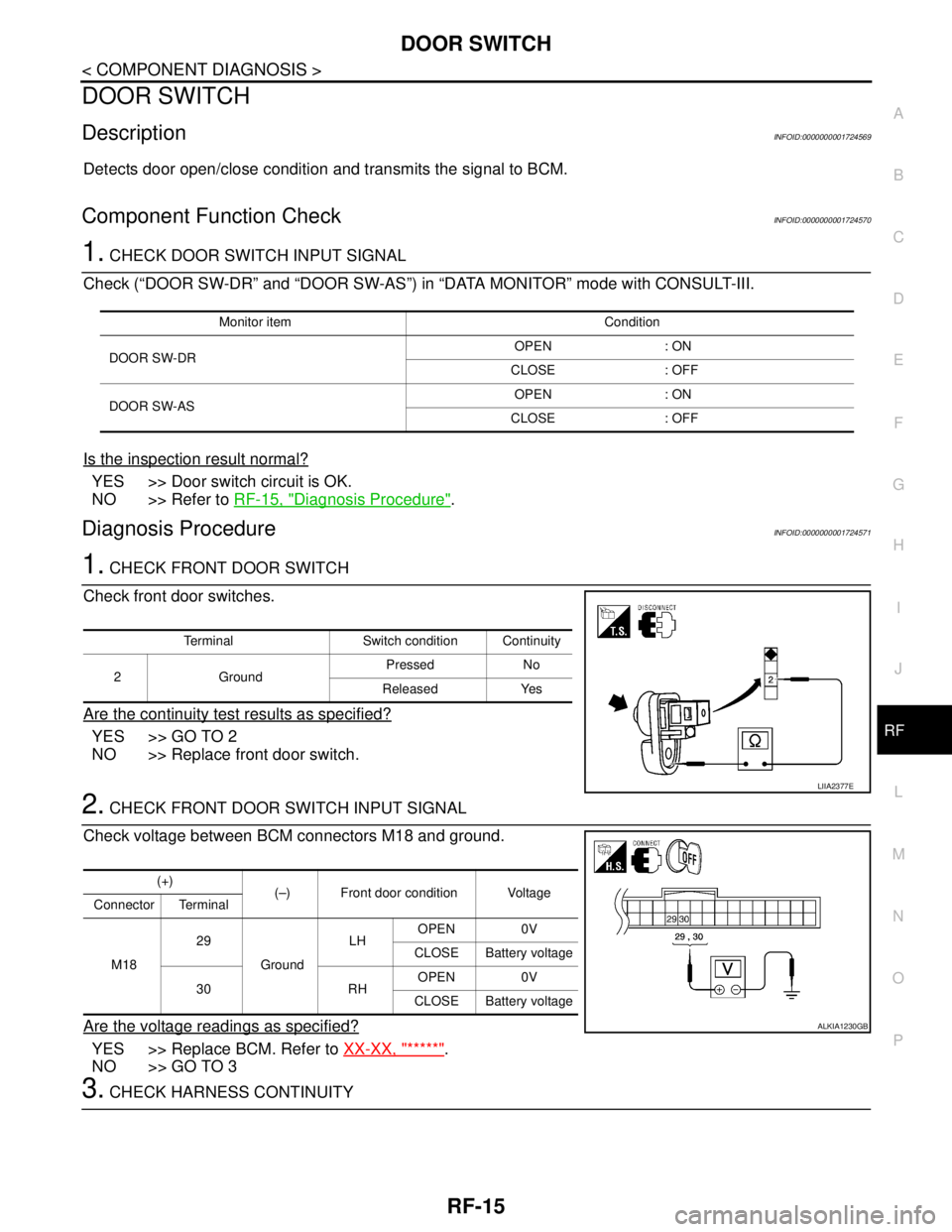

DOOR SWITCH
RF-15
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
DOOR SWITCH
DescriptionINFOID:0000000001724569
Detects door open/close condition and transmits the signal to BCM.
Component Function CheckINFOID:0000000001724570
1. CHECK DOOR SWITCH INPUT SIGNAL
Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III.
Is the inspection result normal?
YES >> Door switch circuit is OK.
NO >> Refer to RF-15, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001724571
1. CHECK FRONT DOOR SWITCH
Check front door switches.
Are the continuity test results as specified?
YES >> GO TO 2
NO >> Replace front door switch.
2. CHECK FRONT DOOR SWITCH INPUT SIGNAL
Check voltage between BCM connectors M18 and ground.
Are the voltage readings as specified?
YES >> Replace BCM. Refer to XX-XX, "*****".
NO >> GO TO 3
3. CHECK HARNESS CONTINUITY
Monitor item Condition
DOOR SW-DROPEN : ON
CLOSE : OFF
DOOR SW-ASOPEN : ON
CLOSE : OFF
Terminal Switch condition Continuity
2GroundPressed No
Released Yes
LIIA2377E
(+)
(–) Front door condition Voltage
Connector Terminal
M1829
GroundLHOPEN 0V
CLOSE Battery voltage
30 RHOPEN 0V
CLOSE Battery voltage
ALKIA1230GB
Page 4550 of 5883
RF-16
< COMPONENT DIAGNOSIS >
DOOR SWITCH
1. Turn ignition switch OFF.
2. Disconnect BCM connectors M18 and front door switch connec-
tors B27 and B34.
3. Check continuity between BCM connectors M18 (A) and front
door switch connectors B27 and B34 (B).
4. Check continuity between BCM connectors M20 (A) and ground.
Are the continuity test results as specified?
YES >> Replace BCM. Refer to XX-XX, "*****".
NO >> Repair or replace harness.
AB
Continuity
Connector Terminal Connector Terminal
M1829 LH B34
2Yes
30 RH B27
A
— Continuity
Connector Terminal
M1829
Ground No
30
ALKIA1231GB
Page 4551 of 5883
BCM (BODY CONTROL MODULE)
RF-17
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
ECU DIAGNOSIS
BCM (BODY CONTROL MODULE)
Reference ValueINFOID:0000000001724572
VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT
Refer to XX-XX, "*****".
PHYSICAL VALUES
Refer to XX-XX, "*****".
WIRING DIAGRAM
Refer to XX-XX, "*****".
DTC INSPECTION
Refer to XX-XX, "*****".
DTC INDEX
Refer to XX-XX, "*****".
Monitor Item Condition Value/Status
DOOR SW-DRFront door LH closed OFF
Front door LH opened ON
DOOR SW-ASFront door RH closed OFF
Front door LH opened ON
Page 4552 of 5883

RF-18
< ECU DIAGNOSIS >
SUNROOF SYSTEM
SUNROOF SYSTEM
Reference ValueINFOID:0000000001724573
TERMINAL LAYOUT
PHYSICAL VALUES
WIIA1344E
Te r m i n a l N o .
(Wire color)Description
ConditionVoltage (V)
(Approx.)
+ - Signal nameInput/
Output
1
(SB)GroundSunroof switch (OPEN)
signalInputIgnition switch ON and sun-
roof switch in OPEN position0V
Ignition switch ON and sun-
roof switch in OFF positionBattery voltage
5
(R)GroundSunroof switch (CLOSE)
signalInputIgnition switch ON and sun-
roof switch in CLOSE position0V
Ignition switch ON and sun-
roof switch in OFF positionBattery voltage
7
(P)Ground BAT power supply Input — Battery voltage
8
(W)Ground Vehicle speed signal InputSpeedometer operated [when
vehicle speed is approx. 40
km/h (25 MPH)]
9
(SB)Ground RAP signal InputIgnition switch ON Battery voltage
Within 45 seconds after igni-
tion switch turned OFFBattery voltage
When front door LH or RH is
opened while retained power
is operating0V
10
(B)Ground Ground Input — 0V
ELF1080D
