Page 1841 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-492
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
P0117, P0118 ECT SENSOR
P0117, P0118 ECT SENSOR
DescriptionINFOID:0000000001693242
The engine coolant temperature sensor is used to detect the

Page 1842 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0117, P0118 ECT SENSOR
EC-493
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Diagnosis ProcedureINFOID:0000000001693244
1.CHECK GROUND CONNECTION
1. Turn ignition

Page 1843 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-494
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
P0117, P0118 ECT SENSOR
4. Check resistance between engine coolant temperature sensor
terminals by heating with hot water as shown in the figu

Page 1844 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0122, P0123 TP SENSOR
EC-495
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

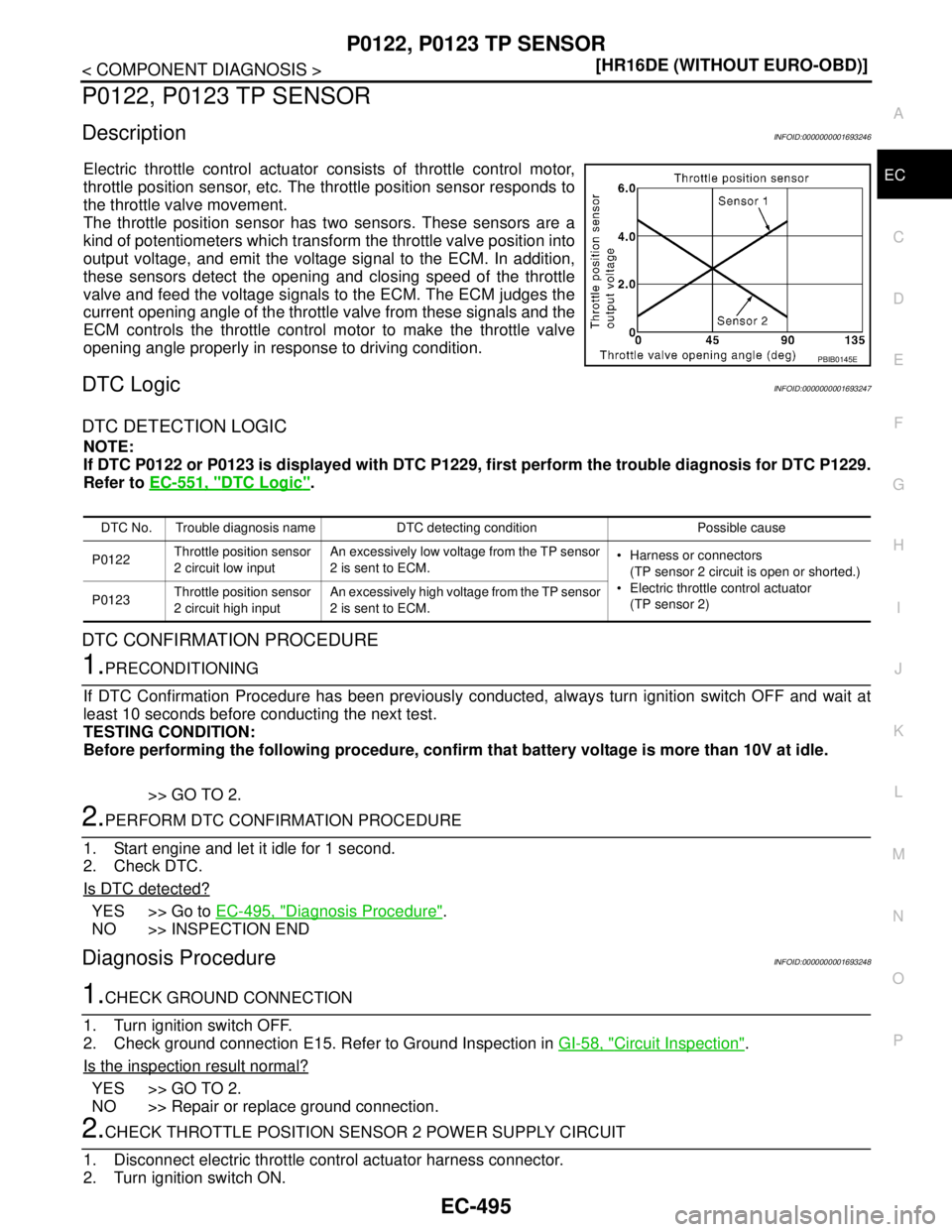

P0122, P0123 TP SENSOR
DescriptionINFOID:0000000001693246
Electric throttle control act

P0122, P0123 TP SENSOR
EC-495
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P0122, P0123 TP SENSOR
DescriptionINFOID:0000000001693246
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
DTC LogicINFOID:0000000001693247
DTC DETECTION LOGIC
NOTE:
If DTC P0122 or P0123 is displayed with DTC P1229, first perform the trouble diagnosis for DTC P1229.
Refer to EC-551, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-495, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001693248
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT
1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122Throttle position sensor
2 circuit low inputAn excessively low voltage from the TP sensor
2 is sent to ECM. Harness or connectors
(TP sensor 2 circuit is open or shorted.)
Electric throttle control actuator
(TP sensor 2) P0123Throttle position sensor
2 circuit high inputAn excessively high voltage from the TP sensor
2 is sent to ECM.

Page 1845 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-496
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
P0122, P0123 TP SENSOR
3. Check the voltage between electric throttle control actuator harness connector and ground.
Is the inspection result

Page 1846 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0122, P0123 TP SENSOR
EC-497
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component InspectionINFOID:0000000001693249
1.CHECK THROTTLE POSITION SENSOR
1. Turn ig

Page 1847 of 5883

NISSAN TIIDA 2007 Service Repair Manual EC-498
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]

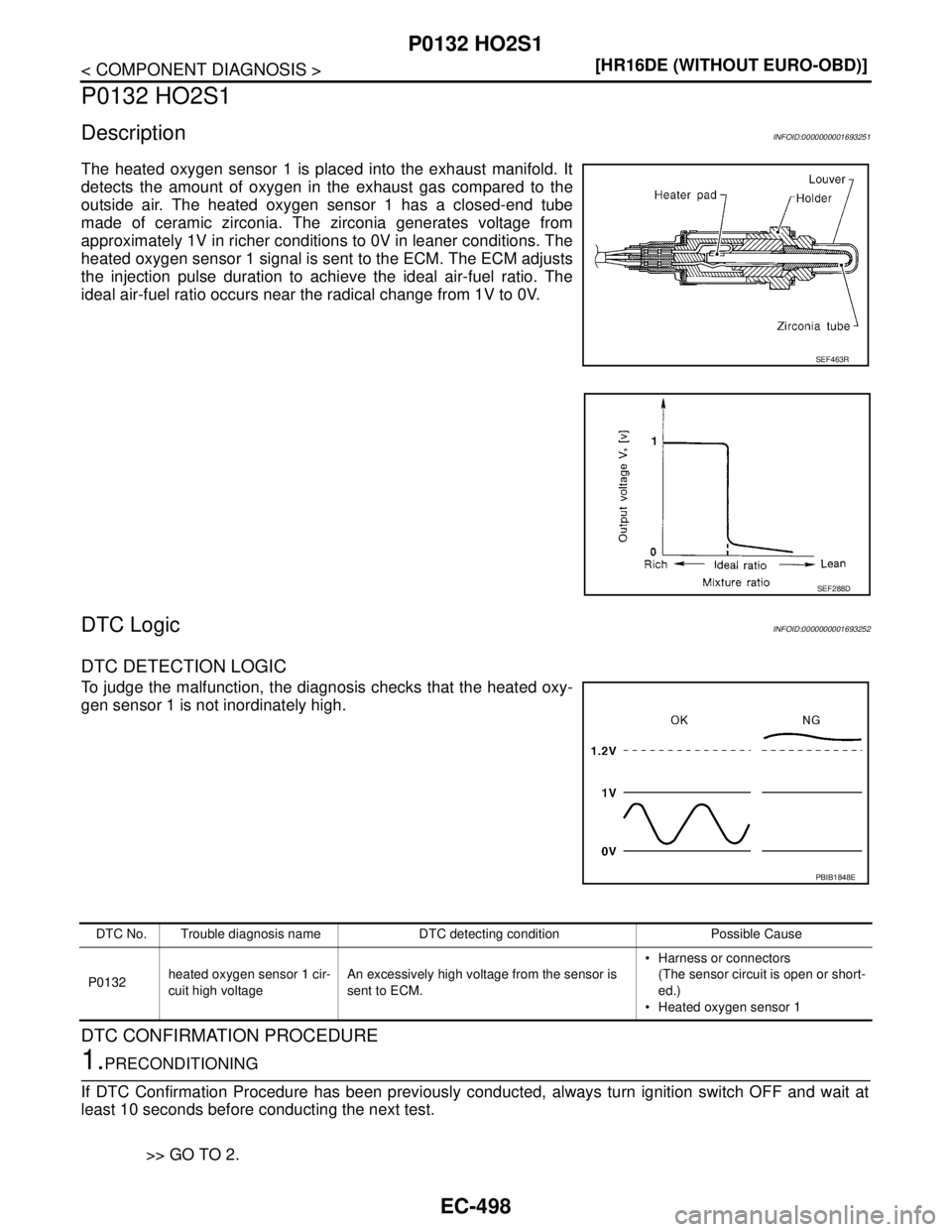

P0132 HO2S1
P0132 HO2S1
DescriptionINFOID:0000000001693251
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amou

Page 1848 of 5883

NISSAN TIIDA 2007 Service Repair Manual P0132 HO2S1
EC-499
< COMPONENT DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and warm it up to normal operating temperatur
